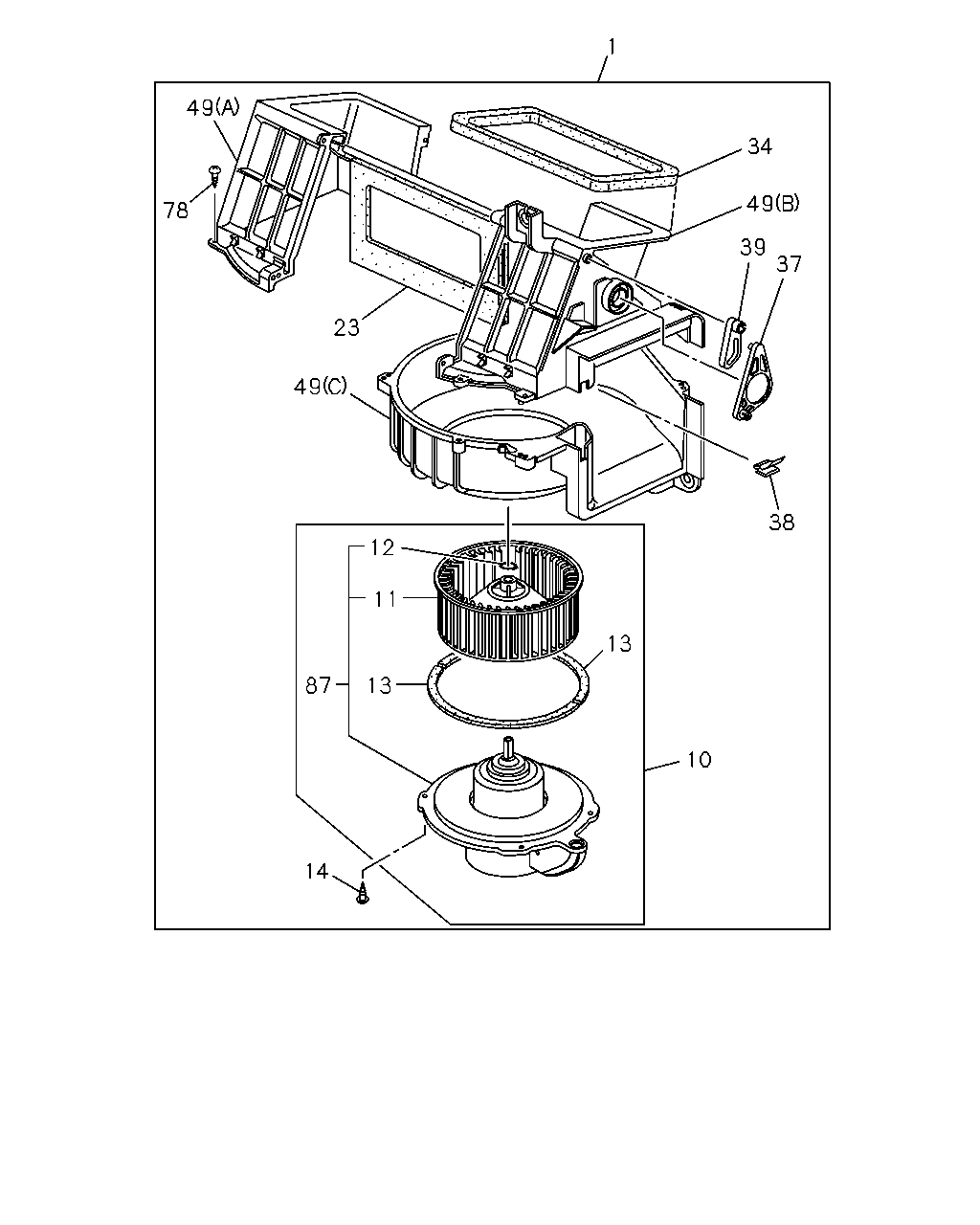

8-73 — BLOWER UNIT (#47903) — 17 parça

1 34 49 39 37 38 49 23 78 49 12 11 13 87 14 10 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	08.855 BLOWER ASM HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97139-526-1	01	1	9611-	●	●	●	●	●	●	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97103-726-0	01	1	9611-	●	●	●	●	●	●	●	●
11	08.857 IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97089-700-0	01	1	9611-	●	●	●	●	●	●	●	●
12	08.857 RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94243-962-0	01	1	9611-	●	●	●	●	●	●	●	●
13	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-816-0	02	1	9611-	●	●	●	●	●	●	●	●
14	08.857 SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 10.240 M5X20	9-09829-324-1	04	1	9611-	●	●	●	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-818-2	01	1	9611-	●	●	●	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94327-437-0	01	1	9611-	●	●	●	●	●	●	●	●
37	09.786 LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94327-435-2	01	1	9611-	●	●	●	●	●	●	●	●
38	09.787 CLIP; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94337-654-0	01	1	9611-	●	●	●	●	●	●	●	●
39	09.786 LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94327-436-0	01	1	9611-9704	●	●	●	●	●	●	●	●
39	09.786 LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97178-223-0	01	1	9705-	●	●	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-94327-430-1	01	1	9611-	●	●	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-94327-431-1	01	1	9611-	●	●	●	●	●	●	●	●
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C)	8-94327-432-1	01	1	9611-	●	●	●	●	●	●	●	●
78	08.857 SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	08	1	9611-	●	●	●	●	●	●	●	●
87	08.855 MOTOR ASM; FAN HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97106-493-1	01	1	9611-	●	●	●	●	●	●	●	●
