8-60 — HEATER UNIT; FRONT (#47899) — 39 parça

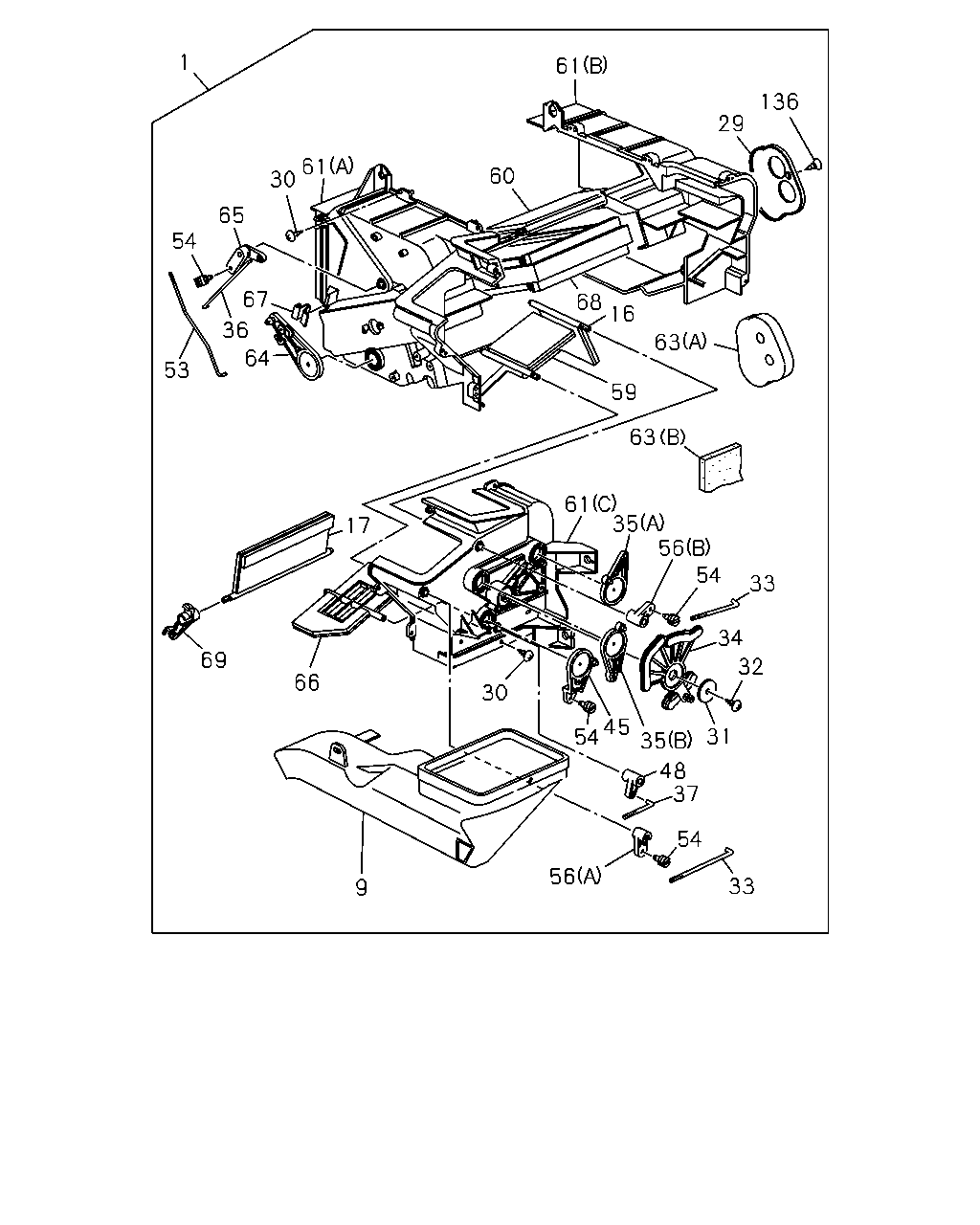

çizim 18655
33 54 56 37 48 35 45 54 31 32 34 33 54 56 35 61 30 9 66 69 17 53 64 36 67 54 65 30 61 1 60 61 136 29 68 16 63 59 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 08.845 HEATER UNIT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97118-552-0 01 1 9611- ● ● ● ● ● ● ● ●
1 08.845 HEATER UNIT
6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97177-163-0 01 1 9712- ● ● ● ●
9 08.854 DUCT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97120-825-0 01 1 9611- ● ● ● ● ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.854 		8-94328-631-0 01 1 9611- ● ● ● ● ● ● ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94328-641-0 01 1 9611- ● ● ● ● ● ● ● ●
29 08.857 COVER; HTR UNIT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 		8-97045-865-0 01 1 9611- ● ● ● ● ● ● ● ●
29 08.857 COVER; HTR UNIT
6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.854 		8-97045-862-0 01 1 9712- ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-94324-850-0 13 1 9611- ● ● ● ● ● ● ● ●
31 08.852 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94129-950-0 01 1 9611- ● ● ● ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 9611- ● ● ● ● ● ● ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-94328-635-0 02 1 9611- ● ● ● ● ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97045-861-0 01 1 9611- ● ● ● ● ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94328-645-1 01 1 9611- ● ● ● ● ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97045-860-0 01 1 9611- ● ● ● ● ● ● ● ●
36 08.852 ROD; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.786 		8-94324-847-0 01 1 9611- ● ● ● ● ● ● ● ●
37 08.852 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-848-0 01 1 9611- ● ● ● ● ● ● ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94328-646-1 01 1 9611- ● ● ● ● ● ● ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-94328-627-0 01 1 9611- ● ● ● ● ● ● ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-846-0 01 1 9611- ● ● ● ● ● ● ● ●
54 08.854 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.786 		8-94248-794-0 04 1 9611- ● ● ● ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 (B) 		8-94328-649-0 01 1 9611- ● ● ● ● ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97045-859-0 01 1 9611- ● ● ● ● ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94328-629-0 01 1 9611- ● ● ● ● ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97130-339-0 01 1 9712- ● ● ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-833-0 01 1 9611- ● ● ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94328-636-3 01 1 9611- ● ● ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94328-637-3 01 1 9611- ● ● ● ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-94328-638-2 01 1 9611- ● ● ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97069-412-1 01 1 9611- ● ● ● ● ● ● ● ●
63 08.856 LINING; HTR UNIT
6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97069-415-1 01 1 9712- ● ● ● ●
63 08.856 LINING; HTR UNIT
6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97081-291-0 01 1 9712- ● ● ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-840-1 01 1 9611- ● ● ● ● ● ● ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94328-642-0 01 1 9611- ● ● ● ● ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.854 		8-94328-630-0 01 1 9611- ● ● ● ● ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 9611- ● ● ● ● ● ● ● ●
68 08.854 CORE; HTR UNIT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94328-640-2 01 1 9611- ● ● ● ● ● ● ● ●
68 08.854 CORE; HTR UNIT
6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97170-854-0 01 1 9712- ● ● ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97045-858-0 01 1 9611- ● ● ● ● ● ● ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97045-863-0 01 1 9611- ● ● ● ● ● ● ● ●
