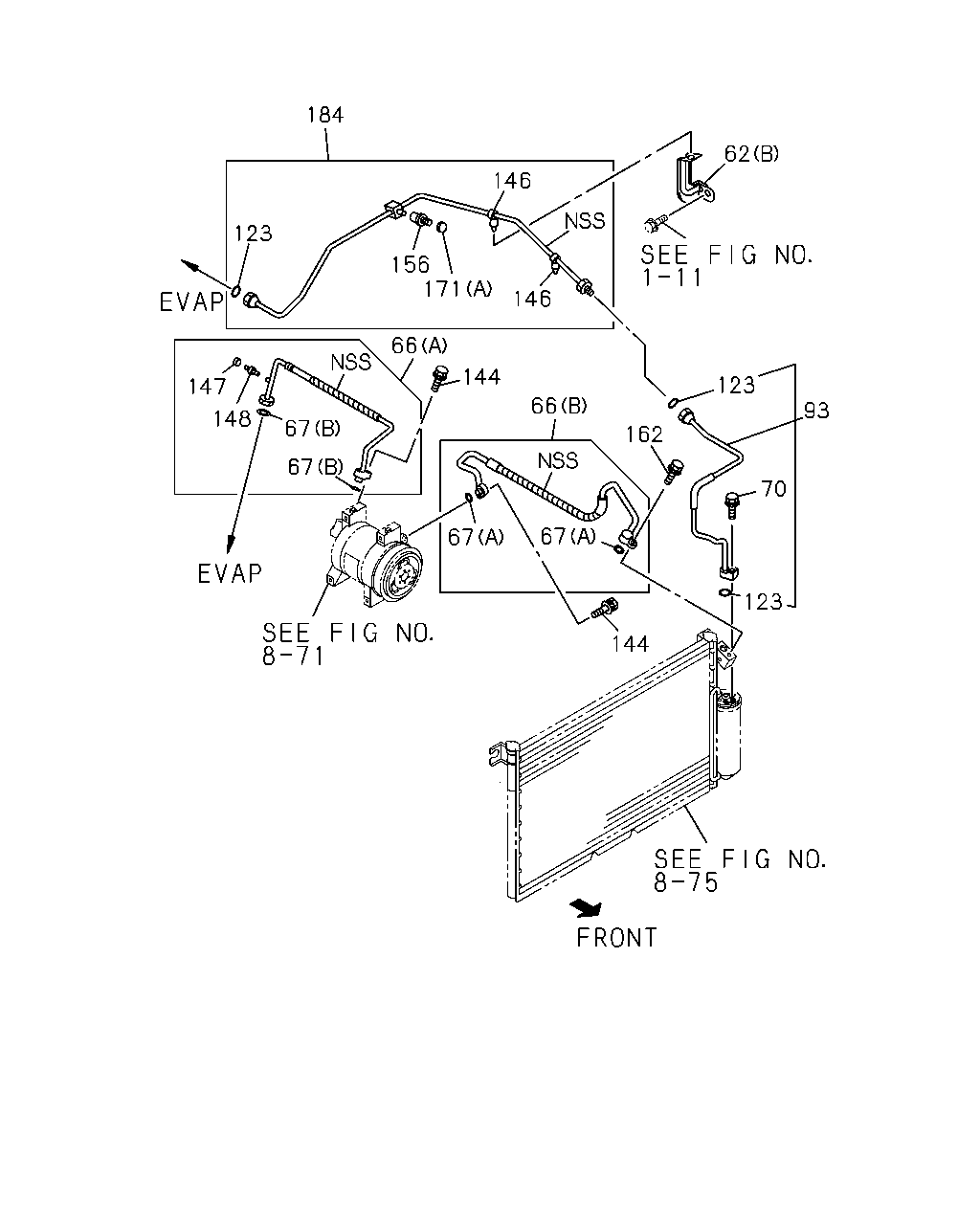

8-52 — PIPING; AIR CONDITIONING (#47898) — 72 parça

144 123 70 93 123 162 66 67 67 144 66 67 67 148 147 123 184 156 171 146 146 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
62	09.242 BRACKET; PIPE HIGH PRESSURE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-94462-279-1	01	1	9611-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-94459-508-1	01	1	9611-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97069-327-1	01	1	9611-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97086-221-0	01	1	9611-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97167-977-1	01	1	9712-			●	●			●	●
66	09.225 HOSE; FLEX,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97177-228-0	01	1	9712-			●	●			●	●
67	09.260 GASKET; FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.222 (B) ID=13.9	8-94113-330-0	01	1	9611-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.222 (A) ID=10.8	8-94113-331-0	01	1	9611-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (C) ID=11.0	8-94461-900-0	01	1	9611-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (D) ID=14.8	8-94461-901-0	01	1	9611-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=15.5	8-97161-777-0	02	1	9712-			●	●			●	●
67	09.260 GASKET; FLEX HOSE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.225 (B) ID=18.3	8-97161-778-0	02	1	9712-			●	●			●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.686 M6X25 FLANGE	0-28080-625-0	01	1	9611-9711	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.686 M6X25 FLANGE	0-28080-625-0	01	1	9712-	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97079-704-0	01	1	9611-	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97181-358-0	01	1	9712-			●	●			●	●
123	09.195 GASKET; RECEIVER PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=6.07	8-94461-902-0	01	1	9611-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) ID=6.07	8-94461-902-0	02	1	9611-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	01	1	9712-			●	●			●	●
123	09.195 GASKET; RECEIVER PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	02	1	9712-			●	●			●	●
144	09.242 BOLT; CONN TO CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.525 M10X40 FLANGE	0-28081-040-0	01	1	9611-	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-			●	●			●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	9611-	●	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 CAP MARK L	8-97083-102-0	01	1	9712-			●	●			●	●
148	09.262 VALVE; FLEX HOSE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97083-100-0	01	1	9712-			●	●			●	●
156	09.198 VALVE; PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	02	1	9611-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9712-			●	●			●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9611-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9611-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9611-	●	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97085-859-0	01	1	9611-	●	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97177-167-0	01	1	9712-			●	●			●	●

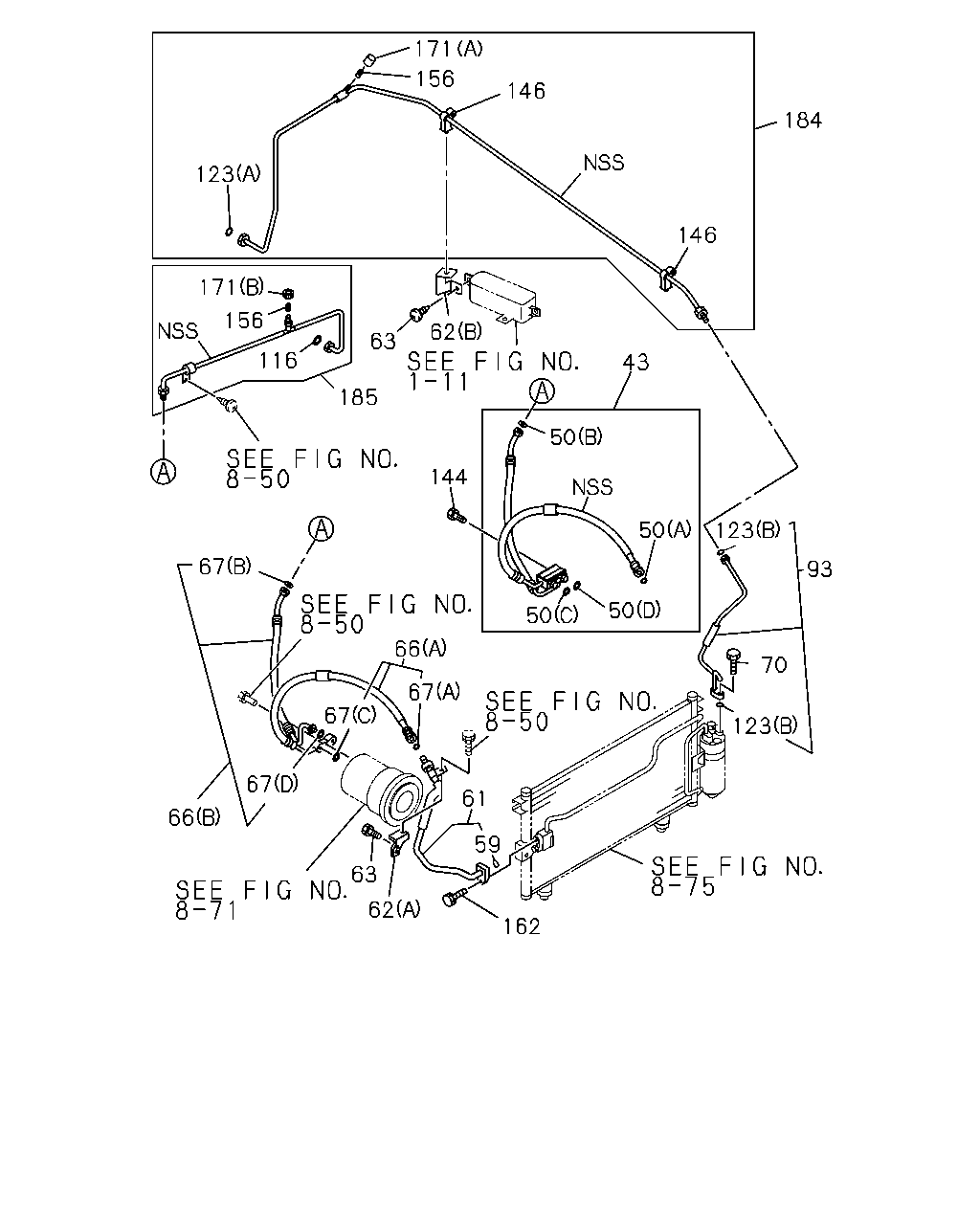

171 156 146 184 146 123 171 156 116 185 63 62 43 50 144 50 50 50 123 93 70 123 67 66 67 67 66 67 63 62 162 59 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97132-831-0	01	1	9611-	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) ID=13.9	8-94113-330-0	01	1	9611-	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=10.8	8-94113-331-0	01	1	9611-	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.260 (C) ID=11.0	8-94461-900-0	01	1	9611-	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.260 (D) ID=14.8	8-94461-901-0	01	1	9611-	●	●	●	●	●	●	●	●
59	09.222 GASKET; PIPE,FLEX HOSE TO CONDEN 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=10.8	8-94113-331-0	01	1	9611-	●	●	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97165-081-0	01	1	9611-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-94462-279-1	01	1	9611-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-94459-508-1	01	1	9611-	●	●	●	●	●	●	●	●
63	09.242 SCREW; BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) M6X12	9-09829-330-1	02	1	9611-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97069-327-1	01	1	9611-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97086-221-0	01	1	9611-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97167-977-1	01	1	9712-			●	●			●	●
66	09.225 HOSE; FLEX,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97177-228-0	01	1	9712-			●	●			●	●
67	09.260 GASKET; FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.222 (B) ID=13.9	8-94113-330-0	01	1	9611-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.222 (A) ID=10.8	8-94113-331-0	01	1	9611-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (C) ID=11.0	8-94461-900-0	01	1	9611-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (D) ID=14.8	8-94461-901-0	01	1	9611-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=15.5	8-97161-777-0	02	1	9712-			●	●			●	●
67	09.260 GASKET; FLEX HOSE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.225 (B) ID=18.3	8-97161-778-0	02	1	9712-			●	●			●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.686 M6X25 FLANGE	0-28080-625-0	01	1	9611-9711	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.686 M6X25 FLANGE	0-28080-625-0	01	1	9712-	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97079-704-0	01	1	9611-	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97181-358-0	01	1	9712-			●	●			●	●
116	09.225 GASKET; PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.222 ID=13.9	8-94113-330-0	01	1	9611-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=6.07	8-94461-902-0	01	1	9611-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) ID=6.07	8-94461-902-0	02	1	9611-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	01	1	9712-			●	●			●	●
123	09.195 GASKET; RECEIVER PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	02	1	9712-			●	●			●	●
144	09.242 BOLT; CONN TO CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.525 M10X40 FLANGE	0-28081-040-0	01	1	9611-	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-			●	●			●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	9611-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	02	1	9611-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9712-			●	●			●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9611-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9611-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9611-	●	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97085-859-0	01	1	9611-	●	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97177-167-0	01	1	9712-			●	●			●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97085-861-0	01	1	9611-	●	●	●	●	●	●	●	●
