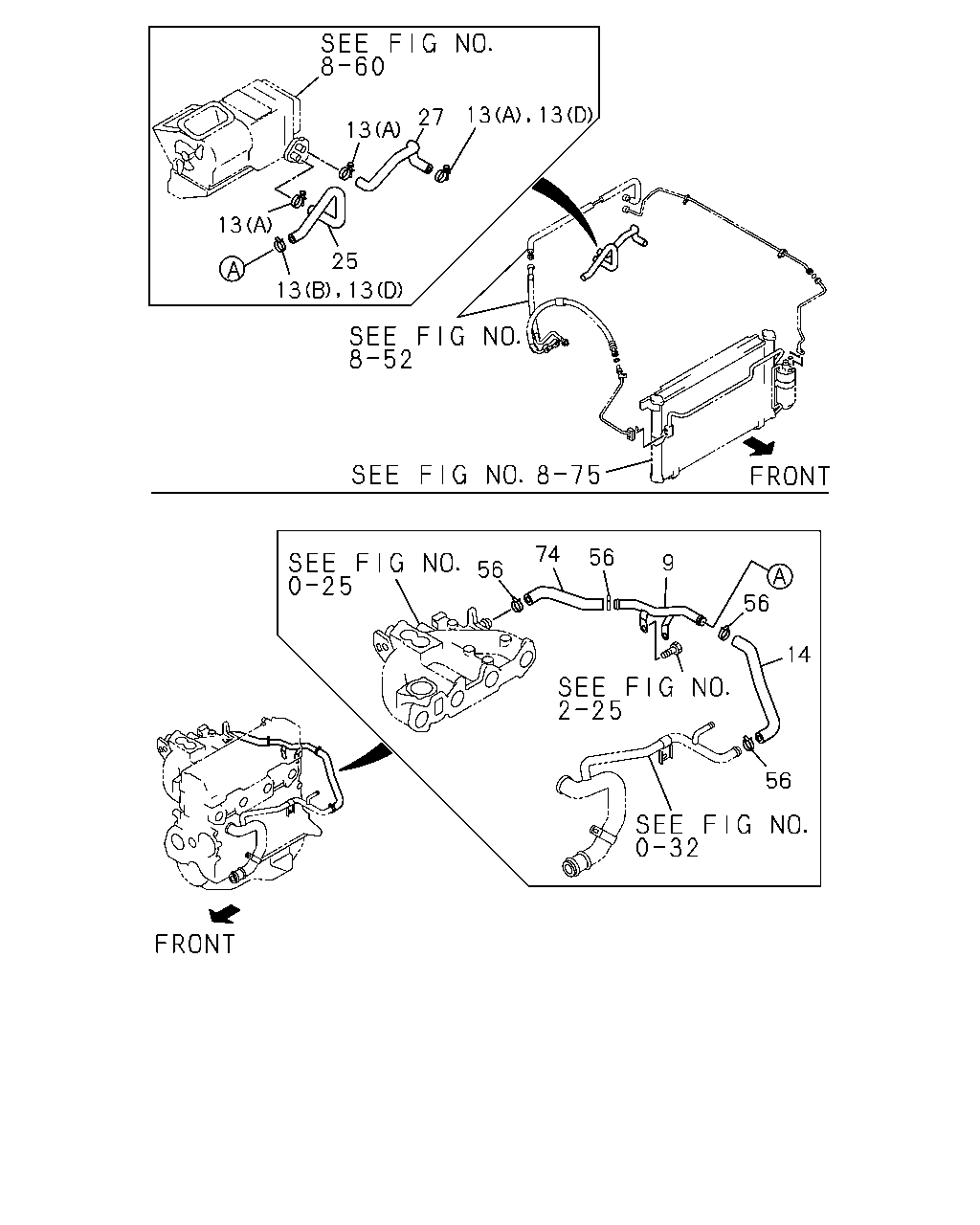

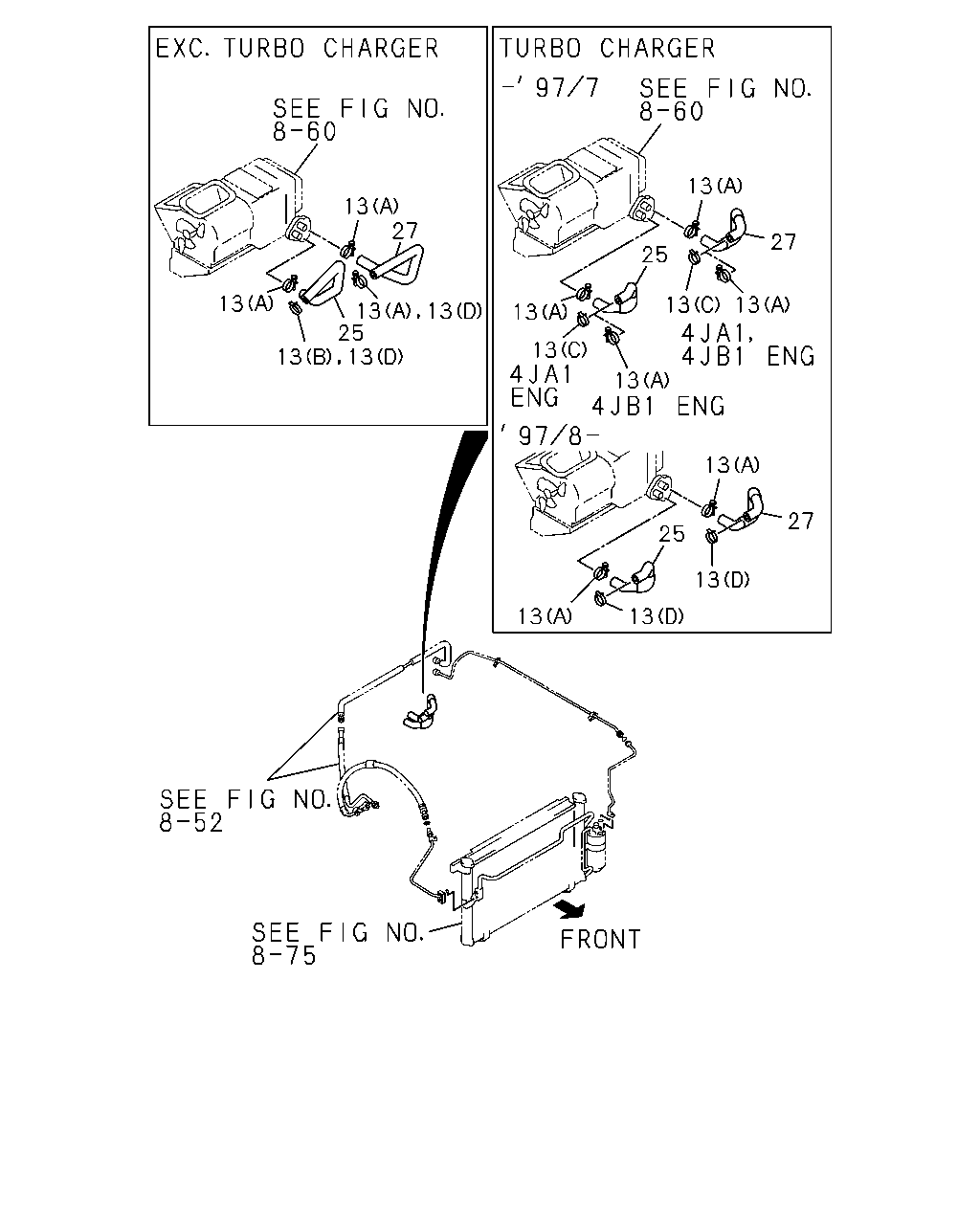

8-45 — HEATER PIPING (#47896) — 58 parça

107 107 13 25 13 13 27 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) ID=22	8-94382-401-0	02	1	9708-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9611-9707	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9708-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (A) ID=25	8-94369-726-0	01	1	9611-9707	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	01	1	9611-9707	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	04	1	9611-9707	●		●	●	●		●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE) TURBOCHARGER<K51> (C) ID=22	8-94382-401-0	02	1	9611-9707			●	●			●	●
13	08.846 CLIP; HTR HOSE 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) ID=23	8-94382-402-0	02	1	9712-			●	●			●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94450-207-3	01	1	9611-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94450-205-2	01	1	9611-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97023-975-1	01	1	9611-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94376-338-0	01	1	9712-			●	●			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94450-204-5	01	1	9611-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94450-202-4	01	1	9611-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97023-974-1	01	1	9611-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94376-340-0	01	1	9712-			●	●			●	●
107	08.864 HOSE; WATER,HTR 6VD1 ENG(RLV) (A)	8-97160-625-1	01	1	9712-			●	●			●	●
107	08.864 HOSE; WATER,HTR 6VD1 ENG(RLV) (B)	8-97160-626-2	01	1	9712-			●	●			●	●

104 104

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
	104	16.550 PLUG; RUBBER,HTR HOSE HOLE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-94468-656-0	01	1	9611-	●	●	●	●	●	●	●	●
	104	16.550 PLUG; RUBBER,HTR HOSE HOLE 6VD1 ENG(RLV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97038-490-0	01	1	9712-			●	●			●	●

13 13 13 27 13 25 13 13 13 27 13 13 13 25 27 13 13 13 13 25 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) ID=22	8-94382-401-0	02	1	9708-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9611-9707	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9708-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (A) ID=25	8-94369-726-0	01	1	9611-9707	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	01	1	9611-9707	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	04	1	9611-9707	●		●	●	●		●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE) TURBOCHARGER<K51> (C) ID=22	8-94382-401-0	02	1	9611-9707			●	●			●	●
13	08.846 CLIP; HTR HOSE 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) ID=23	8-94382-402-0	02	1	9712-			●	●			●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94450-207-3	01	1	9611-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94450-205-2	01	1	9611-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97023-975-1	01	1	9611-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94376-338-0	01	1	9712-			●	●			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94450-204-5	01	1	9611-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94450-202-4	01	1	9611-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97023-974-1	01	1	9611-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94376-340-0	01	1	9712-			●	●			●	●

27 13 13 13 13 25 13 13 56 74 56 9 56 14 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
9	08.846 PIPE; HTR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ)	8-94474-073-2	01	1	9611-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) ID=22	8-94382-401-0	02	1	9708-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9611-9707	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9708-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (A) ID=25	8-94369-726-0	01	1	9611-9707	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	01	1	9611-9707	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	04	1	9611-9707	●		●	●	●		●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE) TURBOCHARGER<K51> (C) ID=22	8-94382-401-0	02	1	9611-9707			●	●			●	●
13	08.846 CLIP; HTR HOSE 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) ID=23	8-94382-402-0	02	1	9712-			●	●			●	●
14	08.846 HOSE; WATER,CONN TO PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94381-104-1	01	1	9611-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94450-207-3	01	1	9611-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94450-205-2	01	1	9611-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97023-975-1	01	1	9611-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94376-338-0	01	1	9712-			●	●			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94450-204-5	01	1	9611-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94450-202-4	01	1	9611-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97023-974-1	01	1	9611-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94376-340-0	01	1	9712-			●	●			●	●
56	08.846 CLAMP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	9611-	●	●	●	●	●	●	●	●
56	08.846 CLAMP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	9611-	●	●	●	●	●	●	●	●
74	08.866 HOSE; WATER,ENG TO PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG>	8-94474-076-2	01	1	9611-	●	●	●	●	●	●	●	●
74	08.866 HOSE; WATER,ENG TO PIPE 4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3)	8-94474-077-2	01	1	9611-	●		●	●	●		●	●
