◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#47889) — 172 parça

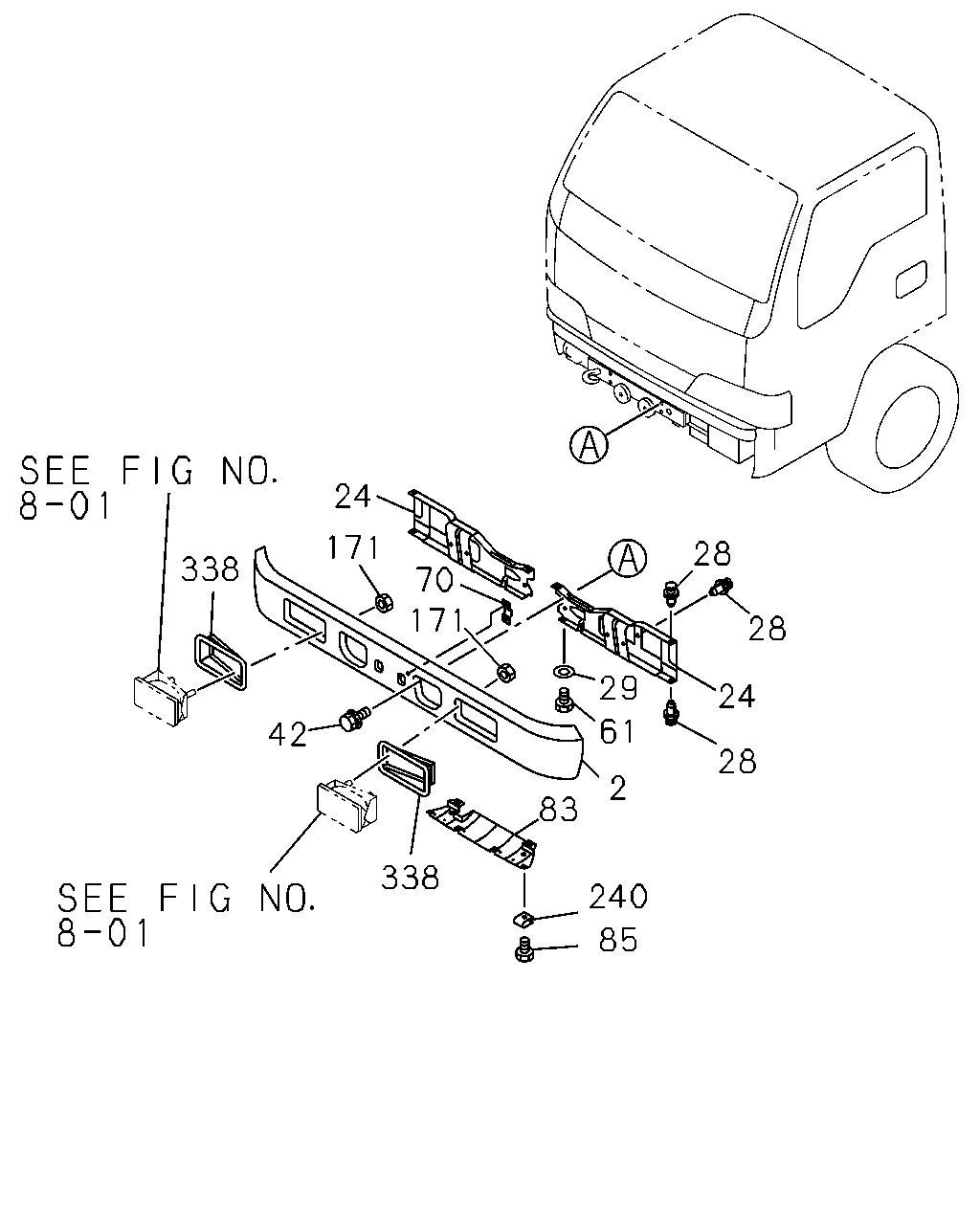

çizim 66851
24 171 28 338 70 171 28 29 24 61 42 28 2 83 338 240 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-854-0 01 1 9312-9406 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-854-1 01 1 9407-9611 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-854-1 01 1 9612-9711 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> PLEASE PAINT TO MATCH BODY COLOR 		8-97078-964-0 01 1 9312-9611 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> PLEASE PAINT TO MATCH BODY COLOR 		8-97078-964-0 01 1 9612-9711 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97097-857-0 01 1 9312-9406 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97097-857-1 01 1 9407-9611 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97097-857-1 01 1 9612-9711 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) FOG LAMP<T96> VOLTAGE 24V<7AE> DARK GRAY 		8-97196-163-1 01 1 9712- ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> WHITE 		8-97097-847-3 01 1 9312-9611 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> WHITE 		8-97097-847-3 01 1 9612-9711 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97097-856-0 01 1 9312-9402 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97097-856-0 01 1 9312-9402 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736),BODY COLOR HIGHWAY YELLOW(916) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97097-856-1 01 1 9403-9510 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97097-856-1 01 1 9403-9510 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736),BODY COLOR HIGHWAY YELLOW(916) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97866-822-1 01 1 9511-9611 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97866-822-1 01 1 9511-9611 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736),BODY COLOR HIGHWAY YELLOW(916) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97866-822-1 01 1 9612-9711 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97866-822-1 01 1 9612-9711 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> DARK GRAY 		8-97196-162-0 01 1 9712-9804 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97196-162-0 01 1 9712-9804 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97196-162-0 01 1 9805- ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> DARK GRAY 		8-97196-162-0 01 1 9805- ● ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> DARK GRAY 		8-97196-162-0 01 1 9805- ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> DARK GRAY 		8-97097-846-2 01 1 9312-9402 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY 		8-97097-846-2 01 1 9312-9402 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736),BODY COLOR HIGHWAY YELLOW(916) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> DARK GRAY 		8-97097-846-3 01 1 9403-9510 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY 		8-97097-846-3 01 1 9403-9510 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736),BODY COLOR HIGHWAY YELLOW(916) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> DARK GRAY 		8-97866-619-3 01 1 9511-9611 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY 		8-97866-619-3 01 1 9511-9611 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736),BODY COLOR HIGHWAY YELLOW(916) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> DARK GRAY 		8-97866-619-3 01 1 9612-9711 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY 		8-97866-619-3 01 1 9612-9711 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
EXC. FOG LAMP<T96> DARK GRAY 		8-97196-172-0 01 1 9712-9801 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
EXC. EUROPEAN BASIC EQUIPMENT(EK4), FOG LAMP<T96>,ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97196-172-0 01 1 9712-9801 ● ●
2 07.831 BUMPER; FRT,CENTER
EXC. FOG LAMP<T96> DARK GRAY 		8-97196-172-0 01 1 9802- ● ● ●
2 07.831 BUMPER; FRT,CENTER
EXC. EUROPEAN BASIC EQUIPMENT(EK4), FOG LAMP<T96>,ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97196-172-0 01 1 9802- ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-855-0 01 1 9312-9406 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-855-1 01 1 9407-9611 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-855-1 01 1 9612-9711 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> PLEASE PAINT TO MATCH BODY COLOR 		8-97078-964-0 01 1 9312-9611 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> PLEASE PAINT TO MATCH BODY COLOR 		8-97078-964-0 01 1 9612-9711 ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97073-672-2 01 1 9312-9611 ● ● ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97073-672-2 01 1 9612-9711 ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97073-672-3 01 1 9712- ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97073-671-2 01 1 9312-9611 ● ● ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97073-671-2 01 1 9612-9711 ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 		8-97073-671-2 01 1 9712-9807 ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. FOG LAMP<T96> 		8-97039-797-3 01 1 9312-9611 ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. FOG LAMP<T96> 		8-97039-797-3 01 1 9612-9711 ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. FOG LAMP<T96> 		8-97039-797-3 01 1 9712-9801 ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. EUROPEAN BASIC EQUIPMENT(EK4), FOG LAMP<T96>,ISRAEL EQUIPMENT(7LX) 		8-97039-797-3 01 1 9712-9801 ● ●
24 07.869 BAR; FRT BUMPER
EXC. FOG LAMP<T96> 		8-97039-797-4 01 1 9802- ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. EUROPEAN BASIC EQUIPMENT(EK4), FOG LAMP<T96>,ISRAEL EQUIPMENT(7LX) 		8-97039-797-4 01 1 9802- ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. FOG LAMP<T96> 		8-97039-796-3 01 1 9312-9611 ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. FOG LAMP<T96> 		8-97039-796-3 01 1 9612-9711 ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. EUROPEAN BASIC EQUIPMENT(EK4), FOG LAMP<T96>,ISRAEL EQUIPMENT(7LX) 		8-97039-796-3 01 1 9712-9807 ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. FOG LAMP<T96> 		8-97192-521-0 01 1 9712-9807 ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) FOG LAMP<T96> 		8-97194-749-0 01 1 9712-9807 ● ● ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97194-749-0 01 1 9712-9807 ●
24 07.869 BAR; FRT BUMPER
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97194-749-1 01 1 9808- ● ● ● ●
28 07.833 FASTENER; BACK BAR
12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 08 1 9312-9611 ● ● ● ●
28 07.833 FASTENER; BACK BAR
12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 08 1 9612-9711 ● ● ● ● ●
28 07.833 FASTENER; BACK BAR
12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 08 1 9712- ● ● ● ● ● ●
29 07.833 WASHER; FRT BUMPER
ID=8.5 		8-94167-476-0 02 1 9312-9509 ● ● ● ●
29 07.833 WASHER; FRT BUMPER
ID=8.5 		8-94167-476-0 02 1 9511-9611 ● ● ● ●
29 07.833 WASHER; FRT BUMPER
ID=8.5 		8-94167-476-0 02 1 9612-9711 ● ● ● ● ●
29 07.833 WASHER; FRT BUMPER
ID=8.5 		8-94167-476-0 02 1 9712- ● ● ● ● ● ●
42 07.874 BOLT; BUMPER
M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 9312-9611 ● ● ● ●
42 07.874 BOLT; BUMPER
M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 9612-9711 ● ● ● ● ●
42 07.874 BOLT; BUMPER
M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 9712- ● ● ● ● ● ●
61 07.832 BOLT; BACK BAR
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9312-9611 ● ● ● ●
61 07.832 BOLT; BACK BAR
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9612-9711 ● ● ● ● ●
61 07.832 BOLT; BACK BAR
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9712- ● ● ● ● ● ●
70 07.800 BRACKET; LICENSE PLATE,FRT
EXC. FOG LAMP<T96> 		8-94151-164-1 02 1 9312-9510 ● ● ● ●
70 07.800 BRACKET; LICENSE PLATE,FRT 8-94151-164-1 02 1 9511-9611 ● ● ● ●
70 07.800 BRACKET; LICENSE PLATE,FRT 8-94151-164-1 02 1 9612-9711 ● ● ● ● ●
70 07.800 BRACKET; LICENSE PLATE,FRT 8-94151-164-1 02 1 9712- ● ● ● ● ● ●
83 07.833 GUIDE; AIR,FRT BUMPER 8-97076-719-2 01 1 9312-9611 ● ● ● ●
83 07.833 GUIDE; AIR,FRT BUMPER 8-97076-719-2 01 1 9612-9711 ● ● ● ● ●
83 07.833 GUIDE; AIR,FRT BUMPER 8-97076-719-2 01 1 9712- ● ● ● ● ● ●
85 07.874 BOLT; AIR GUIDE,FRT BUMPER
M6X22 W/PL WASHER 		8-97012-072-0 04 1 9312-9611 ● ● ● ●
85 07.874 BOLT; AIR GUIDE,FRT BUMPER
M6X22 W/PL WASHER 		8-97012-072-0 04 1 9612-9711 ● ● ● ● ●
85 07.874 BOLT; AIR GUIDE,FRT BUMPER
M6X22 W/PL WASHER 		8-97012-072-0 04 1 9712- ● ● ● ● ● ●
171 07.869 NUT; BACK BAR
FOG LAMP<T96> 04.012 M8 FLANGE 		1-09464-018-1 06 1 9312-9611 ● ● ● ●
171 07.869 NUT; BACK BAR
FOG LAMP<T96> 04.012 M8 FLANGE 		1-09464-018-1 06 1 9612-9711 ● ● ● ● ●
171 07.869 NUT; BACK BAR
FOG LAMP<T96> 04.012 M8 FLANGE 		1-09464-018-1 06 1 9712- ● ● ● ● ● ●
171 07.869 NUT; BACK BAR
EXC. FOG LAMP<T96> 04.012 M8 FLANGE 		1-09464-018-1 02 1 9312-9611 ● ● ● ●
171 07.869 NUT; BACK BAR
EXC. FOG LAMP<T96> 04.012 M8 FLANGE 		1-09464-018-1 02 1 9612-9711 ● ● ● ● ●
171 07.869 NUT; BACK BAR
EXC. FOG LAMP<T96> 04.012 M8 FLANGE 		1-09464-018-1 02 1 9712-9801 ● ● ● ●
171 07.869 NUT; BACK BAR
EXC. EUROPEAN BASIC EQUIPMENT(EK4), FOG LAMP<T96>,ISRAEL EQUIPMENT(7LX) 04.012 M8 FLANGE 		1-09464-018-1 02 1 9712-9801 ● ●
171 07.869 NUT; BACK BAR
EXC. FOG LAMP<T96> 04.012 M8 FLANGE 		1-09464-018-1 02 1 9802- ● ● ●
171 07.869 NUT; BACK BAR
EXC. EUROPEAN BASIC EQUIPMENT(EK4), FOG LAMP<T96>,ISRAEL EQUIPMENT(7LX) 04.012 M8 FLANGE 		1-09464-018-1 02 1 9802- ● ● ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
M6 		8-94412-740-1 04 1 9312-9611 ● ● ● ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
M6 		8-94412-740-1 04 1 9612-9711 ● ● ● ● ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
M6 		8-94412-740-1 04 1 9712- ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ADRIATIC BLUE(730) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-870-0 01 1 9312-9611 ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ADRIATIC BLUE(730) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-870-0 01 1 9612-9711 ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ADRIATIC BLUE(730) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-866-0 01 1 9312-9611 ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ADRIATIC BLUE(730) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-866-0 01 1 9612-9711 ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97097-873-0 01 1 9312-9611 ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97097-873-0 01 1 9612-9711 ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) FOG LAMP<T96> VOLTAGE 24V<7AE> DARK GRAY 		8-97195-641-0 01 1 9712- ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97097-869-0 01 1 9312-9611 ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97097-869-0 01 1 9612-9711 ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) FOG LAMP<T96> VOLTAGE 24V<7AE> DARK GRAY 		8-97195-640-0 01 1 9712- ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR CARDINAL RED(736) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97097-872-0 01 1 9312-9402 ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97097-872-0 01 1 9312-9402 ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR CARDINAL RED(736),BODY COLOR HIGHWAY YELLOW(916) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97097-872-0 01 1 9403-9510 ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97097-872-0 01 1 9403-9510 ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR CARDINAL RED(736),BODY COLOR HIGHWAY YELLOW(916) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97866-838-0 01 1 9511-9611 ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97866-838-0 01 1 9511-9611 ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR CARDINAL RED(736),BODY COLOR HIGHWAY YELLOW(916) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97866-838-0 01 1 9612-9711 ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97866-838-0 01 1 9612-9711 ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> DARK GRAY 		8-97866-838-0 01 1 9712-9804 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97866-838-0 01 1 9712-9804 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97866-838-0 01 1 9805- ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> DARK GRAY 		8-97866-838-0 01 1 9805- ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> DARK GRAY 		8-97866-838-0 01 1 9805- ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR CARDINAL RED(736) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97097-868-0 01 1 9312-9402 ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97097-868-0 01 1 9312-9402 ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR CARDINAL RED(736),BODY COLOR HIGHWAY YELLOW(916) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97097-868-0 01 1 9403-9510 ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97097-868-0 01 1 9403-9510 ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR CARDINAL RED(736),BODY COLOR HIGHWAY YELLOW(916) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97866-837-0 01 1 9511-9611 ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97866-837-0 01 1 9511-9611 ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR CARDINAL RED(736),BODY COLOR HIGHWAY YELLOW(916) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97866-837-0 01 1 9612-9711 ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97866-837-0 01 1 9612-9711 ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> DARK GRAY 		8-97866-837-0 01 1 9712-9804 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97866-837-0 01 1 9712-9804 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97866-837-0 01 1 9805- ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> DARK GRAY 		8-97866-837-0 01 1 9805- ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> DARK GRAY 		8-97866-837-0 01 1 9805- ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-871-0 01 1 9312-9611 ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-871-0 01 1 9612-9711 ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-867-0 01 1 9312-9611 ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-867-0 01 1 9612-9711 ● ● ● ● ●

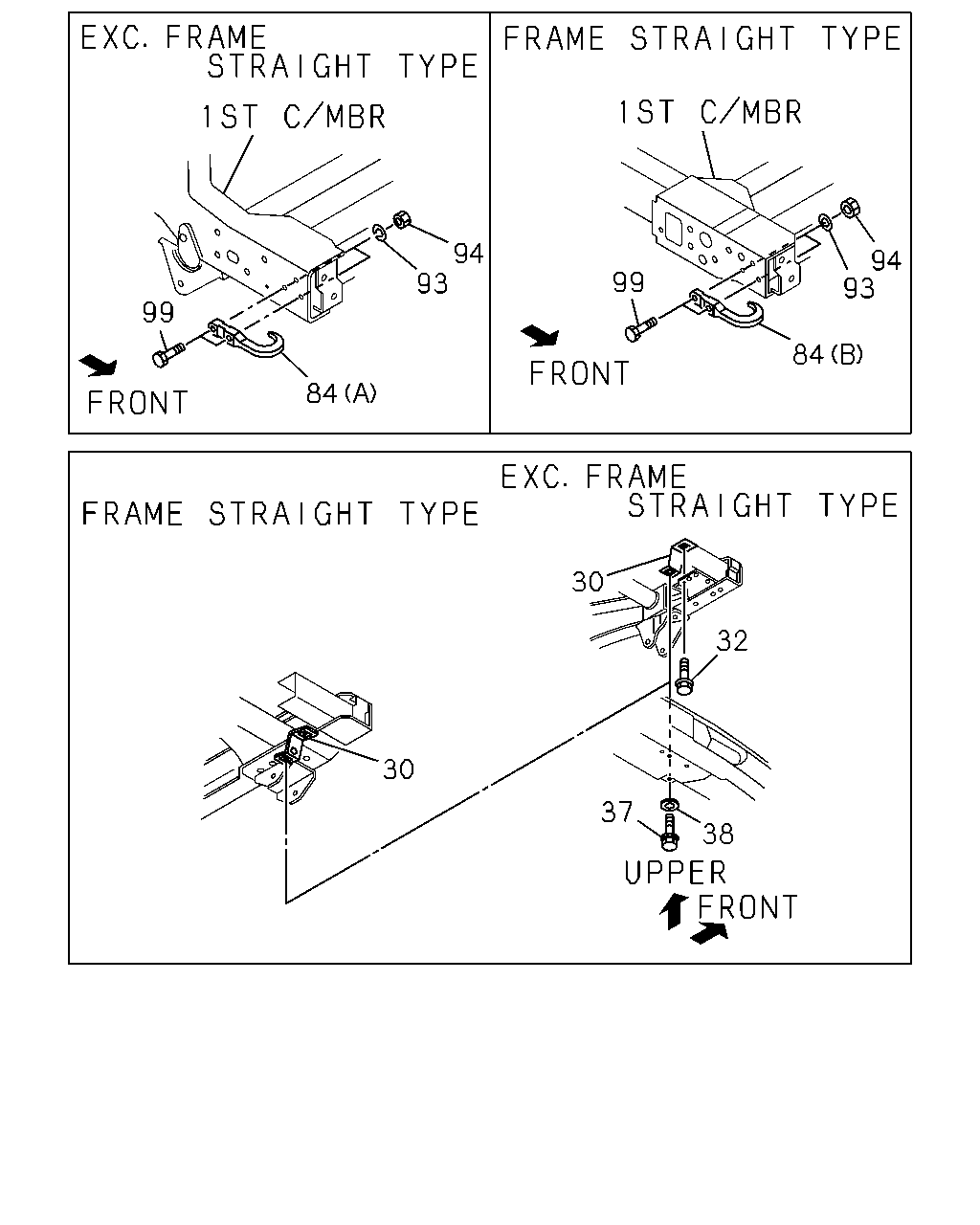

çizim 70871
94 93 94 93 99 99 84 84 30 32 30 37 38
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
30 07.869 BRACKET; FRT BUMPER
01.263 		8-97093-639-1 02 1 9312-9510 ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
EXC. FRAME STRAIGHT TYPE<7KJ> 01.263 		8-97093-639-1 02 1 9511-9711 ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
EXC. FRAME STRAIGHT TYPE<7KJ> 01.263 		8-97093-639-3 02 1 9712-9801 ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
EXC. FRAME STRAIGHT TYPE<7KJ> 01.263 		8-97093-639-3 02 1 9802- ● ● ● ● ● ●
32 07.874 BOLT; BRKT,BUMPER
02.510 M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9312-9412 ● ● ● ●
32 07.874 BOLT; BRKT,BUMPER
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9501-9510 ● ● ● ●
32 07.874 BOLT; BRKT,BUMPER
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9511-9711 ● ● ● ●
32 07.874 BOLT; BRKT,BUMPER
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9712-9801 ● ● ● ● ●
32 07.874 BOLT; BRKT,BUMPER
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9802- ● ● ● ● ● ●
37 01.263 BOLT; BRKT TO BUMPER LWR
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9312-9411 ● ● ● ●
37 01.263 BOLT; BRKT TO BUMPER LWR
16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 9412-9611 ● ● ● ●
37 01.263 BOLT; BRKT TO BUMPER LWR
16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 9612-9711 ● ● ● ● ●
37 01.263 BOLT; BRKT TO BUMPER LWR
16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 9712- ● ● ● ● ● ●
38 01.263 WASHER; PL,BUMPER LWR
02.334 ID=8.4 OD=26 		9-09164-808-0 02 1 9312-9411 ● ● ● ●
84 07.068 HOOK
(A) 		8-94249-270-2 01 1 9312-9402 ● ● ● ●
84 07.068 HOOK
EXC. BRAZIL EQUIPMENT(RWF) (A) 		8-94249-270-2 01 1 9403-9510 ● ● ● ●
84 07.068 HOOK
EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ> (A) 		8-94249-270-2 01 1 9511-9711 ● ● ● ●
84 07.068 HOOK
EXC. EUROPEAN BASIC EQUIPMENT(EK4) (A) 		8-94249-270-2 01 1 9712-9801 ●
84 07.068 HOOK
EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ> (A) 		8-94249-270-2 01 1 9712-9801 ● ● ●
84 07.068 HOOK
(A) 		8-94249-270-2 01 1 9712-9801 ●
84 07.068 HOOK
EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ> (A) 		8-94249-270-2 01 1 9802- ● ● ● ● ●
84 07.068 HOOK
EUROPEAN BASIC EQUIPMENT(EK4) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97189-109-0 01 1 9712- ● ● ● ●
84 07.068 HOOK
FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF) 07.112 (B) 		8-97122-535-0 01 1 9511-9611 ● ●
84 07.068 HOOK
FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF) 07.112 (B) 		8-97122-535-0 01 1 9612-9711 ● ● ●
84 07.068 HOOK
FRAME STRAIGHT TYPE<7KJ> EXC. BRAZIL EQUIPMENT(RWF) 07.112 (B) 		8-97122-535-0 01 1 9712- ● ● ● ●
93 07.068 WASHER; LK,HOOK
05.422 ID=14.2 		9-09150-814-0 02 1 9312-9402 ● ● ● ●
93 07.068 WASHER; LK,HOOK
EXC. BRAZIL EQUIPMENT(RWF) 05.422 ID=14.2 		9-09150-814-0 02 1 9403-9611 ● ● ● ●
93 07.068 WASHER; LK,HOOK
EXC. BRAZIL EQUIPMENT(RWF) 05.422 ID=14.2 		9-09150-814-0 02 1 9612-9711 ● ● ● ● ●
93 07.068 WASHER; LK,HOOK
EXC. BRAZIL EQUIPMENT(RWF) 05.422 ID=14.2 		9-09150-814-0 02 1 9712- ● ● ● ● ● ●
94 07.068 NUT; HOOK
07.529 M14 		9-99110-514-0 02 1 9312-9402 ● ● ● ●
94 07.068 NUT; HOOK
EXC. BRAZIL EQUIPMENT(RWF) 07.529 M14 		9-99110-514-0 02 1 9403-9611 ● ● ● ●
94 07.068 NUT; HOOK
EXC. BRAZIL EQUIPMENT(RWF) 07.529 M14 		9-99110-514-0 02 1 9612-9711 ● ● ● ● ●
94 07.068 NUT; HOOK
EXC. BRAZIL EQUIPMENT(RWF) 07.529 M14 		9-99110-514-0 02 1 9712- ● ● ● ● ● ●
99 07.039 BOLT; HOOK
M14X50 		0-10806-450-0 02 1 9312-9402 ● ● ● ●
99 07.039 BOLT; HOOK
EXC. BRAZIL EQUIPMENT(RWF) M14X50 		0-10806-450-0 02 1 9403-9611 ● ● ● ●
99 07.039 BOLT; HOOK
EXC. BRAZIL EQUIPMENT(RWF) M14X50 		0-10806-450-0 02 1 9612-9711 ● ● ● ● ●
99 07.039 BOLT; HOOK
EXC. BRAZIL EQUIPMENT(RWF) M14X50 		0-10806-450-0 02 1 9712- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
