1 |

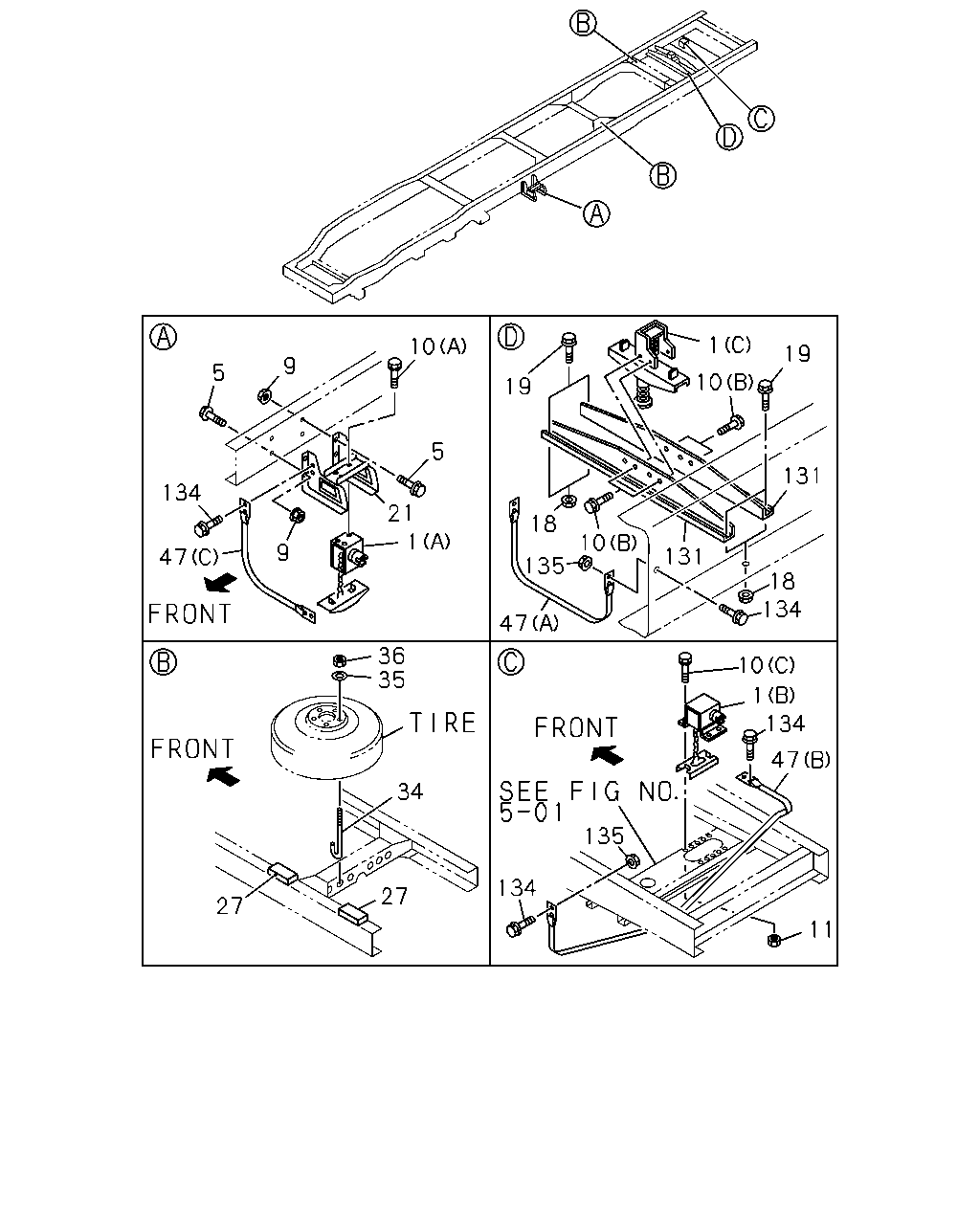

07.629 HANGER ASM; TIRE FT
4BD1 ENG(LJ6),4BE1 ENG(RLH)
TAIWAN EQUIPMENT(RWV)
EXC. DUMP CHASSIS(V4D)
(A)
|
8-97010-955-0 |
01 |
1 |
9312-9312 |
● |
|
|
|
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>,DUMP CHASSIS(V4D)
(A)
|
8-97010-955-0 |
01 |
1 |
9401-9506 |
● |
|
|
|
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
(A)
|
8-97010-955-0 |
01 |
1 |
9507-9611 |
● |
|
|
|
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>,DUMP CHASSIS(V4D)
(A)
|
8-97010-955-0 |
01 |
1 |
9507-9611 |
● |
|
|
|
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
(A)
|
8-97010-955-0 |
01 |
1 |
9612-9711 |
● |
|
|
|
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>,DUMP CHASSIS(V4D)
(A)
|
8-97010-955-0 |
01 |
1 |
9612-9711 |
● |
|
|
|
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
(A)
|
8-97010-955-0 |
01 |
1 |
9612-9711 |
|
● |
|
|
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
(A)
|
8-97010-955-0 |
01 |
1 |
9712-9801 |
● |
|
|
|
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>,DUMP CHASSIS(V4D)
(A)
|
8-97010-955-0 |
01 |
1 |
9712-9801 |
● |
|
|
|
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
(A)
|
8-97010-955-0 |
01 |
1 |
9712-9801 |
|
● |
|
|
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-0 |
01 |
1 |
9712-9801 |
|
|
● |
|
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
(A)
|
8-97010-955-0 |
01 |
1 |
9802-9806 |
● |
|
|
|
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>,DUMP CHASSIS(V4D)
(A)
|
8-97010-955-0 |
01 |
1 |
9802-9806 |
● |
|
|
|
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-0 |
01 |
1 |
9802-9806 |
|
● |
● |
|
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
(A)
|
8-97010-955-0 |
01 |
1 |
9807- |
● |
|
|
|
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>,DUMP CHASSIS(V4D)
(A)
|
8-97010-955-0 |
01 |
1 |
9807- |
● |
|
|
|
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
(A)
|
8-97010-955-0 |
01 |
1 |
9807- |
|
● |
● |
|
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
4BD1 ENG(LJ6),4BE1 ENG(RLH)
EXC. TAIWAN EQUIPMENT(RWV),DUMP
CHASSIS(V4D)
(A)
|
8-94382-875-0 |
01 |
1 |
9312-9312 |
● |
|
|
|
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 6.0-6.5TON(RPV)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
(A)
|
8-94382-875-0 |
01 |
1 |
9401-9506 |
● |
|
|
|
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 3.5-4.0TON(RPQ)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
(A)
|
8-94382-875-0 |
01 |
1 |
9507- |
● |
|
|
|
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,SPARE TIRE
CARRIER INSIDE MOUNTED<P15>
(A)
|
8-94382-875-0 |
01 |
1 |
9507- |
● |
|
|
|
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
(06H),(07H),(08H),(09H),(10H),(11H),
(12H),(13H),(14H),(15H),(16H),(17H),
(18H),(19H),(50C),(51C),(52C),(9HY),
(9XD),(94H),(95H),(96H),(97H),(98H),
(99H)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97174-769-0 |
01 |
1 |
9712-9801 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
(ARN),(06H),(07H),(08H),(09H),(10H),
(11H),(12H),(13H),(14H),(15H),(16H),
(17H),(18H),(19H),(50C),(51C),(52C),
(9HY),(9XD),(94H),(95H),(96H),(97H),
(98H),(99H)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97174-769-0 |
01 |
1 |
9802-9809 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
(ARN),(BPL),(BPM),(BPS),(06H),(07H),
(08H),(09H),(10H),(11H),(12H),(13H),
(14H),(15H),(16H),(17H),(18H),(19H),
(50C),(51C),(52C),(94H),(95H),(96H),
(97H),(98H),(99H)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97174-769-0 |
01 |
1 |
9810- |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
FRAME STRAIGHT TYPE<7KJ>
(C)
|
1-53630-188-3 |
01 |
1 |
9511-9711 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
(AQK),(ARN),(ARP),(AUH),(AUJ),(AUS),
(AVK),(00C),(01C),(02C),(03C),(04C),
(05C),(06C),(07C),(08C),(09C),(10C),
(11C),(53C),(54C),(55C),(83V),(9BP),
(9XB),(9ZM),(9ZP),(9ZQ),(95V),(97V)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
1-53630-188-3 |
01 |
1 |
9712-9801 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(06C),(07C),(08C),(09C),(10C),(11C),
(53C),(54C),(55C),(83V),(9BP),(9XB),
(9ZM),(9ZP),(9ZQ),(95V),(97V)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
1-53630-188-3 |
01 |
1 |
9802-9809 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(BPN),(BPP),(BPQ),(BPR),(BPT),(00C),
(01C),(02C),(03C),(04C),(05C),(06C),
(07C),(08C),(09C),(10C),(11C),(53C),
(54C),(55C),(83V),(9BP),(9XB),(9ZM),(9ZP)
,(9ZQ),(95V),(97V)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
1-53630-188-3 |
01 |
1 |
9810- |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 6.0-6.5TON(RPV)
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
TAIWAN EQUIPMENT(RWV)
(B)
|
8-94382-876-1 |
01 |
1 |
9312-9312 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
4JG2 ENG(RJC)
EUROPEAN BASIC EQUIPMENT(EK4)
(B)
|
8-94382-876-1 |
01 |
1 |
9312-9312 |
|
|
|
● |
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
(B)
|
8-94382-876-1 |
01 |
1 |
9312-9312 |
|
|
|
|
|
● |
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
(B)
|
8-94382-876-1 |
01 |
1 |
9401-9402 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT)
(B)
|
8-94382-876-1 |
01 |
1 |
9401-9402 |
|
|
|
● |
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
(B)
|
8-94382-876-1 |
01 |
1 |
9401-9402 |
|
|
|
|
|
● |
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,SPARE TIRE
CARRIER INSIDE MOUNTED<P15>
(B)
|
8-94382-876-1 |
01 |
1 |
9403-9504 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
(B)
|
8-94382-876-1 |
01 |
1 |
9403-9504 |
|
|
|
● |
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
(B)
|
8-94382-876-1 |
01 |
1 |
9403-9504 |
|
|
|
|
|
● |
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>
(B)
|
8-94382-876-1 |
01 |
1 |
9505-9510 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT)
(B)
|
8-94382-876-1 |
01 |
1 |
9505-9510 |
|
|
|
● |
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
(B)
|
8-94382-876-1 |
01 |
1 |
9505-9510 |
|
|
|
|
|
● |
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
(B)
|
8-94382-876-2 |
01 |
1 |
9511-9704 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-94382-876-2 |
01 |
1 |
9511-9704 |
|
|
|
● |
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
(B)
|
8-94382-876-2 |
01 |
1 |
9511-9704 |
|
|
|
|
|
● |
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
(B)
|
8-94382-876-2 |
01 |
1 |
9705-9711 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-94382-876-2 |
01 |
1 |
9705-9711 |
|
|
|
● |
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
EXC. DISC BRAKE FRT<J52>
(B)
|
8-94382-876-2 |
01 |
1 |
9705-9711 |
|
|
|
|
|
● |
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
(B)
|
8-94382-876-2 |
01 |
1 |
9712-9808 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-94382-876-2 |
01 |
1 |
9712-9808 |
|
|
|
● |
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97182-113-0 |
01 |
1 |
9809- |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97182-113-0 |
01 |
1 |
9809- |
|
|
|
● |
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
EUROPEAN BASIC EQUIPMENT(EK4),TAIWAN
EQUIPMENT(RWV)
(B)
|
8-94382-878-1 |
01 |
1 |
9312-9312 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX)
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
TAIWAN EQUIPMENT(RWV)
(B)
|
8-94382-878-1 |
01 |
1 |
9312-9312 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
(B)
|
8-94382-878-1 |
01 |
1 |
9401-9402 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX)
(B)
|
8-94382-878-1 |
01 |
1 |
9401-9402 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
(B)
|
8-94382-878-1 |
01 |
1 |
9403-9504 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX)
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>,BRAZIL EQUIPMENT(RWF)
(B)
|
8-94382-878-1 |
01 |
1 |
9403-9504 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX)
BRAZIL EQUIPMENT(RWF)
(B)
|
8-94382-878-1 |
01 |
1 |
9403-9504 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
(B)
|
8-94382-878-1 |
01 |
1 |
9505-9510 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX)
(B)
|
8-94382-878-1 |
01 |
1 |
9505-9510 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-94382-878-2 |
01 |
1 |
9511-9704 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-94382-878-2 |
01 |
1 |
9511-9704 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-94382-878-2 |
01 |
1 |
9705-9711 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. BRAZIL EQUIPMENT(RWF),FRAME
STRAIGHT TYPE<7KJ>
(B)
|
8-94382-878-2 |
01 |
1 |
9705-9711 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX)
BRAZIL EQUIPMENT(RWF)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-94382-878-2 |
01 |
1 |
9705-9711 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
DISC BRAKE FRT<J52>
(B)
|
8-94382-878-2 |
01 |
1 |
9705-9711 |
|
|
|
|
|
● |
| |
1 |
07.629 HANGER ASM; TIRE FT
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-94382-878-2 |
01 |
1 |
9712-9804 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. BRAZIL EQUIPMENT(RWF),FRAME
STRAIGHT TYPE<7KJ>
(B)
|
8-94382-878-2 |
01 |
1 |
9712-9804 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX)
BRAZIL EQUIPMENT(RWF)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-94382-878-2 |
01 |
1 |
9712-9804 |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
(B)
|
8-94382-878-2 |
01 |
1 |
9712-9804 |
|
|
|
|
|
● |
| |
1 |
07.629 HANGER ASM; TIRE FT
DISC BRAKE FRT<J52>
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97182-115-0 |
01 |
1 |
9805- |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. BRAZIL EQUIPMENT(RWF),FRAME
STRAIGHT TYPE<7KJ>
|
8-97182-115-0 |
01 |
1 |
9805- |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX)
BRAZIL EQUIPMENT(RWF)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97182-115-0 |
01 |
1 |
9805- |
|
|
|
● |
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
|
8-97182-115-0 |
01 |
1 |
9805- |
|
|
|
|
|
● |
| |
5 |
07.632 BOLT; BRKT TO FRAME
4BD1 ENG(LJ6),4BE1 ENG(RLH)
EXC. DUMP CHASSIS(V4D)
01.652
M10X25 W/LK WASHER
|
0-50041-025-0 |
04 |
1 |
9312-9402 |
● |
|
|
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
01.652
M10X25 W/LK WASHER
|
0-50041-025-0 |
04 |
1 |
9403- |
● |
|
|
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
03.405
M10X25 FLANGE
|
0-28681-025-0 |
04 |
1 |
9612-9705 |
|
● |
|
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
03.405
M10X30 FLANGE
|
0-28681-030-0 |
04 |
1 |
9706-9711 |
|
● |
|
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
03.405
M10X30 FLANGE
|
0-28681-030-0 |
04 |
1 |
9712-9801 |
|
● |
|
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ>
03.405
M10X30 FLANGE
|
0-28681-030-0 |
04 |
1 |
9712-9801 |
|
|
● |
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ>
03.405
M10X30 FLANGE
|
0-28681-030-0 |
04 |
1 |
9802-9806 |
|
● |
● |
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
03.405
M10X30 FLANGE
|
0-28681-030-0 |
04 |
1 |
9807- |
|
● |
● |
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
4BD1 ENG(LJ6),4BE1 ENG(RLH)
EXC. DUMP CHASSIS(V4D)
09.011
M10
|
9-09110-410-0 |
04 |
1 |
9312-9402 |
● |
|
|
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
09.011
M10
|
9-09110-410-0 |
04 |
1 |
9403- |
● |
|
|
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9612-9711 |
|
● |
|
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9712-9801 |
|
● |
|
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9712-9801 |
|
|
● |
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9802-9806 |
|
● |
● |
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9807- |
|
● |
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
4BD1 ENG(LJ6),4BE1 ENG(RLH)
EXC. DUMP CHASSIS(V4D)
08.900
(A)
M8X20 W/LK WASHER
|
0-50040-820-0 |
03 |
1 |
9312-9402 |
● |
|
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
08.900
(A)
M8X20 W/LK WASHER
|
0-50040-820-0 |
03 |
1 |
9403-9506 |
● |
|
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
02.664
(A)
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
9507-9611 |
● |
|
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
02.664
(A)
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
9612-9711 |
● |
|
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
02.664
(A)
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
9612-9711 |
|
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
02.664
(A)
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
9712-9801 |
● |
|
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
02.664
(A)
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
9712-9801 |
|
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
FRAME STRAIGHT TYPE<7KJ>
02.664
(A)
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
9712-9801 |
|
|
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
02.664
(A)
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
9802-9806 |
● |
|
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
FRAME STRAIGHT TYPE<7KJ>
02.664
(A)
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
9802-9806 |
|
● |
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
02.664
(A)
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
9807- |
● |
|
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
02.664
(A)
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
9807- |
|
● |
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
FRAME STRAIGHT TYPE<7KJ>
03.405
(B)
M10X25 FLANGE
|
0-28681-025-0 |
04 |
1 |
9511- |
|
|
|
● |
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
G.V.W. 7.0-7.5TON(RPX)
BRAZIL EQUIPMENT(RWF)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.664
(B)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9712- |
|
|
|
● |
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
EXC. BRAZIL EQUIPMENT(RWF),FRAME
STRAIGHT TYPE<7KJ>
02.664
(B)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9712- |
|
|
|
● |
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
02.664
(B)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9712- |
|
|
|
|
|
● |
| |
10 |
07.632 BOLT; TIRE HANGER
08.900
(C)
M8X20 W/LK WASHER
|
0-50040-820-0 |
04 |
1 |
9312-9402 |
|
|
|
● |
● |
● |
| |
10 |
07.632 BOLT; TIRE HANGER
G.V.W. 7.0-7.5TON(RPX)
BRAZIL EQUIPMENT(RWF)
08.900
(C)
M8X20 W/LK WASHER
|
0-50040-820-0 |
04 |
1 |
9403-9504 |
|
|
|
● |
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>,BRAZIL EQUIPMENT(RWF)
08.900
(C)
M8X20 W/LK WASHER
|
0-50040-820-0 |
04 |
1 |
9403-9504 |
|
|
|
● |
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
08.900
(C)
M8X20 W/LK WASHER
|
0-50040-820-0 |
04 |
1 |
9403-9504 |
|
|
|
|
|
● |
| |
10 |
07.632 BOLT; TIRE HANGER
G.V.W. 7.0-7.5TON(RPX)
BRAZIL EQUIPMENT(RWF)
08.900
(C)
M8X20 W/LK WASHER
|
0-50040-820-0 |
04 |
1 |
9505-9506 |
|
|
|
● |
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
EXC. BRAZIL EQUIPMENT(RWF)
08.900
(C)
M8X20 W/LK WASHER
|
0-50040-820-0 |
04 |
1 |
9505-9506 |
|
|
|
● |
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
08.900
(C)
M8X20 W/LK WASHER
|
0-50040-820-0 |
04 |
1 |
9505-9506 |
|
|
|
|
|
● |
| |
10 |
07.632 BOLT; TIRE HANGER
G.V.W. 7.0-7.5TON(RPX)
BRAZIL EQUIPMENT(RWF)
02.664
(C)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9507-9510 |
|
|
|
● |
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
EXC. BRAZIL EQUIPMENT(RWF)
02.664
(C)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9507-9510 |
|
|
|
● |
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
02.664
(C)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9507-9510 |
|
|
|
|
|
● |
| |
10 |
07.632 BOLT; TIRE HANGER
G.V.W. 7.0-7.5TON(RPX)
BRAZIL EQUIPMENT(RWF)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.664
(C)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
EXC. BRAZIL EQUIPMENT(RWF),FRAME
STRAIGHT TYPE<7KJ>
02.664
(C)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
02.664
(C)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9511-9711 |
|
|
|
|
|
● |
| |
11 |
07.629 NUT; TIRE HANGER
02.559
M8
|
9-09110-408-0 |
04 |
1 |
9312-9402 |
|
|
|
● |
● |
● |
| |
11 |
07.629 NUT; TIRE HANGER
G.V.W. 7.0-7.5TON(RPX)
BRAZIL EQUIPMENT(RWF)
02.559
M8
|
9-09110-408-0 |
04 |
1 |
9403-9504 |
|
|
|
● |
● |
|
| |
11 |
07.629 NUT; TIRE HANGER
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>,BRAZIL EQUIPMENT(RWF)
02.559
M8
|
9-09110-408-0 |
04 |
1 |
9403-9504 |
|
|
|
● |
● |
|
| |
11 |
07.629 NUT; TIRE HANGER
02.559
M8
|
9-09110-408-0 |
04 |
1 |
9403-9504 |
|
|
|
|
|
● |
| |
11 |
07.629 NUT; TIRE HANGER
G.V.W. 7.0-7.5TON(RPX)
BRAZIL EQUIPMENT(RWF)
02.559
M8
|
9-09110-408-0 |
04 |
1 |
9505-9508 |
|
|
|
● |
● |
|
| |
11 |
07.629 NUT; TIRE HANGER
EXC. BRAZIL EQUIPMENT(RWF)
02.559
M8
|
9-09110-408-0 |
04 |
1 |
9505-9508 |
|
|
|
● |
● |
|
| |
11 |
07.629 NUT; TIRE HANGER
02.559
M8
|
9-09110-408-0 |
04 |
1 |
9505-9508 |
|
|
|
|
|
● |
| |
11 |
07.629 NUT; TIRE HANGER
G.V.W. 7.0-7.5TON(RPX)
BRAZIL EQUIPMENT(RWF)
07.633
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9509-9510 |
|
|
|
● |
● |
|
| |
11 |
07.629 NUT; TIRE HANGER
EXC. BRAZIL EQUIPMENT(RWF)
07.633
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9509-9510 |
|
|
|
● |
● |
|
| |
11 |
07.629 NUT; TIRE HANGER
07.633
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9509-9510 |
|
|
|
|
|
● |
| |
11 |
07.629 NUT; TIRE HANGER
G.V.W. 7.0-7.5TON(RPX)
BRAZIL EQUIPMENT(RWF)
EXC. FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
|
| |
11 |
07.629 NUT; TIRE HANGER
EXC. BRAZIL EQUIPMENT(RWF),FRAME
STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
|
| |
11 |
07.629 NUT; TIRE HANGER
07.633
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9511-9711 |
|
|
|
|
|
● |
| |
11 |
07.629 NUT; TIRE HANGER
G.V.W. 7.0-7.5TON(RPX)
BRAZIL EQUIPMENT(RWF)
EXC. FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9712- |
|
|
|
● |
● |
|
| |
11 |
07.629 NUT; TIRE HANGER
EXC. BRAZIL EQUIPMENT(RWF),FRAME
STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9712- |
|
|
|
● |
● |
|
| |
11 |
07.629 NUT; TIRE HANGER
07.633
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9712- |
|
|
|
|
|
● |
| |
18 |
07.633 NUT; MEMBER
FRAME STRAIGHT TYPE<7KJ>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9511- |
|
|
|
● |
● |
|
| |
19 |
07.632 BOLT; C/MBR
FRAME STRAIGHT TYPE<7KJ>
03.405
M10X30 FLANGE
|
0-28681-030-0 |
04 |
1 |
9511-9511 |
|
|
|
● |
● |
|
| |
19 |
07.632 BOLT; C/MBR
FRAME STRAIGHT TYPE<7KJ>
03.405
M10X25 FLANGE
|
0-28681-025-0 |
04 |
1 |
9512-9705 |
|
|
|
● |
● |
|
| |
19 |
07.632 BOLT; C/MBR
FRAME STRAIGHT TYPE<7KJ>
03.405
M10X30 FLANGE
|
0-28681-030-0 |
04 |
1 |
9706- |
|
|
|
● |
● |
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
LEYLAND EQUIPMENT<S9Z>
|
8-97172-733-0 |
01 |
1 |
9612-9711 |
● |
|
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
EUROPEAN BASIC EQUIPMENT(EK4)
|
8-97172-733-0 |
01 |
1 |
9712- |
● |
|
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
4BD1 ENG(LJ6),4BE1 ENG(RLH)
EXC. DUMP CHASSIS(V4D)
|
8-97010-956-1 |
01 |
1 |
9312-9402 |
● |
|
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>
|
8-97010-956-1 |
01 |
1 |
9403-9611 |
● |
|
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
EXC. SPARE TIRE CARRIER INSIDE MOUNTE
D<P15>,LEYLAND EQUIPMENT<S9Z>
|
8-97010-956-1 |
01 |
1 |
9612-9711 |
● |
|
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
SPARE TIRE CARRIER INSIDE MOUNTED<P15>
|
8-97010-956-1 |
01 |
1 |
9712- |
● |
|
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
|
8-97148-330-0 |
01 |
1 |
9612-9710 |
|
● |
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
|
8-97188-263-0 |
01 |
1 |
9711-9711 |
|
● |
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
|
8-97188-263-0 |
01 |
1 |
9712-9801 |
|
● |
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
FRAME STRAIGHT TYPE<7KJ>
|
8-97188-263-0 |
01 |
1 |
9712-9801 |
|
|
● |
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
FRAME STRAIGHT TYPE<7KJ>
|
8-97188-263-0 |
01 |
1 |
9802-9806 |
|
● |
● |
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97188-263-0 |
01 |
1 |
9807- |
|
● |
● |
|
|
|
| |
27 |
07.629 CUSHION; FRAME TO SPARE TIRE
4HF1 ENG(RLS)
125X50X10
|
8-94341-284-0 |
02 |
1 |
9312-9402 |
● |
|
|
|
|
|
| |
27 |
07.629 CUSHION; FRAME TO SPARE TIRE
SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
125X50X10
|
8-94341-284-0 |
02 |
1 |
9403-9504 |
● |
|
|
● |
● |
|
| |
27 |
07.629 CUSHION; FRAME TO SPARE TIRE
SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
125X50X10
|
8-94341-284-0 |
02 |
1 |
9505-9806 |
● |
|
|
|
|
|
| |
27 |
07.629 CUSHION; FRAME TO SPARE TIRE
SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
125X50X10
|
8-94341-284-0 |
02 |
1 |
9807-9807 |
● |
|
|
|
|
|
| |
27 |
07.629 CUSHION; FRAME TO SPARE TIRE
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
125X50X10
|
8-94341-284-0 |
02 |
1 |
9807-9807 |
|
● |
|
|
|
|
| |
27 |
07.629 CUSHION; FRAME TO SPARE TIRE
SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
125X50X10
|
8-94341-284-0 |
04 |
1 |
9808- |
● |
|
|
|
|
|
| |
27 |
07.629 CUSHION; FRAME TO SPARE TIRE
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
125X50X10
|
8-94341-284-0 |
04 |
1 |
9808- |
|
● |
|
|
|
|
| |
27 |
07.629 CUSHION; FRAME TO SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
125X50X10
|
8-94341-284-0 |
04 |
1 |
9511-9604 |
|
|
|
● |
● |
|
| |
34 |
07.629 BOLT; SPARE TIRE
4HF1 ENG(RLS)
M12X305
|
8-94441-189-0 |
01 |
1 |
9312-9402 |
● |
|
|
|
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
M12X305
|
8-94441-189-0 |
01 |
1 |
9403-9504 |
● |
|
|
● |
● |
|
| |
34 |
07.629 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
M12X305
|
8-94441-189-0 |
01 |
1 |
9505-9806 |
● |
|
|
|
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
M12X305
|
8-94441-189-0 |
01 |
1 |
9807- |
● |
|
|
|
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
M12X305
|
8-94441-189-0 |
01 |
1 |
9807- |
|
● |
|
|
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
M12X305
|
8-94441-189-0 |
02 |
1 |
9511-9611 |
|
|
|
● |
● |
|
| |
34 |
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
M12X305
|
8-94441-189-0 |
02 |
1 |
9612-9711 |
|
● |
|
● |
● |
|
| |
34 |
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
M12X305
|
8-94441-189-0 |
02 |
1 |
9712- |
|
● |
● |
● |
● |
|
| |
35 |
07.629 WASHER; PL,SPARE TIRE
4HF1 ENG(RLS)
09.011
OD=40
|
9-09651-093-0 |
01 |
1 |
9312-9402 |
● |
|
|
|
|
|
| |
35 |
07.629 WASHER; PL,SPARE TIRE
SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
09.011
OD=40
|
9-09651-093-0 |
01 |
1 |
9403-9504 |
● |
|
|
● |
● |
|
| |
35 |
07.629 WASHER; PL,SPARE TIRE
SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
09.011
OD=40
|
9-09651-093-0 |
01 |
1 |
9505-9806 |
● |
|
|
|
|
|
| |
35 |
07.629 WASHER; PL,SPARE TIRE
SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
09.011
OD=40
|
9-09651-093-0 |
01 |
1 |
9807-9807 |
● |
|
|
|
|
|
| |
35 |
07.629 WASHER; PL,SPARE TIRE
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
09.011
OD=40
|
9-09651-093-0 |
01 |
1 |
9807-9807 |
|
● |
|
|
|
|
| |
35 |
07.629 WASHER; PL,SPARE TIRE
SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
01 |
1 |
9808- |
● |
|
|
|
|
|
| |
35 |
07.629 WASHER; PL,SPARE TIRE
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
01 |
1 |
9808- |
|
● |
|
|
|
|
| |
35 |
07.629 WASHER; PL,SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
09.011
OD=40
|
9-09651-093-0 |
02 |
1 |
9511-9611 |
|
|
|
● |
● |
|
| |
35 |
07.629 WASHER; PL,SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
09.011
OD=40
|
9-09651-093-0 |
02 |
1 |
9612-9711 |
|
● |
|
● |
● |
|
| |
35 |
07.629 WASHER; PL,SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
09.011
OD=40
|
9-09651-093-0 |
02 |
1 |
9712-9807 |
|
● |
● |
● |
● |
|
| |
35 |
07.629 WASHER; PL,SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
02 |
1 |
9808- |
|
● |
● |
● |
● |
|
| |
36 |
07.629 NUT; SPARE TIRE
4HF1 ENG(RLS)
05.816
M12
|
9-99110-412-0 |
01 |
1 |
9312-9402 |
● |
|
|
|
|
|
| |
36 |
07.629 NUT; SPARE TIRE
SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
05.816
M12
|
9-99110-412-0 |
01 |
1 |
9403-9504 |
● |
|
|
● |
● |
|
| |
36 |
07.629 NUT; SPARE TIRE
SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
05.816
M12
|
9-99110-412-0 |
01 |
1 |
9505-9806 |
● |
|
|
|
|
|
| |
36 |
07.629 NUT; SPARE TIRE
SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
05.816
M12
|
9-99110-412-0 |
01 |
1 |
9807- |
● |
|
|
|
|
|
| |
36 |
07.629 NUT; SPARE TIRE
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
05.816
M12
|
9-99110-412-0 |
01 |
1 |
9807- |
|
● |
|
|
|
|
| |
36 |
07.629 NUT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
05.816
M12
|
9-99110-412-0 |
02 |
1 |
9511-9611 |
|
|
|
● |
● |
|
| |
36 |
07.629 NUT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
05.816
M12
|
9-99110-412-0 |
02 |
1 |
9612-9711 |
|
● |
|
● |
● |
|
| |
36 |
07.629 NUT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
05.816
M12
|
9-99110-412-0 |
02 |
1 |
9712- |
|
● |
● |
● |
● |
|
| |
47 |
07.629 BELT; SPARE TIRE
LEYLAND EQUIPMENT<S9Z>
(B)
|
8-97167-881-0 |
01 |
1 |
9609-9611 |
● |
|
|
|
|
|
| |
47 |
07.629 BELT; SPARE TIRE
LEYLAND EQUIPMENT<S9Z>
(B)
|
8-97167-880-0 |
01 |
1 |
9612-9711 |
● |
|
|
|
|
|
| |
47 |
07.629 BELT; SPARE TIRE
EUROPEAN BASIC EQUIPMENT(EK4)
(C)
|
8-97189-553-0 |
01 |
1 |
9712- |
● |
|
|
|
|
|
| |
47 |
07.629 BELT; SPARE TIRE
EUROPEAN BASIC EQUIPMENT(EK4)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97189-553-0 |
01 |
1 |
9712- |
|
|
● |
|
|
|
| |
47 |
07.629 BELT; SPARE TIRE
EUROPEAN BASIC EQUIPMENT(EK4)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97188-741-0 |
01 |
1 |
9712- |
|
|
|
● |
● |
|
| |
47 |
07.629 BELT; SPARE TIRE
LEYLAND EQUIPMENT<S9Z>
(B)
|
8-97167-880-0 |
01 |
1 |
9609-9611 |
|
|
|
● |
● |
|
| |
47 |
07.629 BELT; SPARE TIRE
LEYLAND EQUIPMENT<S9Z>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97167-881-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
● |
|
| |
47 |
07.629 BELT; SPARE TIRE
EUROPEAN BASIC EQUIPMENT(EK4)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97167-881-0 |
01 |
1 |
9712- |
|
|
|
● |
● |
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
|
1-53631-343-1 |
02 |
1 |
9511-9610 |
|
|
|
● |
● |
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
|
8-97167-802-0 |
02 |
1 |
9611- |
|
|
|
● |
● |
|
| |
134 |
07.632 BOLT; BELT
LEYLAND EQUIPMENT<S9Z>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
04 |
1 |
9612-9711 |
● |
|
|
|
|
|
| |
134 |
07.632 BOLT; BELT
EUROPEAN BASIC EQUIPMENT(EK4)
02.559
M8X25 FLANGE
|
0-28680-825-0 |
04 |
1 |
9712- |
● |
|
|
|
|
|
| |
134 |
07.632 BOLT; BELT
EUROPEAN BASIC EQUIPMENT(EK4)
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
04 |
1 |
9712- |
|
|
● |
|
|
|
| |
134 |
07.632 BOLT; BELT
LEYLAND EQUIPMENT<S9Z>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9612-9711 |
|
|
|
● |
● |
|
| |
134 |
07.632 BOLT; BELT
EUROPEAN BASIC EQUIPMENT(EK4)
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9712- |
|
|
|
● |
● |
|
| |
134 |
07.632 BOLT; BELT
LEYLAND EQUIPMENT<S9Z>
EXC. FRAME STRAIGHT TYPE<7KJ>
03.405
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
9612-9711 |
|
|
|
● |
● |
|
| |
134 |
07.632 BOLT; BELT
EUROPEAN BASIC EQUIPMENT(EK4)
03.405
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
9712- |
|
|
|
● |
● |
|
| |
135 |
07.629 NUT; BELT
EUROPEAN BASIC EQUIPMENT(EK4)
FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9712- |
|
|
|
● |
● |
|
| |
135 |
07.629 NUT; BELT
LEYLAND EQUIPMENT<S9Z>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9612-9711 |
|
|
|
● |
● |
|
| |
135 |
07.629 NUT; BELT
EUROPEAN BASIC EQUIPMENT(EK4)
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9712-9804 |
|
|
|
● |
● |
|
| |
135 |
07.629 NUT; BELT
EUROPEAN BASIC EQUIPMENT(EK4)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9805- |
|
|
|
● |
● |
|
