◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65C - REAR LEAF SPRING ▶
4-65C — REAR LEAF SPRING (#47879) — 35 parça

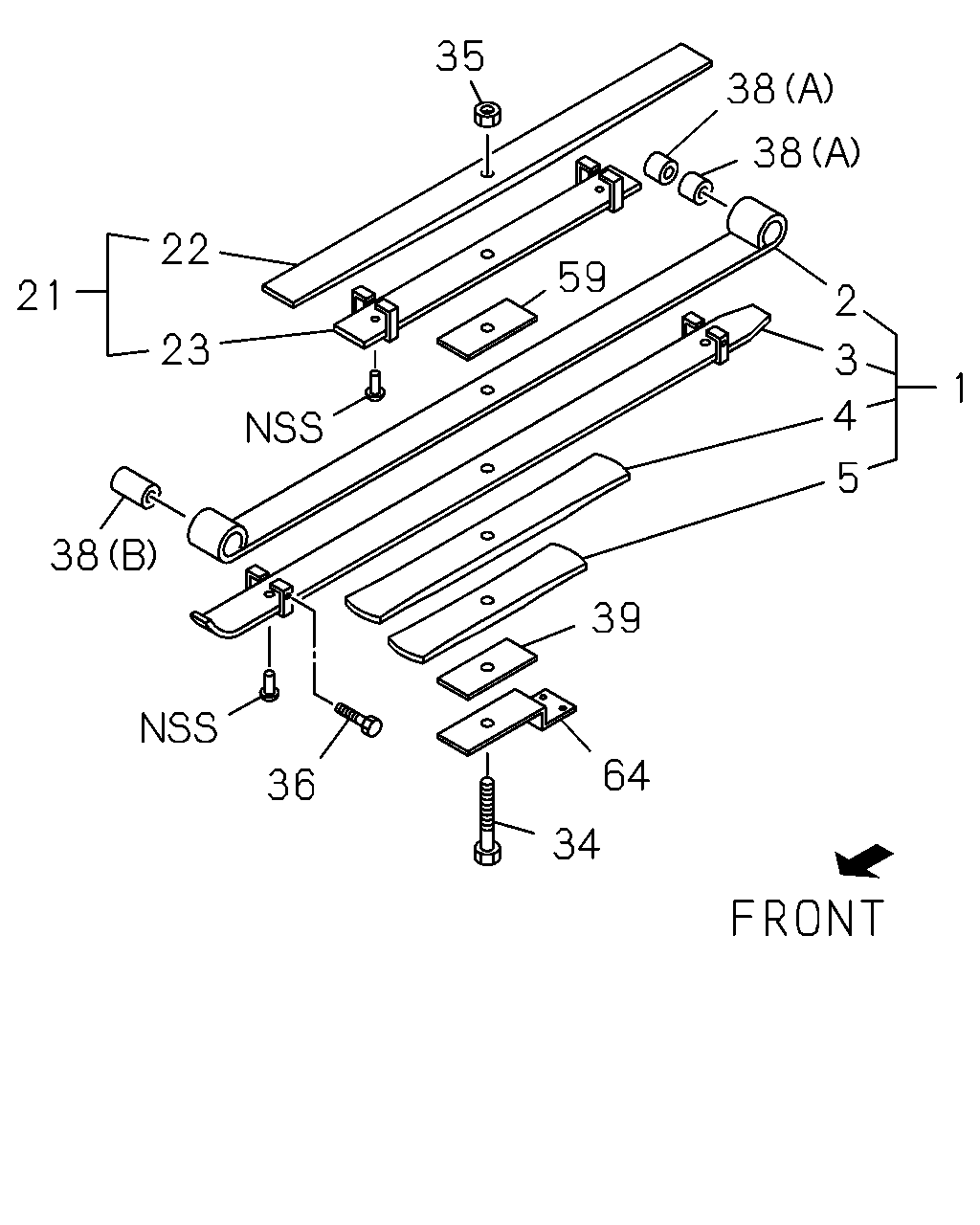

çizim 67463
35 38 38 22 59 21 2 23 3 1 4 5 38 39 64 36 34
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-97033-493-3, 97033493 		8-97083-773-0 01 1 -
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: B = 8-97033-502-4, 97033502 		8-97083-844-0 01 1 -
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: C = 8-97033-561-3, 97033561 		8-97084-764-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-97033-493-3, 97033493 		8-97083-774-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 8-97033-502-4, 97033502 		8-97083-845-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: C = 8-97033-561-3, 97033561 		8-97084-765-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-97033-493-3, 97033493 		8-97083-775-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 8-97033-502-4, 97033502 		8-97083-846-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: C = 8-97033-561-3, 97033561 		8-97084-766-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-97033-493-3, 97033493 		8-97083-776-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 8-97033-502-4, 97033502 		8-97083-847-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: C = 8-97033-561-3, 97033561 		8-97084-767-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-97033-493-3, 97033493 		8-97083-777-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: B = 8-97033-502-4, 97033502 		8-97083-848-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: C = 8-97033-561-3, 97033561 		8-97084-768-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-97033-493-3, 97033493 		8-97083-778-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: B = 8-97033-502-4, 97033502 		8-97083-849-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: C = 8-97033-561-3, 97033561 		8-97084-769-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-97033-493-3, 97033493 		8-97083-779-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: B = 8-97033-502-4, 97033502 		8-97083-850-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: C = 8-97033-561-3, 97033561 		8-97084-770-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-97033-493-3, 97033493 		8-97083-780-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: B = 8-97033-502-4, 97033502 		8-97083-851-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: C = 8-97033-561-3, 97033561 		8-97084-771-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=100 ASM PART: A = 8-97033-493-3, 97033493, B = 8-97033-502-4, 97033502 		8-94165-306-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=110 ASM PART: C = 8-97033-561-3, 97033561 		8-94165-308-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
08.917, M12 LOCK NUT ASM PART: A = 8-97033-493-3, 97033493, B = 8-97033-502-4, 97033502, C = 8-97033-561-3, 97033561 		9-09131-512-0 01 1 9505-
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-97033-493-3, 97033493, B = 8-97033-502-4, 97033502, C = 8-97033-561-3, 97033561 		9-99110-512-0 01 1 -9504
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X90.5 ASM PART: A = 8-97033-493-3, 97033493, B = 8-97033-502-4, 97033502, C = 8-97033-561-3, 97033561 		8-94407-133-0 02 1 -9506
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X89 ASM PART: A = 8-97033-493-3, 97033493, B = 8-97033-502-4, 97033502, C = 8-97033-561-3, 97033561 		8-97129-689-0 02 1 9507-
38 07.505 BUSHING; LEAF SPR,RR
07.524, (A) ASM PART: A = 8-97033-493-3, 97033493, B = 8-97033-502-4, 97033502, C = 8-97033-561-3, 97033561 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B), OD=42 L=81 ASM PART: A = 8-97033-493-3, 97033493, B = 8-97033-502-4, 97033502, C = 8-97033-561-3, 97033561 		8-97074-826-0 01 1 -
39 07.518 SEAT; LEAF SPR,RR MAIN
T=6 ASM PART: A = 8-97033-493-3, 97033493, C = 8-97033-561-3, 97033561 		8-97084-846-0 01 1 -
59 07.513 SEAT; RR SPRING,SUB
07.518, T=8 ASM PART: B = 8-97033-502-4, 97033502 		8-97084-668-0 01 1 -
64 07.513 SUPPORT; RR SPR
ASM PART: C = 8-97033-561-3, 97033561 		8-94342-863-0 01 1 -
