4-60 — REAR SUSPENSION (#47875) — 510 parça

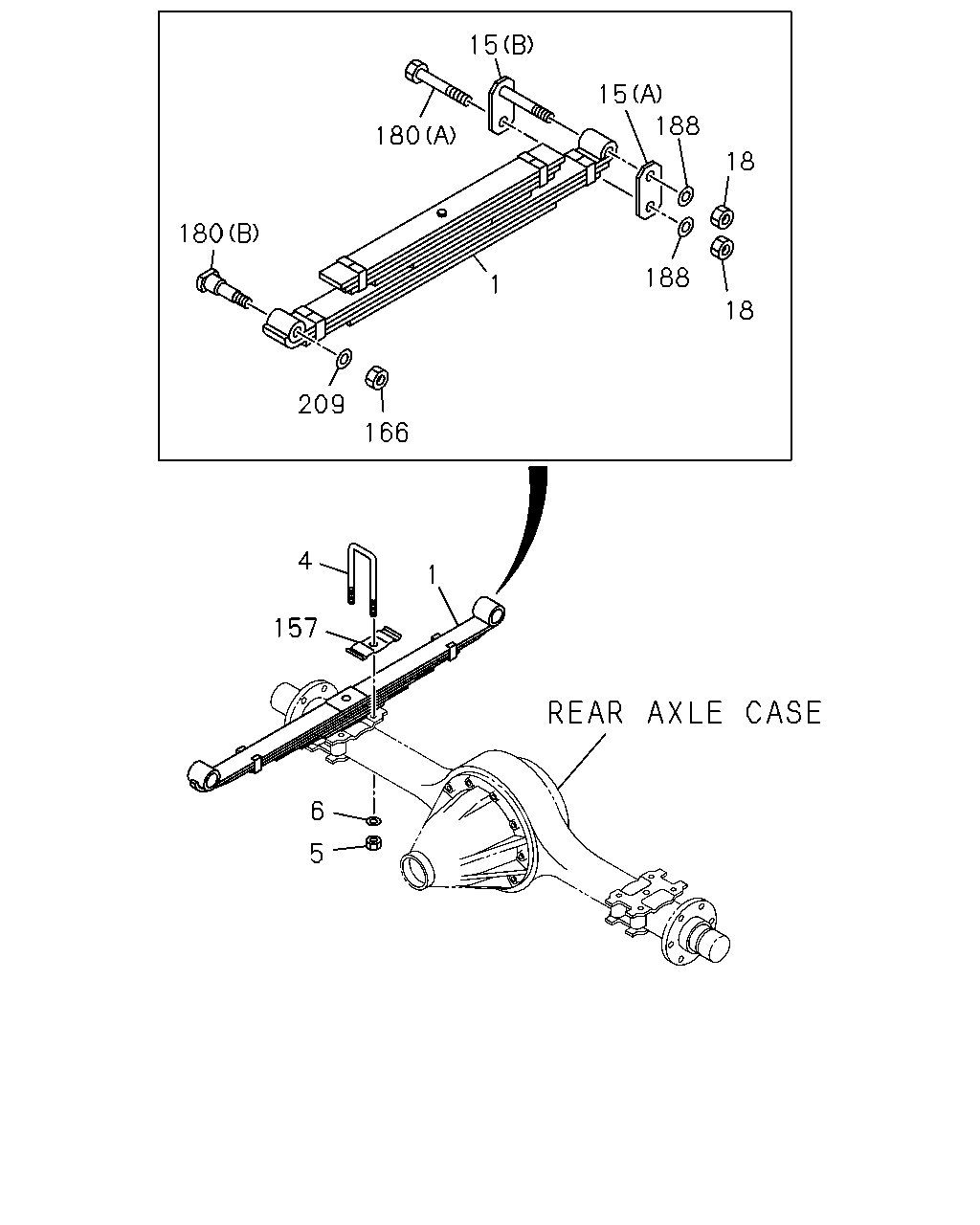

çizim 67556
15 15 188 180 18 180 188 1 18 209 166 4 1 157 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) EXC. STABILIZER REAR<GN1> 16-LEAF 		8-97073-225-2 02 1 9312-9510 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 16-LEAF 		8-97073-225-2 02 1 9511-9711 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 16-LEAF 		8-97073-225-2 02 1 9712-9801 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 16-LEAF 		8-97073-225-2 02 1 9802- ● ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), STABILIZER REAR<GN1> 10-LEAF 		8-97073-224-0 02 1 9312-9504 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), STABILIZER REAR<GN1>,ISRAEL EQUIPMENT(7LX) 10-LEAF 		8-97073-224-1 02 1 9505-9603 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), STABILIZER REAR<GN1>,FRAME STRAIGHT TYP E<7KJ>,ISRAEL EQUIPMENT(7LX) 10-LEAF 		8-97073-224-1 02 1 9604-9711 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), STABILIZER REAR<GN1>,FRAME STRAIGHT TYP E<7KJ>,ISRAEL EQUIPMENT(7LX) 10-LEAF 		8-97073-224-1 02 1 9712- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> 4-LEAF 		8-97033-492-1 02 1 9312-9504 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> 4-LEAF 		8-97033-492-2 02 1 9505-9506 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> 4-LEAF 		8-97033-492-2 02 1 9507- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 5.0-5.5TON(RPT) EXC. STABILIZER REAR<GN1> 6-LEAF 		8-97033-502-2 02 1 9312-9504 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 5.0-5.5TON(RPT) EXC. STABILIZER REAR<GN1> 6-LEAF 		8-97033-502-4 02 1 9505- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) STABILIZER REAR<GN1> G.V.W. 3.5-4.0TON(RPQ) 5-LEAF 		8-97033-560-1 02 1 9312-9504 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) STABILIZER REAR<GN1> G.V.W. 3.5-4.0TON(RPQ) 5-LEAF 		8-97033-560-2 02 1 9505-9506 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) STABILIZER REAR<GN1> G.V.W. 3.5-4.0TON(RPQ) 5-LEAF 		8-97033-560-2 02 1 9507- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) STABILIZER REAR<GN1> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 6-LEAF 		8-97033-561-1 02 1 9312-9504 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) STABILIZER REAR<GN1> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 6-LEAF 		8-97033-561-2 02 1 9505-9506 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) STABILIZER REAR<GN1> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 6-LEAF 		8-97033-561-3 02 1 9507-9603 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) STABILIZER REAR<GN1> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 6-LEAF 		8-97033-561-3 02 1 9604-9704 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) STABILIZER REAR<GN1> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 6-LEAF 		8-97033-561-3 02 1 9705- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 10-LEAF 		8-97092-458-0 02 1 9312-9504 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 10-LEAF 		8-97092-458-1 02 1 9505-9506 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 10-LEAF 		8-97092-458-1 02 1 9507-9603 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPME NT(7LX) 10-LEAF 		8-97092-458-1 02 1 9604- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) 16-LEAF 		8-97092-459-1 02 1 9312-9504 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) 16-LEAF 		8-97092-459-1 02 1 9505-9506 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) 16-LEAF 		8-97092-459-1 02 1 9507-9510 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 16-LEAF 		8-97092-459-1 02 1 9511- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> 6-LEAF 		8-97033-493-1 02 1 9312-9504 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> 6-LEAF 		8-97033-493-2 02 1 9505-9506 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> 6-LEAF 		8-97033-493-3 02 1 9507-9603 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 6-LEAF 		8-97033-493-3 02 1 9604-9704 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 6-LEAF 		8-97033-493-3 02 1 9705- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97174-307-0 02 1 9712- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 12-LEAF 		8-97122-382-0 02 1 9511-9603 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97122-382-0 02 1 9604-9711 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97122-382-0 02 1 9712-9801 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97122-382-0 02 1 9802- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) 12-LEAF 		8-97096-576-0 02 1 9511-9603 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE 8.25-16<7QP> 12-LEAF 		8-97096-576-0 02 1 9604-9611 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE 8.25-16<7QP> 12-LEAF 		8-97096-576-0 02 1 9612-9711 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE 8.25-16<7QP> 12-LEAF 		8-97096-576-0 02 1 9712- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97147-602-0 02 1 9604-9611 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97147-602-0 02 1 9612-9711 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97184-493-0 02 1 9712-9712 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. MINI BUS CHASSIS<V4B> '97/12/15- 12-LEAF 		8-97184-493-0 02 1 9712- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 10-LEAF 		8-97147-111-0 02 1 9604-9801 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 10-LEAF 		8-97147-111-0 02 1 9802- ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.0-7.5TON(RPX) EXC. STABILIZER REAR<GN1> L=325 		8-94175-946-0 04 1 9312-9510 ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> L=325 		8-94175-946-0 04 1 9511-9711 ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> L=325 		8-94175-946-0 04 1 9712-9801 ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> L=325 		8-94175-946-0 04 1 9802- ● ● ● ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=265 		8-94127-923-1 04 1 9312-9601 ● ● ●
4 07.516 U-BOLT; RR SPR
L=265 		8-94127-923-1 04 1 9312-9601 ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=265 		8-94127-923-1 04 1 9602-9704 ● ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=265 		8-94127-923-1 04 1 9602-9704 ● ● ●
4 07.516 U-BOLT; RR SPR
L=265 		8-94127-923-1 04 1 9602-9704 ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=265 		8-94127-923-1 04 1 9705-9711 ● ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=265 		8-94127-923-1 04 1 9705-9711 ● ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) EXC. STABILIZER REAR<GN1> L=265 		8-94127-923-1 04 1 9705-9711 ●
4 07.516 U-BOLT; RR SPR
ISRAEL EQUIPMENT(7LX) STABILIZER REAR<GN1> L=265 		8-94127-923-1 04 1 9705-9711 ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=265 		8-94127-923-1 04 1 9712- ● ● ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=265 		8-94127-923-1 04 1 9712- ● ● ●
4 07.516 U-BOLT; RR SPR
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) L=285 		8-94132-172-1 04 1 9312-9606 ● ● ●
4 07.516 U-BOLT; RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), STABILIZER REAR<GN1>,ISRAEL EQUIPMENT(7LX) L=285 		8-94132-172-1 04 1 9607-9704 ● ● ●
4 07.516 U-BOLT; RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), STABILIZER REAR<GN1>,ISRAEL EQUIPMENT(7LX) L=285 		8-94132-172-1 04 1 9705-9711 ● ● ● ●
4 07.516 U-BOLT; RR SPR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), STABILIZER REAR<GN1>,FRAME STRAIGHT TYP E<7KJ>,ISRAEL EQUIPMENT(7LX) L=285 		8-97141-874-0 04 1 9712-9712 ● ● ●
4 07.516 U-BOLT; RR SPR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), STABILIZER REAR<GN1>,FRAME STRAIGHT TYP E<7KJ>,ISRAEL EQUIPMENT(7LX) L=285 		8-97141-874-0 04 1 9801- ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> L=285 		8-97141-874-0 04 1 9801- ● ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) L=245 		8-94127-921-1 04 1 9312-9504 ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) L=245 		8-94127-921-1 04 1 9505-9506 ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> L=245 		8-94127-921-1 04 1 9507-9507 ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 5.0-5.5TON(RPT) L=245 		8-94127-921-1 04 1 9507-9507 ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> '95/7/17- L=245 		8-94127-921-1 04 1 9507-9510 ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 5.0-5.5TON(RPT) '95/7/17- L=245 		8-94127-921-1 04 1 9507-9510 ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> L=245 		8-94127-921-1 04 1 9511- ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 5.0-5.5TON(RPT) L=245 		8-94127-921-1 04 1 9511- ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) STABILIZER REAR<GN1> G.V.W. 3.5-4.0TON(RPQ) L=235 		8-94127-920-1 04 1 9507-9507 ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) STABILIZER REAR<GN1> G.V.W. 3.5-4.0TON(RPQ) '95/7/17- L=235 		8-94127-920-1 04 1 9507- ● ●
4 07.516 U-BOLT; RR SPR
STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) L=355 		8-94119-686-4 04 1 9312-9504 ●
4 07.516 U-BOLT; RR SPR
STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) L=355 		8-94119-686-4 04 1 9505-9506 ● ●
4 07.516 U-BOLT; RR SPR
STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) L=355 		8-94119-686-4 04 1 9507-9510 ● ● ●
4 07.516 U-BOLT; RR SPR
STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> L=355 		8-94119-686-4 04 1 9511- ● ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=275 		8-94127-924-1 04 1 9312-9504 ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=275 		8-94127-924-1 04 1 9505-9506 ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=275 		8-94127-924-1 04 1 9507-9704 ● ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=275 		8-94127-924-1 04 1 9705-9711 ● ● ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=275 		8-94127-924-1 04 1 9712- ● ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 6.0-6.5TON(RPV) L=255 		8-94127-922-1 04 1 9312-9504 ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 6.0-6.5TON(RPV) L=255 		8-94127-922-1 04 1 9505-9506 ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 6.0-6.5TON(RPV) L=255 		8-94127-922-1 04 1 9507-9601 ● ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=255 		8-94127-922-1 04 1 9602-9704 ● ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=255 		8-94127-922-1 04 1 9705- ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> L=295 		8-94132-358-1 04 1 9712- ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> L=305 		8-94412-505-0 04 1 9511- ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> L=315 		1-51371-194-2 04 1 9604-9801 ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> L=315 		1-51371-194-2 04 1 9802- ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> L=345 		1-51371-195-2 04 1 9511-9603 ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE 8.25-16<7QP> L=345 		1-51371-195-2 04 1 9604-9611 ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE 8.25-16<7QP> L=345 		1-51371-195-2 04 1 9612-9711 ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE 8.25-16<7QP> L=345 		1-51371-195-2 04 1 9712- ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> L=360 		1-51371-173-3 04 1 9604-9611 ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> L=360 		1-51371-173-3 04 1 9612-9711 ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> L=360 		1-51371-173-3 04 1 9712- ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
07.516 M16 		8-94107-767-0 08 1 9312-9510 ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) 07.516 M16 		8-94107-767-0 08 1 9511-9711 ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 07.516 M16 		8-94107-767-0 08 1 9511-9711 ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 07.516 M16 		8-94107-767-0 08 1 9511-9711 ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) 07.516 M16 		8-94107-767-0 08 1 9712-9801 ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 07.516 M16 		8-94107-767-0 08 1 9712-9801 ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) 07.516 M16 		8-94107-767-0 08 1 9802- ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 07.516 M16 		8-94107-767-0 08 1 9802- ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 9511-9611 ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 9612-9711 ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 9712- ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-94137-482-1 08 1 9312-9510 ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) ID=16.4 		8-94137-482-1 08 1 9511-9711 ● ● ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-94137-482-1 08 1 9511-9711 ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-94137-482-1 08 1 9511-9711 ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) ID=16.4 		8-94137-482-1 08 1 9712-9801 ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-94137-482-1 08 1 9712-9801 ● ● ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) ID=16.4 		8-94137-482-1 08 1 9802- ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-94137-482-1 08 1 9802- ● ● ● ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 9312-9611 ● ● ● ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 9612-9711 ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 9712- ● ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94118-512-4 02 1 9312-9611 ● ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94118-512-4 02 1 9612-9711 ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94118-512-4 02 1 9712- ● ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
EXC. KD PREPARATORY PACK<6HF> 07.516 M16 		8-94107-767-0 04 1 9312-9611 ● ● ● ●
18 07.529 NUT; SHACKLE PIN
EXC. KD PREPARATORY PACK<6HF> 07.516 M16 		8-94107-767-0 04 1 9612-9705 ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97147-389-0 04 1 9706-9711 ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97147-389-0 04 1 9712- ● ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
KD PREPARATORY PACK<6HF> 08.915 M16 		9-99110-516-0 04 1 9312-9705 ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
KD PREPARATORY PACK<6HF> 08.915 M16 		9-99110-516-0 04 1 9706-9711 ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
KD PREPARATORY PACK<6HF> 08.915 M16 		9-99110-516-0 04 1 9712- ● ● ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 9312-9510 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9312-9510 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9312-9510 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9511-9511 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 9511-9511 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9511-9511 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 9511-9511 ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9511-9603 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 9511-9603 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9511-9603 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 9511-9603 ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) '95/11/27- L=140 T=4.5 		8-94118-509-1 02 1 9604-9704 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) '95/11/27- L=140 T=4.5 		8-94118-509-1 02 1 9604-9704 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> '95/11/27- L=140 T=4.5 		8-94118-509-1 02 1 9604-9704 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> '95/11/27- L=140 T=4.5 		8-94118-509-1 02 1 9604-9704 ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9705-9711 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9705-9711 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 9705-9711 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 9705-9711 ● ●
157 07.518 CLAMP; UPR,RR SPR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9712-9801 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9712-9801 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 9712-9801 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 9712-9801 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9802- ● ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9802- ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 9802- ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 9802- ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4JG2 ENG(RJC),4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) L=130 T=4.5 		8-94119-069-2 02 1 9312-9506 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) L=130 T=4.5 		8-94119-069-2 02 1 9312-9506 ●
157 07.518 CLAMP; UPR,RR SPR
4JG2 ENG(RJC),4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) L=130 T=4.5 		8-94119-069-2 02 1 9507-9711 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) L=130 T=4.5 		8-94119-069-2 02 1 9507-9711 ● ●
157 07.518 CLAMP; UPR,RR SPR
4JG2 ENG(RJC),4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) L=130 T=4.5 		8-94119-069-2 02 1 9712- ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) L=130 T=4.5 		8-94119-069-2 02 1 9712- ● ●
166 07.530 NUT; GREASE NIPPLE
06.216 M18 		9-99110-518-0 02 1 9312-9611 ● ● ● ●
166 07.530 NUT; GREASE NIPPLE
06.216 M18 		9-99110-518-0 02 1 9612-9711 ● ● ● ● ●
166 07.530 NUT; GREASE NIPPLE
06.216 M18 		9-99110-518-0 02 1 9712- ● ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-97033-967-0 02 1 9312-9611 ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-97033-967-0 02 1 9612-9711 ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-97033-967-0 02 1 9712- ● ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 9312-9611 ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 9612-9711 ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 9712- ● ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 9312-9611 ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 9612-9711 ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 9712- ● ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 9312-9611 ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 9612-9711 ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 9712- ● ● ● ● ● ●
188 07.529 WASHER; PL,SHACKLE PIN
07.172 ID=16.5 		8-97070-925-1 04 1 9312-9603 ● ● ● ●
209 07.529 WASHER; PL
ID=19 		8-97073-435-1 02 1 9312-9611 ● ● ● ●
209 07.529 WASHER; PL
ID=19 		8-97073-435-1 02 1 9612-9711 ● ● ● ● ●
209 07.529 WASHER; PL
ID=19 		8-97073-435-1 02 1 9712- ● ● ● ● ● ●
209 07.529 WASHER; PL
07.172 ID=16.5 		8-97070-925-1 04 1 9604-9611 ● ● ● ●
209 07.529 WASHER; PL
07.172 ID=16.5 		8-97070-925-1 04 1 9612-9705 ● ● ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 ID=16.5 		8-97070-925-1 04 1 9706-9711 ● ● ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 ID=16.5 		8-97070-925-1 04 1 9712- ● ● ● ● ● ●
çizim 70763
244 227 232 227 229 225 225 225 323 317 319 62 25 318 323 314 274 294 308 320 285 285 318 308 330
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-94342-832-0 01 1 9312-9504 ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-94342-832-0 01 1 9505-9506 ● ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-94342-832-0 01 1 9507-9702 ● ● ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-97174-089-0 01 1 9703-9704 ● ● ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-97174-089-0 01 1 9705-9711 ● ● ● ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-97174-089-0 01 1 9712-9801 ● ● ● ● ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-97174-089-0 01 1 9802- ● ● ● ● ● ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-94331-581-0 02 1 9312-9504 ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-94331-581-0 02 1 9505-9506 ● ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-94331-581-0 02 1 9507-9704 ● ● ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-94331-581-0 02 1 9705-9711 ● ● ● ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-94331-581-0 02 1 9712-9801 ● ● ● ● ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-94331-581-0 02 1 9802- ● ● ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
(A) 		8-94118-510-4 02 1 9312-9510 ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94118-510-4 02 1 9511-9711 ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94118-510-4 02 1 9712-9801 ● ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94118-510-4 02 1 9802- ● ● ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> (B) 		8-94379-470-0 02 1 9511-9603 ● ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> (B) 		8-94379-470-0 02 1 9604-9610 ● ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE 8.25-16<7QP> (B) 		8-94379-470-1 02 1 9611-9611 ● ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE 8.25-16<7QP> (B) 		8-94379-470-1 02 1 9612-9711 ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE 8.25-16<7QP> (B) 		8-94379-470-1 02 1 9712- ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> (C) 		5-53366-013-0 02 1 9604-9610 ● ●
225 07.535 RUBBER; CUSHION,RR SPR
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (C) 		5-53366-013-0 02 1 9611-9611 ● ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (C) 		5-53366-013-0 02 1 9611-9611 ● ●
225 07.535 RUBBER; CUSHION,RR SPR
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (C) 		5-53366-013-0 02 1 9612-9711 ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (C) 		5-53366-013-0 02 1 9612-9711 ● ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. MINI BUS CHASSIS<V4B> (C) 		5-53366-013-0 02 1 9712-9712 ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> (C) 		5-53366-013-0 02 1 9712-9712 ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. MINI BUS CHASSIS<V4B> (C) '97/12/15- 		5-53366-013-0 02 1 9712- ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> (C) '97/12/15- 		5-53366-013-0 02 1 9712- ● ● ●
227 07.535 NUT; CUSHION RUBBER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9312-9611 ● ● ● ●
227 07.535 NUT; CUSHION RUBBER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9612-9711 ● ● ● ● ●
227 07.535 NUT; CUSHION RUBBER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9712- ● ● ● ● ● ●
229 07.535 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.029 M10X28 W/LK WASHER 		0-50041-028-0 04 1 9604-9610 ● ●
232 07.535 BRACKET; CUSHION RUBBER
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 		8-94134-353-1 02 1 9604-9610 ● ●
244 07.242 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 09.011 M10 		9-09110-410-0 04 1 9604-9610 ● ●
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94440-793-0 02 1 9312-9504 ●
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94440-793-0 02 1 9505-9506 ● ●
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94440-793-0 02 1 9507-9704 ● ● ●
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94440-793-0 02 1 9705-9711 ● ● ● ●
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94440-793-0 02 1 9712-9801 ● ● ● ● ●
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94440-793-0 02 1 9802- ● ● ● ● ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=18 		8-97089-556-0 02 1 9312-9504 ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=18 		8-97089-556-0 02 1 9505-9506 ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=18 		8-97089-556-0 02 1 9507-9704 ● ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=18 		8-97089-556-0 02 1 9705-9711 ● ● ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=18 		8-97089-556-0 02 1 9712-9801 ● ● ● ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=18 		8-97089-556-0 02 1 9802- ● ● ● ● ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=29 		8-97089-557-0 02 1 9312-9504 ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=29 		8-97089-557-0 02 1 9505-9506 ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=29 		8-97089-557-0 02 1 9507-9704 ● ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=29 		8-97089-557-0 02 1 9705-9711 ● ● ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=29 		8-97089-557-0 02 1 9712-9801 ● ● ● ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> L=29 		8-97089-557-0 02 1 9802- ● ● ● ● ● ●
294 07.242 BOLT; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> 04.686 		8-94342-082-0 02 1 9312-9504 ●
294 07.242 BOLT; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> 04.686 		8-94342-082-0 02 1 9505-9506 ● ●
294 07.242 BOLT; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> 04.686 		8-94342-082-0 02 1 9507-9704 ● ● ●
294 07.242 BOLT; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> 04.686 		8-94342-082-0 02 1 9705-9711 ● ● ● ●
294 07.242 BOLT; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> 04.686 		8-94342-082-0 02 1 9712-9801 ● ● ● ● ●
294 07.242 BOLT; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> 04.686 		8-94342-082-0 02 1 9802- ● ● ● ● ● ●
308 07.243 PLATE; END,RUBBER BUSHING
STABILIZER REAR<GN1> 07.242 		8-94342-084-0 04 1 9312-9504 ●
308 07.243 PLATE; END,RUBBER BUSHING
STABILIZER REAR<GN1> 07.242 		8-94342-084-0 04 1 9505-9506 ● ●
308 07.243 PLATE; END,RUBBER BUSHING
STABILIZER REAR<GN1> 07.242 		8-94342-084-0 04 1 9507-9704 ● ● ●
308 07.243 PLATE; END,RUBBER BUSHING
STABILIZER REAR<GN1> 07.242 		8-94342-084-0 04 1 9705-9711 ● ● ● ●
308 07.243 PLATE; END,RUBBER BUSHING
STABILIZER REAR<GN1> 07.242 		8-94342-084-0 04 1 9712-9801 ● ● ● ● ●
308 07.243 PLATE; END,RUBBER BUSHING
STABILIZER REAR<GN1> 07.242 		8-94342-084-0 04 1 9802- ● ● ● ● ● ●
314 07.242 WASHER; LK,STAB TO BRKT
STABILIZER REAR<GN1> 00.796 ID=14.2 		9-09150-514-0 02 1 9312-9504 ●
314 07.242 WASHER; LK,STAB TO BRKT
STABILIZER REAR<GN1> 00.796 ID=14.2 		9-09150-514-0 02 1 9505-9506 ● ●
314 07.242 WASHER; LK,STAB TO BRKT
STABILIZER REAR<GN1> 00.796 ID=14.2 		9-09150-514-0 02 1 9507-9704 ● ● ●
314 07.242 WASHER; LK,STAB TO BRKT
STABILIZER REAR<GN1> 00.796 ID=14.2 		9-09150-514-0 02 1 9705-9711 ● ● ● ●
314 07.242 WASHER; LK,STAB TO BRKT
STABILIZER REAR<GN1> 00.796 ID=14.2 		9-09150-514-0 02 1 9712-9801 ● ● ● ● ●
314 07.242 WASHER; LK,STAB TO BRKT
STABILIZER REAR<GN1> 00.796 ID=14.2 		9-09150-514-0 02 1 9802- ● ● ● ● ● ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-94441-472-2 02 1 9312-9504 ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-94441-472-2 02 1 9505-9506 ● ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-94441-472-3 02 1 9507-9704 ● ● ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-94441-472-3 02 1 9705-9711 ● ● ● ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-94441-472-3 02 1 9712-9801 ● ● ● ● ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-94441-472-3 02 1 9802- ● ● ● ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> (A) M14X70 		0-10806-470-0 02 1 9312-9412 ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> (A) M14X70 		0-28081-470-0 02 1 9501-9504 ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> (A) M14X70 		0-28081-470-0 02 1 9505-9506 ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> (A) M14X70 FLANGE 		0-28881-470-0 02 1 9507-9507 ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> (A) '95/7/17- M14X70 FLANGE 		0-28881-470-0 02 1 9507-9704 ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> (A) M14X70 FLANGE 		0-28881-470-0 02 1 9705-9711 ● ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> (A) M14X70 FLANGE 		0-28881-470-0 02 1 9712-9801 ● ● ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> (A) M14X70 FLANGE 		0-28881-470-0 02 1 9802- ● ● ● ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> 03.417 (B) M10X25 FLANGE 		0-28081-025-0 04 1 9312-9504 ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> 03.417 (B) M10X25 FLANGE 		0-28081-025-0 04 1 9505-9506 ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> 03.417 (B) M10X25 FLANGE 		0-28081-025-0 04 1 9507-9703 ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 9704-9704 ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 9705-9711 ● ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 9712-9801 ● ● ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 9802- ● ● ● ● ● ●
319 07.242 WASHER; LK,LINK ROD
STABILIZER REAR<GN1> 00.796 ID=14.2 		9-09150-514-0 02 1 9312-9412 ●
320 07.242 CAP; LINK ROD
STABILIZER REAR<GN1> 		8-94178-430-1 02 1 9312-9504 ●
320 07.242 CAP; LINK ROD
STABILIZER REAR<GN1> 		8-94178-430-1 02 1 9505-9506 ● ●
320 07.242 CAP; LINK ROD
STABILIZER REAR<GN1> 		8-94178-430-2 02 1 9507-9704 ● ● ●
320 07.242 CAP; LINK ROD
STABILIZER REAR<GN1> 		8-94178-430-2 02 1 9705-9711 ● ● ● ●
320 07.242 CAP; LINK ROD
STABILIZER REAR<GN1> 		8-94178-430-2 02 1 9712-9801 ● ● ● ● ●
320 07.242 CAP; LINK ROD
STABILIZER REAR<GN1> 		8-94178-430-2 02 1 9802- ● ● ● ● ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 08.917 (B) M10 FLANGE 		0-91150-210-0 04 1 9312-9504 ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 08.917 (B) M10 FLANGE 		0-91150-210-0 04 1 9505-9506 ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 08.917 (B) M10 FLANGE 		0-91150-210-0 04 1 9507-9704 ● ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 08.917 (B) M10 FLANGE 		0-91150-210-0 04 1 9705-9711 ● ● ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 08.917 (B) M10 FLANGE 		0-91150-210-0 04 1 9712-9801 ● ● ● ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 08.917 (B) M10 FLANGE 		0-91150-210-0 04 1 9802- ● ● ● ● ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 06.232 (A) M14 		9-99110-414-0 02 1 9312-9411 ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 03.613 (A) M14 FLANGE 		0-91150-114-0 02 1 9412-9504 ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 03.613 (A) M14 FLANGE 		0-91150-114-0 02 1 9505-9506 ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 03.613 (A) M14 FLANGE 		0-91150-114-0 02 1 9507-9704 ● ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 03.613 (A) M14 FLANGE 		0-91150-114-0 02 1 9705-9711 ● ● ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 03.613 (A) M14 FLANGE 		0-91150-114-0 02 1 9712-9801 ● ● ● ● ●
323 07.242 NUT; LINK ROD
STABILIZER REAR<GN1> 03.613 (A) M14 FLANGE 		0-91150-114-0 02 1 9802- ● ● ● ● ● ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> 08.917 M12 LOCK NUT 		9-09131-512-0 02 1 9312-9504 ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> 08.917 M12 LOCK NUT 		9-09131-512-0 02 1 9505-9506 ● ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> 08.917 M12 LOCK NUT 		9-09131-512-0 02 1 9507-9704 ● ● ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> 08.917 M12 LOCK NUT 		9-09131-512-0 02 1 9705-9711 ● ● ● ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> 08.917 M12 LOCK NUT 		9-09131-512-0 02 1 9712-9801 ● ● ● ● ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> 08.917 M12 LOCK NUT 		9-09131-512-0 02 1 9802- ● ● ● ● ● ●
çizim 70832
180 15 15 188 18 188 18 166 209 1 180 4 1 194 157 465 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) EXC. STABILIZER REAR<GN1> 16-LEAF 		8-97073-225-2 02 1 9312-9510 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 16-LEAF 		8-97073-225-2 02 1 9511-9711 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 16-LEAF 		8-97073-225-2 02 1 9712-9801 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 16-LEAF 		8-97073-225-2 02 1 9802- ● ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), STABILIZER REAR<GN1> 10-LEAF 		8-97073-224-0 02 1 9312-9504 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), STABILIZER REAR<GN1>,ISRAEL EQUIPMENT(7LX) 10-LEAF 		8-97073-224-1 02 1 9505-9603 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), STABILIZER REAR<GN1>,FRAME STRAIGHT TYP E<7KJ>,ISRAEL EQUIPMENT(7LX) 10-LEAF 		8-97073-224-1 02 1 9604-9711 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), STABILIZER REAR<GN1>,FRAME STRAIGHT TYP E<7KJ>,ISRAEL EQUIPMENT(7LX) 10-LEAF 		8-97073-224-1 02 1 9712- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> 4-LEAF 		8-97033-492-1 02 1 9312-9504 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> 4-LEAF 		8-97033-492-2 02 1 9505-9506 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> 4-LEAF 		8-97033-492-2 02 1 9507- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 5.0-5.5TON(RPT) EXC. STABILIZER REAR<GN1> 6-LEAF 		8-97033-502-2 02 1 9312-9504 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 5.0-5.5TON(RPT) EXC. STABILIZER REAR<GN1> 6-LEAF 		8-97033-502-4 02 1 9505- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) STABILIZER REAR<GN1> G.V.W. 3.5-4.0TON(RPQ) 5-LEAF 		8-97033-560-1 02 1 9312-9504 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) STABILIZER REAR<GN1> G.V.W. 3.5-4.0TON(RPQ) 5-LEAF 		8-97033-560-2 02 1 9505-9506 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) STABILIZER REAR<GN1> G.V.W. 3.5-4.0TON(RPQ) 5-LEAF 		8-97033-560-2 02 1 9507- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) STABILIZER REAR<GN1> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 6-LEAF 		8-97033-561-1 02 1 9312-9504 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) STABILIZER REAR<GN1> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 6-LEAF 		8-97033-561-2 02 1 9505-9506 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) STABILIZER REAR<GN1> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 6-LEAF 		8-97033-561-3 02 1 9507-9603 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) STABILIZER REAR<GN1> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 6-LEAF 		8-97033-561-3 02 1 9604-9704 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) STABILIZER REAR<GN1> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 6-LEAF 		8-97033-561-3 02 1 9705- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 10-LEAF 		8-97092-458-0 02 1 9312-9504 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 10-LEAF 		8-97092-458-1 02 1 9505-9506 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 10-LEAF 		8-97092-458-1 02 1 9507-9603 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPME NT(7LX) 10-LEAF 		8-97092-458-1 02 1 9604- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) 16-LEAF 		8-97092-459-1 02 1 9312-9504 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) 16-LEAF 		8-97092-459-1 02 1 9505-9506 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) 16-LEAF 		8-97092-459-1 02 1 9507-9510 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 16-LEAF 		8-97092-459-1 02 1 9511- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> 6-LEAF 		8-97033-493-1 02 1 9312-9504 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> 6-LEAF 		8-97033-493-2 02 1 9505-9506 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> 6-LEAF 		8-97033-493-3 02 1 9507-9603 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 6-LEAF 		8-97033-493-3 02 1 9604-9704 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 6-LEAF 		8-97033-493-3 02 1 9705- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97174-307-0 02 1 9712- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 12-LEAF 		8-97122-382-0 02 1 9511-9603 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97122-382-0 02 1 9604-9711 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97122-382-0 02 1 9712-9801 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97122-382-0 02 1 9802- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) 12-LEAF 		8-97096-576-0 02 1 9511-9603 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE 8.25-16<7QP> 12-LEAF 		8-97096-576-0 02 1 9604-9611 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE 8.25-16<7QP> 12-LEAF 		8-97096-576-0 02 1 9612-9711 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE 8.25-16<7QP> 12-LEAF 		8-97096-576-0 02 1 9712- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97147-602-0 02 1 9604-9611 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97147-602-0 02 1 9612-9711 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. MINI BUS CHASSIS<V4B> 12-LEAF 		8-97184-493-0 02 1 9712-9712 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. MINI BUS CHASSIS<V4B> '97/12/15- 12-LEAF 		8-97184-493-0 02 1 9712- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 10-LEAF 		8-97147-111-0 02 1 9604-9801 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 10-LEAF 		8-97147-111-0 02 1 9802- ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.0-7.5TON(RPX) EXC. STABILIZER REAR<GN1> L=325 		8-94175-946-0 04 1 9312-9510 ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> L=325 		8-94175-946-0 04 1 9511-9711 ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> L=325 		8-94175-946-0 04 1 9712-9801 ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> L=325 		8-94175-946-0 04 1 9802- ● ● ● ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=265 		8-94127-923-1 04 1 9312-9601 ● ● ●
4 07.516 U-BOLT; RR SPR
L=265 		8-94127-923-1 04 1 9312-9601 ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=265 		8-94127-923-1 04 1 9602-9704 ● ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=265 		8-94127-923-1 04 1 9602-9704 ● ● ●
4 07.516 U-BOLT; RR SPR
L=265 		8-94127-923-1 04 1 9602-9704 ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=265 		8-94127-923-1 04 1 9705-9711 ● ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=265 		8-94127-923-1 04 1 9705-9711 ● ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) EXC. STABILIZER REAR<GN1> L=265 		8-94127-923-1 04 1 9705-9711 ●
4 07.516 U-BOLT; RR SPR
ISRAEL EQUIPMENT(7LX) STABILIZER REAR<GN1> L=265 		8-94127-923-1 04 1 9705-9711 ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=265 		8-94127-923-1 04 1 9712- ● ● ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=265 		8-94127-923-1 04 1 9712- ● ● ●
4 07.516 U-BOLT; RR SPR
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) L=285 		8-94132-172-1 04 1 9312-9606 ● ● ●
4 07.516 U-BOLT; RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), STABILIZER REAR<GN1>,ISRAEL EQUIPMENT(7LX) L=285 		8-94132-172-1 04 1 9607-9704 ● ● ●
4 07.516 U-BOLT; RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), STABILIZER REAR<GN1>,ISRAEL EQUIPMENT(7LX) L=285 		8-94132-172-1 04 1 9705-9711 ● ● ● ●
4 07.516 U-BOLT; RR SPR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), STABILIZER REAR<GN1>,FRAME STRAIGHT TYP E<7KJ>,ISRAEL EQUIPMENT(7LX) L=285 		8-97141-874-0 04 1 9712-9712 ● ● ●
4 07.516 U-BOLT; RR SPR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), STABILIZER REAR<GN1>,FRAME STRAIGHT TYP E<7KJ>,ISRAEL EQUIPMENT(7LX) L=285 		8-97141-874-0 04 1 9801- ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> L=285 		8-97141-874-0 04 1 9801- ● ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) L=245 		8-94127-921-1 04 1 9312-9504 ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) L=245 		8-94127-921-1 04 1 9505-9506 ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> L=245 		8-94127-921-1 04 1 9507-9507 ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 5.0-5.5TON(RPT) L=245 		8-94127-921-1 04 1 9507-9507 ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> '95/7/17- L=245 		8-94127-921-1 04 1 9507-9510 ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 5.0-5.5TON(RPT) '95/7/17- L=245 		8-94127-921-1 04 1 9507-9510 ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ) EXC. STABILIZER REAR<GN1> L=245 		8-94127-921-1 04 1 9511- ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 5.0-5.5TON(RPT) L=245 		8-94127-921-1 04 1 9511- ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) STABILIZER REAR<GN1> G.V.W. 3.5-4.0TON(RPQ) L=235 		8-94127-920-1 04 1 9507-9507 ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) STABILIZER REAR<GN1> G.V.W. 3.5-4.0TON(RPQ) '95/7/17- L=235 		8-94127-920-1 04 1 9507- ● ●
4 07.516 U-BOLT; RR SPR
STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) L=355 		8-94119-686-4 04 1 9312-9504 ●
4 07.516 U-BOLT; RR SPR
STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) L=355 		8-94119-686-4 04 1 9505-9506 ● ●
4 07.516 U-BOLT; RR SPR
STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) L=355 		8-94119-686-4 04 1 9507-9510 ● ● ●
4 07.516 U-BOLT; RR SPR
STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> L=355 		8-94119-686-4 04 1 9511- ● ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=275 		8-94127-924-1 04 1 9312-9504 ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=275 		8-94127-924-1 04 1 9505-9506 ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=275 		8-94127-924-1 04 1 9507-9704 ● ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=275 		8-94127-924-1 04 1 9705-9711 ● ● ● ●
4 07.516 U-BOLT; RR SPR
4BE1 ENG(RLH) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) L=275 		8-94127-924-1 04 1 9712- ● ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 6.0-6.5TON(RPV) L=255 		8-94127-922-1 04 1 9312-9504 ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 6.0-6.5TON(RPV) L=255 		8-94127-922-1 04 1 9505-9506 ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 6.0-6.5TON(RPV) L=255 		8-94127-922-1 04 1 9507-9601 ● ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=255 		8-94127-922-1 04 1 9602-9704 ● ● ●
4 07.516 U-BOLT; RR SPR
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1> L=255 		8-94127-922-1 04 1 9705- ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> L=295 		8-94132-358-1 04 1 9712- ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> L=305 		8-94412-505-0 04 1 9511- ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> L=315 		1-51371-194-2 04 1 9604-9801 ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> L=315 		1-51371-194-2 04 1 9802- ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> L=345 		1-51371-195-2 04 1 9511-9603 ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE 8.25-16<7QP> L=345 		1-51371-195-2 04 1 9604-9611 ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE 8.25-16<7QP> L=345 		1-51371-195-2 04 1 9612-9711 ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,TIRE SIZE 8.25-16<7QP> L=345 		1-51371-195-2 04 1 9712- ● ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> L=360 		1-51371-173-3 04 1 9604-9611 ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> L=360 		1-51371-173-3 04 1 9612-9711 ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> L=360 		1-51371-173-3 04 1 9712- ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
07.516 M16 		8-94107-767-0 08 1 9312-9510 ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) 07.516 M16 		8-94107-767-0 08 1 9511-9711 ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 07.516 M16 		8-94107-767-0 08 1 9511-9711 ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 07.516 M16 		8-94107-767-0 08 1 9511-9711 ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) 07.516 M16 		8-94107-767-0 08 1 9712-9801 ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 07.516 M16 		8-94107-767-0 08 1 9712-9801 ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) 07.516 M16 		8-94107-767-0 08 1 9802- ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 07.516 M16 		8-94107-767-0 08 1 9802- ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 9511-9611 ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 9612-9711 ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 9712- ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-94137-482-1 08 1 9312-9510 ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) ID=16.4 		8-94137-482-1 08 1 9511-9711 ● ● ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-94137-482-1 08 1 9511-9711 ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-94137-482-1 08 1 9511-9711 ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) ID=16.4 		8-94137-482-1 08 1 9712-9801 ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-94137-482-1 08 1 9712-9801 ● ● ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) ID=16.4 		8-94137-482-1 08 1 9802- ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-94137-482-1 08 1 9802- ● ● ● ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 9312-9611 ● ● ● ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 9612-9711 ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 9712- ● ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94118-512-4 02 1 9312-9611 ● ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94118-512-4 02 1 9612-9711 ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94118-512-4 02 1 9712- ● ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
EXC. KD PREPARATORY PACK<6HF> 07.516 M16 		8-94107-767-0 04 1 9312-9611 ● ● ● ●
18 07.529 NUT; SHACKLE PIN
EXC. KD PREPARATORY PACK<6HF> 07.516 M16 		8-94107-767-0 04 1 9612-9705 ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97147-389-0 04 1 9706-9711 ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97147-389-0 04 1 9712- ● ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
KD PREPARATORY PACK<6HF> 08.915 M16 		9-99110-516-0 04 1 9312-9705 ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
KD PREPARATORY PACK<6HF> 08.915 M16 		9-99110-516-0 04 1 9706-9711 ● ● ● ● ●
18 07.529 NUT; SHACKLE PIN
KD PREPARATORY PACK<6HF> 08.915 M16 		9-99110-516-0 04 1 9712- ● ● ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 9312-9510 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9312-9510 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9312-9510 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9511-9511 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 9511-9511 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9511-9511 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 9511-9511 ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9511-9603 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 9511-9603 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9511-9603 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 9511-9603 ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) '95/11/27- L=140 T=4.5 		8-94118-509-1 02 1 9604-9704 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) '95/11/27- L=140 T=4.5 		8-94118-509-1 02 1 9604-9704 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> '95/11/27- L=140 T=4.5 		8-94118-509-1 02 1 9604-9704 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> '95/11/27- L=140 T=4.5 		8-94118-509-1 02 1 9604-9704 ● ●
157 07.518 CLAMP; UPR,RR SPR
4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9705-9711 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9705-9711 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 9705-9711 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 9705-9711 ● ●
157 07.518 CLAMP; UPR,RR SPR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9712-9801 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9712-9801 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 9712-9801 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 9712-9801 ● ● ●
157 07.518 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 9802- ● ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> G.V.W. 6.0-6.5TON(RPV) L=140 T=4.5 		8-94118-509-1 02 1 9802- ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 9802- ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 9802- ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
4JG2 ENG(RJC),4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) L=130 T=4.5 		8-94119-069-2 02 1 9312-9506 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) L=130 T=4.5 		8-94119-069-2 02 1 9312-9506 ●
157 07.518 CLAMP; UPR,RR SPR
4JG2 ENG(RJC),4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) L=130 T=4.5 		8-94119-069-2 02 1 9507-9711 ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) L=130 T=4.5 		8-94119-069-2 02 1 9507-9711 ● ●
157 07.518 CLAMP; UPR,RR SPR
4JG2 ENG(RJC),4BE1 ENG(RLH) G.V.W. 6.0-6.5TON(RPV) L=130 T=4.5 		8-94119-069-2 02 1 9712- ● ● ●
157 07.518 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) L=130 T=4.5 		8-94119-069-2 02 1 9712- ● ●
166 07.530 NUT; GREASE NIPPLE
06.216 M18 		9-99110-518-0 02 1 9312-9611 ● ● ● ●
166 07.530 NUT; GREASE NIPPLE
06.216 M18 		9-99110-518-0 02 1 9612-9711 ● ● ● ● ●
166 07.530 NUT; GREASE NIPPLE
06.216 M18 		9-99110-518-0 02 1 9712- ● ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-97033-967-0 02 1 9312-9611 ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-97033-967-0 02 1 9612-9711 ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-97033-967-0 02 1 9712- ● ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 9312-9611 ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 9612-9711 ● ● ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 9712- ● ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 9312-9611 ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 9612-9711 ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 9712- ● ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 9312-9611 ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 9612-9711 ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 9712- ● ● ● ● ● ●
188 07.529 WASHER; PL,SHACKLE PIN
07.172 ID=16.5 		8-97070-925-1 04 1 9312-9603 ● ● ● ●
194 07.158 PAD; CONTACT
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> 07.518 		1-51372-059-0 02 1 9511-9611 ● ●
194 07.158 PAD; CONTACT
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> 07.518 		1-51372-059-0 02 1 9612-9711 ● ● ●
194 07.158 PAD; CONTACT
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> 07.518 		1-51372-059-0 02 1 9712- ● ● ● ●
209 07.529 WASHER; PL
ID=19 		8-97073-435-1 02 1 9312-9611 ● ● ● ●
209 07.529 WASHER; PL
ID=19 		8-97073-435-1 02 1 9612-9711 ● ● ● ● ●
209 07.529 WASHER; PL
ID=19 		8-97073-435-1 02 1 9712- ● ● ● ● ● ●
209 07.529 WASHER; PL
07.172 ID=16.5 		8-97070-925-1 04 1 9604-9611 ● ● ● ●
209 07.529 WASHER; PL
07.172 ID=16.5 		8-97070-925-1 04 1 9612-9705 ● ● ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 ID=16.5 		8-97070-925-1 04 1 9706-9711 ● ● ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 ID=16.5 		8-97070-925-1 04 1 9712- ● ● ● ● ● ●
465 07.518 SHIM; ADJ
RR BODY FLAT BED<RS6> 		8-97072-589-0 AR 1 9712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
