0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#47867) — 77 parça

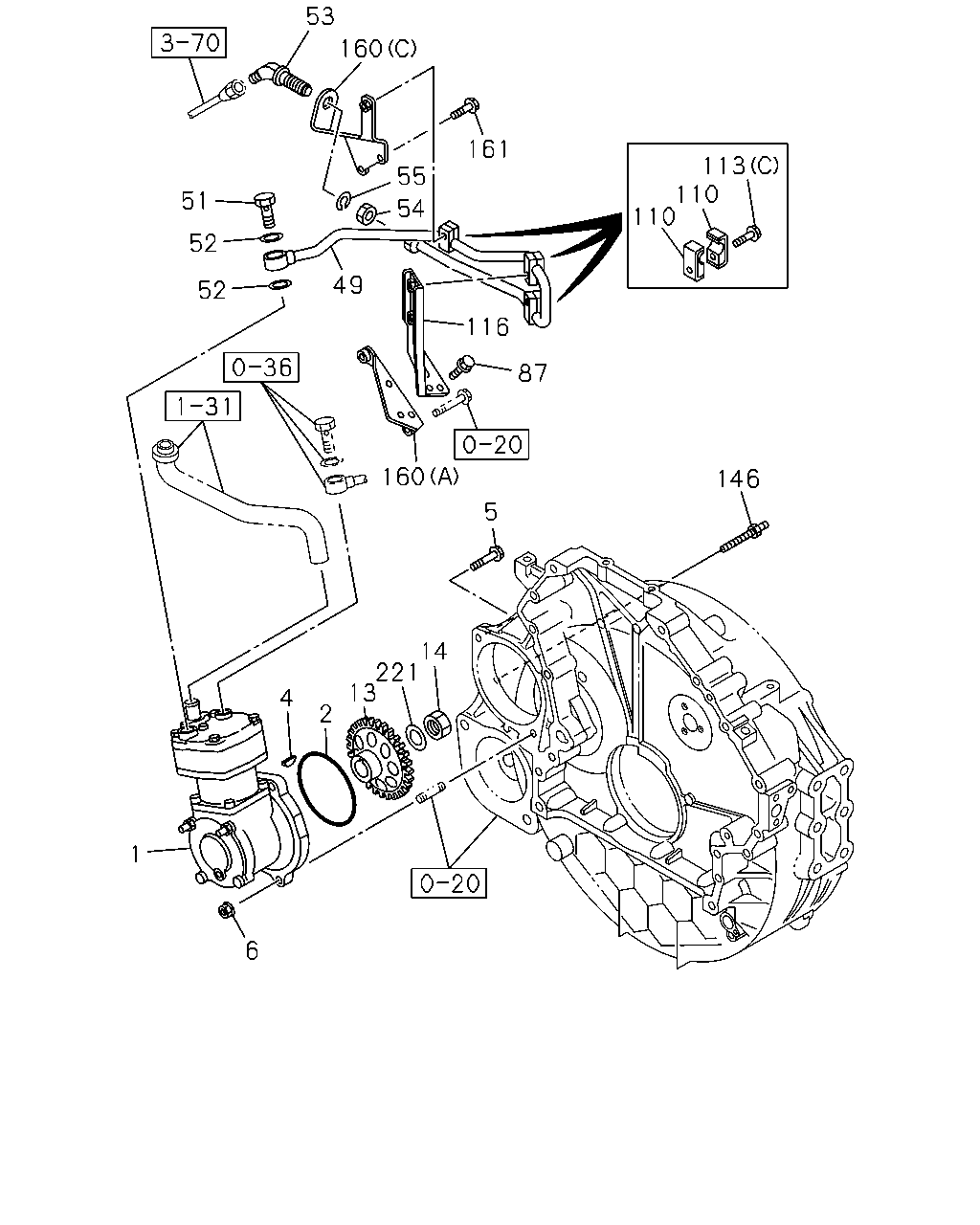

53 160 161 113 110 110 55 51 54 52 49 52 116 87 160 146 5 14 221 13 4 2 1 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97619-244-2	01	1	0812-1011
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-97619-244-2	01	1	1012-1107
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-98187-299-0	01	1	1108-
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NT3>	8-98055-879-2	01	1	1012-1107
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NT3>	8-98187-303-0	01	1	1108-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0812-
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0812-
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	0812-
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	0812-
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0812-
14	NUT; GEAR M20	0-91110-520-0	01	1	0812-
49	PIPE; AIR,CHARGE	8-97618-722-0	01	1	0812-1011
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2>	8-97618-722-0	01	1	1012-
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NT3>	8-98042-002-0	01	1	1012-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0812-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0812-
53	UNION; CHARGE PIPE EURO3 SPECIFICATION<NT3> M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1012-
54	NUT; PIPE UNION EURO3 SPECIFICATION<NT3> M22	0-91111-522-0	01	1	1012-
55	WASHER; LK,PIPE UNION EURO3 SPECIFICATION<NT3> ID=22.5	0-91510-522-0	01	1	1012-
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NT3> M8X20 FLANGE	0-28050-820-0	03	1	1012-
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0812-1011
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2>	8-94393-037-0	01	1	1012-
110	CLIP; AIR PIPE EURO3 SPECIFICATION<NT3> ID=17 L=17	1-09701-284-0	06	1	1012-
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	01	1	0812-1011
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (B) M6X40 FLANGE	0-28050-640-0	01	1	1012-
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28650-640-0	01	1	0812-1011
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (A) M6X40 FLANGE	0-28650-640-0	01	1	1012-
113	BOLT; CLIP,AIR PIPE EURO3 SPECIFICATION<NT3> (C) M8X45 FLANGE	0-28050-845-0	03	1	1012-
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3>	8-97614-183-1	01	1	1012-
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	0812-
160	BRACKET; AIR PIPE (B)	8-98074-255-0	01	1	0812-1011
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (B)	8-98074-255-0	01	1	1012-
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	0812-1011
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3> (C)	8-98042-844-1	01	1	1012-
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	1012-
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0812-
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0812-

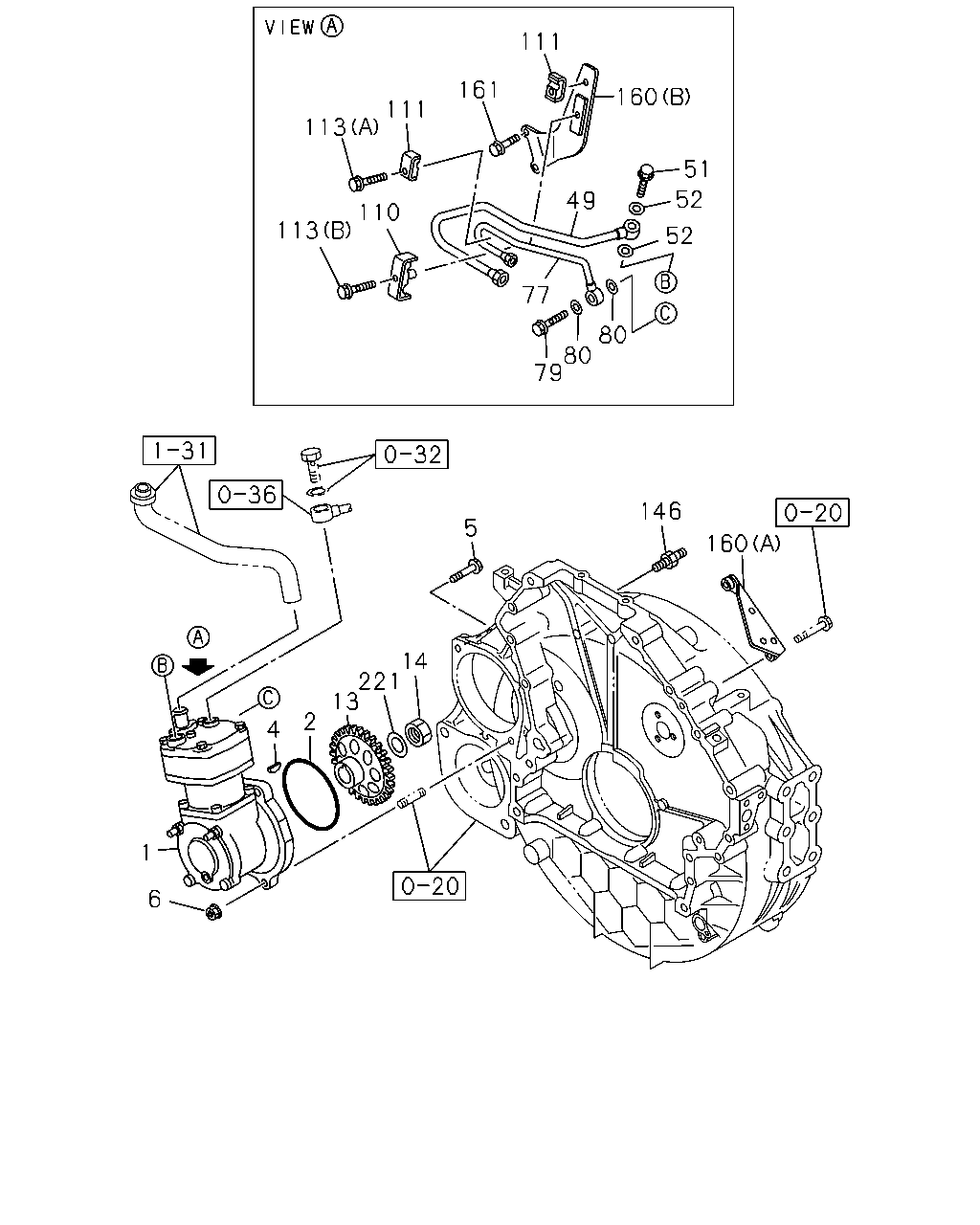

111 161 160 111 113 51 52 49 110 113 52 77 80 80 79 146 5 160 14 221 13 2 4 1 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97619-244-2	01	1	0812-1011
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-97619-244-2	01	1	1012-1107
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-98187-299-0	01	1	1108-
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NT3>	8-98055-879-2	01	1	1012-1107
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NT3>	8-98187-303-0	01	1	1108-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0812-
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0812-
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	0812-
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	0812-
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0812-
14	NUT; GEAR M20	0-91110-520-0	01	1	0812-
49	PIPE; AIR,CHARGE	8-97618-722-0	01	1	0812-1011
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2>	8-97618-722-0	01	1	1012-
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NT3>	8-98042-002-0	01	1	1012-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0812-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0812-
77	PIPE; AIR,GOV	8-97618-724-0	01	1	0812-1011
77	PIPE; AIR,GOV EURO2 SPECIFICATION<NT2>	8-97618-724-0	01	1	1012-
79	BOLT; EYE,AIR PIPE TO CMPR M10X23	8-98037-824-0	01	1	0812-1011
79	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<NT2> M10X23	8-98037-824-0	01	1	1012-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	02	1	0812-1011
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> ID=10.2 OD=15.2	1-09630-083-0	02	1	1012-
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0812-1011
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2>	8-94393-037-0	01	1	1012-
110	CLIP; AIR PIPE EURO3 SPECIFICATION<NT3> ID=17 L=17	1-09701-284-0	06	1	1012-
111	CLIP; AIR PIPE ID=5.5 L=10.5	8-98029-953-1	02	1	0812-1011
111	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> ID=5.5 L=10.5	8-98029-953-1	02	1	1012-
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	01	1	0812-1011
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (B) M6X40 FLANGE	0-28050-640-0	01	1	1012-
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28650-640-0	01	1	0812-1011
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (A) M6X40 FLANGE	0-28650-640-0	01	1	1012-
113	BOLT; CLIP,AIR PIPE EURO3 SPECIFICATION<NT3> (C) M8X45 FLANGE	0-28050-845-0	03	1	1012-
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	0812-
160	BRACKET; AIR PIPE (B)	8-98074-255-0	01	1	0812-1011
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (B)	8-98074-255-0	01	1	1012-
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	0812-1011
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3> (C)	8-98042-844-1	01	1	1012-
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	1012-
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0812-
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0812-
