0-36 — TURBOCHARGER SYSTEM (#47865) — 171 parça

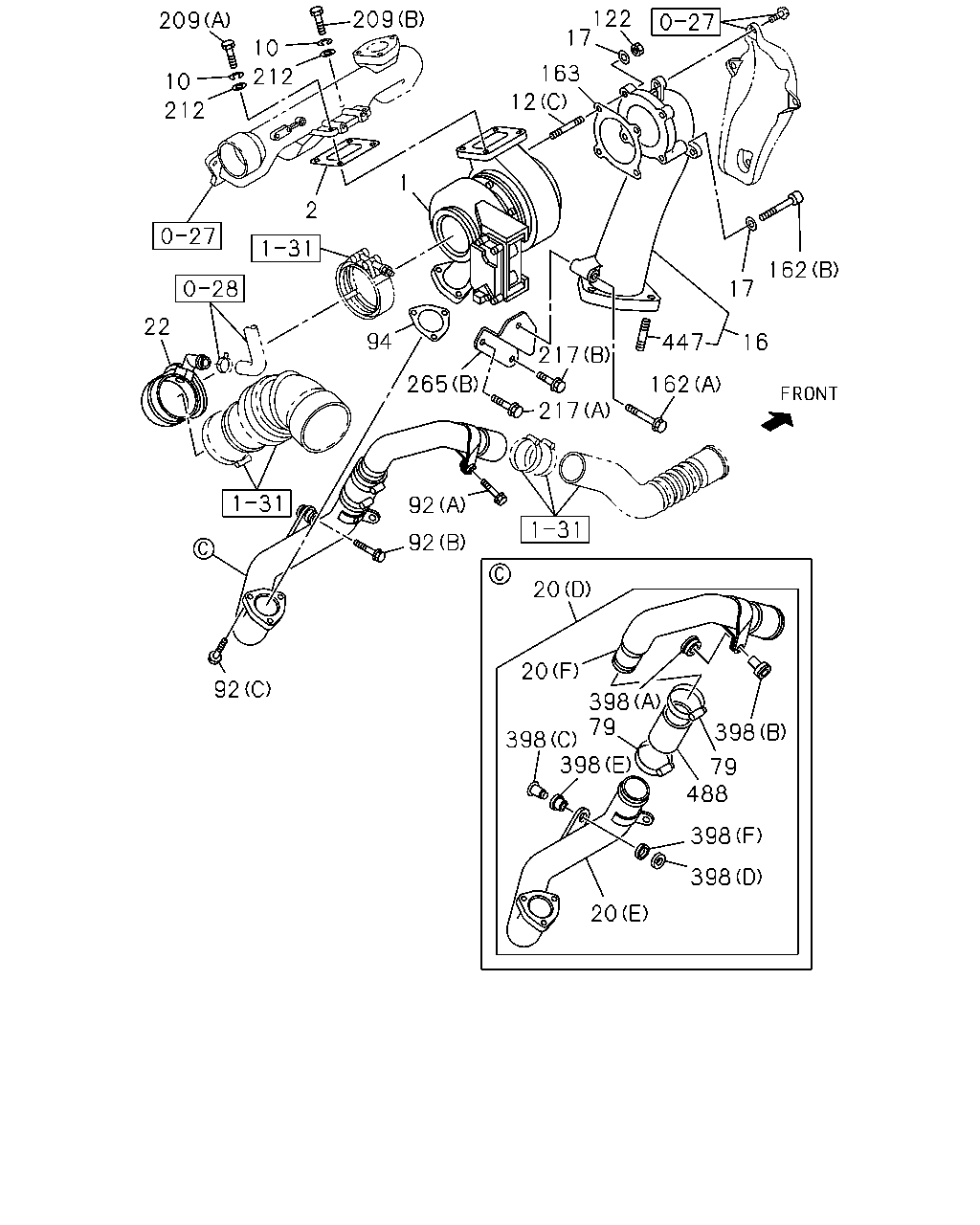

2 12 217 275 162 17 265 212 10 16 388 11 212 11 217 275 162 17 122 17 66 12 1 20 20 79 398 79 398 398 398 488 92 28 398 398 92 20 143 98 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	0812-1011
1	TURBOCHARGER ASM EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	1012-
1	TURBOCHARGER ASM EURO3 SPECIFICATION<NT3>	8-97604-975-9	01	1	1012-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0812-1011
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>	8-94390-044-0	01	1	1012-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NT3>	8-97024-124-0	01	1	1012-
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	02	1	0812-1011
10	WASHER; LK,TURBOCHARGER EURO2 SPECIFICATION<NT2> T=2.2	1-09556-015-0	02	1	1012-
10	WASHER; LK,TURBOCHARGER EURO3 SPECIFICATION<NT3> T=2.2	1-09556-015-0	04	1	1012-
11	NUT; TURBOCHARGER M10	1-09420-005-0	04	1	0812-1011
11	NUT; TURBOCHARGER EURO2 SPECIFICATION<NT2> M10	1-09420-005-0	04	1	1012-
12	STUD; TURBOCHARGER (A) M8X25	9-04130-825-0	01	1	0812-1011
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> (A) M8X25	9-04130-825-0	01	1	1012-
12	STUD; TURBOCHARGER (B) M10X80	9-04731-080-0	02	1	0812-1011
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> (B) M10X80	9-04731-080-0	02	1	1012-
12	STUD; TURBOCHARGER EURO3 SPECIFICATION<NT3> (C) M8X25 L=36	8-94476-282-0	02	1	1012-
16	ADAPTER; EXH PIPE	8-98069-083-0	01	1	0812-1011
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2>	8-98069-083-0	01	1	1012-
16	ADAPTER; EXH PIPE EURO3 SPECIFICATION<NT3>	8-98018-241-1	01	1	1012-
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	0812-1011
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<NT2> T=1.9	5-09500-012-0	06	1	1012-
17	WASHER; PL,ADAPTER EURO3 SPECIFICATION<NT3> T=1.9	5-09500-012-0	04	1	1012-
20	PIPE; INL,TURBOCHARGER OUT (A)	8-97606-675-1	01	1	0812-1011
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (A)	8-97606-675-1	01	1	1012-
20	PIPE; INL,TURBOCHARGER OUT (B)	8-97618-726-2	01	1	0812-1011
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (B)	8-97618-726-2	01	1	1012-1408
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (B)	8-98251-577-0	01	1	1409-
20	PIPE; INL,TURBOCHARGER OUT (C)	8-97618-734-0	01	1	0812-1011
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (C)	8-97618-734-0	01	1	1012-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> (D)	8-98046-167-4	01	1	1012-1408
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> (D)	8-98251-581-0	01	1	1409-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> (E)	8-98046-168-1	01	1	1012-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> (F)	8-98046-169-2	01	1	1012-
28	PROTECTOR; HEAT,HOSE,AIR DUCT	8-94393-182-0	01	1	0812-1011
28	PROTECTOR; HEAT,HOSE,AIR DUCT EURO2 SPECIFICATION<NT2>	8-94393-182-0	01	1	1012-
66	STUD; EXH PIPE M12X30 L=48	8-98059-951-0	03	1	0812-1011
66	STUD; EXH PIPE EURO2 SPECIFICATION<NT2> M12X30 L=48	8-98059-951-0	03	1	1012-
79	CLIP; RUBBER HOSE ID=55-75	8-98133-349-0	02	1	0812-0902
79	CLIP; RUBBER HOSE ID=58-79	1-09707-136-0	02	1	0903-
92	BOLT; INL PIPE (B) M8X35 FLANGE	0-28650-835-0	01	1	0812-
92	BOLT; INL PIPE (A) M8X40 FLANGE	0-28650-840-0	01	1	0812-
92	BOLT; INL PIPE EURO3 SPECIFICATION<NT3> (C) M8X30 FLANGE	0-28650-830-0	03	1	1012-
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	0812-1011
98	HOSE; RUBBER,TURBOCHARGER OUTLET EURO2 SPECIFICATION<NT2> ID=62 L=70	1-09360-797-1	01	1	1012-1408
98	HOSE; RUBBER,TURBOCHARGER OUTLET EURO2 SPECIFICATION<NT2> ID=62 L=70	8-98245-240-0	01	1	1409-
122	NUT; ADAPTER M8	1-09400-118-1	01	1	0812-1011
122	NUT; ADAPTER EURO2 SPECIFICATION<NT2> M8	1-09400-118-1	01	1	1012-
122	NUT; ADAPTER EURO3 SPECIFICATION<NT3> M8	1-09400-118-1	02	1	1012-
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0812-0902
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0903-1011
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<NT2> ID=58-79	8-94126-771-0	02	1	1012-
162	BOLT; ADAPTER (C) M8X57	5-09000-275-0	05	1	0812-1011
162	BOLT; ADAPTER EURO2 SPECIFICATION<NT2> (C) M8X57	5-09000-275-0	05	1	1012-
162	BOLT; ADAPTER EURO3 SPECIFICATION<NT3> (A) M10X60 FLANGE	0-28051-060-0	01	1	1012-
162	BOLT; ADAPTER EURO3 SPECIFICATION<NT3> (B) M8X60	8-98158-604-0	02	1	1012-
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0812-
217	BOLT; BRKT (C) M12X30	8-94394-324-0	03	1	0812-1011
217	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M12X30	8-94394-324-0	03	1	1012-
217	BOLT; BRKT EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28650-820-0	01	1	1012-
217	BOLT; BRKT EURO3 SPECIFICATION<NT3> (B) M10X25 FLANGE	0-28751-025-0	01	1	1012-
265	BRACKET; EXH PIPE EURO3 SPECIFICATION<NT3> (B)	8-98260-415-0	01	1	1012-
265	BRACKET; EXH PIPE (A)	8-94395-764-2	01	1	0812-1011
265	BRACKET; EXH PIPE EURO2 SPECIFICATION<NT2> (A)	8-94395-764-2	01	1	1012-
275	WASHER; PL ID=12.2	1-09503-008-0	03	1	0812-1011
275	WASHER; PL EURO2 SPECIFICATION<NT2> ID=12.2	1-09503-008-0	03	1	1012-
388	GASKET; EXH PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-248-2	01	1	0812-1011
388	GASKET; EXH PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>	8-94394-248-2	01	1	1012-
398	MOUNTING (F) ID=19 OD=26	8-94160-177-0	01	1	0812-
398	MOUNTING (C) OD=28	8-94390-551-1	01	1	0812-
398	MOUNTING (D) ID=13 OD=28	8-94394-504-0	01	1	0812-
398	MOUNTING (E) OD=26	8-94394-529-0	01	1	0812-
398	MOUNTING (A) OD=32	8-94395-766-0	01	1	0812-
398	MOUNTING (B) OD=23	8-97105-689-6	01	1	0812-
488	HOSE; RUBBER ID=62 L=70	1-09360-797-1	01	1	0812-1011
488	HOSE; RUBBER EURO2 SPECIFICATION<NT2> ID=62 L=70	1-09360-797-1	01	1	1012-1408
488	HOSE; RUBBER EURO2 SPECIFICATION<NT2> ID=62 L=70	8-98245-240-0	01	1	1409-
488	HOSE; RUBBER EURO3 SPECIFICATION<NT3>	8-98046-356-0	01	1	1012-1408
488	HOSE; RUBBER EURO3 SPECIFICATION<NT3> ID=52.5 L=70	8-98245-242-0	01	1	1409-

115 1 115 115

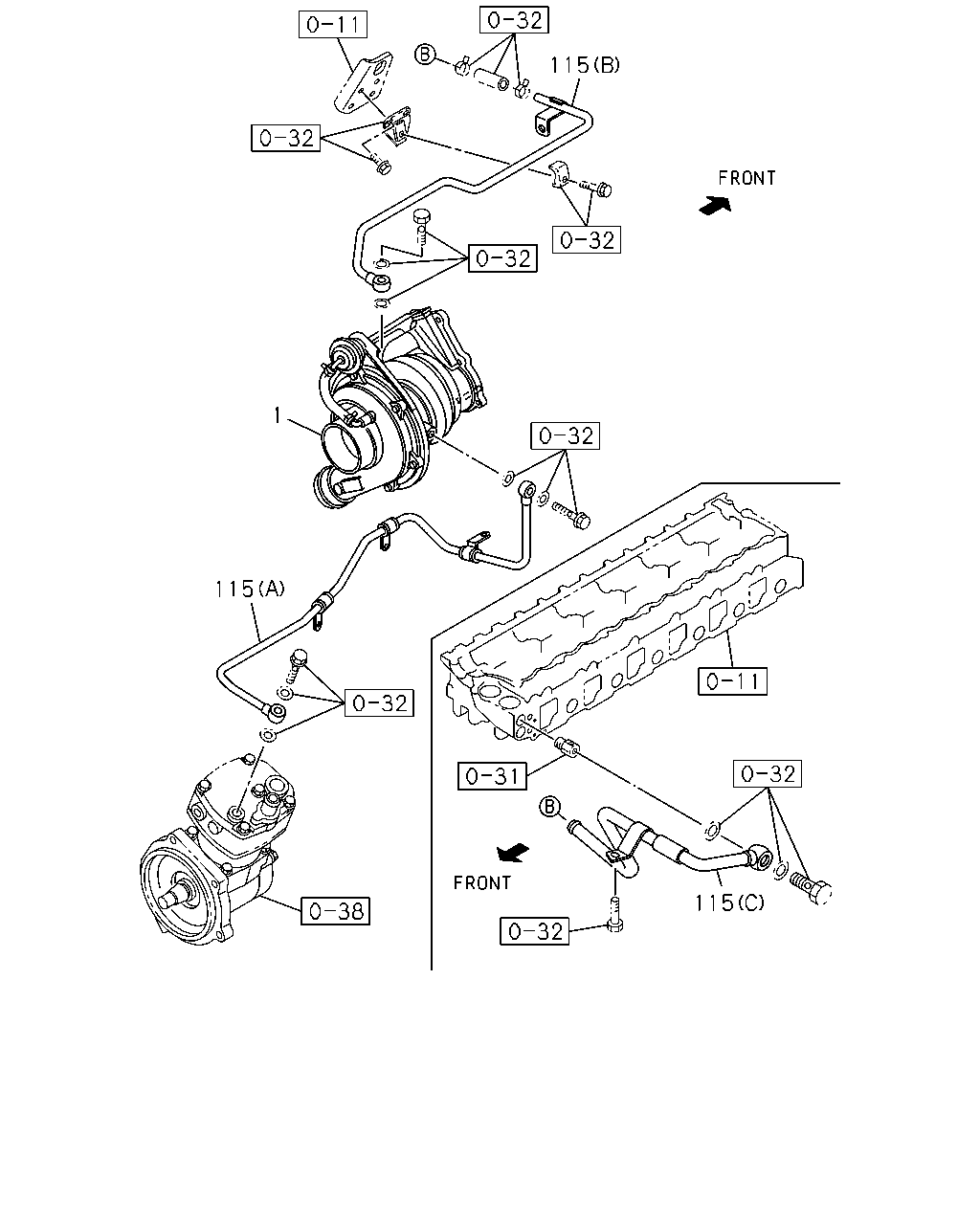

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	0812-1011
1	TURBOCHARGER ASM EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	1012-
1	TURBOCHARGER ASM EURO3 SPECIFICATION<NT3>	8-97604-975-9	01	1	1012-
115	PIPE; WATER,TURBOCHARGER OUT (B)	8-94392-950-0	01	1	0812-1011
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (B)	8-94392-950-0	01	1	1012-
115	PIPE; WATER,TURBOCHARGER OUT (C)	8-94395-454-4	01	1	0812-1011
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (C)	8-94395-454-4	01	1	1012-
115	PIPE; WATER,TURBOCHARGER OUT (A)	8-97618-808-0	01	1	0812-1011
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (A)	8-97618-808-0	01	1	1012-
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> (D)	8-97615-877-0	01	1	1012-

122 17 209 209 10 163 212 10 12 212 1 2 162 17 22 94 16 447 217 265 162 217 92 92 20 20 92 398 79 398 398 398 79 488 398 398 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	0812-1011
1	TURBOCHARGER ASM EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	1012-
1	TURBOCHARGER ASM EURO3 SPECIFICATION<NT3>	8-97604-975-9	01	1	1012-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0812-1011
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>	8-94390-044-0	01	1	1012-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NT3>	8-97024-124-0	01	1	1012-
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	02	1	0812-1011
10	WASHER; LK,TURBOCHARGER EURO2 SPECIFICATION<NT2> T=2.2	1-09556-015-0	02	1	1012-
10	WASHER; LK,TURBOCHARGER EURO3 SPECIFICATION<NT3> T=2.2	1-09556-015-0	04	1	1012-
12	STUD; TURBOCHARGER (A) M8X25	9-04130-825-0	01	1	0812-1011
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> (A) M8X25	9-04130-825-0	01	1	1012-
12	STUD; TURBOCHARGER (B) M10X80	9-04731-080-0	02	1	0812-1011
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> (B) M10X80	9-04731-080-0	02	1	1012-
12	STUD; TURBOCHARGER EURO3 SPECIFICATION<NT3> (C) M8X25 L=36	8-94476-282-0	02	1	1012-
16	ADAPTER; EXH PIPE	8-98069-083-0	01	1	0812-1011
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2>	8-98069-083-0	01	1	1012-
16	ADAPTER; EXH PIPE EURO3 SPECIFICATION<NT3>	8-98018-241-1	01	1	1012-
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	0812-1011
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<NT2> T=1.9	5-09500-012-0	06	1	1012-
17	WASHER; PL,ADAPTER EURO3 SPECIFICATION<NT3> T=1.9	5-09500-012-0	04	1	1012-
20	PIPE; INL,TURBOCHARGER OUT (A)	8-97606-675-1	01	1	0812-1011
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (A)	8-97606-675-1	01	1	1012-
20	PIPE; INL,TURBOCHARGER OUT (B)	8-97618-726-2	01	1	0812-1011
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (B)	8-97618-726-2	01	1	1012-1408
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (B)	8-98251-577-0	01	1	1409-
20	PIPE; INL,TURBOCHARGER OUT (C)	8-97618-734-0	01	1	0812-1011
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (C)	8-97618-734-0	01	1	1012-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> (D)	8-98046-167-4	01	1	1012-1408
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> (D)	8-98251-581-0	01	1	1409-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> (E)	8-98046-168-1	01	1	1012-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> (F)	8-98046-169-2	01	1	1012-
22	DUCT; INL,ACL TO TURBOCHARGER EURO3 SPECIFICATION<NT3>	8-98036-164-1	01	1	1012-
79	CLIP; RUBBER HOSE ID=55-75	8-98133-349-0	02	1	0812-0902
79	CLIP; RUBBER HOSE ID=58-79	1-09707-136-0	02	1	0903-
92	BOLT; INL PIPE (B) M8X35 FLANGE	0-28650-835-0	01	1	0812-
92	BOLT; INL PIPE (A) M8X40 FLANGE	0-28650-840-0	01	1	0812-
92	BOLT; INL PIPE EURO3 SPECIFICATION<NT3> (C) M8X30 FLANGE	0-28650-830-0	03	1	1012-
94	GASKET; INL PIPE EURO3 SPECIFICATION<NT3>	8-98053-830-0	01	1	1012-
122	NUT; ADAPTER M8	1-09400-118-1	01	1	0812-1011
122	NUT; ADAPTER EURO2 SPECIFICATION<NT2> M8	1-09400-118-1	01	1	1012-
122	NUT; ADAPTER EURO3 SPECIFICATION<NT3> M8	1-09400-118-1	02	1	1012-
162	BOLT; ADAPTER (C) M8X57	5-09000-275-0	05	1	0812-1011
162	BOLT; ADAPTER EURO2 SPECIFICATION<NT2> (C) M8X57	5-09000-275-0	05	1	1012-
162	BOLT; ADAPTER EURO3 SPECIFICATION<NT3> (A) M10X60 FLANGE	0-28051-060-0	01	1	1012-
162	BOLT; ADAPTER EURO3 SPECIFICATION<NT3> (B) M8X60	8-98158-604-0	02	1	1012-
163	GASKET; ADAPTER TO EXH PIPE EURO3 SPECIFICATION<NT3>	8-94392-553-2	01	1	1012-
209	BOLT; BRACE,TURBOCHARGER EURO3 SPECIFICATION<NT3> (B) M10X80	8-98049-825-0	02	1	1012-
209	BOLT; BRACE,TURBOCHARGER EURO3 SPECIFICATION<NT3> (A) M10X40	9-09604-007-1	02	1	1012-
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0812-
217	BOLT; BRKT (C) M12X30	8-94394-324-0	03	1	0812-1011
217	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M12X30	8-94394-324-0	03	1	1012-
217	BOLT; BRKT EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28650-820-0	01	1	1012-
217	BOLT; BRKT EURO3 SPECIFICATION<NT3> (B) M10X25 FLANGE	0-28751-025-0	01	1	1012-
265	BRACKET; EXH PIPE EURO3 SPECIFICATION<NT3> (B)	8-98260-415-0	01	1	1012-
265	BRACKET; EXH PIPE (A)	8-94395-764-2	01	1	0812-1011
265	BRACKET; EXH PIPE EURO2 SPECIFICATION<NT2> (A)	8-94395-764-2	01	1	1012-
398	MOUNTING (F) ID=19 OD=26	8-94160-177-0	01	1	0812-
398	MOUNTING (C) OD=28	8-94390-551-1	01	1	0812-
398	MOUNTING (D) ID=13 OD=28	8-94394-504-0	01	1	0812-
398	MOUNTING (E) OD=26	8-94394-529-0	01	1	0812-
398	MOUNTING (A) OD=32	8-94395-766-0	01	1	0812-
398	MOUNTING (B) OD=23	8-97105-689-6	01	1	0812-
447	STUD; ADAPTER EURO3 SPECIFICATION<NT3> M12X30 L=48	0-44011-230-0	03	1	1012-
488	HOSE; RUBBER ID=62 L=70	1-09360-797-1	01	1	0812-1011
488	HOSE; RUBBER EURO2 SPECIFICATION<NT2> ID=62 L=70	1-09360-797-1	01	1	1012-1408
488	HOSE; RUBBER EURO2 SPECIFICATION<NT2> ID=62 L=70	8-98245-240-0	01	1	1409-
488	HOSE; RUBBER EURO3 SPECIFICATION<NT3>	8-98046-356-0	01	1	1012-1408
488	HOSE; RUBBER EURO3 SPECIFICATION<NT3> ID=52.5 L=70	8-98245-242-0	01	1	1409-

137 21 512 513 115 21 1

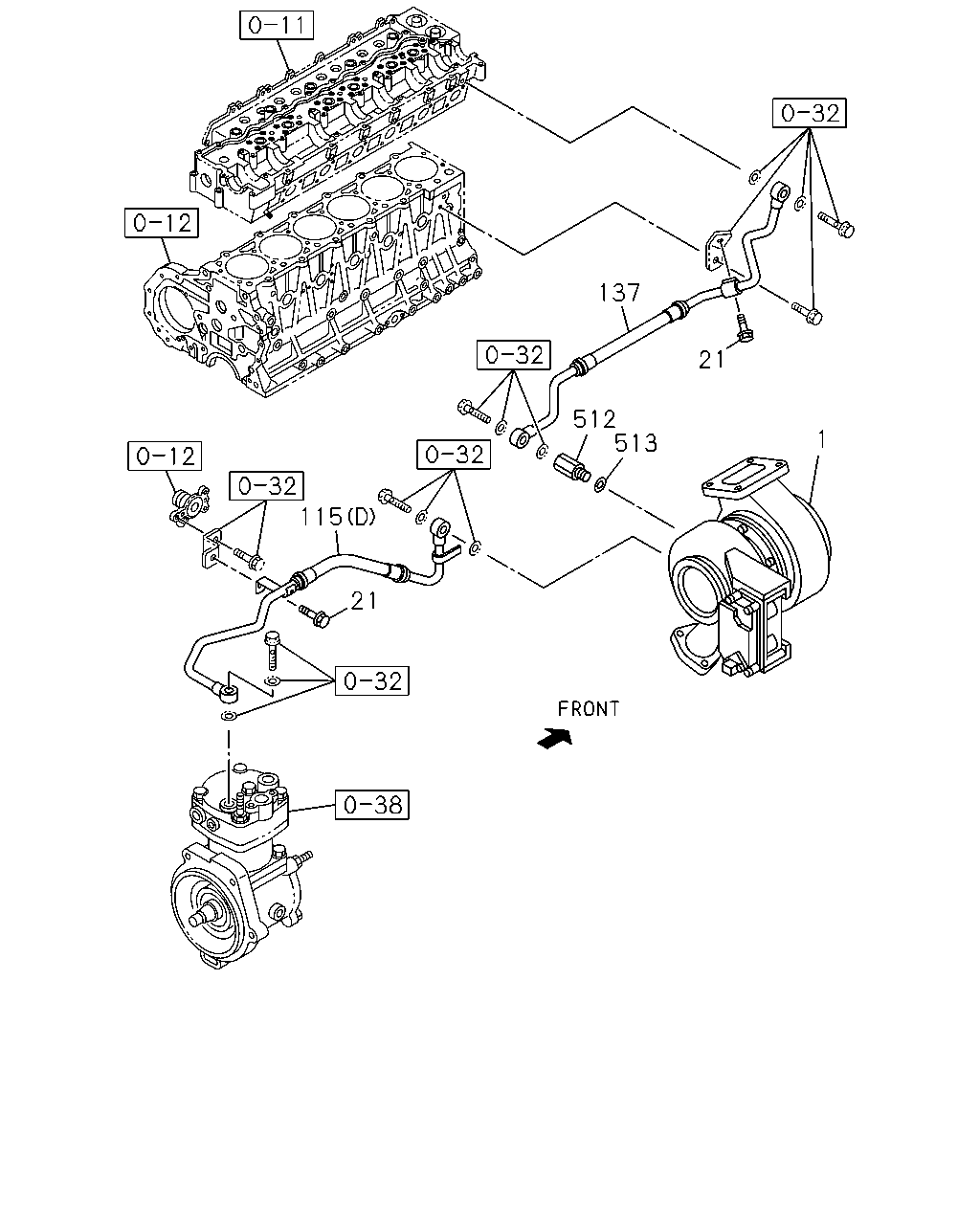

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	0812-1011
1	TURBOCHARGER ASM EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-1	01	1	1012-
1	TURBOCHARGER ASM EURO3 SPECIFICATION<NT3>	8-97604-975-9	01	1	1012-
21	BOLT; PIPE EURO3 SPECIFICATION<NT3> M8X16 FLANGE	0-28050-816-0	02	1	1012-
115	PIPE; WATER,TURBOCHARGER OUT (B)	8-94392-950-0	01	1	0812-1011
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (B)	8-94392-950-0	01	1	1012-
115	PIPE; WATER,TURBOCHARGER OUT (C)	8-94395-454-4	01	1	0812-1011
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (C)	8-94395-454-4	01	1	1012-
115	PIPE; WATER,TURBOCHARGER OUT (A)	8-97618-808-0	01	1	0812-1011
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (A)	8-97618-808-0	01	1	1012-
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> (D)	8-97615-877-0	01	1	1012-
137	PIPE; WATER,TURBOCHARGER IN EURO3 SPECIFICATION<NT3>	8-98046-783-0	01	1	1012-
512	CONNECTOR; TURBO EURO3 SPECIFICATION<NT3>	8-98031-856-0	01	1	1012-
513	GASKET; CONNECTOR EURO3 SPECIFICATION<NT3> ID=14.2 OD=19.2	1-09630-085-0	01	1	1012-1312
513	GASKET; CONNECTOR EURO3 SPECIFICATION<NT3> ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
