0-32 — WATER PIPING; ENGINE (#47862) — 147 parça

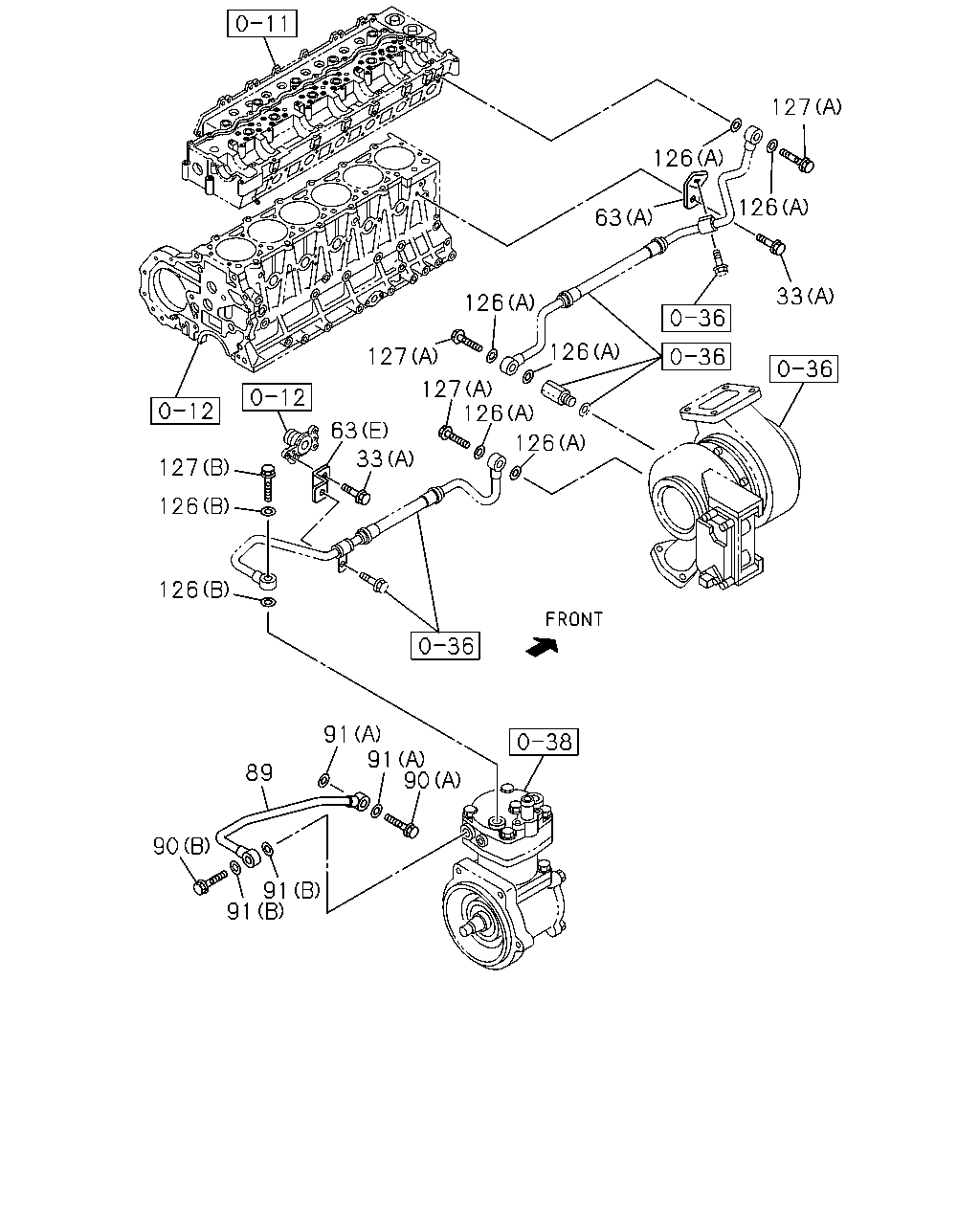

127 126 126 63 33 126 126 127 127 126 63 126 33 127 126 126 91 91 90 89 90 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0812-1011
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	02	1	1012-
33	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	02	1	0812-1011
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M8X20 FLANGE	0-28050-820-0	02	1	1012-
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE	0-28050-816-0	01	1	1012-
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> (B) M8X20 FLANGE	0-28650-820-0	03	1	1012-
63	BRACKET; WATER PIPE (B)	8-94392-951-0	01	1	0812-1011
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94392-951-0	01	1	1012-
63	BRACKET; WATER PIPE (C)	8-98074-252-0	01	1	0812-1011
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (C)	8-98074-252-0	01	1	1012-
63	BRACKET; WATER PIPE (D)	8-98074-253-0	01	1	0812-1011
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (D)	8-98074-253-0	01	1	1012-
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-98046-784-0	01	1	1012-
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (E)	8-98153-457-0	01	1	1012-
89	PIPE; WATER,AIR CMPR,IN	8-97611-095-0	01	1	0812-
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	0812-
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	0812-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0812-1312
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0812-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0812-1011
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1012-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	0812-1011
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B) ID=16.2	1-09630-086-0	04	1	1012-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	1012-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A) ID=16.2	1-09630-086-0	02	1	1012-
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0812-1011
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1012-
127	BOLT; EYE (C) M16X25	5-09675-028-2	01	1	0812-1011
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (C) M16X25	5-09675-028-2	01	1	1012-
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	0812-1011
127	BOLT; EYE EURO3 SPECIFICATION<NT3> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	1012-
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	1012-

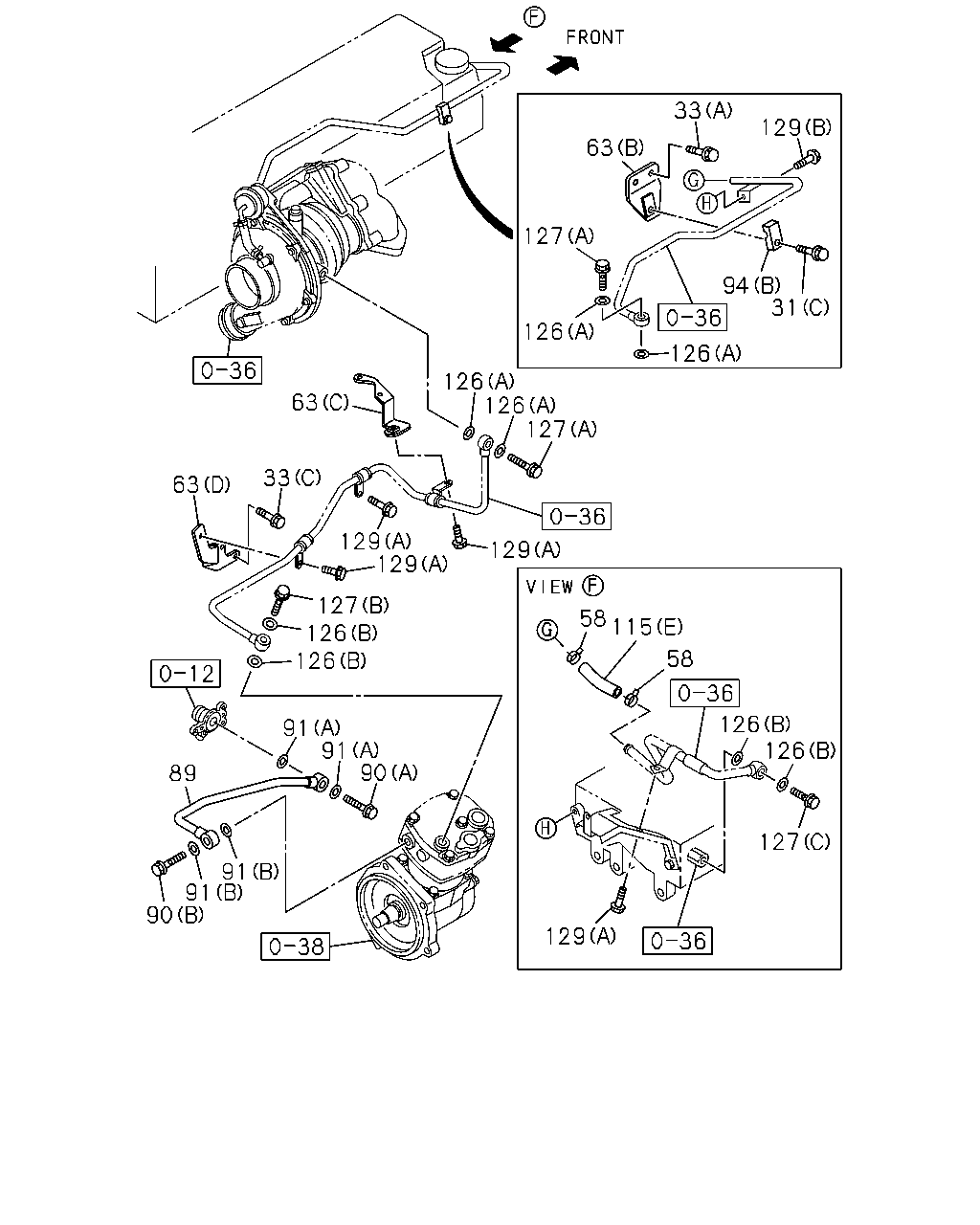

33 129 63 127 126 126 31 94 126 127 126 63 33 63 129 129 129 127 126 126 91 91 90 91 89 91 90 58 115 58 126 126 127 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BOLT; CLIP (C) M6X35 FLANGE	0-28650-635-0	01	1	0812-1011
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (C) M6X35 FLANGE	0-28650-635-0	01	1	1012-
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (B) M6X45 FLANGE	0-28050-645-0	01	1	1012-
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M6X40 FLANGE	0-28650-640-0	02	1	1012-1106
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M6X40 FLANGE	0-28650-640-0	03	1	1107-
33	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0812-1011
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	02	1	1012-
33	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	02	1	0812-1011
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M8X20 FLANGE	0-28050-820-0	02	1	1012-
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE	0-28050-816-0	01	1	1012-
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> (B) M8X20 FLANGE	0-28650-820-0	03	1	1012-
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	0812-1011
58	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> ID=16	8-94392-924-0	02	1	1012-
63	BRACKET; WATER PIPE (B)	8-94392-951-0	01	1	0812-1011
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94392-951-0	01	1	1012-
63	BRACKET; WATER PIPE (C)	8-98074-252-0	01	1	0812-1011
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (C)	8-98074-252-0	01	1	1012-
63	BRACKET; WATER PIPE (D)	8-98074-253-0	01	1	0812-1011
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (D)	8-98074-253-0	01	1	1012-
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-98046-784-0	01	1	1012-
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (E)	8-98153-457-0	01	1	1012-
89	PIPE; WATER,AIR CMPR,IN	8-97611-095-0	01	1	0812-
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	0812-
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	0812-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0812-1312
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0812-
94	CLIP; WATER PIPE (B)	8-94396-860-0	01	1	0812-1011
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94396-860-0	01	1	1012-
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-97605-129-1	08	1	1012-
115	HOSE; RUBBER (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0812-1011
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1012-
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	1012-
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (B)	8-97606-735-1	01	1	1012-
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (C)	8-98043-192-0	01	1	1012-
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D)	8-97618-843-0	01	1	1012-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0812-1011
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	1012-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	0812-1011
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B) ID=16.2	1-09630-086-0	04	1	1012-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	1012-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A) ID=16.2	1-09630-086-0	02	1	1012-
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0812-1011
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1012-
127	BOLT; EYE (C) M16X25	5-09675-028-2	01	1	0812-1011
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (C) M16X25	5-09675-028-2	01	1	1012-
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	0812-1011
127	BOLT; EYE EURO3 SPECIFICATION<NT3> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	1012-
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	1012-
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28050-816-0	05	1	0812-1011
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	05	1	1012-
129	BOLT; WATER PIPE TO BRKT (B) M12X20 FLANGE	0-28151-220-0	01	1	0812-1011
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<NT2> (B) M12X20 FLANGE	0-28151-220-0	01	1	1012-

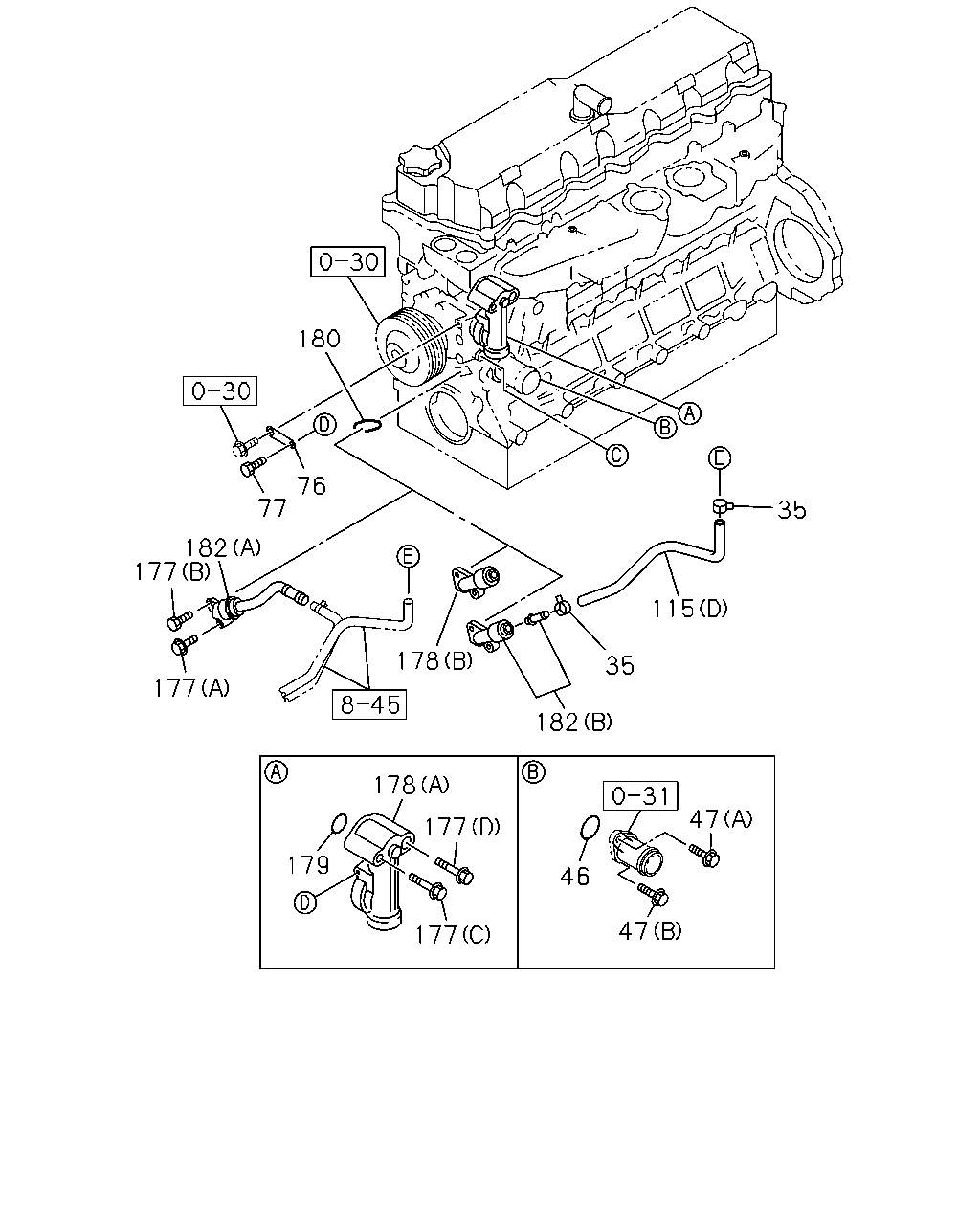

180 76 77 182 177 177 178 35 115 35 182 178 177 47 46 179 177 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> ID=20	8-98127-648-0	05	1	1012-1104
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> ID=20	8-98127-648-0	06	1	1105-
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=20	8-98127-648-0	02	1	1012-
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0812-
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28050-845-0	01	1	0812-
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28650-825-0	01	1	0812-
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0812-
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	0812-
115	HOSE; RUBBER (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0812-1011
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1012-
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	1012-
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (B)	8-97606-735-1	01	1	1012-
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (C)	8-98043-192-0	01	1	1012-
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D)	8-97618-843-0	01	1	1012-
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	0812-
177	BOLT; WATER DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0812-
177	BOLT; WATER DUCT (B) M8X65 FLANGE	1-09044-072-1	01	1	0812-
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0812-
178	DUCT; WATER,BYPASS (A)	8-94396-627-3	01	1	0812-
178	DUCT; WATER,BYPASS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B)	8-94390-644-0	01	1	0812-1011
178	DUCT; WATER,BYPASS EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B)	8-94390-644-0	01	1	1012-
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0812-1408
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0812-
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94394-348-5	01	1	0812-1011
182	DUCT; WATER,HTR EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B)	8-94396-727-3	01	1	1012-
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94394-348-5	01	1	1012-

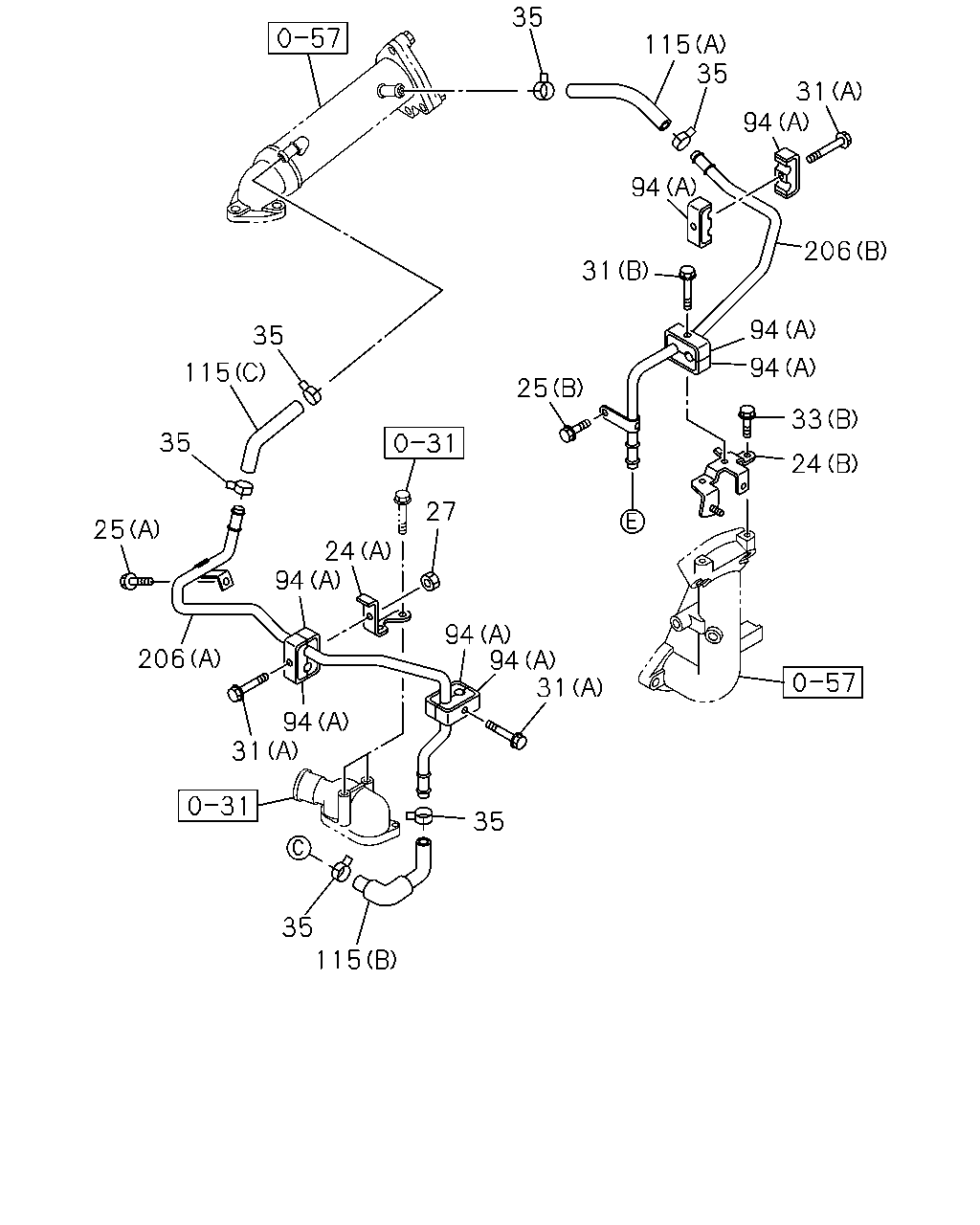

35 115 35 31 94 94 206 31 94 35 94 115 25 33 35 24 27 25 24 94 94 94 31 206 94 31 35 35 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-98000-557-2	01	1	1012-
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (B)	8-98051-626-1	01	1	1012-
25	BOLT; WATER PIPE EURO3 SPECIFICATION<NT3> (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-
25	BOLT; WATER PIPE EURO3 SPECIFICATION<NT3> (B) M8X20 FLANGE	0-28650-820-0	01	1	1012-
27	NUT; PIPE FIX EURO3 SPECIFICATION<NT3> M6 FLANGE	0-91180-106-0	01	1	1012-
31	BOLT; CLIP (C) M6X35 FLANGE	0-28650-635-0	01	1	0812-1011
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (C) M6X35 FLANGE	0-28650-635-0	01	1	1012-
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (B) M6X45 FLANGE	0-28050-645-0	01	1	1012-
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M6X40 FLANGE	0-28650-640-0	02	1	1012-1106
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M6X40 FLANGE	0-28650-640-0	03	1	1107-
33	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0812-1011
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	02	1	1012-
33	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	02	1	0812-1011
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M8X20 FLANGE	0-28050-820-0	02	1	1012-
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE	0-28050-816-0	01	1	1012-
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> (B) M8X20 FLANGE	0-28650-820-0	03	1	1012-
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> ID=20	8-98127-648-0	05	1	1012-1104
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> ID=20	8-98127-648-0	06	1	1105-
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=20	8-98127-648-0	02	1	1012-
94	CLIP; WATER PIPE (B)	8-94396-860-0	01	1	0812-1011
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94396-860-0	01	1	1012-
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-97605-129-1	08	1	1012-
115	HOSE; RUBBER (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0812-1011
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1012-
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	1012-
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (B)	8-97606-735-1	01	1	1012-
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (C)	8-98043-192-0	01	1	1012-
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D)	8-97618-843-0	01	1	1012-
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NT3> (A)	8-97604-928-2	01	1	1012-
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NT3> (B)	8-98000-480-1	01	1	1012-
