0-30 — WATER PUMP AND CORROSION RESISTOR (#47860) — 41 parça

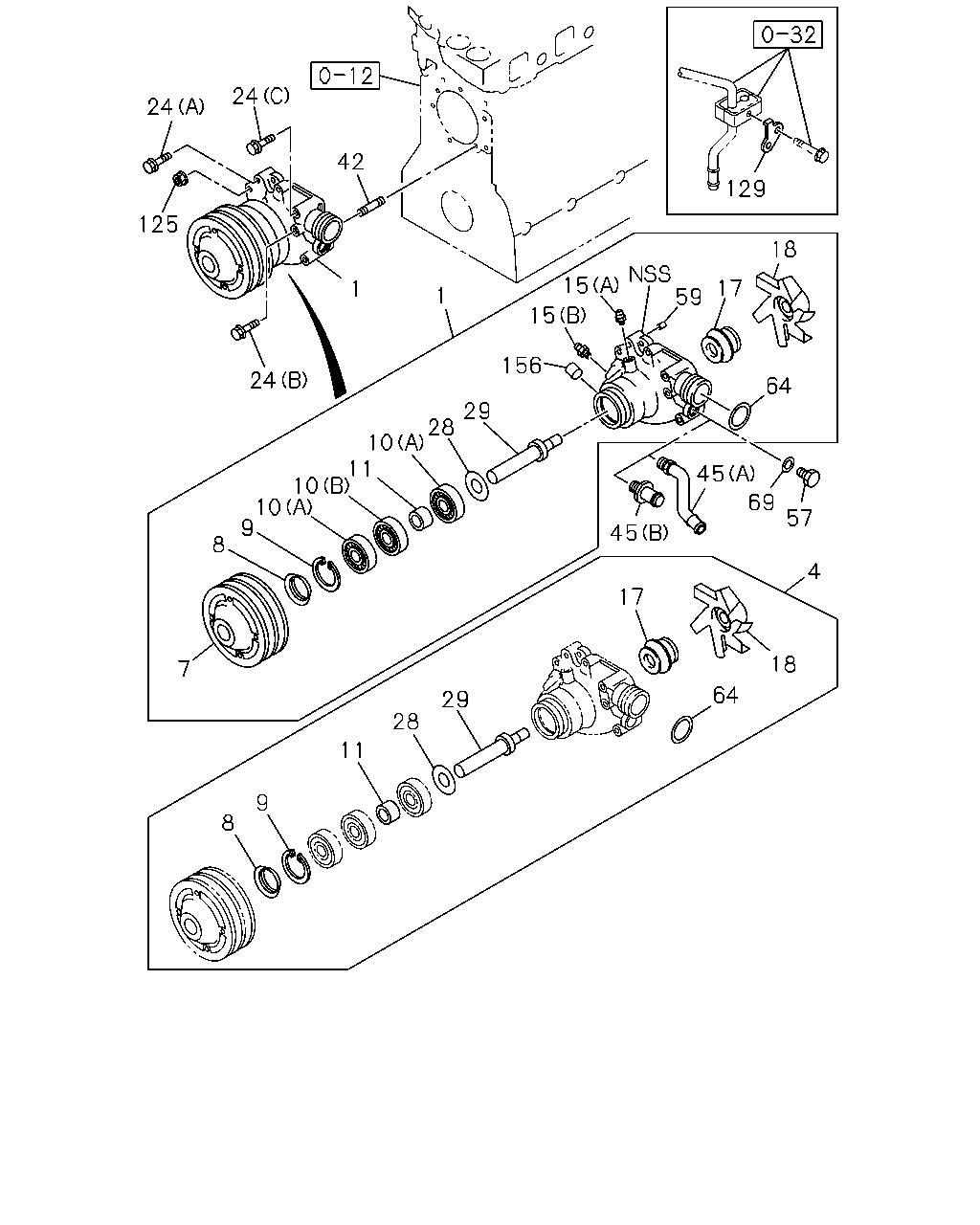

çizim 110670
24 24 42 125 1 1 24 29 28 10 11 10 10 9 8 7 8 9 11 28 29 17 18 64 4 57 69 45 45 64 18 17 59 15 15 156 129
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; WATER,W/GASKET 8-98042-848-2 01 1 0812-1208
1 PUMP ASM; WATER,W/GASKET 1-87310-835-0 01 1 1209-1312
1 PUMP ASM; WATER,W/GASKET 1-87310-902-0 01 1 1401-1405
1 PUMP ASM; WATER,W/GASKET 1-87310-974-0 01 1 1406-
4 REPAIR KIT; WATER PUMP 1-87812-040-1 01 1 0812-1208
4 REPAIR KIT; WATER PUMP 1-87813-949-0 01 1 1209-1312
4 REPAIR KIT; WATER PUMP 1-87814-167-0 01 1 1401-1405
4 REPAIR KIT; WATER PUMP 1-87814-615-0 01 1 1406-
7 PULLEY; WATER PUMP 8-97616-657-0 01 1 0812-1405
7 PULLEY; WATER PUMP 8-98281-099-0 01 1 1406-
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0812-
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0812-
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 0812-
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 0812-
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 0812-
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0812-
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0812-
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0812-1208
17 SEAL UNIT; WATER PUMP 8-98221-159-0 01 1 1209-1312
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1401-1405
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1406-
18 IMPELLER; WATER PUMP 8-94392-922-0 01 1 0812-
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28050-880-0 01 1 0812-
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 0812-
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 0812-
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 0812-
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 0812-1405
29 SHAFT; WATER PUMP 8-98280-700-0 01 1 1406-
42 STUD; WATER PUMP
M8X30 L=46 		0-40110-830-0 01 1 0812-
45 JOINT; HTR HOSE,WATER PUMP
EURO3 SPECIFICATION<NT3> (B) 		8-94396-180-0 01 1 1012-
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94392-827-1 01 1 0812-1011
45 JOINT; HTR HOSE,WATER PUMP
EURO2 SPECIFICATION<NT2> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94392-827-1 01 1 1012-
57 PLUG; HTR,WATER PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) M20 		9-99202-320-0 01 1 0812-1011
57 PLUG; HTR,WATER PUMP
EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) M20 		9-99202-320-0 01 1 1012-
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 0812-
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 0812-
69 GASKET; PLUG,HTR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=20.5 OD=28.0 		9-09571-420-0 01 1 0812-1011
69 GASKET; PLUG,HTR
EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=20.5 OD=28.0 		9-09571-420-0 01 1 1012-
125 NUT; WATER PUMP
M8 FLANGE 		0-91180-108-0 04 1 0812-
129 BRACKET; CLIP
EURO3 SPECIFICATION<NT3> 		8-98066-087-0 01 1 1012-
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0812-
