Isuzu WW
▶
TRUCKS
▶
FTS
▶
11422 - FTS(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

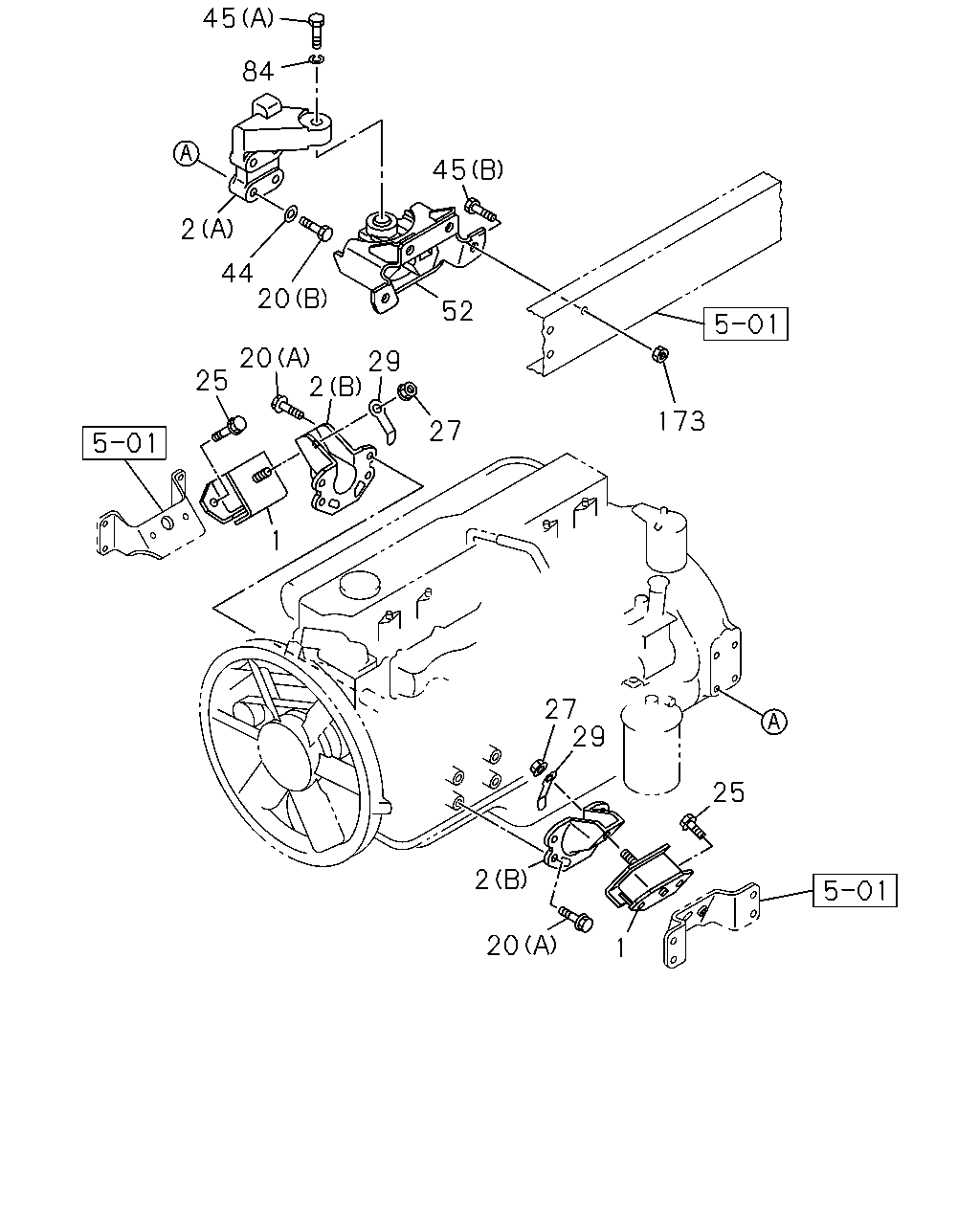

0-22 — ENGINE MOUNTING
(#47856) — 17 parça
25
1
20
2
29
27
173
27
29
2
1
20
25
20
44
2
52
45
84
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
1-53215-172-0
02
1
0812-
2
FOOT; ENG
(B)
8-94392-141-3
02
1
0812-1008
2
FOOT; ENG
(B)
8-97602-589-1
02
1
1009-
2
FOOT; ENG
(A)
8-97611-988-0
01
1
0812-
2
FOOT; ENG
(A)
8-97611-989-0
01
1
0812-
20
BOLT; ENG FOOT
(B) M12X50
0-16956-250-0
08
1
0812-
20
BOLT; ENG FOOT
(A) M10X30
8-97011-732-0
08
1
0812-1008
20
BOLT; ENG FOOT
(A) M10X20 FLANGE
8-94395-721-0
08
1
1009-
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE
0-28651-235-0
04
1
0812-
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE
0-91180-212-0
02
1
0812-
29
PLATE; LK,CUSHION RUBBER,FRT
8-98010-312-0
02
1
0812-
44
WASHER; LK,ENG FOOT
ID=12.5
0-91614-512-0
08
1
0812-
45
BOLT; CUSHION RUBBER TO FRAME
(B) M14X50
0-29261-450-0
08
1
0812-
45
BOLT; CUSHION RUBBER TO FRAME
(A) M18X65
8-94393-260-1
02
1
0812-
52
RUBBER; CUSHION,ENG MTG,RR
8-98013-021-1
02
1
0812-
84
WASHER; PL,ENG MTG RR TO FRAME
ID=19 OD=36
0-91614-618-0
02
1
0812-
173
NUT; ENG MTG RR TO FRAME
M14 FLANGE
0-91180-214-0
08
1
0812-
