Isuzu WW
▶
TRUCKS
▶
FTS
▶
11422 - FTS(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-14 - CAMSHAFT AND VALVE
▶
0-14 — CAMSHAFT AND VALVE
(#47853) — 46 parça
◀

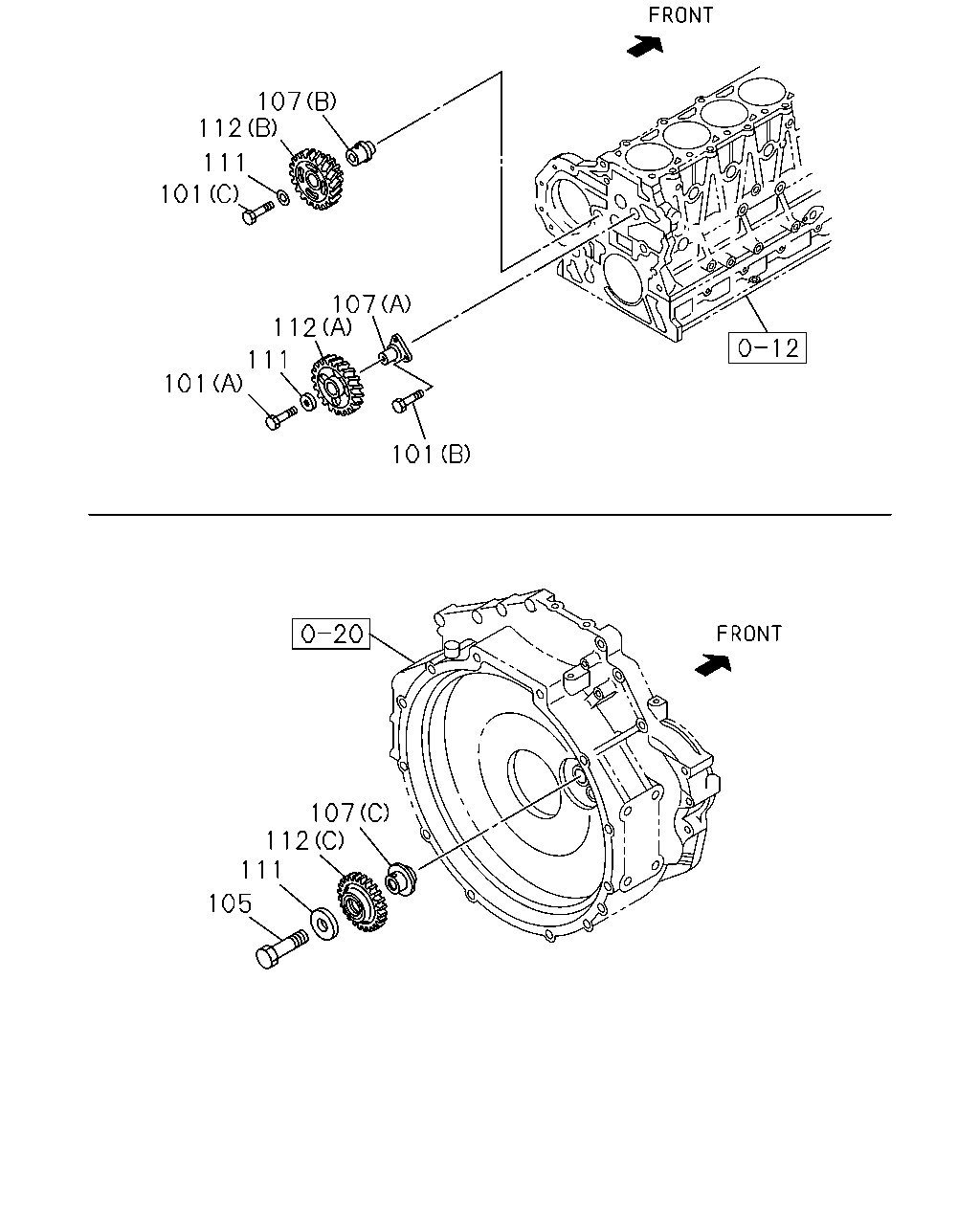

[014A] IDLE GEAR (12 parça)

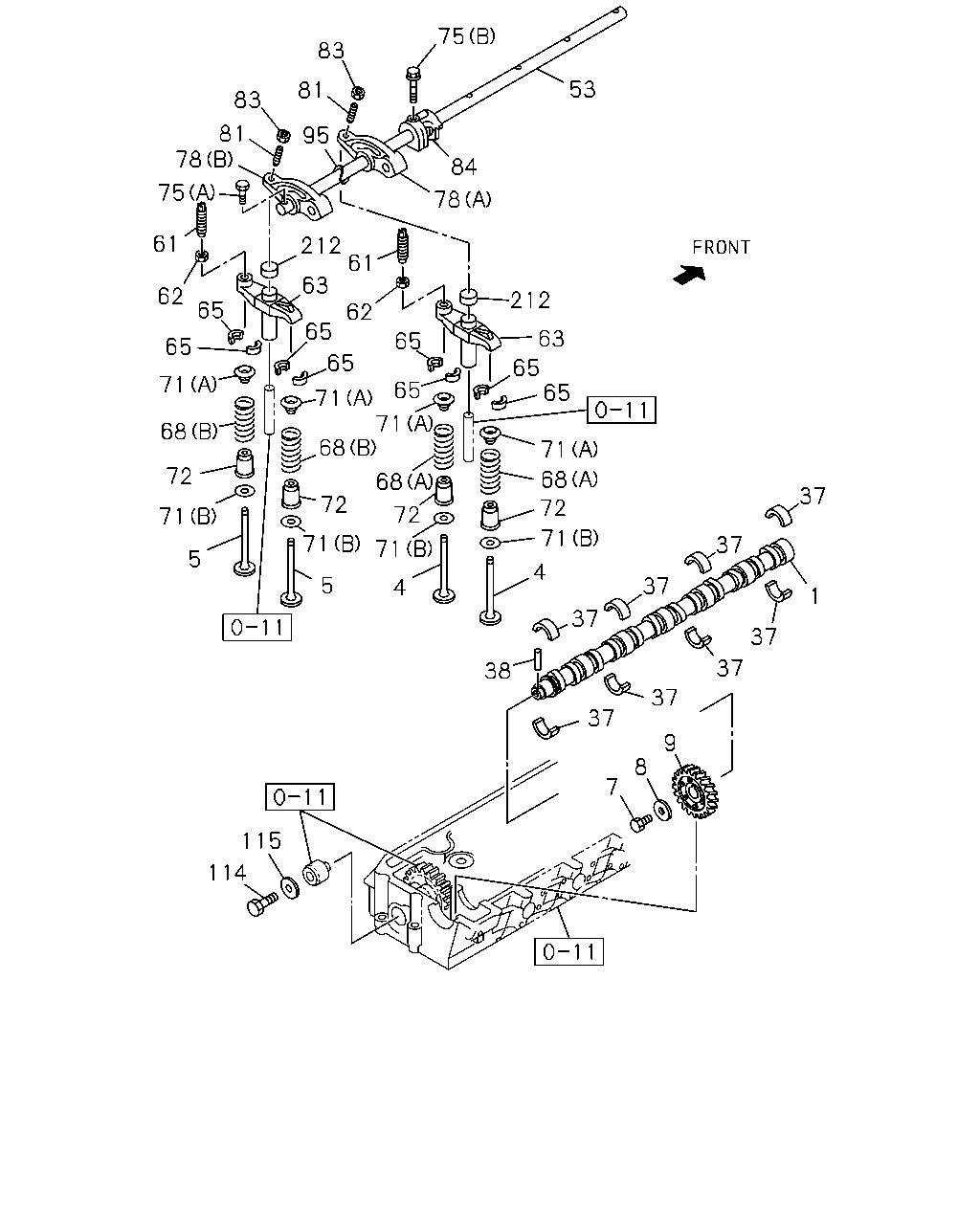

[014A] VALVE AND CAMSHAFT (34 parça)
▶
107
112
111
101
107
112
111
101
101
107
112
111
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
101
BOLT; THRUST COLLAR
(C) M14X60
0-16956-460-0
01
1
0812-
101
BOLT; THRUST COLLAR
(A) M14X30
0-23951-430-0
01
1
0812-
101
BOLT; THRUST COLLAR
(B) M8X16 FLANGE
0-28060-816-0
03
1
0812-
105
BOLT; IDLE GEAR SHAFT
M14X65
8-97066-798-0
01
1
0812-
107
SHAFT; IDLE GEAR
(C)
8-94334-682-1
01
1
0812-
107
SHAFT; IDLE GEAR
(A)
8-97350-021-0
01
1
0812-
107
SHAFT; IDLE GEAR
(B)
8-98060-780-0
01
1
0812-
111
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
8-97209-728-2
03
1
0812-
112
GEAR; IDLE
(B) Z=72-60-30
8-97600-586-1
01
1
0812-1402
112
GEAR; IDLE
(B) Z=72-60-30
8-98254-970-0
01
1
1403-
112
GEAR; IDLE
(A) Z=61
8-97606-767-0
01
1
0812-
112
GEAR; IDLE
(C) Z=34
8-97606-771-0
01
1
0812-
53
75
83
81
95
83
81
78
75
61
62
5
5
4
4
1
114
7
37
37
9
8
115
37
37
37
37
37
37
38
71
68
71
65
65
63
212
71
71
71
72
72
72
68
68
71
65
65
71
68
72
71
65
65
62
65
63
61
212
65
84
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAMSHAFT
8-97601-438-0
01
1
0812-1311
1
CAMSHAFT
8-98227-261-1
01
1
1312-
4
VALVE; INL
8-94395-882-2
12
1
0812-
5
VALVE; EXH
8-97209-876-4
12
1
0812-
7
BOLT; CM/SHF GEAR
M14X40
8-94396-439-0
01
1
0812-
8
WASHER; CM/SHF GEAR
ID=14.5
9-09851-850-3
01
1
0812-
9
GEAR; CM/SHF
Z=35
8-98018-934-3
01
1
0812-
37
METAL; CM/SHF
UPPER B=16
8-97386-189-0
04
1
0812-
37
METAL; CM/SHF
LOWER B=26
8-97602-699-0
04
1
0812-
38
PIN; CAM BRG SET
OD=7 L=7.5
8-94399-487-0
01
1
0812-
53
SHAFT; ROCKER ARM
8-97389-918-0
01
1
0812-
61
SCREW; ADJ,BRIDGE
M8X21
8-94394-803-0
12
1
0812-
62
NUT; ADJ SCREW LK BRIDGE
M8 FLANGE
9-09844-574-0
12
1
0812-
63
BRIDGE
8-94392-002-3
12
1
0812-
65
COLLAR; SPLIT
5-12565-004-0
48
1
0812-
68
SPRING; VLV
(A) EXHAUST MARK WHITE
8-94395-885-1
12
1
0812-1011
68
SPRING; VLV
EURO2 SPECIFICATION<NT2> (A) EXHAUST MARK WHITE
8-94395-885-1
12
1
1012-
68
SPRING; VLV
(B) INLET MARK BLUE
8-97352-888-0
12
1
0812-1011
68
SPRING; VLV
EURO3 SPECIFICATION<NT3> (A) EXHAUST MARK RED
8-97210-682-0
12
1
1012-
68
SPRING; VLV
(B) INLET MARK BLUE
8-97352-888-0
12
1
1012-
71
SEAT; SPR
(A) UPPER OD=32.8 T=12.75
8-94390-783-2
24
1
0812-
71
SEAT; SPR
(B) LOWER ID=14.3 T=1.0
8-94391-468-0
24
1
0812-
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97376-720-0
24
1
0812-
75
BOLT; BRKT
(A) M8X40 FLANGE
0-28050-840-0
02
1
0812-
75
BOLT; BRKT
(B) M10X62 FLANGE
8-94393-131-0
05
1
0812-
78
ARM; ROCKER
(A) INLET
8-97306-421-3
06
1
0812-
78
ARM; ROCKER
(B) EXHAUST
8-97306-424-3
06
1
0812-
81
SCREW; ADJ,ROCKER ARM
M10 L=32
8-94395-024-0
12
1
0812-
83
NUT; ADJ SCREW,LK
M10
0-91111-510-0
12
1
0812-
84
BRACKET; ROCKER SHAFT,INTER
8-94395-836-2
05
1
0812-
95
SPRING; ROCKER SHAFT
8-94392-999-0
06
1
0812-
114
BOLT; IDLE GEAR
M14X36.5
8-94372-221-1
01
1
0812-
115
WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46
8-97209-728-2
01
1
0812-
212
CAP; ADJ SCREW
8-94396-015-2
12
1
0812-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
