1-11A — RADIATOR HOSE AND SUB TANK (#4785) — 90 parça

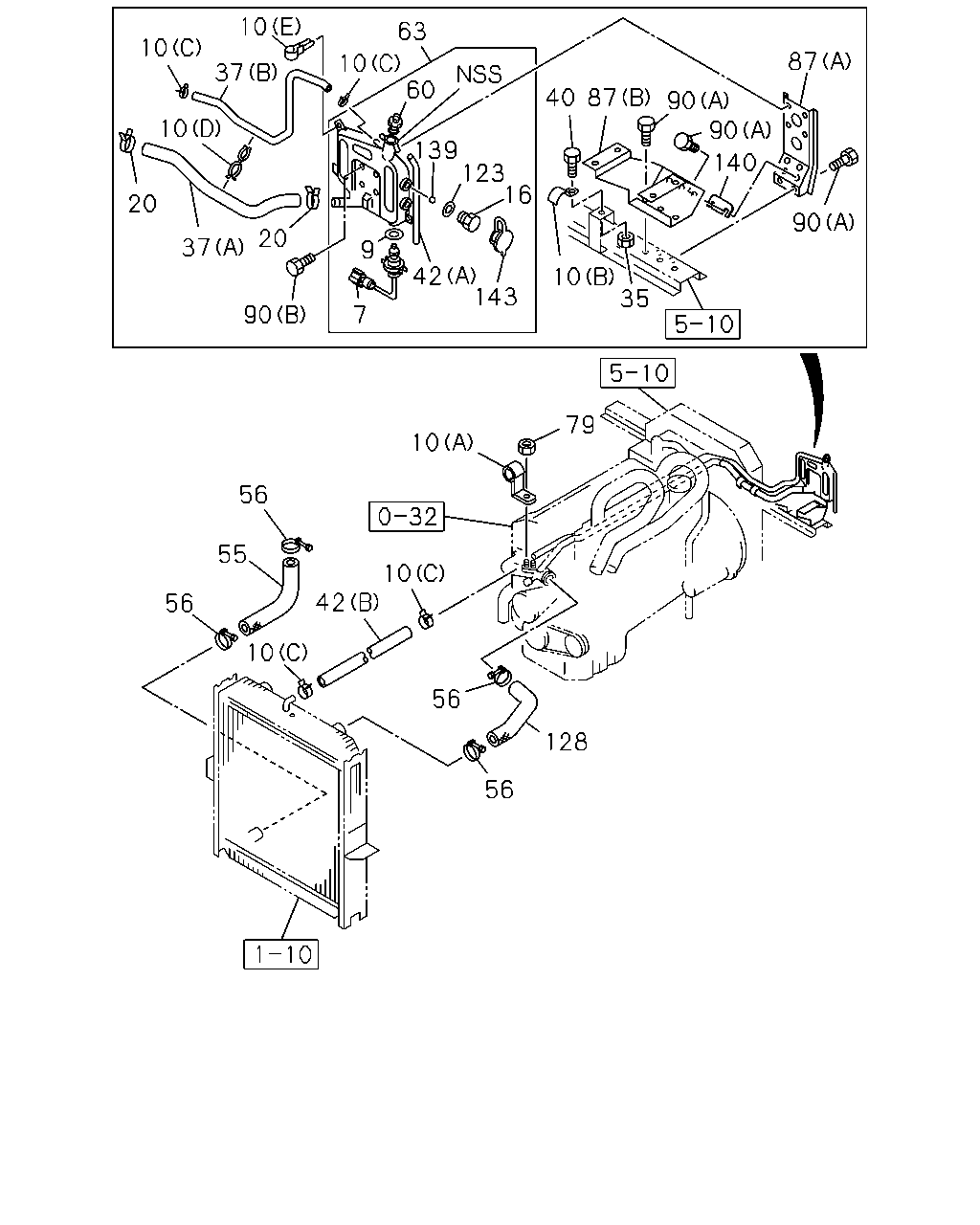

çizim 8757
10 63 10 87 10 60 37 40 87 90 90 10 139 123 16 140 20 90 10 35 20 37 9 42 143 90 7 79 10 56 55 10 42 56 10 56 128 56
BalonParca AdiParca NoAdetTipApplied Date A B C D
7 SWITCH ASM; TANK 1-82480-045-0 01 1 9601-9610 ●
7 SWITCH ASM; TANK 1-82480-045-0 01 1 9905-0103 ● ● ●
7 SWITCH ASM; TANK 1-82480-093-1 01 1 0104- ● ● ●
7 SWITCH ASM; TANK 1-82480-045-0 01 1 9611-9904 ● ●
9 GASKET; SWITCH
ID=28 T=2.5 		1-09630-126-0 01 1 9601-9610 ●
9 GASKET; SWITCH
ID=28 T=2.5 		1-09630-126-0 01 1 9905- ● ● ●
9 GASKET; SWITCH
ID=28 T=2.5 		1-09630-126-0 01 1 9611-9904 ● ●
10 CLIP; RUBBER HOSE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 9601-9610 ●
10 CLIP; RUBBER HOSE
(B) D=43 		1-09700-703-0 01 1 9601-9610 ●
10 CLIP; RUBBER HOSE
(C) ID=14 		1-09704-102-0 04 1 9601-9610 ●
10 CLIP; RUBBER HOSE
(D) ID=44 & 16 		1-09709-125-0 04 1 9601-9610 ●
10 CLIP; RUBBER HOSE
(E) ID=14 L=44 		9-09917-427-0 02 1 9601-9610 ●
10 CLIP; RUBBER HOSE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 9905- ● ● ●
10 CLIP; RUBBER HOSE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 9611-9904 ● ●
10 CLIP; RUBBER HOSE
(B) D=43 		1-09700-703-0 01 1 9905- ● ● ●
10 CLIP; RUBBER HOSE
(B) D=43 		1-09700-703-0 01 1 9611-9904 ● ●
10 CLIP; RUBBER HOSE
(C) ID=14 		1-09704-102-0 04 1 9905- ● ● ●
10 CLIP; RUBBER HOSE
(C) ID=14 		1-09704-102-0 04 1 9611-9904 ● ●
10 CLIP; RUBBER HOSE
(D) ID=44 & 16 		1-09709-125-0 04 1 9905- ● ● ●
10 CLIP; RUBBER HOSE
(D) ID=44 & 16 		1-09709-125-0 04 1 9611-9904 ● ●
10 CLIP; RUBBER HOSE
(E) ID=14 L=44 		9-09917-427-0 02 1 9905- ● ● ●
10 CLIP; RUBBER HOSE
(E) ID=14 L=44 		9-09917-427-0 02 1 9611-9904 ● ●
16 PLUG; TANK 1-21464-425-0 02 1 9601-9610 ●
16 PLUG; TANK 1-21464-514-0 02 1 9611-9904 ● ●
16 PLUG; TANK 1-21464-514-0 02 1 9905- ● ● ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 9601-9904 ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 9905- ● ● ●
35 NUT
M10 FLANGE 		0-91150-210-0 01 1 9607-9904 ●
35 NUT
M10 FLANGE 		0-91150-210-0 01 1 9905- ● ● ●
35 NUT
M10 FLANGE 		0-91150-210-0 01 1 9611-9904 ● ●
37 HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000 		0-03259-300-0 01 1 9601-9610 ●
37 HOSE; RUBBER
(A) 		1-21437-583-0 01 1 9601-9610 ●
37 HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000 		0-03259-300-0 01 1 9905-0103 ● ● ●
37 HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000 		0-03559-300-0 01 1 0104- ● ● ●
37 HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000 		0-03259-300-0 01 1 9611-9904 ● ●
37 HOSE; RUBBER
(A) 		1-21437-583-0 01 1 9905- ● ● ●
37 HOSE; RUBBER
(A) 		1-21437-583-0 01 1 9611-9904 ● ●
40 BOLT; CLIP
M10X20 FLANGE 		0-28081-020-0 01 1 9601-9606 ●
40 BOLT; CLIP
M10X20 FLANGE 		0-28681-020-0 01 1 9607-9802 ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28681-025-0 01 1 9803-9904 ● ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28681-025-0 01 1 9905- ● ● ●
42 HOSE; RUBBER
(B) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9601-9610 ●
42 HOSE; RUBBER
(B) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9611-9904 ● ●
42 HOSE; RUBBER
(B) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9905-0103 ● ● ●
42 HOSE; RUBBER
(B) L=560 SERVICED BY L=3000 		0-03559-300-0 01 1 0104- ● ● ●
42 HOSE; RUBBER
(A) L=850 		1-21489-154-0 01 1 9601-9610 ●
42 HOSE; RUBBER
(A) L=850 		1-21489-154-0 01 1 9905- ● ● ●
42 HOSE; RUBBER
(A) L=850 		1-21489-154-0 01 1 9611-9904 ● ●
55 HOSE; WATER,RAD OUTLET 1-21437-448-2 01 1 9601-9610 ●
55 HOSE; WATER,RAD OUTLET 1-21437-448-2 01 1 9611-9904 ● ●
55 HOSE; WATER,RAD OUTLET 1-21437-448-2 01 1 9905- ● ● ●
56 CLIP; WATER HOSE,RAD
ID=72 		1-09704-068-0 04 1 9601-9610 ●
56 CLIP; WATER HOSE,RAD
ID=72 		1-09704-068-0 04 1 9611-9904 ● ●
56 CLIP; WATER HOSE,RAD
ID=72 		1-09704-068-0 04 1 9905- ● ● ●
60 CAP; SUB TANK 1-21450-083-4 01 1 9601-9610 ●
60 CAP; SUB TANK 1-21450-083-4 01 1 9611-9904 ● ●
60 CAP; SUB TANK 1-21450-137-0 01 1 9905- ● ● ●
63 TANK ASM; SUB 1-21481-097-1 01 1 9601-9610 ●
63 TANK ASM; SUB 1-21481-106-1 01 1 9611-9904 ● ●
63 TANK ASM; SUB 1-21481-106-1 01 1 9905-0003 ● ● ●
63 TANK ASM; SUB 1-21481-128-0 01 1 0004-0103 ● ● ●
63 TANK ASM; SUB 1-21481-144-0 01 1 0104- ● ● ●
79 NUT; CLIP,HOSE
M8 FLANGE 		0-91150-108-0 01 1 9601-9610 ●
79 NUT; CLIP,HOSE
M8 FLANGE 		0-91150-108-0 01 1 9905- ● ● ●
79 NUT; CLIP,HOSE
M8 FLANGE 		0-91150-108-0 01 1 9611-9904 ● ●
87 BRACKET; SUB TANK
(B) 		1-21489-155-0 01 1 9601-9610 ●
87 BRACKET; SUB TANK
(A) 		1-21489-156-0 01 1 9601-9610 ●
87 BRACKET; SUB TANK
(B) 		1-21489-155-0 01 1 9905- ● ● ●
87 BRACKET; SUB TANK
(B) 		1-21489-155-0 01 1 9611-9904 ● ●
87 BRACKET; SUB TANK
(A) 		1-21489-156-0 01 1 9905- ● ● ●
87 BRACKET; SUB TANK
(A) 		1-21489-156-0 01 1 9611-9904 ● ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28080-820-0 06 1 9601-9606 ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28680-820-0 06 1 9611-9904 ● ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28680-820-0 06 1 9905- ● ● ●
90 BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 9601-9904 ●
90 BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 9905- ● ● ●
123 GASKET
ID=26.2 		8-94399-716-1 02 1 9601-9610 ●
123 GASKET
ID=26.2 		8-94399-716-1 02 1 9905- ● ● ●
123 GASKET
ID=26.2 		8-94399-716-1 02 1 9611-9904 ● ●
128 HOSE; WATER,RAD INL 1-21437-495-1 01 1 9601-9610 ●
128 HOSE; WATER,RAD INL 1-21437-495-1 01 1 9611-9904 ● ●
128 HOSE; WATER,RAD INL 1-21437-495-1 01 1 9905- ● ● ●
139 FLOAT 1-21489-118-1 02 1 9601-9610 ●
139 FLOAT 1-21489-161-0 02 1 9611-9904 ● ●
139 FLOAT 1-21489-161-0 02 1 9905- ● ● ●
140 SHIM
T=0.8 		1-53458-716-0 AR 1 9601-9610 ●
140 SHIM
T=0.8 		1-53458-716-0 AR 1 9905- ● ● ●
140 SHIM
T=0.8 		1-53458-716-0 AR 1 9611-9904 ● ●
143 COVER; PLUG 1-82389-017-0 02 1 9611-9904 ● ●
143 COVER; PLUG 1-82389-017-0 02 1 9905- ● ● ●
