8-28 — CHASSIS ELECTRICAL (#47834) — 149 parça

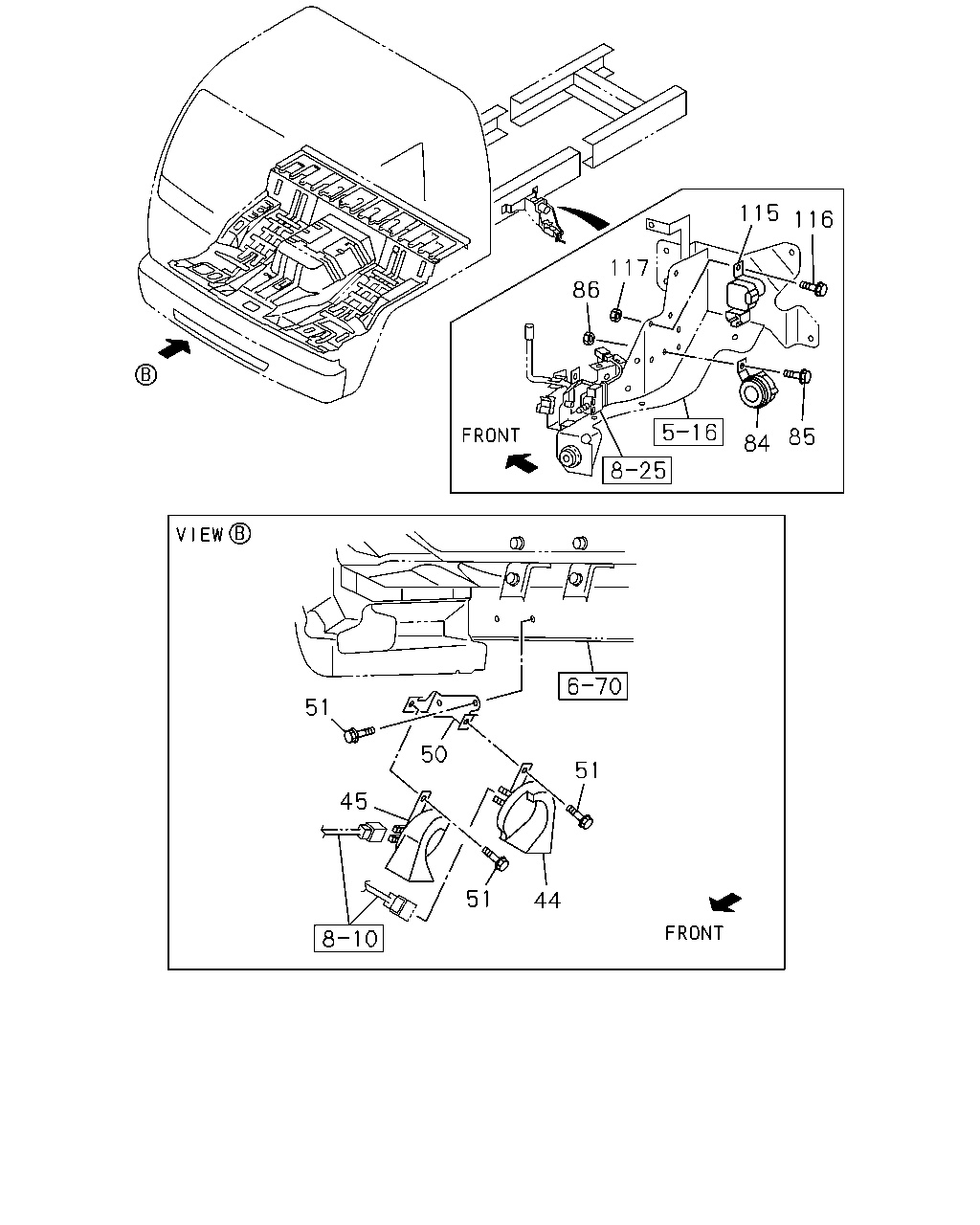

çizim 24822
115 116 117 86 85 84 51 50 51 45 51 44
BalonParca AdiParca NoAdetTipApplied Date A B
44 HORN; HIGH NOTE 8-97611-677-2 01 1 0712- ● ●
45 HORN; LOW NOTE 8-97611-676-2 01 1 0712- ● ●
50 BRACKET; HORN 8-97613-300-2 01 1 0712- ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 04 1 0712-1001 ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1002- ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1002- ● ●
84 BUZZER; POWER CAB TILT
METRO 		8-98069-860-0 01 1 0712- ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
86 NUT; BUZZER
M8 FLANGE 		0-91180-108-0 01 1 0712- ●
115 RELAY; POWER CAB TILT UNIT
24V NIKKO 		8-98005-631-1 01 1 0712- ●
116 BOLT; RELAY FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 0712- ●

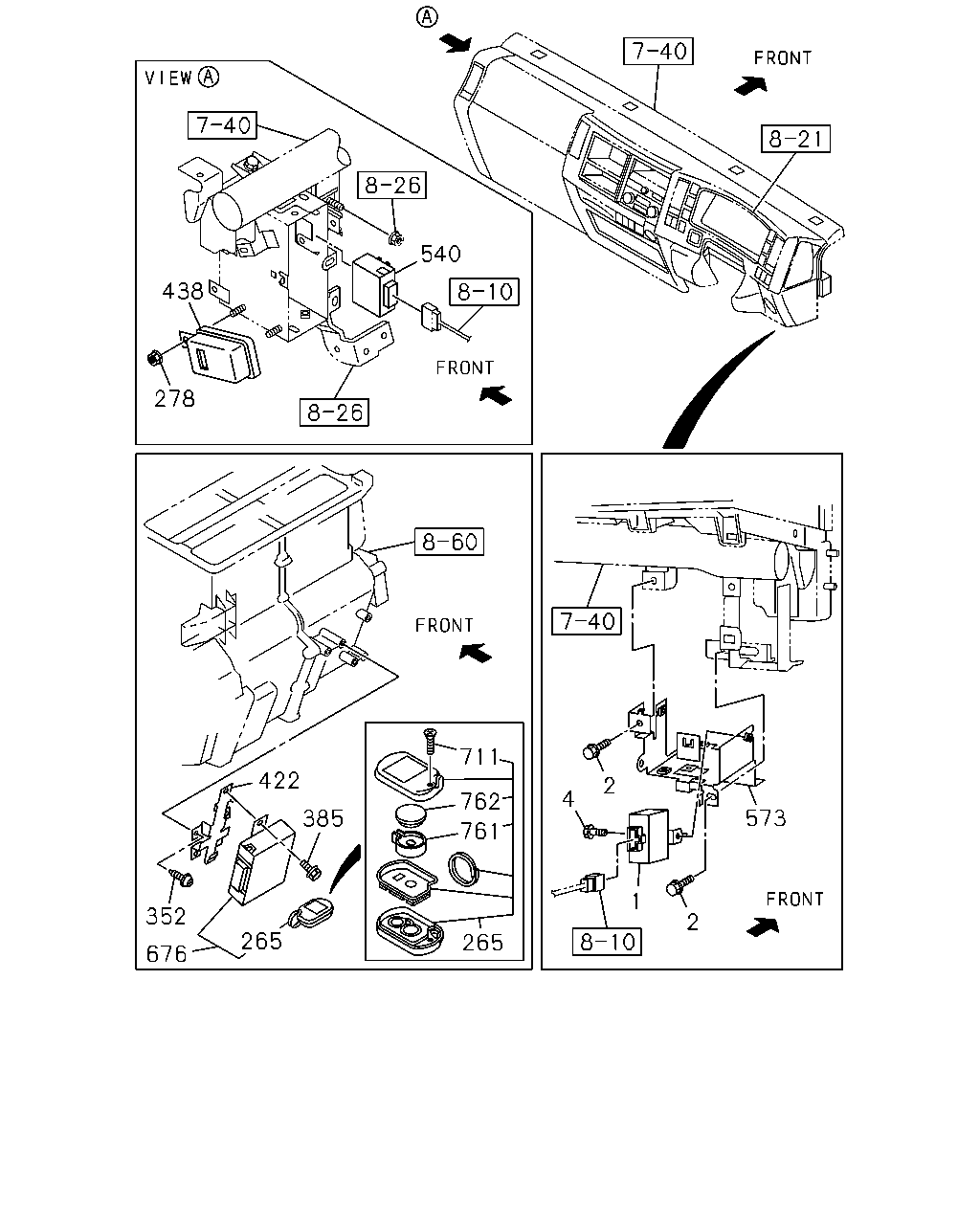

çizim 25201
540 438 278 711 422 2 4 762 385 573 761 1 352 2 265 265 676
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 8-98025-533-1 01 1 0712- ● ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 0712- ● ●
4 SCREW; FLASHER UNIT
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 0712- ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 0712-1012 ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98180-751-0 02 1 1101-1205 ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98218-236-0 02 1 1206- ● ●
278 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 01 1 0712- ● ●
352 SCREW; BRKT
M5X16 TAPPING 		0-72180-516-0 02 1 0712- ● ●
385 BOLT; CONT UNIT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0712- ● ●
422 BRACKET; CONT UNIT 8-98055-281-1 01 1 0712- ● ●
438 UNIT; SPD CONTROL 1-82550-271-0 01 1 0712- ● ●
540 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 0712-1308 ● ●
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1309- ● ●
573 BRACKET; FLASHER UNIT 8-97609-984-5 01 1 0712- ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98017-258-1 01 1 0712-1012 ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98181-809-0 01 1 1101-1205 ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98218-231-0 01 1 1206- ● ●
711 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 0712-1205 ● ●
711 SCREW; TRANSMITTER
M2X5 		8-98218-239-0 02 1 1206- ● ●
761 HOLDER; BATTERY 8-98078-063-0 02 1 0712-1012 ● ●
762 BATTERY 8-98078-061-0 02 1 0712- ● ●

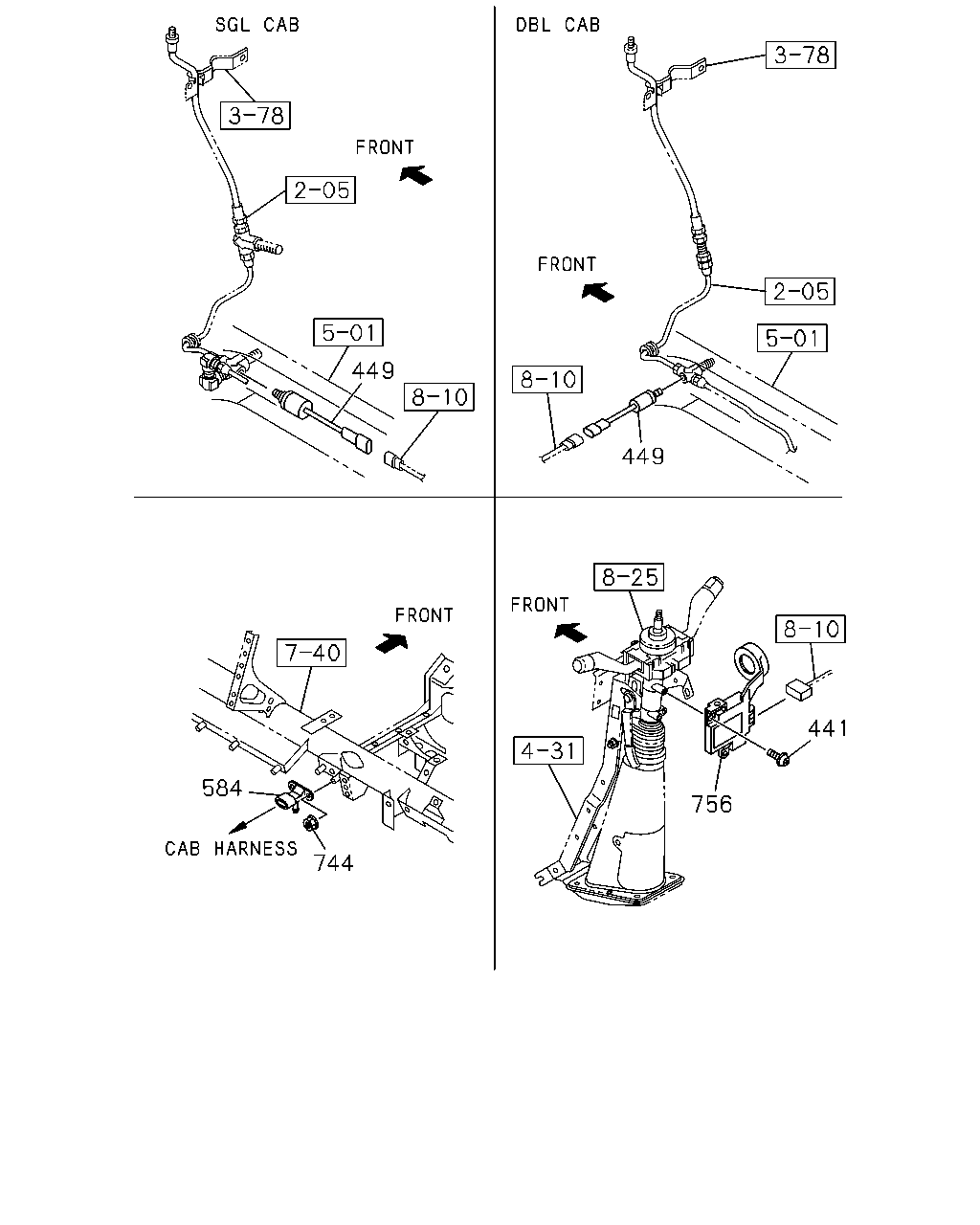

çizim 25217
449 449 441 584 756 744
BalonParca AdiParca NoAdetTipApplied Date A B
441 SCREW; CONT UNIT
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 0712- ● ●
449 SWITCH; OIL PRESS,CLUTCH 1-82410-143-1 01 1 0712-0802 ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 0712- ● ●
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 0712- ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98073-883-0 01 1 0712-0712 ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98097-554-0 01 1 0712-1005 ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1006- ● ●

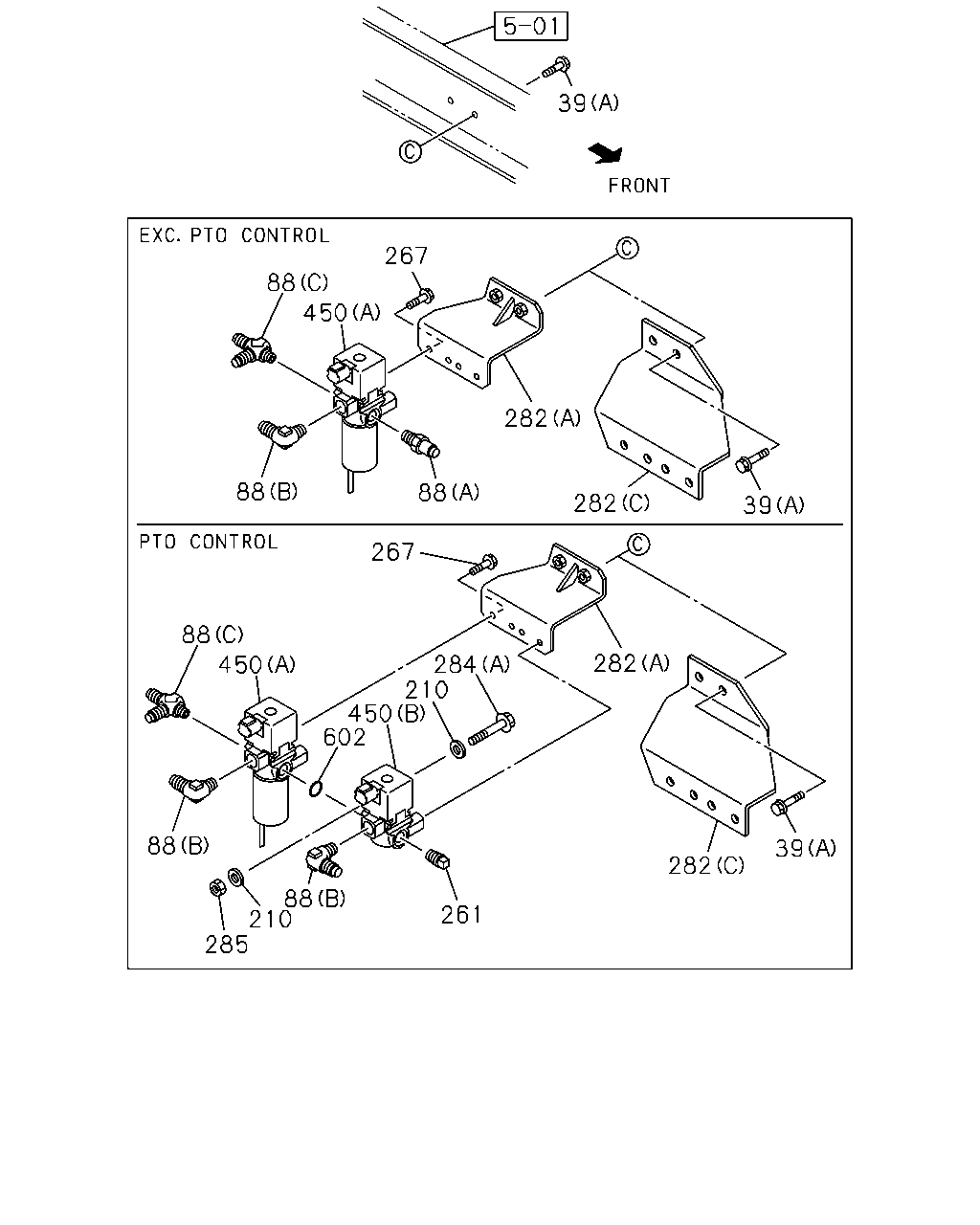

çizim 25344
39 267 88 450 282 88 88 282 39 267 88 282 284 210 450 602 450 88 39 282 88 210 285 261
BalonParca AdiParca NoAdetTipApplied Date A B
39 BOLT; BRKT,MAG VLV
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0712-0802 ●
39 BOLT; BRKT,MAG VLV
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0803-0808 ● ●
39 BOLT; BRKT,MAG VLV
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0809- ● ●
39 BOLT; BRKT,MAG VLV
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0802 ●
88 CONNECTOR; MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 0712-0802 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 0803- ● ●
88 CONNECTOR; MAG VLV
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0712-0802 ● ●
88 CONNECTOR; MAG VLV
(C) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0803- ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0803- ● ●
88 CONNECTOR; MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0712-0802 ●
88 CONNECTOR; MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803- ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803- ● ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0712-0802 ● ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0803- ● ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 0803- ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0712-0802 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0803-0803 ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0804-1205 ● ●
261 PLUG; MAG VLV 0-92004-813-0 01 1 1206-1206 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1207- ● ●
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
282 BRACKET; MAG VLV
(A) 		8-98034-702-0 01 1 0712-0802 ●
282 BRACKET; MAG VLV
(A) 		8-98034-702-0 01 1 0803-0803 ● ●
282 BRACKET; MAG VLV
(A) 		8-98034-702-0 01 1 0804- ●
282 BRACKET; MAG VLV
(B) 		1-47471-374-0 01 1 0712-0802 ●
282 BRACKET; MAG VLV
(C) 		8-98118-340-0 01 1 0804- ●
284 BOLT; MAG VLV
(A) M6X50 FLANGE 		0-28050-650-0 01 1 0712-0802 ● ●
284 BOLT; MAG VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0803- ● ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0803- ● ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0803- ● ●
285 NUT; MAG VLV
M6 FLANGE 		0-91180-106-0 01 1 0712-0802 ● ●
285 NUT; MAG VLV
M6 FLANGE 		0-91180-106-0 01 1 0803- ● ●
285 NUT; MAG VLV
PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 01 1 0803- ● ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0712-0910 ● ●
450 VALVE; MAG
(A) 		8-97633-075-0 01 1 0911- ● ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0803- ● ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0712-0802 ● ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0803- ● ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0803- ● ●
çizim 25473
22 615
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0712- ● ●
615 RELAY; TRAILER
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0712- ● ●
çizim 25748
34 714 714 602 284 210 88 261 34 210 285 89 34 261 34 36 90 90 284
BalonParca AdiParca NoAdetTipApplied Date A B
34 CONNECTOR; MAG VLV,INL PORT
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 04 1 0712-0802 ●
34 CONNECTOR; MAG VLV,INL PORT
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0803-0803 ●
34 CONNECTOR; MAG VLV,INL PORT
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0803 ●
34 CONNECTOR; MAG VLV,INL PORT
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0804- ● ●
34 CONNECTOR; MAG VLV,INL PORT
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 0812- ● ●
34 CONNECTOR; MAG VLV,INL PORT
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 0712-0802 ●
34 CONNECTOR; MAG VLV,INL PORT
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 0803-0803 ● ●
34 CONNECTOR; MAG VLV,INL PORT
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 04 1 0804-0811 ● ●
34 CONNECTOR; MAG VLV,INL PORT
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0812- ● ●
36 BOLT; MAG VLV,PTO CONT
M8X25 FLANGE 		0-28650-825-0 02 1 0802-0803 ●
36 BOLT; MAG VLV,PTO CONT
M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ●
88 CONNECTOR; MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 0712-0802 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 0803- ● ●
88 CONNECTOR; MAG VLV
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0712-0802 ● ●
88 CONNECTOR; MAG VLV
(C) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0803- ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0803- ● ●
88 CONNECTOR; MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0712-0802 ●
88 CONNECTOR; MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803- ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803- ● ●
89 VALVE; MAG,DIFF LOCK 1-82563-871-2 01 1 0712-0803 ●
89 VALVE; MAG,DIFF LOCK 1-82563-871-2 01 1 0804-1205 ● ●
89 VALVE; MAG,DIFF LOCK 8-97641-594-0 01 1 1206- ● ●
90 BOLT; MAG VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0801 ● ●
90 BOLT; MAG VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0801 ●
90 BOLT; MAG VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0802-0802 ● ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0712-0802 ● ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0803- ● ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 0803- ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0712-0802 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0803-0803 ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0804-1205 ● ●
261 PLUG; MAG VLV 0-92004-813-0 01 1 1206-1206 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1207- ● ●
284 BOLT; MAG VLV
(A) M6X50 FLANGE 		0-28050-650-0 01 1 0712-0802 ● ●
284 BOLT; MAG VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0803- ● ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0803- ● ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0803- ● ●
285 NUT; MAG VLV
M6 FLANGE 		0-91180-106-0 01 1 0712-0802 ● ●
285 NUT; MAG VLV
M6 FLANGE 		0-91180-106-0 01 1 0803- ● ●
285 NUT; MAG VLV
PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 01 1 0803- ● ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0712-0802 ● ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0803- ● ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0803- ● ●
714 VALVE; MAG,TRANS,LOW TO HIGH 1-82563-871-2 02 1 0712- ● ●
çizim 25780
39 267 88 450 282 88 88 88 41 267 450 39 282 88 88 88 88
BalonParca AdiParca NoAdetTipApplied Date A B
39 BOLT; BRKT,MAG VLV
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0712-0802 ●
39 BOLT; BRKT,MAG VLV
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0803-0808 ● ●
39 BOLT; BRKT,MAG VLV
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0809- ● ●
39 BOLT; BRKT,MAG VLV
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0802 ●
41 NUT; BRKT,MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
88 CONNECTOR; MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 0712-0802 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 0803- ● ●
88 CONNECTOR; MAG VLV
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0712-0802 ● ●
88 CONNECTOR; MAG VLV
(C) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0803- ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0803- ● ●
88 CONNECTOR; MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0712-0802 ●
88 CONNECTOR; MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803- ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803- ● ●
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
282 BRACKET; MAG VLV
(A) 		8-98034-702-0 01 1 0712-0802 ●
282 BRACKET; MAG VLV
(A) 		8-98034-702-0 01 1 0803-0803 ● ●
282 BRACKET; MAG VLV
(A) 		8-98034-702-0 01 1 0804- ●
282 BRACKET; MAG VLV
(B) 		1-47471-374-0 01 1 0712-0802 ●
282 BRACKET; MAG VLV
(C) 		8-98118-340-0 01 1 0804- ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0712-0910 ● ●
450 VALVE; MAG
(A) 		8-97633-075-0 01 1 0911- ● ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0803- ● ●
çizim 99338
531
BalonParca AdiParca NoAdetTipApplied Date A B
531 RELAY; MAIN
24V 30A JIDECO 		8-97238-540-0 01 1 0712-1402 ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
