◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11421 - FTS(AUST)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#47830) — 33 parça

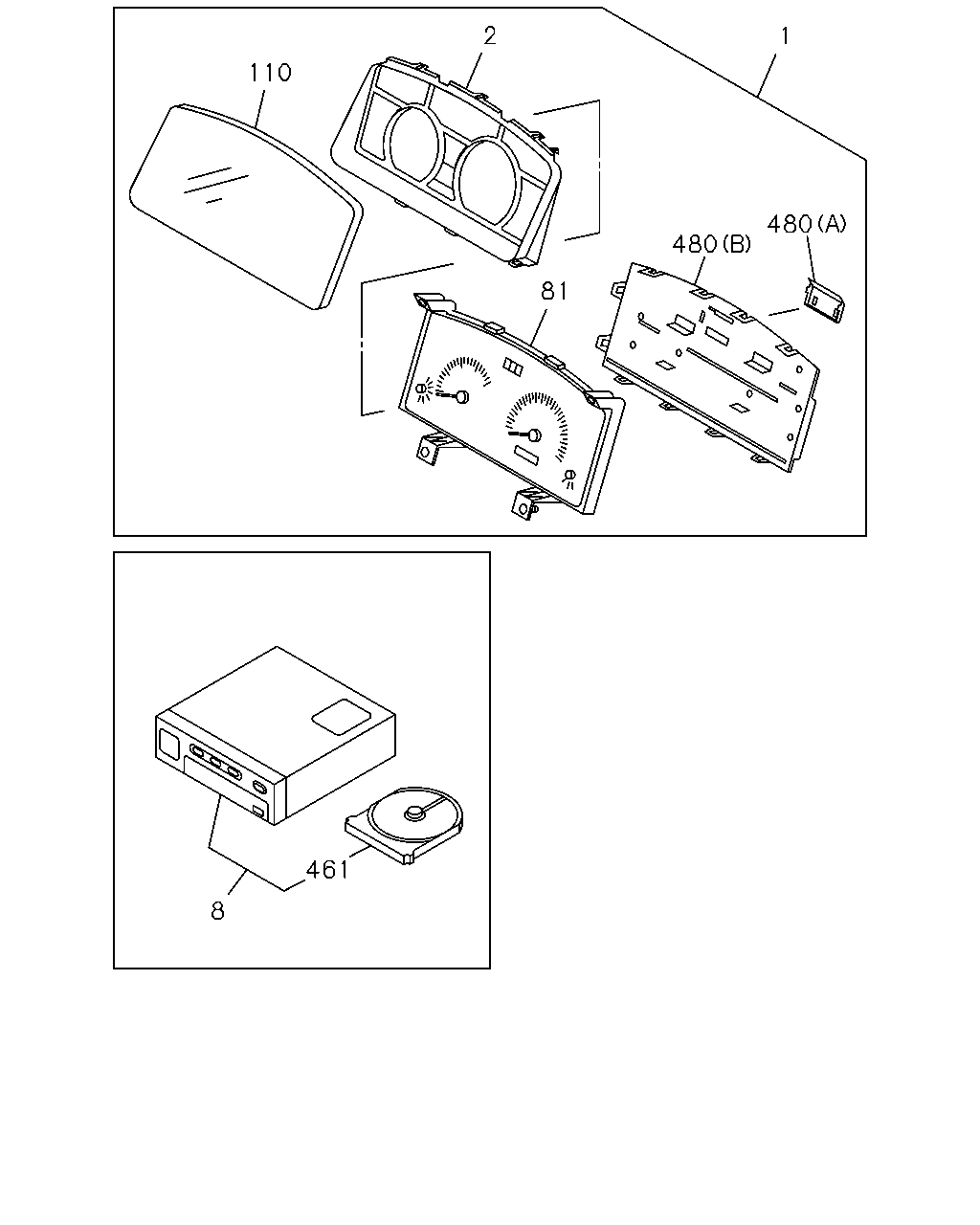

çizim 24902
2 1 110 480 480 81 461 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 8-98064-928-3 01 1 0712-0910 ● ●
1 METER COMPL; CLUSTER
EXC. AUTO CRUISE<K30>,MULTI INFORMATION DISPLAY<7NY> 		8-98064-928-6 01 1 0911- ● ●
1 METER COMPL; CLUSTER
AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98153-453-1 01 1 0911- ● ●
1 METER COMPL; CLUSTER
MULTI INFORMATION DISPLAY<7NY> 		8-98153-453-1 01 1 0911- ● ●
2 PANEL; CLUSTER 8-98054-432-0 01 1 0712-0906 ● ●
2 PANEL; CLUSTER
MANUAL TRANSMISSION<X9C> 		8-98054-432-0 01 1 0907- ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-97387-082-2 01 1 0712- ● ●
81 METER SUB ASM 8-98079-677-0 01 1 0712-0910 ● ●
81 METER SUB ASM
EXC. AUTO CRUISE<K30>,MULTI INFORMATION DISPLAY<7NY> 		8-98079-677-0 01 1 0911- ● ●
81 METER SUB ASM
AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98154-363-0 01 1 0911- ● ●
81 METER SUB ASM
MULTI INFORMATION DISPLAY<7NY> 		8-98154-363-0 01 1 0911- ● ●
110 GLASS; CLUSTER METER 8-98054-431-0 01 1 0712-0910 ● ●
110 GLASS; CLUSTER METER
EXC. AUTO CRUISE<K30>,MULTI INFORMATION DISPLAY<7NY> 		8-98054-431-0 01 1 0911- ● ●
110 GLASS; CLUSTER METER
AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98054-642-0 01 1 0911- ● ●
110 GLASS; CLUSTER METER
MULTI INFORMATION DISPLAY<7NY> 		8-98054-642-0 01 1 0911- ● ●
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 0712- ● ●
480 COVER; METER
(B) BLACK 		8-98054-433-0 01 1 0712-0906 ● ●
480 COVER; METER
MANUAL TRANSMISSION<X9C> (B) BLACK 		8-98054-433-0 01 1 0907- ● ●
480 COVER; METER
AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 0911- ● ●
480 COVER; METER
MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 0911- ● ●
çizim 99393
8 21 259 31 1 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 8-98064-928-3 01 1 0712-0910 ● ●
1 METER COMPL; CLUSTER
EXC. AUTO CRUISE<K30>,MULTI INFORMATION DISPLAY<7NY> 		8-98064-928-6 01 1 0911- ● ●
1 METER COMPL; CLUSTER
AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98153-453-1 01 1 0911- ● ●
1 METER COMPL; CLUSTER
MULTI INFORMATION DISPLAY<7NY> 		8-98153-453-1 01 1 0911- ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-97387-082-2 01 1 0712- ● ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-3 01 1 0712-0712 ● ●
11 CLUSTER ASM; METER
EXC. TACHOGRAPH DIGITAL<EBB> DARK GRAY 		8-97405-350-6 01 1 0801-0808 ● ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 0809- ● ●
11 CLUSTER ASM; METER
TACHOGRAPH DIGITAL<EBB> DARK GRAY 		8-97414-681-1 01 1 0801-0808 ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> 		8-98078-839-0 01 1 0712-0803 ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		8-98074-077-0 01 1 0712- ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING 		0-72180-516-0 04 1 0712- ● ●
259 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 0712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
