◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11421 - FTS(AUST)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#47829) — 557 parça

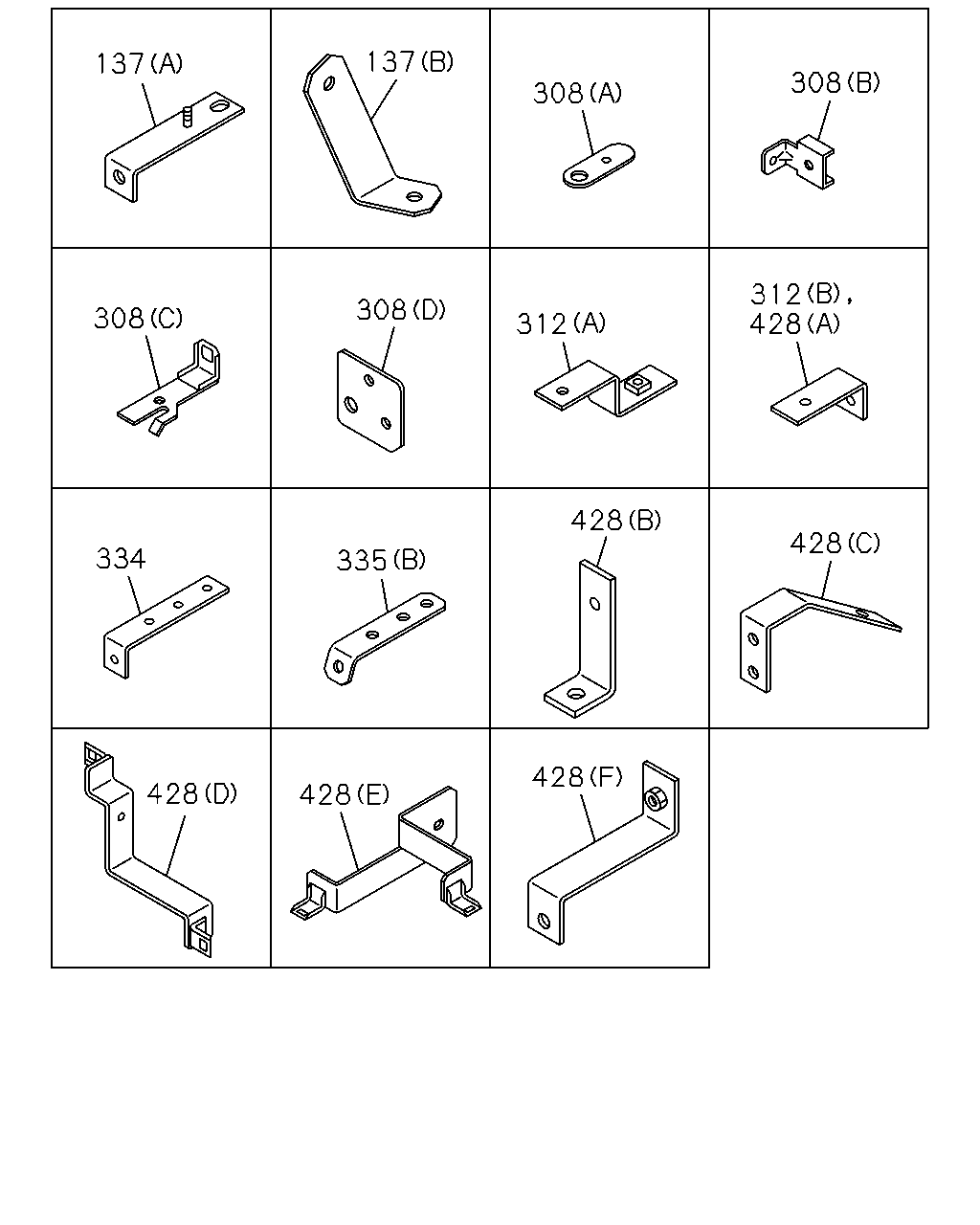

çizim 24774
137 137 308 308 428 308 308 428 428 334 428 428 428 312 312 335
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; HARNESS CLAMP
(B) 		8-97614-728-1 01 1 0712- ● ●
137 BRACKET; HARNESS CLAMP
(A) 		8-97624-013-0 01 1 0712- ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 0712-1010 ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1011- ● ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 0712- ● ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0712- ● ●
308 BRACKET; CLIP,ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) 		8-98021-692-1 01 1 0712- ● ●
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 0712- ● ●
312 BRACKET; CLIP HARNESS
(A) 		8-97609-110-1 01 1 0712- ● ●
334 BRACKET
L=120 H=35 		1-82698-088-0 01 1 0712-0804 ●
335 BRACKET; CONNECTOR
(A) L=65 		1-47479-064-1 01 1 0805- ●
335 BRACKET; CONNECTOR
(B) 		1-82698-167-0 01 1 0712- ● ●
428 BRACKET
(B) 		1-47475-519-0 01 1 0712-0805 ● ●
428 BRACKET
(B) 		1-47475-519-0 01 1 0806- ●
428 BRACKET
(C) 		8-98049-870-2 01 1 0712- ● ●
428 BRACKET
(D) 		8-98090-953-0 01 1 0712-0803 ● ●
428 BRACKET
(D) 		8-98090-953-1 01 1 0804- ●
428 BRACKET
(A) L=95 		1-82699-085-0 02 1 0712-0902 ●
428 BRACKET
(E) 		8-98118-501-0 01 1 0804- ●
428 BRACKET
(F) 		1-47477-868-0 01 1 0805- ●

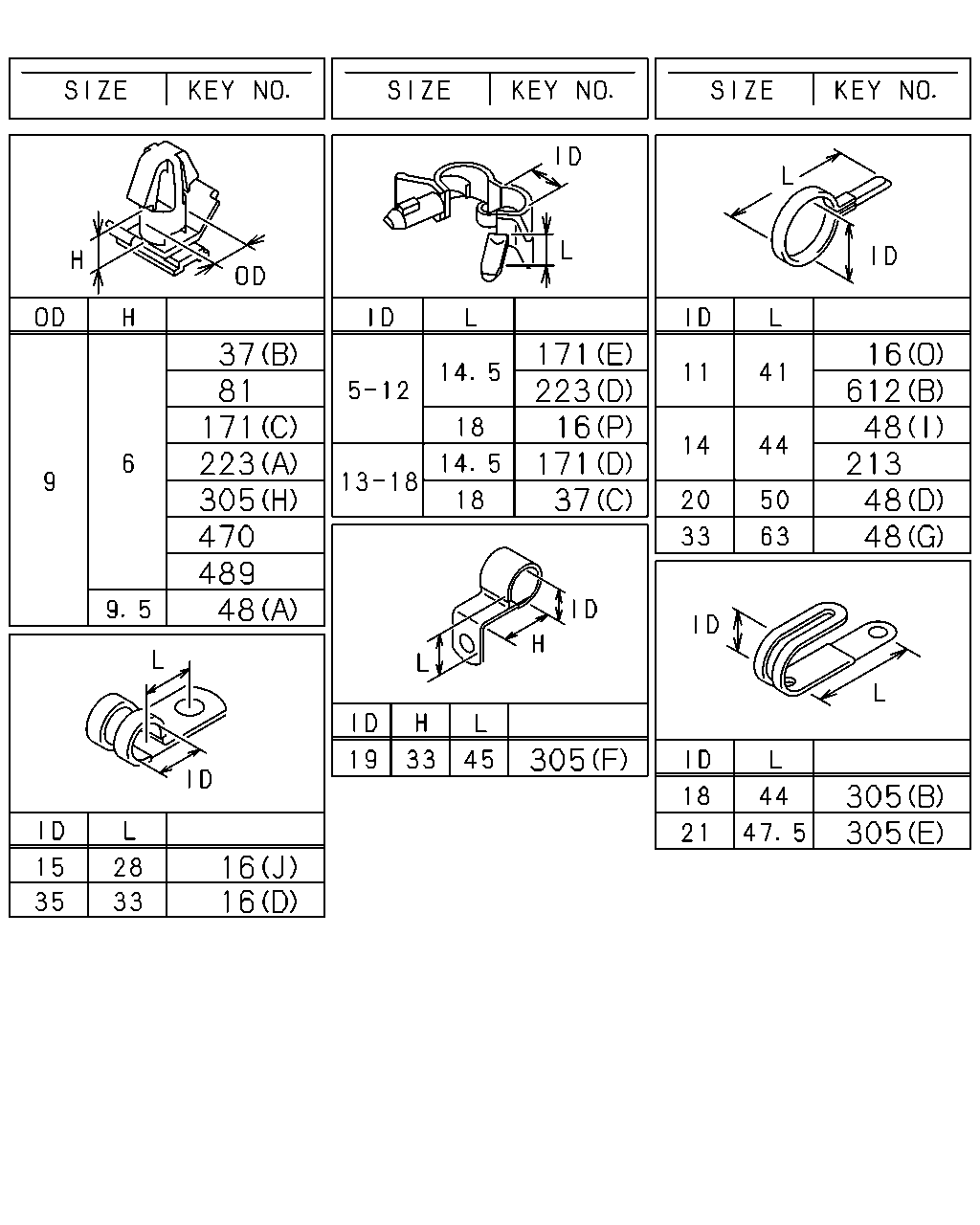

çizim 24905
37 81 171 223 305 470 489 48 171 223 16 171 37 16 612 48 213 48 48 305 305 305 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(N) ID=16 L=28 		0-95235-556-0 02 1 0804- ●
16 CLIP; HARNESS
(O) ID=11 L=41 		1-09700-403-0 01 1 0804- ●
16 CLIP; HARNESS
(R) L=350 		1-09707-183-0 02 1 0811- ●
16 CLIP; HARNESS
(A) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ● ●
16 CLIP; HARNESS
(I) ID=22 L=32 		1-09700-126-1 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0804- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0804- ● ●
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 0712-0805 ● ●
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 0806- ●
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0712-0803 ● ●
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0804-0804 ●
16 CLIP; HARNESS
(P) ID=5-12 L=18 		1-09709-287-0 01 1 0805-0811 ●
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 04 1 0712-0911 ● ●
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 05 1 0912- ● ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 0803- ● ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 0803- ●
16 CLIP; HARNESS
(F) L=36.5 		8-97019-892-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712- ● ●
16 CLIP; HARNESS
(M) ID=10 & 16 		8-94413-325-0 01 1 0801- ● ●
16 CLIP; HARNESS
(G) L=60 		8-97063-335-0 02 1 0712- ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 0803- ●
16 CLIP; HARNESS
(Q) ID=26 L=26 		1-09701-236-0 01 1 0806- ●
37 CLIP; HARNESS,POWER TILT
(A) ID=16 L=28 		0-95235-556-0 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(B) OD=9 H=6 		1-09709-178-0 01 1 0712-0804 ●
37 CLIP; HARNESS,POWER TILT
(C) ID=13-18 L=18 		1-09709-291-0 02 1 0712-0804 ●
37 CLIP; HARNESS,POWER TILT
(D) L=250 		5-09707-030-1 01 1 0712- ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=50 		1-09701-214-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 02 1 0712-0804 ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 02 1 0805- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 15 1 0712-1007 ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 		9-09917-427-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0804-0804 ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0805-0805 ●
48 CLIP; FRAME HARNESS
(H) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0806-1004 ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 1005- ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0806-0811 ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0812-0905 ●
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 		9-09917-427-0 13 1 1008- ● ●
48 CLIP; FRAME HARNESS
(F) ID=16 L=28 		0-95235-556-0 01 1 0805- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 0805-1007 ●
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 		9-09917-427-0 01 1 1008- ●
48 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 03 1 0806-0811 ●
81 CLIP; HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0712-0804 ● ●
81 CLIP; HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0805-0805 ●
81 CLIP; HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0806-0901 ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (A) ID=11 L=28 		0-95235-055-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (B) ID=16 L=28 		0-95235-556-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (C) OD=9 H=6 		1-09709-178-0 02 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (D) ID=13-18 L=14.5 		1-09709-290-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (F) 		8-97375-754-0 01 1 0806-0809 ● ●
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 0712- ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0712-0902 ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0903- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=10 & 10 		1-09709-277-1 04 1 0712-0807 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=10 & 10 		1-09709-277-1 02 1 0808- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=6.35 & 10.0 		1-09709-274-1 01 1 0808- ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0903- ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0903- ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(I) ID=11 L=45 		8-94296-897-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (E) ID=21 L=47.5 		8-94178-108-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (J) ID=16 L=28 		0-95235-556-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=100 		8-94443-021-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (J) ID=16 L=28 		0-95235-556-0 02 1 0712- ● ●
305 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=18 L=44 		8-94225-185-0 01 1 0712-0801 ● ●
305 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=18 L=44 		8-97367-985-1 01 1 0802- ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0712-1205 ● ●
470 CLIP; HARNESS,LICENSE LAMP
COUNTRY NEW ZEALAND<CX6> OD=9 H=6 		1-09709-178-0 01 1 1206- ●
489 CLIP; HARNESS,OIL PRESS SW
MZX6P M/T(RSW) OD=9 H=6 		1-09709-178-0 01 1 0712-0712 ● ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 02 1 0712-0902 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 03 1 0903- ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 01 1 0804-0811 ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 01 1 0812- ● ●
612 CLIP; HARNESS DPD
(C) L=250 		5-09707-030-1 01 1 0804-0804 ●
612 CLIP; HARNESS DPD
(C) L=250 		5-09707-030-1 01 1 0805- ● ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0712-0804 ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 02 1 0805-0811 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0805-0902 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0805-0902 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0903- ●
612 CLIP; HARNESS DPD
(D) ID=4.76 & 12 		1-09709-306-0 01 1 0806-0806 ●
612 CLIP; HARNESS DPD
(E) ID=6.35 & 10.0 		1-09709-274-1 01 1 0806-0811 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 02 1 0903- ●

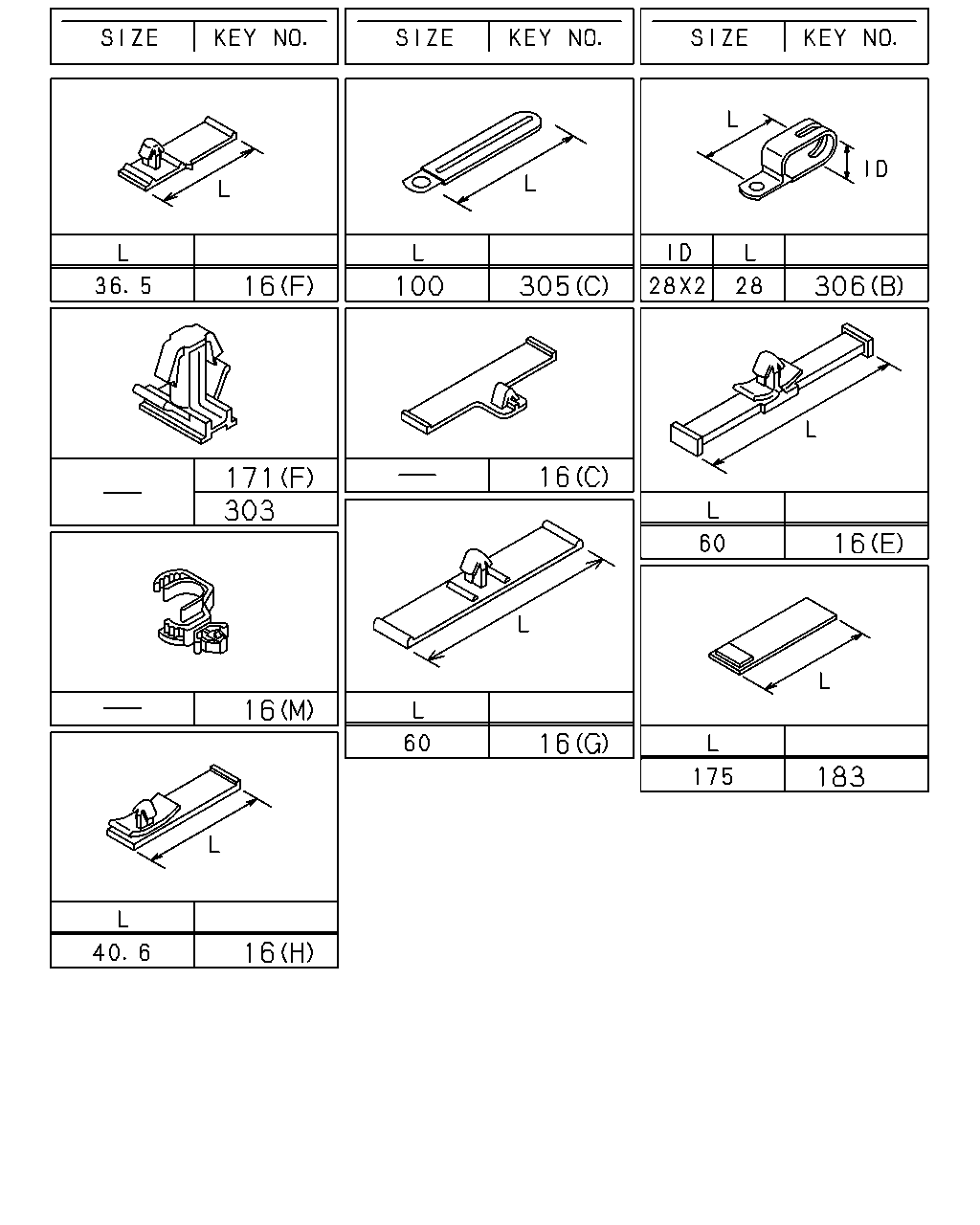

çizim 24922
16 305 306 16 171 303 16 16 16 183 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(N) ID=16 L=28 		0-95235-556-0 02 1 0804- ●
16 CLIP; HARNESS
(O) ID=11 L=41 		1-09700-403-0 01 1 0804- ●
16 CLIP; HARNESS
(R) L=350 		1-09707-183-0 02 1 0811- ●
16 CLIP; HARNESS
(A) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ● ●
16 CLIP; HARNESS
(I) ID=22 L=32 		1-09700-126-1 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0804- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0804- ● ●
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 0712-0805 ● ●
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 0806- ●
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0712-0803 ● ●
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0804-0804 ●
16 CLIP; HARNESS
(P) ID=5-12 L=18 		1-09709-287-0 01 1 0805-0811 ●
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 04 1 0712-0911 ● ●
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 05 1 0912- ● ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 0803- ● ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 0803- ●
16 CLIP; HARNESS
(F) L=36.5 		8-97019-892-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712- ● ●
16 CLIP; HARNESS
(M) ID=10 & 16 		8-94413-325-0 01 1 0801- ● ●
16 CLIP; HARNESS
(G) L=60 		8-97063-335-0 02 1 0712- ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 0803- ●
16 CLIP; HARNESS
(Q) ID=26 L=26 		1-09701-236-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (A) ID=11 L=28 		0-95235-055-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (B) ID=16 L=28 		0-95235-556-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (C) OD=9 H=6 		1-09709-178-0 02 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (D) ID=13-18 L=14.5 		1-09709-290-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (F) 		8-97375-754-0 01 1 0806-0809 ● ●
183 CLIP; CONNECTOR
L=175 		1-09707-178-0 01 1 0712-0803 ● ●
303 CLIP; HARNESS POWER TILT RELAY 8-97375-754-0 01 1 0712- ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(I) ID=11 L=45 		8-94296-897-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (E) ID=21 L=47.5 		8-94178-108-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (J) ID=16 L=28 		0-95235-556-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=100 		8-94443-021-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (J) ID=16 L=28 		0-95235-556-0 02 1 0712- ● ●
305 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=18 L=44 		8-94225-185-0 01 1 0712-0801 ● ●
305 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=18 L=44 		8-97367-985-1 01 1 0802- ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0712- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0712- ● ●

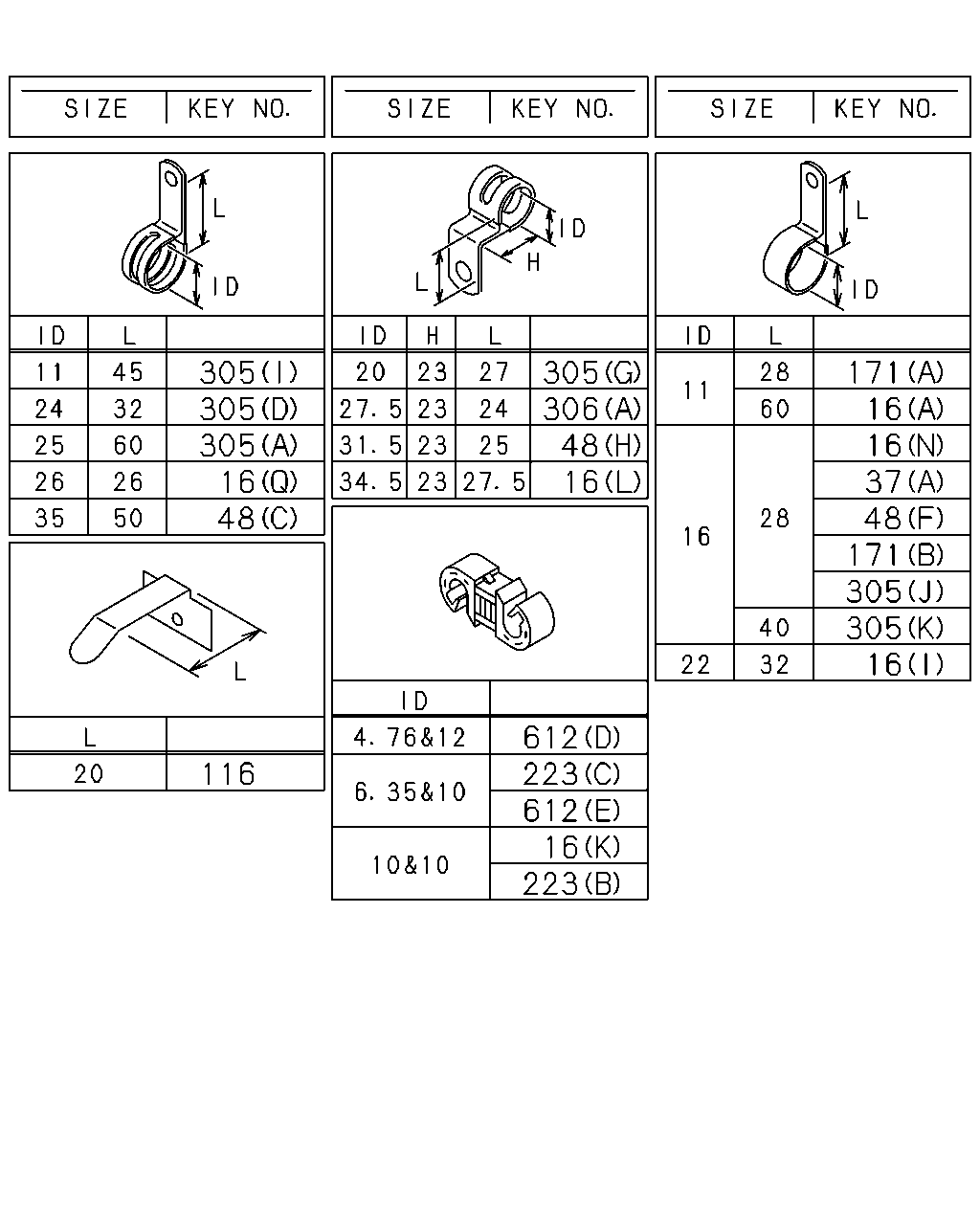

çizim 25010
305 305 305 16 48 305 306 48 16 171 16 16 37 48 171 305 305 16 612 223 612 16 223 116
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(N) ID=16 L=28 		0-95235-556-0 02 1 0804- ●
16 CLIP; HARNESS
(O) ID=11 L=41 		1-09700-403-0 01 1 0804- ●
16 CLIP; HARNESS
(R) L=350 		1-09707-183-0 02 1 0811- ●
16 CLIP; HARNESS
(A) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ● ●
16 CLIP; HARNESS
(I) ID=22 L=32 		1-09700-126-1 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0804- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0804- ● ●
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 0712-0805 ● ●
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 0806- ●
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0712-0803 ● ●
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0804-0804 ●
16 CLIP; HARNESS
(P) ID=5-12 L=18 		1-09709-287-0 01 1 0805-0811 ●
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 04 1 0712-0911 ● ●
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 05 1 0912- ● ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 0803- ● ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 0803- ●
16 CLIP; HARNESS
(F) L=36.5 		8-97019-892-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712- ● ●
16 CLIP; HARNESS
(M) ID=10 & 16 		8-94413-325-0 01 1 0801- ● ●
16 CLIP; HARNESS
(G) L=60 		8-97063-335-0 02 1 0712- ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 0803- ●
16 CLIP; HARNESS
(Q) ID=26 L=26 		1-09701-236-0 01 1 0806- ●
37 CLIP; HARNESS,POWER TILT
(A) ID=16 L=28 		0-95235-556-0 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(B) OD=9 H=6 		1-09709-178-0 01 1 0712-0804 ●
37 CLIP; HARNESS,POWER TILT
(C) ID=13-18 L=18 		1-09709-291-0 02 1 0712-0804 ●
37 CLIP; HARNESS,POWER TILT
(D) L=250 		5-09707-030-1 01 1 0712- ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=50 		1-09701-214-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 02 1 0712-0804 ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 02 1 0805- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 15 1 0712-1007 ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 		9-09917-427-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0804-0804 ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0805-0805 ●
48 CLIP; FRAME HARNESS
(H) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0806-1004 ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 1005- ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0806-0811 ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0812-0905 ●
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 		9-09917-427-0 13 1 1008- ● ●
48 CLIP; FRAME HARNESS
(F) ID=16 L=28 		0-95235-556-0 01 1 0805- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 0805-1007 ●
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 		9-09917-427-0 01 1 1008- ●
48 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 03 1 0806-0811 ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 02 1 1202- ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 04 1 0712- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (A) ID=11 L=28 		0-95235-055-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (B) ID=16 L=28 		0-95235-556-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (C) OD=9 H=6 		1-09709-178-0 02 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (D) ID=13-18 L=14.5 		1-09709-290-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (F) 		8-97375-754-0 01 1 0806-0809 ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0712-0902 ● ●
223 CLIP; AIR TANK HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0903- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=10 & 10 		1-09709-277-1 04 1 0712-0807 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=10 & 10 		1-09709-277-1 02 1 0808- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=6.35 & 10.0 		1-09709-274-1 01 1 0808- ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0903- ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0903- ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(I) ID=11 L=45 		8-94296-897-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (E) ID=21 L=47.5 		8-94178-108-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (J) ID=16 L=28 		0-95235-556-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=100 		8-94443-021-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (J) ID=16 L=28 		0-95235-556-0 02 1 0712- ● ●
305 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=18 L=44 		8-94225-185-0 01 1 0712-0801 ● ●
305 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=18 L=44 		8-97367-985-1 01 1 0802- ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0712- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0712- ● ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 02 1 0712-0902 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 03 1 0903- ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 01 1 0804-0811 ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 01 1 0812- ● ●
612 CLIP; HARNESS DPD
(C) L=250 		5-09707-030-1 01 1 0804-0804 ●
612 CLIP; HARNESS DPD
(C) L=250 		5-09707-030-1 01 1 0805- ● ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0712-0804 ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 02 1 0805-0811 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0805-0902 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0805-0902 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0903- ●
612 CLIP; HARNESS DPD
(D) ID=4.76 & 12 		1-09709-306-0 01 1 0806-0806 ●
612 CLIP; HARNESS DPD
(E) ID=6.35 & 10.0 		1-09709-274-1 01 1 0806-0811 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 02 1 0903- ●

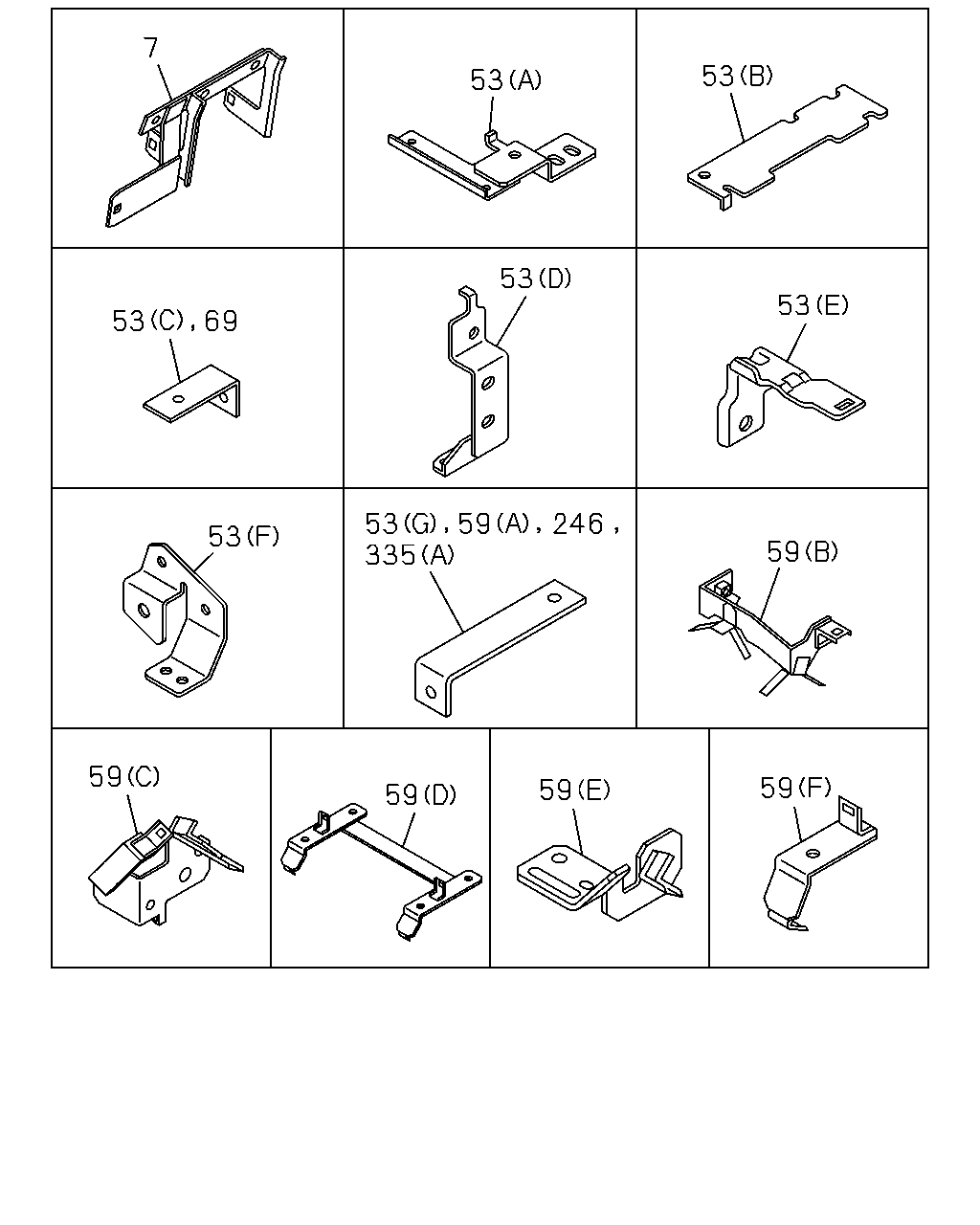

çizim 25144
7 53 53 53 53 246 335 53 59 59 59 59 59 59 53 53 69
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 0712- ● ●
53 BRACKET; HARNESS
(A) 		8-97620-485-0 01 1 0712-0804 ●
53 BRACKET; HARNESS
(A) 		8-97620-485-0 01 1 0805-0902 ● ●
53 BRACKET; HARNESS
(A) 		8-98107-613-0 01 1 0903- ● ●
53 BRACKET; HARNESS
(G) L=95 		1-82699-085-0 01 1 0806-0811 ●
53 BRACKET; HARNESS
(G) L=95 		1-82699-085-0 01 1 0812-1004 ● ●
53 BRACKET; HARNESS
(G) L=95 		1-82699-085-0 01 1 1005- ●
53 BRACKET; HARNESS
(B) 		8-98127-093-0 01 1 0811- ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) 		8-98084-590-0 01 1 0801- ● ●
53 BRACKET; HARNESS
(E) 		8-98052-458-0 01 1 0712- ● ●
53 BRACKET; HARNESS
MZX6P M/T(RSW) (C) L=55 		1-47475-304-0 01 1 0712-0712 ● ●
53 BRACKET; HARNESS
(D) 		8-98049-871-0 01 1 0712-0804 ●
53 BRACKET; HARNESS
(C) L=65 		1-47479-064-0 02 1 0805-0811 ●
53 BRACKET; HARNESS
(C) L=65 		1-47479-064-0 01 1 0806-0811 ●
59 BRACKET; FRAME HARNESS
MLD6Q M/T(X5J) (B) 		8-97627-325-0 01 1 0806- ●
59 BRACKET; FRAME HARNESS
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97627-325-0 01 1 0806- ●
59 BRACKET; FRAME HARNESS
(A) L=95 		1-82699-085-0 01 1 0712- ● ●
59 BRACKET; FRAME HARNESS
(B) 		8-97609-264-2 01 1 0712-0804 ● ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW) (B) 		8-97609-264-2 01 1 0805-0906 ● ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-97609-264-2 01 1 0907-1011 ● ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-97609-264-2 01 1 1012- ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97609-264-2 01 1 1012- ●
59 BRACKET; FRAME HARNESS
(C) 		8-97622-828-0 01 1 0712- ● ●
59 BRACKET; FRAME HARNESS
(D) 		8-98071-896-0 01 1 0712-0803 ● ●
59 BRACKET; FRAME HARNESS
(D) 		8-98071-896-0 01 1 0804- ●
59 BRACKET; FRAME HARNESS
(E) 		8-97616-305-0 01 1 0712- ● ●
59 BRACKET; FRAME HARNESS
(F) 		8-98118-500-0 02 1 0804- ●
59 BRACKET; FRAME HARNESS
(A) L=75 		1-47478-323-0 01 1 0805- ●
59 BRACKET; FRAME HARNESS
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97628-013-0 01 1 0806-1011 ●
59 BRACKET; FRAME HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97628-013-0 01 1 1012- ●
69 BRACKET; CLIP
L=55 		1-47475-304-0 01 1 0712-0804 ● ●
69 BRACKET; CLIP
L=55 		1-47475-304-0 01 1 0805-0805 ●
69 BRACKET; CLIP
L=55 		1-47475-304-0 01 1 0806-0901 ● ●
246 BRACKET; CLIP,SPD SENSOR
L=95 		1-82699-085-0 01 1 0712- ● ●
335 BRACKET; CONNECTOR
(A) L=65 		1-47479-064-1 01 1 0805- ●
335 BRACKET; CONNECTOR
(B) 		1-82698-167-0 01 1 0712- ● ●

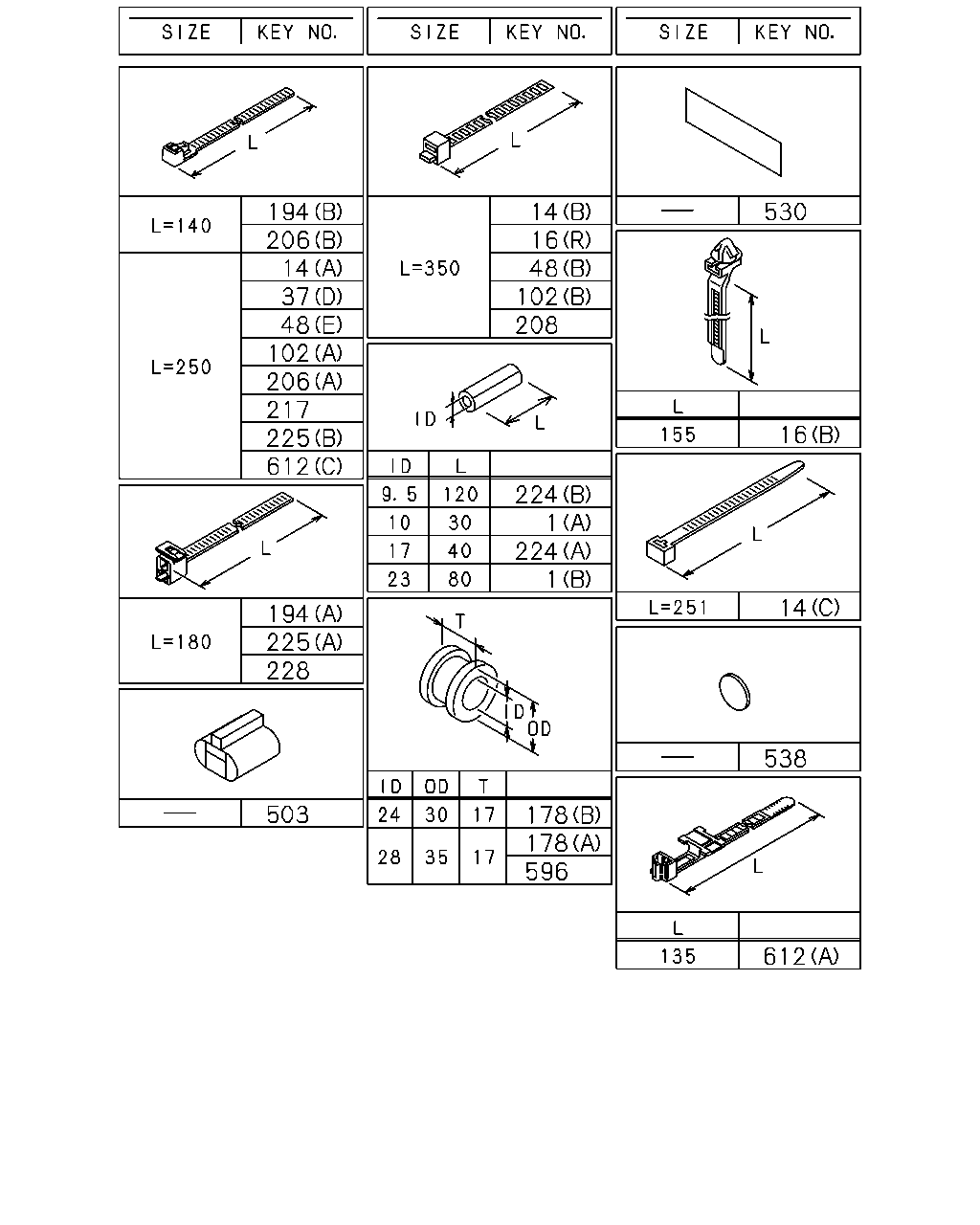

çizim 26660
194 206 14 37 48 102 206 217 225 612 14 16 48 102 208 530 16 224 1 224 1 14 194 225 228 538 503 178 178 596 612
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0712- ● ●
1 SLEEVE; RUBBER
POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=10 OD=14 L=30 		9-09956-682-0 04 1 0712- ● ●
1 SLEEVE; RUBBER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0712- ● ●
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 0712- ● ●
14 CLIP; BAND,HARNESS
(C) L=251 		8-97619-917-0 01 1 0910- ● ●
14 CLIP; BAND,HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=250 		5-09707-030-1 15 1 0712-0909 ● ●
14 CLIP; BAND,HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=250 		5-09707-030-1 14 1 0910-1205 ● ●
14 CLIP; BAND,HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=250 		8-98216-430-0 14 1 1206- ● ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=250 		5-09707-030-1 13 1 0712-0712 ● ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=250 		5-09707-030-1 14 1 0801-0909 ● ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=250 		5-09707-030-1 13 1 0910-1205 ● ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=250 		8-98216-430-0 13 1 1206- ● ●
16 CLIP; HARNESS
(N) ID=16 L=28 		0-95235-556-0 02 1 0804- ●
16 CLIP; HARNESS
(O) ID=11 L=41 		1-09700-403-0 01 1 0804- ●
16 CLIP; HARNESS
(R) L=350 		1-09707-183-0 02 1 0811- ●
16 CLIP; HARNESS
(A) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ● ●
16 CLIP; HARNESS
(I) ID=22 L=32 		1-09700-126-1 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712-0803 ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0804- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0804- ● ●
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 0712-0805 ● ●
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 0806- ●
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0712-0803 ● ●
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0804-0804 ●
16 CLIP; HARNESS
(P) ID=5-12 L=18 		1-09709-287-0 01 1 0805-0811 ●
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 04 1 0712-0911 ● ●
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 05 1 0912- ● ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 0803- ● ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 0803- ●
16 CLIP; HARNESS
(F) L=36.5 		8-97019-892-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712- ● ●
16 CLIP; HARNESS
(M) ID=10 & 16 		8-94413-325-0 01 1 0801- ● ●
16 CLIP; HARNESS
(G) L=60 		8-97063-335-0 02 1 0712- ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(E) L=60 		8-94449-165-0 02 1 0803- ●
16 CLIP; HARNESS
(Q) ID=26 L=26 		1-09701-236-0 01 1 0806- ●
37 CLIP; HARNESS,POWER TILT
(A) ID=16 L=28 		0-95235-556-0 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(B) OD=9 H=6 		1-09709-178-0 01 1 0712-0804 ●
37 CLIP; HARNESS,POWER TILT
(C) ID=13-18 L=18 		1-09709-291-0 02 1 0712-0804 ●
37 CLIP; HARNESS,POWER TILT
(D) L=250 		5-09707-030-1 01 1 0712- ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=50 		1-09701-214-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 02 1 0712-0804 ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 02 1 0805- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 15 1 0712-1007 ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 		9-09917-427-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0804-0804 ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0805-0805 ●
48 CLIP; FRAME HARNESS
(H) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0806-1004 ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 1005- ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0806-0811 ● ●
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0812-0905 ●
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 		9-09917-427-0 13 1 1008- ● ●
48 CLIP; FRAME HARNESS
(F) ID=16 L=28 		0-95235-556-0 01 1 0805- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 0805-1007 ●
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 		9-09917-427-0 01 1 1008- ●
48 CLIP; FRAME HARNESS
(G) ID=33 L=63 		1-09700-807-0 03 1 0806-0811 ●
102 CLIP; BAND
(B) L=350 		1-09707-183-0 01 1 0712-0911 ● ●
102 CLIP; BAND
(A) L=250 		5-09707-030-1 01 1 0806-0902 ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0712-0804 ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0712-0804 ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0805- ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0805- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 03 1 0712-0905 ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0906- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712-0905 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0906- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0906- ●
194 CLIP; BAND
(A) L=180 		1-09707-162-1 01 1 0712- ● ●
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0712-0804 ●
206 CLIP; FUEL TANK HARNESS
(A) L=250 		5-09707-030-1 01 1 0712-0901 ●
206 CLIP; FUEL TANK HARNESS
(A) L=250 		5-09707-030-1 02 1 0712-0804 ● ●
206 CLIP; FUEL TANK HARNESS
(A) L=250 		5-09707-030-1 02 1 0805- ●
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-1 02 1 0805- ●
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 0804-0804 ●
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 0805-0807 ● ●
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 0808- ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0712- ● ●
224 SLEEVE; RUBBER,HARNESS
(A) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0806-1004 ● ●
224 SLEEVE; RUBBER,HARNESS
(B) ID=9.5 OD=14.5 L=120 		9-09913-202-1 01 1 1005-1010 ● ●
224 SLEEVE; RUBBER,HARNESS
(A) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1005- ●
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 0712-0807 ● ●
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 04 1 0808- ●
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 01 1 0712-0807 ● ●
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 02 1 0808- ●
228 CLIP; COOLER HARNESS
L=180 		1-09707-162-1 01 1 0712-0807 ● ●
503 CONNECTOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-82690-668-0 01 1 0712-0801 ● ●
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-82690-668-0 01 1 0802- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 23 1 1306- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 0712-1305 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1306- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 0712-1305 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306- ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0909- ● ●
596 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712- ● ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 02 1 0712-0902 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 03 1 0903- ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 01 1 0804-0811 ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 01 1 0812- ● ●
612 CLIP; HARNESS DPD
(C) L=250 		5-09707-030-1 01 1 0804-0804 ●
612 CLIP; HARNESS DPD
(C) L=250 		5-09707-030-1 01 1 0805- ● ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0712-0804 ●
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 02 1 0805-0811 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0805-0902 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0805-0902 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 01 1 0903- ●
612 CLIP; HARNESS DPD
(D) ID=4.76 & 12 		1-09709-306-0 01 1 0806-0806 ●
612 CLIP; HARNESS DPD
(E) ID=6.35 & 10.0 		1-09709-274-1 01 1 0806-0811 ●
612 CLIP; HARNESS DPD
(A) L=135 		1-09987-143-1 02 1 0903- ●

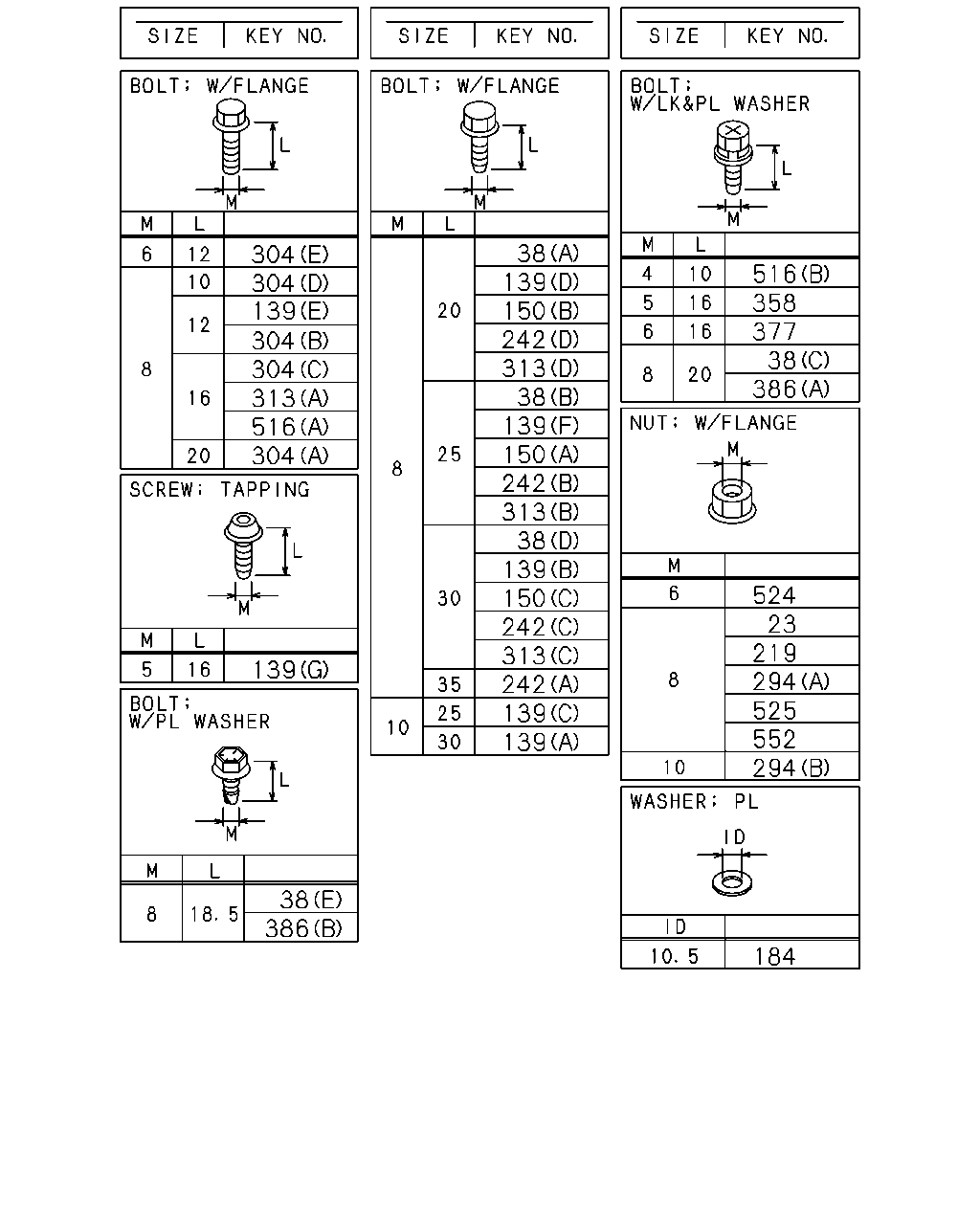

çizim 99394
38 139 150 242 313 38 139 150 242 313 38 139 150 242 313 242 139 139 304 304 139 304 304 313 516 304 516 358 377 38 386 524 23 219 294 525 552 294 139 38 386 184
BalonParca AdiParca NoAdetTipApplied Date A B
23 NUT; FLOOR STAY
M8 FLANGE 		0-91180-108-0 01 1 0712-0804 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0808- ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 0808- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0712 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0712 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0804 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0805- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0804 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0804 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0805- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0804 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0805-0807 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0805-0807 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0805-0807 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0808- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0808- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0712- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0712-1201 ● ●
38 BOLT; CLIP,HARNESS
(E) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (G) M5X16 TAPPING 		0-72180-516-0 01 1 0801- ● ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0712- ● ●
139 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0804 ● ●
139 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0804 ● ●
139 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0805-0901 ● ●
139 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0805-0901 ●
139 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0902- ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 03 1 0712-0803 ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 03 1 0712-0803 ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 02 1 0804-0804 ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 01 1 0805-0807 ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 01 1 0805-0807 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0808- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0808- ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0804 ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 02 1 0805-0807 ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 02 1 0805-0807 ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 02 1 0808- ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0712- ● ●
139 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 01 1 0712- ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 03 1 0804-0804 ● ●
139 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 03 1 0804-0804 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0805-0807 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0805-0807 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0808- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0808- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0804 ●
150 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0804 ● ●
150 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0805-0902 ●
150 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0903- ● ●
150 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0803 ● ●
150 BOLT; CLIP
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0805-0902 ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0712- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0712-0804 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0805- ●
242 BOLT; BRKT,HARNESS
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0804 ●
242 BOLT; BRKT,HARNESS
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0805- ● ●
242 BOLT; BRKT,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0811- ●
242 BOLT; BRKT,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0804 ●
242 BOLT; BRKT,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0805-0811 ●
242 BOLT; BRKT,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0806- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0804 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0804 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0804 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0805-0805 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0805-0805 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0806-0808 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0809-0902 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0809-0902 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0809-0902 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0903-1004 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0804 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0804 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0805-0808 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0805-0808 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0810 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0810 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0811- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0811- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0811- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 0712-0902 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0903- ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0806-0808 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 0903- ● ●
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE 		0-28050-612-0 01 1 0712- ● ●
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE 		0-28050-810-0 01 1 0712-1010 ● ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 03 1 0712- ● ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0712- ● ●
304 BOLT; ENG HARNESS CLIP
POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE 		0-28050-816-0 01 1 0712- ● ●
304 BOLT; ENG HARNESS CLIP
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE 		0-28050-816-0 03 1 0712- ● ●
313 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0806-1004 ●
313 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0712-0807 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0803 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0803 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0804-0805 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0804-0805 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0804-0805 ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0806-0807 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0806-0807 ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0808-0808 ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0808-0808 ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0809-0902 ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0809-0902 ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0809-0902 ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0903-1004 ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0805 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0806-0807 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0806-0807 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0808-0808 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0808-0808 ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0808-0808 ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0809- ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0809- ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0712 ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0804 ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0805-0902 ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0805-0902 ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 04 1 0903- ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0712 ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0712- ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0712- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0712-1202 ● ●
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203- ● ●
516 BOLT; HARNESS
(B) M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0712- ● ●
516 BOLT; HARNESS
MLD6Q M/T(X5J) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0806- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0712- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0712-0803 ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0712-0803 ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0804- ● ●
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 0712- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 0712-0805 ● ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 0806- ● ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 0806- ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 02 1 0805-0811 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
