◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11421 - FTS(AUST)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#47825) — 87 parça

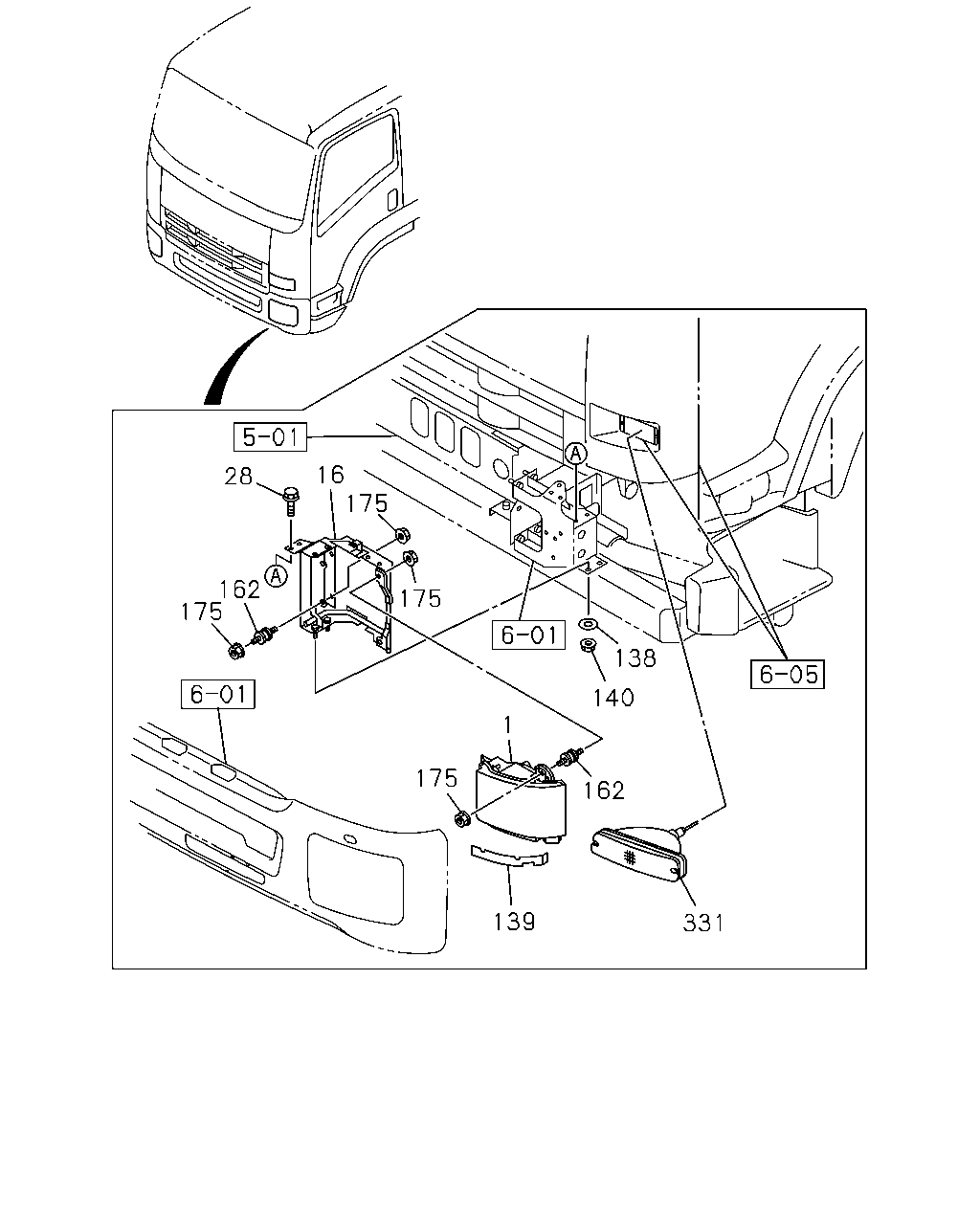

çizim 24890
16 175 28 162 175 175 138 140 1 175 162 139 331
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-478-1 01 1 0712-1108 ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-580-0 01 1 1109-1208 ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-621-0 01 1 1209-1305 ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-313-0 01 1 1306- ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-477-1 01 1 0712-1108 ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-579-0 01 1 1109-1208 ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-620-0 01 1 1209-1305 ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-312-0 01 1 1306- ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-480-1 01 1 0712-1108 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-582-0 01 1 1109-1208 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-619-0 01 1 1209-1305 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-311-0 01 1 1306- ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-479-1 01 1 0712-1108 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-581-0 01 1 1109-1208 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-618-0 01 1 1209-1305 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-310-0 01 1 1306- ● ●
16 BRACKET; HEADLAMP 8-98086-432-1 01 1 0712- ● ●
16 BRACKET; HEADLAMP 8-98086-431-1 01 1 0712- ● ●
28 BOLT; HEADLAMP
M10X25 FLANGE 		0-28651-025-0 04 1 0712- ● ●
138 WASHER; LK BRKT HD LAMP
ID=10.5 OD=26 		0-91614-710-0 04 1 0712- ● ●
139 COVER; HEADLAMP 8-98054-342-0 02 1 0712- ● ●
140 NUT
M10 FLANGE 		0-91180-210-0 08 1 0712- ● ●
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 0712- ● ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 0712- ● ●
331 LAMP; TURN SIGNAL 8-98079-896-0 01 1 0712- ● ●
331 LAMP; TURN SIGNAL 8-98079-895-0 01 1 0712- ● ●

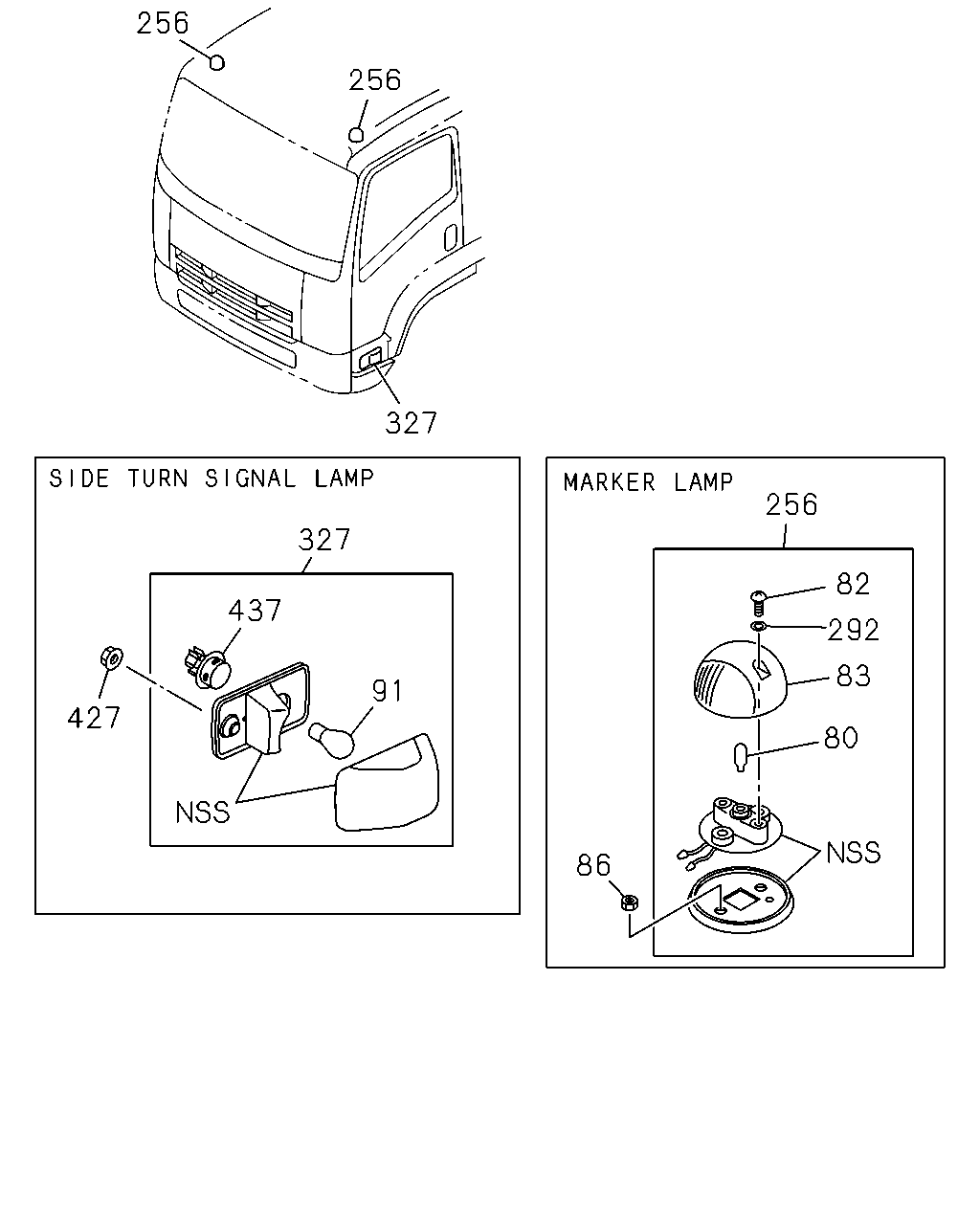

çizim 25143
256 256 327 256 327 82 437 292 83 91 427 80 86
BalonParca AdiParca NoAdetTipApplied Date A B
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0712- ● ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0712- ● ●
83 LENS; MARKER LAMP 8-98057-958-0 02 1 0712- ● ●
86 NUT; MARKER LAMP
M6 FLANGE 		0-91180-106-0 04 1 0712- ● ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 0712- ● ●
256 LAMP; MARKER 8-98097-467-3 01 1 0712- ● ●
256 LAMP; MARKER 8-98097-466-3 01 1 0712- ● ●
292 WASHER; MARKER LAMP 1-82219-012-0 04 1 0712- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 0712- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 0712- ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 0808- ● ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 0712- ● ●
çizim 25733
1 4 338 339 408 420 23 457 382 5 5 20 331 124 125 127 129
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-478-1 01 1 0712-1108 ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-580-0 01 1 1109-1208 ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-621-0 01 1 1209-1305 ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-313-0 01 1 1306- ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-477-1 01 1 0712-1108 ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-579-0 01 1 1109-1208 ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-620-0 01 1 1209-1305 ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-312-0 01 1 1306- ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-480-1 01 1 0712-1108 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-582-0 01 1 1109-1208 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-619-0 01 1 1209-1305 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-311-0 01 1 1306- ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-479-1 01 1 0712-1108 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-581-0 01 1 1109-1208 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-618-0 01 1 1209-1305 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-310-0 01 1 1306- ● ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-399-0 01 1 0712-1108 ● ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-567-0 01 1 1109- ● ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-398-0 01 1 0712-1108 ● ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-566-0 01 1 1109- ● ●
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-401-0 01 1 0712-1108 ● ●
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-565-0 01 1 1109- ● ●
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-400-0 01 1 0712-1108 ● ●
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-564-0 01 1 1109- ● ●
5 BULB; HEADLAMP
(A) 24V 5W 		1-82194-042-0 02 1 0712- ● ●
5 BULB; HEADLAMP
(B) 24V 75/70W 		1-82194-063-0 02 1 0712- ● ●
20 SCREW; HEADLAMP 8-97378-871-0 06 1 0712- ● ●
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0712- ● ●
124 BULB; FRT TURN SIGNAL
24V 21W 		8-98051-496-0 02 1 0712- ● ●
125 GASKET; FRT TURN SIGNAL 8-94334-881-0 02 1 0712- ● ●
127 LENS; FRT TURN SIGNAL 8-94117-030-0 01 1 0712- ● ●
127 LENS; FRT TURN SIGNAL 8-94112-723-0 01 1 0712- ● ●
129 SCREW; FRT TURN SIGNAL 0-91190-435-0 04 1 0712- ● ●
331 LAMP; TURN SIGNAL 8-98079-896-0 01 1 0712- ● ●
331 LAMP; TURN SIGNAL 8-98079-895-0 01 1 0712- ● ●
338 LEVELING; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98010-256-0 02 1 1109- ● ●
339 GASKET; LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		1-86830-158-0 02 1 1109- ● ●
382 PLUG; SOCKET,HEADLAMP 8-98069-364-0 02 1 0712-1208 ● ●
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1209- ● ●
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0712- ● ●
420 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0712-1208 ● ●
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1209- ● ●
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1306- ● ●

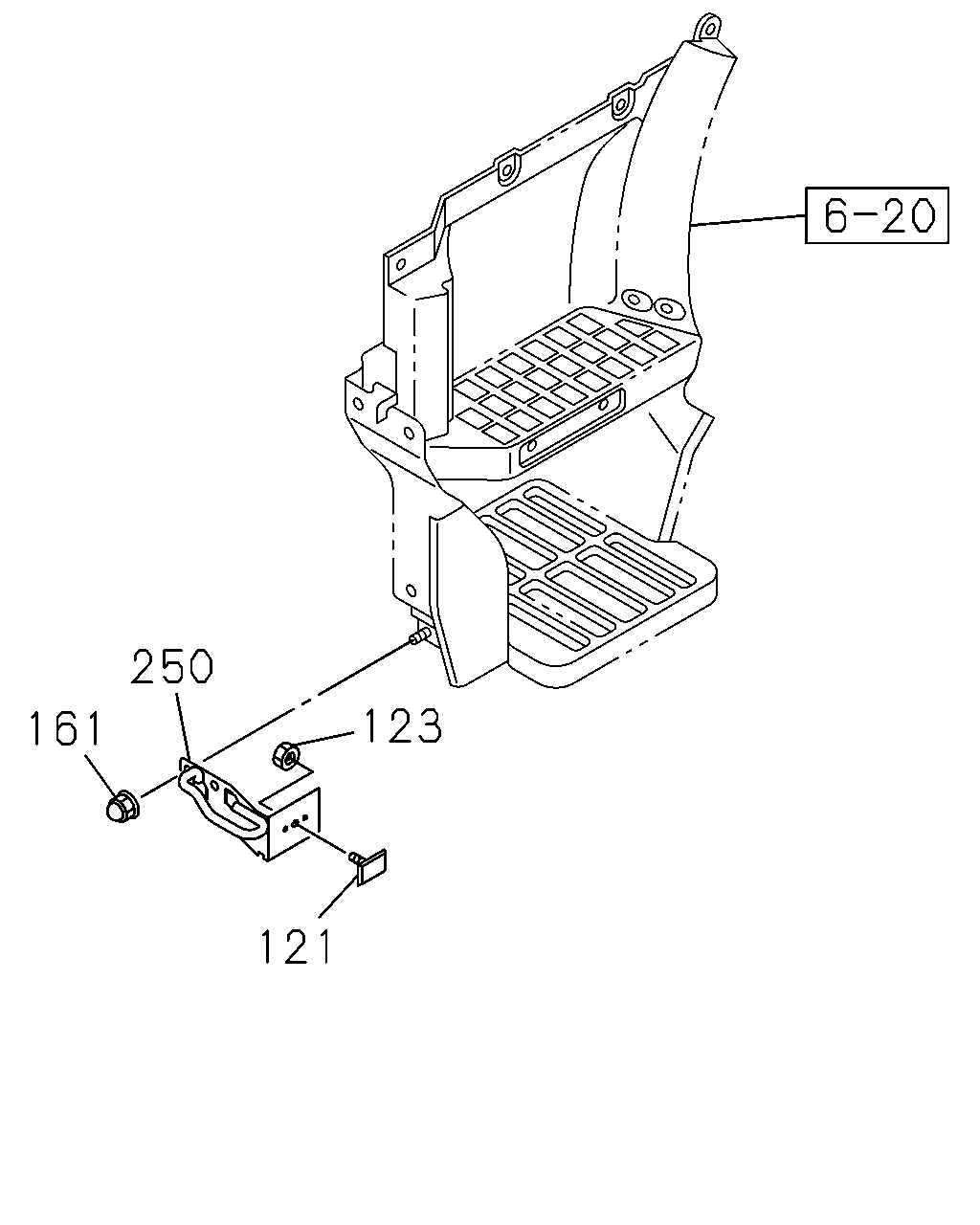

çizim 99572
250 123 161 121
BalonParca AdiParca NoAdetTipApplied Date A B
121 REFLECTOR; REFLEX 1-82290-066-0 02 1 0712- ● ●
123 NUT; REFLECTOR
M6 FLANGE 		0-91180-106-0 02 1 0712- ● ●
161 NUT; BRKT
M8 CAP NUT FLANGE 		8-97372-242-0 04 1 0712-1312 ● ●
161 NUT; BRKT
M8 CAP NUT FLANGE 		8-98261-347-0 04 1 1401- ● ●
250 BRACKET ASM 8-98070-243-1 01 1 0712- ● ●
250 BRACKET ASM 8-98070-242-1 01 1 0712- ● ●
