7-70 — SEPARATER AND BED (#47824) — 64 parça

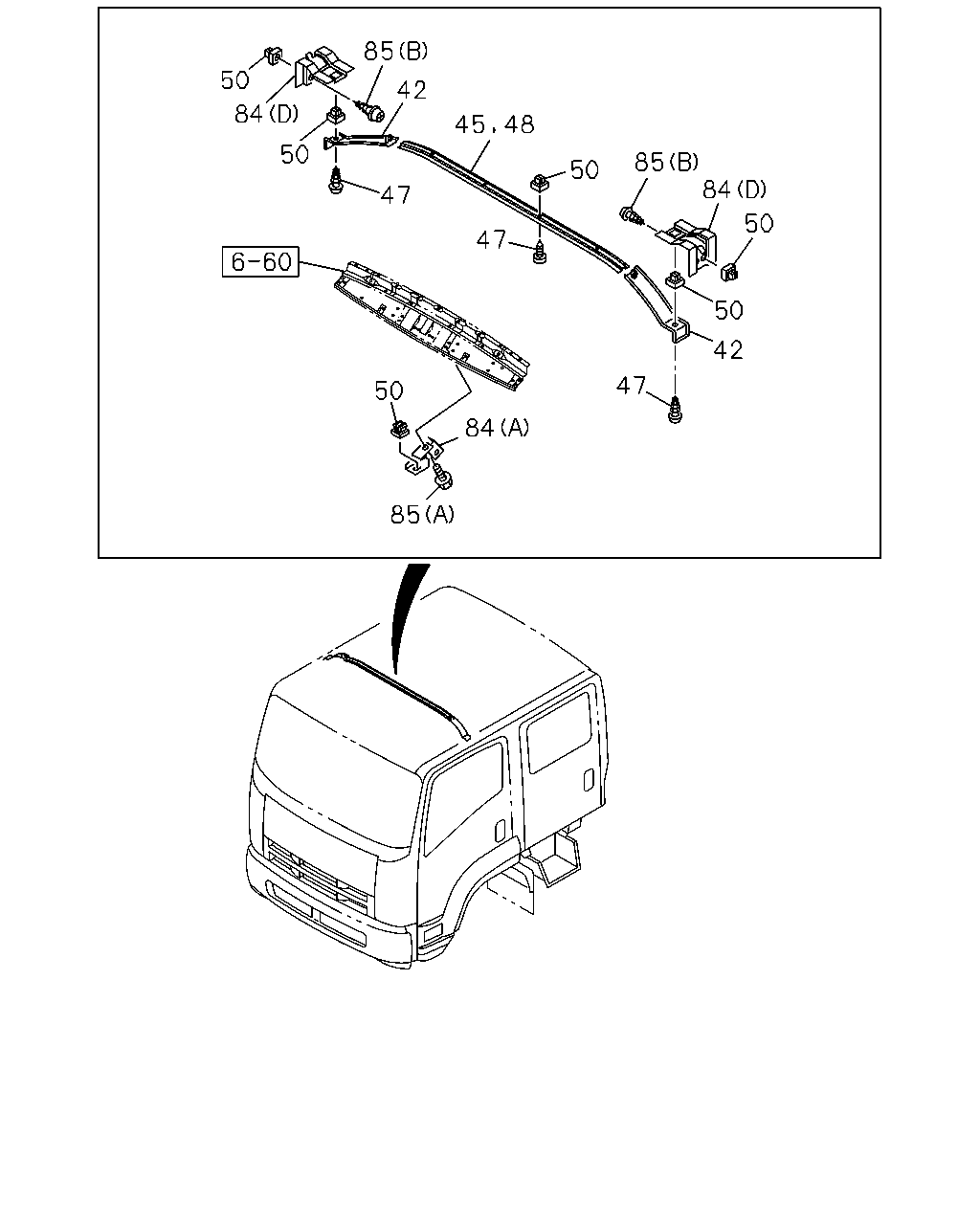

85 50 42 84 50 85 84 50 47 50 47 50 42 47 50 84 85 45 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	STOPPER; CURTAIN RAIL DARK GRAY	8-97407-972-2	01	1	0712-	●	●
42	STOPPER; CURTAIN RAIL DARK GRAY	8-97407-499-2	01	1	0712-	●	●
45	RAIL; CURTAIN,FRT DARK GRAY	8-97407-486-0	01	1	0909-	●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0712-	●	●
48	RAIL; CURTAIN,BACK DARK GRAY	8-97407-486-0	01	1	0712-0908	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0712-0804	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1406-	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0712-0804	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0712-		●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-740-0	01	1	0712-	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	0712-	●	●
84	BRACKET; CURTAIN RAIL (C)	8-98028-326-1	02	1	0712-1405	●
84	BRACKET; CURTAIN RAIL (D)	8-98028-821-1	01	1	0712-0712	●
84	BRACKET; CURTAIN RAIL (D)	8-98049-761-1	01	1	0712-0712	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0712-0712		●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0801-0804	●	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	04	1	0805-	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0805-		●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	04	1	0712-0804	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	06	1	0805-1405	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	04	1	1406-	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0712-0810	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0712-0810	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	02	1	0712-		●

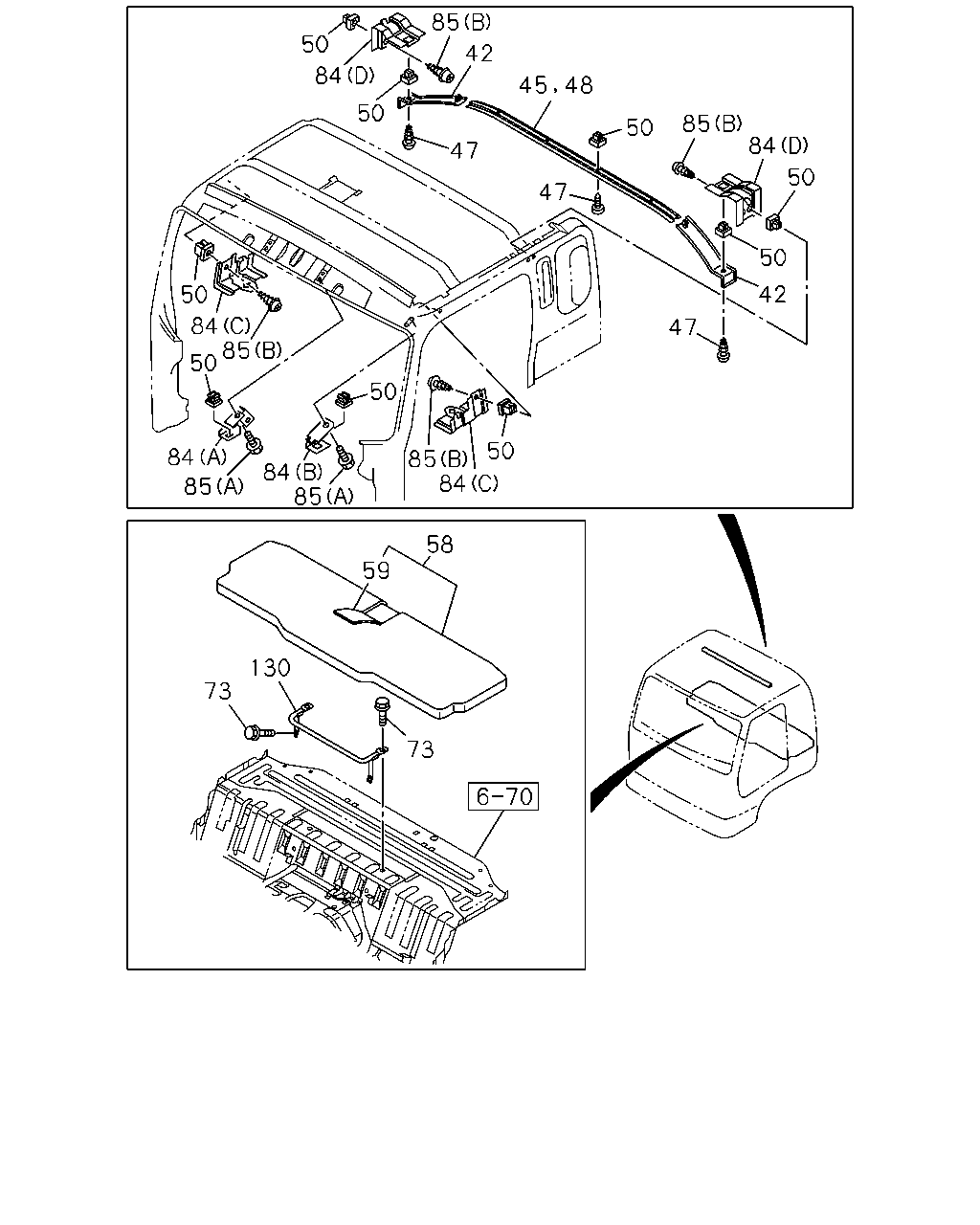

85 50 42 84 50 85 84 50 47 50 47 50 42 50 84 85 50 47 50 50 84 85 84 84 85 85 58 59 130 73 73 45 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	STOPPER; CURTAIN RAIL DARK GRAY	8-97407-972-2	01	1	0712-	●	●
42	STOPPER; CURTAIN RAIL DARK GRAY	8-97407-499-2	01	1	0712-	●	●
45	RAIL; CURTAIN,FRT DARK GRAY	8-97407-486-0	01	1	0909-	●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0712-	●	●
48	RAIL; CURTAIN,BACK DARK GRAY	8-97407-486-0	01	1	0712-0908	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0712-0804	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1406-	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0712-0804	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0712-		●
58	BED; MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-894-1	01	1	0712-0912	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97407-384-2	01	1	1001-	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-135-0	01	1	0712-0912	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97412-043-1	01	1	1001-	●
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	0712-	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-740-0	01	1	0712-	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	0712-	●	●
84	BRACKET; CURTAIN RAIL (C)	8-98028-326-1	02	1	0712-1405	●
84	BRACKET; CURTAIN RAIL (D)	8-98028-821-1	01	1	0712-0712	●
84	BRACKET; CURTAIN RAIL (D)	8-98049-761-1	01	1	0712-0712	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0712-0712		●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0801-0804	●	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	04	1	0805-	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0805-		●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	04	1	0712-0804	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	06	1	0805-1405	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	04	1	1406-	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0712-0810	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0712-0810	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	02	1	0712-		●
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	0712-	●
