◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11421 - FTS(AUST)EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#47823) — 49 parça

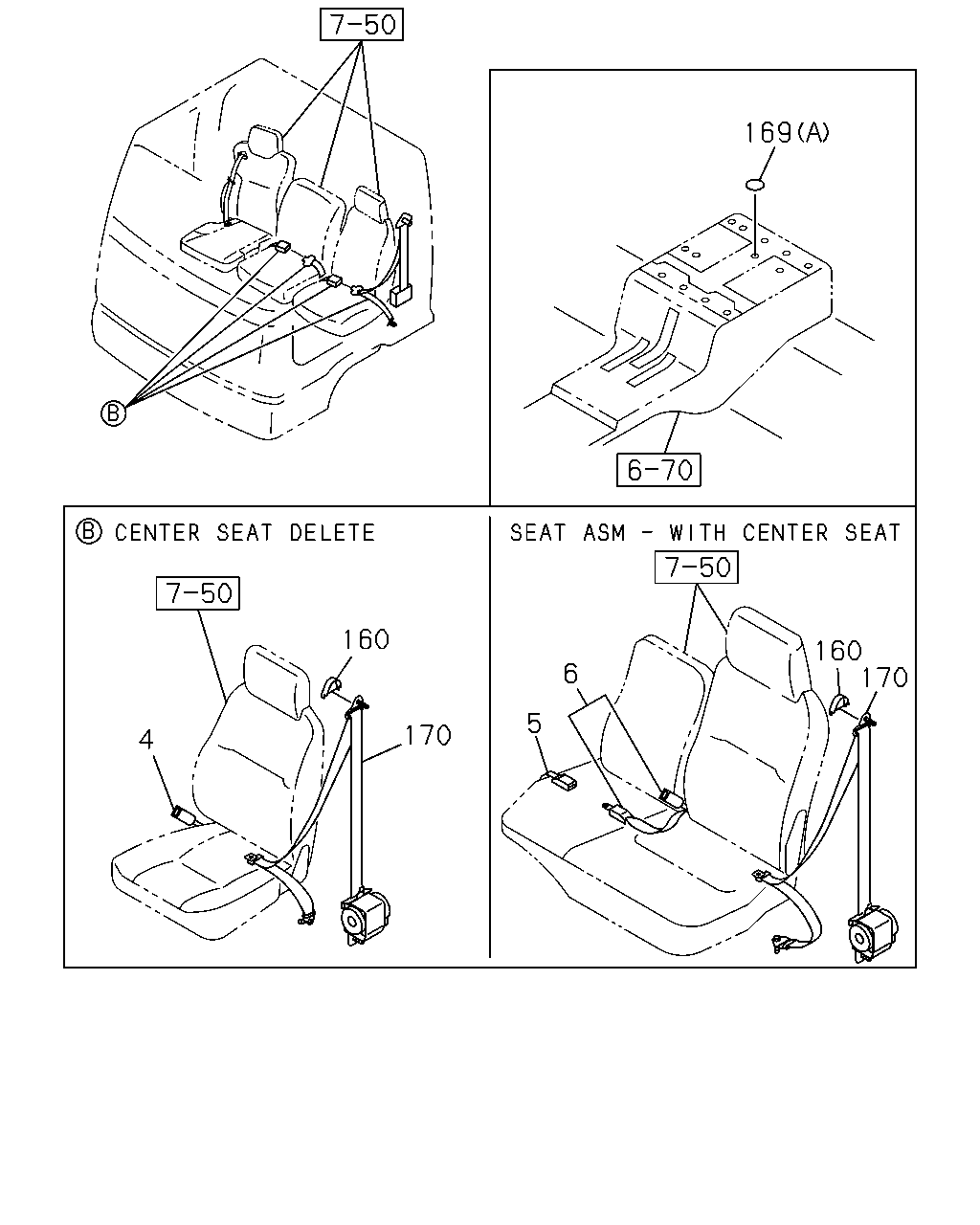

çizim 24906
169 160 160 170 6 5 170 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE 2 CREWS<SP9> GRAY 		8-97407-376-1 01 1 0712- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-377-1 01 1 0712- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97407-377-1 01 1 0712- ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-768-3 01 1 0712-1209 ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97409-768-3 01 1 0712-1209 ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97423-515-1 01 1 1210- ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97423-515-1 01 1 1210- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 0712-1104 ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 0712-1104 ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1105- ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1105- ●
169 SEAL
CENTER SEAT DELETE 2 CREWS<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 0712-1201 ●
169 SEAL
CENTER SEAT DELETE 2 CREWS<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 0712-1201 ●
169 SEAL
CENTER SEAT DELETE 2 CREWS<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 1202- ●
169 SEAL
BODY COLOR ARC WHITE(729) (B) OD=36 		8-94271-620-1 02 1 0712-0905 ●
169 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) (B) OD=36 		8-94271-620-1 02 1 0906- ●
169 SEAL
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0712-0905 ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORCARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),B ODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BOD Y COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0906-0906 ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0906- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97407-771-5 01 1 0712-1209 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97423-521-2 01 1 1210-1407 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97428-394-0 01 1 1408- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97407-770-4 01 1 0712-1209 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97423-516-1 01 1 1210-1407 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97428-435-0 01 1 1408- ● ●
çizim 99223
88 123 169
BalonParca AdiParca NoAdetTipApplied Date A B
88 PLUG; HOLE
DARK GRAY 		8-97411-466-0 01 1 0712- ●
123 BELT ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-971-0 01 1 0712- ● ●
123 BELT ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-969-0 01 1 0712- ● ●
169 SEAL
CENTER SEAT DELETE 2 CREWS<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 0712-1201 ●
169 SEAL
CENTER SEAT DELETE 2 CREWS<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 0712-1201 ●
169 SEAL
CENTER SEAT DELETE 2 CREWS<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 1202- ●
169 SEAL
BODY COLOR ARC WHITE(729) (B) OD=36 		8-94271-620-1 02 1 0712-0905 ●
169 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) (B) OD=36 		8-94271-620-1 02 1 0906- ●
169 SEAL
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0712-0905 ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLORCARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),B ODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BOD Y COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0906-0906 ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0906- ●

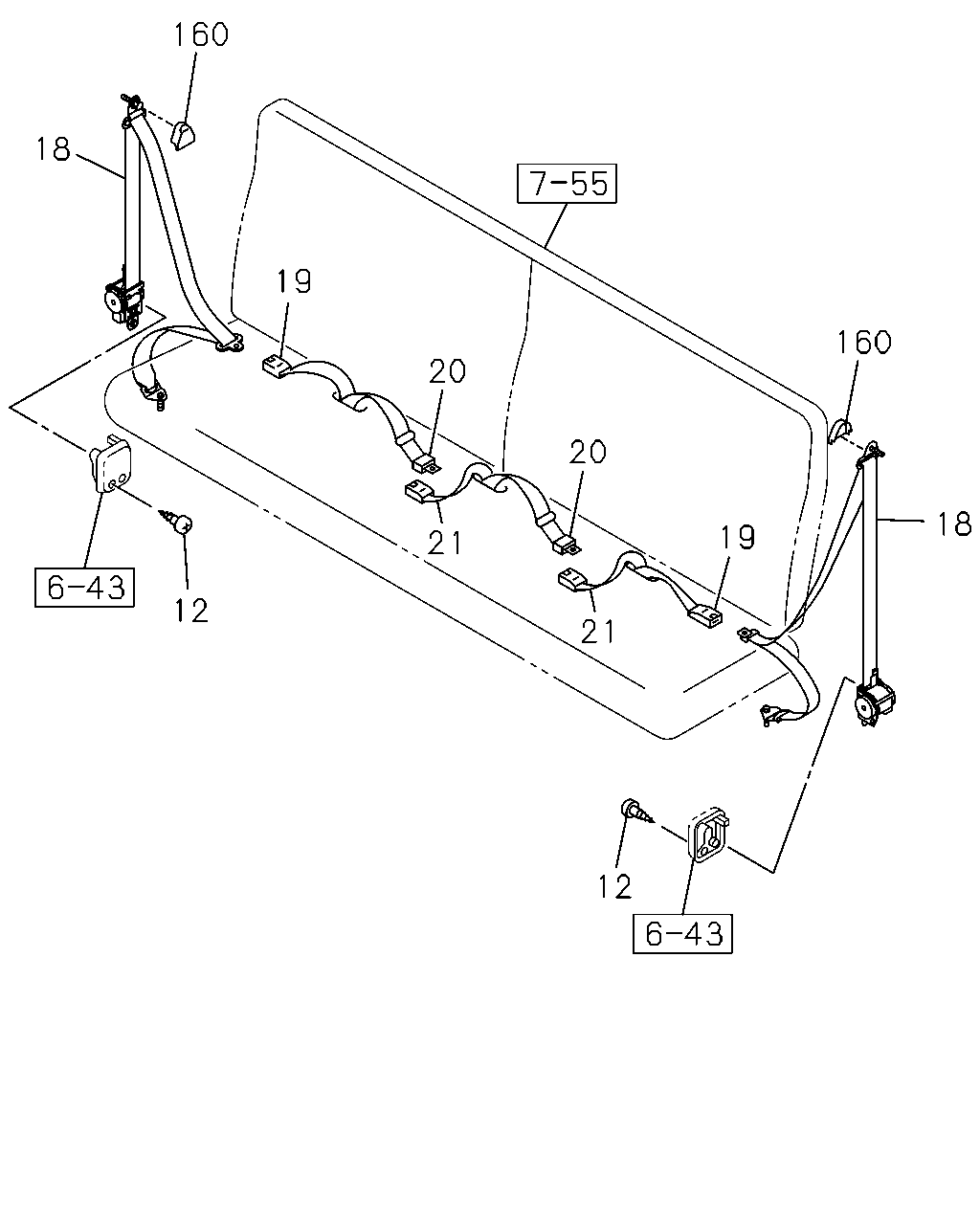

çizim 99446
160 18 19 160 20 20 18 19 21 12 21 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING 		0-74360-414-0 04 1 0712- ●
18 BELT; SEAT,RR
GRAY 		8-97405-185-8 02 1 0802- ●
19 BELT; RR SEAT,BUCKLE SIDE
GRAY 		8-97407-379-0 02 1 0802- ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97409-771-2 01 1 0801-1209 ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97423-710-1 01 1 1210- ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97409-770-2 01 1 0801-1209 ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97423-709-1 01 1 1210- ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97407-381-1 01 1 0801- ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97407-380-0 01 1 0801- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 0712-1104 ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 0712-1104 ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1105- ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1105- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
