◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11421 - FTS(AUST)EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶

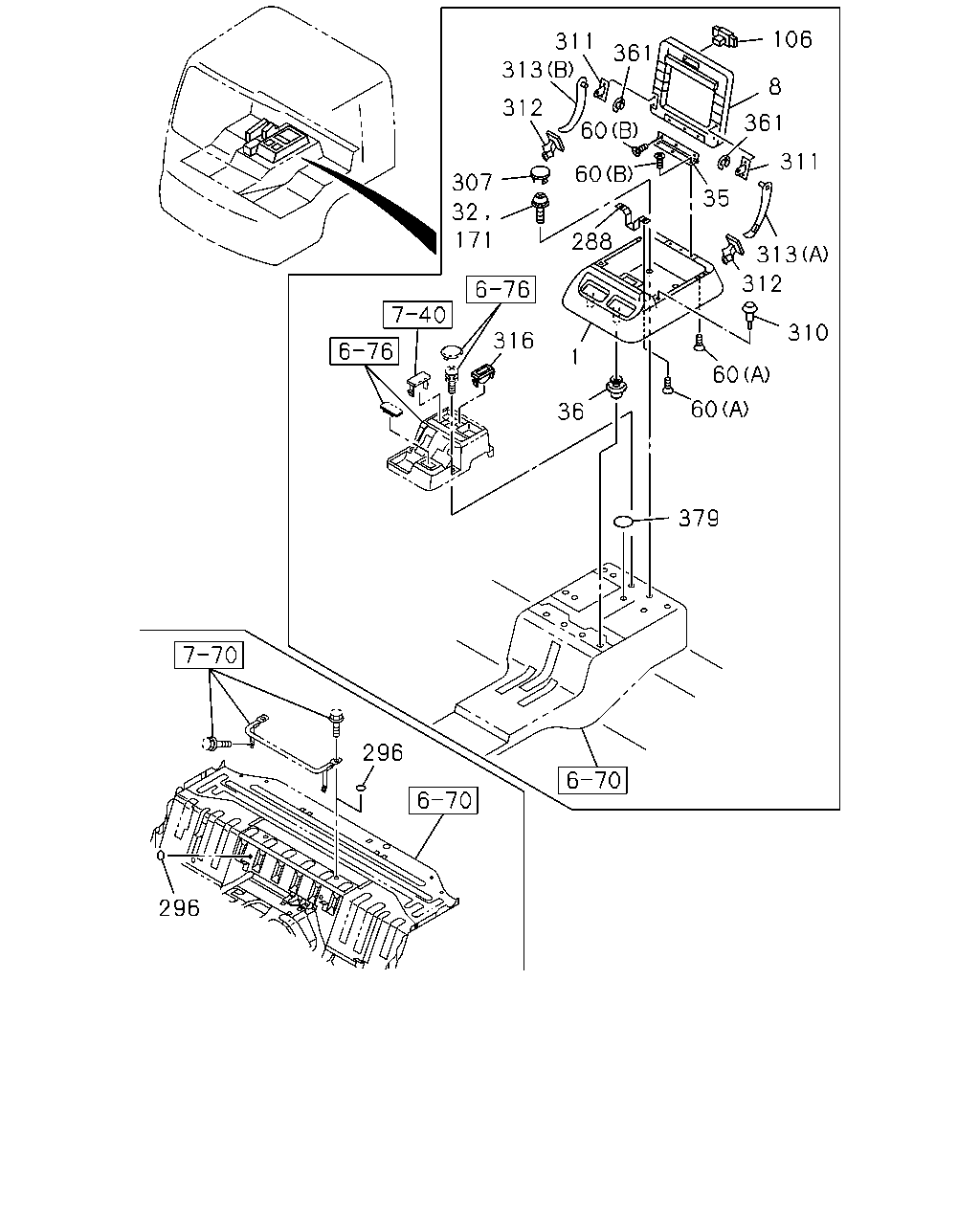

7-45 — CONSOLE BOX (#47820) — 20 parça
çizim 25911
106 311 361 313 8 312 361 60 60 311 307 35 32 171 288 313 312 310 316 1 60 60 36 379 296 296
BalonParca AdiParca NoAdetTipApplied Date A B
1 BOX; PARCEL
CENTER SEAT DELETE 2 CREWS<SP9> GRAY 		8-97408-710-0 01 1 0712- ●
8 LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> GRAY 		8-97408-712-0 01 1 0712- ●
32 SCREW; PARCEL BOX
CENTER SEAT DELETE 2 CREWS<SP9> M6X16 		0-38050-616-0 02 1 0812- ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-182-1 01 1 0712- ●
36 FASTENER; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-09984-190-0 02 1 0712- ●
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 06 1 0712- ●
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> (B) M5X14 		8-94279-325-0 04 1 0712- ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-312-0 01 1 0712- ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 0712-0909 ●
288 STOPPER; LID,CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-190-0 01 1 0712- ●
296 SEAL
EXC. MATTRESS SLEEPER CAB<E40> OD=25 BLACK 		1-76798-019-0 04 1 1010- ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> GRAY 		8-97407-951-0 02 1 0801- ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-187-0 02 1 0712- ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-188-2 02 1 0712- ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-186-1 02 1 0712- ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-72538-184-3 01 1 0712- ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (B) 		1-72538-185-3 01 1 0712- ●
316 BOX; COIN
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-94482-280-2 02 1 0712- ● ●
361 RING; SNAP
CENTER SEAT DELETE 2 CREWS<SP9> ID=5 		9-09185-405-0 02 1 0712- ●
379 SEAL; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> OD=25 BLACK 		1-76798-019-0 02 1 0712-0909 ●
