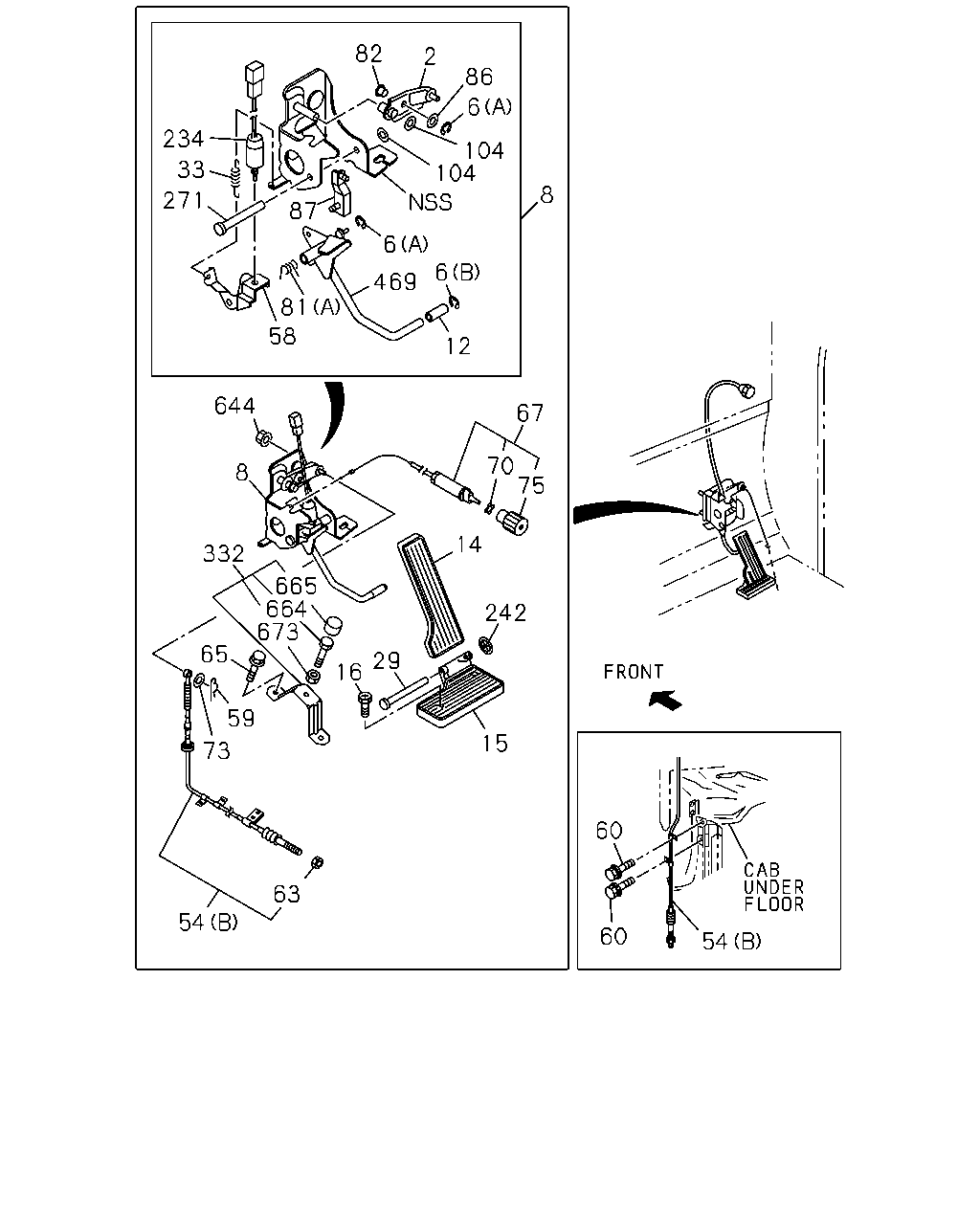

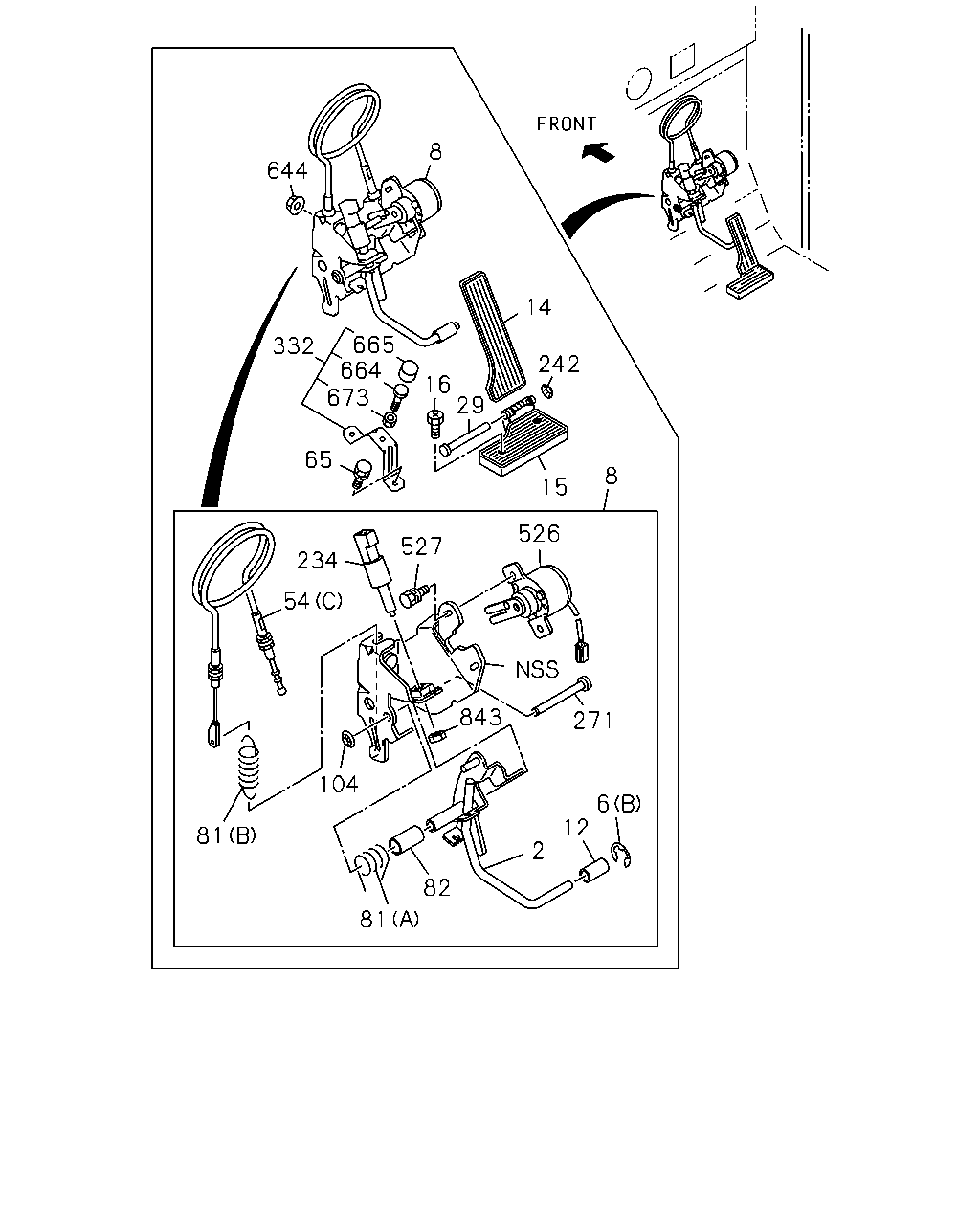

1-01A — ACCELERATOR PEDAL AND CONTROL (#4781) — 618 parça

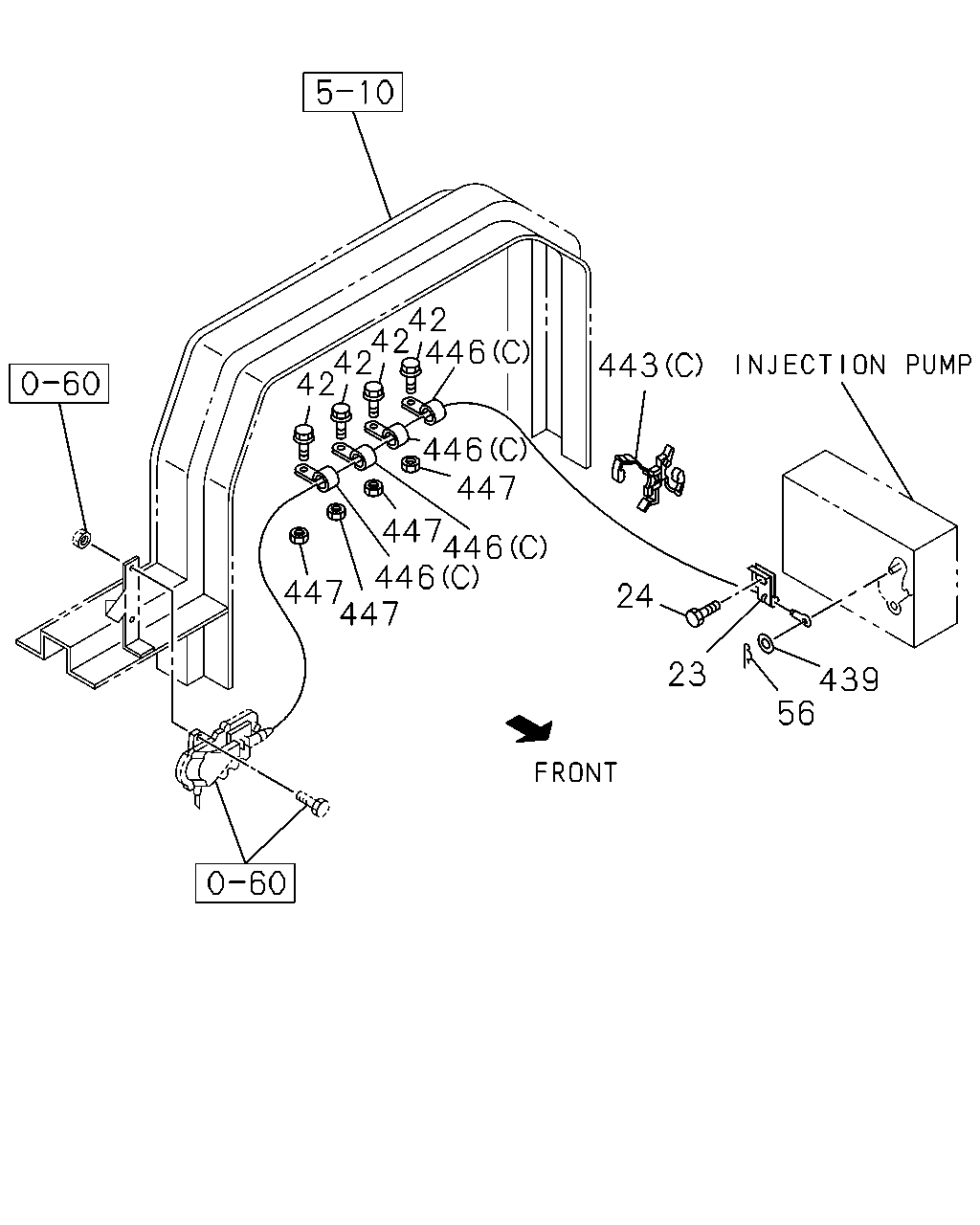

42 446 446 42 447

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
42	BOLT; BRKT,ENG CONT CABLE M8X20 FLANGE	0-28080-820-0	04	1	9601-9606	●
42	BOLT; BRKT,ENG CONT CABLE M8X25 FLANGE	0-28680-825-0	04	1	9607-9609	●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	04	1	9610-9904	●
42	BOLT; BRKT,ENG CONT CABLE M8X25 FLANGE	0-28680-825-0	04	1	9610-9904		●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	04	1	9905-		●
42	BOLT; BRKT,ENG CONT CABLE M8X25 FLANGE	0-28680-825-0	04	1	9905-			●	●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28080-820-0	02	1	9610-9904	●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28080-820-0	02	1	9905-		●
446	CLIP; ENG CONT (C) ID=7 L=28	9-09524-655-0	04	1	9601-9609	●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (C) ID=7 L=28	9-09524-655-0	04	1	9611-9904	●
446	CLIP; ENG CONT (C) ID=7 L=28	9-09524-655-0	04	1	9611-9904		●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (C) ID=7 L=28	9-09524-655-0	04	1	9905-		●
446	CLIP; ENG CONT (C) ID=7 L=28	9-09524-655-0	04	1	9905-			●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9611-9904	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (B) ID=11 H=20 L=20	9-09527-010-0	01	1	9905-0007		●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0008-		●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A) ID=13 L=20	9-09525-235-0	01	1	9611-9904	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	9-09525-035-0	01	1	9905-		●
447	NUT; BRKT,CONT WIRE M8	9-09110-408-0	04	1	9601-9601	●
447	NUT; BRKT,CONT WIRE M8	9-09110-508-0	04	1	9602-9606	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	04	1	9607-9609	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9611-9904	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9905-		●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	04	1	9611-9904	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	04	1	9611-9904		●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	04	1	9905-		●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	04	1	9905-			●	●

82 2 86 6 234 104 104 33 8 87 271 6 6 469 81 58 12 644 67 70 75 8 14 332 665 664 673 242 65 29 16 59 15 73 60 63 54 60 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LEVER; ENG CONT	1-71907-210-2	01	1	9601-9609	●
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-210-2	01	1	9610-9904	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	9610-9904		●
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-210-2	01	1	9905-		●
2	LEVER; ENG CONT	1-71907-210-2	01	1	9905-			●	●
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-191-2	01	1	9610-9701	●
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-500-0	01	1	9702-9904	●
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-550-1	01	1	9905-		●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9601-9609	●
6	RING; SNAP,LINK TO LINK EXC. ELECTRONIC GOV RED3(KG5) (A) ID=4	9-09185-404-0	02	1	9610-9904	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9610-9904		●
6	RING; SNAP,LINK TO LINK EXC. ELECTRONIC GOV RED3(KG5) (A) ID=4	9-09185-404-0	02	1	9905-		●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9905-			●	●
6	RING; SNAP,LINK TO LINK (B) ID=6	9-09185-406-0	01	1	9601-9802	●
6	RING; SNAP,LINK TO LINK ELECTRONIC GOV RED3(KG5) (B) ID=6	9-09185-406-0	01	1	9803-9904	●
8	LINK ASM; ENG CONT	1-73996-206-5	01	1	9601-9609	●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73996-206-6	01	1	9610-9904	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	9610-9904		●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73996-206-6	01	1	9905-		●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	9905-			●	●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-161-6	01	1	9610-9904	●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-551-3	01	1	9905-		●
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	9601-9802	●
12	ROLLER; ENG CONT LEVER ELECTRONIC GOV RED3(KG5)	1-09989-007-0	01	1	9803-9904	●	●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9601-9708	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9611-9904	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9905-		●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9601-9610	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9905-		●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9611-9904	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X20 W/LK&PL WASHER	8-94279-202-0	02	1	9601-9902	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9903-9904	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9905-		●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9601-9610	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9905-		●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9611-9904	●	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	9601-9609	●
33	SPRING; IDLING CONT LEVER EXC. ELECTRONIC GOV RED3(KG5)	8-94414-815-0	01	1	9610-9904	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	9610-9904		●
33	SPRING; IDLING CONT LEVER EXC. ELECTRONIC GOV RED3(KG5)	8-94414-815-0	01	1	9905-		●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	9905-			●	●

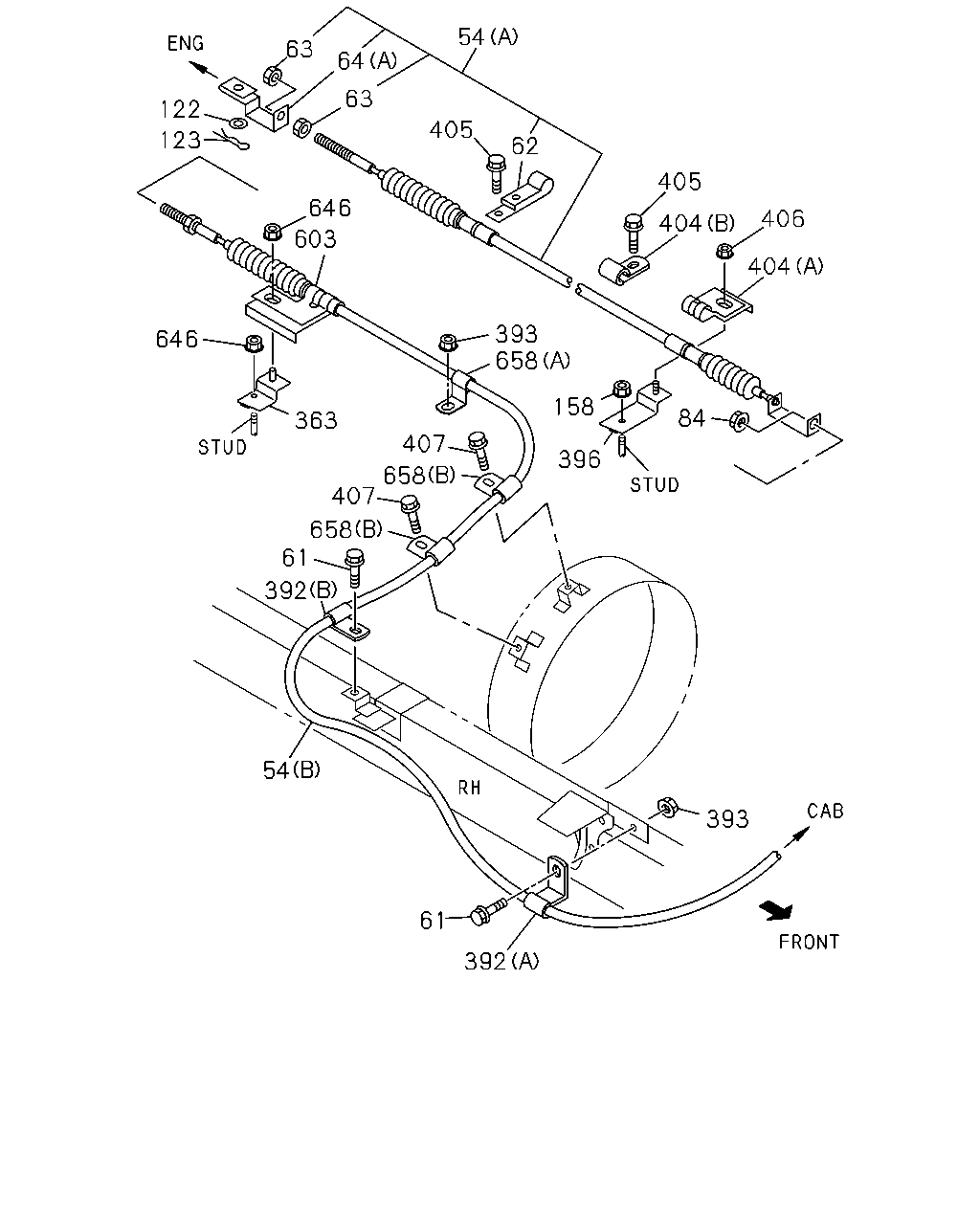

54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	9601-9610	●
54	CABLE; ENG CONT EXC. EURO2 SPECIFICATION<THN> (A) L=1300	1-23230-132-0	01	1	9611-9904	●
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	9611-9904		●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (A) L=1300	1-23230-132-0	01	1	9905-		●
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	9905-			●	●
54	CABLE; ENG CONT (B) L=2836	1-73907-404-2	01	1	9601-9609	●
54	CABLE; ENG CONT (B) L=2836	1-73907-404-2	01	1	9609-9610	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (B) L=2836	1-73907-404-2	01	1	9611-9904	●
54	CABLE; ENG CONT (B) L=2836	1-73907-404-2	01	1	9611-9904		●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (B) L=2836	1-73907-404-2	01	1	9905-		●
54	CABLE; ENG CONT (B) L=2836	1-73907-404-2	01	1	9905-			●	●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	9611-9904	●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	9905-		●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	9601-9609	●
58	LEVER; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-242-1	01	1	9610-9904	●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	9610-9904		●
58	LEVER; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-242-1	01	1	9905-		●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	9905-			●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9601-9609	●
59	PIN; SNAP,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) L=27.7	1-09747-005-0	01	1	9610-9904	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9610-9904		●
59	PIN; SNAP,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) L=27.7	1-09747-005-0	01	1	9905-		●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9905-			●	●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9601-9609	●
60	BOLT; CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9610-9904	●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9610-9904		●
60	BOLT; CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-		●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-			●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	01	1	9601-9609	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	01	1	9608-9610	●
63	NUT; LOCK,BRKT EXC. ELECTRONIC GOV RED3(KG5) M8	9-09111-408-0	01	1	9611-9904	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	01	1	9611-9904		●
63	NUT; LOCK,BRKT RLD GOVERNOR(SD7) M8	9-09111-408-0	01	1	9905-		●
63	NUT; LOCK,BRKT M8	9-09111-408-0	01	1	9905-			●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9601-9610	●
63	NUT; LOCK,BRKT EXC. ELECTRONIC GOV RED3(KG5) M8	9-09111-408-0	02	1	9611-9904	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9611-9904		●
63	NUT; LOCK,BRKT RLD GOVERNOR(SD7) M8	9-09111-408-0	02	1	9905-		●	●	●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9904	●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-		●	●	●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-2	01	1	9601-9609	●
67	CABLE ASM; IDLE CONT EXC. ELECTRONIC GOV RED3(KG5) L=399	1-73998-912-3	01	1	9610-9904	●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	9610-9904		●
67	CABLE ASM; IDLE CONT EXC. ELECTRONIC GOV RED3(KG5) L=399	1-73998-912-3	01	1	9905-		●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	9905-			●	●
70	NUT; CONT CABLE	1-73908-045-0	01	1	9601-9609	●
70	NUT; CONT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-73908-045-1	01	1	9610-9904	●
70	NUT; CONT CABLE	1-73908-045-1	01	1	9610-9904		●
70	NUT; CONT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-73908-045-1	01	1	9905-		●
70	NUT; CONT CABLE	1-73908-045-1	01	1	9905-			●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9601-9609	●
73	WASHER; PL,ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=8.4	9-09160-508-0	01	1	9610-9904	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9610-9904		●
73	WASHER; PL,ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=8.4	9-09160-508-0	01	1	9905-		●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9905-			●	●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	9601-9609	●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	8-97066-797-1	01	1	9610-9904	●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	9610-9904		●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	8-97066-797-1	01	1	9905-		●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	9905-			●	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	9601-9904	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	9905-		●	●	●
81	SPRING; RETURN,ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) (A)	8-97853-205-1	01	1	9611-9904	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	9611-9904		●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	9611-9904	●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	9905-		●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9601-9609	●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5)	1-71907-244-1	02	1	9610-9904	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9610-9904		●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5)	1-71907-244-1	02	1	9905-		●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9905-			●	●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	9610-9904	●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	9905-		●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9601-9609	●
86	WASHER; PL,ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) ID=6.4	9-09160-506-0	02	1	9610-9904	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9610-9904		●
86	WASHER; PL,ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) ID=6.4	9-09160-506-0	02	1	9905-		●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9905-			●	●
87	LINK; ENG CONT	1-71907-211-1	01	1	9601-9609	●
87	LINK; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-211-1	01	1	9610-9904	●
87	LINK; ENG CONT	1-71907-211-1	01	1	9610-9904		●
87	LINK; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-211-1	01	1	9905-		●
87	LINK; ENG CONT	1-71907-211-1	01	1	9905-			●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9601-9609	●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	02	1	9610-9904	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9610-9904		●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	02	1	9905-		●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9905-			●	●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	01	1	9610-9904	●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	01	1	9905-		●
234	SWITCH; ACCEL	1-82380-114-1	01	1	9601-9610	●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5)	1-82380-114-1	01	1	9611-9904	●
234	SWITCH; ACCEL	1-82380-114-1	01	1	9611-9904		●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5)	1-82380-114-2	01	1	9905-		●
234	SWITCH; ACCEL	1-82380-114-2	01	1	9905-			●	●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-1	01	1	9611-9904	●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-1	01	1	9905-		●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9601-9904	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9905-		●	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9611-9904	●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9601-9610	●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) OD=8.0 L=74	1-71907-212-1	01	1	9611-9904	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9611-9904		●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) OD=8.0 L=74	1-71907-212-1	01	1	9905-		●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9905-			●	●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	9611-9904	●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	9905-		●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9601-9610	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9905-		●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9611-9904	●	●
469	LEVER ASM	1-71907-209-4	01	1	9601-9609	●
469	LEVER ASM EXC. ELECTRONIC GOV RED3(KG5)	1-71907-209-5	01	1	9610-9904	●
469	LEVER ASM	1-71907-209-5	01	1	9610-9904		●
469	LEVER ASM EXC. ELECTRONIC GOV RED3(KG5)	1-71907-209-5	01	1	9905-		●
469	LEVER ASM	1-71907-209-5	01	1	9905-			●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	9601-9610	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	9905-		●	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	9611-9904	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9601-9610	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9905-		●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9611-9904	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9601-9610	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9905-		●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9611-9904	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9601-9610	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9905-		●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9611-9904	●	●

8 644 14 665 664 673 332 242 16 29 65 8 15 526 527 234 54 843 271 104 6 12 81 2 82 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LEVER; ENG CONT	1-71907-210-2	01	1	9601-9609	●
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-210-2	01	1	9610-9904	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	9610-9904		●
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-210-2	01	1	9905-		●
2	LEVER; ENG CONT	1-71907-210-2	01	1	9905-			●	●
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-191-2	01	1	9610-9701	●
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-500-0	01	1	9702-9904	●
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-550-1	01	1	9905-		●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9601-9609	●
6	RING; SNAP,LINK TO LINK EXC. ELECTRONIC GOV RED3(KG5) (A) ID=4	9-09185-404-0	02	1	9610-9904	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9610-9904		●
6	RING; SNAP,LINK TO LINK EXC. ELECTRONIC GOV RED3(KG5) (A) ID=4	9-09185-404-0	02	1	9905-		●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9905-			●	●
6	RING; SNAP,LINK TO LINK (B) ID=6	9-09185-406-0	01	1	9601-9802	●
6	RING; SNAP,LINK TO LINK ELECTRONIC GOV RED3(KG5) (B) ID=6	9-09185-406-0	01	1	9803-9904	●
8	LINK ASM; ENG CONT	1-73996-206-5	01	1	9601-9609	●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73996-206-6	01	1	9610-9904	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	9610-9904		●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73996-206-6	01	1	9905-		●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	9905-			●	●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-161-6	01	1	9610-9904	●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-551-3	01	1	9905-		●
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	9601-9802	●
12	ROLLER; ENG CONT LEVER ELECTRONIC GOV RED3(KG5)	1-09989-007-0	01	1	9803-9904	●	●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9601-9708	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9611-9904	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9905-		●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9601-9610	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9905-		●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9611-9904	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X20 W/LK&PL WASHER	8-94279-202-0	02	1	9601-9902	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9903-9904	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9905-		●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9601-9610	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9905-		●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9611-9904	●	●
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	9601-9610	●
54	CABLE; ENG CONT EXC. EURO2 SPECIFICATION<THN> (A) L=1300	1-23230-132-0	01	1	9611-9904	●
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	9611-9904		●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (A) L=1300	1-23230-132-0	01	1	9905-		●
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	9905-			●	●
54	CABLE; ENG CONT (B) L=2836	1-73907-404-2	01	1	9601-9609	●
54	CABLE; ENG CONT (B) L=2836	1-73907-404-2	01	1	9609-9610	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (B) L=2836	1-73907-404-2	01	1	9611-9904	●
54	CABLE; ENG CONT (B) L=2836	1-73907-404-2	01	1	9611-9904		●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (B) L=2836	1-73907-404-2	01	1	9905-		●
54	CABLE; ENG CONT (B) L=2836	1-73907-404-2	01	1	9905-			●	●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	9611-9904	●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	9905-		●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9904	●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-		●	●	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	9601-9904	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	9905-		●	●	●
81	SPRING; RETURN,ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) (A)	8-97853-205-1	01	1	9611-9904	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	9611-9904		●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	9611-9904	●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	9905-		●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9601-9609	●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5)	1-71907-244-1	02	1	9610-9904	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9610-9904		●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5)	1-71907-244-1	02	1	9905-		●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9905-			●	●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	9610-9904	●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	9905-		●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9601-9609	●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	02	1	9610-9904	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9610-9904		●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	02	1	9905-		●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9905-			●	●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	01	1	9610-9904	●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	01	1	9905-		●
234	SWITCH; ACCEL	1-82380-114-1	01	1	9601-9610	●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5)	1-82380-114-1	01	1	9611-9904	●
234	SWITCH; ACCEL	1-82380-114-1	01	1	9611-9904		●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5)	1-82380-114-2	01	1	9905-		●
234	SWITCH; ACCEL	1-82380-114-2	01	1	9905-			●	●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-1	01	1	9611-9904	●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-1	01	1	9905-		●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9601-9904	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9905-		●	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9611-9904	●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9601-9610	●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) OD=8.0 L=74	1-71907-212-1	01	1	9611-9904	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9611-9904		●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) OD=8.0 L=74	1-71907-212-1	01	1	9905-		●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9905-			●	●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	9611-9904	●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	9905-		●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9601-9610	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9905-		●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9611-9904	●	●
526	SENSOR; ACCEL ELECTRONIC GOV RED3(KG5)	1-81534-003-2	01	1	9611-9904	●
526	SENSOR; ACCEL ELECTRONIC GOV RED3(KG5)	1-81534-003-2	01	1	9905-		●
527	BOLT; ACCEL SENSOR ELECTRONIC GOV RED3(KG5) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9611-9904	●
527	BOLT; ACCEL SENSOR ELECTRONIC GOV RED3(KG5) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-		●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	9601-9610	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	9905-		●	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	9611-9904	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9601-9610	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9905-		●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9611-9904	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9601-9610	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9905-		●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9611-9904	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9601-9610	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9905-		●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9611-9904	●	●
843	NUT ELECTRONIC GOV RED3(KG5) M12	9-99111-412-0	01	1	9611-9904	●
843	NUT ELECTRONIC GOV RED3(KG5) M12	9-99111-412-0	01	1	9905-		●

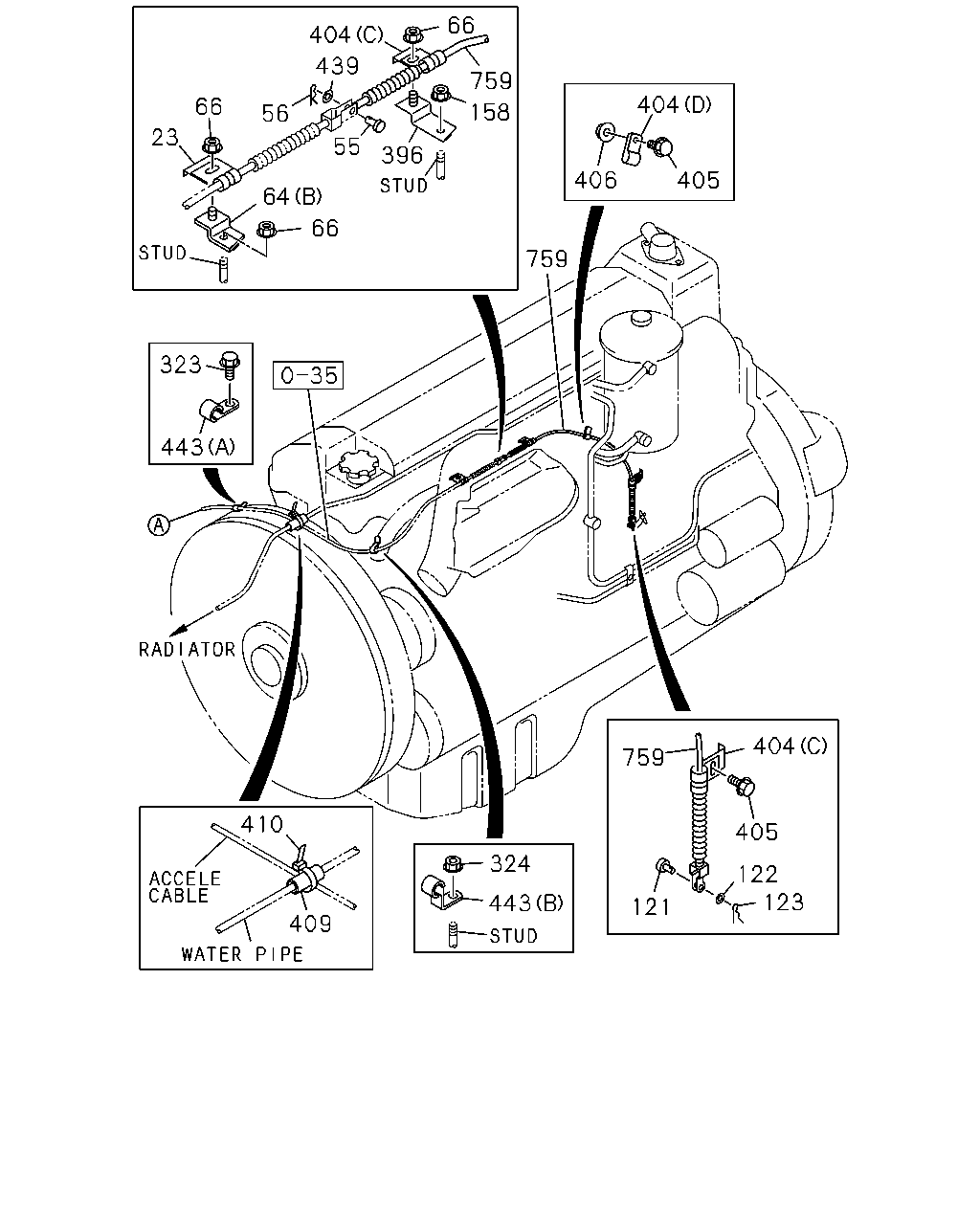

66 404 439 759 404 66 158 56 23 55 396 406 405 64 66 759 323 443 404 759 410 405 324 122 123 409 443 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	BRACKET; FUEL CUT CABLE	1-14319-082-0	01	1	9601-9609	●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=10.8	1-14319-082-0	01	1	9610-9808	●
23	BRACKET; FUEL CUT CABLE ID=10.8	1-14319-082-0	01	1	9610-9808		●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=7.4	1-14319-138-0	01	1	9809-9904	●
23	BRACKET; FUEL CUT CABLE ID=7.4	1-14319-138-0	01	1	9809-9904		●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-14319-138-0	01	1	9905-		●
23	BRACKET; FUEL CUT CABLE	1-14319-138-0	01	1	9905-			●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5) 7D=10.8	1-14319-099-0	01	1	9610-9904	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	9905-		●
55	PIN; JAW JOINT ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	9611-9904	●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	9611-9904		●
55	PIN; JAW JOINT ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	9905-		●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9601-9610	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9905-		●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9611-9904	●	●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	9611-9904	●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	9905-		●
64	BRACKET; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (A)	1-23219-105-1	01	1	9611-9904	●
64	BRACKET; ENG CONT CABLE (A)	1-23219-105-1	01	1	9611-9904		●
64	BRACKET; ENG CONT CABLE (A)	1-23219-105-1	01	1	9601-9610	●
64	BRACKET; ENG CONT CABLE RLD GOVERNOR(SD7) (A)	1-23219-105-1	01	1	9905-		●
64	BRACKET; ENG CONT CABLE (A)	1-23219-105-1	01	1	9905-			●	●
66	NUT; BRKT M8	9-09110-508-0	01	1	9601-9606	●
66	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9611-9904	●
66	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9905-		●
121	PIN; JOINT,CABLE ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	9611-9611	●
121	PIN; JOINT,CABLE ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	9612-9904	●
121	PIN; JOINT,CABLE ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	9905-		●
122	WASHER; PL,CABLE ID=8.4	9-09160-508-0	01	1	9601-9610	●
122	WASHER; PL,CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=8.4	9-09160-508-0	01	1	9611-9904	●
122	WASHER; PL,CABLE ID=8.4	9-09160-508-0	01	1	9611-9904		●
122	WASHER; PL,CABLE RLD GOVERNOR(SD7) ID=8.4	9-09160-508-0	01	1	9905-		●
122	WASHER; PL,CABLE ID=8.4	9-09160-508-0	01	1	9905-			●	●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	9611-9611	●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	9612-9904	●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	9905-		●
123	PIN; SNAP,CABLE L=27.7	1-09747-005-0	01	1	9601-9610	●
123	PIN; SNAP,CABLE EXC. ELECTRONIC GOV RED3(KG5) L=27.7	1-09747-005-0	01	1	9611-9904	●
123	PIN; SNAP,CABLE L=27.7	1-09747-005-0	01	1	9611-9904		●
123	PIN; SNAP,CABLE RLD GOVERNOR(SD7) L=27.7	1-09747-005-0	01	1	9905-		●
123	PIN; SNAP,CABLE L=27.7	1-09747-005-0	01	1	9905-			●	●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	9611-9611	●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	9612-9904	●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	9905-		●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9607-9610	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9611-9904	●	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9905-		●	●	●
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28680-820-0	02	1	9611-9904	●
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28680-820-0	02	1	9905-		●
324	NUT; CLIP FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9611-9904	●
324	NUT; CLIP FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9905-		●
396	BRACKET; CLIP	1-47477-805-0	01	1	9607-9610	●
396	BRACKET; CLIP	1-47477-805-0	01	1	9611-9710	●	●
396	BRACKET; CLIP	1-47478-055-0	01	1	9711-9904	●	●
396	BRACKET; CLIP	1-47478-055-0	01	1	9905-		●	●	●
404	CLIP; CABLE (A)	1-14319-082-0	01	1	9601-9610	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (A)	1-14319-082-0	01	1	9611-9612	●
404	CLIP; CABLE (A)	1-14319-082-0	01	1	9611-9612		●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (A)	1-14319-113-0	01	1	9701-9710	●
404	CLIP; CABLE (A)	1-14319-113-0	01	1	9701-9710		●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (C)	1-14319-111-0	02	1	9611-9611	●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (C)	1-14319-111-0	02	1	9612-9612	●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (C)	1-14319-111-0	01	1	9701-9904	●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (D) ID=9 L=40	9-09524-875-0	01	1	9611-9611	●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (D) ID=9 L=40	9-09524-875-0	01	1	9612-9904	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=11 L=20	9-09525-035-0	02	1	9601-9705	●
404	CLIP; CABLE (B) ID=11 L=20	9-09525-035-0	02	1	9601-9705		●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=11 L=20	9-09525-035-0	01	1	9706-9904	●
404	CLIP; CABLE (B) ID=11 L=20	9-09525-035-0	01	1	9706-9904		●
404	CLIP; CABLE (C)	1-14319-111-0	01	1	9905-		●	●	●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (C)	1-14319-111-0	01	1	9905-		●
404	CLIP; CABLE (D) ID=9 L=40	9-09524-875-0	01	1	9905-		●	●	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (D) ID=9 L=40	9-09524-875-0	01	1	9905-		●	●	●
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28080-616-0	02	1	9601-9610	●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) M6X16 FLANGE	0-28080-616-0	02	1	9611-9904	●
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28080-616-0	02	1	9611-9904		●
405	BOLT; CABLE CLIP RLD GOVERNOR(SD7) M6X16 FLANGE	0-28080-616-0	02	1	9905-		●
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28080-616-0	02	1	9905-			●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9601-9610	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9611-9904	●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9905-		●	●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9601-9610	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9611-9904	●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-		●	●	●
409	SLEEVE ELECTRONIC GOV RED3(KG5) ID=6 L=30	5-09360-352-0	01	1	9611-9904	●
409	SLEEVE ELECTRONIC GOV RED3(KG5) ID=6 L=30	5-09360-352-0	01	1	9905-9910		●
409	SLEEVE ELECTRONIC GOV RED3(KG5) ID=6 OD=10 L=70	1-09376-512-0	01	1	9911-		●
410	CLIP; BAND ELECTRONIC GOV RED3(KG5) L=140	5-09707-031-1	01	1	9611-9904	●
410	CLIP; BAND ELECTRONIC GOV RED3(KG5) L=140	5-09707-031-1	01	1	9905-		●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9601-9610	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9905-		●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9611-9904	●	●
443	CLIP; CABLE (C) ID=6-10 & 6-10	1-09709-192-1	01	1	9601-9609	●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=6-10 & 6-10	1-09709-192-1	01	1	9611-9904	●
443	CLIP; CABLE (C) ID=6-10 & 6-10	1-09709-192-1	01	1	9611-9904		●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=6-10 & 6-10	1-09709-192-1	01	1	9905-		●
443	CLIP; CABLE (C) ID=6-10 & 6-10	1-09709-192-1	01	1	9905-			●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=9 L=20	9-09524-835-0	02	1	9611-9904	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=7 L=20	9-09524-635-0	02	1	9905-		●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-		●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9610-9904	●
759	WIRE; CONT,FUEL CUT ELECTRONIC GOV RED3(KG5) L=752	1-23230-026-1	01	1	9611-9904	●
759	WIRE; CONT,FUEL CUT ELECTRONIC GOV RED3(KG5) L=752	1-23230-026-1	01	1	9905-		●

42 42 446 42 42 443 446 447 447 446 446 447 447 24 23 439 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	BRACKET; FUEL CUT CABLE	1-14319-082-0	01	1	9601-9609	●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=10.8	1-14319-082-0	01	1	9610-9808	●
23	BRACKET; FUEL CUT CABLE ID=10.8	1-14319-082-0	01	1	9610-9808		●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=7.4	1-14319-138-0	01	1	9809-9904	●
23	BRACKET; FUEL CUT CABLE ID=7.4	1-14319-138-0	01	1	9809-9904		●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-14319-138-0	01	1	9905-		●
23	BRACKET; FUEL CUT CABLE	1-14319-138-0	01	1	9905-			●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5) 7D=10.8	1-14319-099-0	01	1	9610-9904	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	9905-		●
24	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	9601-9606	●
24	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	9607-9609	●
24	BOLT; BRKT EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	01	1	9611-9904	●
24	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	9611-9904		●
24	BOLT; BRKT EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	01	1	9905-		●
24	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	9905-			●	●
42	BOLT; BRKT,ENG CONT CABLE M8X20 FLANGE	0-28080-820-0	04	1	9601-9606	●
42	BOLT; BRKT,ENG CONT CABLE M8X25 FLANGE	0-28680-825-0	04	1	9607-9609	●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	04	1	9610-9904	●
42	BOLT; BRKT,ENG CONT CABLE M8X25 FLANGE	0-28680-825-0	04	1	9610-9904		●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	04	1	9905-		●
42	BOLT; BRKT,ENG CONT CABLE M8X25 FLANGE	0-28680-825-0	04	1	9905-			●	●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28080-820-0	02	1	9610-9904	●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28080-820-0	02	1	9905-		●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9601-9610	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9905-		●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9611-9904	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9601-9610	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9905-		●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9611-9904	●	●
443	CLIP; CABLE (C) ID=6-10 & 6-10	1-09709-192-1	01	1	9601-9609	●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=6-10 & 6-10	1-09709-192-1	01	1	9611-9904	●
443	CLIP; CABLE (C) ID=6-10 & 6-10	1-09709-192-1	01	1	9611-9904		●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=6-10 & 6-10	1-09709-192-1	01	1	9905-		●
443	CLIP; CABLE (C) ID=6-10 & 6-10	1-09709-192-1	01	1	9905-			●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=9 L=20	9-09524-835-0	02	1	9611-9904	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=7 L=20	9-09524-635-0	02	1	9905-		●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-		●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9610-9904	●
446	CLIP; ENG CONT (C) ID=7 L=28	9-09524-655-0	04	1	9601-9609	●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (C) ID=7 L=28	9-09524-655-0	04	1	9611-9904	●
446	CLIP; ENG CONT (C) ID=7 L=28	9-09524-655-0	04	1	9611-9904		●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (C) ID=7 L=28	9-09524-655-0	04	1	9905-		●
446	CLIP; ENG CONT (C) ID=7 L=28	9-09524-655-0	04	1	9905-			●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9611-9904	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (B) ID=11 H=20 L=20	9-09527-010-0	01	1	9905-0007		●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0008-		●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A) ID=13 L=20	9-09525-235-0	01	1	9611-9904	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	9-09525-035-0	01	1	9905-		●
447	NUT; BRKT,CONT WIRE M8	9-09110-408-0	04	1	9601-9601	●
447	NUT; BRKT,CONT WIRE M8	9-09110-508-0	04	1	9602-9606	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	04	1	9607-9609	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9611-9904	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9905-		●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	04	1	9611-9904	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	04	1	9611-9904		●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	04	1	9905-		●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	04	1	9905-			●	●

54 63 64 63 122 405 123 62 405 646 406 404 603 404 393 658 646 158 84 363 407 396 407 61 393 61 392 392 658 658 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	9601-9610	●
54	CABLE; ENG CONT EXC. EURO2 SPECIFICATION<THN> (A) L=1300	1-23230-132-0	01	1	9611-9904	●
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	9611-9904		●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (A) L=1300	1-23230-132-0	01	1	9905-		●
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	9905-			●	●
54	CABLE; ENG CONT (B) L=2836	1-73907-404-2	01	1	9601-9609	●
54	CABLE; ENG CONT (B) L=2836	1-73907-404-2	01	1	9609-9610	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (B) L=2836	1-73907-404-2	01	1	9611-9904	●
54	CABLE; ENG CONT (B) L=2836	1-73907-404-2	01	1	9611-9904		●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (B) L=2836	1-73907-404-2	01	1	9905-		●
54	CABLE; ENG CONT (B) L=2836	1-73907-404-2	01	1	9905-			●	●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	9611-9904	●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	9905-		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X25 FLANGE	0-28680-825-0	02	1	9607-9609	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	9610-9904	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X25 FLANGE	0-28680-825-0	02	1	9610-9904		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	9905-		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X25 FLANGE	0-28680-825-0	02	1	9905-			●	●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9601-9610	●
62	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) L=30	1-09700-326-0	01	1	9611-9904	●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9611-9904		●
62	CLIP; ENG CONT CABLE RLD GOVERNOR(SD7) L=30	1-09700-326-0	01	1	9905-		●	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	01	1	9601-9609	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	01	1	9608-9610	●
63	NUT; LOCK,BRKT EXC. ELECTRONIC GOV RED3(KG5) M8	9-09111-408-0	01	1	9611-9904	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	01	1	9611-9904		●
63	NUT; LOCK,BRKT RLD GOVERNOR(SD7) M8	9-09111-408-0	01	1	9905-		●
63	NUT; LOCK,BRKT M8	9-09111-408-0	01	1	9905-			●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9601-9610	●
63	NUT; LOCK,BRKT EXC. ELECTRONIC GOV RED3(KG5) M8	9-09111-408-0	02	1	9611-9904	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9611-9904		●
63	NUT; LOCK,BRKT RLD GOVERNOR(SD7) M8	9-09111-408-0	02	1	9905-		●	●	●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	9611-9904	●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	9905-		●
64	BRACKET; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (A)	1-23219-105-1	01	1	9611-9904	●
64	BRACKET; ENG CONT CABLE (A)	1-23219-105-1	01	1	9611-9904		●
64	BRACKET; ENG CONT CABLE (A)	1-23219-105-1	01	1	9601-9610	●
64	BRACKET; ENG CONT CABLE RLD GOVERNOR(SD7) (A)	1-23219-105-1	01	1	9905-		●
64	BRACKET; ENG CONT CABLE (A)	1-23219-105-1	01	1	9905-			●	●
84	NUT; ENG CONT LEVER M8	9-09110-508-0	01	1	9601-9606	●
84	NUT; ENG CONT LEVER M8 FLANGE	0-91150-108-0	01	1	9607-9609	●
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9610-9904	●
84	NUT; ENG CONT LEVER M8 FLANGE	0-91150-108-0	01	1	9610-9904		●
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9905-		●
84	NUT; ENG CONT LEVER M8 FLANGE	0-91150-108-0	01	1	9905-			●	●
122	WASHER; PL,CABLE ID=8.4	9-09160-508-0	01	1	9601-9610	●
122	WASHER; PL,CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=8.4	9-09160-508-0	01	1	9611-9904	●
122	WASHER; PL,CABLE ID=8.4	9-09160-508-0	01	1	9611-9904		●
122	WASHER; PL,CABLE RLD GOVERNOR(SD7) ID=8.4	9-09160-508-0	01	1	9905-		●
122	WASHER; PL,CABLE ID=8.4	9-09160-508-0	01	1	9905-			●	●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	9611-9611	●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	9612-9904	●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	9905-		●
123	PIN; SNAP,CABLE L=27.7	1-09747-005-0	01	1	9601-9610	●
123	PIN; SNAP,CABLE EXC. ELECTRONIC GOV RED3(KG5) L=27.7	1-09747-005-0	01	1	9611-9904	●
123	PIN; SNAP,CABLE L=27.7	1-09747-005-0	01	1	9611-9904		●
123	PIN; SNAP,CABLE RLD GOVERNOR(SD7) L=27.7	1-09747-005-0	01	1	9905-		●
123	PIN; SNAP,CABLE L=27.7	1-09747-005-0	01	1	9905-			●	●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	9611-9611	●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	9612-9904	●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	9905-		●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9607-9610	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9611-9904	●	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9905-		●	●	●
363	SPACER; BRKT,ENG CONT SHAFT	1-47477-804-1	01	1	9606-9609	●
363	SPACER; BRKT,ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5)	1-47477-804-3	01	1	9610-9904	●
363	SPACER; BRKT,ENG CONT SHAFT	1-47477-804-3	01	1	9610-9904		●
363	SPACER; BRKT,ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5)	1-47477-804-3	01	1	9905-		●
363	SPACER; BRKT,ENG CONT SHAFT	1-47477-804-3	01	1	9905-			●	●
392	CLIP; ACCEL CONT CABLE (B) ID=9 L=20	9-09524-835-0	01	1	9601-9606	●
392	CLIP; ACCEL CONT CABLE (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9607-9609	●
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9610-9904	●
392	CLIP; ACCEL CONT CABLE (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9610-9904		●
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9905-		●
392	CLIP; ACCEL CONT CABLE (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9905-			●	●
392	CLIP; ACCEL CONT CABLE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9602-9606	●
392	CLIP; ACCEL CONT CABLE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9607-9609	●
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9610-9904	●
392	CLIP; ACCEL CONT CABLE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9610-9904		●
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-		●
392	CLIP; ACCEL CONT CABLE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-			●	●
392	CLIP; ACCEL CONT CABLE (A) ID=11 L=20	9-09525-035-0	01	1	9607-9609	●
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	9-09525-035-0	01	1	9610-9904	●
392	CLIP; ACCEL CONT CABLE (A) ID=11 L=20	9-09525-035-0	01	1	9610-9904		●
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	9-09525-035-0	01	1	9905-		●
392	CLIP; ACCEL CONT CABLE (A) ID=11 L=20	9-09525-035-0	01	1	9905-			●	●
393	NUT; CLIP TO FRAME M8 FLANGE	0-91150-208-0	02	1	9601-9606	●
393	NUT; CLIP TO FRAME M8 FLANGE	0-91150-108-0	02	1	9607-9609	●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9610-9904	●
393	NUT; CLIP TO FRAME M8 FLANGE	0-91150-108-0	02	1	9610-9904		●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9905-		●
393	NUT; CLIP TO FRAME M8 FLANGE	0-91150-108-0	02	1	9905-			●	●
396	BRACKET; CLIP	1-47477-805-0	01	1	9607-9610	●
396	BRACKET; CLIP	1-47477-805-0	01	1	9611-9710	●	●
396	BRACKET; CLIP	1-47478-055-0	01	1	9711-9904	●	●
396	BRACKET; CLIP	1-47478-055-0	01	1	9905-		●	●	●
404	CLIP; CABLE (A)	1-14319-082-0	01	1	9601-9610	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (A)	1-14319-082-0	01	1	9611-9612	●
404	CLIP; CABLE (A)	1-14319-082-0	01	1	9611-9612		●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (A)	1-14319-113-0	01	1	9701-9710	●
404	CLIP; CABLE (A)	1-14319-113-0	01	1	9701-9710		●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (C)	1-14319-111-0	02	1	9611-9611	●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (C)	1-14319-111-0	02	1	9612-9612	●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (C)	1-14319-111-0	01	1	9701-9904	●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (D) ID=9 L=40	9-09524-875-0	01	1	9611-9611	●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (D) ID=9 L=40	9-09524-875-0	01	1	9612-9904	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=11 L=20	9-09525-035-0	02	1	9601-9705	●
404	CLIP; CABLE (B) ID=11 L=20	9-09525-035-0	02	1	9601-9705		●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=11 L=20	9-09525-035-0	01	1	9706-9904	●
404	CLIP; CABLE (B) ID=11 L=20	9-09525-035-0	01	1	9706-9904		●
404	CLIP; CABLE (C)	1-14319-111-0	01	1	9905-		●	●	●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (C)	1-14319-111-0	01	1	9905-		●
404	CLIP; CABLE (D) ID=9 L=40	9-09524-875-0	01	1	9905-		●	●	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (D) ID=9 L=40	9-09524-875-0	01	1	9905-		●	●	●
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28080-616-0	02	1	9601-9610	●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) M6X16 FLANGE	0-28080-616-0	02	1	9611-9904	●
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28080-616-0	02	1	9611-9904		●
405	BOLT; CABLE CLIP RLD GOVERNOR(SD7) M6X16 FLANGE	0-28080-616-0	02	1	9905-		●
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28080-616-0	02	1	9905-			●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9601-9610	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9611-9904	●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9905-		●	●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9601-9610	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9611-9904	●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9905-		●	●	●
407	BOLT; CLIP TO ENG M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
407	BOLT; CLIP TO ENG M8X25 FLANGE	0-28680-825-0	02	1	9607-9609	●
407	BOLT; CLIP TO ENG EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	9611-9904	●
407	BOLT; CLIP TO ENG EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	9905-		●
407	BOLT; CLIP TO ENG M8X25 FLANGE	0-28680-825-0	02	1	9905-			●	●
603	BRACKET; ENG CONT SHAFT	1-14319-119-0	01	1	9601-9605	●
603	BRACKET; ENG CONT SHAFT	1-14319-082-0	01	1	9606-9609	●
603	BRACKET; ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5)	1-14319-082-0	01	1	9611-9701	●
603	BRACKET; ENG CONT SHAFT	1-14319-082-0	01	1	9611-9701		●
603	BRACKET; ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5) ID=10.8	1-14319-099-0	01	1	9702-9808	●
603	BRACKET; ENG CONT SHAFT ID=10.8	1-14319-099-0	01	1	9702-9808		●
603	BRACKET; ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5) ID=7.4	1-14319-140-0	01	1	9809-9904	●
603	BRACKET; ENG CONT SHAFT ID=7.4	1-14319-140-0	01	1	9809-9904		●
603	BRACKET; ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5)	1-14319-140-0	01	1	9905-		●
603	BRACKET; ENG CONT SHAFT	1-14319-140-0	01	1	9905-			●	●
646	NUT; BRKT,LEVER M8 FLANGE	0-91150-208-0	02	1	9601-9606	●
646	NUT; BRKT,LEVER M8 FLANGE	0-91150-108-0	02	1	9607-9609	●
646	NUT; BRKT,LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9611-9904	●
646	NUT; BRKT,LEVER M8 FLANGE	0-91150-108-0	02	1	9611-9904		●
646	NUT; BRKT,LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9905-		●
646	NUT; BRKT,LEVER M8 FLANGE	0-91150-108-0	02	1	9905-			●	●
658	CLIP; ENG CONT CABLE (A) ID=9 H=20 L=50	1-09700-084-0	01	1	9601-9601	●
658	CLIP; ENG CONT CABLE (A) ID=7 L=20	9-09524-635-0	02	1	9602-9609	●
658	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (A) ID=7 L=20	9-09524-635-0	02	1	9611-9904	●
658	CLIP; ENG CONT CABLE (A) ID=7 L=20	9-09524-635-0	02	1	9611-9904		●
658	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (A) ID=7 L=20	9-09524-635-0	02	1	9905-		●
658	CLIP; ENG CONT CABLE (A) ID=7 L=20	9-09524-635-0	02	1	9905-			●	●
658	CLIP; ENG CONT CABLE (B) ID=9 L=20	9-09524-835-0	02	1	9601-9601	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
