◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-87A - COUPLING; INJECTION PUMP ▶

0-87A — COUPLING; INJECTION PUMP (#4780) — 159 parça

14 6 20 13 10 9 2 5 1 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COUPLING; INJ PUMP DRIVE	1-15782-021-0	01	1	9601-9610	●
1	COUPLING; INJ PUMP DRIVE HONG KONG EQUIPMENT(PQ1) EXC. EURO2 SPECIFICATION<THN>	1-15782-021-0	01	1	9611-9904	●
1	COUPLING; INJ PUMP DRIVE EXC. HONG KONG EQUIPMENT(PQ1)	1-15782-021-0	01	1	9611-9904	●
1	COUPLING; INJ PUMP DRIVE	1-15782-021-0	01	1	9611-9904		●
1	COUPLING; INJ PUMP DRIVE	1-15782-021-0	01	1	9905-			●	●
1	COUPLING; INJ PUMP DRIVE HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN>	1-15782-020-0	01	1	9611-9904	●
1	COUPLING; INJ PUMP DRIVE	1-15782-020-0	01	1	9905-		●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-162-0	01	1	9601-9610	●
2	BOLT; COUPLING FIX,INJ PUMP HONG KONG EQUIPMENT(PQ1) EXC. EURO2 SPECIFICATION<THN>	1-15789-162-0	01	1	9611-9904	●
2	BOLT; COUPLING FIX,INJ PUMP EXC. HONG KONG EQUIPMENT(PQ1)	1-15789-162-0	01	1	9611-9904	●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-162-0	01	1	9611-9904		●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-162-0	01	1	9905-			●	●
2	BOLT; COUPLING FIX,INJ PUMP HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN>	1-15789-177-0	01	1	9611-9904	●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-177-0	01	1	9905-		●
5	WASHER; COUPLING FIX,INJ PUMP	1-15789-021-0	01	1	9601-9610	●
5	WASHER; COUPLING FIX,INJ PUMP HONG KONG EQUIPMENT(PQ1) EXC. EURO2 SPECIFICATION<THN>	1-15789-021-0	01	1	9611-9904	●
5	WASHER; COUPLING FIX,INJ PUMP EXC. HONG KONG EQUIPMENT(PQ1)	1-15789-021-0	01	1	9611-9904	●
5	WASHER; COUPLING FIX,INJ PUMP	1-15789-021-0	01	1	9611-9904		●
5	WASHER; COUPLING FIX,INJ PUMP	1-15789-021-0	01	1	9905-			●	●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-223-0	01	1	9905-			●	●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-180-0	01	1	9601-9610	●
6	COUPLING; CROSS,INJ PUMP DRIVE HONG KONG EQUIPMENT(PQ1) EXC. EURO2 SPECIFICATION<THN>	1-15789-180-0	01	1	9611-9904	●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. HONG KONG EQUIPMENT(PQ1)	1-15789-180-0	01	1	9611-9904	●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-180-0	01	1	9611-9904		●
6	COUPLING; CROSS,INJ PUMP DRIVE HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN>	1-15789-176-0	01	1	9611-9904	●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-176-0	01	1	9905-		●
7	PLATE; COUPLING,COUPLING SIDE	1-15619-181-0	01	1	9601-9610	●
7	PLATE; COUPLING,COUPLING SIDE HONG KONG EQUIPMENT(PQ1) EXC. EURO2 SPECIFICATION<THN>	1-15619-181-0	01	1	9611-9904	●
7	PLATE; COUPLING,COUPLING SIDE EXC. HONG KONG EQUIPMENT(PQ1)	1-15619-181-0	01	1	9611-9904	●
7	PLATE; COUPLING,COUPLING SIDE	1-15619-181-0	01	1	9611-9904		●
7	PLATE; COUPLING,COUPLING SIDE	1-15619-181-0	01	1	9905-			●	●
7	PLATE; COUPLING,COUPLING SIDE HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN>	1-15789-173-0	01	1	9611-9904	●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-173-0	01	1	9905-		●
8	BOLT; PLATE TO CROSS COUPLING	1-15619-183-0	02	1	9601-9610	●
8	BOLT; PLATE TO CROSS COUPLING HONG KONG EQUIPMENT(PQ1) EXC. EURO2 SPECIFICATION<THN>	1-15619-183-0	02	1	9611-9904	●
8	BOLT; PLATE TO CROSS COUPLING EXC. HONG KONG EQUIPMENT(PQ1)	1-15619-183-0	02	1	9611-9904	●
8	BOLT; PLATE TO CROSS COUPLING	1-15619-183-0	02	1	9611-9904		●
8	BOLT; PLATE TO CROSS COUPLING	1-15619-183-0	02	1	9905-			●	●
8	BOLT; PLATE TO CROSS COUPLING HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN>	1-15789-175-0	02	1	9611-9904	●
8	BOLT; PLATE TO CROSS COUPLING	1-15789-175-0	02	1	9905-		●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-163-0	02	1	9601-9610	●
9	BOLT; PLATE TO COUPLING,INJ PUMP HONG KONG EQUIPMENT(PQ1) EXC. EURO2 SPECIFICATION<THN>	1-15789-163-0	02	1	9611-9904	●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. HONG KONG EQUIPMENT(PQ1)	1-15789-163-0	02	1	9611-9904	●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-163-0	02	1	9611-9904		●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-163-0	02	1	9905-			●	●
9	BOLT; PLATE TO COUPLING,INJ PUMP HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN>	1-15789-172-0	02	1	9611-9904	●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-172-0	02	1	9905-		●
10	NUT; PLATE TO COUPLING,INJ PUMP	1-15789-179-0	02	1	9601-9610	●
10	NUT; PLATE TO COUPLING,INJ PUMP HONG KONG EQUIPMENT(PQ1) EXC. EURO2 SPECIFICATION<THN>	1-15789-179-0	02	1	9611-9904	●
10	NUT; PLATE TO COUPLING,INJ PUMP EXC. HONG KONG EQUIPMENT(PQ1)	1-15789-179-0	02	1	9611-9904	●
10	NUT; PLATE TO COUPLING,INJ PUMP	1-15789-179-0	02	1	9611-9904		●
10	NUT; PLATE TO COUPLING,INJ PUMP	1-15789-179-0	02	1	9905-			●	●
10	NUT; PLATE TO COUPLING,INJ PUMP HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN>	1-15789-174-0	02	1	9611-9904	●
10	NUT; PLATE TO COUPLING,INJ PUMP	1-15789-174-0	02	1	9905-		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-096-0	01	1	9601-9610	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP HONG KONG EQUIPMENT(PQ1) EXC. EURO2 SPECIFICATION<THN>	1-15789-096-0	01	1	9611-9904	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. HONG KONG EQUIPMENT(PQ1)	1-15789-096-0	01	1	9611-9904	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-096-0	01	1	9611-9904		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-096-0	01	1	9905-			●	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN>	1-15789-173-0	01	1	9611-9904	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-173-0	01	1	9905-		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-098-0	02	1	9601-9610	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI HONG KONG EQUIPMENT(PQ1) EXC. EURO2 SPECIFICATION<THN>	1-15789-098-0	02	1	9611-9904	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. HONG KONG EQUIPMENT(PQ1)	1-15789-098-0	02	1	9611-9904	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-098-0	02	1	9611-9904		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-098-0	02	1	9905-			●	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN>	1-15789-175-0	02	1	9611-9904	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-175-0	02	1	9905-		●
20	BOLT; COUPLING TO INJ PUMP	1-15789-043-0	02	1	9601-9610	●
20	BOLT; COUPLING TO INJ PUMP HONG KONG EQUIPMENT(PQ1) EXC. EURO2 SPECIFICATION<THN>	1-15789-043-0	02	1	9611-9904	●
20	BOLT; COUPLING TO INJ PUMP EXC. HONG KONG EQUIPMENT(PQ1)	1-15789-043-0	02	1	9611-9904	●
20	BOLT; COUPLING TO INJ PUMP	1-15789-043-0	02	1	9611-9904		●
20	BOLT; COUPLING TO INJ PUMP	1-15789-043-0	02	1	9905-			●	●
20	BOLT; COUPLING TO INJ PUMP HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN>	1-15789-175-0	02	1	9611-9904	●
20	BOLT; COUPLING TO INJ PUMP	1-15789-175-0	02	1	9905-		●

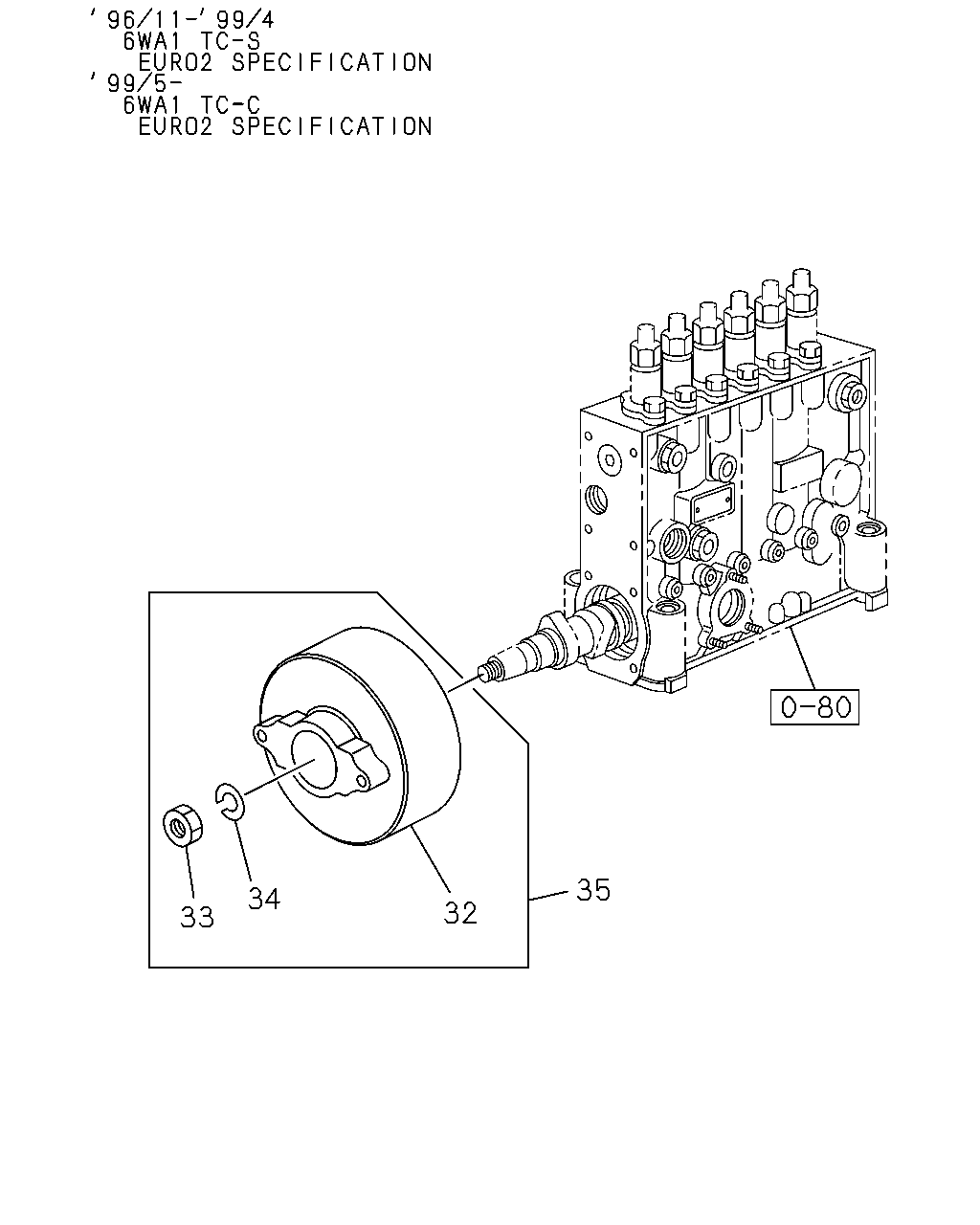

6 35 34 32 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-223-0	01	1	9905-			●	●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-180-0	01	1	9601-9610	●
6	COUPLING; CROSS,INJ PUMP DRIVE HONG KONG EQUIPMENT(PQ1) EXC. EURO2 SPECIFICATION<THN>	1-15789-180-0	01	1	9611-9904	●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. HONG KONG EQUIPMENT(PQ1)	1-15789-180-0	01	1	9611-9904	●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-180-0	01	1	9611-9904		●
6	COUPLING; CROSS,INJ PUMP DRIVE HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN>	1-15789-176-0	01	1	9611-9904	●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-176-0	01	1	9905-		●
32	DAMPER; INJ PUMP EURO2 SPECIFICATION<THN>	1-15744-005-1	01	1	9611-9904	●
33	NUT; DAMPER EURO2 SPECIFICATION<THN>	1-19179-020-0	01	1	9611-9904	●
33	NUT; DAMPER EURO2 SPECIFICATION<THN>	1-19179-020-0	01	1	9905-		●
34	WASHER; DAMPER EURO2 SPECIFICATION<THN>	1-19179-002-0	01	1	9611-9904	●
34	WASHER; DAMPER EURO2 SPECIFICATION<THN>	1-19179-002-0	01	1	9905-		●
35	DAMPER ASM; INJ PUMP EURO2 SPECIFICATION<THN>	1-15744-007-1	01	1	9611-9904	●
35	DAMPER ASM; INJ PUMP EURO2 SPECIFICATION<THN>	1-15744-007-1	01	1	9905-		●

14 6 20 13 10 9 2 1 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COUPLING; INJ PUMP DRIVE	1-15782-021-0	01	1	9601-9610	●
1	COUPLING; INJ PUMP DRIVE HONG KONG EQUIPMENT(PQ1) EXC. EURO2 SPECIFICATION<THN>	1-15782-021-0	01	1	9611-9904	●
1	COUPLING; INJ PUMP DRIVE EXC. HONG KONG EQUIPMENT(PQ1)	1-15782-021-0	01	1	9611-9904	●
1	COUPLING; INJ PUMP DRIVE	1-15782-021-0	01	1	9611-9904		●
1	COUPLING; INJ PUMP DRIVE	1-15782-021-0	01	1	9905-			●	●
1	COUPLING; INJ PUMP DRIVE HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN>	1-15782-020-0	01	1	9611-9904	●
1	COUPLING; INJ PUMP DRIVE	1-15782-020-0	01	1	9905-		●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-162-0	01	1	9601-9610	●
2	BOLT; COUPLING FIX,INJ PUMP HONG KONG EQUIPMENT(PQ1) EXC. EURO2 SPECIFICATION<THN>	1-15789-162-0	01	1	9611-9904	●
2	BOLT; COUPLING FIX,INJ PUMP EXC. HONG KONG EQUIPMENT(PQ1)	1-15789-162-0	01	1	9611-9904	●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-162-0	01	1	9611-9904		●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-162-0	01	1	9905-			●	●
2	BOLT; COUPLING FIX,INJ PUMP HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN>	1-15789-177-0	01	1	9611-9904	●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-177-0	01	1	9905-		●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-223-0	01	1	9905-			●	●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-180-0	01	1	9601-9610	●
6	COUPLING; CROSS,INJ PUMP DRIVE HONG KONG EQUIPMENT(PQ1) EXC. EURO2 SPECIFICATION<THN>	1-15789-180-0	01	1	9611-9904	●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. HONG KONG EQUIPMENT(PQ1)	1-15789-180-0	01	1	9611-9904	●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-180-0	01	1	9611-9904		●
6	COUPLING; CROSS,INJ PUMP DRIVE HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN>	1-15789-176-0	01	1	9611-9904	●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-176-0	01	1	9905-		●
7	PLATE; COUPLING,COUPLING SIDE	1-15619-181-0	01	1	9601-9610	●
7	PLATE; COUPLING,COUPLING SIDE HONG KONG EQUIPMENT(PQ1) EXC. EURO2 SPECIFICATION<THN>	1-15619-181-0	01	1	9611-9904	●
7	PLATE; COUPLING,COUPLING SIDE EXC. HONG KONG EQUIPMENT(PQ1)	1-15619-181-0	01	1	9611-9904	●
7	PLATE; COUPLING,COUPLING SIDE	1-15619-181-0	01	1	9611-9904		●
7	PLATE; COUPLING,COUPLING SIDE	1-15619-181-0	01	1	9905-			●	●
7	PLATE; COUPLING,COUPLING SIDE HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN>	1-15789-173-0	01	1	9611-9904	●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-173-0	01	1	9905-		●
8	BOLT; PLATE TO CROSS COUPLING	1-15619-183-0	02	1	9601-9610	●
8	BOLT; PLATE TO CROSS COUPLING HONG KONG EQUIPMENT(PQ1) EXC. EURO2 SPECIFICATION<THN>	1-15619-183-0	02	1	9611-9904	●
8	BOLT; PLATE TO CROSS COUPLING EXC. HONG KONG EQUIPMENT(PQ1)	1-15619-183-0	02	1	9611-9904	●
8	BOLT; PLATE TO CROSS COUPLING	1-15619-183-0	02	1	9611-9904		●
8	BOLT; PLATE TO CROSS COUPLING	1-15619-183-0	02	1	9905-			●	●
8	BOLT; PLATE TO CROSS COUPLING HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN>	1-15789-175-0	02	1	9611-9904	●
8	BOLT; PLATE TO CROSS COUPLING	1-15789-175-0	02	1	9905-		●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-163-0	02	1	9601-9610	●
9	BOLT; PLATE TO COUPLING,INJ PUMP HONG KONG EQUIPMENT(PQ1) EXC. EURO2 SPECIFICATION<THN>	1-15789-163-0	02	1	9611-9904	●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. HONG KONG EQUIPMENT(PQ1)	1-15789-163-0	02	1	9611-9904	●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-163-0	02	1	9611-9904		●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-163-0	02	1	9905-			●	●
9	BOLT; PLATE TO COUPLING,INJ PUMP HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN>	1-15789-172-0	02	1	9611-9904	●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-172-0	02	1	9905-		●
10	NUT; PLATE TO COUPLING,INJ PUMP	1-15789-179-0	02	1	9601-9610	●
10	NUT; PLATE TO COUPLING,INJ PUMP HONG KONG EQUIPMENT(PQ1) EXC. EURO2 SPECIFICATION<THN>	1-15789-179-0	02	1	9611-9904	●
10	NUT; PLATE TO COUPLING,INJ PUMP EXC. HONG KONG EQUIPMENT(PQ1)	1-15789-179-0	02	1	9611-9904	●
10	NUT; PLATE TO COUPLING,INJ PUMP	1-15789-179-0	02	1	9611-9904		●
10	NUT; PLATE TO COUPLING,INJ PUMP	1-15789-179-0	02	1	9905-			●	●
10	NUT; PLATE TO COUPLING,INJ PUMP HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN>	1-15789-174-0	02	1	9611-9904	●
10	NUT; PLATE TO COUPLING,INJ PUMP	1-15789-174-0	02	1	9905-		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-096-0	01	1	9601-9610	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP HONG KONG EQUIPMENT(PQ1) EXC. EURO2 SPECIFICATION<THN>	1-15789-096-0	01	1	9611-9904	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. HONG KONG EQUIPMENT(PQ1)	1-15789-096-0	01	1	9611-9904	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-096-0	01	1	9611-9904		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-096-0	01	1	9905-			●	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN>	1-15789-173-0	01	1	9611-9904	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-173-0	01	1	9905-		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-098-0	02	1	9601-9610	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI HONG KONG EQUIPMENT(PQ1) EXC. EURO2 SPECIFICATION<THN>	1-15789-098-0	02	1	9611-9904	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. HONG KONG EQUIPMENT(PQ1)	1-15789-098-0	02	1	9611-9904	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-098-0	02	1	9611-9904		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-098-0	02	1	9905-			●	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN>	1-15789-175-0	02	1	9611-9904	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-175-0	02	1	9905-		●
20	BOLT; COUPLING TO INJ PUMP	1-15789-043-0	02	1	9601-9610	●
20	BOLT; COUPLING TO INJ PUMP HONG KONG EQUIPMENT(PQ1) EXC. EURO2 SPECIFICATION<THN>	1-15789-043-0	02	1	9611-9904	●
20	BOLT; COUPLING TO INJ PUMP EXC. HONG KONG EQUIPMENT(PQ1)	1-15789-043-0	02	1	9611-9904	●
20	BOLT; COUPLING TO INJ PUMP	1-15789-043-0	02	1	9611-9904		●
20	BOLT; COUPLING TO INJ PUMP	1-15789-043-0	02	1	9905-			●	●
20	BOLT; COUPLING TO INJ PUMP HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN>	1-15789-175-0	02	1	9611-9904	●
20	BOLT; COUPLING TO INJ PUMP	1-15789-175-0	02	1	9905-		●
