◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#47797) — 263 parça

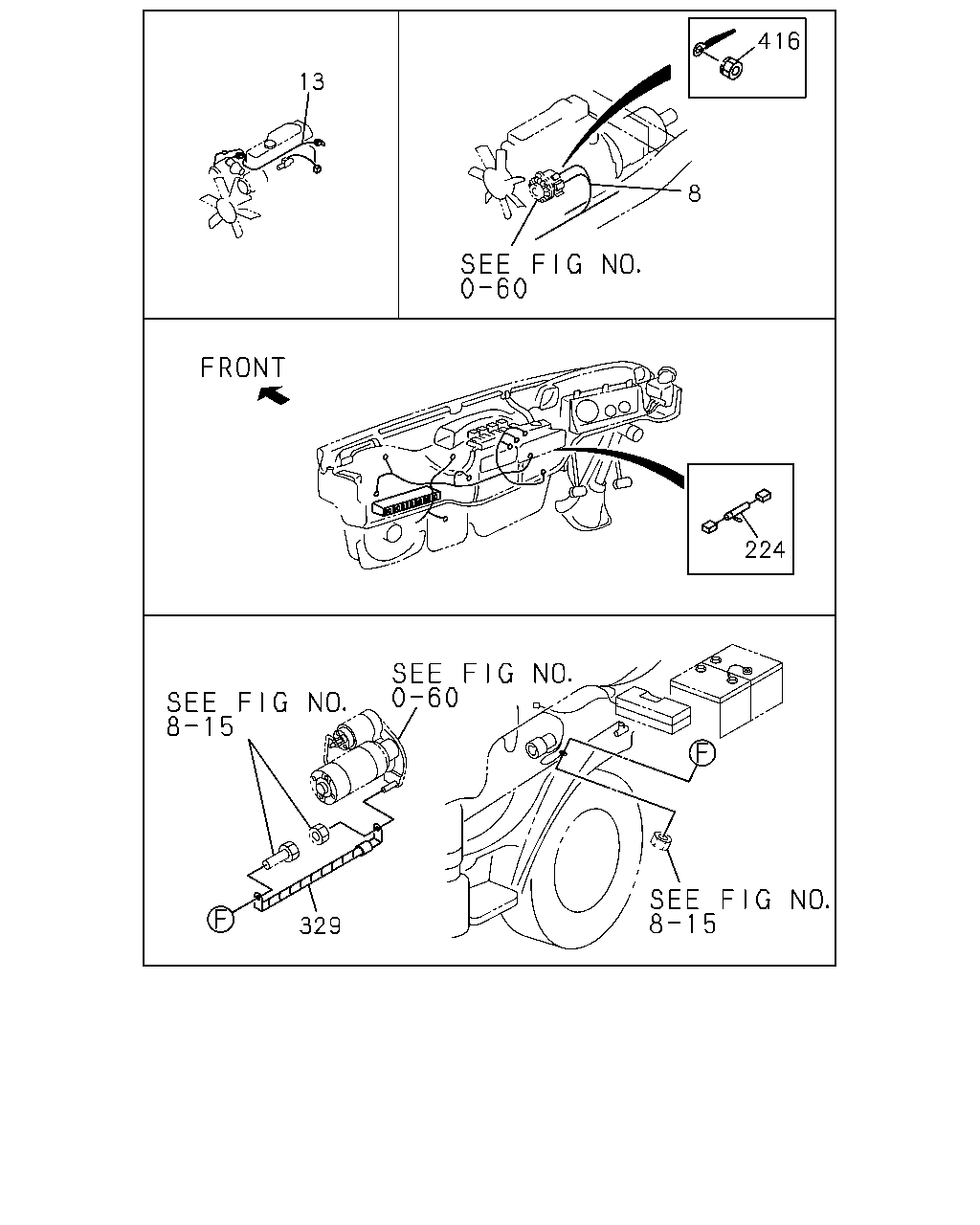

çizim 17131
416 13 8 224 329
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97134-395-0 01 1 9507-9510 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97134-396-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97188-711-2 01 1 9712- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97106-611-1 01 1 9312-9510 ● ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97131-762-0 01 1 9511-9711 ● ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97188-698-1 01 1 9712- ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) THAILAND EQUIPMENT(PM9),WEST MALAYSIAEQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97106-619-2 01 1 9312-9405 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) THAILAND EQUIPMENT(PM9),WEST MALAYSIAEQUIPMENT(RWP) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97116-368-0 01 1 9406-9505 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) THAILAND EQUIPMENT(PM9),WEST MALAYSIAEQUIPMENT(RWP) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-691-0 01 1 9506-9510 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) THAILAND EQUIPMENT(PM9),WEST MALAYSIAEQUIPMENT(RWP) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97131-774-0 01 1 9511-9711 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97188-697-1 01 1 9712- ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPM ENT(S4S),FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 		8-97106-617-2 01 1 9312-9402 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPM ENT(S4S),REFRIGERATOR CHASSIS(V4R), FRT INDEPENDENT SUSPENSION(6PP),FRAME-K ICK UP<7EW> 		8-97106-617-2 01 1 9403-9505 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPM ENT(S4S),REFRIGERATOR CHASSIS(V4R), FRT INDEPENDENT SUSPENSION(6PP),FRAME-K ICK UP<7EW> 		8-97122-681-0 01 1 9506-9510 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPM ENT(S4S),REFRIGERATOR CHASSIS(V4R), FRT INDEPENDENT SUSPENSION(6PP),FRAME-K ICK UP<7EW> 		8-97131-770-0 01 1 9511-9711 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. THAILAND EQUIPMENT(PM9), INDONESIA EQUIPMENT(S4S),FRT INDEPENDENT SUSP ENSION(6PP),FRAME-KICK UP<7EW> 		8-97188-714-1 01 1 9712- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. THAILAND EQUIPMENT(PM9) 		8-97106-622-1 01 1 9312-9505 ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. THAILAND EQUIPMENT(PM9) 		8-97122-685-0 01 1 9506-9510 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 		8-97131-764-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 		8-97188-701-0 01 1 9712- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97106-613-0 01 1 9312-9510 ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97131-768-0 01 1 9511-9606 ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97131-768-0 01 1 9607-9711 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97188-703-1 01 1 9712- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> EXC. THAILAND EQUIPMENT(PM9) 		8-97106-620-0 01 1 9312-9505 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> EXC. THAILAND EQUIPMENT(PM9) 		8-97122-683-0 01 1 9506-9510 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> EXC. THAILAND EQUIPMENT(PM9) 		8-97131-776-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> EXC. THAILAND EQUIPMENT(PM9) 		8-97188-712-1 01 1 9712- ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) EXC. FRAME-KICK UP<7EW> 		8-97113-176-0 01 1 9403-9505 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) EXC. FRAME-KICK UP<7EW> 		8-97122-688-0 01 1 9506-9510 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) EXC. FRAME-KICK UP<7EW> 		8-97131-772-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) REAR WIDE TREAD(V4T) 		8-97162-354-0 01 1 9607-9711 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) REAR WIDE TREAD(V4T) 		8-97188-704-1 01 1 9712- ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) INDONESIA EQUIPMENT(S4S) 		8-97116-369-0 01 1 9406-9505 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) INDONESIA EQUIPMENT(S4S) 		8-97122-692-0 01 1 9506-9510 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) INDONESIA EQUIPMENT(S4S) 		8-97131-775-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) INDONESIA EQUIPMENT(S4S) 		8-97188-716-1 01 1 9712- ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) 		8-97106-623-1 01 1 9312-9510 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) 		8-97131-778-0 01 1 9511-9711 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) 		8-97188-706-1 01 1 9712- ● ● ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) 		8-97121-892-0 01 1 9507-9510 ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) 		8-97121-892-1 01 1 9511-9606 ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) 		8-97121-892-2 01 1 9607-9711 ● ● ● ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) 		8-97173-696-1 01 1 9712- ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) EXC. THAILAND EQUIPMENT(PM9) 		8-97070-755-2 01 1 9312-9410 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) EXC. THAILAND EQUIPMENT(PM9) 		8-97121-894-0 01 1 9411-9711 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) EXC. THAILAND EQUIPMENT(PM9) 		8-97173-694-1 01 1 9712- ● ● ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) EXC. FAST GLOW SYSTEM<KM6> 		8-97170-517-1 01 1 9712- ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) THAILAND EQUIPMENT(PM9) 		8-97092-914-2 01 1 9312-9406 ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) THAILAND EQUIPMENT(PM9) 		8-97092-914-2 01 1 9407-9410 ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) THAILAND EQUIPMENT(PM9) 		8-97121-895-0 01 1 9411-9510 ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) THAILAND EQUIPMENT(PM9) 		8-97121-895-0 01 1 9511-9707 ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) THAILAND EQUIPMENT(PM9) 		8-97184-155-0 01 1 9708-9711 ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) THAILAND EQUIPMENT(PM9) 		8-97173-695-2 01 1 9712- ● ● ●
13 02.525 HARNESS; ENG
4BE1 ENG(RLH) 		8-97066-583-3 01 1 9312-9510 ● ● ● ● ●
13 02.525 HARNESS; ENG
4BE1 ENG(RLH) 		8-97131-761-0 01 1 9511-9711 ● ● ● ● ●
13 02.525 HARNESS; ENG
4BE1 ENG(RLH) 		8-97131-761-0 01 1 9712- ● ● ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) 		8-97061-733-3 01 1 9312-9510 ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) 		8-97131-758-1 01 1 9511-9711 ● ●
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) FAST GLOW SYSTEM<KM6> 		8-97170-515-1 01 1 9712- ● ● ● ●
224 02.480 HARNESS; EXT,HEADLAMP
ADJUST HEADLAMP<6RC> 		8-97113-544-0 01 1 9507- ●
329 02.480 CABLE; ENG TO FRAME
4JB1 ENG(RLF) 		8-94375-342-2 01 1 9312-9506 ● ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94375-342-2 01 1 9507-9809 ● ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97213-192-0 01 1 9810- ● ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4BE1 ENG(RLH) 		8-94374-723-2 01 1 9312-9711 ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4BE1 ENG(RLH) 		8-94374-723-2 01 1 9712- ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HF1 ENG(RLS) 		8-97102-850-0 01 1 9312-9406 ●
329 02.480 CABLE; ENG TO FRAME
4HF1 ENG(RLS) 		8-97116-105-0 01 1 9407-9510 ●
329 02.480 CABLE; ENG TO FRAME
4HF1 ENG(RLS) 		8-97116-105-0 01 1 9511-9711 ● ●
329 02.480 CABLE; ENG TO FRAME
4HF1 ENG(RLS) 		8-97116-105-0 01 1 9712-9801 ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HF1 ENG(RLS) 		8-97177-383-0 01 1 9802- ● ● ● ●
416 02.559 NUT; TERMINAL
4BE1 ENG(RLH) EXC. REFRIGERATOR CHASSIS(V4R) M5 W/LK WASHER 		8-94424-178-0 01 1 9312-9711 ● ● ● ● ●
416 02.559 NUT; TERMINAL
4BE1 ENG(RLH) M5 W/LK WASHER 		8-94424-178-0 01 1 9712- ● ● ● ●
416 02.559 NUT; TERMINAL
4HF1 ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9312-9510 ●
416 02.559 NUT; TERMINAL
4HF1 ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9511-9711 ● ●
416 02.559 NUT; TERMINAL
4HF1 ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9712- ● ● ● ●

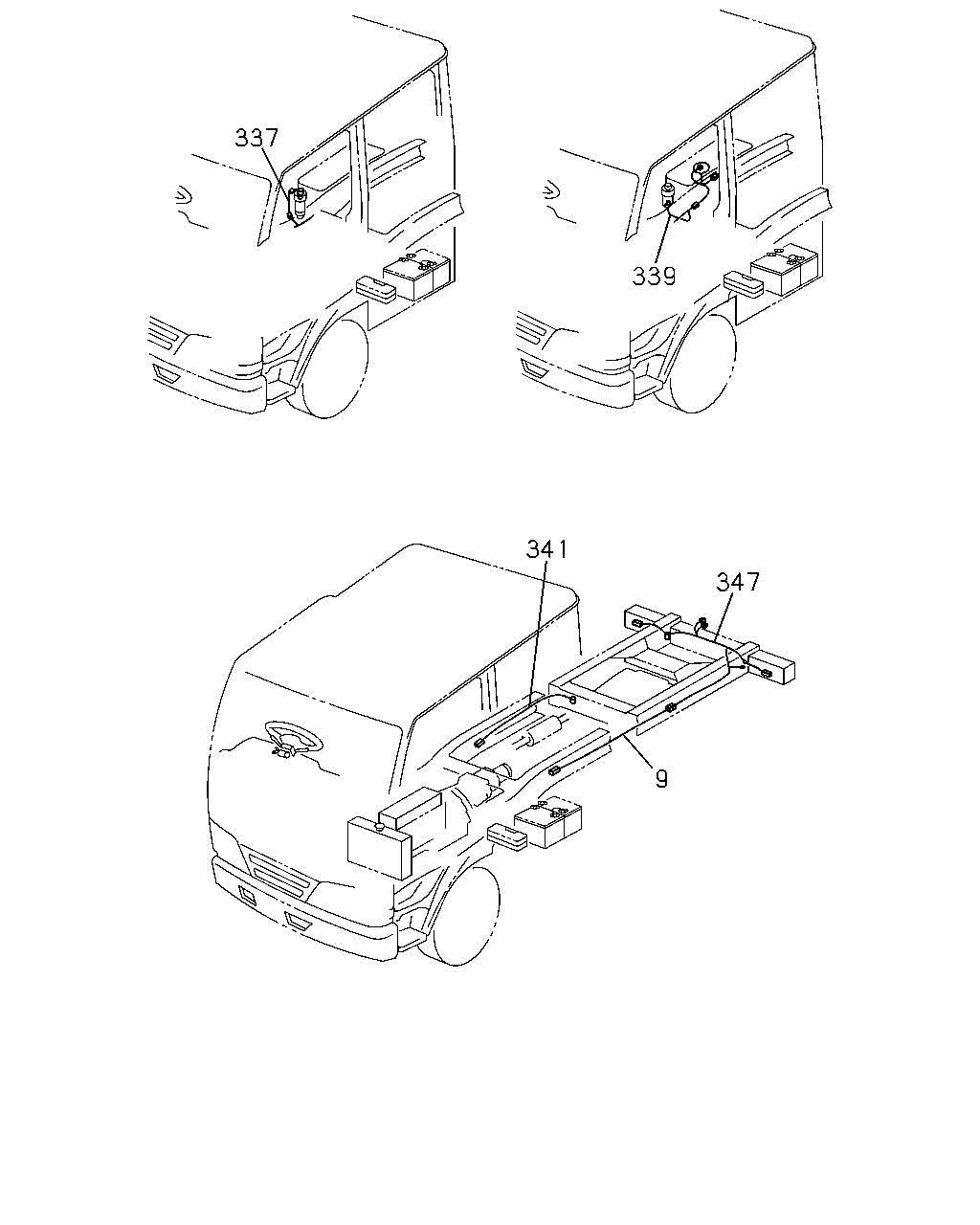

çizim 17208
337 339 341 347 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 02.480 HARNESS; FRAME,RR
EXC. DUMP CHASSIS(V4D) 		8-97066-525-2 01 1 9312-9510 ● ● ● ●
9 02.480 HARNESS; FRAME,RR
EXC. DUMP CHASSIS(V4D) 		8-97126-399-0 01 1 9511-9711 ● ● ● ●
9 02.480 HARNESS; FRAME,RR
DUMP CHASSIS(V4D) 		8-97036-079-3 01 1 9312-9510 ●
9 02.480 HARNESS; FRAME,RR
DUMP CHASSIS(V4D) 		8-97126-406-0 01 1 9511-9711 ●
9 02.480 HARNESS; FRAME,RR 8-97063-154-2 01 1 9312-9510 ● ●
9 02.480 HARNESS; FRAME,RR 8-97126-401-1 01 1 9511-9711 ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94470-823-0 01 1 9312- ● ● ● ● ● ●
339 02.530 HARNESS; EXT,FUEL
02.480 		8-94318-759-0 01 1 9312- ●
341 02.530 HARNESS; CABLE,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 9312-9506 ● ● ● ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 9507- ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA) 		8-97107-345-0 01 1 9507-9510 ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA) 		8-97133-587-0 01 1 9511-9705 ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA) 		8-97147-861-1 01 1 9706- ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97066-540-1 01 1 9312-9506 ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D), UNITED KINGDOM EQUIPMENT(6AA) 		8-97066-540-1 01 1 9507-9510 ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D), UNITED KINGDOM EQUIPMENT(6AA) 		8-97126-416-0 01 1 9511-9705 ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D), UNITED KINGDOM EQUIPMENT(6AA) 		8-97147-856-2 01 1 9706- ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> 		8-97066-541-2 01 1 9312-9506 ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. UNITED KINGDOM EQUIPMENT(6AA) 		8-97066-541-2 01 1 9507-9510 ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. UNITED KINGDOM EQUIPMENT(6AA) 		8-97126-415-0 01 1 9511-9705 ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. UNITED KINGDOM EQUIPMENT(6AA) 		8-97147-855-1 01 1 9706- ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97066-543-1 01 1 9312-9510 ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97126-414-0 01 1 9511-9705 ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97147-854-2 01 1 9706- ●

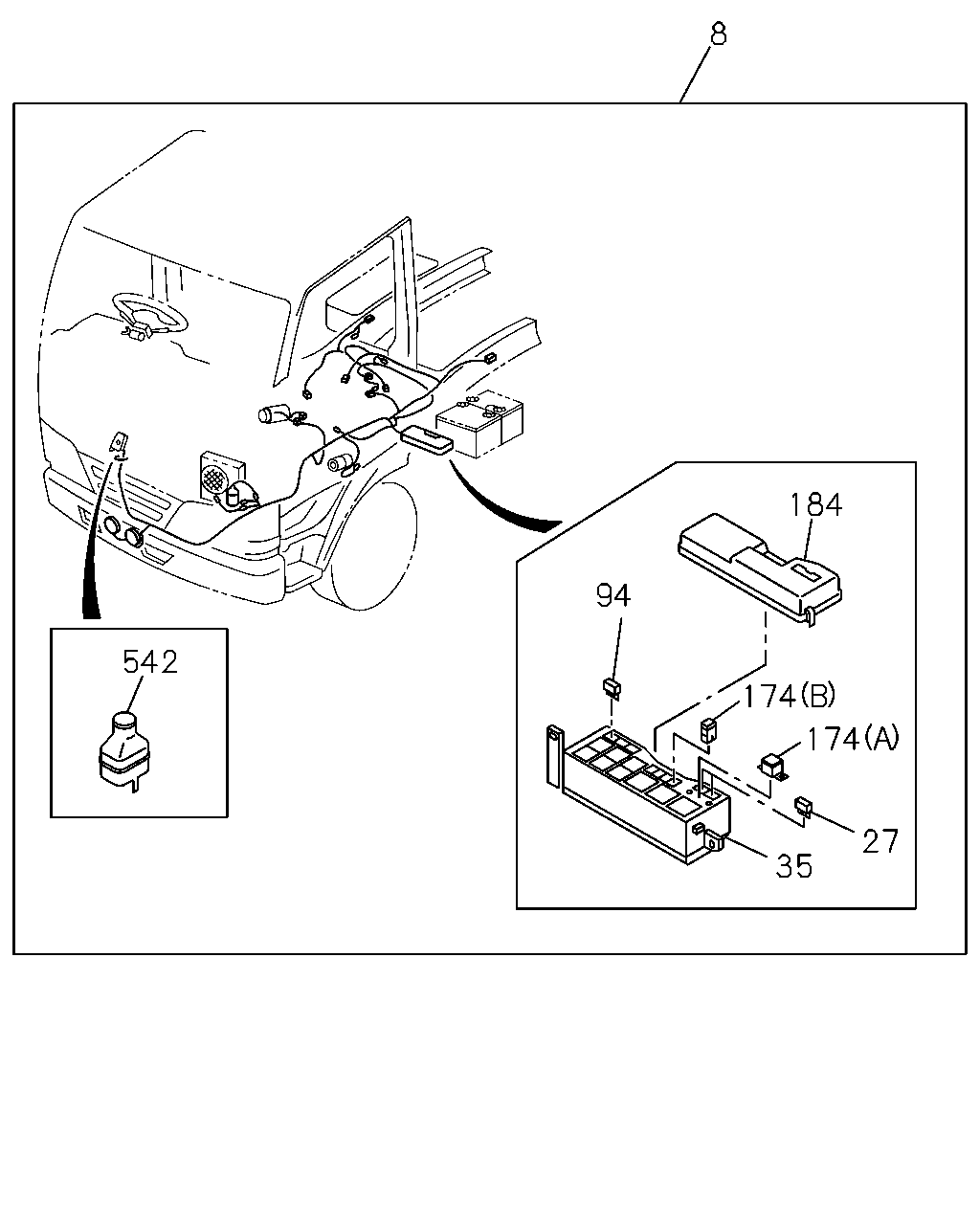

çizim 66137
8 184 94 542 174 174 27 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97134-395-0 01 1 9507-9510 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97134-396-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97188-711-2 01 1 9712- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97106-611-1 01 1 9312-9510 ● ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97131-762-0 01 1 9511-9711 ● ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97188-698-1 01 1 9712- ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) THAILAND EQUIPMENT(PM9),WEST MALAYSIAEQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97106-619-2 01 1 9312-9405 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) THAILAND EQUIPMENT(PM9),WEST MALAYSIAEQUIPMENT(RWP) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97116-368-0 01 1 9406-9505 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) THAILAND EQUIPMENT(PM9),WEST MALAYSIAEQUIPMENT(RWP) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97122-691-0 01 1 9506-9510 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) THAILAND EQUIPMENT(PM9),WEST MALAYSIAEQUIPMENT(RWP) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97131-774-0 01 1 9511-9711 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97188-697-1 01 1 9712- ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPM ENT(S4S),FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 		8-97106-617-2 01 1 9312-9402 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPM ENT(S4S),REFRIGERATOR CHASSIS(V4R), FRT INDEPENDENT SUSPENSION(6PP),FRAME-K ICK UP<7EW> 		8-97106-617-2 01 1 9403-9505 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPM ENT(S4S),REFRIGERATOR CHASSIS(V4R), FRT INDEPENDENT SUSPENSION(6PP),FRAME-K ICK UP<7EW> 		8-97122-681-0 01 1 9506-9510 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPM ENT(S4S),REFRIGERATOR CHASSIS(V4R), FRT INDEPENDENT SUSPENSION(6PP),FRAME-K ICK UP<7EW> 		8-97131-770-0 01 1 9511-9711 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) EXC. THAILAND EQUIPMENT(PM9), INDONESIA EQUIPMENT(S4S),FRT INDEPENDENT SUSP ENSION(6PP),FRAME-KICK UP<7EW> 		8-97188-714-1 01 1 9712- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. THAILAND EQUIPMENT(PM9) 		8-97106-622-1 01 1 9312-9505 ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. THAILAND EQUIPMENT(PM9) 		8-97122-685-0 01 1 9506-9510 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 		8-97131-764-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 		8-97188-701-0 01 1 9712- ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97106-613-0 01 1 9312-9510 ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97131-768-0 01 1 9511-9606 ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97131-768-0 01 1 9607-9711 ● ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) EXC. REAR WIDE TREAD(V4T),FRT INDEPENDENT SUSPENSION(6PP) 		8-97188-703-1 01 1 9712- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> EXC. THAILAND EQUIPMENT(PM9) 		8-97106-620-0 01 1 9312-9505 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> EXC. THAILAND EQUIPMENT(PM9) 		8-97122-683-0 01 1 9506-9510 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> EXC. THAILAND EQUIPMENT(PM9) 		8-97131-776-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) FRAME-KICK UP<7EW> EXC. THAILAND EQUIPMENT(PM9) 		8-97188-712-1 01 1 9712- ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) EXC. FRAME-KICK UP<7EW> 		8-97113-176-0 01 1 9403-9505 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) EXC. FRAME-KICK UP<7EW> 		8-97122-688-0 01 1 9506-9510 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) EXC. FRAME-KICK UP<7EW> 		8-97131-772-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) REAR WIDE TREAD(V4T) 		8-97162-354-0 01 1 9607-9711 ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) REAR WIDE TREAD(V4T) 		8-97188-704-1 01 1 9712- ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) INDONESIA EQUIPMENT(S4S) 		8-97116-369-0 01 1 9406-9505 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) INDONESIA EQUIPMENT(S4S) 		8-97122-692-0 01 1 9506-9510 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) INDONESIA EQUIPMENT(S4S) 		8-97131-775-0 01 1 9511-9711 ●
8 02.480 HARNESS; FRAME,FRT
4BE1 ENG(RLH) INDONESIA EQUIPMENT(S4S) 		8-97188-716-1 01 1 9712- ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) 		8-97106-623-1 01 1 9312-9510 ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) 		8-97131-778-0 01 1 9511-9711 ● ●
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) 		8-97188-706-1 01 1 9712- ● ● ● ●
27 08.965 FUSE UNIT
10A RED 		5-82516-002-0 AR 1 9312- ● ● ● ● ● ●
27 08.965 FUSE UNIT
15A BLUE 		5-82516-003-0 AR 1 9312- ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 9312- ● ● ● ● ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 3P-1.5A 		8-94422-640-1 AR 1 9312- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 60A YELLOW 		8-94388-303-0 AR 1 9312- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 80A BLACK 		8-94388-305-0 AR 1 9312- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 40A GREEN 		8-94468-662-0 AR 1 9312- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 60A YELLOW 		8-94468-664-0 AR 1 9312- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
EXC. THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) 02.483 (B) 50A RED 		8-94468-663-0 AR 1 9312- ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 9312- ● ● ● ● ● ●
542 02.483 GROMMET; HARNESS 8-97041-956-1 01 1 9312- ● ● ● ● ● ●
çizim 67646
347 341 9 337
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 02.480 HARNESS; FRAME,RR
EXC. DUMP CHASSIS(V4D) 		8-97066-525-2 01 1 9312-9510 ● ● ● ●
9 02.480 HARNESS; FRAME,RR
EXC. DUMP CHASSIS(V4D) 		8-97126-399-0 01 1 9511-9711 ● ● ● ●
9 02.480 HARNESS; FRAME,RR
DUMP CHASSIS(V4D) 		8-97036-079-3 01 1 9312-9510 ●
9 02.480 HARNESS; FRAME,RR
DUMP CHASSIS(V4D) 		8-97126-406-0 01 1 9511-9711 ●
9 02.480 HARNESS; FRAME,RR 8-97063-154-2 01 1 9312-9510 ● ●
9 02.480 HARNESS; FRAME,RR 8-97126-401-1 01 1 9511-9711 ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94470-823-0 01 1 9312- ● ● ● ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 9312-9506 ● ● ● ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 9507- ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA) 		8-97107-345-0 01 1 9507-9510 ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA) 		8-97133-587-0 01 1 9511-9705 ●
347 02.480 HARNESS; CABLE,RR BODY
UNITED KINGDOM EQUIPMENT(6AA) 		8-97147-861-1 01 1 9706- ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 		8-97066-540-1 01 1 9312-9506 ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D), UNITED KINGDOM EQUIPMENT(6AA) 		8-97066-540-1 01 1 9507-9510 ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D), UNITED KINGDOM EQUIPMENT(6AA) 		8-97126-416-0 01 1 9511-9705 ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D), UNITED KINGDOM EQUIPMENT(6AA) 		8-97147-856-2 01 1 9706- ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> 		8-97066-541-2 01 1 9312-9506 ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. UNITED KINGDOM EQUIPMENT(6AA) 		8-97066-541-2 01 1 9507-9510 ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. UNITED KINGDOM EQUIPMENT(6AA) 		8-97126-415-0 01 1 9511-9705 ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> EXC. UNITED KINGDOM EQUIPMENT(6AA) 		8-97147-855-1 01 1 9706- ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97066-543-1 01 1 9312-9510 ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97126-414-0 01 1 9511-9705 ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97147-854-2 01 1 9706- ●

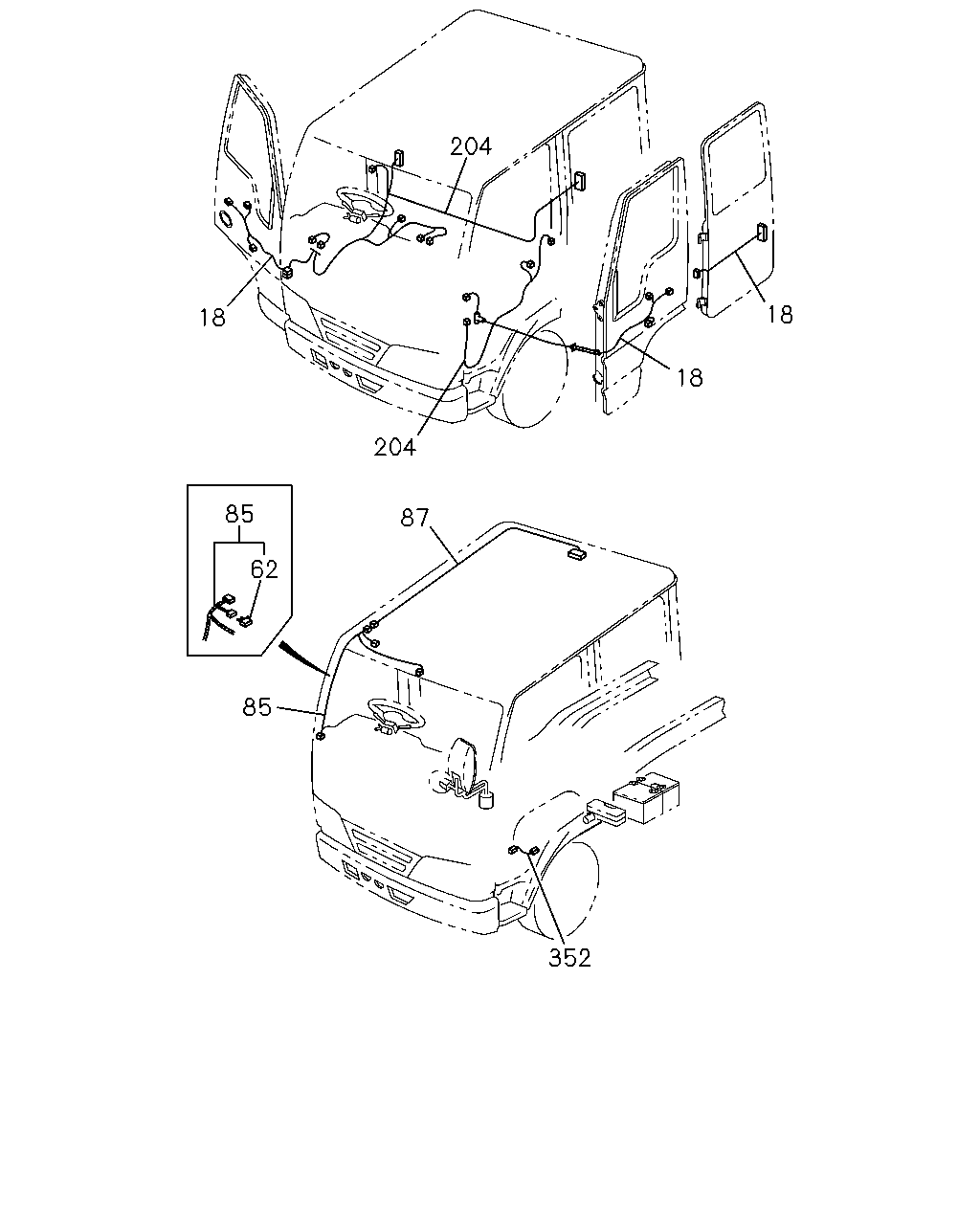

çizim 68846
204 18 18 18 204 85 87 62 85 352
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97100-295-1 01 1 9312-9708 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-144-1 01 1 9709- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97100-293-0 01 1 9312-9708 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-0 01 1 9709- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9312- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9312- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97104-618-1 01 1 9312- ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97104-616-0 01 1 9312- ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97104-619-1 01 1 9312-9708 ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-146-0 01 1 9709- ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97104-617-0 01 1 9312-9708 ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-145-0 01 1 9709- ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 9312- ● ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 AR 1 9312- ● ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97075-744-3 01 1 9312-9603 ● ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97075-744-3 01 1 9604-9705 ● ●
85 06.495 HARNESS; ROOM LAMP 8-97162-624-2 01 1 9706- ● ●
85 06.495 HARNESS; ROOM LAMP 8-97145-825-0 01 1 9604-9705 ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-610-1 01 1 9706- ● ● ● ●
87 02.480 HARNESS; EXT,ROOM LAMP 8-97075-747-0 01 1 9312- ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97093-906-0 01 1 9312-9404 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97095-382-2 01 1 9312-9705 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-1 01 1 9706- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97093-907-1 01 1 9312-9705 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-0 01 1 9706- ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97093-904-2 01 1 9312-9705 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-626-1 01 1 9706- ● ●
352 02.480 HARNESS; CABLE,VSV
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 		8-97102-244-0 01 1 9312-9510 ● ● ● ● ●

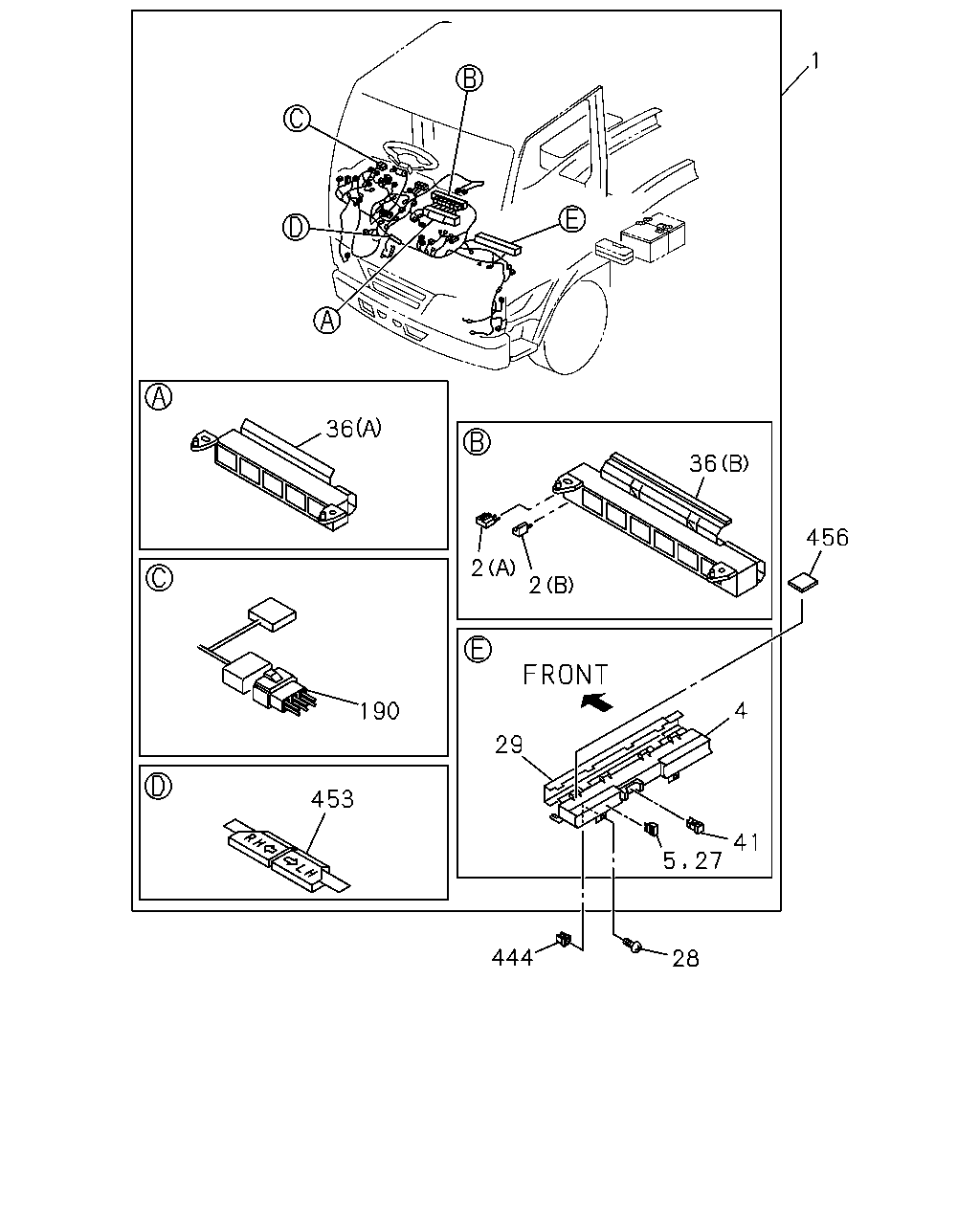

çizim 70703
1 36 36 456 2 2 190 4 29 453 41 5 27 444 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA) 		8-97134-393-0 01 1 9507-9711 ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA) 		8-97185-294-1 01 1 9712- ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 		8-97101-527-2 01 1 9312-9510 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 		8-97132-917-0 01 1 9511-9711 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 		8-97185-291-0 01 1 9712- ● ● ● ● ●
1 02.480 HARNESS; CAB
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97104-611-2 01 1 9312-9510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97132-918-0 01 1 9511-9711 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97185-300-0 01 1 9712- ● ● ● ●
1 02.480 HARNESS; CAB
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) 		8-97101-538-2 01 1 9312-9510 ● ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) AUSTRALIA EQUIPMENT(RR3) 		8-97132-924-0 01 1 9511-9711 ● ●
1 02.480 HARNESS; CAB
4BE1 ENG(RLH) 		8-97185-297-0 01 1 9712- ● ● ● ●
1 02.480 HARNESS; CAB
4BE1 ENG(RLH),4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) 		8-97132-925-0 01 1 9511-9711 ● ● ●
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) 		8-97185-298-0 01 1 9712- ● ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-97162-270-0 01 1 9607-9711 ● ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-97185-293-0 01 1 9712- ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9312- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9312- ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97077-664-0 01 1 9312- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 9312- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 9312- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A CLEAR 		5-82516-005-0 AR 1 9312- ● ● ● ● ● ●
27 08.965 FUSE UNIT
10A RED 		5-82516-002-0 AR 1 9312- ● ● ● ● ● ●
27 08.965 FUSE UNIT
15A BLUE 		5-82516-003-0 AR 1 9312- ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9312- ● ● ● ● ● ●
29 02.483 COVER; FUSE BOX 8-97074-955-0 01 1 9312-9711 ● ● ● ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-638-1 01 1 9312- ● ● ● ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 9312- ● ● ● ● ● ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9312- ● ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 9312- ● ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9312- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA) 		8-97074-957-0 01 1 9507-9510 ●
453 02.483 PROTECTOR; HARNESS 8-97074-957-0 01 1 9511- ● ● ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 02 1 9312-9509 ● ● ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 9510- ● ● ● ● ● ●

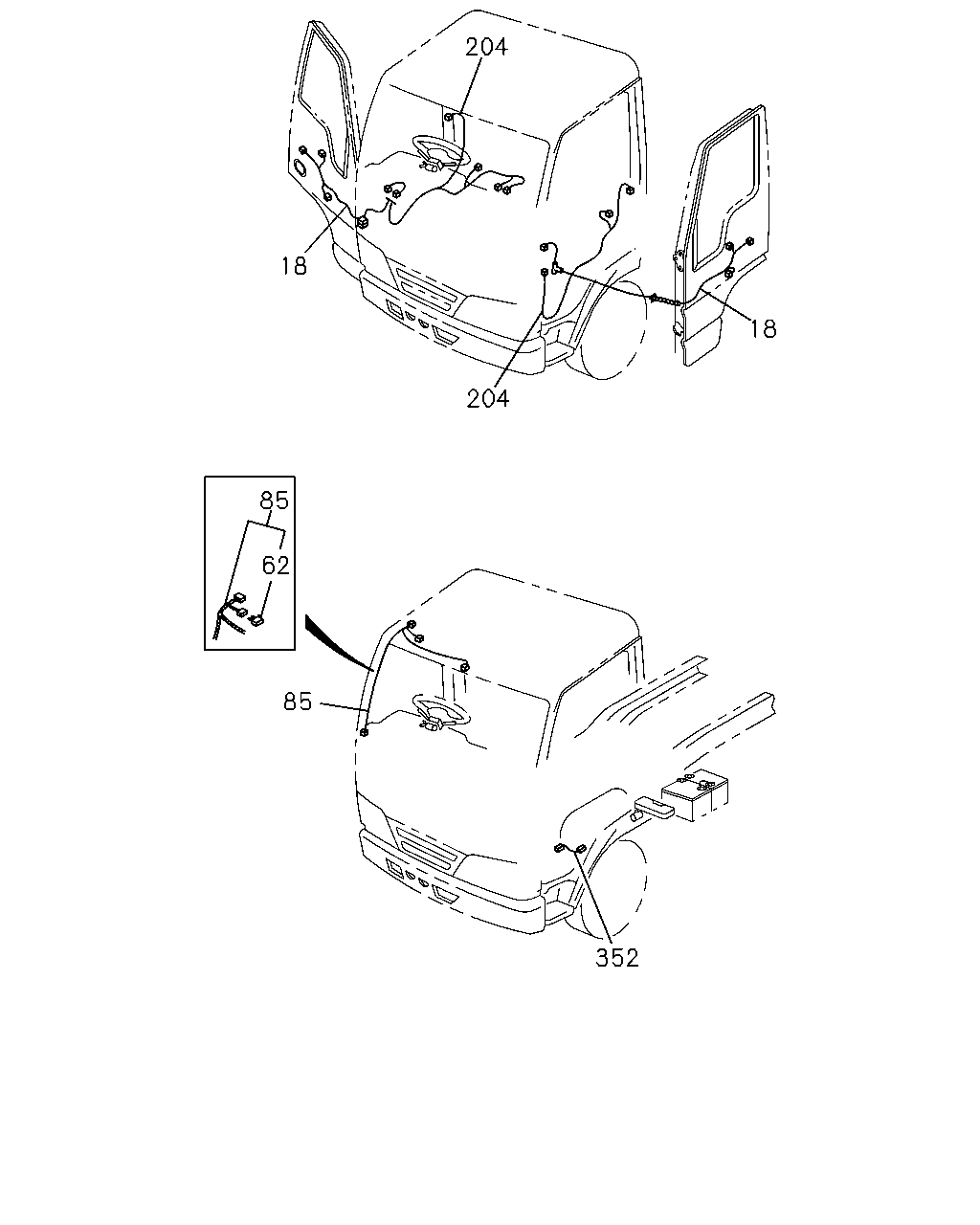

çizim 70704
204 18 18 204 85 62 85 352
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97100-295-1 01 1 9312-9708 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-144-1 01 1 9709- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97100-293-0 01 1 9312-9708 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-142-0 01 1 9709- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-572-1 01 1 9312- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>, AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97105-571-0 01 1 9312- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97104-618-1 01 1 9312- ● ● ●
18 02.480 HARNESS; DOOR
AUSTRALIA EQUIPMENT(RR3) EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR 		8-97104-616-0 01 1 9312- ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97104-619-1 01 1 9312-9708 ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-146-0 01 1 9709- ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97104-617-0 01 1 9312-9708 ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) FRONT DOOR 		8-97185-145-0 01 1 9709- ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 9312- ● ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 AR 1 9312- ● ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97075-744-3 01 1 9312-9603 ● ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97075-744-3 01 1 9604-9705 ● ●
85 06.495 HARNESS; ROOM LAMP 8-97162-624-2 01 1 9706- ● ●
85 06.495 HARNESS; ROOM LAMP 8-97145-825-0 01 1 9604-9705 ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-610-1 01 1 9706- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97093-906-0 01 1 9312-9404 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97095-382-2 01 1 9312-9705 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-1 01 1 9706- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97093-907-1 01 1 9312-9705 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-0 01 1 9706- ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97093-904-2 01 1 9312-9705 ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-626-1 01 1 9706- ● ●
352 02.480 HARNESS; CABLE,VSV
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 		8-97102-244-0 01 1 9312-9510 ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
