◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#47794) — 281 parça

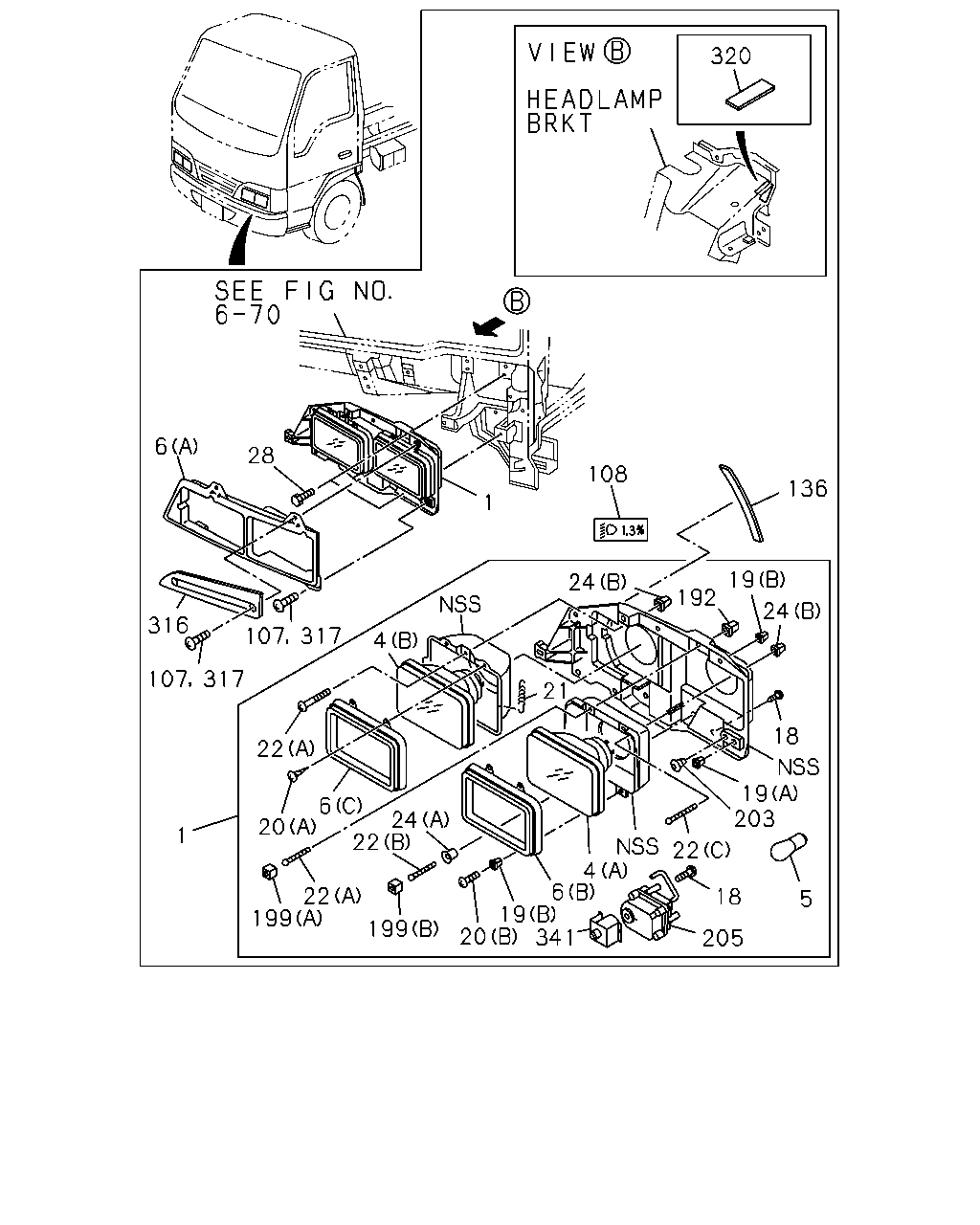

çizim 16321
320 6 28 108 136 1 19 24 192 24 316 107 317 4 21 107 317 18 22 19 203 6 24 22 20 1 4 6 19 22 22 199 18 5 199 205 341 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(6AA) ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 		8-97855-083-4 01 1 9507- ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(6AA) ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 		8-97855-082-4 01 1 9507- ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(6AA) EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> 12V 60/55W 		8-97855-050-4 01 1 9507- ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(6AA) EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> 12V 60/55W 		8-97855-049-4 01 1 9507- ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,VOLTAGE 24V<7AE> 12V 45/40W 		8-97855-107-4 01 1 9312-9506 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,UNITED KINGDOM EQUIPMENT(6AA), VOLTAGE 24V<7AE> 12V 45/40W 		8-97855-107-4 01 1 9507- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,VOLTAGE 24V<7AE> 12V 45/40W 		8-97855-106-4 01 1 9312-9506 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,UNITED KINGDOM EQUIPMENT(6AA), VOLTAGE 24V<7AE> 12V 45/40W 		8-97855-106-4 01 1 9507- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W 		8-97855-052-4 01 1 9312-9506 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,UNITED KINGDOM EQUIPMENT(6AA) 24V 55/50W 		8-97855-052-4 01 1 9507- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W 		8-97855-051-4 01 1 9312-9506 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,UNITED KINGDOM EQUIPMENT(6AA) 24V 55/50W 		8-97855-051-4 01 1 9507- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97855-002-4 01 1 9312-9711 ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97166-663-0 01 1 9712- ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97855-001-4 01 1 9312-9711 ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97166-662-0 01 1 9712- ● ● ●
4 02.727 HEADLAMP UNIT
UNITED KINGDOM EQUIPMENT(6AA) ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> (A) 12V 55/60W 		8-97855-198-0 02 1 9507- ●
4 02.727 HEADLAMP UNIT
UNITED KINGDOM EQUIPMENT(6AA) ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> (B) 		8-97855-202-0 02 1 9507- ●
4 02.727 HEADLAMP UNIT
UNITED KINGDOM EQUIPMENT(6AA) EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> (A) 		8-97855-200-0 02 1 9507- ●
4 02.727 HEADLAMP UNIT
UNITED KINGDOM EQUIPMENT(6AA) EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> (B) 		8-97855-204-0 02 1 9507- ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,VOLTAGE 24V<7AE> (A) 12V 45/50W 		8-94101-731-0 02 1 9312-9506 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,UNITED KINGDOM EQUIPMENT(6AA), VOLTAGE 24V<7AE> (A) 12V 45/50W 		8-94101-731-0 02 1 9507- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,VOLTAGE 24V<7AE> (B) 12V 45W 		8-94101-739-0 02 1 9312-9506 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,UNITED KINGDOM EQUIPMENT(6AA), VOLTAGE 24V<7AE> (B) 12V 45W 		8-94101-739-0 02 1 9507- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 24V 55/50W 		8-94101-732-0 02 1 9312-9506 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,UNITED KINGDOM EQUIPMENT(6AA) (A) 24V 55/50W 		8-94101-732-0 02 1 9507- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 24V 55W 		8-94101-740-0 02 1 9312-9506 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,UNITED KINGDOM EQUIPMENT(6AA) (B) 24V 55W 		8-94101-740-0 02 1 9507- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 		8-97855-076-0 01 1 9312-9711 ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 		8-97182-398-0 01 1 9712- ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 		8-97855-075-0 01 1 9312-9711 ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 		8-97182-397-0 01 1 9712- ● ● ●
5 02.727 BULB; HEADLAMP
UNITED KINGDOM EQUIPMENT(6AA) EXC. VOLTAGE 24V<7AE> 12V 55W 		5-82195-001-0 02 1 9507- ●
5 02.727 BULB; HEADLAMP
UNITED KINGDOM EQUIPMENT(6AA) EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-94217-817-0 02 1 9507- ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,VOLTAGE 24V<7AE> 08.991 12V 45/50W 		5-82193-001-0 04 1 9312-9506 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,UNITED KINGDOM EQUIPMENT(6AA), VOLTAGE 24V<7AE> 08.991 12V 45/50W 		5-82193-001-0 04 1 9507- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
VOLTAGE 24V<7AE> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W CLEAR 		5-82193-003-0 04 1 9312-9506 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
VOLTAGE 24V<7AE> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,UNITED KINGDOM EQUIPMENT(6AA) 24V 55/50W CLEAR 		5-82193-003-0 04 1 9507- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-94217-817-0 02 1 9312-9312 ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97106-708-0 02 1 9401- ● ● ●
6 02.728 RIM; HEADLAMP
EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) (C) 		1-82114-016-0 02 1 9312-9506 ● ● ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		1-82114-016-0 02 1 9507- ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97855-211-0 02 1 9312-9506 ● ● ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97855-211-0 02 1 9507- ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97855-099-3 01 1 9312-9512 ● ● ●
6 02.728 RIM; HEADLAMP
EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97866-621-0 01 1 9601-9712 ● ● ●
6 02.728 RIM; HEADLAMP
EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97890-801-0 01 1 9801- ● ● ●
6 02.728 RIM; HEADLAMP
EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97855-098-3 01 1 9312-9512 ● ● ●
6 02.728 RIM; HEADLAMP
EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97866-620-0 01 1 9601-9712 ● ● ●
6 02.728 RIM; HEADLAMP
EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97890-800-0 01 1 9801- ● ● ●
18 02.726 SCREW; GEAR CASE
UNITED KINGDOM EQUIPMENT(6AA) ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 		1-82119-086-0 06 1 9507- ●
18 02.726 SCREW; GEAR CASE
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 		1-82119-086-0 10 1 9312-9312 ● ● ●
18 02.726 SCREW; GEAR CASE
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 		1-82119-086-0 18 1 9401-9711 ● ● ●
18 02.726 SCREW; GEAR CASE
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 		1-82119-086-0 16 1 9712-9804 ● ● ●
18 02.726 SCREW; GEAR CASE
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> M4X16 TAPPING 		1-82119-067-0 16 1 9805- ● ● ●
19 02.726 NUT; HEADLAMP
EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97044-618-0 08 1 9312-9506 ● ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97044-618-0 08 1 9507- ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97044-623-0 08 1 9312-9506 ● ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97044-623-0 08 1 9507- ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> (A) 		8-97044-618-0 04 1 9312- ● ● ●
20 02.736 SCREW; HEADLAMP
EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) (A) M4X8 		8-94165-886-0 08 1 9312-9506 ● ● ●
20 02.736 SCREW; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) M4X8 		8-94165-886-0 08 1 9507- ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97855-213-0 08 1 9312-9506 ● ● ●
20 02.736 SCREW; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97855-213-0 08 1 9507- ● ● ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP
EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) 		1-82119-021-0 02 1 9312-9506 ● ● ●
21 02.737 SPRING; ADJ HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		1-82119-021-0 02 1 9507- ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97855-205-0 04 1 9312-9506 ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97855-205-0 04 1 9507- ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97855-206-0 02 1 9312-9506 ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,ADJUST HEADLAMP<6RC> (B) 		8-97855-206-0 02 1 9507- ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97855-207-0 02 1 9312-9506 ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97855-207-0 02 1 9507- ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94387-097-0 06 1 9312-9506 ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-94387-097-0 06 1 9507- ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97855-208-0 02 1 9312-9506 ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,ADJUST HEADLAMP<6RC> (A) 		8-97855-208-0 02 1 9507- ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 9312- ● ● ● ● ● ●
107 02.729 SCREW; RIM,HEADLAMP
EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) M4X20 TAPPING 		8-94279-391-0 04 1 9312- ● ● ●
108 02.729 SEAL; HEADLAMP RIM
ADJUST HEADLAMP<6RC> 		8-97049-114-0 01 1 9507- ●
136 02.726 SEAL; HEADLAMP
170X15 		8-97853-541-0 01 1 9312-9602 ● ● ● ● ● ●
136 02.726 SEAL; HEADLAMP
EXC. THAILAND EQUIPMENT(PM9), INDONESIA EQUIPMENT(S4S) 170X15 		8-97853-541-0 01 1 9603-9701 ● ● ● ● ● ●
136 02.726 SEAL; HEADLAMP
AIR INTAKE SYSTEM FRONT<6PC> 170X15 		8-97853-541-0 01 1 9702- ●
136 02.726 SEAL; HEADLAMP
170X15 		8-97853-541-0 01 1 9702- ● ● ●
192 02.765 PIVOT; HEADLAMP
EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) 02.737 		8-94381-595-0 02 1 9312-9506 ● ● ●
192 02.765 PIVOT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.737 		8-94381-595-0 02 1 9507- ● ● ● ● ● ●
199 02.737 BUSHING
EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94381-605-0 04 1 9312-9506 ● ● ●
199 02.737 BUSHING
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-94381-605-0 04 1 9507- ● ● ● ● ● ●
199 02.737 BUSHING
EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97855-212-0 02 1 9312-9506 ● ● ●
199 02.737 BUSHING
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97855-212-0 02 1 9507- ● ● ● ● ● ●
203 02.726 FASTENER; HEADLAMP 8-94382-231-0 04 1 9312- ● ● ● ● ● ●
205 02.727 ACTUATOR; HEADLAMP
UNITED KINGDOM EQUIPMENT(6AA) ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 		8-97855-209-0 02 1 9507- ●
316 02.726 ORNAMENT; HEAD LAMP
AIR INTAKE REAR VERTICAL<KJ3> 		8-97859-500-0 01 1 9411- ●
316 02.726 ORNAMENT; HEAD LAMP 8-97859-500-0 01 1 9411- ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97855-010-3 01 1 9312-9410 ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP
AIR INTAKE SYSTEM FRONT<6PC> 		8-97855-010-5 01 1 9411- ●
316 02.726 ORNAMENT; HEAD LAMP 8-97855-010-5 01 1 9411- ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97855-009-4 01 1 9312-9510 ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97863-622-0 01 1 9511- ● ● ● ● ● ●
317 02.726 SCREW; ORNAMENT
02.729 M4X20 TAPPING 		8-94279-391-0 04 1 9312- ● ● ● ● ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 9402- ● ● ● ● ● ●
341 02.726 BRACKET; ACTUATOR
UNITED KINGDOM EQUIPMENT(6AA) ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 		8-97855-210-0 02 1 9507- ●

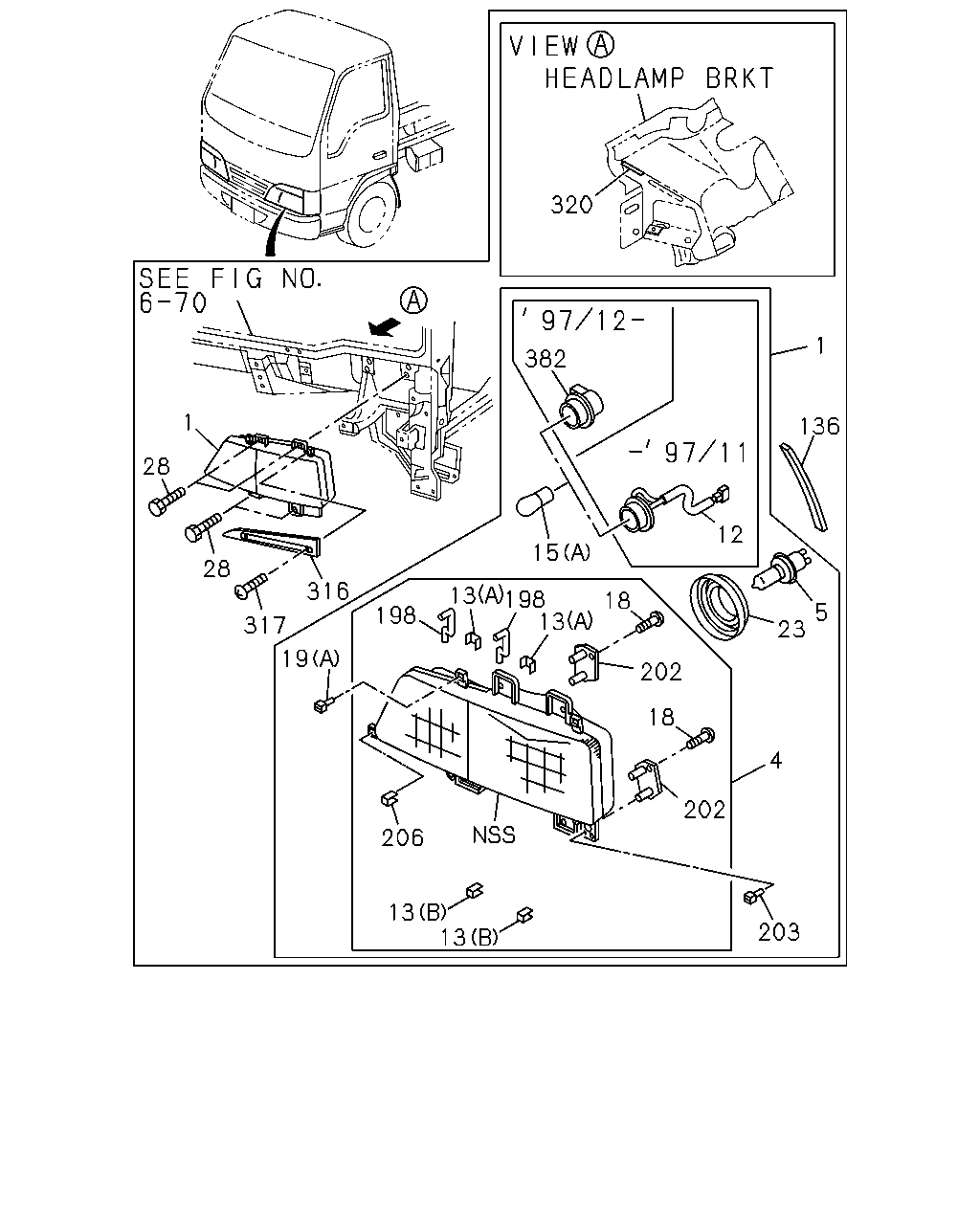

çizim 67151
320 1 382 1 136 28 12 15 28 316 13 198 13 18 5 23 198 317 19 202 18 4 202 206 13 13 203
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(6AA) ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 		8-97855-083-4 01 1 9507- ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(6AA) ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 		8-97855-082-4 01 1 9507- ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(6AA) EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> 12V 60/55W 		8-97855-050-4 01 1 9507- ●
1 02.725 LAMP ASM; HEAD
UNITED KINGDOM EQUIPMENT(6AA) EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> 12V 60/55W 		8-97855-049-4 01 1 9507- ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,VOLTAGE 24V<7AE> 12V 45/40W 		8-97855-107-4 01 1 9312-9506 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,UNITED KINGDOM EQUIPMENT(6AA), VOLTAGE 24V<7AE> 12V 45/40W 		8-97855-107-4 01 1 9507- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,VOLTAGE 24V<7AE> 12V 45/40W 		8-97855-106-4 01 1 9312-9506 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,UNITED KINGDOM EQUIPMENT(6AA), VOLTAGE 24V<7AE> 12V 45/40W 		8-97855-106-4 01 1 9507- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W 		8-97855-052-4 01 1 9312-9506 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,UNITED KINGDOM EQUIPMENT(6AA) 24V 55/50W 		8-97855-052-4 01 1 9507- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W 		8-97855-051-4 01 1 9312-9506 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,UNITED KINGDOM EQUIPMENT(6AA) 24V 55/50W 		8-97855-051-4 01 1 9507- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97855-002-4 01 1 9312-9711 ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97166-663-0 01 1 9712- ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97855-001-4 01 1 9312-9711 ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97166-662-0 01 1 9712- ● ● ●
4 02.727 HEADLAMP UNIT
UNITED KINGDOM EQUIPMENT(6AA) ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> (A) 12V 55/60W 		8-97855-198-0 02 1 9507- ●
4 02.727 HEADLAMP UNIT
UNITED KINGDOM EQUIPMENT(6AA) ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> (B) 		8-97855-202-0 02 1 9507- ●
4 02.727 HEADLAMP UNIT
UNITED KINGDOM EQUIPMENT(6AA) EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> (A) 		8-97855-200-0 02 1 9507- ●
4 02.727 HEADLAMP UNIT
UNITED KINGDOM EQUIPMENT(6AA) EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> (B) 		8-97855-204-0 02 1 9507- ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,VOLTAGE 24V<7AE> (A) 12V 45/50W 		8-94101-731-0 02 1 9312-9506 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,UNITED KINGDOM EQUIPMENT(6AA), VOLTAGE 24V<7AE> (A) 12V 45/50W 		8-94101-731-0 02 1 9507- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,VOLTAGE 24V<7AE> (B) 12V 45W 		8-94101-739-0 02 1 9312-9506 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,UNITED KINGDOM EQUIPMENT(6AA), VOLTAGE 24V<7AE> (B) 12V 45W 		8-94101-739-0 02 1 9507- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 24V 55/50W 		8-94101-732-0 02 1 9312-9506 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,UNITED KINGDOM EQUIPMENT(6AA) (A) 24V 55/50W 		8-94101-732-0 02 1 9507- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 24V 55W 		8-94101-740-0 02 1 9312-9506 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,UNITED KINGDOM EQUIPMENT(6AA) (B) 24V 55W 		8-94101-740-0 02 1 9507- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 		8-97855-076-0 01 1 9312-9711 ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 		8-97182-398-0 01 1 9712- ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 		8-97855-075-0 01 1 9312-9711 ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 		8-97182-397-0 01 1 9712- ● ● ●
5 02.727 BULB; HEADLAMP
UNITED KINGDOM EQUIPMENT(6AA) EXC. VOLTAGE 24V<7AE> 12V 55W 		5-82195-001-0 02 1 9507- ●
5 02.727 BULB; HEADLAMP
UNITED KINGDOM EQUIPMENT(6AA) EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-94217-817-0 02 1 9507- ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,VOLTAGE 24V<7AE> 08.991 12V 45/50W 		5-82193-001-0 04 1 9312-9506 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,UNITED KINGDOM EQUIPMENT(6AA), VOLTAGE 24V<7AE> 08.991 12V 45/50W 		5-82193-001-0 04 1 9507- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
VOLTAGE 24V<7AE> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W CLEAR 		5-82193-003-0 04 1 9312-9506 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
VOLTAGE 24V<7AE> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,UNITED KINGDOM EQUIPMENT(6AA) 24V 55/50W CLEAR 		5-82193-003-0 04 1 9507- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-94217-817-0 02 1 9312-9312 ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-97106-708-0 02 1 9401- ● ● ●
12 02.480 HARNESS; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> FOR FOG LAMP 		8-97855-081-0 02 1 9312-9711 ● ● ●
13 02.736 CLIP; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 02.729 (A) 		1-82119-084-0 04 1 9312- ● ● ●
13 02.736 CLIP; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> (B) 		8-94381-597-0 12 1 9312-9312 ● ● ●
13 02.736 CLIP; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 02.729 (B) 		8-94381-588-0 12 1 9401- ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> (B) 12V 55W 		8-97093-859-0 02 1 9312-9704 ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S), VOLTAGE24V<7AE> (B) 12V 55W 		8-97093-859-0 02 1 9705- ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> (B) 24V 55W 		8-97093-860-0 02 1 9312-9704 ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. INDONESIA EQUIPMENT(S4S) (B) 24V 55W 		8-97093-860-0 02 1 9705- ● ● ● ● ●
15 08.991 BULB; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> (A) 12V 35W 		8-97083-099-0 02 1 9312- ● ● ●
18 02.726 SCREW; GEAR CASE
UNITED KINGDOM EQUIPMENT(6AA) ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 		1-82119-086-0 06 1 9507- ●
18 02.726 SCREW; GEAR CASE
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 		1-82119-086-0 10 1 9312-9312 ● ● ●
18 02.726 SCREW; GEAR CASE
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 		1-82119-086-0 18 1 9401-9711 ● ● ●
18 02.726 SCREW; GEAR CASE
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 		1-82119-086-0 16 1 9712-9804 ● ● ●
18 02.726 SCREW; GEAR CASE
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> M4X16 TAPPING 		1-82119-067-0 16 1 9805- ● ● ●
19 02.726 NUT; HEADLAMP
EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97044-618-0 08 1 9312-9506 ● ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97044-618-0 08 1 9507- ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97044-623-0 08 1 9312-9506 ● ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97044-623-0 08 1 9507- ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> (A) 		8-97044-618-0 04 1 9312- ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 		8-97855-080-0 02 1 9312- ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 9312- ● ● ● ● ● ●
136 02.726 SEAL; HEADLAMP
170X15 		8-97853-541-0 01 1 9312-9602 ● ● ● ● ● ●
136 02.726 SEAL; HEADLAMP
EXC. THAILAND EQUIPMENT(PM9), INDONESIA EQUIPMENT(S4S) 170X15 		8-97853-541-0 01 1 9603-9701 ● ● ● ● ● ●
136 02.726 SEAL; HEADLAMP
AIR INTAKE SYSTEM FRONT<6PC> 170X15 		8-97853-541-0 01 1 9702- ●
136 02.726 SEAL; HEADLAMP
170X15 		8-97853-541-0 01 1 9702- ● ● ●
198 02.722 TUBE; COVER,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 		8-97855-079-0 02 1 9312- ● ● ●
198 02.722 TUBE; COVER,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 		8-97855-078-0 02 1 9312- ● ● ●
202 02.726 GEAR UNIT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 		8-97855-077-0 04 1 9312-9312 ● ● ●
202 02.726 GEAR UNIT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 		8-94345-040-0 04 1 9401- ● ● ●
203 02.726 FASTENER; HEADLAMP 8-94382-231-0 04 1 9312- ● ● ● ● ● ●
206 02.727 HOLDER; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 		8-97868-156-0 02 1 9712- ● ● ●
316 02.726 ORNAMENT; HEAD LAMP
AIR INTAKE REAR VERTICAL<KJ3> 		8-97859-500-0 01 1 9411- ●
316 02.726 ORNAMENT; HEAD LAMP 8-97859-500-0 01 1 9411- ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97855-010-3 01 1 9312-9410 ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP
AIR INTAKE SYSTEM FRONT<6PC> 		8-97855-010-5 01 1 9411- ●
316 02.726 ORNAMENT; HEAD LAMP 8-97855-010-5 01 1 9411- ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97855-009-4 01 1 9312-9510 ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97863-622-0 01 1 9511- ● ● ● ● ● ●
317 02.726 SCREW; ORNAMENT
02.729 M4X20 TAPPING 		8-94279-391-0 04 1 9312- ● ● ● ● ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 9402- ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> 		8-97172-959-0 02 1 9712- ● ● ●

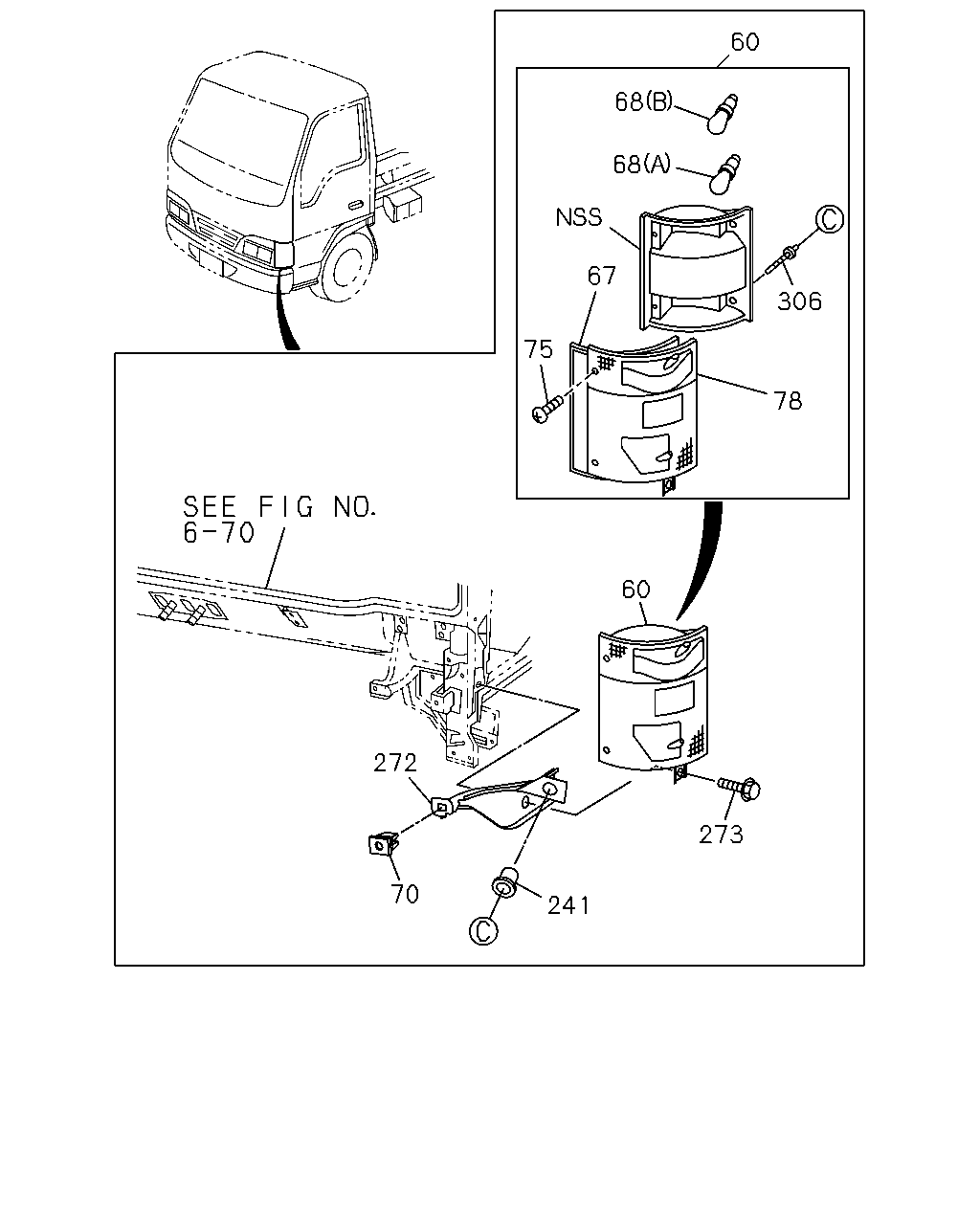

çizim 67152
60 68 68 67 306 75 78 60 272 273 70 241
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
60 02.585 LAMP ASM; FRT COMB
EXC. AUSTRALIA EQUIPMENT(RR3), VOLTAGE24V<7AE> 		8-97855-006-2 01 1 9312-9506 ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),VOLTAGE 24V<7AE> 		8-97855-006-2 01 1 9507- ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. AUSTRALIA EQUIPMENT(RR3), VOLTAGE24V<7AE> 		8-97855-005-2 01 1 9312-9506 ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),VOLTAGE 24V<7AE> 		8-97855-005-2 01 1 9507- ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97855-008-2 01 1 9312-9506 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) 		8-97855-008-2 01 1 9507- ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97855-007-2 01 1 9312-9506 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) 		8-97855-007-2 01 1 9507- ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
AUSTRALIA EQUIPMENT(RR3) 		8-97855-113-2 01 1 9312-9506 ● ● ●
60 02.585 LAMP ASM; FRT COMB
AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) VOLTAGE 24V<7AE> 		8-97855-113-2 01 1 9507- ● ● ●
60 02.585 LAMP ASM; FRT COMB
AUSTRALIA EQUIPMENT(RR3) 		8-97855-112-2 01 1 9312-9506 ● ● ●
60 02.585 LAMP ASM; FRT COMB
AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) VOLTAGE 24V<7AE> 		8-97855-112-2 01 1 9507- ● ● ●
60 02.585 LAMP ASM; FRT COMB
AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) EXC. VOLTAGE 24V<7AE> 		8-97855-111-2 01 1 9507- ● ● ●
60 02.585 LAMP ASM; FRT COMB
AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) EXC. VOLTAGE 24V<7AE> 		8-97855-110-2 01 1 9507- ● ● ●
67 02.590 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 9312- ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. AUSTRALIA EQUIPMENT(RR3), VOLTAGE24V<7AE> (B) 12V 21W 		8-94124-074-0 02 1 9312-9506 ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (B) 12V 21W 		8-94124-074-0 02 1 9507- ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. AUSTRALIA EQUIPMENT(RR3), VOLTAGE24V<7AE> (A) 12V 27/8W 		8-97094-889-0 02 1 9312-9506 ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),VOLTAGE 24V<7AE> (A) 12V 27/8W 		8-97094-889-0 02 1 9507- ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 24V 30/10W 		1-82194-065-0 02 1 9312-9506 ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) (A) 24V 30/10W 		1-82194-065-0 02 1 9507- ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3) (B) 24V 25W 		9-82691-347-0 02 1 9312-9506 ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> EXC. AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) (B) 24V 25W 		9-82691-347-0 02 1 9507- ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
AUSTRALIA EQUIPMENT(RR3) (B) 24V 21W 		8-94125-956-0 02 1 9312-9506 ● ● ●
68 08.991 BULB; FRT COMB LAMP
AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) VOLTAGE 24V<7AE> (B) 24V 21W 		8-94125-956-0 02 1 9507- ● ● ●
68 08.991 BULB; FRT COMB LAMP
AUSTRALIA EQUIPMENT(RR3) (A) 24V 10W 		8-97094-888-0 02 1 9312-9506 ● ● ●
68 08.991 BULB; FRT COMB LAMP
AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) VOLTAGE 24V<7AE> (A) 24V 10W 		8-97094-888-0 02 1 9507- ● ● ●
68 08.991 BULB; FRT COMB LAMP
AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) EXC. VOLTAGE 24V<7AE> (A) 12V 10W 		8-94126-494-0 02 1 9507- ● ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 9312- ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 9312- ● ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97855-131-0 01 1 9312-9506 ● ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB
EXC. AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) 		8-97855-131-0 01 1 9507- ● ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97855-128-0 01 1 9312-9506 ● ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB
EXC. AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) 		8-97855-128-0 01 1 9507- ● ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB
AUSTRALIA EQUIPMENT(RR3) 		8-97855-133-0 01 1 9312-9506 ● ● ●
78 02.589 LENS ASM; FRT COMB
AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) 		8-97855-133-0 01 1 9507- ● ● ●
78 02.589 LENS ASM; FRT COMB
AUSTRALIA EQUIPMENT(RR3) 		8-97855-130-0 01 1 9312-9506 ● ● ●
78 02.589 LENS ASM; FRT COMB
AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) 		8-97855-130-0 01 1 9507- ● ● ●
241 02.726 GROMMET; FRT LAMP 8-94452-095-0 04 1 9312- ● ● ● ● ● ●
272 02.726 BRACKET; FRT COMB LAMP 8-97853-237-2 01 1 9312- ● ● ● ● ● ●
272 02.726 BRACKET; FRT COMB LAMP 8-97853-236-2 01 1 9312- ● ● ● ● ● ●
273 02.726 BOLT; BRKT
09.242 M6X16 W/LK&PL WASHER 		1-09980-497-0 06 1 9312-9404 ● ● ● ● ● ●
273 02.726 BOLT; BRKT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9405- ● ● ● ● ● ●
306 02.587 PIVOT; FRT COMB LAMP 8-94382-330-0 04 1 9312-9711 ● ● ● ● ● ●
306 02.587 PIVOT; FRT COMB LAMP 8-97219-053-0 04 1 9712- ● ● ● ● ● ●

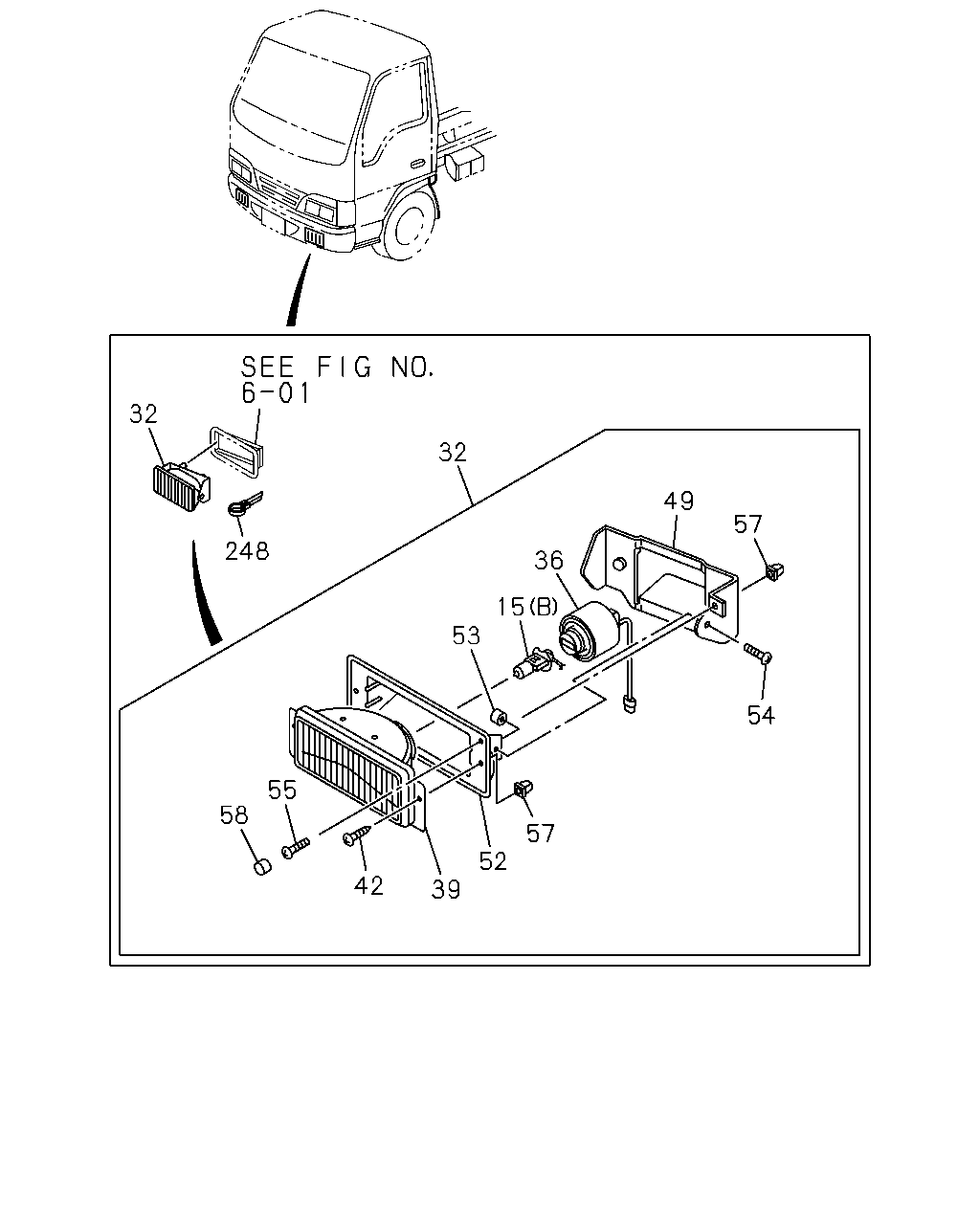

çizim 67645
32 32 49 57 248 36 15 53 54 55 58 57 52 42 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> (B) 12V 55W 		8-97093-859-0 02 1 9312-9704 ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S), VOLTAGE24V<7AE> (B) 12V 55W 		8-97093-859-0 02 1 9705- ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> (B) 24V 55W 		8-97093-860-0 02 1 9312-9704 ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. INDONESIA EQUIPMENT(S4S) (B) 24V 55W 		8-97093-860-0 02 1 9705- ● ● ● ● ●
15 08.991 BULB; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. VOLTAGE 24V<7AE> (A) 12V 35W 		8-97083-099-0 02 1 9312- ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97070-959-1 01 1 9312-9704 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S), VOLTAGE24V<7AE> 		8-97070-959-1 01 1 9705- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97070-958-1 01 1 9312-9704 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S), VOLTAGE24V<7AE> 		8-97070-958-1 01 1 9705- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97080-777-1 01 1 9312-9704 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. INDONESIA EQUIPMENT(S4S) 		8-97080-777-1 01 1 9705- ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97080-776-1 01 1 9312-9704 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. INDONESIA EQUIPMENT(S4S) 		8-97080-776-1 01 1 9705- ● ● ● ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> 		8-97095-518-0 02 1 9312-9704 ● ● ● ● ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S), VOLTAGE24V<7AE> 		8-97095-518-0 02 1 9705-9711 ● ● ● ● ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) 		8-97095-518-0 02 1 9712- ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-060-0 02 1 9312-9704 ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S), VOLTAGE24V<7AE> 		8-97104-060-0 02 1 9705- ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97104-061-0 02 1 9312-9704 ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. INDONESIA EQUIPMENT(S4S) 		8-97104-061-0 02 1 9705- ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97104-089-0 04 1 9312-9704 ● ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S), VOLTAGE24V<7AE> 		8-97104-089-0 04 1 9705-9711 ● ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) 		8-97104-089-0 04 1 9712- ● ● ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-091-0 01 1 9312-9704 ● ● ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S), VOLTAGE24V<7AE> 		8-97104-091-0 01 1 9705-9711 ● ● ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) 		8-97104-091-0 01 1 9712- ● ● ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-090-0 01 1 9312-9704 ● ● ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S), VOLTAGE24V<7AE> 		8-97104-090-0 01 1 9705-9711 ● ● ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) 		8-97104-090-0 01 1 9712- ● ● ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97104-093-0 01 1 9312-9704 ● ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. INDONESIA EQUIPMENT(S4S) 		8-97104-093-0 01 1 9705-9711 ● ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97104-092-0 01 1 9312-9704 ● ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. INDONESIA EQUIPMENT(S4S) 		8-97104-092-0 01 1 9705-9711 ● ● ● ● ●
52 02.726 RING; MTG,FOG LAMP
FOG LAMP<T96> 		8-97104-062-0 02 1 9312-9704 ● ● ● ● ● ●
52 02.726 RING; MTG,FOG LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S), VOLTAGE24V<7AE> 		8-97104-062-0 02 1 9705-9711 ● ● ● ● ● ●
52 02.726 RING; MTG,FOG LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) 		8-97104-062-0 02 1 9712- ● ● ● ● ● ●
53 02.726 NUT; MTG RING,FOG LAMP
FOG LAMP<T96> 		8-94379-802-0 04 1 9312-9704 ● ● ● ● ● ●
53 02.726 NUT; MTG RING,FOG LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S), VOLTAGE24V<7AE> 		8-94379-802-0 04 1 9705-9711 ● ● ● ● ● ●
53 02.726 NUT; MTG RING,FOG LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) 		8-94379-802-0 04 1 9712- ● ● ● ● ● ●
54 02.726 BOLT; MTG RING,FOG LAMP
FOG LAMP<T96> M5X12 		8-94379-803-0 04 1 9312-9704 ● ● ● ● ● ●
54 02.726 BOLT; MTG RING,FOG LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S), VOLTAGE24V<7AE> M5X12 		8-94379-803-0 04 1 9705-9711 ● ● ● ● ● ●
54 02.726 BOLT; MTG RING,FOG LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) M5X12 		8-94379-803-0 04 1 9712- ● ● ● ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-97104-087-0 02 1 9312-9704 ● ● ● ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S), VOLTAGE24V<7AE> 		8-97104-087-0 02 1 9705-9711 ● ● ● ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) 		8-97104-087-0 02 1 9712- ● ● ● ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-94379-806-0 06 1 9312-9704 ● ● ● ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S), VOLTAGE24V<7AE> 		8-94379-806-0 06 1 9705-9711 ● ● ● ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) 		8-94379-806-0 06 1 9712- ● ● ● ● ● ●
58 02.726 HOLDER; FOG LAMP
FOG LAMP<T96> 		8-97104-088-0 02 1 9312-9704 ● ● ● ● ● ●
58 02.726 HOLDER; FOG LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S), VOLTAGE24V<7AE> 		8-97104-088-0 02 1 9705-9711 ● ● ● ● ● ●
58 02.726 HOLDER; FOG LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) 		8-97104-088-0 02 1 9712- ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
FOG LAMP<T96> 02.559 ID=20 		5-09700-321-0 02 1 9401-9704 ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S), VOLTAGE24V<7AE> 02.559 ID=20 		5-09700-321-0 02 1 9705-9711 ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) 02.559 ID=20 		5-09700-321-0 02 1 9712- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
