◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#47791) — 144 parça

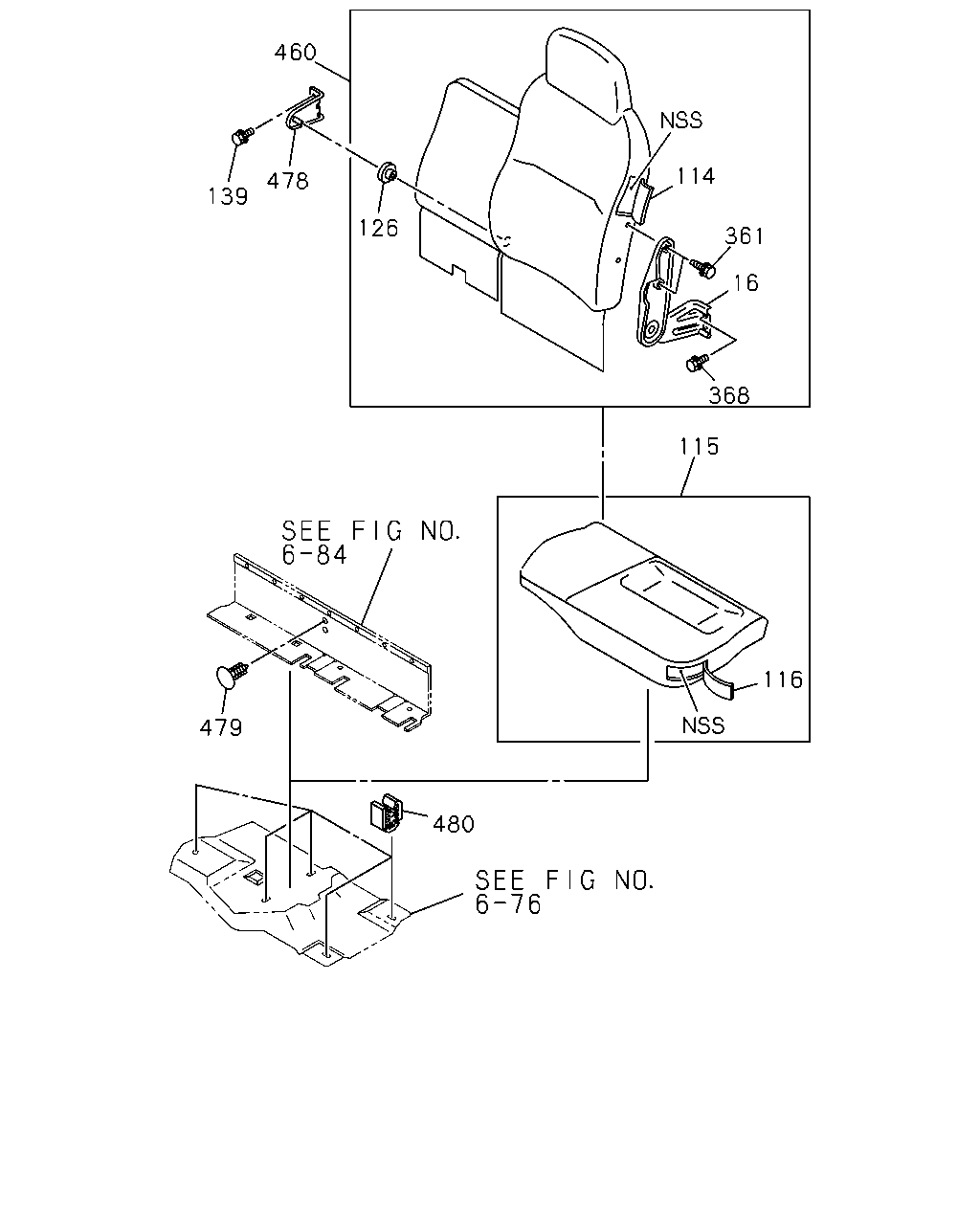

çizim 16320
460 114 478 139 126 361 16 368 115 116 479 480
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 9312- ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER 		8-97854-266-1 01 1 9312-9405 ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 9406- ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA) SEAT CLOTH<7FL> DARK BEIGE 		8-97863-808-1 01 1 9507-9711 ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA) SEAT CLOTH<7FL> DARK GRAY 		8-97869-385-1 01 1 9712- ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA) EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97863-810-1 01 1 9507-9711 ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-401-2 01 1 9712- ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-493-3 01 1 9312-9506 ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA) DARK BEIGE 		8-97854-493-4 01 1 9507-9711 ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA) DARK GRAY 		8-97869-353-1 01 1 9712- ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-541-3 01 1 9312-9506 ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. UNITED KINGDOM EQUIPMENT(6AA), SEAT CLOTH<7FL> DARK BEIGE 		8-97854-541-4 01 1 9507-9711 ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. UNITED KINGDOM EQUIPMENT(6AA), SEAT CLOTH<7FL> DARK GRAY 		8-97866-090-2 01 1 9712- ● ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> 		8-97854-197-7 01 1 9312-9711 ● ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97868-916-0 01 1 9712- ● ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-581-3 01 1 9312-9711 ● ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97868-917-1 01 1 9712- ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> 		8-97854-283-6 01 1 9312-9711 ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY 		8-97869-386-0 01 1 9712- ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL> 		8-97854-281-6 01 1 9312-9711 ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97867-100-1 01 1 9712- ● ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 9312-9510 ● ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 9511- ● ● ● ● ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 9312- ● ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 9312- ● ● ● ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9312- ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
UNITED KINGDOM EQUIPMENT(6AA) SEAT CLOTH<7FL> DARK BEIGE 		8-97863-803-3 01 1 9507-9711 ●
460 16.670 BACK ASM; PASSENGER SEAT
UNITED KINGDOM EQUIPMENT(6AA) SEAT CLOTH<7FL> DARK GRAY 		8-97868-914-1 01 1 9712- ●
460 16.670 BACK ASM; PASSENGER SEAT
UNITED KINGDOM EQUIPMENT(6AA) EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97863-805-3 01 1 9507-9711 ●
460 16.670 BACK ASM; PASSENGER SEAT
UNITED KINGDOM EQUIPMENT(6AA) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97868-915-2 01 1 9712- ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-341-7 01 1 9312-9506 ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA) DARK BEIGE 		8-97854-341-9 01 1 9507-9705 ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA) DARK BEIGE 		8-97159-447-0 01 1 9706-9711 ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA) DARK GRAY 		8-97868-910-1 01 1 9712- ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-591-2 01 1 9312-9506 ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. UNITED KINGDOM EQUIPMENT(6AA), SEAT CLOTH<7FL> DARK BEIGE 		8-97854-591-5 01 1 9507-9711 ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. UNITED KINGDOM EQUIPMENT(6AA), SEAT CLOTH<7FL> DARK GRAY 		8-97868-912-2 01 1 9712- ● ● ● ● ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97854-187-0 01 1 9312-9610 ● ● ● ● ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-186-0 01 1 9611- ● ● ● ● ● ●
479 16.716 PLUG; HINGE
04.931 OD=15 L=14.5 		1-76378-157-0 02 1 9312- ● ● ● ● ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 9312- ● ● ● ● ● ●
çizim 67667
1 18 228 24 2 16 99 17 71 19 12 13 15 69 382 67 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.720 BACK ASM; SEAT
UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK BEIGE 		8-97854-957-5 01 1 9507-9711 ●
1 16.720 BACK ASM; SEAT
UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97869-333-1 01 1 9712-9712 ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-307-0 01 1 9801- ● ● ● ●
1 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-307-0 01 1 9801- ● ● ●
1 16.720 BACK ASM; SEAT
UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97196-307-0 01 1 9801- ●
1 16.720 BACK ASM; SEAT
UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-830-5 01 1 9507-9711 ●
1 16.720 BACK ASM; SEAT
UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-340-1 01 1 9712-9712 ●
1 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-229-0 01 1 9801- ● ● ●
1 16.720 BACK ASM; SEAT
UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-229-0 01 1 9801- ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97866-983-2 01 1 9712- ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-245-3 01 1 9312-9506 ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA) DARK BEIGE 		8-97854-245-5 01 1 9507-9711 ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,UNITED KINGDOM EQUIPMENT(6AA) DARK GRAY 		8-97869-351-2 01 1 9712- ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-234-2 01 1 9312-9506 ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. UNITED KINGDOM EQUIPMENT(6AA), SEAT CLOTH<7FL> DARK BEIGE 		8-97854-234-4 01 1 9507-9711 ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. UNITED KINGDOM EQUIPMENT(6AA), SEAT CLOTH<7FL> DARK GRAY 		8-97866-980-2 01 1 9712-9712 ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),SEAT CLOTH<7FL> DARK GRAY 		8-97866-980-3 01 1 9801- ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-631-5 01 1 9312-9711 ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97869-321-2 01 1 9712- ● ●
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-630-3 01 1 9312-9711 ● ●
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-338-2 01 1 9712- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK BEIGE 		8-97854-959-3 01 1 9507-9711 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97869-334-1 01 1 9712-9712 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-214-0 01 1 9801- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-214-0 01 1 9801- ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97196-214-0 01 1 9801- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-833-3 01 1 9507-9711 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-341-1 01 1 9712-9712 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-300-0 01 1 9801- ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-300-0 01 1 9801- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-066-1 01 1 9712- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-248-2 01 1 9312-9506 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. UNITED KINGDOM EQUIPMENT(6AA) DARK BEIGE 		8-97854-248-3 01 1 9507-9711 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,UNITED KINGDOM EQUIPMENT(6AA) DARK GRAY 		8-97869-352-1 01 1 9712- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-237-1 01 1 9312-9506 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. UNITED KINGDOM EQUIPMENT(6AA), SEAT CLOTH<7FL> DARK BEIGE 		8-97854-237-2 01 1 9507-9711 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. UNITED KINGDOM EQUIPMENT(6AA), SEAT CLOTH<7FL> DARK GRAY 		8-97867-065-1 01 1 9712-9712 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),SEAT CLOTH<7FL> DARK GRAY 		8-97867-065-2 01 1 9801- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK BEIGE 		8-97854-645-3 01 1 9312-9711 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97869-322-2 01 1 9712- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-644-1 01 1 9312-9711 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97869-339-2 01 1 9712- ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK BEIGE 		8-97854-487-2 01 1 9312-9506 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. MANUAL TILT CAB<RWZ>,UNITED KINGDOM EQUIPMENT(6AA),SEAT CLOTH<7FL> DARK BEIGE 		8-97854-487-2 01 1 9507-9711 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. MANUAL TILT CAB<RWZ>,UNITED KINGDOM EQUIPMENT(6AA),SEAT CLOTH<7FL> DARK GRAY 		8-97867-011-1 01 1 9712- ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK BEIGE 		8-97854-406-4 01 1 9312-9506 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,UNITED KINGDOM EQUIPMENT(6AA) DARK BEIGE 		8-97854-406-4 01 1 9507-9711 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,UNITED KINGDOM EQUIPMENT(6AA) DARK GRAY 		8-97869-323-1 01 1 9712- ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK BEIGE 		8-97854-249-7 01 1 9312-9711 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97869-335-1 01 1 9712-9712 ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-215-0 01 1 9801- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-215-0 01 1 9801- ● ● ●
12 16.670 CUSHION; SEAT,FRT
UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97196-215-0 01 1 9801- ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-002-1 01 1 9712- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-238-6 01 1 9312-9711 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97866-998-1 01 1 9712-9712 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),SEAT CLOTH<7FL> DARK GRAY 		8-97866-998-2 01 1 9801- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-301-0 01 1 9801- ● ● ●
12 16.670 CUSHION; SEAT,FRT
UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-301-0 01 1 9801- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK BEIGE 		8-97854-490-2 01 1 9312-9506 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. MANUAL TILT CAB<RWZ>,UNITED KINGDOM EQUIPMENT(6AA),SEAT CLOTH<7FL> DARK BEIGE 		8-97854-490-2 01 1 9507-9711 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. MANUAL TILT CAB<RWZ>,UNITED KINGDOM EQUIPMENT(6AA),SEAT CLOTH<7FL> DARK GRAY 		8-97867-086-1 01 1 9712- ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK BEIGE 		8-97854-412-4 01 1 9312-9506 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,UNITED KINGDOM EQUIPMENT(6AA) DARK BEIGE 		8-97854-412-4 01 1 9507-9711 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,UNITED KINGDOM EQUIPMENT(6AA) DARK GRAY 		8-97869-324-1 01 1 9712- ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK BEIGE 		8-97854-252-6 01 1 9312-9711 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97869-336-1 01 1 9712-9712 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-216-0 01 1 9801- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-216-0 01 1 9801- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97196-216-0 01 1 9801- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-080-1 01 1 9712- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK BEIGE 		8-97854-241-4 01 1 9312-9711 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97867-078-1 01 1 9712-9712 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA),SEAT CLOTH<7FL> DARK GRAY 		8-97867-078-2 01 1 9801- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-302-0 01 1 9801- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-302-0 01 1 9801- ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. MANUAL TILT CAB<RWZ> 		8-97854-055-0 01 1 9312-9506 ● ● ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. MANUAL TILT CAB<RWZ>,UNITED KINGDOM EQUIPMENT(6AA) 		8-97854-055-0 01 1 9507- ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 9312- ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER 		8-97854-266-1 01 1 9312-9405 ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 9406- ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9312- ● ● ● ● ● ●
18 16.682 COVER; RECLINING
DARK BEIGE 		8-97854-243-0 01 1 9312-9711 ● ● ● ● ● ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 9712- ● ● ● ● ● ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9312- ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
DARK BEIGE 		8-97854-244-0 01 1 9312-9711 ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97867-021-0 01 1 9712- ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> 		8-97863-814-0 01 1 9507-9510 ●
63 16.682 ADJUSTER; SEAT SLIDE
UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> 		8-97863-814-0 01 1 9511-9711 ●
63 16.682 ADJUSTER; SEAT SLIDE
UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> 		8-97869-043-0 01 1 9712-9712 ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97869-043-0 01 1 9801- ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> 		8-97869-043-0 01 1 9801- ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-059-3 01 1 9312-9506 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. UNITED KINGDOM EQUIPMENT(6AA) 		8-97854-059-3 01 1 9507-9712 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. UNITED KINGDOM EQUIPMENT(6AA), SEAT FRT,LONG SIZE<7UG> 		8-97854-059-3 01 1 9801- ● ● ● ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9312- ● ● ● ● ● ●
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 01 1 9312- ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X18 		8-94279-109-1 02 1 9312-9403 ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X18 		8-94279-109-1 02 1 9405-9506 ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X18 		8-94279-109-1 02 1 9507- ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 9312- ● ● ● ● ● ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 9312- ● ● ● ● ● ●
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 01 1 9312- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
