Sayfa 7-43 - Isuzu EPC

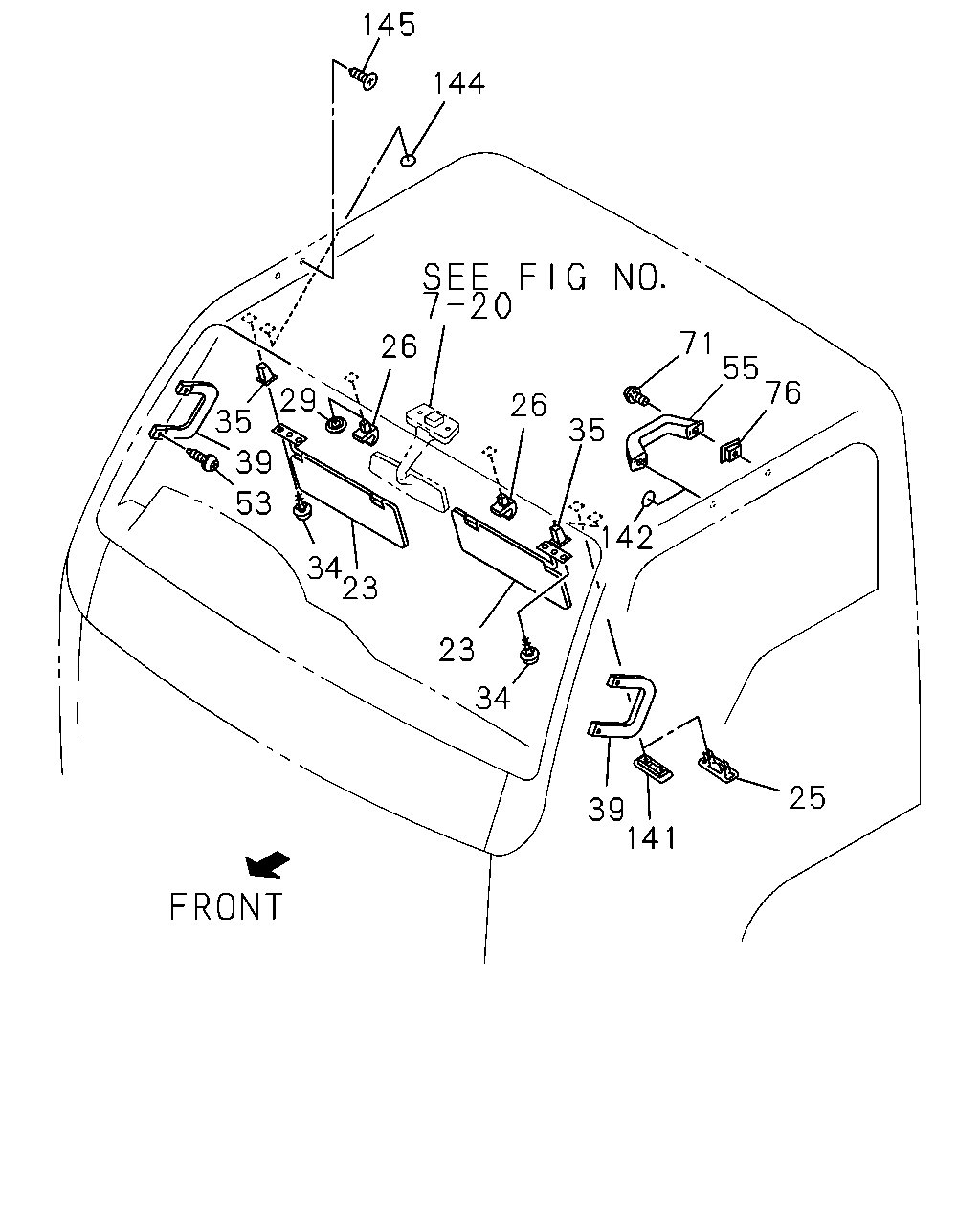

7-43 — SUN VISOR AND ASSIST GRIP (#47790) — 130 parça

151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
151	16.450 COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> (A)	1-73318-553-1	01	1	9312-9711	●	●	●	●	●	●
151	16.450 COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> (C) LIGHT GRAY	8-97867-250-0	01	1	9712-	●	●	●	●	●	●
151	16.450 COVER; BRKT AUSTRALIA EQUIPMENT(RR3) 16.069 (B)	8-97859-113-2	01	1	9402-9506	●		●			●
151	16.450 COVER; BRKT DOOR MIRROR<6VE> 16.069 (B)	8-97859-113-2	01	1	9507-9710	●		●			●
151	16.450 COVER; BRKT AUSTRALIA EQUIPMENT(RR3) 16.069 (B)	8-97859-112-2	01	1	9402-9506	●		●			●
151	16.450 COVER; BRKT DOOR MIRROR<6VE> 16.069 (B)	8-97859-112-2	01	1	9507-9710	●		●			●

72 77 48 89 48 48

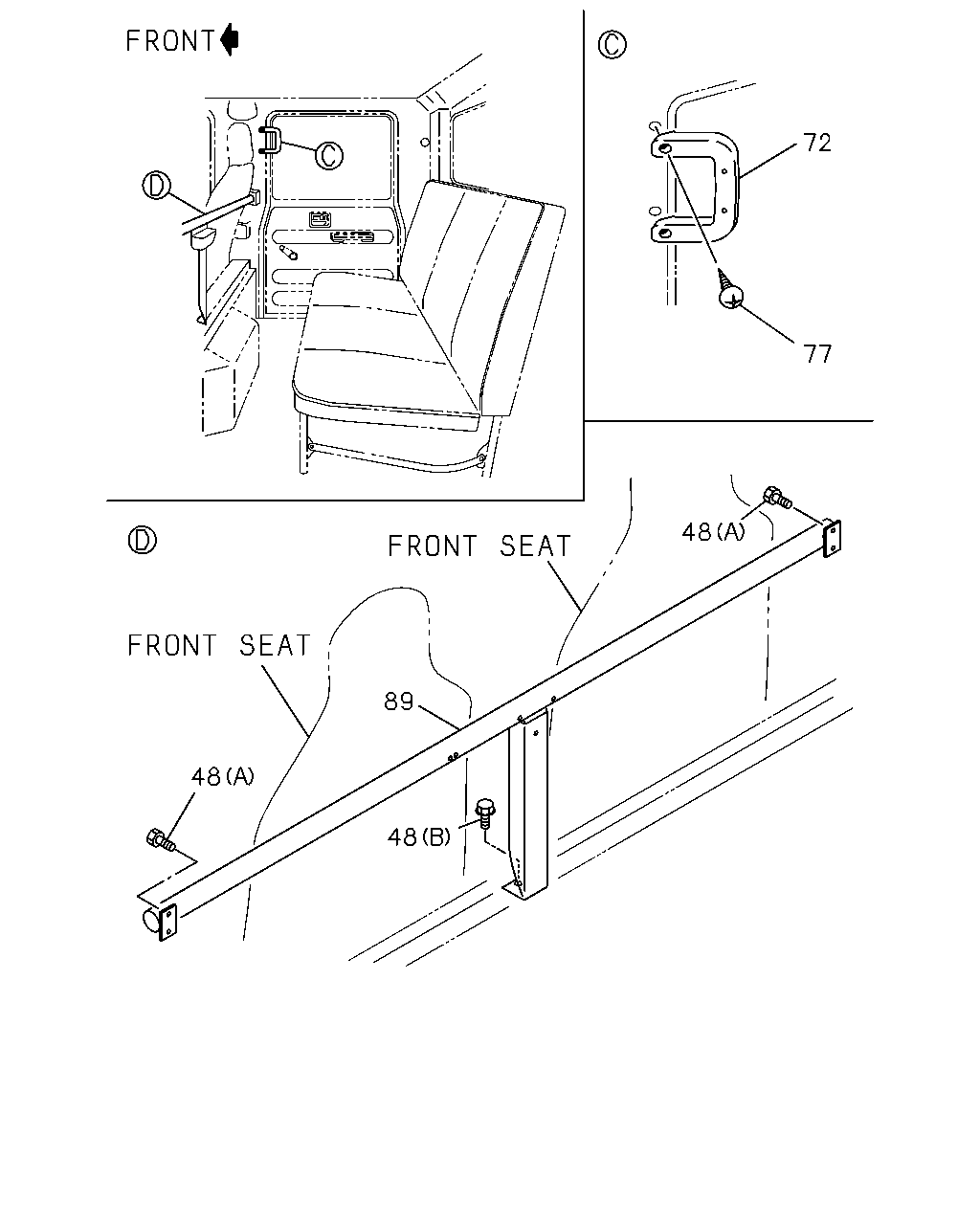

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	E
48	16.450 BOLT; ASSIST GRIP 16.350 (A) M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	9312-	●	●
48	16.450 BOLT; ASSIST GRIP 08.225 (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9312-	●	●
72	16.450 GRIP; ASSIST,CAB ENTRY,BACK	8-97853-802-2	02	1	9312-9608	●	●
72	16.450 GRIP; ASSIST,CAB ENTRY,BACK DARK BEIGE	8-97867-883-0	02	1	9609-9711	●	●
72	16.450 GRIP; ASSIST,CAB ENTRY,BACK DARK GRAY	8-97867-209-0	02	1	9712-	●	●
77	16.450 SCREW; ASSIST GRIP M4X30	8-94279-360-0	04	1	9312-9608	●	●
77	16.450 SCREW; ASSIST GRIP M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9609-	●	●
89	16.560 HANDLE; ASSIST	8-97853-446-4	01	1	9312-	●	●

152 151 151 152 138 137 128 134 30 31 131 132 30 31 134 132 132 1 7 132 15 130 6 12 7 146 51

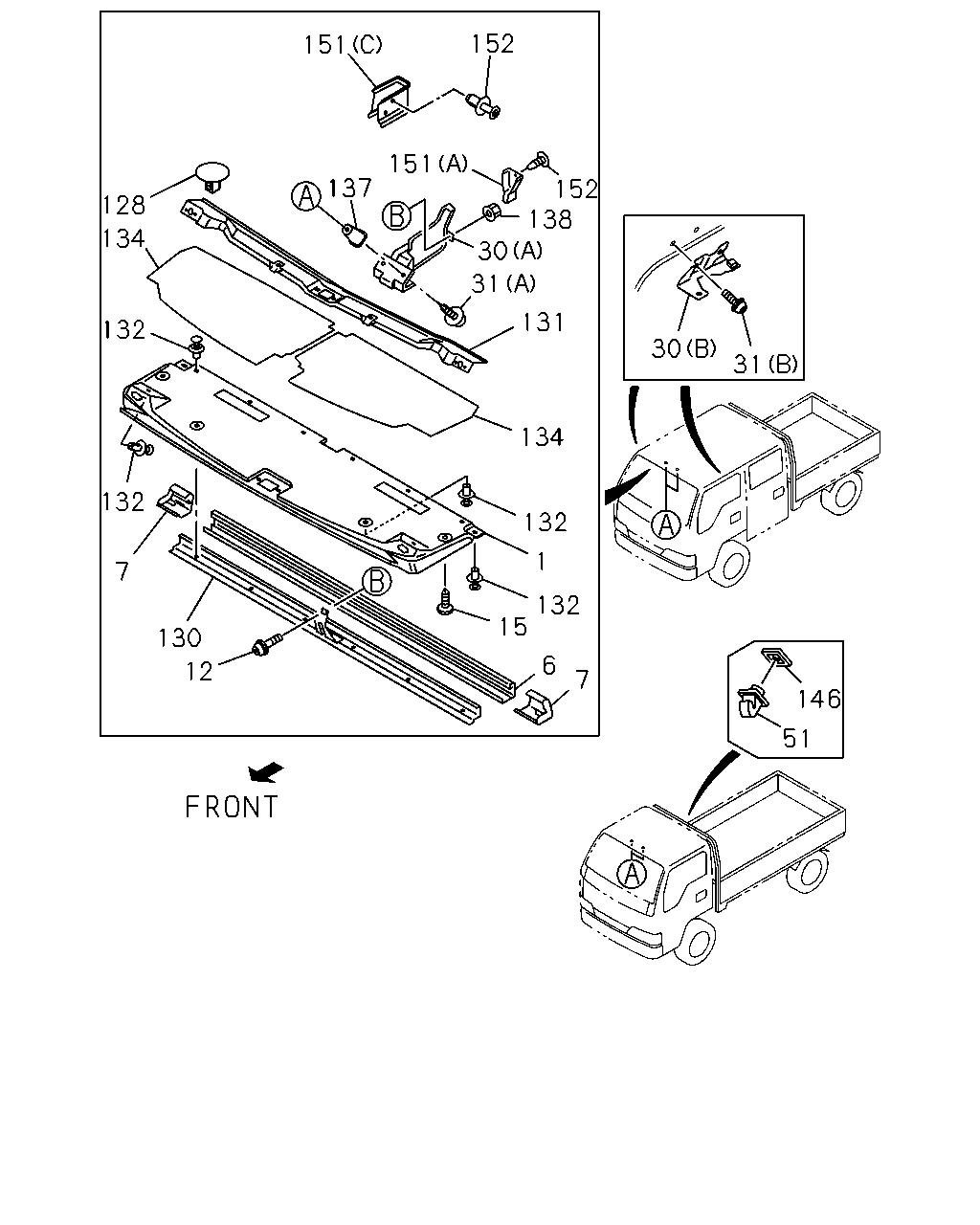

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.742 BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> GRAY	8-97856-714-3	01	1	9312-9701	●	●	●	●	●	●
1	16.742 BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> GRAY	8-97869-050-0	01	1	9702-9711	●	●	●	●	●	●
1	16.742 BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97859-847-0	01	1	9712-	●	●	●	●	●	●
6	16.742 FINISHER; HEADER SHELF,REAR TRAY ROOF HEAD<7EJ> GRAY	8-97856-055-1	01	1	9312-9711	●	●	●	●	●	●
6	16.742 FINISHER; HEADER SHELF,REAR TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-241-1	01	1	9712-	●	●	●	●	●	●
7	16.742 FINISHER; HEADER SHELF,CORNER TRAY ROOF HEAD<7EJ> GRAY	8-97856-057-3	01	1	9312-9711	●	●	●	●	●	●
7	16.742 FINISHER; HEADER SHELF,CORNER TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97859-849-3	01	1	9712-	●	●	●	●	●	●
7	16.742 FINISHER; HEADER SHELF,CORNER TRAY ROOF HEAD<7EJ> GRAY	8-97856-056-3	01	1	9312-9711	●	●	●	●	●	●
7	16.742 FINISHER; HEADER SHELF,CORNER TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97859-848-3	01	1	9712-	●	●	●	●	●	●
12	16.742 SCREW; HEADER SHELF TRAY ROOF HEAD<7EJ> 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	03	1	9312-	●	●	●	●	●	●
15	16.742 FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	02	1	9312-9407				●	●
15	16.742 FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	02	1	9408-9712	●	●	●	●	●	●
15	16.742 FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ> LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	02	1	9801-	●	●	●	●	●	●
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (A)	8-97856-012-6	01	1	9312-9405	●	●	●	●	●	●
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (A)	8-97859-388-1	01	1	9406-	●	●	●	●	●	●
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-798-2	01	1	9312-	●	●	●	●	●	●
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-797-2	01	1	9312-	●	●	●	●	●	●
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.802 (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9312-	●	●	●	●	●	●
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.320 (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9312-	●	●	●	●	●	●
51	16.570 HOOK; COAT HANGER AUSTRALIA EQUIPMENT(RR3) GRAY	8-97856-015-1	01	1	9312-9506	●		●			●
51	16.570 HOOK; COAT HANGER AUSTRALIA EQUIPMENT(RR3) GRAY	8-97856-015-1	01	1	9507-9711	●		●			●
51	16.570 HOOK; COAT HANGER INTERIOR DELUXE<RBB> GRAY	8-97856-015-1	01	1	9507-9711	●
51	16.570 HOOK; COAT HANGER INTERIOR DELUXE<RBB> EXC. AUSTRALIA EQUIPMENT(RR3) LIGHT GRAY	8-97867-259-1	01	1	9712-	●		●			●
51	16.570 HOOK; COAT HANGER AUSTRALIA EQUIPMENT(RR3) LIGHT GRAY	8-97867-259-1	01	1	9712-	●		●			●
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97853-998-2	01	1	9312-9711	●	●	●	●	●	●
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97867-230-2	01	1	9712-	●	●	●	●	●	●
130	16.742 REIFORCEMENT; HEADER SHELF,RR TRAY ROOF HEAD<7EJ>	8-97853-743-3	01	1	9312-9604	●	●	●	●	●	●
130	16.742 REIFORCEMENT; HEADER SHELF,RR TRAY ROOF HEAD<7EJ>	8-97859-531-1	01	1	9605-	●	●	●	●	●	●
131	16.742 REIFORCEMENT; HEADER SHELF,FRT TRAY ROOF HEAD<7EJ>	8-97853-742-6	01	1	9312-	●	●	●	●	●	●
132	16.742 FASTENER; BOARD,HEADER SHELF TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	10	1	9312-9407				●	●
132	16.742 FASTENER; BOARD,HEADER SHELF TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	10	1	9408-9510	●	●	●	●	●	●
132	16.742 FASTENER; BOARD,HEADER SHELF TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	08	1	9511-9712	●	●	●	●	●	●
132	16.742 FASTENER; BOARD,HEADER SHELF TRAY ROOF HEAD<7EJ> LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	08	1	9801-	●	●	●	●	●	●
134	16.742 SHEET; HEADER SHELF TRAY ROOF HEAD<7EJ>	8-97856-394-2	01	1	9312-9602	●	●	●	●	●	●
134	16.742 SHEET; HEADER SHELF TRAY ROOF HEAD<7EJ>	8-97856-393-2	01	1	9312-9602	●	●	●	●	●	●
134	16.742 SHEET; HEADER SHELF TRAY ROOF HEAD<7EJ>	8-97867-478-0	02	1	9603-	●	●	●	●	●	●
137	16.742 GROMMET; SCREW,HEADER SHELF TRAY ROOF HEAD<7EJ> 09.743	8-94279-084-2	01	1	9312-9503	●	●	●	●	●	●
137	16.742 GROMMET; SCREW,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	01	1	9504-	●	●	●	●	●	●
138	16.742 NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-	●	●	●	●	●	●
146	16.070 SPACER; HOOK AUSTRALIA EQUIPMENT(RR3) GRAY	8-97856-335-1	01	1	9312-9711	●		●			●
146	16.070 SPACER; HOOK AUSTRALIA EQUIPMENT(RR3) LIGHT GRAY	8-97867-152-1	01	1	9712-	●		●			●
151	16.450 COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> (A)	1-73318-553-1	01	1	9312-9711	●	●	●	●	●	●
151	16.450 COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> (C) LIGHT GRAY	8-97867-250-0	01	1	9712-	●	●	●	●	●	●
151	16.450 COVER; BRKT AUSTRALIA EQUIPMENT(RR3) 16.069 (B)	8-97859-113-2	01	1	9402-9506	●		●			●
151	16.450 COVER; BRKT DOOR MIRROR<6VE> 16.069 (B)	8-97859-113-2	01	1	9507-9710	●		●			●
151	16.450 COVER; BRKT AUSTRALIA EQUIPMENT(RR3) 16.069 (B)	8-97859-112-2	01	1	9402-9506	●		●			●
151	16.450 COVER; BRKT DOOR MIRROR<6VE> 16.069 (B)	8-97859-112-2	01	1	9507-9710	●		●			●
152	16.450 CLIP; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> GRAY	8-97857-053-0	02	1	9312-9711	●	●	●	●	●	●
152	16.450 CLIP; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97867-185-0	02	1	9712-	●	●	●	●	●	●

145 144 71 55 76 26 29 26 35 35 39 53 142 34 23 23 34 25 39 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
23	16.070 SUN VISOR EXC. AUSTRALIA EQUIPMENT(RR3),TRAY ROOF HEAD<7EJ> DRIVER GRAY	8-97856-235-2	01	1	9312-9711	●	●	●	●	●	●
23	16.070 SUN VISOR EXC. AUSTRALIA EQUIPMENT(RR3),TRAY ROOF HEAD<7EJ> DRIVER LIGHT GRAY	8-94351-820-3	01	1	9712-	●	●	●	●	●	●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. AUSTRALIA EQUIPMENT(RR3),TRAY ROOF HEAD<7EJ> PASSENGER GRAY	8-97856-236-2	01	1	9312-9711	●	●	●	●	●	●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. AUSTRALIA EQUIPMENT(RR3),TRAY ROOF HEAD<7EJ> PASSENGER LIGHT GRAY	8-97868-630-3	01	1	9712-	●	●	●	●	●	●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> EXC. AUSTRALIA EQUIPMENT(RR3) PASSENGER GRAY	8-97856-034-3	01	1	9312-9711	●	●	●	●	●	●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> EXC. AUSTRALIA EQUIPMENT(RR3) PASSENGER LIGHT GRAY	8-97859-841-3	01	1	9712-	●	●	●	●	●	●
23	16.070 SUN VISOR TRAY ROOF HEAD<7EJ> EXC. AUSTRALIA EQUIPMENT(RR3) DRIVER GRAY	8-97856-237-2	01	1	9312-9711	●	●	●	●	●	●
23	16.070 SUN VISOR TRAY ROOF HEAD<7EJ> EXC. AUSTRALIA EQUIPMENT(RR3) DRIVER LIGHT GRAY	8-97868-631-2	01	1	9712-	●	●	●	●	●	●
23	16.070 SUN VISOR AUSTRALIA EQUIPMENT(RR3) TRAY ROOF HEAD<7EJ> DRIVER GRAY	8-97856-815-1	01	1	9312-9503	●		●			●
23	16.070 SUN VISOR AUSTRALIA EQUIPMENT(RR3) DRIVER GRAY	8-97855-424-0	01	1	9504-9711	●		●			●
23	16.070 SUN VISOR AUSTRALIA EQUIPMENT(RR3) DRIVER LIGHT GRAY	8-97890-360-0	01	1	9712-	●		●			●
23	16.070 SUN VISOR AUSTRALIA EQUIPMENT(RR3) EXC. TRAY ROOF HEAD<7EJ> DRIVER GRAY	8-97856-594-1	01	1	9312-9503	●		●			●
23	16.070 SUN VISOR AUSTRALIA EQUIPMENT(RR3) EXC. TRAY ROOF HEAD<7EJ> PASSENGER GRAY	8-97856-595-1	01	1	9312-9503	●		●			●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> AUSTRALIA EQUIPMENT(RR3) TRAY ROOF HEAD<7EJ> PASSENGER GRAY	8-97856-816-1	01	1	9312-9503	●		●			●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> AUSTRALIA EQUIPMENT(RR3) PASSENGER GRAY	8-97855-428-0	01	1	9504-9711	●		●			●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> AUSTRALIA EQUIPMENT(RR3) PASSENGER LIGHT GRAY	8-97890-361-0	01	1	9712-	●		●			●
25	16.070 COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> GRAY	8-97853-968-3	01	1	9312-9711	●	●	●	●	●	●
25	16.070 COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97859-846-3	01	1	9712-	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> EXC. AUSTRALIA EQUIPMENT(RR3) GRAY	8-97853-966-2	02	1	9312-9702	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> GRAY	8-97853-966-2	02	1	9703-9711	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> EXC. AUSTRALIA EQUIPMENT(RR3) LIGHT GRAY	8-97867-184-2	02	1	9712-	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97856-239-0	02	1	9312-9711	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-982-0	02	1	9712-	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> GRAY	8-97856-239-0	01	1	9312-9711	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-982-0	01	1	9712-	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20>, AUSTRALIA EQUIPMENT(RR3) GRAY	8-97853-966-2	01	1	9312-9702	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97853-966-2	01	1	9703-9711	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20>, AUSTRALIA EQUIPMENT(RR3) LIGHT GRAY	8-97867-184-2	01	1	9712-	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR AUSTRALIA EQUIPMENT(RR3) TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97859-068-0	01	1	9312-9711	●		●			●
26	16.070 HOLDER; SUN VISOR AUSTRALIA EQUIPMENT(RR3) TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97868-350-0	01	1	9712-	●		●			●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> AUSTRALIA EQUIPMENT(RR3) TRAY ROOF HEAD<7EJ> GRAY	8-97859-068-0	02	1	9312-9711	●		●			●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> AUSTRALIA EQUIPMENT(RR3) TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-350-0	02	1	9712-	●		●			●
29	16.070 HOLDER; GROMMET,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> 16.547 OD=15.0	8-94279-040-0	01	1	9312-9806	●	●	●	●	●	●
29	16.070 HOLDER; GROMMET,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 16.547 OD=15.0	8-94279-040-0	01	1	9807-	●	●	●	●	●	●
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20	5-09981-059-0	04	1	9312-	●	●	●	●	●	●
34	16.070 SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20	5-09981-059-0	04	1	9312-	●	●	●	●	●	●
34	16.070 SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 03.671 M5X20	5-09981-059-0	02	1	9312-	●	●	●	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR SUNVISOR PASSENGER SIDE<D20> 09.743	8-94279-084-2	04	1	9312-9503	●	●	●	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 09.743	8-94279-084-2	04	1	9312-9503	●	●	●	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	9504-	●	●	●	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	9504-	●	●	●	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 09.743	8-94279-084-2	02	1	9312-9503	●	●	●	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	02	1	9504-	●	●	●	●	●	●
39	16.450 HANDLE; ASSIST,A-POST	8-97853-802-2	02	1	9312-9608	●	●	●	●	●	●
39	16.450 HANDLE; ASSIST,A-POST DARK BEIGE	8-97867-883-0	02	1	9609-9711	●	●	●	●	●	●
39	16.450 HANDLE; ASSIST,A-POST DARK GRAY	8-97867-209-0	02	1	9712-	●	●	●	●	●	●
53	16.450 SCREW; ASSIST HANDLE M4X30	8-94279-360-0	04	1	9312-9608	●	●	●	●	●	●
53	16.450 SCREW; ASSIST HANDLE M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9609-	●	●	●	●	●	●
55	16.450 GRIP; ASSIST,CAB SIDE UPR GRAY	8-97853-837-2	01	1	9312-9411	●	●	●	●	●	●
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> GRAY	8-97853-837-2	01	1	9412-9711	●	●	●	●	●	●
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> 16.346 DARK GRAY	8-97098-476-2	01	1	9712-	●	●	●	●	●	●
71	16.450 SCREW M4X30	8-94279-360-0	02	1	9312-9411	●	●	●	●	●	●
71	16.450 SCREW ASSIST GRIP PASSENGER<EG5> M4X30	8-94279-360-0	02	1	9412-9510	●	●	●	●	●	●
71	16.450 SCREW ASSIST GRIP PASSENGER<EG5> M6X30 W/LK WASHER	5-09981-064-0	02	1	9511-	●	●	●	●	●	●
76	16.742 SPACER; ASSIST GRIP INTERIOR DELUXE<RBB> GRAY	8-97856-673-0	02	1	9507-9711	●
76	16.742 SPACER; ASSIST GRIP INTERIOR DELUXE<RBB> DARK GRAY	8-97859-854-0	02	1	9712-	●		●			●
141	16.070 COVER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97853-967-1	01	1	9312-9711	●	●	●	●	●	●
141	16.070 COVER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97859-845-1	01	1	9712-	●	●	●	●	●	●
142	16.742 SEAL; ASSIST GRIP EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9412-9510	●		●	●
142	16.742 SEAL; ASSIST GRIP EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9511-	●	●	●	●	●	●
142	16.742 SEAL; ASSIST GRIP EXC. ASSIST GRIP PASSENGER<EG5> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9412-9510	●		●	●
142	16.742 SEAL; ASSIST GRIP EXC. ASSIST GRIP PASSENGER<EG5> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9511-	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE 16.081 WHITE	1-76777-076-0	AR	1	9312-9402	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9403-	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	AR	1	9312-9403	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9404-	●	●	●	●	●	●
145	16.070 PLUG; HOLE EXC. TRAY ROOF HEAD<7EJ> 16.069 OD=12 L=14.8	8-94279-921-0	04	1	9312-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
