0-86B — MISCELLANEOUS PARTS; INJECTION PUMP (#4779) — 29 parça

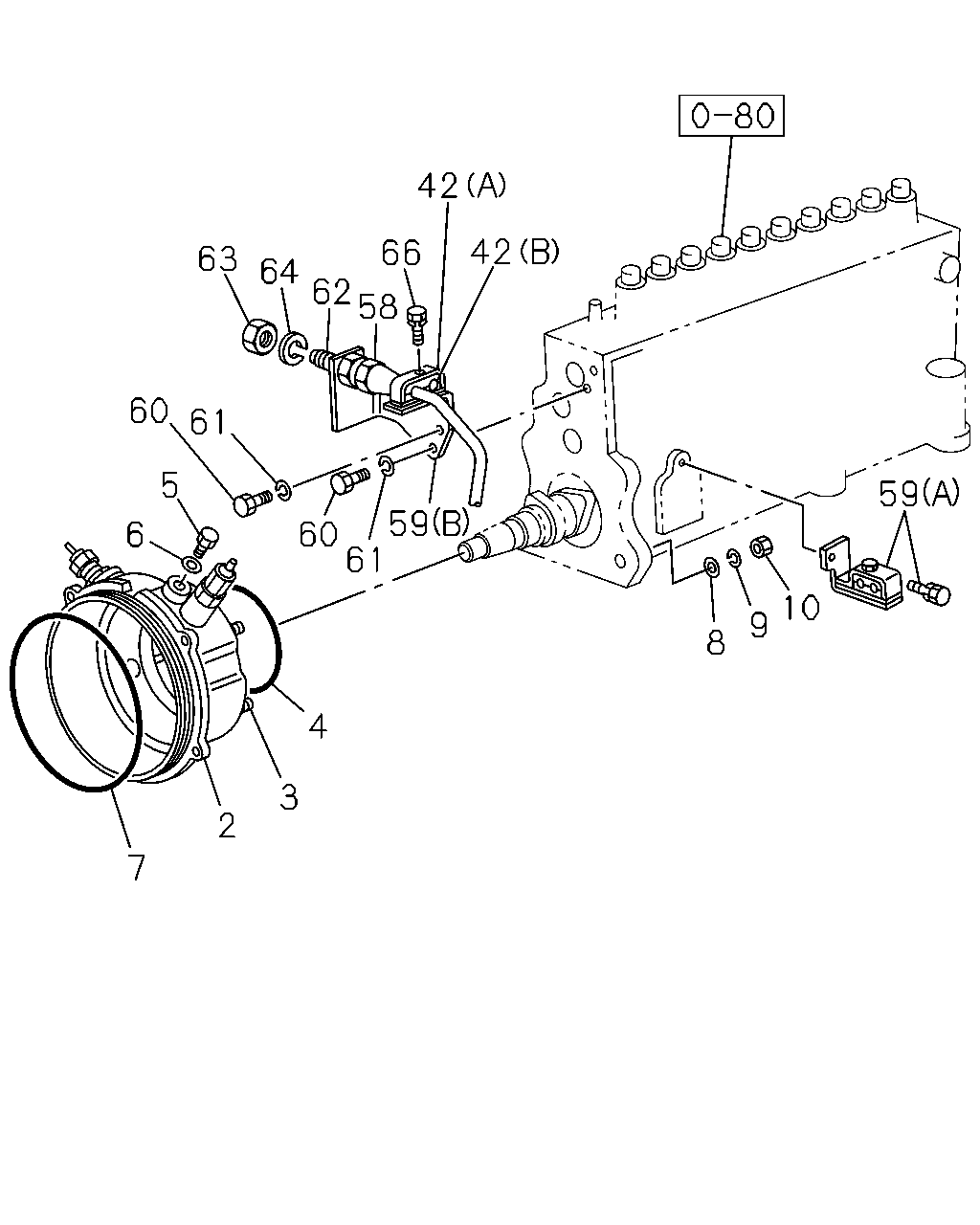

çizim 40809
42 42 66 63 64 62 58 60 61 59 5 59 60 61 6 10 9 8 4 3 2 7
BalonParca AdiParca NoAdetTipApplied Date A B
2 BRACKET; HSG & TIMER,INJ PUMP 1-19751-083-0 01 1 9601-9904 ●
2 BRACKET; HSG & TIMER,INJ PUMP 1-19751-083-0 01 1 9905- ● ●
3 STUD; HSG BRKT,INJ PUMP 1-15749-445-0 04 1 9601-9904 ●
3 STUD; HSG BRKT,INJ PUMP 1-15749-445-0 04 1 9905- ● ●
4 GASKET; HSG BRKT,HSG SIDE,INJ PUMP 1-15619-322-0 01 1 9601-9904 ●
4 GASKET; HSG BRKT,HSG SIDE,INJ PUMP 1-15619-322-0 01 1 9905- ● ●
5 PLUG; HSG BRKT,INJ PUMP 1-15619-284-0 01 1 9601-9904 ●
5 PLUG; HSG BRKT,INJ PUMP 1-15619-284-0 01 1 9905- ● ●
6 GASKET; PLUG,INJ PUMP BRKT 1-15629-056-0 01 1 9601-9904 ●
6 GASKET; PLUG,INJ PUMP BRKT 1-15629-056-0 01 1 9905- ● ●
7 GASKET; HSG BRKT,ENG SIDE 1-09623-459-0 01 1 9601-9904 ●
7 GASKET; HSG BRKT,ENG SIDE 1-09623-459-0 01 1 9905- ● ●
8 WASHER; PL,HSG BRKT,INJ PUMP
ID=10.5 		9-09164-510-0 04 1 9601-9904 ●
8 WASHER; PL,HSG BRKT,INJ PUMP
ID=10.5 		9-09164-510-0 04 1 9905- ● ●
9 WASHER; LK,HSG BRKT,INJ PUMP
ID=10.2 		9-09150-610-0 04 1 9601-9904 ●
9 WASHER; LK,HSG BRKT,INJ PUMP
ID=10.2 		9-09150-610-0 04 1 9905- ● ●
10 NUT; HSG BRKT,INJ PUMP 9-88410-456-0 04 1 9601-9904 ●
10 NUT; HSG BRKT,INJ PUMP 9-88410-456-0 04 1 9905- ● ●
42 CLIP; PIPE
(A) 		1-15619-382-0 01 1 9601-9702 ●
42 CLIP; PIPE
(B) 		1-15619-383-0 01 1 9601-9702 ●
58 PIPE; FUEL INL,INJ PUMP 1-15619-372-0 01 1 9601-9702 ●
59 BRACKET; PIPE,INJ PUMP
(B) 		1-15619-369-0 01 1 9601-9702 ●
59 BRACKET; PIPE,INJ PUMP
(A) 		1-15619-374-0 01 1 9601-9702 ●
60 BOLT; PIPE BRKT,INJ PUMP 1-15729-555-0 03 1 9601-9702 ●
61 WASHER; LK,PIPE BRKT 1-83579-492-0 03 1 9601-9702 ●
62 UNION; PIPE 1-15629-109-0 01 1 9601-9702 ●
63 NUT; UNION 1-15629-111-0 01 1 9601-9702 ●
64 WASHER; LK,UNION 1-19179-002-0 01 1 9601-9702 ●
66 BOLT; PIPE BRKT 1-15729-053-0 01 1 9601-9702 ●
