7-42 — ASH TRAY (#47789) — 19 parça

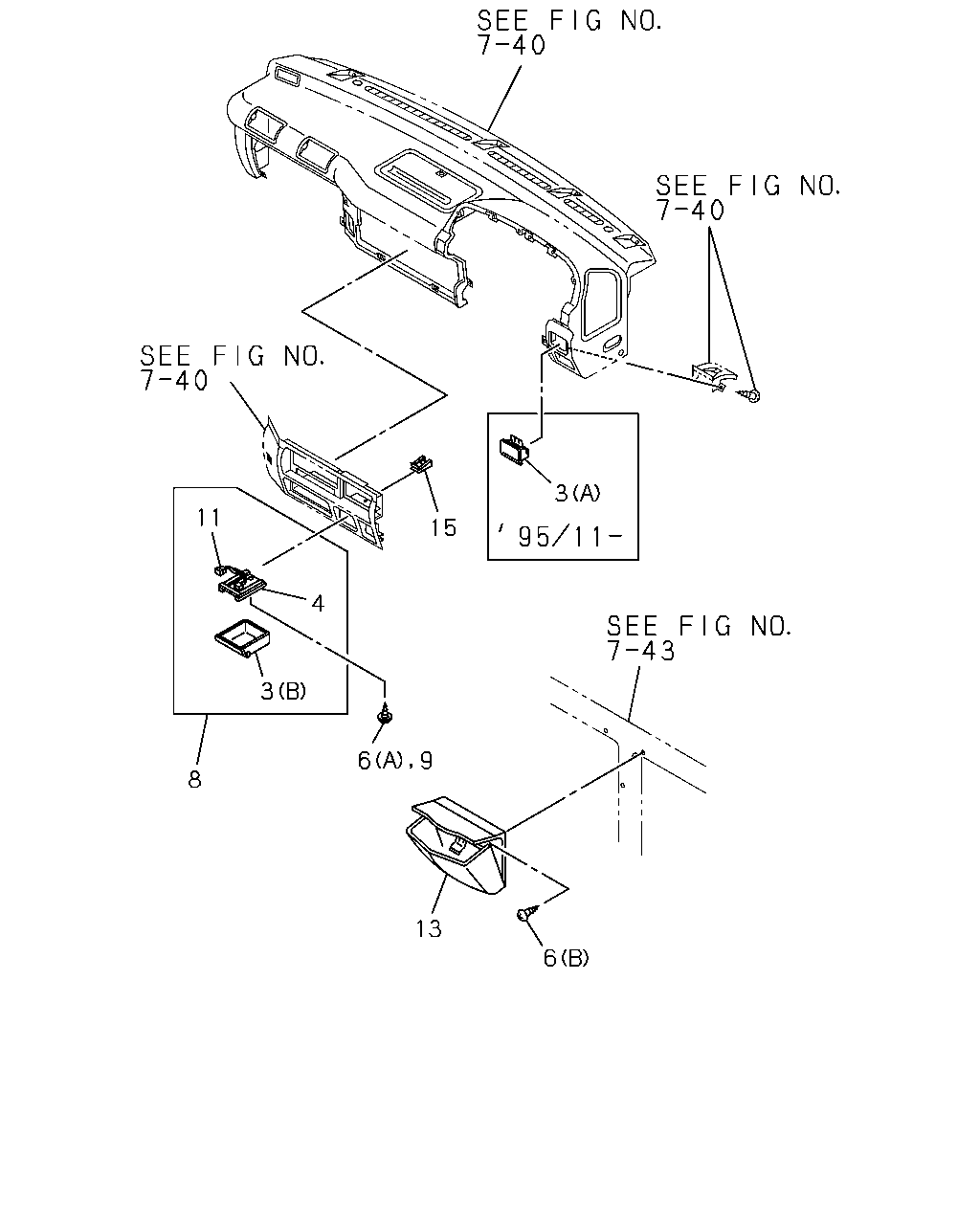

çizim 67125
3 11 15 4 3 6 9 8 13 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 16.120 CASE ASM; ASH TRAY INNER
(B) DARK BEIGE 		8-97857-997-1 01 1 9312-9711 ● ● ● ● ● ●
3 16.120 CASE ASM; ASH TRAY INNER
(B) DARK GRAY 		8-97857-998-1 01 1 9712- ● ● ● ● ● ●
3 16.120 CASE ASM; ASH TRAY INNER
THAILAND EQUIPMENT(PM9) ASH TRAY DRIVER SIDE<7KU> 16.100 (B) DARK BEIGE 		8-97853-892-2 01 1 9511-9511 ● ● ●
3 16.120 CASE ASM; ASH TRAY INNER
ASH TRAY DRIVER SIDE<7KU> 16.100 (A) DARK BEIGE 		8-97853-892-3 01 1 9511-9711 ● ● ● ● ● ●
3 16.120 CASE ASM; ASH TRAY INNER
ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY 		8-97859-799-3 01 1 9712-9809 ● ● ● ● ● ●
3 16.120 CASE ASM; ASH TRAY INNER
ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY 		8-97198-913-0 01 1 9810- ● ● ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER 8-97857-995-1 01 1 9312- ● ● ● ● ● ●
6 16.120 SCREW; ASH TRAY
07.874 (A) M6X16 TRUSS-HEAD 		8-94318-980-0 01 1 9701- ● ● ● ● ● ●
6 16.120 SCREW; ASH TRAY
(B) M4X10 CK-HEAD 		9-03950-410-0 03 1 9312-9411 ● ●
6 16.120 SCREW; ASH TRAY
16.345 (B) M4X10 TAPPING OVAL-HEAD 		0-70680-410-0 03 1 9412- ● ●
8 16.120 TRAY ASM; ASH
EXC. VOLTAGE 24V<7AE> 		8-97853-866-2 01 1 9312-9711 ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
EXC. VOLTAGE 24V<7AE> DARK GRAY 		8-97857-543-2 01 1 9712- ● ● ● ● ● ●
8 16.120 TRAY ASM; ASH
VOLTAGE 24V<7AE> 		8-97853-867-2 01 1 9312-9711 ● ● ● ● ●
8 16.120 TRAY ASM; ASH
VOLTAGE 24V<7AE> DARK GRAY 		8-97859-834-2 01 1 9712- ● ● ● ● ●
9 16.120 SCREW; OUTER CASE,ASH TRAY
16.067 M5X14 		8-94279-325-0 01 1 9312-9612 ● ● ● ● ● ●
11 08.991 BULB; ASH TRAY
EXC. VOLTAGE 24V<7AE> 		8-97858-977-0 01 1 9312- ● ● ● ● ● ●
11 08.991 BULB; ASH TRAY
VOLTAGE 24V<7AE> 		8-97857-999-0 01 1 9312- ● ● ● ● ●
13 16.120 TRAY ASM; ASH,RR 5-76457-001-0 01 1 9312- ● ●
15 16.120 NUT; ASH TRAY
16.081 M5 SPIRE NUT 		8-94279-051-0 01 1 9312-9404 ● ● ● ● ● ●
