◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#47787) — 102 parça

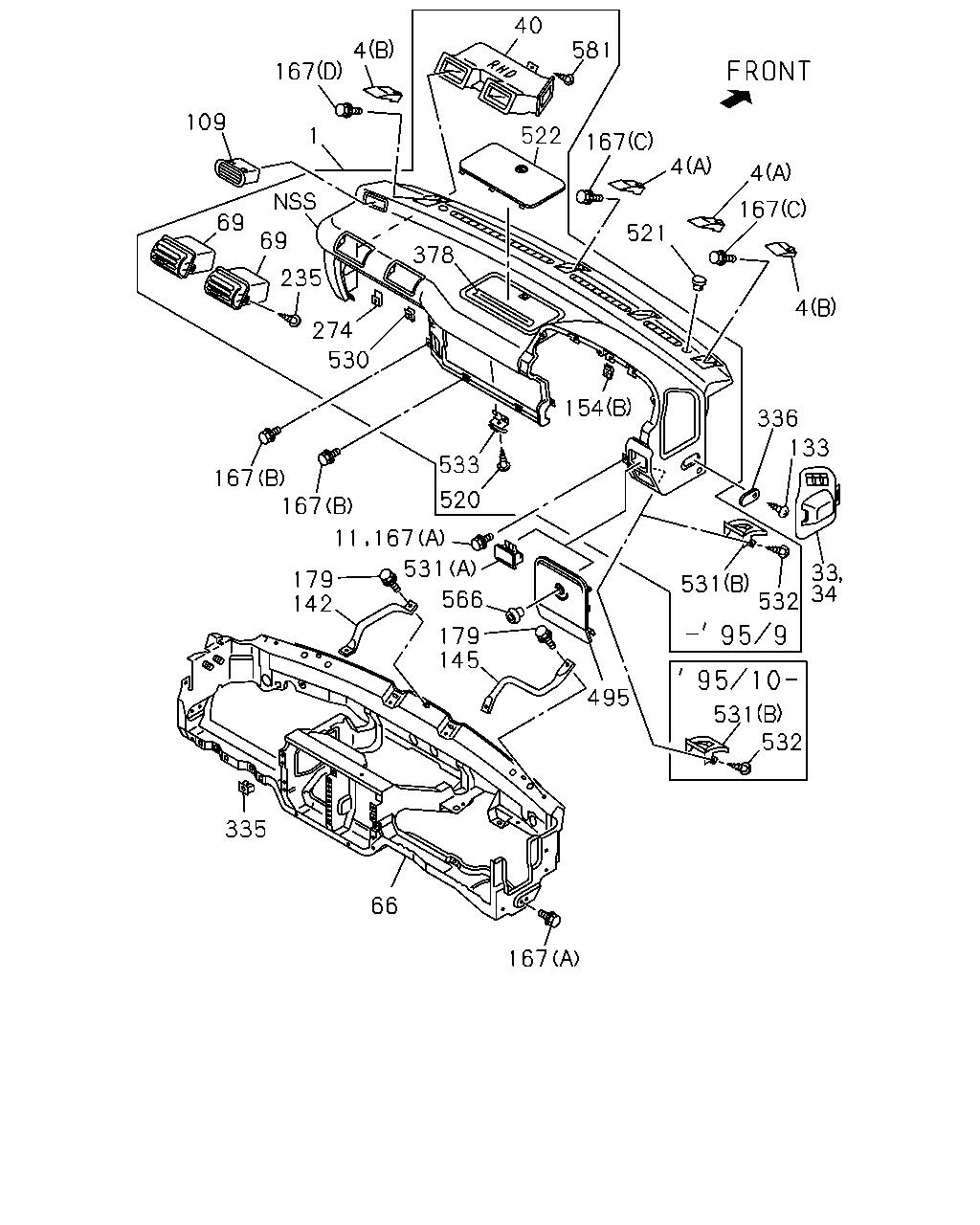

çizim 16488
40 581 4 167 109 522 1 167 4 4 167 69 521 69 378 235 4 274 530 154 336 133 533 167 167 520 167 11 531 33 34 179 142 531 566 532 179 145 495 531 532 335 66 167
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.080 PANEL; INST
DARK BEIGE 		8-97856-663-0 01 1 9312-9411 ● ● ● ● ● ●
1 16.080 PANEL; INST
ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97856-663-2 01 1 9412-9510 ● ● ● ● ● ●
1 16.080 PANEL; INST
DARK BEIGE 		8-97855-243-4 01 1 9511-9711 ● ● ● ● ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97195-958-0 01 1 9712- ● ● ● ● ● ●
1 16.080 PANEL; INST
IDENTIFICATION LABEL FOR KD<6UT> EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97855-238-4 01 1 9412-9510 ● ● ●
4 16.080 COVER; INST PNL
(A) 		8-97853-880-3 02 1 9312-9711 ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(A) DARK GRAY 		8-97857-523-3 02 1 9712- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) 		8-97853-882-3 01 1 9312-9711 ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97857-525-3 01 1 9712- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) 		8-97853-881-3 01 1 9312-9711 ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97857-524-3 01 1 9712- ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
16.085 M8X20 FLANGE 		8-97114-431-0 04 1 9407- ● ● ● ● ● ●
33 16.081 LID; CHECK HOLE,CLU FLUID
THAILAND EQUIPMENT(PM9) DARK BEIGE 		8-97853-887-5 01 1 9604-9711 ● ● ●
33 16.081 LID; CHECK HOLE,CLU FLUID
THAILAND EQUIPMENT(PM9) DARK GRAY 		8-97859-824-5 01 1 9712- ● ● ●
34 16.085 LID; OIL TANK 8-97853-886-7 01 1 9312-9603 ● ● ● ● ● ●
34 16.085 LID; OIL TANK
EXC. THAILAND EQUIPMENT(PM9) DARK BEIGE 		8-97853-886-7 01 1 9604-9711 ● ● ● ● ● ●
34 16.085 LID; OIL TANK
EXC. THAILAND EQUIPMENT(PM9) DARK GRAY 		8-97859-800-7 01 1 9712- ● ● ● ● ● ●
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL
09.786 		8-97035-234-0 01 1 9312- ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97857-590-8 01 1 9312-9802 ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97194-312-3 01 1 9803- ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK BEIGE 		8-97853-878-2 02 1 9312-9711 ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97890-631-0 02 1 9712- ● ● ● ● ● ●
109 16.081 GRILLE; INST PNL SIDE,UPR 8-97853-879-0 01 1 9312-9711 ● ● ● ● ● ●
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97859-795-0 01 1 9712- ● ● ● ● ● ●
133 16.081 SCREW; COVER,INST PNL
09.744 M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 9312- ● ● ● ● ● ●
142 16.085 STAY; INST PANEL 8-97853-637-2 01 1 9312- ● ● ● ● ● ●
145 16.085 STAY; INST PANEL SIDE 8-97853-638-3 01 1 9312- ● ● ● ● ● ●
154 16.085 NUT
16.081 (A) M5 SPIRE NUT 		8-94279-051-0 01 1 9312-9612 ● ● ● ● ● ●
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 01 1 9701-9711 ● ● ● ● ● ●
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 03 1 9712-9806 ● ● ● ● ● ●
154 16.085 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 03 1 9807- ● ● ● ● ● ●
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 03 1 9312-9711 ● ● ● ● ● ●
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 01 1 9712- ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
02.343 (A) M8X22 		8-94122-771-0 04 1 9312-9405 ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
08.225 (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9312- ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
06.500 (C) M6X25 		8-94279-204-0 02 1 9312- ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
(D) M6X24 FLANGE 		8-94279-231-1 02 1 9312- ● ● ● ● ● ●
179 16.085 BOLT; STAY,INST PANEL
16.350 M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9312- ● ● ● ● ● ●
235 16.081 SCREW; GRILLE
16.067 M5X14 		8-94279-325-0 04 1 9312- ● ● ● ● ● ●
274 16.100 NUT; GLOVE BOX
16.081 M5 SPIRE NUT 		8-94279-051-0 02 1 9312- ● ● ● ● ● ●
335 16.115 GROMMET; GLOVE BOX LK
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9312- ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE 8-97853-885-4 02 1 9312-9711 ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
DARK GRAY 		8-97857-528-4 02 1 9712- ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL 8-97853-938-0 01 1 9312- ● ● ● ● ● ●
495 09.743 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97857-548-4 01 1 9412- ● ● ● ● ● ●
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 03 1 9312-9406 ● ● ● ● ● ●
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 02 1 9407- ● ● ● ● ● ●
521 16.081 COVER; SUN SENSOR 8-97853-890-2 01 1 9312-9711 ● ● ● ● ● ●
521 16.081 COVER; SUN SENSOR
DARK GRAY 		8-97857-529-2 01 1 9712- ● ● ● ● ● ●
522 16.085 LID; RELAY BOX
DARK BEIGE 		8-97853-876-4 01 1 9312-9711 ● ● ● ● ● ●
522 16.085 LID; RELAY BOX
DARK GRAY 		8-97857-520-5 01 1 9712- ● ● ● ● ● ●
530 16.100 CLIP; GLOVE BOX 8-97856-135-0 01 1 9312- ● ● ● ● ● ●
531 16.100 CASE; ASH TRAY
(B) 		8-97853-130-0 01 1 9312-9411 ● ● ● ● ● ●
531 16.100 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> (B) 		8-97853-130-0 01 1 9412- ● ● ● ● ● ●
531 16.100 CASE; ASH TRAY
(A) DARK BEIGE 		8-97853-892-2 01 1 9312-9411 ● ● ● ● ● ●
531 16.100 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> (A) DARK BEIGE 		8-97853-892-2 01 1 9412-9510 ● ● ● ● ● ●
531 16.100 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> EXC. THAILAND EQUIPMENT(PM9) (A) DARK BEIGE 		8-97853-892-2 01 1 9511-9511 ● ● ● ● ● ●
532 16.100 SCREW; ASH TRAY
16.067 M5X14 		8-94279-325-0 02 1 9312-9411 ● ● ● ● ● ●
532 16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14 		8-94279-325-0 02 1 9412- ● ● ● ● ● ●
533 16.100 CLIP; SPRING,CTR CLUSTER 8-97853-170-2 03 1 9312-9406 ● ● ● ● ● ●
533 16.100 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 9407- ● ● ● ● ● ●
566 16.085 PLUG; HOLE
IDENTIFICATION LABEL FOR KD<6UT> EXC. ASH TRAY DRIVER SIDE<7KU> 		8-97859-978-0 01 1 9412-9507 ● ● ●
566 16.085 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97863-839-0 01 1 9508-9711 ● ● ● ● ● ●
566 16.085 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97868-413-0 01 1 9712- ● ● ● ● ● ●
581 09.744 SCREW
16.067 M5X14 		8-94279-325-0 02 1 9312- ● ● ● ● ● ●

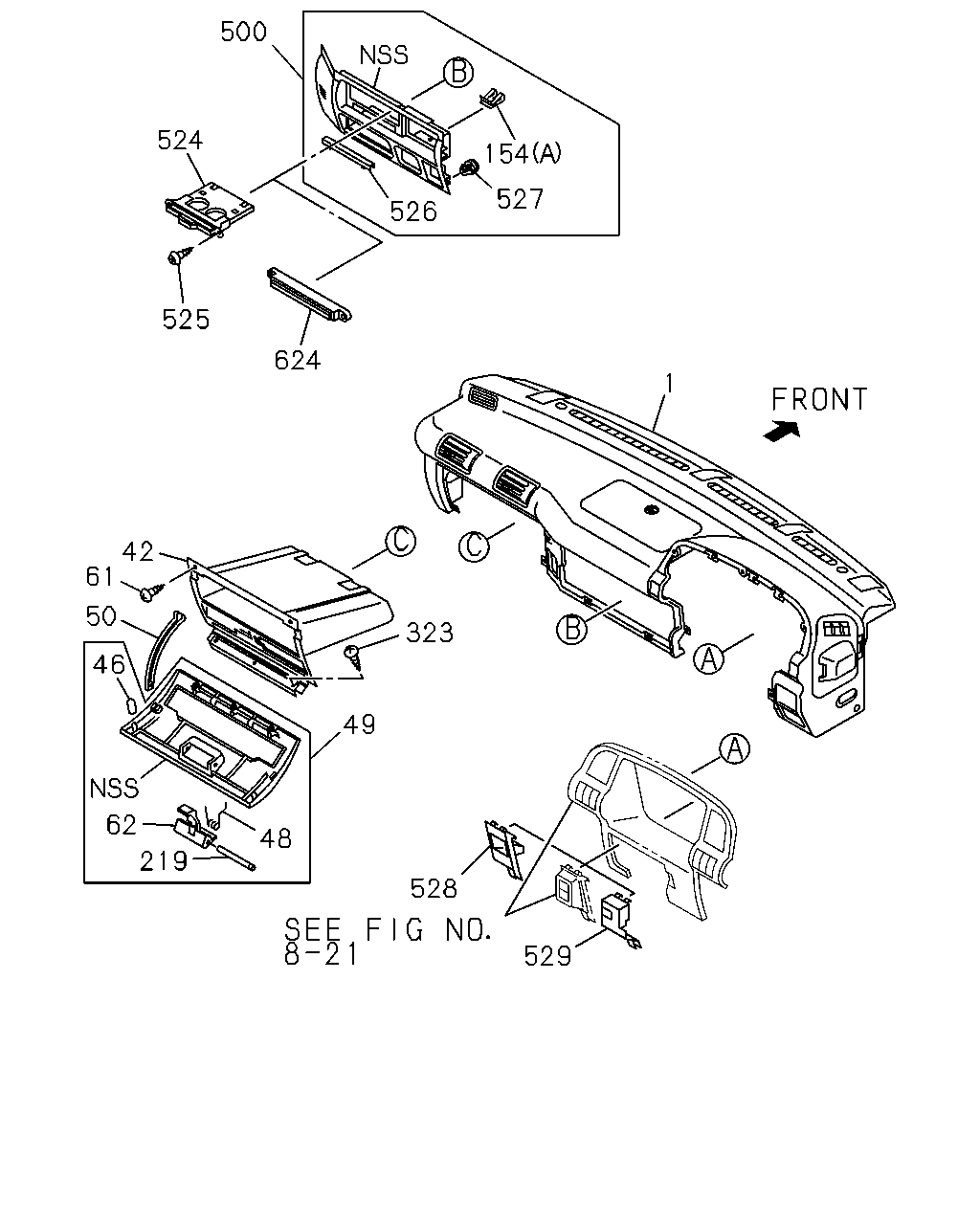

çizim 70927
500 524 154 527 526 525 624 1 42 61 50 323 46 49 62 48 219 528 529
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.080 PANEL; INST
DARK BEIGE 		8-97856-663-0 01 1 9312-9411 ● ● ● ● ● ●
1 16.080 PANEL; INST
ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97856-663-2 01 1 9412-9510 ● ● ● ● ● ●
1 16.080 PANEL; INST
DARK BEIGE 		8-97855-243-4 01 1 9511-9711 ● ● ● ● ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97195-958-0 01 1 9712- ● ● ● ● ● ●
1 16.080 PANEL; INST
IDENTIFICATION LABEL FOR KD<6UT> EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97855-238-4 01 1 9412-9510 ● ● ●
42 16.100 BOX; GLOVE,INST PNL 8-97853-150-5 01 1 9312- ● ● ● ● ● ●
46 16.110 CAP; GLOVE BOX STOPPER 8-94270-538-0 02 1 9312- ● ● ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 9312- ● ● ● ● ● ●
49 16.110 LID; GLOVE BOX 8-97853-859-3 01 1 9312-9711 ● ● ● ● ● ●
49 16.110 LID; GLOVE BOX
DARK GRAY 		8-97859-798-3 01 1 9712- ● ● ● ● ● ●
50 16.110 STOPPER; LID,GLOVE BOX,INST CLUS 8-97853-152-0 02 1 9312- ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9312- ● ● ● ● ● ●
62 16.110 KNOB; GLOVE BOX LID 8-97853-861-1 01 1 9312-9711 ● ● ● ● ● ●
62 16.110 KNOB; GLOVE BOX LID
DARK GRAY 		8-97857-498-1 01 1 9712- ● ● ● ● ● ●
154 16.085 NUT
16.081 (A) M5 SPIRE NUT 		8-94279-051-0 01 1 9312-9612 ● ● ● ● ● ●
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 01 1 9701-9711 ● ● ● ● ● ●
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 03 1 9712-9806 ● ● ● ● ● ●
154 16.085 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 03 1 9807- ● ● ● ● ● ●
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 03 1 9312-9711 ● ● ● ● ● ●
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 01 1 9712- ● ● ● ● ● ●
219 09.744 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 9312- ● ● ● ● ● ●
323 16.110 SCREW; GLOVE BOX LK
16.067 M5X14 		8-94279-325-0 03 1 9312- ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97853-863-9 01 1 9312-9711 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97859-813-9 01 1 9712- ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) 		8-97853-862-9 01 1 9312-9711 ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97859-812-9 01 1 9712- ● ● ● ● ● ●
524 16.100 STAND ASM; CUP,INST 8-97853-172-5 01 1 9312-9510 ● ● ● ● ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-97853-172-7 01 1 9511- ● ● ● ● ● ●
525 16.100 SCREW; CUP STAND
16.067 M5X14 		8-94279-325-0 02 1 9312- ● ● ● ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) 		8-97853-896-1 01 1 9312-9711 ● ● ● ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97857-503-1 01 1 9712- ● ● ● ● ● ●
527 16.100 CLIP; INST CLUSTER 8-97853-169-0 04 1 9312- ● ● ● ● ● ●
528 16.081 COVER; PTO LEVER
PTO TRANSMISSION SIDE(V66) 		8-97853-875-4 01 1 9312-9711 ● ● ●
528 16.081 COVER; PTO LEVER
PTO TRANSMISSION SIDE(V66) BLACK 		8-97867-071-5 01 1 9712- ● ● ●
529 16.100 POCKET; COIN
EXC. PTO TRANSMISSION SIDE(V66) 		8-97853-873-4 01 1 9312-9711 ● ● ● ● ● ●
529 16.100 POCKET; COIN
EXC. PTO TRANSMISSION SIDE(V66) BLACK 		8-97867-074-5 01 1 9712- ● ● ● ● ● ●
624 16.085 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> 		1-72438-139-0 01 1 9511- ● ● ● ● ● ●
