◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#47781) — 17 parça

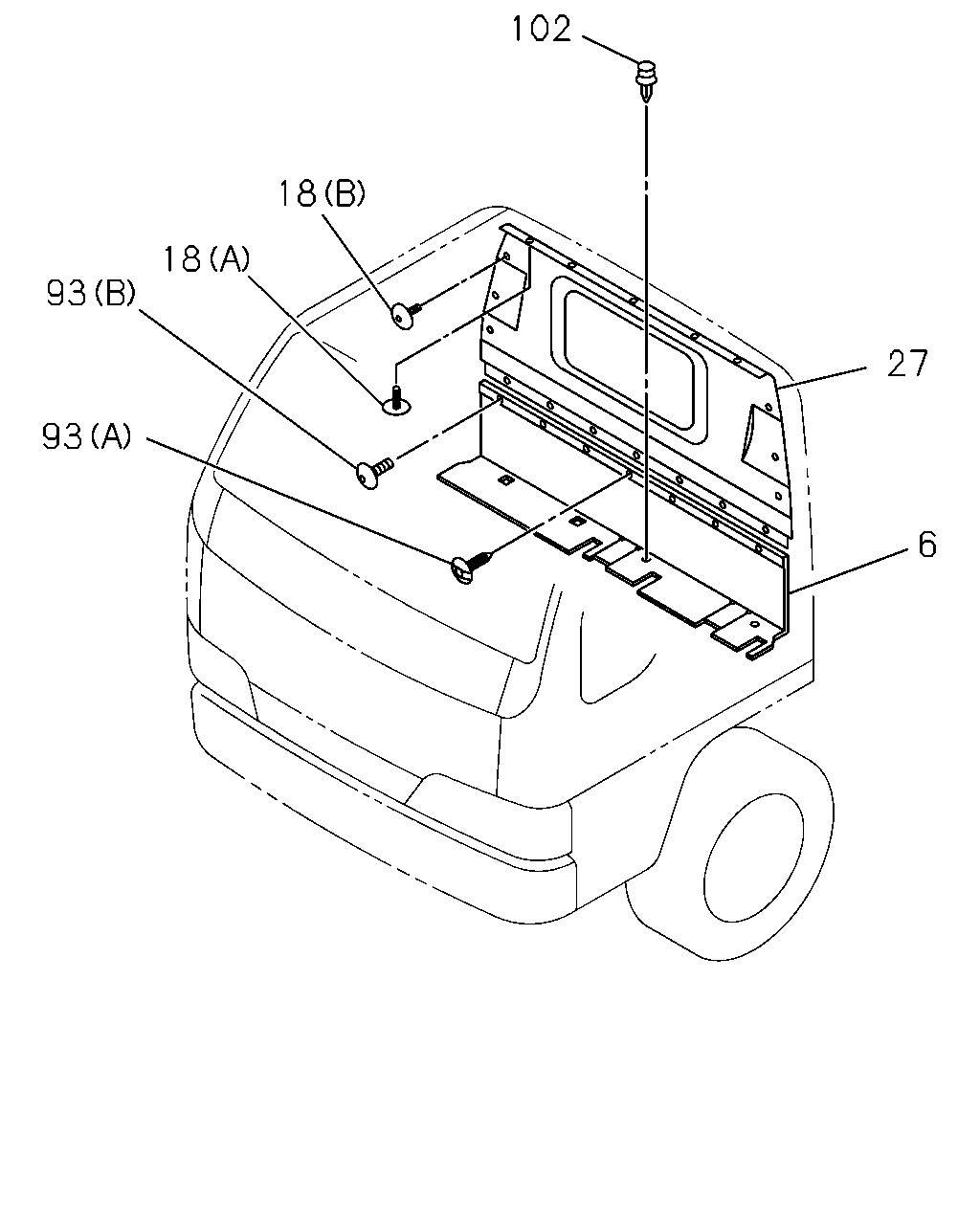

çizim 18321
102 18 18 93 27 93 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 16.592 MAT; SILENCER,CAB BACK 8-97856-017-4 01 1 9312-9408 ● ● ● ●
6 16.592 MAT; SILENCER,CAB BACK
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S) DARK BEIGE 		8-97856-017-5 01 1 9409-9510 ● ● ● ●
6 16.592 MAT; SILENCER,CAB BACK
INTERIOR DELUXE<RBB> DARK BEIGE 		8-97856-017-5 01 1 9511-9711 ●
6 16.592 MAT; SILENCER,CAB BACK
INTERIOR DELUXE<RBB> DARK GRAY 		8-97859-869-5 01 1 9712- ● ● ●
18 16.587 CLIP; TRIM COVER,CAB BACK
INTERIOR DELUXE<RBB> AUSTRALIA EQUIPMENT(RR3) 16.742 (A) LIGHT GRAY 		8-97153-166-0 05 1 9712- ● ● ●
18 16.587 CLIP; TRIM COVER,CAB BACK
INTERIOR DELUXE<RBB> AUSTRALIA EQUIPMENT(RR3) (B) LIGHT GRAY 		8-97867-200-0 06 1 9712- ● ● ●
27 16.587 COVER; TRIM,BACK
INTERIOR DELUXE<RBB> AUSTRALIA EQUIPMENT(RR3) LIGHT GRAY 		8-97859-888-0 01 1 9712- ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
(A) D6X23 		8-94279-509-0 02 1 9312-9408 ● ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S) (A) D6X23 		8-94279-509-0 02 1 9409-9510 ● ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB> (A) D6X23 		8-94279-509-0 02 1 9511-9702 ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB> (A) DARK BEIGE 		8-97866-661-0 02 1 9703-9711 ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB> (A) DARK GRAY 		8-97866-675-0 02 1 9712- ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
(B) DARK BEIGE 		8-97856-753-0 05 1 9312-9408 ● ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
EXC. THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(RWP),INDONESIA EQUIPMENT(S4S) (B) DARK BEIGE 		8-97856-753-0 05 1 9409-9510 ● ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB> (B) DARK BEIGE 		8-97856-753-0 05 1 9511-9711 ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB> (B) DARK GRAY 		8-97857-054-0 05 1 9712- ● ● ●
102 16.584 CLIP; TRAY,BACK PANEL
16.165 OD=7.9 BLACK 		8-94279-974-1 01 1 9312- ● ● ● ●
