Sayfa 0-85 - Isuzu EPC

0-85 — AUTO TIMER; INJECTION PUMP (#4778) — 198 parça

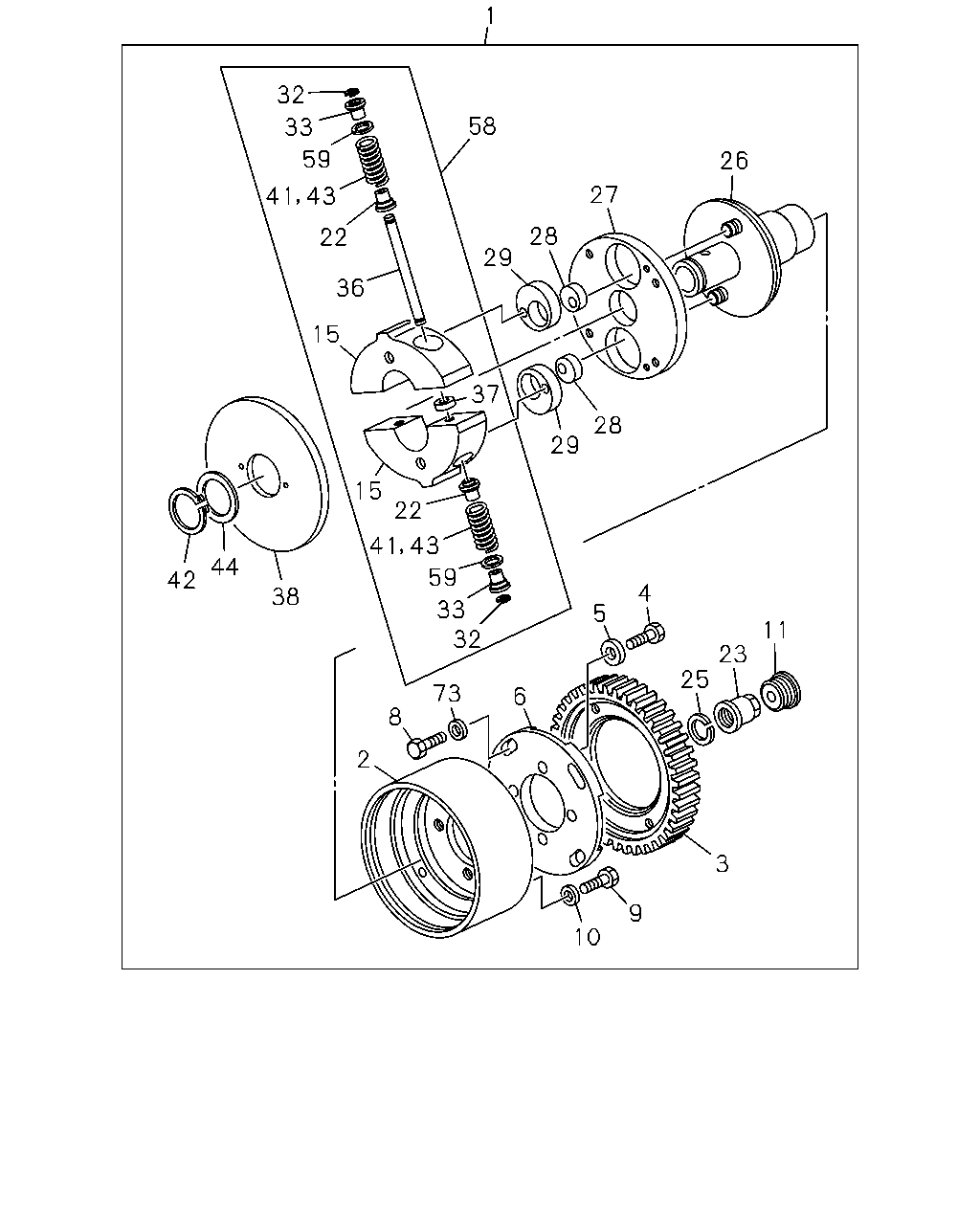

1 32 58 33 59 26 27 28 22 29 36 15 37 28 29 15 22 44 59 42 4 38 33 32 5 11 23 25 73 6 8 2 3 9 10 41 43 41 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-201-0	1-15740-487-1	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: J = 1-15603-202-2, K = 1-15603-203-1	1-15740-487-1	01	1	-9904
1	TIMER ASM; INJ PUMP ASM PART: D = 1-15603-068-5	1-15740-488-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: E = 1-15603-115-2	1-15740-495-1	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: F = 1-15603-121-2	1-15740-496-0	01	1	-9702
1	TIMER ASM; INJ PUMP ASM PART: G = 1-15603-122-2	1-15740-497-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: H = 1-15603-123-2	1-15740-498-0	01	1	-9608
1	TIMER ASM; INJ PUMP ASM PART: L = 1-15603-209-1	1-15740-507-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: H = 1-15603-123-2	1-15740-507-0	01	1	9609-
1	TIMER ASM; INJ PUMP ASM PART: F = 1-15603-121-2	1-15740-509-0	01	1	9703-
1	TIMER ASM; INJ PUMP ASM PART: J = 1-15603-202-2, K = 1-15603-203-1	1-15740-529-0	01	1	9905-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15741-016-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15741-076-0	01	1	-
3	GEAR; DRIVE,INJ PUMP ASM PART: H = 1-15603-123-2	1-12524-034-0	01	1	-9608
3	GEAR; DRIVE,INJ PUMP ASM PART: A = 1-15603-059-2	1-12524-034-0	01	1	-9603
3	GEAR; DRIVE,INJ PUMP ASM PART: B = 1-15603-060-2, C = 1-15603-061-2	1-12524-034-0	01	1	-9610
3	GEAR; DRIVE,INJ PUMP ASM PART: J = 1-15603-202-2, K = 1-15603-203-1	1-12524-085-3	01	1	9905-
3	GEAR; DRIVE,INJ PUMP ASM PART: I = 1-15603-201-0, L = 1-15603-209-1	1-15789-190-0	01	1	-
3	GEAR; DRIVE,INJ PUMP ASM PART: B = 1-15603-060-2, C = 1-15603-061-2	1-15789-190-0	01	1	9611-
3	GEAR; DRIVE,INJ PUMP ASM PART: H = 1-15603-123-2	1-15789-190-0	01	1	9609-
3	GEAR; DRIVE,INJ PUMP ASM PART: J = 1-15603-202-2, K = 1-15603-203-1	1-15789-190-0	01	1	-9904
3	GEAR; DRIVE,INJ PUMP ASM PART: A = 1-15603-059-2	1-15789-190-0	01	1	9604-
4	BOLT; DRIVE GEAR FLANGE,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-188-0	04	1	-
5	WASHER; DRIVE GEAR FLANGE,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-189-0	04	1	-
6	FLANGE; DRIVE GEAR,INJ PUMP T=1.00 ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15742-036-0	01	1	-
8	BOLT; DRIVE GEAR FIX,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-186-0	04	1	-
9	BOLT; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-190-0	04	1	-
10	WASHER; HSG FIX BOLT,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-191-0	04	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-698-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15749-735-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: H = 1-15603-123-2, L = 1-15603-209-1	1-15743-143-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1	1-15743-150-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15743-151-0	02	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-635-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15749-870-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15749-117-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-144-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15749-116-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-145-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1	1-15742-153-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: D = 1-15603-068-5	1-15742-154-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: H = 1-15603-123-2, L = 1-15603-209-1	1-15742-158-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15742-159-0	01	1	-
27	PLATE; CAM,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-239-0	01	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-152-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-151-0	02	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-159-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-176-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15749-871-0	04	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-174-0	02	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15749-869-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15749-402-0	04	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-402-0	02	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-283-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15749-788-0	01	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: B = 1-15603-060-2, C = 1-15603-061-2	1-15749-390-0	AR	1	-9610
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: B = 1-15603-060-2, C = 1-15603-061-2	1-15749-391-0	AR	1	-9610
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: B = 1-15603-060-2, C = 1-15603-061-2	1-15749-392-0	AR	1	-9610
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: B = 1-15603-060-2, C = 1-15603-061-2	1-15749-393-0	AR	1	-9610
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: B = 1-15603-060-2, C = 1-15603-061-2	1-15749-493-0	AR	1	-9610
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: B = 1-15603-060-2, C = 1-15603-061-2	1-15749-494-0	AR	1	-9610
42	RING; SNAP,TIMER COVER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-185-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=47.5 WIRE OD=2.0 ASM PART: A = 1-15603-059-2	1-15749-873-0	01	1	-9603
43	SPRING; PISTON,TIMER,INJ PUMP L=47.5 WIRE OD=2.0 ASM PART: B = 1-15603-060-2, C = 1-15603-061-2	1-15749-873-0	01	1	-9610
43	SPRING; PISTON,TIMER,INJ PUMP L=45.5 WIRE OD=2.2 ASM PART: B = 1-15603-060-2, C = 1-15603-061-2	1-15749-874-0	01	1	-9610
43	SPRING; PISTON,TIMER,INJ PUMP L=45.5 WIRE OD=2.2 ASM PART: A = 1-15603-059-2	1-15749-874-0	01	1	-9603
43	SPRING; PISTON,TIMER,INJ PUMP L=46.5 WIRE OD=2.1, D=2.1 L=46.5 ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1	1-15749-879-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: E = 1-15603-115-2	1-15749-890-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: G = 1-15603-122-2	1-15749-891-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=48.0 ASM PART: H = 1-15603-123-2	1-15749-896-0	01	1	-9608
43	SPRING; PISTON,TIMER,INJ PUMP L=46.5 ASM PART: H = 1-15603-123-2	1-15749-897-0	04	1	-9608
43	SPRING; PISTON,TIMER,INJ PUMP L=46.5 ASM PART: H = 1-15603-123-2	1-15749-898-0	01	1	-9608
43	SPRING; PISTON,TIMER,INJ PUMP L=50.0 ASM PART: F = 1-15603-121-2	1-15749-899-0	01	1	-9702
43	SPRING; PISTON,TIMER,INJ PUMP L=48.0 ASM PART: F = 1-15603-121-2	1-15749-900-0	04	1	-9702
43	SPRING; PISTON,TIMER,INJ PUMP L=46.5 ASM PART: F = 1-15603-121-2	1-15749-901-0	01	1	-9702
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=46 ASM PART: H = 1-15603-123-2, L = 1-15603-209-1	1-15749-902-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=45 ASM PART: H = 1-15603-123-2	1-15749-903-0	01	1	9609-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=45 ASM PART: L = 1-15603-209-1	1-15749-903-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=43.5 ASM PART: L = 1-15603-209-1	1-15749-904-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=43.5 ASM PART: H = 1-15603-123-2	1-15749-904-0	01	1	9609-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.2 L=43.5 ASM PART: L = 1-15603-209-1	1-15749-905-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.2 L=43.5 ASM PART: H = 1-15603-123-2	1-15749-905-0	01	1	9609-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=44 ASM PART: L = 1-15603-209-1	1-15749-906-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=44 ASM PART: H = 1-15603-123-2	1-15749-906-0	04	1	9609-
43	SPRING; PISTON,TIMER,INJ PUMP L=52.5 ASM PART: F = 1-15603-121-2	1-15749-913-0	04	1	9703-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: D = 1-15603-068-5	1-15749-998-0	04	1	-
44	SHIM; TIMER COVER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-184-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1	1-15743-148-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: D = 1-15603-068-5	1-15743-149-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: G = 1-15603-122-2	1-15743-154-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: H = 1-15603-123-2	1-15743-157-0	01	1	-9608
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: F = 1-15603-121-2	1-15743-158-0	01	1	-9702
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: H = 1-15603-123-2	1-15743-159-0	01	1	9609-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: L = 1-15603-209-1	1-15743-159-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: E = 1-15603-115-2	1-15743-161-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: F = 1-15603-121-2	1-15743-162-0	01	1	9703-
59	SHIM; SPR,TIMER T=0.10 ASM PART: A = 1-15603-059-2, D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-390-0	AR	1	-
59	SHIM; SPR,TIMER T=0.10 ASM PART: B = 1-15603-060-2, C = 1-15603-061-2	1-15749-390-0	AR	1	9611-
59	SHIM; SPR,TIMER T=0.30 ASM PART: B = 1-15603-060-2, C = 1-15603-061-2	1-15749-391-0	AR	1	9611-
59	SHIM; SPR,TIMER T=0.30 ASM PART: A = 1-15603-059-2, D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-391-0	AR	1	-
59	SHIM; SPR,TIMER T=0.50 ASM PART: B = 1-15603-060-2, C = 1-15603-061-2	1-15749-392-0	AR	1	9611-
59	SHIM; SPR,TIMER T=0.50 ASM PART: A = 1-15603-059-2, D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-392-0	AR	1	-
59	SHIM; SPR,TIMER T=1.00 ASM PART: B = 1-15603-060-2, C = 1-15603-061-2	1-15749-393-0	AR	1	9611-
59	SHIM; SPR,TIMER T=1.00 ASM PART: A = 1-15603-059-2, D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-393-0	AR	1	-
59	SHIM; SPR,TIMER T=0.40 ASM PART: A = 1-15603-059-2, D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-493-0	AR	1	-
59	SHIM; SPR,TIMER T=0.40 ASM PART: B = 1-15603-060-2, C = 1-15603-061-2	1-15749-493-0	AR	1	9611-
59	SHIM; SPR,TIMER T=0.70 ASM PART: B = 1-15603-060-2, C = 1-15603-061-2	1-15749-494-0	AR	1	9611-
59	SHIM; SPR,TIMER T=0.70 ASM PART: A = 1-15603-059-2, D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-494-0	AR	1	-
73	WASHER; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-187-0	04	1	-

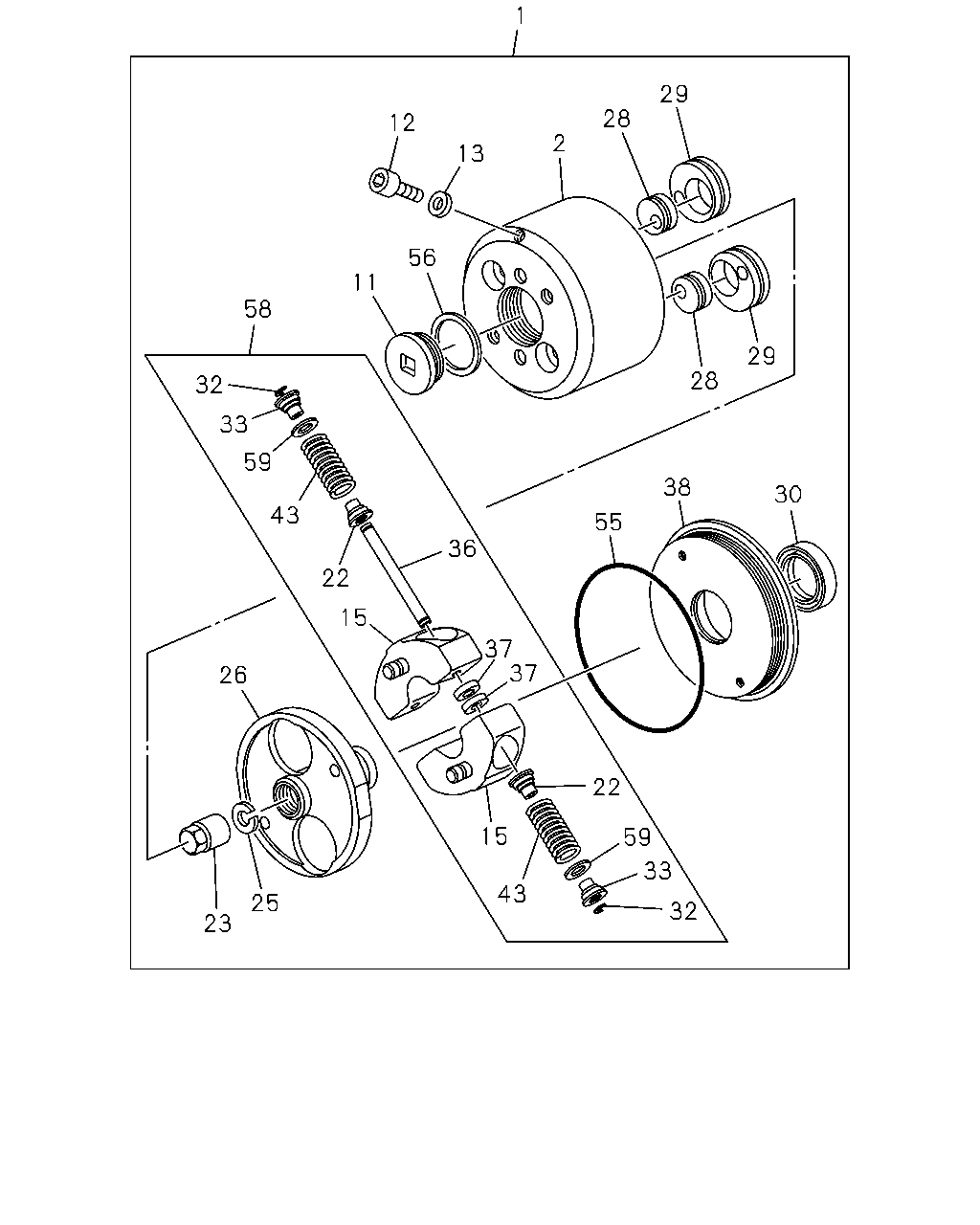

1 29 28 12 2 13 56 11 58 29 28 32 33 59 38 30 43 55 36 22 15 37 37 26 22 15 59 33 43 25 32 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-201-0	1-15740-487-1	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: J = 1-15603-202-2, K = 1-15603-203-1	1-15740-487-1	01	1	-9904
1	TIMER ASM; INJ PUMP ASM PART: D = 1-15603-068-5	1-15740-488-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: E = 1-15603-115-2	1-15740-495-1	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: F = 1-15603-121-2	1-15740-496-0	01	1	-9702
1	TIMER ASM; INJ PUMP ASM PART: G = 1-15603-122-2	1-15740-497-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: H = 1-15603-123-2	1-15740-498-0	01	1	-9608
1	TIMER ASM; INJ PUMP ASM PART: L = 1-15603-209-1	1-15740-507-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: H = 1-15603-123-2	1-15740-507-0	01	1	9609-
1	TIMER ASM; INJ PUMP ASM PART: F = 1-15603-121-2	1-15740-509-0	01	1	9703-
1	TIMER ASM; INJ PUMP ASM PART: J = 1-15603-202-2, K = 1-15603-203-1	1-15740-529-0	01	1	9905-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15741-016-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15741-076-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-698-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15749-735-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15749-031-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15749-030-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: H = 1-15603-123-2, L = 1-15603-209-1	1-15743-143-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1	1-15743-150-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15743-151-0	02	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-635-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15749-870-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15749-117-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-144-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15749-116-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-145-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1	1-15742-153-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: D = 1-15603-068-5	1-15742-154-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: H = 1-15603-123-2, L = 1-15603-209-1	1-15742-158-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15742-159-0	01	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-152-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-151-0	02	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15749-789-0	01	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-159-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-176-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15749-871-0	04	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-174-0	02	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15749-869-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15749-402-0	04	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-402-0	02	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-283-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15749-788-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=47.5 WIRE OD=2.0 ASM PART: A = 1-15603-059-2	1-15749-873-0	01	1	-9603
43	SPRING; PISTON,TIMER,INJ PUMP L=47.5 WIRE OD=2.0 ASM PART: B = 1-15603-060-2, C = 1-15603-061-2	1-15749-873-0	01	1	-9610
43	SPRING; PISTON,TIMER,INJ PUMP L=45.5 WIRE OD=2.2 ASM PART: B = 1-15603-060-2, C = 1-15603-061-2	1-15749-874-0	01	1	-9610
43	SPRING; PISTON,TIMER,INJ PUMP L=45.5 WIRE OD=2.2 ASM PART: A = 1-15603-059-2	1-15749-874-0	01	1	-9603
43	SPRING; PISTON,TIMER,INJ PUMP L=46.5 WIRE OD=2.1, D=2.1 L=46.5 ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1	1-15749-879-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: E = 1-15603-115-2	1-15749-890-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: G = 1-15603-122-2	1-15749-891-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=48.0 ASM PART: H = 1-15603-123-2	1-15749-896-0	01	1	-9608
43	SPRING; PISTON,TIMER,INJ PUMP L=46.5 ASM PART: H = 1-15603-123-2	1-15749-897-0	04	1	-9608
43	SPRING; PISTON,TIMER,INJ PUMP L=46.5 ASM PART: H = 1-15603-123-2	1-15749-898-0	01	1	-9608
43	SPRING; PISTON,TIMER,INJ PUMP L=50.0 ASM PART: F = 1-15603-121-2	1-15749-899-0	01	1	-9702
43	SPRING; PISTON,TIMER,INJ PUMP L=48.0 ASM PART: F = 1-15603-121-2	1-15749-900-0	04	1	-9702
43	SPRING; PISTON,TIMER,INJ PUMP L=46.5 ASM PART: F = 1-15603-121-2	1-15749-901-0	01	1	-9702
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=46 ASM PART: H = 1-15603-123-2, L = 1-15603-209-1	1-15749-902-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=45 ASM PART: H = 1-15603-123-2	1-15749-903-0	01	1	9609-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=45 ASM PART: L = 1-15603-209-1	1-15749-903-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=43.5 ASM PART: L = 1-15603-209-1	1-15749-904-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=43.5 ASM PART: H = 1-15603-123-2	1-15749-904-0	01	1	9609-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.2 L=43.5 ASM PART: L = 1-15603-209-1	1-15749-905-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.2 L=43.5 ASM PART: H = 1-15603-123-2	1-15749-905-0	01	1	9609-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=44 ASM PART: L = 1-15603-209-1	1-15749-906-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP T=2.0 L=44 ASM PART: H = 1-15603-123-2	1-15749-906-0	04	1	9609-
43	SPRING; PISTON,TIMER,INJ PUMP L=52.5 ASM PART: F = 1-15603-121-2	1-15749-913-0	04	1	9703-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: D = 1-15603-068-5	1-15749-998-0	04	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15749-111-0	01	1	-
56	GASKET; CAP ASM PART: D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2	1-15749-736-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-060-2, C = 1-15603-061-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1	1-15743-148-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: D = 1-15603-068-5	1-15743-149-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: G = 1-15603-122-2	1-15743-154-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: H = 1-15603-123-2	1-15743-157-0	01	1	-9608
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: F = 1-15603-121-2	1-15743-158-0	01	1	-9702
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: H = 1-15603-123-2	1-15743-159-0	01	1	9609-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: L = 1-15603-209-1	1-15743-159-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: E = 1-15603-115-2	1-15743-161-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: F = 1-15603-121-2	1-15743-162-0	01	1	9703-
59	SHIM; SPR,TIMER T=0.10 ASM PART: A = 1-15603-059-2, D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-390-0	AR	1	-
59	SHIM; SPR,TIMER T=0.10 ASM PART: B = 1-15603-060-2, C = 1-15603-061-2	1-15749-390-0	AR	1	9611-
59	SHIM; SPR,TIMER T=0.30 ASM PART: B = 1-15603-060-2, C = 1-15603-061-2	1-15749-391-0	AR	1	9611-
59	SHIM; SPR,TIMER T=0.30 ASM PART: A = 1-15603-059-2, D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-391-0	AR	1	-
59	SHIM; SPR,TIMER T=0.50 ASM PART: B = 1-15603-060-2, C = 1-15603-061-2	1-15749-392-0	AR	1	9611-
59	SHIM; SPR,TIMER T=0.50 ASM PART: A = 1-15603-059-2, D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-392-0	AR	1	-
59	SHIM; SPR,TIMER T=1.00 ASM PART: B = 1-15603-060-2, C = 1-15603-061-2	1-15749-393-0	AR	1	9611-
59	SHIM; SPR,TIMER T=1.00 ASM PART: A = 1-15603-059-2, D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-393-0	AR	1	-
59	SHIM; SPR,TIMER T=0.40 ASM PART: A = 1-15603-059-2, D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-493-0	AR	1	-
59	SHIM; SPR,TIMER T=0.40 ASM PART: B = 1-15603-060-2, C = 1-15603-061-2	1-15749-493-0	AR	1	9611-
59	SHIM; SPR,TIMER T=0.70 ASM PART: B = 1-15603-060-2, C = 1-15603-061-2	1-15749-494-0	AR	1	9611-
59	SHIM; SPR,TIMER T=0.70 ASM PART: A = 1-15603-059-2, D = 1-15603-068-5, E = 1-15603-115-2, F = 1-15603-121-2, G = 1-15603-122-2, H = 1-15603-123-2, I = 1-15603-201-0, J = 1-15603-202-2, K = 1-15603-203-1, L = 1-15603-209-1	1-15749-494-0	AR	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
