◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#47779) — 70 parça

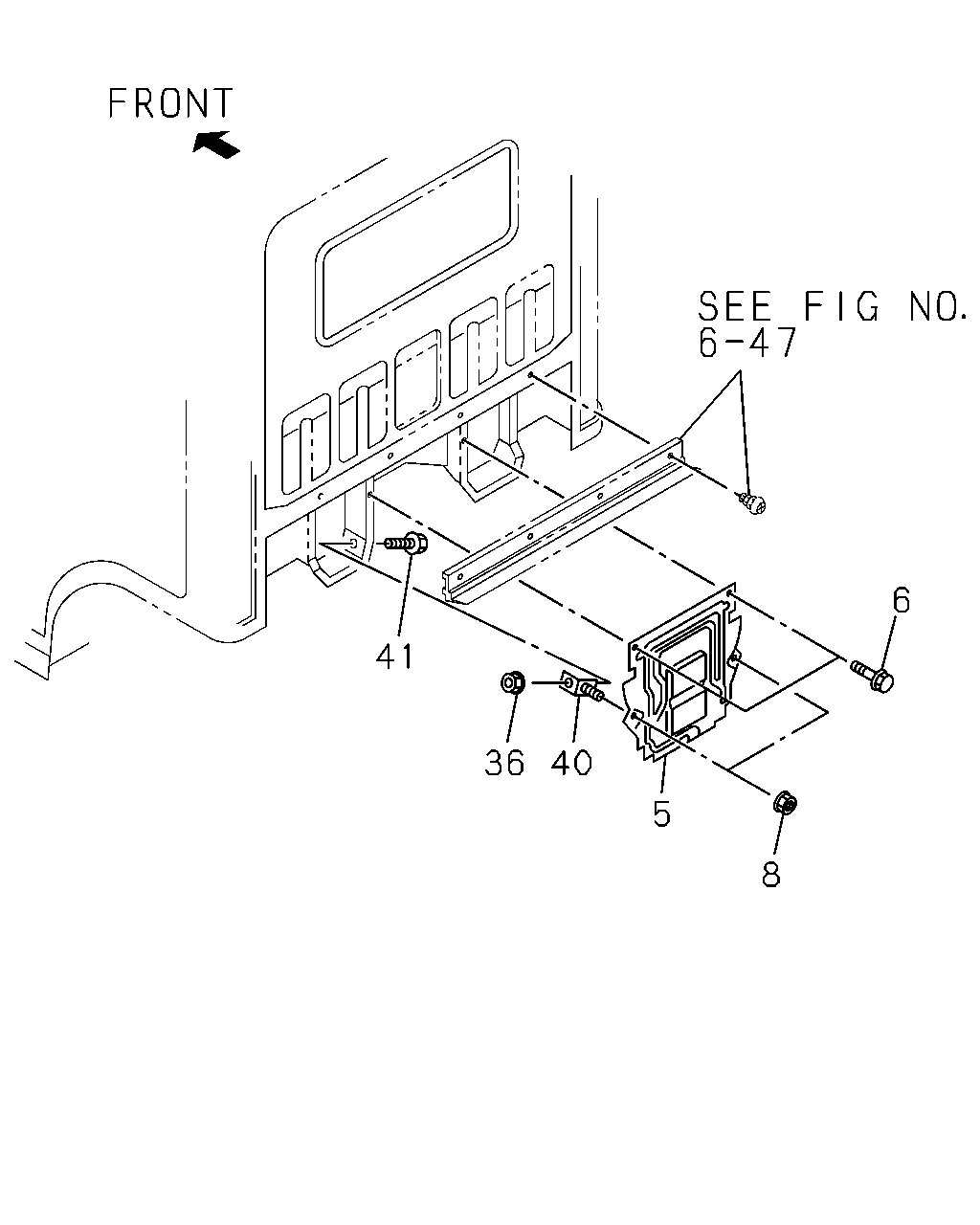

çizim 65795
6 41 36 40 5 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 16.587 PANEL; CAB BACK
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> 		8-97084-132-4 01 1 9507-9801 ●
5 16.587 PANEL; CAB BACK
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97084-132-4 01 1 9802- ●
5 16.587 PANEL; CAB BACK
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> NOISE PACK FOR REGULATION<6VD> 		8-97083-312-1 01 1 9312-9504 ● ● ●
6 16.587 BOLT; BACK PANEL
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> 04.595 M8X20 FLANGE 		0-28480-820-0 02 1 9507-9702 ●
6 16.587 BOLT; BACK PANEL
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9703-9801 ●
6 16.587 BOLT; BACK PANEL
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9802- ●
6 16.587 BOLT; BACK PANEL
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> NOISE PACK FOR REGULATION<6VD> 04.595 M8X20 FLANGE 		0-28480-820-0 02 1 9312-9504 ● ● ●
6 16.587 BOLT; BACK PANEL
4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1) EXC. MANUAL TILT CAB<RWZ> 04.595 M8X20 FLANGE 		0-28480-820-0 04 1 9511-9702 ● ●
8 16.587 NUT; BACK PANEL
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9507-9510 ●
8 16.587 NUT; BACK PANEL
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9511-9702 ●
8 16.587 NUT; BACK PANEL
4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1) EXC. MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9511-9702 ● ●
8 16.587 NUT; BACK PANEL
4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA) MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9703-9801 ●
8 16.587 NUT; BACK PANEL
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9802- ●
8 16.587 NUT; BACK PANEL
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> NOISE PACK FOR REGULATION<6VD> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9312-9504 ● ● ●
36 16.587 NUT; BRKT
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> NOISE PACK FOR REGULATION<6VD> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9312-9504 ● ● ●
40 16.587 BRACKET; BACK PANEL
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> NOISE PACK FOR REGULATION<6VD> 		8-97083-313-1 02 1 9312-9504 ● ● ●
41 16.587 BOLT
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> NOISE PACK FOR REGULATION<6VD> 07.010 M8X20 FLANGE 		0-28080-820-0 02 1 9312-9504 ● ● ●
41 16.587 BOLT
4JB1 ENG(RLF) HONG KONG EQUIPMENT(PQ1) EXC. MANUAL TILT CAB<RWZ> 03.417 M10X25 FLANGE 		0-28081-025-0 04 1 9511-9702 ● ●

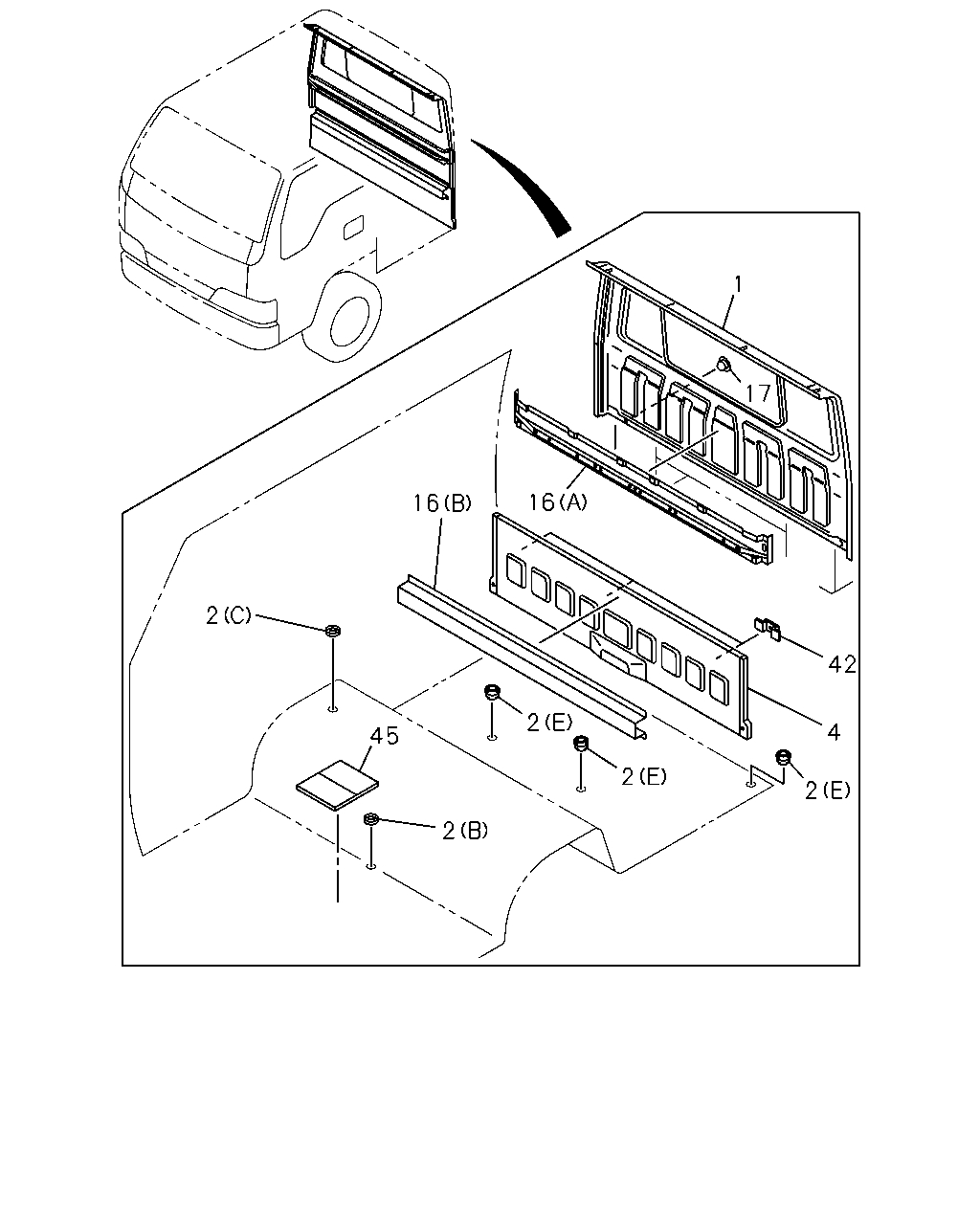

çizim 67124
1 17 16 16 2 42 2 45 4 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC) INTERIOR DELUXE<RBB> AIR INTAKE SYSTEM FRONT<6PC> 		8-97851-008-6 01 1 9507-9510 ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 9511- ● ● ● ● ● ●
1 16.587 PANEL; BACK OUTER
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) 		8-97859-137-0 01 1 9402-9510 ● ●
1 16.587 PANEL; BACK OUTER
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-479-2 01 1 9312-9401 ● ● ●
1 16.587 PANEL; BACK OUTER
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97851-479-2 01 1 9402-9506 ● ● ●
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97851-479-2 01 1 9507-9510 ● ● ●
1 16.587 PANEL; BACK OUTER
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) 		8-97851-464-2 01 1 9312-9401 ● ● ●
1 16.587 PANEL; BACK OUTER
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-464-2 01 1 9402-9510 ● ●
1 16.587 PANEL; BACK OUTER
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3>, AUSTRALIA EQUIPMENT(RR3) 		8-97851-352-2 01 1 9312-9408 ● ●
1 16.587 PANEL; BACK OUTER
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3>, AUSTRALIA EQUIPMENT(RR3) 		8-97851-352-2 01 1 9409-9510 ● ●
1 16.587 PANEL; BACK OUTER 8-97851-273-5 01 1 9312-9510 ● ●
1 16.587 PANEL; BACK OUTER
4HF1 ENG(RLS) 		8-97851-480-2 01 1 9312-9510 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
08.155 (B) OD=28.5 		8-94279-711-0 02 1 9312- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (C) OD=16.2 		8-94492-493-0 02 1 9312- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=36 BLACK 		1-76798-018-0 02 1 9312- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 9312- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 9312- ● ●
4 16.575 PANEL; CAB BACK LWR 8-97851-145-6 01 1 9312- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) INTERIOR DELUXE<RBB> AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97867-215-0 01 1 9703-9703 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 9704- ● ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-055-5 01 1 9511-9702 ● ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) (A) 		8-97851-055-5 01 1 9703-9703 ● ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-055-5 01 1 9703-9703 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) INTERIOR DELUXE<RBB> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97867-148-1 01 1 9712- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-300-1 01 1 9312- ● ●
17 16.592 GROMMET; LOCATION HOLE,CAB RR MT
09.647 		1-09983-097-0 02 1 9312-9411 ● ●
42 16.587 BRACKET; HEAT PROTECTOR
16.588 		8-94265-170-1 03 1 9312- ● ●
45 16.587 SHEET; MELTING,BACK PANEL
16.850 NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 02 1 9312- ● ●

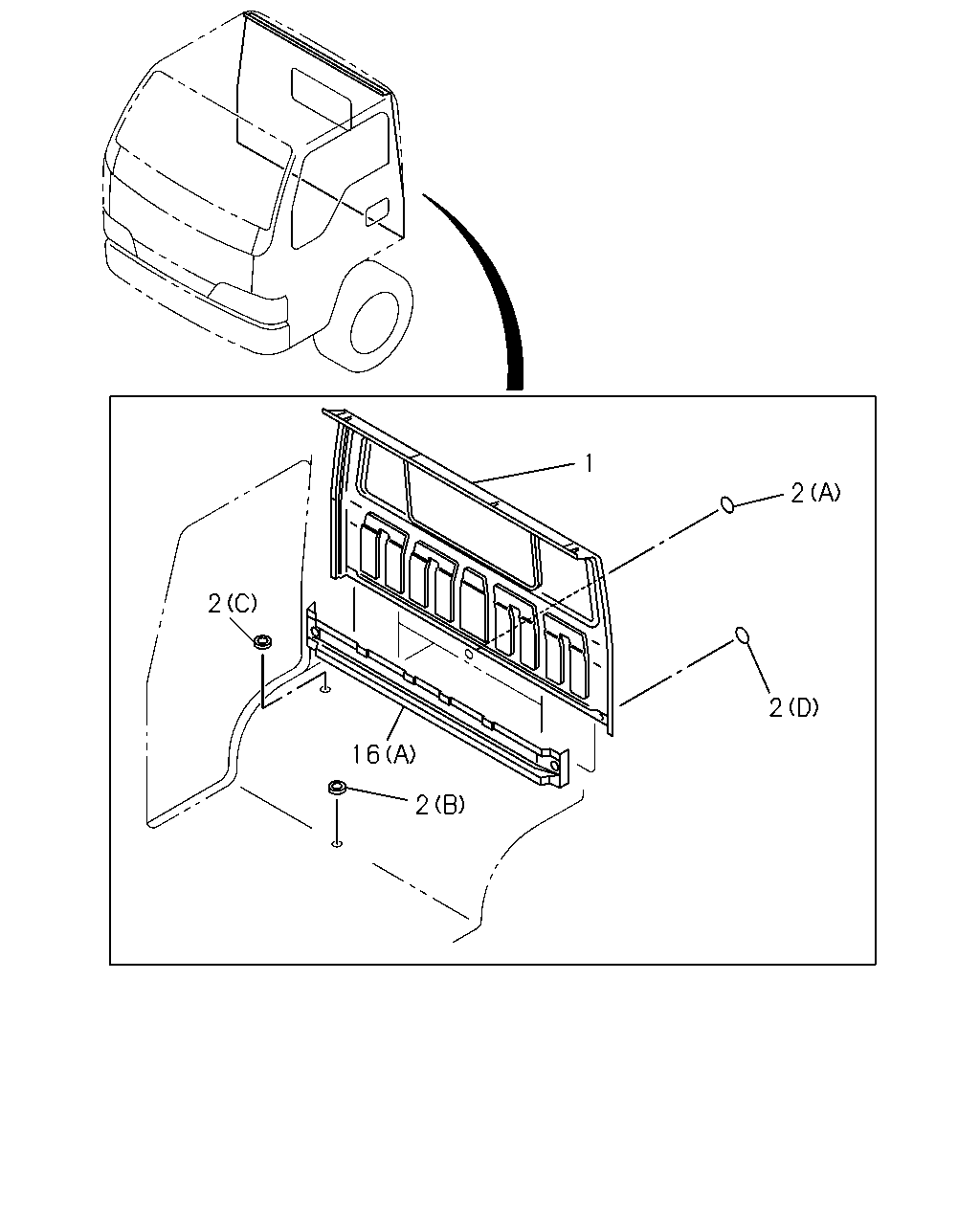

çizim 68784
1 2 2 2 16 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC) INTERIOR DELUXE<RBB> AIR INTAKE SYSTEM FRONT<6PC> 		8-97851-008-6 01 1 9507-9510 ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 9511- ● ● ● ● ● ●
1 16.587 PANEL; BACK OUTER
4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) 		8-97859-137-0 01 1 9402-9510 ● ●
1 16.587 PANEL; BACK OUTER
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-479-2 01 1 9312-9401 ● ● ●
1 16.587 PANEL; BACK OUTER
4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97851-479-2 01 1 9402-9506 ● ● ●
1 16.587 PANEL; BACK OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97851-479-2 01 1 9507-9510 ● ● ●
1 16.587 PANEL; BACK OUTER
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) 		8-97851-464-2 01 1 9312-9401 ● ● ●
1 16.587 PANEL; BACK OUTER
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-464-2 01 1 9402-9510 ● ●
1 16.587 PANEL; BACK OUTER
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3>, AUSTRALIA EQUIPMENT(RR3) 		8-97851-352-2 01 1 9312-9408 ● ●
1 16.587 PANEL; BACK OUTER
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3>, AUSTRALIA EQUIPMENT(RR3) 		8-97851-352-2 01 1 9409-9510 ● ●
1 16.587 PANEL; BACK OUTER 8-97851-273-5 01 1 9312-9510 ● ●
1 16.587 PANEL; BACK OUTER
4HF1 ENG(RLS) 		8-97851-480-2 01 1 9312-9510 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
08.155 (B) OD=28.5 		8-94279-711-0 02 1 9312- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (C) OD=16.2 		8-94492-493-0 02 1 9312- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=36 BLACK 		1-76798-018-0 02 1 9312- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 9312- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 9312- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) INTERIOR DELUXE<RBB> AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97867-215-0 01 1 9703-9703 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 9704- ● ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-055-5 01 1 9511-9702 ● ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) (A) 		8-97851-055-5 01 1 9703-9703 ● ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-055-5 01 1 9703-9703 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1 ENG(RLS) INTERIOR DELUXE<RBB> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97867-148-1 01 1 9712- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-300-1 01 1 9312- ● ●
