◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#47777) — 201 parça

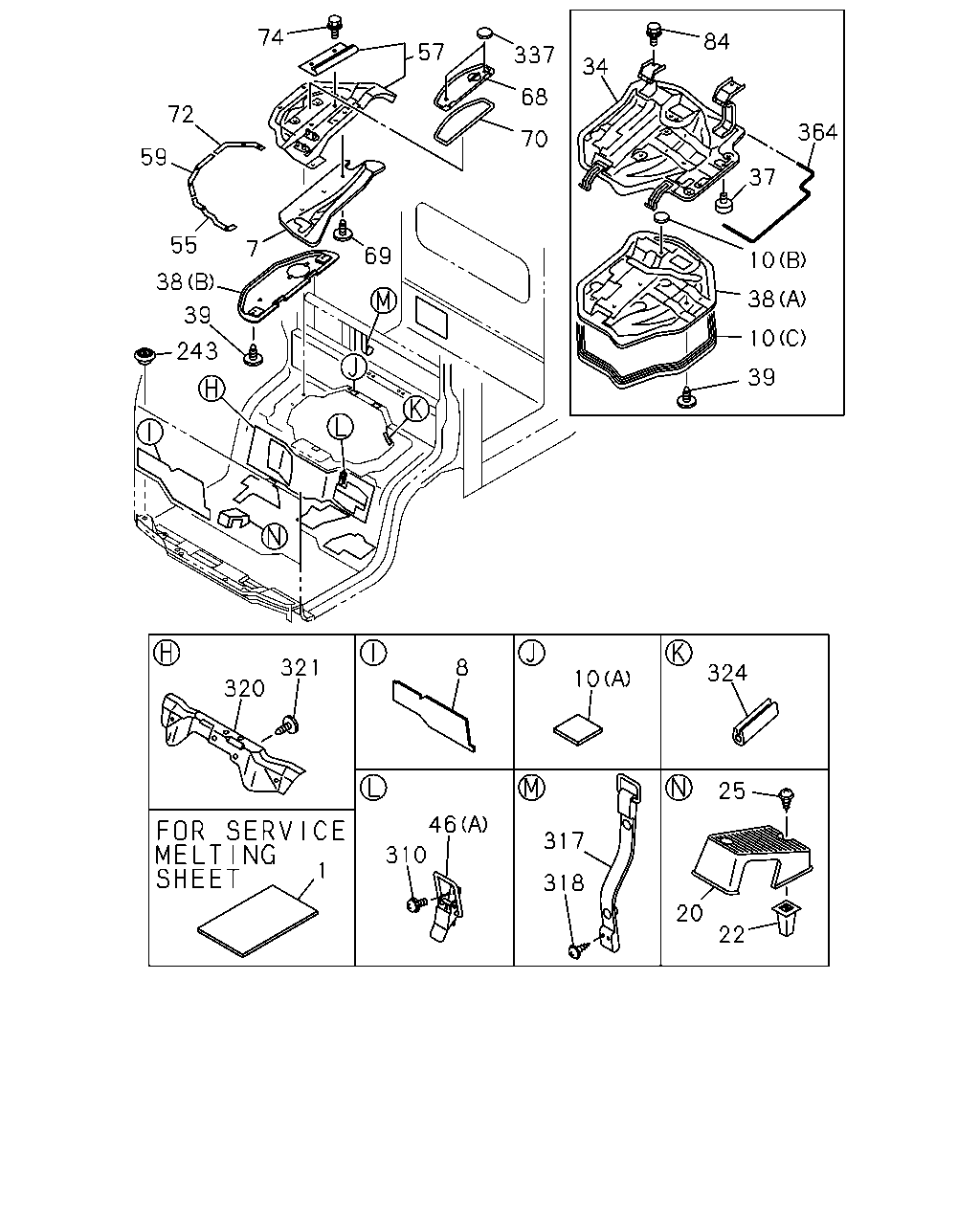

çizim 18947
74 84 57 337 34 68 72 364 70 59 37 55 7 69 10 38 38 39 10 243 39 321 8 324 10 320 25 46 317 310 1 318 20 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 01 1 9312- ● ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-544-3 01 1 9312- ● ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
HONG KONG EQUIPMENT(PQ1) 		8-97853-544-3 01 1 9312- ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97853-543-3 01 1 9312- ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-604-2 01 1 9312- ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-603-2 01 1 9312- ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(C) 		8-97853-010-3 01 1 9312- ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97857-240-0 03 1 9312-9403 ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97857-240-0 02 1 9404-9605 ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.592 (B) OD=36 BLACK 		1-76778-007-0 01 1 9312-9510 ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.547 (B) OD=36 BLACK 		1-76798-018-0 01 1 9511-9603 ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 16.547 (B) OD=36 BLACK 		1-76798-018-0 01 1 9604-9711 ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9712- ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 9312-9603 ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 9604-9711 ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 9712- ● ● ●
20 16.547 REST; FOOT
EXC. FLOOR REMOTE SHIFT<M11> 		8-97853-767-1 01 1 9505-9711 ● ● ● ● ●
22 16.547 GROMMET; SCREW,FOOT REST
EXC. FLOOR REMOTE SHIFT<M11> 04.931 H=15 		8-94463-268-1 02 1 9505-9711 ● ● ● ● ●
25 16.549 SCREW; FOOT REST
EXC. FLOOR REMOTE SHIFT<M11> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9505-9711 ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97850-057-5 01 1 9312-9507 ● ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97850-673-0 01 1 9508- ● ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97850-600-1 01 1 9312-9507 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97850-680-1 01 1 9508-9710 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97850-905-0 01 1 9711- ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 9312- ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97853-008-5 01 1 9312-9409 ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97859-917-0 01 1 9410- ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (B) 		8-97856-803-0 01 1 9312-9404 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
HONG KONG EQUIPMENT(PQ1) (B) 		8-97856-803-0 01 1 9312-9404 ● ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (B) 		8-97856-803-0 01 1 9405-9409 ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
HONG KONG EQUIPMENT(PQ1) (B) 		8-97856-803-0 01 1 9405-9409 ● ●
38 16.549 INSULATOR; ENG COVER
4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> (B) 		8-97856-803-0 01 1 9410-9506 ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> (B) 		8-97856-803-0 01 1 9507- ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 06 1 9312-9403 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 06 1 9404-9406 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 05 1 9407-9407 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1) OD=28 BLACK 		8-94279-997-0 07 1 9407- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 05 1 9407- ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 05 1 9407- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 05 1 9407- ● ●
39 16.549 CLIP; INSULATOR,COVER
HONG KONG EQUIPMENT(PQ1) OD=28 BLACK 		8-94279-997-0 05 1 9407- ● ●
39 16.549 CLIP; INSULATOR,COVER
4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 02 1 9410-9506 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 02 1 9507- ● ● ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97853-632-2 02 1 9312-9711 ● ● ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97853-632-2 02 1 9712- ● ● ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97850-594-2 02 1 9312- ● ● ●
55 16.549 SEAL; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-047-1 01 1 9312-9605 ● ● ● ● ● ●
55 16.549 SEAL; SUPPORT COVER
HONG KONG EQUIPMENT(PQ1) 		8-97853-047-1 01 1 9312-9605 ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-065-8 01 1 9312-9509 ● ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
HONG KONG EQUIPMENT(PQ1) 		8-97850-065-8 01 1 9312-9509 ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97866-688-1 01 1 9510- ● ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
HONG KONG EQUIPMENT(PQ1) 		8-97866-688-1 01 1 9510- ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97850-009-8 01 1 9312-9509 ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97866-687-1 01 1 9510- ● ● ● ●
59 16.549 SEAL; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-046-1 01 1 9312-9605 ● ● ● ● ● ●
59 16.549 SEAL; SUPPORT COVER
HONG KONG EQUIPMENT(PQ1) 		8-97853-046-1 01 1 9312-9605 ● ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-712-3 01 1 9312- ● ● ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER
HONG KONG EQUIPMENT(PQ1) 		8-97853-712-3 01 1 9312- ● ●
69 16.549 BOLT; TRANS COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 05 1 9312-9403 ● ● ● ● ● ●
69 16.549 BOLT; TRANS COVER
HONG KONG EQUIPMENT(PQ1) OD=30 		8-94279-952-0 05 1 9312-9403 ● ●
69 16.549 BOLT; TRANS COVER
EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 05 1 9404-9406 ● ● ● ● ● ●
69 16.549 BOLT; TRANS COVER
HONG KONG EQUIPMENT(PQ1) OD=28 BLACK 		8-94279-997-0 05 1 9404-9406 ● ●
69 16.549 BOLT; TRANS COVER
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1) OD=30 		8-94279-952-0 07 1 9312-9403 ● ● ● ●
69 16.549 BOLT; TRANS COVER
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1) OD=28 BLACK 		8-94279-997-0 07 1 9404-9406 ● ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 9312-9409 ● ● ● ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
HONG KONG EQUIPMENT(PQ1) 		8-97853-050-1 01 1 9312-9409 ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 9410- ● ● ● ● ● ●
72 16.549 SEAL; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-045-0 01 1 9312-9605 ● ● ● ● ● ●
72 16.549 SEAL; SUPPORT COVER
HONG KONG EQUIPMENT(PQ1) 		8-97853-045-0 01 1 9312-9605 ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9312-9605 ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9606- ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 01 1 9312-9605 ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9606- ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9312-9603 ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9604- ● ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
16.549 OD=12.1 		8-94279-716-0 01 1 9410- ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
EXC. AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9312-9711 ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
EXC. AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9712- ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 09 1 9312- ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 DARK BEIGE 		8-97853-607-3 01 1 9312-9711 ● ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-0 01 1 9712- ● ● ● ● ● ●
318 16.549 SCREW; BAND
15.222 M5X25 TAPPING W/PL WASHER 		0-74310-525-0 02 1 9312-9401 ● ● ● ● ● ●
318 16.549 SCREW; BAND
15.222 M5X25 TAPPING W/PL WASHER 		0-74310-525-0 02 1 9402-9409 ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9402-9409 ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9410- ● ● ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT 8-97856-277-5 01 1 9312- ● ● ● ● ● ●
321 16.549 CLIP; INSULATOR,FLOOR
OD=30 		8-94279-952-0 04 1 9312-9403 ● ● ● ● ● ●
321 16.549 CLIP; INSULATOR,FLOOR
OD=28 BLACK 		8-94279-997-0 04 1 9404- ● ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) L=140 		8-97867-865-0 01 1 9608-9711 ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97867-865-0 01 1 9608-9711 ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97867-865-0 01 1 9712- ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC),4BE1 ENG(RLH) L=140 		8-97867-865-0 01 1 9712- ●
324 16.545 FINISHER; FLOOR PANEL
4JB1 ENG(RLF),4HF1 ENG(RLS) L=140 		8-97867-865-0 01 1 9712- ●
337 16.545 SEAL; CLIP HOLE
4BE1 ENG(RLH) EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9410-9711 ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
4BE1 ENG(RLH) EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9712- ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1100 		8-97890-598-0 01 1 9709- ● ● ● ● ● ●

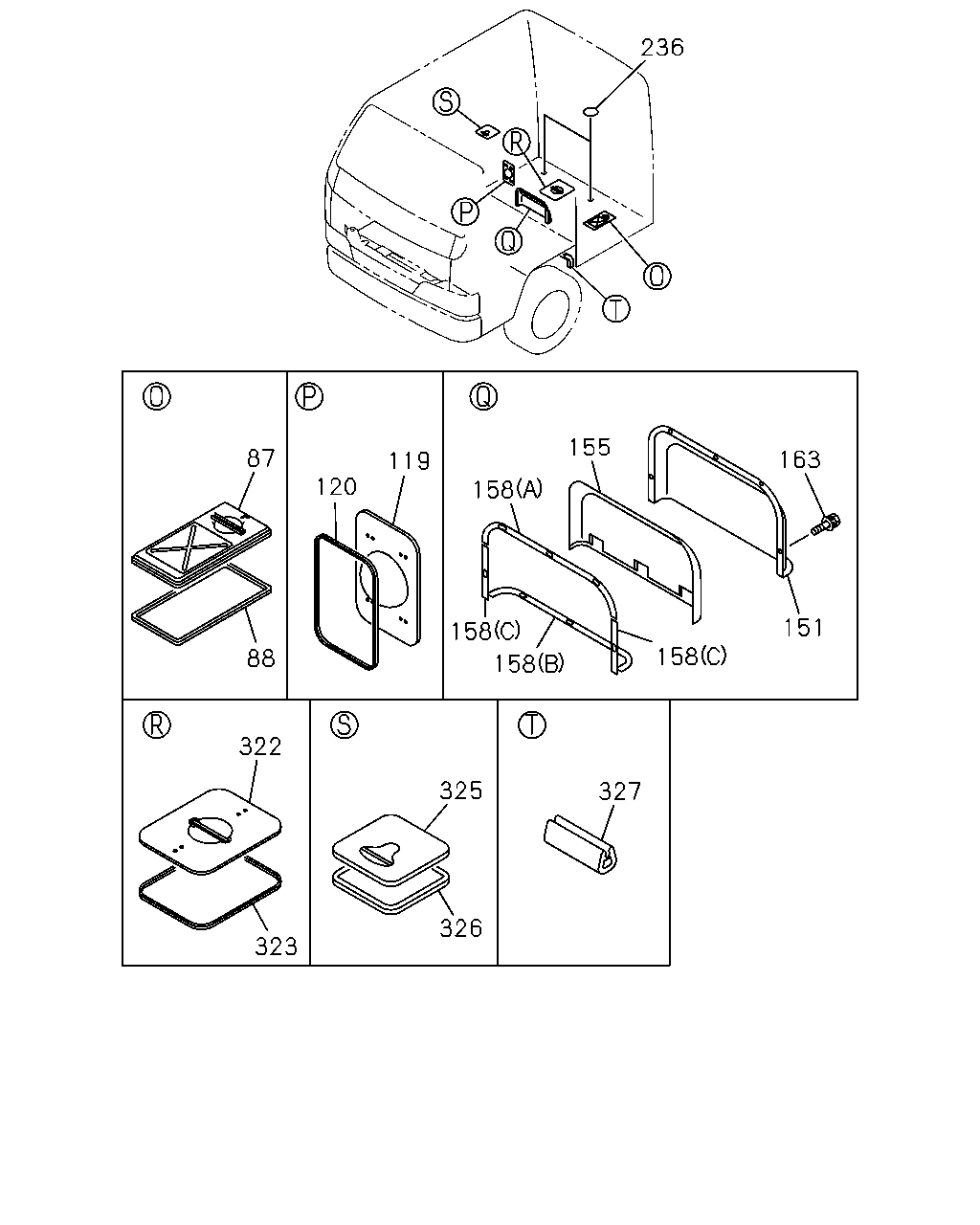

çizim 65772
236 155 87 163 119 120 158 151 158 158 88 158 322 325 327 326 323
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
87 16.549 COVER; BATTERY CHECK HOLE 8-97856-332-3 01 1 9312- ● ●
88 16.549 SEAL; BATTERY CHECK HOLE COVER 8-97853-725-1 01 1 9312- ● ●
119 16.090 LID; P/S OIL TANK 8-97853-440-2 01 1 9312- ● ●
120 16.090 SEAL; LID,P/S 8-97853-441-1 01 1 9312- ● ●
151 16.549 COVER ASM; ENG 8-97850-285-0 01 1 9312- ● ●
155 16.549 INSULATOR; RR,ENG COVER 8-97853-433-1 01 1 9312- ● ●
158 16.549 SEAL; RR,ENG COVER,FRT
(A) 		8-97853-434-0 01 1 9312- ● ●
158 16.549 SEAL; RR,ENG COVER,FRT
(B) 		8-97853-435-0 01 1 9312- ● ●
158 16.549 SEAL; RR,ENG COVER,FRT
(C) 		8-97853-436-1 01 1 9312-9411 ● ●
158 16.549 SEAL; RR,ENG COVER,FRT
(C) 		8-97853-436-1 02 1 9412- ● ●
163 16.549 BOLT; RR,ENG COVER,FRT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9312-9603 ● ●
163 16.549 BOLT; RR,ENG COVER,FRT
04.439 M6X16 FLANGE 		0-28680-616-0 08 1 9604- ● ●
236 16.549 SEAL; CHECK HOLE
16.592 OD=20 T=0.4 BLACK 		1-76798-020-0 02 1 9412- ● ●
322 16.549 COVER; A/T OIL 8-97853-442-2 01 1 9312- ● ●
323 16.549 SEAL; COVER,A/T OIL 8-97853-443-2 01 1 9312- ● ●
325 16.549 COVER; LLC 8-97856-974-0 01 1 9312- ● ●
326 16.549 SEAL; COVER 8-97856-975-1 01 1 9312- ● ●
327 16.545 FINISHER; CTR PILLAR,LWR 8-97857-257-1 02 1 9312- ● ●

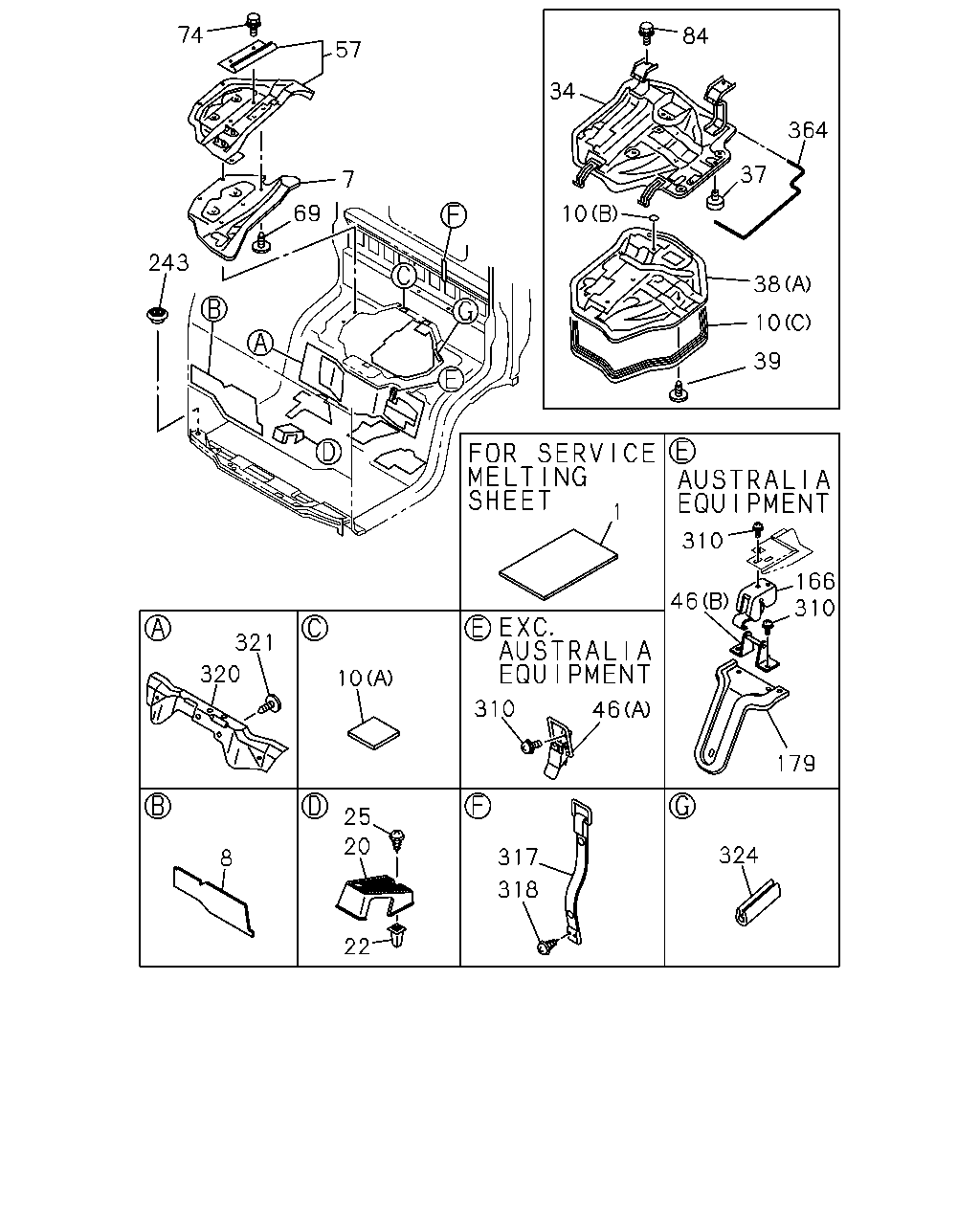

çizim 65895
74 84 57 34 364 37 7 69 10 243 38 10 39 1 310 166 310 46 321 320 10 310 46 179 25 20 324 317 8 318 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 01 1 9312- ● ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-544-3 01 1 9312- ● ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
HONG KONG EQUIPMENT(PQ1) 		8-97853-544-3 01 1 9312- ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97853-543-3 01 1 9312- ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-604-2 01 1 9312- ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-603-2 01 1 9312- ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(C) 		8-97853-010-3 01 1 9312- ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97857-240-0 03 1 9312-9403 ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97857-240-0 02 1 9404-9605 ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.592 (B) OD=36 BLACK 		1-76778-007-0 01 1 9312-9510 ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.547 (B) OD=36 BLACK 		1-76798-018-0 01 1 9511-9603 ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 16.547 (B) OD=36 BLACK 		1-76798-018-0 01 1 9604-9711 ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9712- ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 9312-9603 ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 9604-9711 ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 9712- ● ● ●
20 16.547 REST; FOOT
EXC. FLOOR REMOTE SHIFT<M11> 		8-97853-767-1 01 1 9505-9711 ● ● ● ● ●
22 16.547 GROMMET; SCREW,FOOT REST
EXC. FLOOR REMOTE SHIFT<M11> 04.931 H=15 		8-94463-268-1 02 1 9505-9711 ● ● ● ● ●
25 16.549 SCREW; FOOT REST
EXC. FLOOR REMOTE SHIFT<M11> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9505-9711 ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97850-057-5 01 1 9312-9507 ● ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97850-673-0 01 1 9508- ● ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97850-600-1 01 1 9312-9507 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97850-680-1 01 1 9508-9710 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) 		8-97850-905-0 01 1 9711- ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 9312- ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97853-008-5 01 1 9312-9409 ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97859-917-0 01 1 9410- ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (B) 		8-97856-803-0 01 1 9312-9404 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
HONG KONG EQUIPMENT(PQ1) (B) 		8-97856-803-0 01 1 9312-9404 ● ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (B) 		8-97856-803-0 01 1 9405-9409 ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
HONG KONG EQUIPMENT(PQ1) (B) 		8-97856-803-0 01 1 9405-9409 ● ●
38 16.549 INSULATOR; ENG COVER
4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> (B) 		8-97856-803-0 01 1 9410-9506 ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> (B) 		8-97856-803-0 01 1 9507- ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 06 1 9312-9403 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 06 1 9404-9406 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 05 1 9407-9407 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1) OD=28 BLACK 		8-94279-997-0 07 1 9407- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 05 1 9407- ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 05 1 9407- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 05 1 9407- ● ●
39 16.549 CLIP; INSULATOR,COVER
HONG KONG EQUIPMENT(PQ1) OD=28 BLACK 		8-94279-997-0 05 1 9407- ● ●
39 16.549 CLIP; INSULATOR,COVER
4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 02 1 9410-9506 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 02 1 9507- ● ● ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97853-632-2 02 1 9312-9711 ● ● ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97853-632-2 02 1 9712- ● ● ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97850-594-2 02 1 9312- ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-065-8 01 1 9312-9509 ● ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
HONG KONG EQUIPMENT(PQ1) 		8-97850-065-8 01 1 9312-9509 ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97866-688-1 01 1 9510- ● ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
HONG KONG EQUIPMENT(PQ1) 		8-97866-688-1 01 1 9510- ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97850-009-8 01 1 9312-9509 ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97866-687-1 01 1 9510- ● ● ● ●
69 16.549 BOLT; TRANS COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 05 1 9312-9403 ● ● ● ● ● ●
69 16.549 BOLT; TRANS COVER
HONG KONG EQUIPMENT(PQ1) OD=30 		8-94279-952-0 05 1 9312-9403 ● ●
69 16.549 BOLT; TRANS COVER
EXC. MANUAL TILT CAB<RWZ> OD=28 BLACK 		8-94279-997-0 05 1 9404-9406 ● ● ● ● ● ●
69 16.549 BOLT; TRANS COVER
HONG KONG EQUIPMENT(PQ1) OD=28 BLACK 		8-94279-997-0 05 1 9404-9406 ● ●
69 16.549 BOLT; TRANS COVER
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1) OD=30 		8-94279-952-0 07 1 9312-9403 ● ● ● ●
69 16.549 BOLT; TRANS COVER
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1) OD=28 BLACK 		8-94279-997-0 07 1 9404-9406 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9312-9605 ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9606- ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 01 1 9312-9605 ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9606- ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9312-9603 ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9604- ● ● ● ● ● ●
166 16.549 LOCK; ENG COVER
AUSTRALIA EQUIPMENT(RR3) 		8-97850-587-2 02 1 9312-9705 ● ● ●
166 16.549 LOCK; ENG COVER
AUSTRALIA EQUIPMENT(RR3) 		8-97850-875-0 02 1 9706-9710 ● ● ●
166 16.549 LOCK; ENG COVER
AUSTRALIA EQUIPMENT(RR3) 		8-97850-915-0 02 1 9711- ● ● ●
179 16.549 REINFORCEMENT; COVER
AUSTRALIA EQUIPMENT(RR3) 		8-97857-866-2 01 1 9312- ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
16.549 OD=12.1 		8-94279-716-0 01 1 9410- ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
EXC. AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9312-9711 ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
EXC. AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9712- ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
AUSTRALIA EQUIPMENT(RR3) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 09 1 9312- ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 DARK BEIGE 		8-97853-607-3 01 1 9312-9711 ● ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-0 01 1 9712- ● ● ● ● ● ●
318 16.549 SCREW; BAND
15.222 M5X25 TAPPING W/PL WASHER 		0-74310-525-0 02 1 9312-9401 ● ● ● ● ● ●
318 16.549 SCREW; BAND
15.222 M5X25 TAPPING W/PL WASHER 		0-74310-525-0 02 1 9402-9409 ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9402-9409 ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9410- ● ● ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT 8-97856-277-5 01 1 9312- ● ● ● ● ● ●
321 16.549 CLIP; INSULATOR,FLOOR
OD=30 		8-94279-952-0 04 1 9312-9403 ● ● ● ● ● ●
321 16.549 CLIP; INSULATOR,FLOOR
OD=28 BLACK 		8-94279-997-0 04 1 9404- ● ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) L=140 		8-97867-865-0 01 1 9608-9711 ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97867-865-0 01 1 9608-9711 ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97867-865-0 01 1 9712- ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC),4BE1 ENG(RLH) L=140 		8-97867-865-0 01 1 9712- ●
324 16.545 FINISHER; FLOOR PANEL
4JB1 ENG(RLF),4HF1 ENG(RLS) L=140 		8-97867-865-0 01 1 9712- ●
364 16.545 FINISHER; ENG COVER SIDE
L=1100 		8-97890-598-0 01 1 9709- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
