◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#47776) — 97 parça

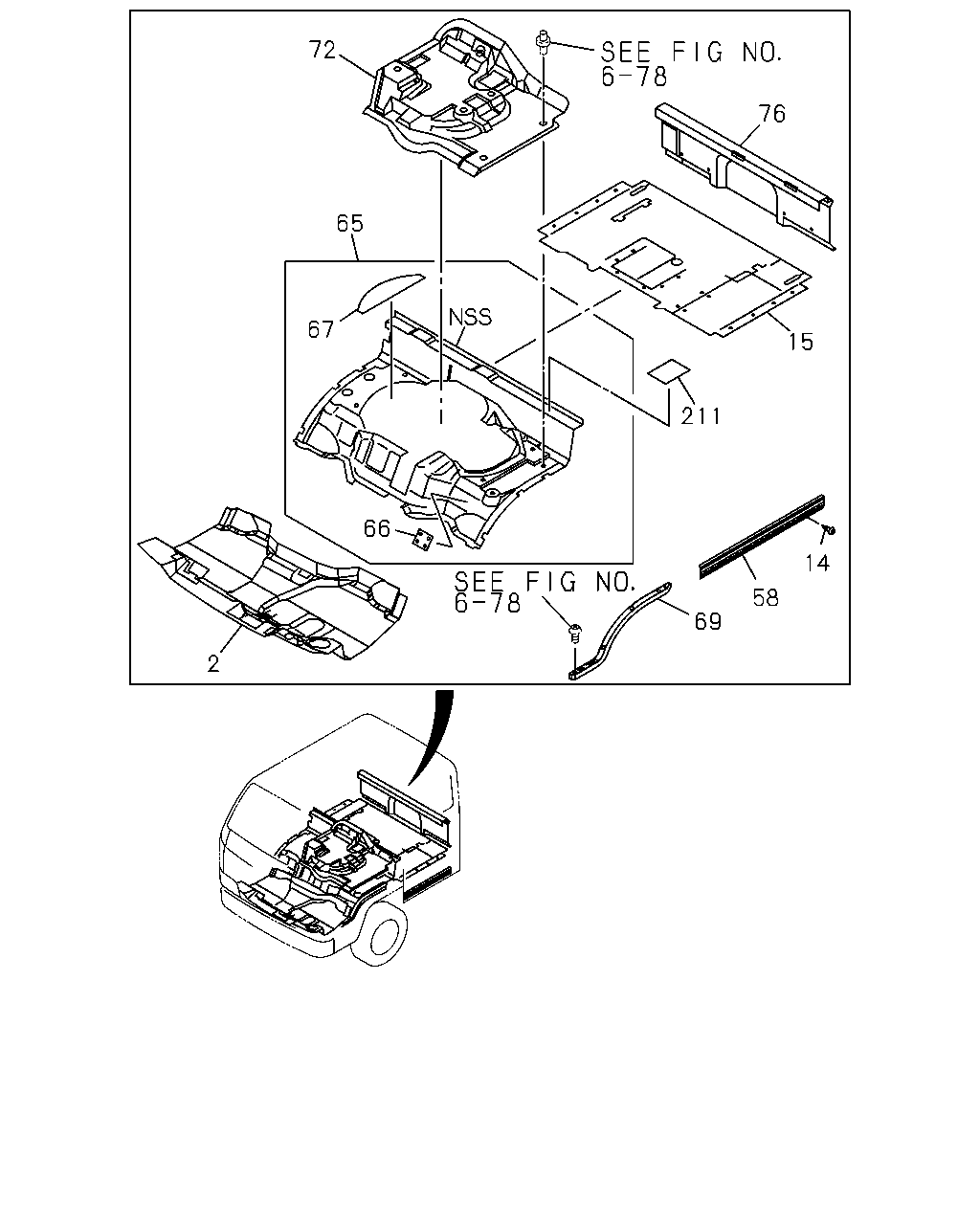

çizim 17491
72 76 65 67 15 211 66 14 58 69 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) 		8-97009-453-4 01 1 9312-9504 ● ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) FLOOR REMOTE SHIFT<M11> DARK BEIGE 		8-97009-453-4 01 1 9505-9608 ● ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97009-453-4 01 1 9609-9711 ● ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97859-691-4 01 1 9712- ● ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE 		8-97097-154-4 01 1 9312-9504 ● ● ● ● ● ●
2 16.800 MAT; FLOOR
FLOOR REMOTE SHIFT<M11> EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE 		8-97097-154-4 01 1 9505-9608 ● ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) ,AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97097-154-4 01 1 9609-9711 ● ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) ,AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97867-120-4 01 1 9712- ● ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97850-791-0 01 1 9609-9711 ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97868-591-0 01 1 9712- ● ● ●
2 16.800 MAT; FLOOR
AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97850-790-0 01 1 9609-9711 ● ● ●
2 16.800 MAT; FLOOR
AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97868-590-0 01 1 9712- ● ● ●
14 16.870 SCREW; PLATE
16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 08 1 9312- ● ●
15 16.800 MAT; FLOOR REAR
DARK BEIGE 		8-97098-711-0 01 1 9312-9711 ● ●
15 16.800 MAT; FLOOR REAR
DARK GRAY 		8-97868-592-0 01 1 9712- ● ●
58 08.153 PLATE; GUARD,RR FLOOR MAT 8-97081-344-3 02 1 9312- ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> 		8-97853-949-9 01 1 9312-9503 ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
HONG KONG EQUIPMENT(PQ1) EXC. MANUAL TILT CAB<RWZ> 		8-97853-949-9 01 1 9312-9503 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK BEIGE 		8-97855-272-1 01 1 9504-9711 ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
HONG KONG EQUIPMENT(PQ1) EXC. MANUAL TILT CAB<RWZ> DARK BEIGE 		8-97855-272-1 01 1 9504-9711 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97868-637-1 01 1 9712- ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
HONG KONG EQUIPMENT(PQ1) EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97868-637-1 01 1 9712- ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) 		8-97853-948-9 01 1 9312-9503 ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97855-270-1 01 1 9504-9711 ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97868-636-1 01 1 9712- ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 		8-97857-380-4 01 1 9312-9608 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 		8-97850-782-0 01 1 9609-9711 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 		8-97890-571-1 01 1 9712-9712 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> DARK GRAY 		8-97890-572-1 01 1 9712- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR 8-97856-763-8 01 1 9312-9711 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY 		8-97859-703-8 01 1 9712- ● ●
66 16.549 HOOK; COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97857-192-0 02 1 9312-9711 ● ● ● ● ● ●
66 16.549 HOOK; COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97859-705-0 02 1 9712- ● ● ● ● ● ●
67 16.549 LID; COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97857-193-0 01 1 9312-9510 ● ● ● ● ● ●
67 16.549 LID; COVER
EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK BEIGE 		8-97857-193-0 01 1 9511-9711 ● ● ● ● ● ●
67 16.549 LID; COVER
EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97859-704-0 01 1 9712- ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE 8-97853-958-0 01 1 9312-9711 ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-552-0 01 1 9712- ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE 8-97853-957-0 01 1 9312-9711 ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-551-0 01 1 9712- ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97853-959-5 01 1 9312-9409 ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97859-933-0 01 1 9410-9711 ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97859-707-0 01 1 9712- ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
AUSTRALIA EQUIPMENT(RR3) 		8-97857-921-1 01 1 9312-9409 ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
AUSTRALIA EQUIPMENT(RR3) 		8-97859-939-0 01 1 9410-9710 ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
AUSTRALIA EQUIPMENT(RR3) 		8-97890-591-0 01 1 9711-9711 ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97890-373-1 01 1 9712- ● ● ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG 8-97853-952-7 01 1 9312-9711 ● ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
DARK GRAY 		8-97867-155-7 01 1 9712- ● ●
211 16.800 COVER; HINGE 8-97857-191-1 02 1 9312-9405 ● ● ● ● ● ●
211 16.800 COVER; HINGE
AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 		8-97857-191-1 02 1 9504-9510 ● ● ●

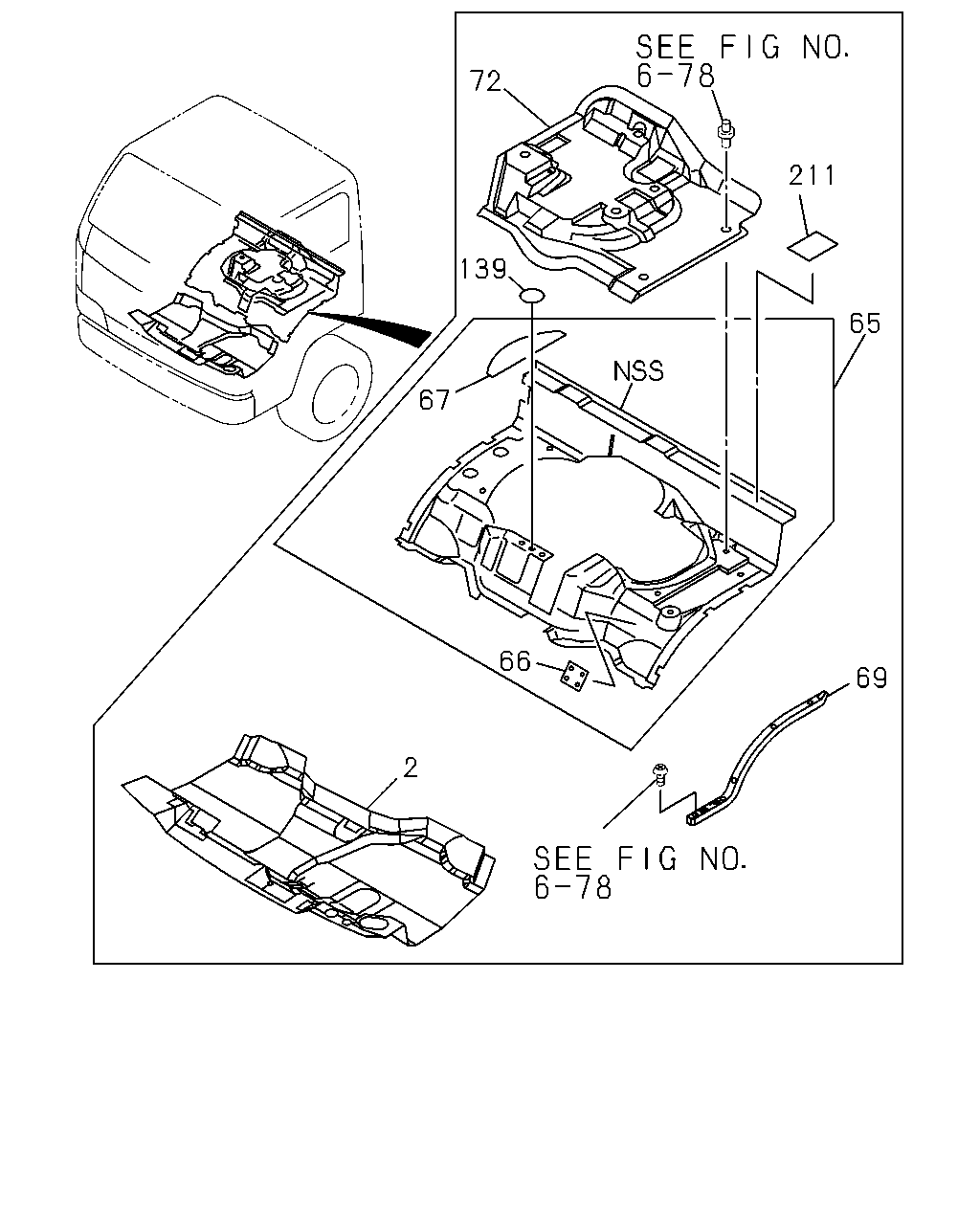

çizim 67654
72 211 139 65 67 66 69 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) 		8-97009-453-4 01 1 9312-9504 ● ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) FLOOR REMOTE SHIFT<M11> DARK BEIGE 		8-97009-453-4 01 1 9505-9608 ● ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97009-453-4 01 1 9609-9711 ● ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97859-691-4 01 1 9712- ● ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE 		8-97097-154-4 01 1 9312-9504 ● ● ● ● ● ●
2 16.800 MAT; FLOOR
FLOOR REMOTE SHIFT<M11> EXC. AIR CONDITIONER MANUAL CONT(C60) DARK BEIGE 		8-97097-154-4 01 1 9505-9608 ● ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) ,AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97097-154-4 01 1 9609-9711 ● ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) ,AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97867-120-4 01 1 9712- ● ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) 		8-97850-791-0 01 1 9609-9711 ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97868-591-0 01 1 9712- ● ● ●
2 16.800 MAT; FLOOR
AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97850-790-0 01 1 9609-9711 ● ● ●
2 16.800 MAT; FLOOR
AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97868-590-0 01 1 9712- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> 		8-97853-949-9 01 1 9312-9503 ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
HONG KONG EQUIPMENT(PQ1) EXC. MANUAL TILT CAB<RWZ> 		8-97853-949-9 01 1 9312-9503 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK BEIGE 		8-97855-272-1 01 1 9504-9711 ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
HONG KONG EQUIPMENT(PQ1) EXC. MANUAL TILT CAB<RWZ> DARK BEIGE 		8-97855-272-1 01 1 9504-9711 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97868-637-1 01 1 9712- ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
HONG KONG EQUIPMENT(PQ1) EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97868-637-1 01 1 9712- ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) 		8-97853-948-9 01 1 9312-9503 ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97855-270-1 01 1 9504-9711 ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97868-636-1 01 1 9712- ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 		8-97857-380-4 01 1 9312-9608 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 		8-97850-782-0 01 1 9609-9711 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 		8-97890-571-1 01 1 9712-9712 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> DARK GRAY 		8-97890-572-1 01 1 9712- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR 8-97856-763-8 01 1 9312-9711 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY 		8-97859-703-8 01 1 9712- ● ●
66 16.549 HOOK; COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97857-192-0 02 1 9312-9711 ● ● ● ● ● ●
66 16.549 HOOK; COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97859-705-0 02 1 9712- ● ● ● ● ● ●
67 16.549 LID; COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97857-193-0 01 1 9312-9510 ● ● ● ● ● ●
67 16.549 LID; COVER
EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK BEIGE 		8-97857-193-0 01 1 9511-9711 ● ● ● ● ● ●
67 16.549 LID; COVER
EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97859-704-0 01 1 9712- ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE 8-97853-958-0 01 1 9312-9711 ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-552-0 01 1 9712- ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE 8-97853-957-0 01 1 9312-9711 ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-551-0 01 1 9712- ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97853-959-5 01 1 9312-9409 ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK BEIGE 		8-97859-933-0 01 1 9410-9711 ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97859-707-0 01 1 9712- ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
AUSTRALIA EQUIPMENT(RR3) 		8-97857-921-1 01 1 9312-9409 ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
AUSTRALIA EQUIPMENT(RR3) 		8-97859-939-0 01 1 9410-9710 ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
AUSTRALIA EQUIPMENT(RR3) 		8-97890-591-0 01 1 9711-9711 ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97890-373-1 01 1 9712- ● ● ●
139 16.800 SEAL; FLOOR
AUSTRALIA EQUIPMENT(RR3) 16.592 OD=20 T=0.4 BLACK 		1-76798-020-0 01 1 9312- ● ● ●
211 16.800 COVER; HINGE 8-97857-191-1 02 1 9312-9405 ● ● ● ● ● ●
211 16.800 COVER; HINGE
AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> 		8-97857-191-1 02 1 9504-9510 ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
