Isuzu WW
▶
TRUCKS
▶
NKR
▶
50694 - NKR-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#47772) — 25 parça
Tümü
A - NKB5SC
B - NKC5SC
C - NKC5SF
D - NKN5SC
E - NKB5WC
F - NKC5WF
◀

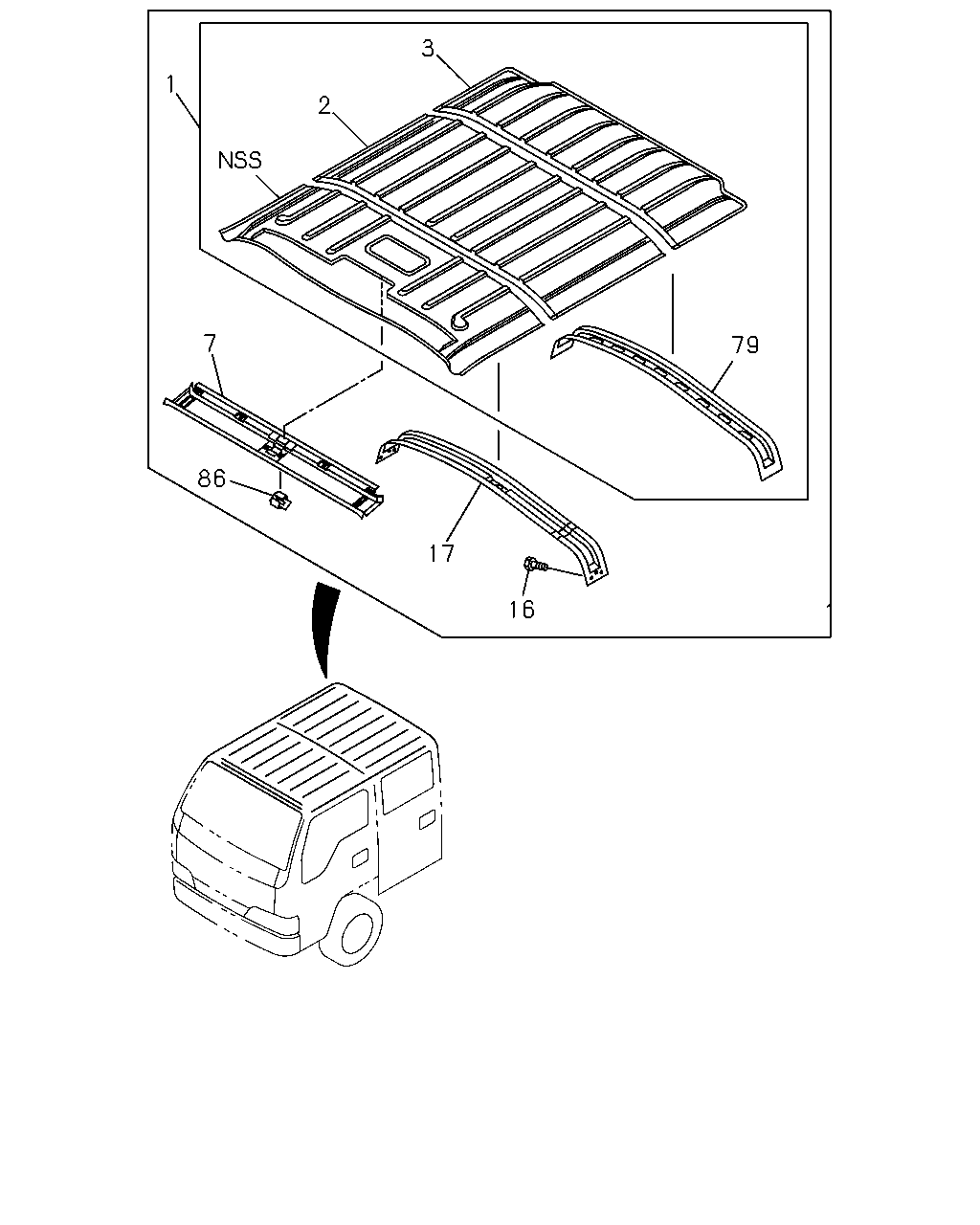

[660A] DOUBLE CAB (15 parça)

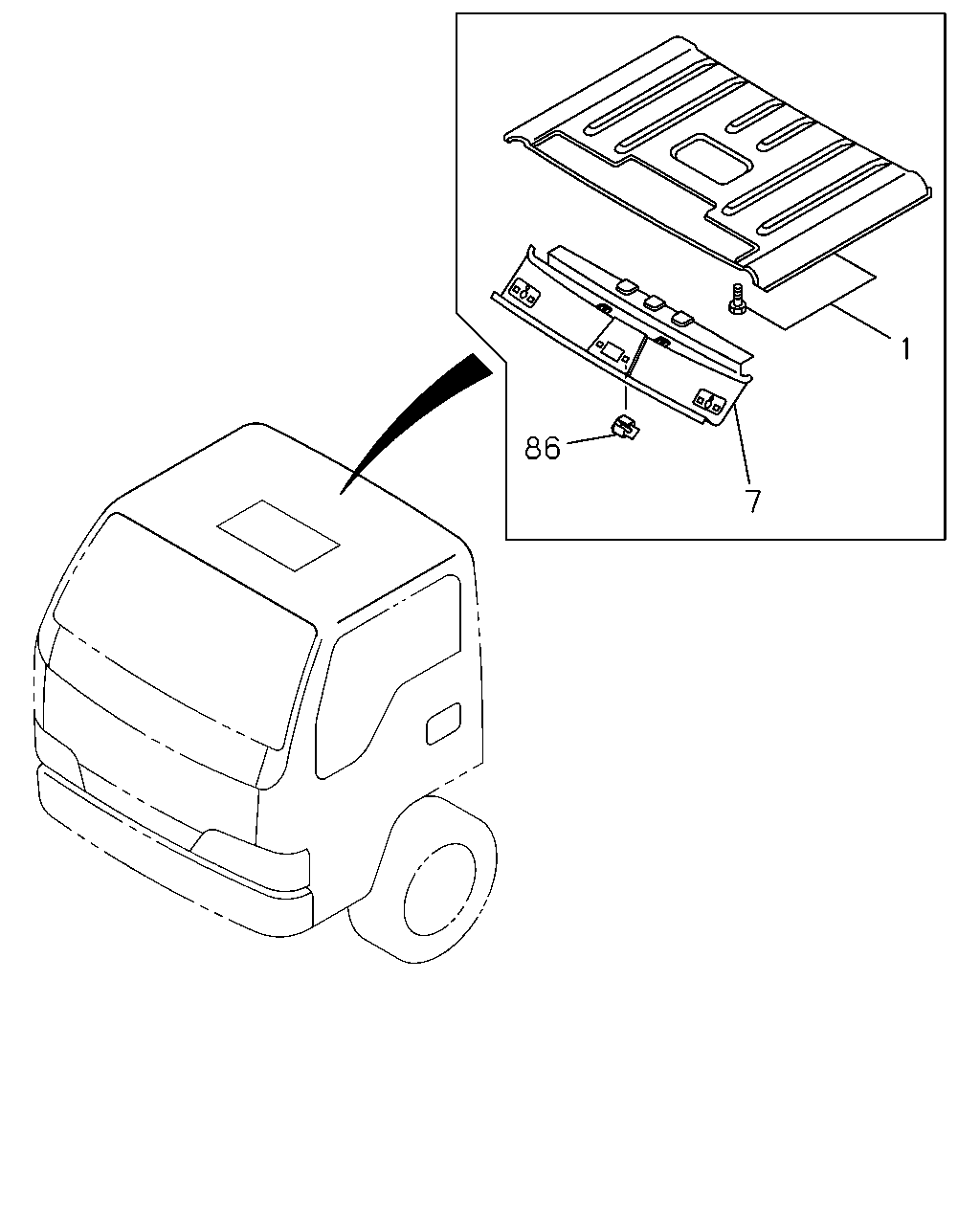

[660A] SINGLE CAB (10 parça)
▶
3
1
2
7
79
86
17
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
16.585 PANEL; ROOF
ROOF VENTILATOR<C55>
8-97851-109-1
01
1
9312-
●
●
●
●
1
16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ>
8-97851-369-0
01
1
9312-
●
●
●
●
1
16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>
8-97851-450-0
01
1
9312-
●
●
●
●
1
16.585 PANEL; ROOF
ROOF VENTILATOR<C55>
8-97851-378-4
01
1
9312-
●
●
1
16.585 PANEL; ROOF
ROOF VENTILATOR<C55>
8-97851-379-3
01
1
9703-9711
●
●
1
16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ>
8-97851-266-4
01
1
9312-
●
●
1
16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>
8-97851-451-4
01
1
9312-
●
●
2
16.585 PANEL; ROOF,CENTER
8-97851-264-1
01
1
9312-
●
●
3
16.585 PANEL; ROOF,RR
8-97851-265-3
01
1
9312-
●
●
7
16.585 PANEL; FRT WINDSHIELD UPR
8-97851-281-4
01
1
9312-9604
●
●
●
●
●
●
7
16.585 PANEL; FRT WINDSHIELD UPR
8-97859-530-0
01
1
9605-
●
●
●
●
●
●
16
16.585 SCREW; ROOF SUPPORT
16.085 M6X16 W/LK&PL WASHER
1-09981-141-0
04
1
9312-
●
●
17
16.570 REINFORCEMENT; ROOF PNL CENTER
8-97853-628-2
01
1
9312-
●
●
79
16.570 REINFORCEMENT; ROOF PANEL,RR
8-97851-410-0
01
1
9312-
●
●
86
16.585 NUT; ROOF
16.069 M5
8-94279-075-1
01
1
9312-
●
●
●
●
●
●
1
86
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
16.585 PANEL; ROOF
ROOF VENTILATOR<C55>
8-97851-109-1
01
1
9312-
●
●
●
●
1
16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ>
8-97851-369-0
01
1
9312-
●
●
●
●
1
16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>
8-97851-450-0
01
1
9312-
●
●
●
●
1
16.585 PANEL; ROOF
ROOF VENTILATOR<C55>
8-97851-378-4
01
1
9312-
●
●
1
16.585 PANEL; ROOF
ROOF VENTILATOR<C55>
8-97851-379-3
01
1
9703-9711
●
●
1
16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ>
8-97851-266-4
01
1
9312-
●
●
1
16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>
8-97851-451-4
01
1
9312-
●
●
7
16.585 PANEL; FRT WINDSHIELD UPR
8-97851-281-4
01
1
9312-9604
●
●
●
●
●
●
7
16.585 PANEL; FRT WINDSHIELD UPR
8-97859-530-0
01
1
9605-
●
●
●
●
●
●
86
16.585 NUT; ROOF
16.069 M5
8-94279-075-1
01
1
9312-
●
●
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
