◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-51 - REAR DOOR GLASS AND REGULATOR ▶
6-51 — REAR DOOR GLASS AND REGULATOR (#47769) — 25 parça

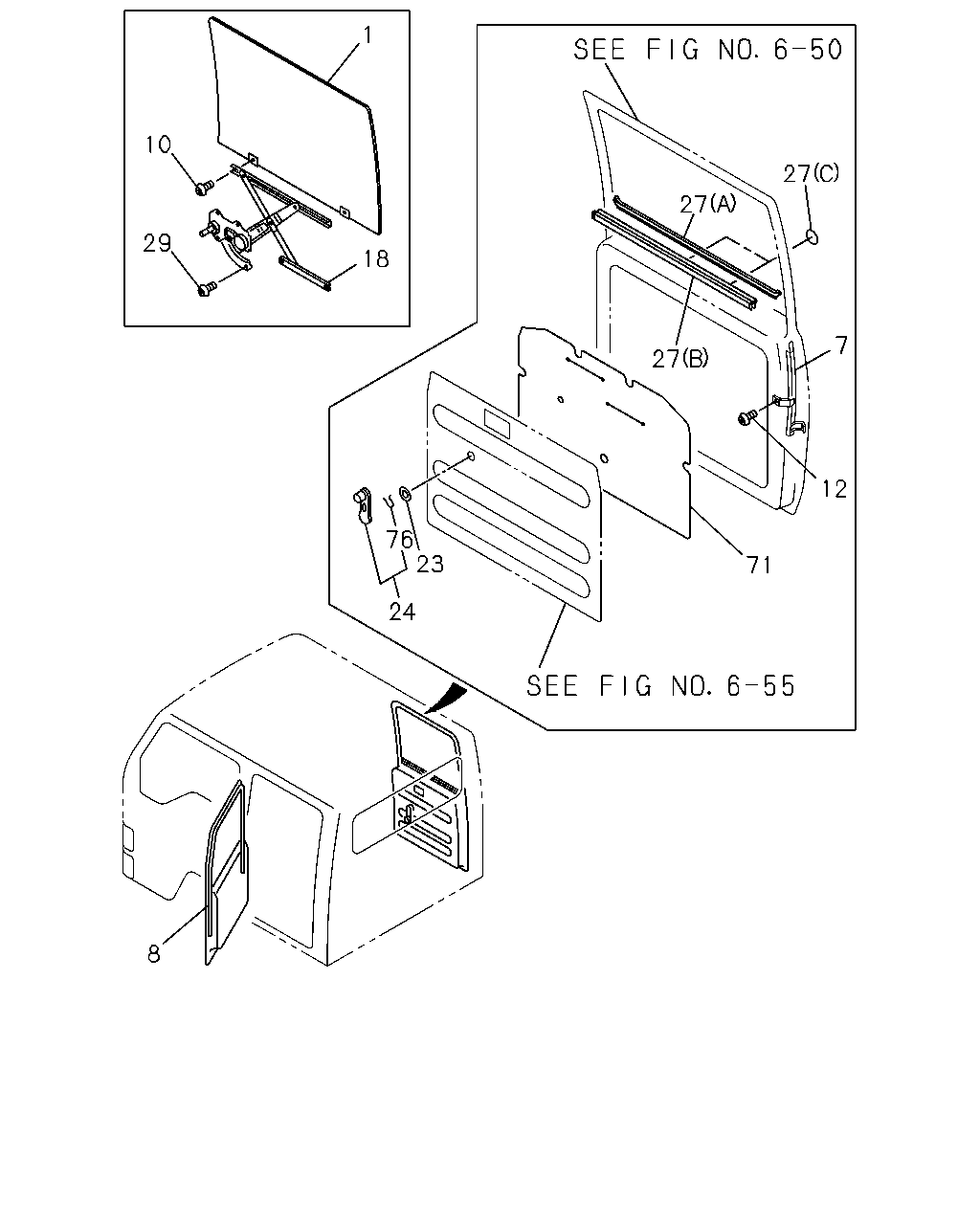

çizim 66236
1 10 27 27 29 18 7 27 12 76 23 71 24 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.180 GLASS; RR DOOR 8-97852-559-2 01 1 9312-9501 ● ●
1 16.180 GLASS; RR DOOR 8-97859-971-0 01 1 9502-9708 ● ●
1 16.180 GLASS; RR DOOR 8-97867-410-0 01 1 9709- ● ●
1 16.180 GLASS; RR DOOR 8-97852-558-2 01 1 9312-9501 ● ●
1 16.180 GLASS; RR DOOR 8-97859-970-0 01 1 9502-9708 ● ●
1 16.180 GLASS; RR DOOR 8-97867-409-0 01 1 9709- ● ●
7 16.190 CHANNEL; GLASS RUN,RR DOOR 8-97852-207-6 01 1 9312- ● ●
7 16.190 CHANNEL; GLASS RUN,RR DOOR 8-97852-206-6 01 1 9312- ● ●
8 16.190 RUN; GLASS,RR DOOR 8-97852-363-4 02 1 9312- ● ●
10 16.183 SCREW; GLASS
16.445 		1-09981-378-1 04 1 9312-9408 ● ●
10 16.183 SCREW; GLASS
16.445 M6X16 TAPPING W/PL WASHER 		1-09981-452-0 04 1 9409- ● ●
12 16.181 SCREW; CHANNEL,GLASS RUN
16.183 M6X16 W/LK&PL WASHER 		8-94279-402-0 04 1 9312- ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR 8-97852-196-2 01 1 9312- ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR 8-97852-195-2 01 1 9312- ● ●
23 16.270 ESCUTCHEON; HANDLE,WINDOW REG
10.805 		8-94220-668-1 02 1 9312- ● ●
24 16.270 HANDLE; WINDOW REG,RR DOOR 8-97852-452-0 02 1 9312-9711 ● ●
24 16.270 HANDLE; WINDOW REG,RR DOOR
DARK GRAY 		8-97098-453-0 02 1 9712- ● ●
27 16.183 SEAL; WAIST,RR DOOR
16.592 (C) OD=36 BLACK 		1-76778-007-0 04 1 9312-9510 ● ●
27 16.183 SEAL; WAIST,RR DOOR
16.547 (C) OD=36 BLACK 		1-76798-018-0 04 1 9511-9711 ● ●
27 16.183 SEAL; WAIST,RR DOOR
02.580 (C) OD=36 T=0.05 BLACK 		5-76777-035-0 04 1 9712- ● ●
27 16.183 SEAL; WAIST,RR DOOR
(A) 		8-97852-230-2 02 1 9312- ● ●
27 16.183 SEAL; WAIST,RR DOOR
(B) 		8-97852-231-3 02 1 9312- ● ●
29 16.270 SCREW; WINDOW REG
16.263 M6X8 W/LK WASHER 		1-09981-040-0 10 1 9312- ● ●
71 16.183 SEAL; WATER,RR DOOR 8-97852-232-2 02 1 9312- ● ●
76 16.260 PIN
16.270 		8-94220-591-0 02 1 9502- ● ●
