Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#47767) — 320 parça

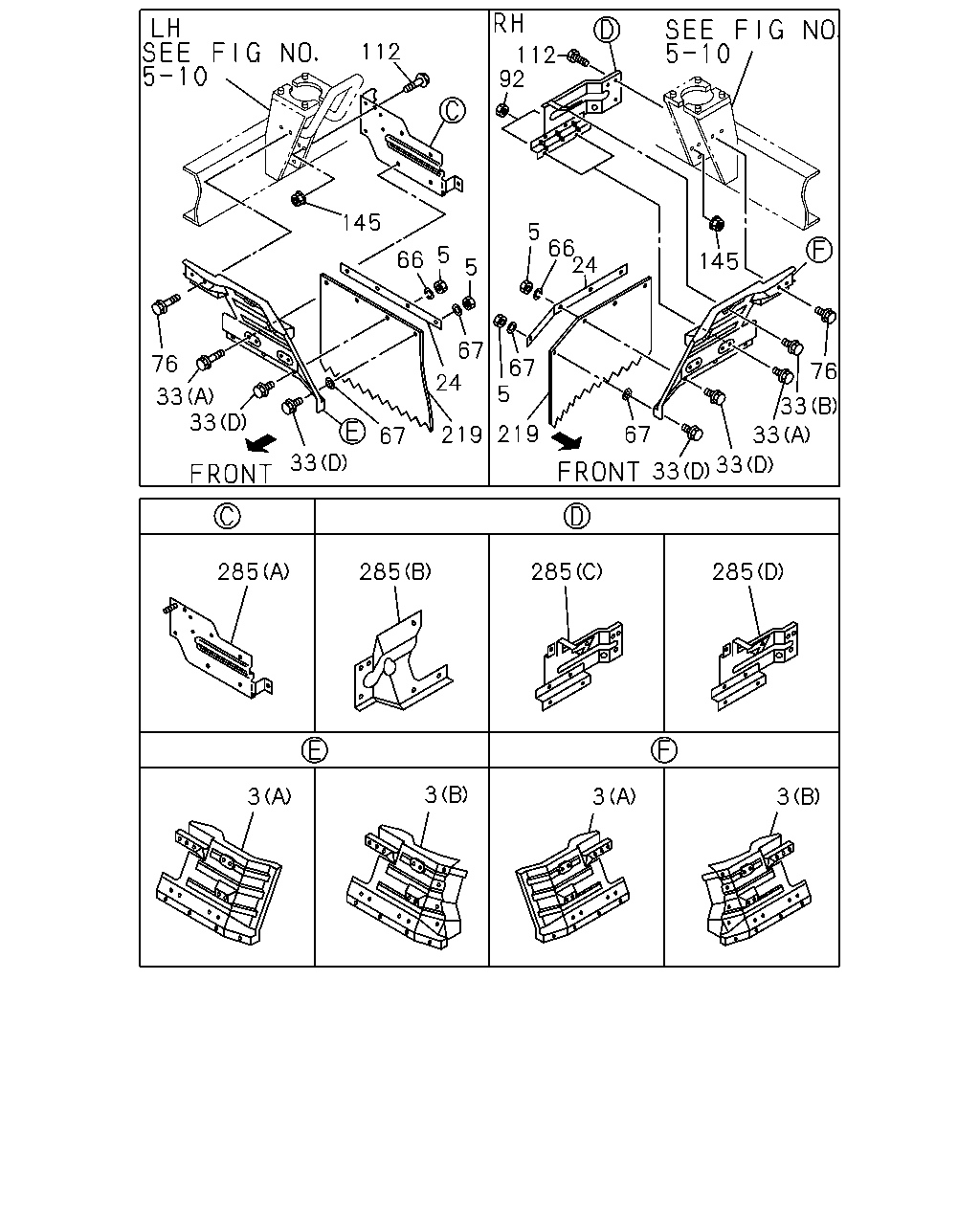

112 112 92 145 5 66 24 66 5 145 5 67 76 67 5 76 24 33 33 33 219 219 67 33 67 33 33 33 285 285 285 285 3 3 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	08.153 GUARD; MUD,RR (A)	8-97048-729-1	01	1	9312-	●	●	●	●
3	08.153 GUARD; MUD,RR (A)	8-97048-728-3	01	1	9312-	●	●	●	●
3	08.153 GUARD; MUD,RR (B)	8-97081-735-3	01	1	9312-					●	●
3	08.153 GUARD; MUD,RR (B)	8-97081-734-5	01	1	9312-					●	●
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	08	1	9312-	●	●	●	●	●	●
24	08.155 PLATE; MUD COVER	8-97095-186-0	02	1	9312-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER UNITED KINGDOM EQUIPMENT(6AA) 04.785 (D) M6X16	0-20800-616-0	02	1	9712-	●
33	08.155 BOLT; MUD COVER EXC. UNITED KINGDOM EQUIPMENT(6AA) 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	9712-	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	9712-		●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	9312-9711	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER UNITED KINGDOM EQUIPMENT(6AA) 00.738 (D) M6X16 FLANGE	0-28080-616-0	06	1	9712-	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	9312-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 06.500 (C) M6X25	8-94279-204-0	04	1	9312-9603	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	9604-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 07.633 (B) M8X28 W/LK&PL WASHER	8-94438-324-1	01	1	9312-9501	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	9502-	●	●	●	●	●	●
66	08.155 WASHER; LK EXC. UNITED KINGDOM EQUIPMENT(6AA) 00.206 ID=6.1	9-09150-506-0	08	1	9712-	●
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	08	1	9712-		●	●	●	●	●
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	08	1	9312-9711	●	●	●	●	●	●
66	08.155 WASHER; LK UNITED KINGDOM EQUIPMENT(6AA) 00.206 ID=6.1	9-09150-506-0	06	1	9712-	●
67	08.155 WASHER; PL UNITED KINGDOM EQUIPMENT(6AA) 00.206 ID=6.4	9-09160-506-0	04	1	9712-	●
76	08.155 BOLT; MUD GUARD 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9312-	●	●	●	●	●	●
92	08.155 NUT; MUD COVER 4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9402	●			●	●	●
92	08.155 NUT; MUD COVER 4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9402			●
92	08.155 NUT; MUD COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	9403-	●	●	●	●	●	●
112	08.155 BOLT; BRKT 07.010 M8X20 FLANGE	0-28080-820-0	05	1	9312-9509	●	●	●	●	●	●
112	08.155 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	05	1	9510-	●	●	●	●	●	●
145	08.155 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	06	1	9312-	●	●	●	●	●	●
219	08.155 FLAP; MUD GUARD	8-97036-107-2	02	1	9312-	●	●	●	●	●	●
285	08.155 BRACKET; MUD COVER 4JB1 ENG(RLF),4BE1 ENG(RLH) (A)	8-97035-780-2	01	1	9312-9506	●	●	●	●	●	●
285	08.155 BRACKET; MUD COVER 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) (A)	8-97035-780-2	01	1	9507-9606	●	●	●	●	●	●
285	08.155 BRACKET; MUD COVER 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) (A)	8-97035-780-2	01	1	9607-9711	●	●	●	●		●
285	08.155 BRACKET; MUD COVER (A)	8-97035-780-2	01	1	9607-9711					●
285	08.155 BRACKET; MUD COVER 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) (A)	8-97035-780-3	01	1	9712-	●	●	●	●	●	●
285	08.155 BRACKET; MUD COVER 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97035-780-3	01	1	9712-	●			●
285	08.155 BRACKET; MUD COVER 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97089-653-2	01	1	9312-9506	●	●	●
285	08.155 BRACKET; MUD COVER 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97089-653-2	01	1	9507-	●	●	●
285	08.155 BRACKET; MUD COVER 4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97035-778-4	01	1	9312-9506	●			●
285	08.155 BRACKET; MUD COVER 4HF1 ENG(RLS) (C)	8-97035-778-4	01	1	9312-9506			●
285	08.155 BRACKET; MUD COVER 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97035-778-4	01	1	9507-9510	●			●
285	08.155 BRACKET; MUD COVER 4HF1 ENG(RLS) (C)	8-97035-778-4	01	1	9507-9510			●
285	08.155 BRACKET; MUD COVER 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97035-778-4	01	1	9511-9711	●			●
285	08.155 BRACKET; MUD COVER 4HF1 ENG(RLS) (C)	8-97035-778-4	01	1	9511-9711		●	●
285	08.155 BRACKET; MUD COVER 4HF1 ENG(RLS) (C)	8-97035-778-4	01	1	9712-	●	●	●	●
285	08.155 BRACKET; MUD COVER 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97035-778-4	01	1	9712-	●			●
285	08.155 BRACKET; MUD COVER (C)	8-97103-463-0	01	1	9312-					●
285	08.155 BRACKET; MUD COVER 4HF1 ENG(RLS) (A)	8-97092-037-0	01	1	9312-9510			●
285	08.155 BRACKET; MUD COVER 4HF1 ENG(RLS) (A)	8-97092-037-0	01	1	9511-9711		●	●
285	08.155 BRACKET; MUD COVER 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97092-037-1	01	1	9712-	●	●	●
285	08.155 BRACKET; MUD COVER (D)	8-97080-589-5	01	1	9312-						●

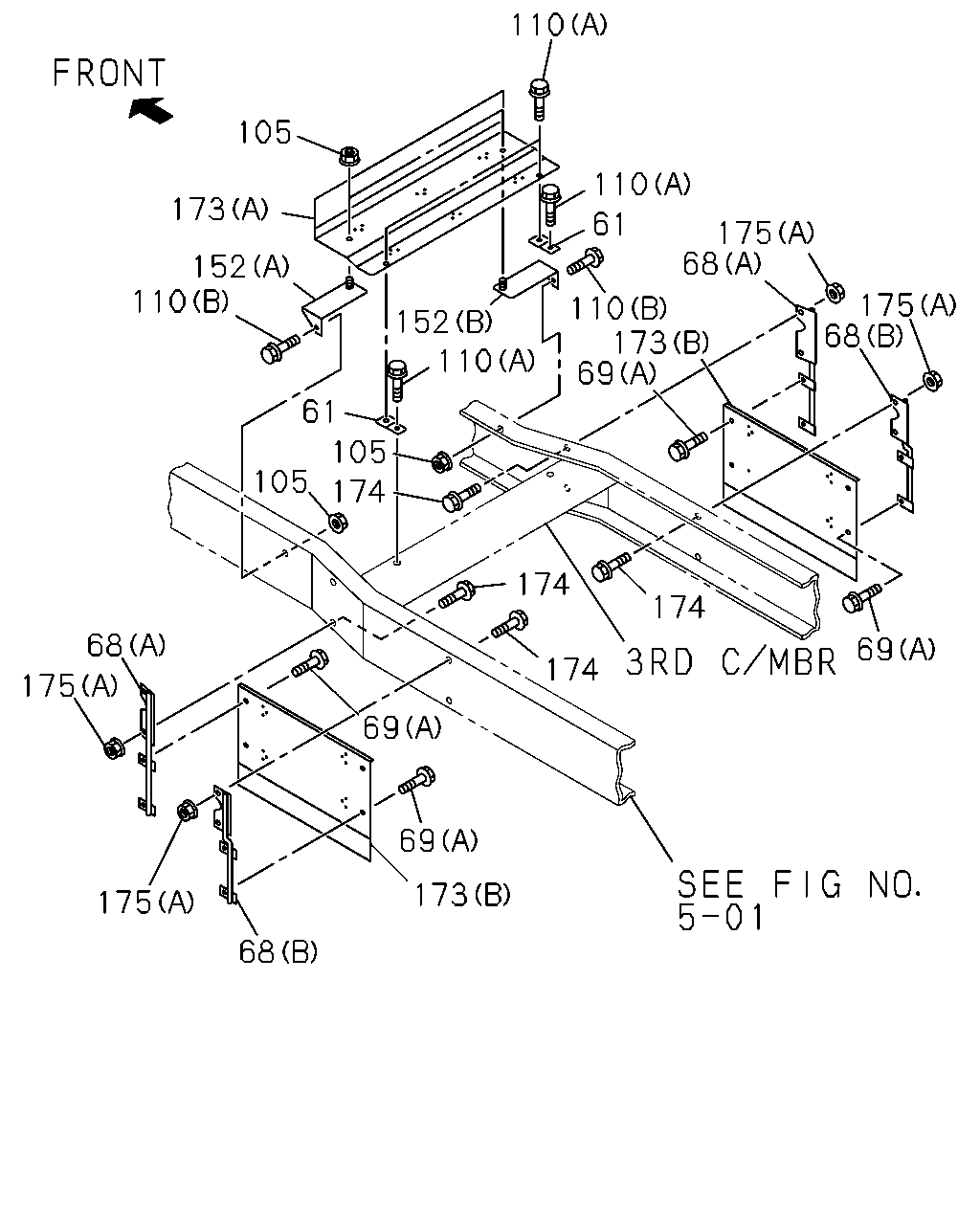

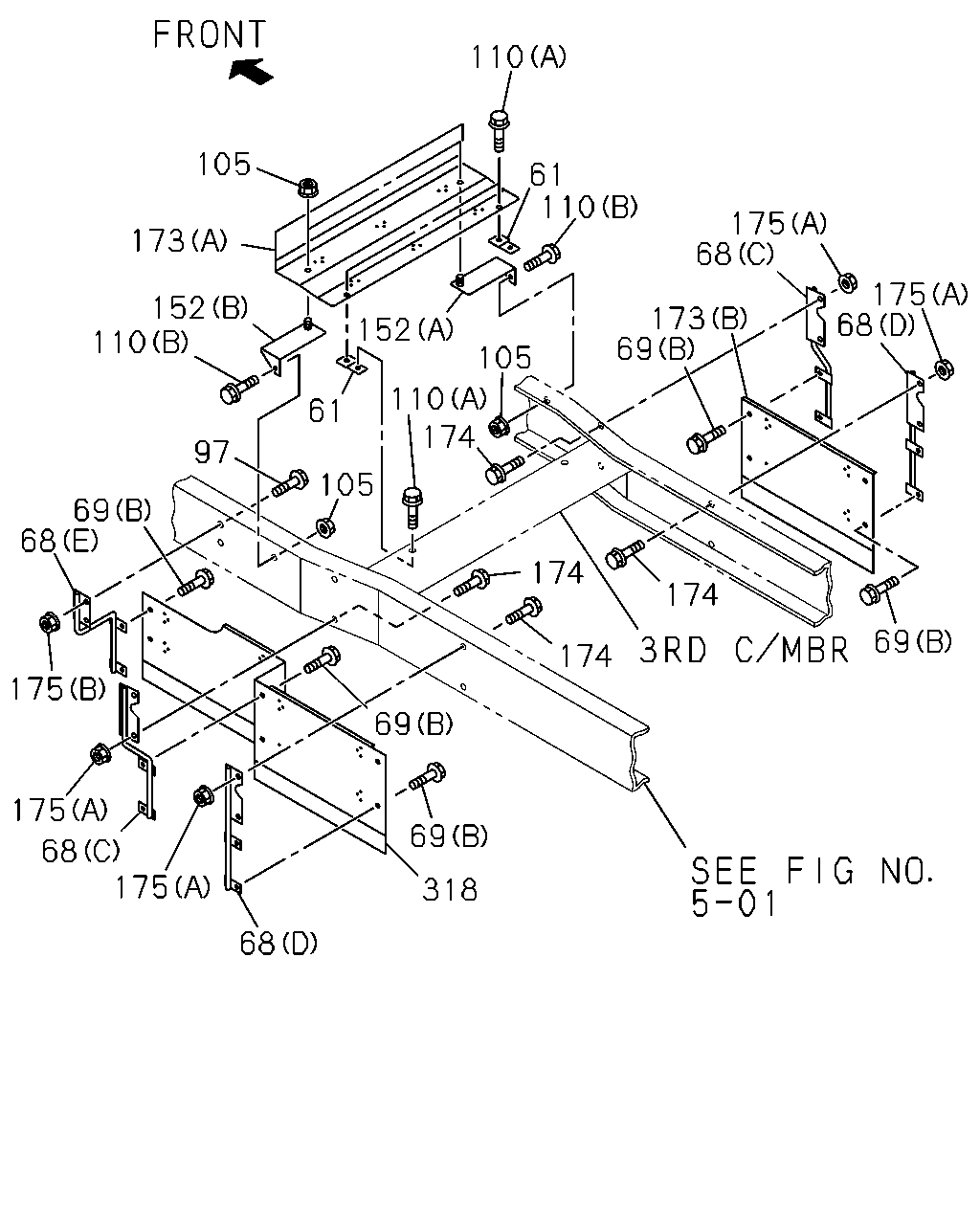

110 105 61 110 175 68 173 175 68 152 110 173 69 152 105 110 174 61 97 105 69 68 174 174 69 174 175 69 175 69 68 175 318 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
61	08.155 BRACKET; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 16.545	8-97103-549-1	02	1	9601-9601	●
61	08.155 BRACKET; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 16.545	8-97103-549-1	02	1	9601-9606	●
61	08.155 BRACKET; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 16.545	8-97103-549-1	02	1	9607-9801	●	●	●
61	08.155 BRACKET; COVER 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> 16.545	8-97103-549-1	02	1	9802-	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97145-984-1	01	1	9601-9608	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) (E)	8-97145-984-1	01	1	9609-9702		●	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) (E)	8-97177-363-0	01	1	9703-9801		●	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 16.545 (D)	8-97145-985-1	01	1	9601-9608	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 16.545 (D)	8-97145-985-2	01	1	9609-9702		●	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) (D)	8-97177-359-0	01	1	9703-9801		●	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 16.545 (D)	8-97145-986-1	01	1	9601-9608	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 16.545 (D)	8-97145-986-2	01	1	9609-9702		●	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) (D)	8-97177-360-0	01	1	9703-9801		●	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 16.545 (A)	8-97144-767-2	01	1	9601-9801	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (A)	8-97144-767-2	01	1	9802-	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 16.545 (B)	8-97145-982-1	01	1	9601-9801	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (B)	8-97145-982-1	01	1	9802-	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 16.545 (A)	8-97144-768-2	01	1	9601-9801	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (A)	8-97144-768-2	01	1	9802-	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 16.545 (B)	8-97145-983-1	01	1	9601-9801	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (B)	8-97145-983-1	01	1	9802-	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 16.545 (C)	8-97144-769-2	01	1	9607-9702		●	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) (C)	8-97177-357-0	01	1	9703-9801		●	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 16.545 (C)	8-97144-770-2	01	1	9607-9702		●	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) (C)	8-97177-358-0	01	1	9703-9801		●	●
69	08.155 BOLT; COVER TO STAY 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.062 (B) M8X16 FLANGE	0-28080-816-0	10	1	9602-9606	●
69	08.155 BOLT; COVER TO STAY 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1),FRT INDEPENDENT SUSPENSION(6PP) 01.062 (B) M8X16 FLANGE	0-28080-816-0	10	1	9607-9608	●	●	●
69	08.155 BOLT; COVER TO STAY 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1),FRT INDEPENDENT SUSPENSION(6PP) 07.010 (B) M8X20 FLANGE	0-28080-820-0	10	1	9609-9702	●	●	●
69	08.155 BOLT; COVER TO STAY 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1),FRT INDEPENDENT SUSPENSION(6PP) 02.664 (B) M8X20 FLANGE	0-28680-820-0	10	1	9703-9801	●	●	●
69	08.155 BOLT; COVER TO STAY 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.664 (B) M8X20 FLANGE	0-28680-820-0	10	1	9802-	●
69	08.155 BOLT; COVER TO STAY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 02.664 (A) M8X20 FLANGE	0-28680-820-0	08	1	9602-9801	●
69	08.155 BOLT; COVER TO STAY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (A) M8X20 FLANGE	0-28680-820-0	08	1	9802-	●
97	08.155 BOLT; STAY TO FRAME 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9602-9606	●
97	08.155 BOLT; STAY TO FRAME 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1),FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9607-9702	●	●	●
97	08.155 BOLT; STAY TO FRAME 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1),FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9703-9801	●	●	●
97	08.155 BOLT; STAY TO FRAME 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9802-	●
105	08.155 NUT; BRKT 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	04	1	9601-9601	●
105	08.155 NUT; BRKT 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 07.633 M8 FLANGE	0-91150-108-0	04	1	9601-9606	●
105	08.155 NUT; BRKT 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 07.633 M8 FLANGE	0-91150-108-0	04	1	9607-9801	●	●	●
105	08.155 NUT; BRKT 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	04	1	9802-	●
110	08.155 BOLT; BRKT 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 01.062 (A) M8X16 FLANGE	0-28080-816-0	04	1	9601-9601	●
110	08.155 BOLT; BRKT 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 07.010 (A) M8X20 FLANGE	0-28080-820-0	04	1	9602-9606	●
110	08.155 BOLT; BRKT 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 07.010 (A) M8X20 FLANGE	0-28080-820-0	04	1	9607-9702	●	●	●
110	08.155 BOLT; BRKT 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	9601-9602	●
110	08.155 BOLT; BRKT 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●
110	08.155 BOLT; BRKT 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	9607-9702	●	●	●
110	08.155 BOLT; BRKT 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 02.664 (B) M8X20 FLANGE	0-28680-820-0	06	1	9703-9801	●	●	●
110	08.155 BOLT; BRKT 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (B) M8X20 FLANGE	0-28680-820-0	06	1	9802-	●
152	04.275 BRACKET; PANEL,TRANS 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> (B)	8-97145-988-0	01	1	9602-9602	●
152	04.275 BRACKET; PANEL,TRANS 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> (B)	8-97145-988-1	01	1	9603-9606	●
152	04.275 BRACKET; PANEL,TRANS 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) (B)	8-97145-988-1	01	1	9607-9801	●	●	●
152	04.275 BRACKET; PANEL,TRANS 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97145-988-1	01	1	9802-	●
152	04.275 BRACKET; PANEL,TRANS 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> (A)	8-97145-987-0	01	1	9602-9602	●
152	04.275 BRACKET; PANEL,TRANS 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> (A)	8-97145-987-1	01	1	9603-9606	●
152	04.275 BRACKET; PANEL,TRANS 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) (A)	8-97145-987-1	01	1	9607-9801	●	●	●
152	04.275 BRACKET; PANEL,TRANS 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97145-987-1	01	1	9802-	●
173	08.155 COVER; TRANS SIDE 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> (A)	8-97146-500-1	01	1	9601-9801	●
173	08.155 COVER; TRANS SIDE 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97146-500-1	01	1	9802-	●
173	08.155 COVER; TRANS SIDE 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97144-765-0	01	1	9601-9606	●
173	08.155 COVER; TRANS SIDE 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1),FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97144-765-0	01	1	9607-9702	●	●	●
173	08.155 COVER; TRANS SIDE 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1),FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97177-365-1	01	1	9703-9801	●	●	●
173	08.155 COVER; TRANS SIDE 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97177-365-1	01	1	9802-	●
173	08.155 COVER; TRANS SIDE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> (B)	8-97144-765-0	02	1	9601-9801	●
173	08.155 COVER; TRANS SIDE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97144-765-0	02	1	9802-	●
173	08.155 COVER; TRANS SIDE 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) (A)	8-97144-866-1	01	1	9607-9801		●	●
174	08.155 BOLT; STAY FIX 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 03.611 M10X20 FLANGE	0-28681-020-0	08	1	9602-9606	●
174	08.155 BOLT; STAY FIX 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 03.611 M10X20 FLANGE	0-28681-020-0	08	1	9607-9702	●	●	●
174	08.155 BOLT; STAY FIX 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 03.405 M10X25 FLANGE	0-28681-025-0	08	1	9703-9801	●	●	●
174	08.155 BOLT; STAY FIX 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 M10X25 FLANGE	0-28681-025-0	08	1	9802-	●
175	08.155 NUT; STAY FIX 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 08.917 (A) M10 FLANGE	0-91150-210-0	08	1	9602-9606	●
175	08.155 NUT; STAY FIX 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 08.917 (A) M10 FLANGE	0-91150-210-0	08	1	9607-9702	●	●	●
175	08.155 NUT; STAY FIX 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 08.917 (A) M10 FLANGE	0-91150-210-0	07	1	9703-9703	●	●	●
175	08.155 NUT; STAY FIX 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 08.917 (A) M10 FLANGE	0-91150-210-0	08	1	9704-9801	●
175	08.155 NUT; STAY FIX 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> 08.917 (A) M10 FLANGE	0-91150-210-0	08	1	9802-	●
175	08.155 NUT; STAY FIX 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1),FRT INDEPENDENT SUSPENSION(6PP) 01.540 (B) M8 FLANGE	0-91150-208-0	02	1	9609-9801	●	●	●
175	08.155 NUT; STAY FIX 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 (B) M8 FLANGE	0-91150-208-0	02	1	9802-	●
175	08.155 NUT; STAY FIX 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1),FRT INDEPENDENT SUSPENSION(6PP) 08.917 (A) M10 FLANGE	0-91150-210-0	07	1	9704-9801	●	●	●
175	08.155 NUT; STAY FIX 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 (A) M10 FLANGE	0-91150-210-0	07	1	9802-	●
318	08.155 COVER; OIL PAN 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97144-766-1	01	1	9512-9606	●
318	08.155 COVER; OIL PAN 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1),FRT INDEPENDENT SUSPENSION(6PP)	8-97144-766-1	01	1	9607-9702	●	●	●
318	08.155 COVER; OIL PAN 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1),FRT INDEPENDENT SUSPENSION(6PP)	8-97177-361-1	01	1	9703-9801	●	●	●
318	08.155 COVER; OIL PAN 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97177-361-1	01	1	9802-	●

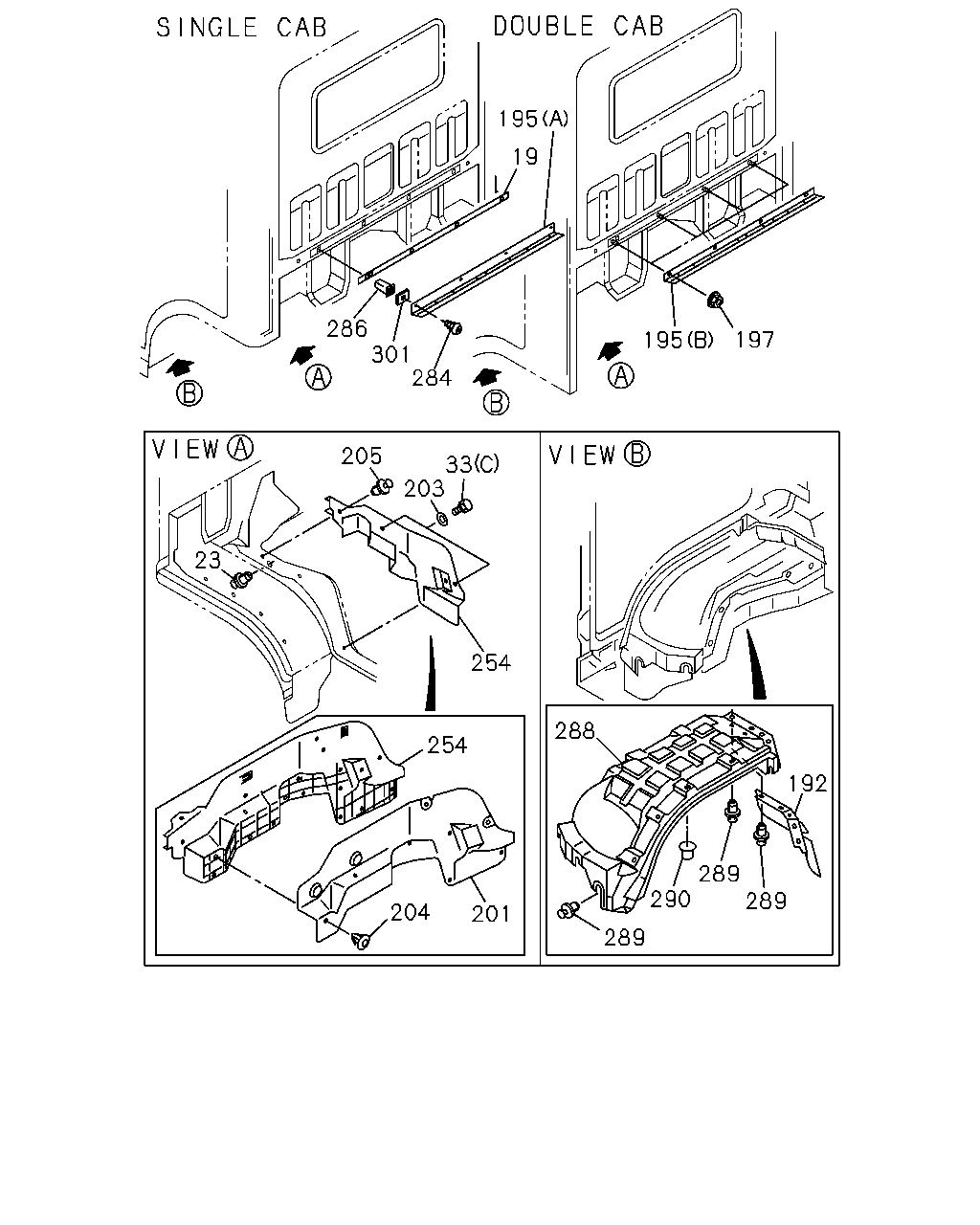

195 19 286 301 284 197 195 205 33 203 23 254 288 254 192 289 290 289 204 201 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK	8-97856-016-0	01	1	9312-	●	●	●	●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-94279-989-0	10	1	9312-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER UNITED KINGDOM EQUIPMENT(6AA) 04.785 (D) M6X16	0-20800-616-0	02	1	9712-	●
33	08.155 BOLT; MUD COVER EXC. UNITED KINGDOM EQUIPMENT(6AA) 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	9712-	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	9712-		●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	9312-9711	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER UNITED KINGDOM EQUIPMENT(6AA) 00.738 (D) M6X16 FLANGE	0-28080-616-0	06	1	9712-	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	9312-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 06.500 (C) M6X25	8-94279-204-0	04	1	9312-9603	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	9604-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 07.633 (B) M8X28 W/LK&PL WASHER	8-94438-324-1	01	1	9312-9501	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	9502-	●	●	●	●	●	●
192	08.153 SEAL; MUD COVER	8-97857-297-3	02	1	9312-	●	●	●	●	●	●
195	03.602 PROTECTOR; HEAT AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97035-834-2	01	1	9312-9711	●
195	03.602 PROTECTOR; HEAT EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T) (A)	8-97035-834-2	01	1	9312-9711		●
195	03.602 PROTECTOR; HEAT AIR INTAKE REAR VERTICAL<KJ3> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97035-834-2	01	1	9712-	●
195	03.602 PROTECTOR; HEAT EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T) (A)	8-97035-834-2	01	1	9712-		●
195	03.602 PROTECTOR; HEAT EXC. AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97087-749-2	01	1	9312-9602	●			●
195	03.602 PROTECTOR; HEAT EXC. AIR INTAKE REAR VERTICAL<KJ3>, EURO2 SPECIFICATION<7AF> (A)	8-97087-749-2	01	1	9603-9711	●			●
195	03.602 PROTECTOR; HEAT AIR INTAKE SYSTEM FRONT<6PC> EXC. EURO2 SPECIFICATION<7AF> (A)	8-97087-749-2	01	1	9712-	●			●
195	03.602 PROTECTOR; HEAT (B)	8-94462-569-0	01	1	9312-					●	●
195	03.602 PROTECTOR; HEAT DUMP CHASSIS(V4D) (A)	8-97094-833-1	01	1	9312-9606		●
195	03.602 PROTECTOR; HEAT REAR WIDE TREAD(V4T) (A)	8-97094-833-1	01	1	9312-9606		●
195	03.602 PROTECTOR; HEAT (A)	8-97094-833-1	01	1	9312-9606			●
195	03.602 PROTECTOR; HEAT DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T) (A)	8-97094-833-1	01	1	9607-9702		●
195	03.602 PROTECTOR; HEAT REAR WIDE TREAD(V4T) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97094-833-1	01	1	9607-9702		●
195	03.602 PROTECTOR; HEAT EXC. EURO2 SPECIFICATION<7AF> (A)	8-97094-833-1	01	1	9607-9702			●
195	03.602 PROTECTOR; HEAT HONG KONG EQUIPMENT(PQ1) REAR WIDE TREAD(V4T) (A)	8-97094-833-1	01	1	9703-		●
195	03.602 PROTECTOR; HEAT DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T) (A)	8-97094-833-1	01	1	9703-		●
195	03.602 PROTECTOR; HEAT REAR WIDE TREAD(V4T) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97094-833-1	01	1	9703-		●
195	03.602 PROTECTOR; HEAT HONG KONG EQUIPMENT(PQ1) (A)	8-97094-833-1	01	1	9703-			●
195	03.602 PROTECTOR; HEAT EXC. EURO2 SPECIFICATION<7AF> (A)	8-97094-833-1	01	1	9703-			●
197	03.602 NUT; HEAT PROTECTOR,CAB BACK 03.417 M6 FLANGE	8-94279-514-0	03	1	9312-					●	●
201	08.155 INSULATOR; VALANCE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-117-2	01	1	9312-	●	●	●	●	●	●
201	08.155 INSULATOR; VALANCE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-116-2	01	1	9312-	●	●	●	●	●	●
201	08.155 INSULATOR; VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-115-3	01	1	9312-9510	●			●
201	08.155 INSULATOR; VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-115-3	01	1	9511-	●
201	08.155 INSULATOR; VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-114-4	01	1	9312-9510	●			●
201	08.155 INSULATOR; VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-114-4	01	1	9511-	●
203	08.155 WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	9312-	●	●	●	●	●	●
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	9312-	●	●	●	●	●	●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	9312-	●	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-072-4	01	1	9312-	●	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-071-4	01	1	9312-	●	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-112-5	01	1	9312-9510	●			●
254	08.153 COVER; MUD,VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-112-5	01	1	9511-	●
254	08.153 COVER; MUD,VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-111-5	01	1	9312-9510	●			●
254	08.153 COVER; MUD,VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-111-5	01	1	9511-	●
284	08.155 SCREW; HEAT PROTECTOR 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9312-9501	●	●	●	●
284	08.155 SCREW; HEAT PROTECTOR M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	9502-9711	●	●	●	●
284	08.155 SCREW; HEAT PROTECTOR EXC. NOISE PACK FOR REGULATION VAR.2<7TF> M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	9712-	●
284	08.155 SCREW; HEAT PROTECTOR M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	9712-		●	●	●
286	08.155 GROMMET; SCREW,HEAT PROTECTOR 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	04	1	9312-	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97853-716-6	01	1	9312-9510	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97890-579-0	01	1	9511-9711	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97853-716-6	01	1	9712-9803	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97890-579-0	01	1	9804-	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97890-578-0	01	1	9712-9712	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97853-715-6	01	1	9312-9803	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97890-578-0	01	1	9804-	●	●	●	●	●	●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	22	1	9312-9406	●	●	●	●	●	●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	20	1	9407-	●	●	●	●	●	●
290	08.155 NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	9312-	●	●	●	●	●	●
301	08.155 HOLDER; HEAT PROTECTOR	8-97857-153-0	04	1	9312-	●	●	●	●

110 105 110 173 61 175 68 152 110 175 68 110 173 69 152 110 61 105 105 174 174 174 68 69 174 175 69 69 173 175 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
61	08.155 BRACKET; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 16.545	8-97103-549-1	02	1	9601-9601	●
61	08.155 BRACKET; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 16.545	8-97103-549-1	02	1	9601-9606	●
61	08.155 BRACKET; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 16.545	8-97103-549-1	02	1	9607-9801	●	●	●
61	08.155 BRACKET; COVER 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> 16.545	8-97103-549-1	02	1	9802-	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97145-984-1	01	1	9601-9608	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) (E)	8-97145-984-1	01	1	9609-9702		●	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) (E)	8-97177-363-0	01	1	9703-9801		●	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 16.545 (D)	8-97145-985-1	01	1	9601-9608	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 16.545 (D)	8-97145-985-2	01	1	9609-9702		●	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) (D)	8-97177-359-0	01	1	9703-9801		●	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 16.545 (D)	8-97145-986-1	01	1	9601-9608	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 16.545 (D)	8-97145-986-2	01	1	9609-9702		●	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) (D)	8-97177-360-0	01	1	9703-9801		●	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 16.545 (A)	8-97144-767-2	01	1	9601-9801	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (A)	8-97144-767-2	01	1	9802-	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 16.545 (B)	8-97145-982-1	01	1	9601-9801	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (B)	8-97145-982-1	01	1	9802-	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 16.545 (A)	8-97144-768-2	01	1	9601-9801	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (A)	8-97144-768-2	01	1	9802-	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 16.545 (B)	8-97145-983-1	01	1	9601-9801	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> 16.545 (B)	8-97145-983-1	01	1	9802-	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 16.545 (C)	8-97144-769-2	01	1	9607-9702		●	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) (C)	8-97177-357-0	01	1	9703-9801		●	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 16.545 (C)	8-97144-770-2	01	1	9607-9702		●	●
68	08.155 STAY; COVER 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) (C)	8-97177-358-0	01	1	9703-9801		●	●
69	08.155 BOLT; COVER TO STAY 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.062 (B) M8X16 FLANGE	0-28080-816-0	10	1	9602-9606	●
69	08.155 BOLT; COVER TO STAY 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1),FRT INDEPENDENT SUSPENSION(6PP) 01.062 (B) M8X16 FLANGE	0-28080-816-0	10	1	9607-9608	●	●	●
69	08.155 BOLT; COVER TO STAY 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1),FRT INDEPENDENT SUSPENSION(6PP) 07.010 (B) M8X20 FLANGE	0-28080-820-0	10	1	9609-9702	●	●	●
69	08.155 BOLT; COVER TO STAY 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1),FRT INDEPENDENT SUSPENSION(6PP) 02.664 (B) M8X20 FLANGE	0-28680-820-0	10	1	9703-9801	●	●	●
69	08.155 BOLT; COVER TO STAY 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.664 (B) M8X20 FLANGE	0-28680-820-0	10	1	9802-	●
69	08.155 BOLT; COVER TO STAY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 02.664 (A) M8X20 FLANGE	0-28680-820-0	08	1	9602-9801	●
69	08.155 BOLT; COVER TO STAY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (A) M8X20 FLANGE	0-28680-820-0	08	1	9802-	●
105	08.155 NUT; BRKT 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	04	1	9601-9601	●
105	08.155 NUT; BRKT 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 07.633 M8 FLANGE	0-91150-108-0	04	1	9601-9606	●
105	08.155 NUT; BRKT 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 07.633 M8 FLANGE	0-91150-108-0	04	1	9607-9801	●	●	●
105	08.155 NUT; BRKT 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	04	1	9802-	●
110	08.155 BOLT; BRKT 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 01.062 (A) M8X16 FLANGE	0-28080-816-0	04	1	9601-9601	●
110	08.155 BOLT; BRKT 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 07.010 (A) M8X20 FLANGE	0-28080-820-0	04	1	9602-9606	●
110	08.155 BOLT; BRKT 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 07.010 (A) M8X20 FLANGE	0-28080-820-0	04	1	9607-9702	●	●	●
110	08.155 BOLT; BRKT 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	9601-9602	●
110	08.155 BOLT; BRKT 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●
110	08.155 BOLT; BRKT 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	9607-9702	●	●	●
110	08.155 BOLT; BRKT 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 02.664 (B) M8X20 FLANGE	0-28680-820-0	06	1	9703-9801	●	●	●
110	08.155 BOLT; BRKT 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (B) M8X20 FLANGE	0-28680-820-0	06	1	9802-	●
152	04.275 BRACKET; PANEL,TRANS 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> (B)	8-97145-988-0	01	1	9602-9602	●
152	04.275 BRACKET; PANEL,TRANS 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> (B)	8-97145-988-1	01	1	9603-9606	●
152	04.275 BRACKET; PANEL,TRANS 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) (B)	8-97145-988-1	01	1	9607-9801	●	●	●
152	04.275 BRACKET; PANEL,TRANS 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97145-988-1	01	1	9802-	●
152	04.275 BRACKET; PANEL,TRANS 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> (A)	8-97145-987-0	01	1	9602-9602	●
152	04.275 BRACKET; PANEL,TRANS 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> (A)	8-97145-987-1	01	1	9603-9606	●
152	04.275 BRACKET; PANEL,TRANS 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) (A)	8-97145-987-1	01	1	9607-9801	●	●	●
152	04.275 BRACKET; PANEL,TRANS 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97145-987-1	01	1	9802-	●
173	08.155 COVER; TRANS SIDE 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> (A)	8-97146-500-1	01	1	9601-9801	●
173	08.155 COVER; TRANS SIDE 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97146-500-1	01	1	9802-	●
173	08.155 COVER; TRANS SIDE 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97144-765-0	01	1	9601-9606	●
173	08.155 COVER; TRANS SIDE 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1),FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97144-765-0	01	1	9607-9702	●	●	●
173	08.155 COVER; TRANS SIDE 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1),FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97177-365-1	01	1	9703-9801	●	●	●
173	08.155 COVER; TRANS SIDE 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97177-365-1	01	1	9802-	●
173	08.155 COVER; TRANS SIDE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> (B)	8-97144-765-0	02	1	9601-9801	●
173	08.155 COVER; TRANS SIDE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97144-765-0	02	1	9802-	●
173	08.155 COVER; TRANS SIDE 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) (A)	8-97144-866-1	01	1	9607-9801		●	●
174	08.155 BOLT; STAY FIX 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 03.611 M10X20 FLANGE	0-28681-020-0	08	1	9602-9606	●
174	08.155 BOLT; STAY FIX 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 03.611 M10X20 FLANGE	0-28681-020-0	08	1	9607-9702	●	●	●
174	08.155 BOLT; STAY FIX 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 03.405 M10X25 FLANGE	0-28681-025-0	08	1	9703-9801	●	●	●
174	08.155 BOLT; STAY FIX 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 M10X25 FLANGE	0-28681-025-0	08	1	9802-	●
175	08.155 NUT; STAY FIX 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 08.917 (A) M10 FLANGE	0-91150-210-0	08	1	9602-9606	●
175	08.155 NUT; STAY FIX 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 08.917 (A) M10 FLANGE	0-91150-210-0	08	1	9607-9702	●	●	●
175	08.155 NUT; STAY FIX 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 08.917 (A) M10 FLANGE	0-91150-210-0	07	1	9703-9703	●	●	●
175	08.155 NUT; STAY FIX 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 08.917 (A) M10 FLANGE	0-91150-210-0	08	1	9704-9801	●
175	08.155 NUT; STAY FIX 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> 08.917 (A) M10 FLANGE	0-91150-210-0	08	1	9802-	●
175	08.155 NUT; STAY FIX 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1),FRT INDEPENDENT SUSPENSION(6PP) 01.540 (B) M8 FLANGE	0-91150-208-0	02	1	9609-9801	●	●	●
175	08.155 NUT; STAY FIX 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.540 (B) M8 FLANGE	0-91150-208-0	02	1	9802-	●
175	08.155 NUT; STAY FIX 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1),FRT INDEPENDENT SUSPENSION(6PP) 08.917 (A) M10 FLANGE	0-91150-210-0	07	1	9704-9801	●	●	●
175	08.155 NUT; STAY FIX 4JG2 ENG(RJC) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 (A) M10 FLANGE	0-91150-210-0	07	1	9802-	●

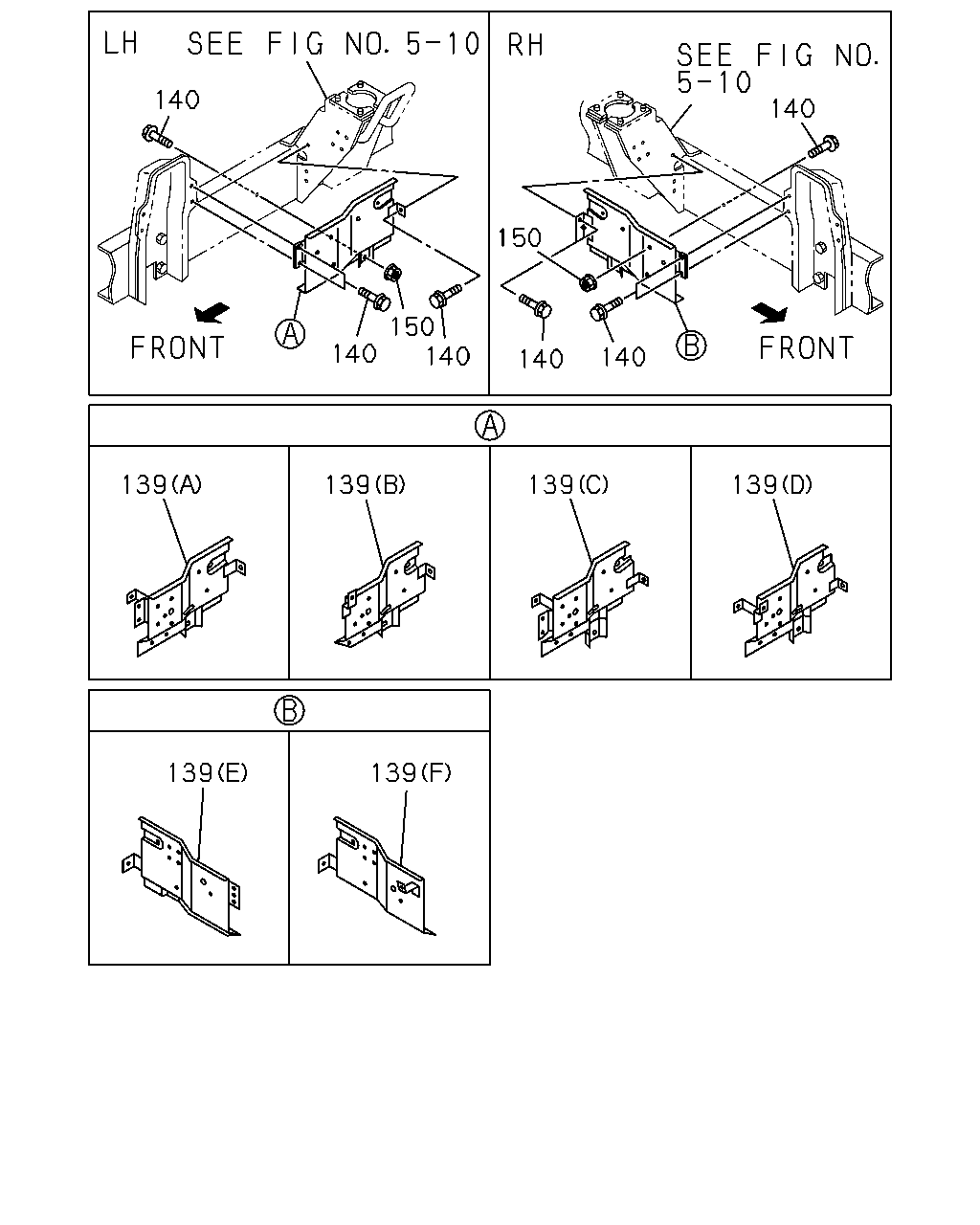

140 140 150 150 140 140 140 140 139 139 139 139 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
139	08.153 PANEL; SIDE 4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA) FRT INDEPENDENT SUSPENSION(6PP) (B) W/RUBBER AND INSULATOR	8-97034-163-2	01	1	9507-	●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA) FRT INDEPENDENT SUSPENSION(6PP) (F) W/RUBBER AND INSULATOR	8-97034-160-1	01	1	9507-	●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC) UNITED KINGDOM EQUIPMENT(6AA) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) W/RUBBER AND INSULATOR	8-97035-770-2	01	1	9507-	●
139	08.153 PANEL; SIDE 4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP), NOISE PACK FOR REGULATION<6VD> (E) WO/RUBBER AND INSULATOR	8-97078-381-1	01	1	9312-9504	●	●	●	●	●	●
139	08.153 PANEL; SIDE 4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) WO/RUBBER AND INSULATOR	8-97078-381-1	01	1	9505-9506	●	●	●	●	●	●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. UNITED KINGDOM EQUIPMENT(6AA), FRT INDEPENDENT SUSPENSION(6PP) (E) WO/RUBBER AND INSULATOR	8-97078-381-1	01	1	9507-	●	●	●	●	●	●
139	08.153 PANEL; SIDE 4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3>, FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97035-774-2	01	1	9312-9506	●			●	●	●
139	08.153 PANEL; SIDE 4HF1 ENG(RLS) (A)	8-97035-774-2	01	1	9312-9506			●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3>, UNITED KINGDOM EQUIPMENT(6AA),FRT INDEP ENDENT SUSPENSION(6PP) (A)	8-97035-774-2	01	1	9507-9510	●			●	●	●
139	08.153 PANEL; SIDE 4HF1 ENG(RLS) (A)	8-97035-774-2	01	1	9507-9510			●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3>, UNITED KINGDOM EQUIPMENT(6AA),FRT INDEP ENDENT SUSPENSION(6PP) (A)	8-97035-774-2	01	1	9511-9711	●			●	●	●
139	08.153 PANEL; SIDE 4HF1 ENG(RLS) (A)	8-97035-774-2	01	1	9511-9711		●	●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. UNITED KINGDOM EQUIPMENT(6AA), FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97035-774-3	01	1	9712-	●			●	●
139	08.153 PANEL; SIDE 4HF1 ENG(RLS) (A)	8-97035-774-3	01	1	9712-	●	●	●	●
139	08.153 PANEL; SIDE 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97083-093-0	01	1	9312-9506	●	●	●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97083-093-1	01	1	9507-	●	●	●
139	08.153 PANEL; SIDE 4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97048-244-2	01	1	9312-9711	●	●	●	●		●
139	08.153 PANEL; SIDE 4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97048-244-3	01	1	9712-	●	●	●			●
139	08.153 PANEL; SIDE 4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) NOISE PACK FOR REGULATION<6VD> EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) WO/RUBBER AND INSULATOR	8-97035-770-2	01	1	9312-9504	●	●		●
139	08.153 PANEL; SIDE FRT INDEPENDENT SUSPENSION(6PP) EXC. NOISE PACK FOR REGULATION<6VD> (F) WO/RUBBER AND INSULATOR	8-97034-161-1	01	1	9312-9504	●			●
139	08.153 PANEL; SIDE 4JB1 ENG(RLF),4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (F) WO/RUBBER AND INSULATOR	8-97034-161-1	01	1	9505-9506	●			●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. UNITED KINGDOM EQUIPMENT(6AA) (F) WO/RUBBER AND INSULATOR	8-97034-161-1	01	1	9507-9510	●			●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. UNITED KINGDOM EQUIPMENT(6AA) (F) WO/RUBBER AND INSULATOR	8-97034-161-1	01	1	9511-	●
139	08.153 PANEL; SIDE 4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION<6VD> (F) WO/RUBBER AND INSULATOR	8-97034-160-1	01	1	9312-9504	●			●
139	08.153 PANEL; SIDE 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97074-505-1	01	1	9312-9510	●			●
139	08.153 PANEL; SIDE 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97074-505-2	01	1	9511-	●
139	08.153 PANEL; SIDE 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) WO/RUBBER AND INSULATOR	8-97034-164-1	01	1	9312-9506	●			●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. UNITED KINGDOM EQUIPMENT(6AA) (B) WO/RUBBER AND INSULATOR	8-97034-164-1	01	1	9507-9510	●			●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. UNITED KINGDOM EQUIPMENT(6AA) (B) WO/RUBBER AND INSULATOR	8-97034-164-2	01	1	9511-	●
139	08.153 PANEL; SIDE 4HF1 ENG(RLS) (E) W/LOUVERS	8-97078-382-1	01	1	9312-9510			●
139	08.153 PANEL; SIDE 4HF1 ENG(RLS) (E) W/LOUVERS	8-97078-382-1	01	1	9511-9711		●	●
139	08.153 PANEL; SIDE 4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) W/LOUVERS	8-97078-382-1	01	1	9712-	●	●	●	●
140	08.155 BOLT; SIDE PANEL 04.595 M8X20 FLANGE	0-28480-820-0	02	1	9312-	●	●	●	●	●	●
140	08.155 BOLT; SIDE PANEL 4JB1 ENG(RLF),4BE1 ENG(RLH) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9312-9506	●	●	●	●	●	●
140	08.155 BOLT; SIDE PANEL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9507-9507	●	●	●	●	●	●
140	08.155 BOLT; SIDE PANEL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9508-	●	●	●	●	●	●
140	08.155 BOLT; SIDE PANEL 4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.595 M8X20 FLANGE	0-28480-820-0	03	1	9312-9410	●	●		●		●
140	08.155 BOLT; SIDE PANEL 04.595 M8X20 FLANGE	0-28480-820-0	03	1	9312-9410			●		●
140	08.155 BOLT; SIDE PANEL 4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.595 M8X20 FLANGE	0-28480-820-0	03	1	9411-9506	●	●	●	●	●	●
140	08.155 BOLT; SIDE PANEL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.595 M8X20 FLANGE	0-28480-820-0	03	1	9507-	●	●	●	●	●	●
140	08.155 BOLT; SIDE PANEL FRT INDEPENDENT SUSPENSION(6PP) 04.595 M8X20 FLANGE	0-28480-820-0	01	1	9312-9510	●			●
140	08.155 BOLT; SIDE PANEL FRT INDEPENDENT SUSPENSION(6PP) 04.595 M8X20 FLANGE	0-28480-820-0	01	1	9511-	●
140	08.155 BOLT; SIDE PANEL 4HF1 ENG(RLS) 04.595 M8X20 FLANGE	0-28480-820-0	05	1	9411-9510			●
140	08.155 BOLT; SIDE PANEL 4HF1 ENG(RLS) 04.595 M8X20 FLANGE	0-28480-820-0	05	1	9511-9711		●	●
140	08.155 BOLT; SIDE PANEL 4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.595 M8X20 FLANGE	0-28480-820-0	05	1	9712-	●	●	●	●
150	08.155 NUT; SIDE PANEL 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	9501-9506	●	●	●	●	●	●
150	08.155 NUT; SIDE PANEL 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	9507-	●	●	●	●	●	●
150	08.155 NUT; SIDE PANEL 4JB1 ENG(RLF),4BE1 ENG(RLH) 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9506	●	●	●	●	●	●
150	08.155 NUT; SIDE PANEL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 07.633 M8 FLANGE	0-91150-108-0	02	1	9507-9612	●	●	●	●	●	●
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	02	1	9701-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
