◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#47765) — 76 parça
çizim 19153
162 162
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
162 16.165 PROTECTOR; DOOR
(A) 		8-97852-478-0 01 1 9312-9612 ● ● ● ● ● ●
162 16.165 PROTECTOR; DOOR
FENDER COVER<6FZ> (A) 		8-97852-478-0 01 1 9701-9802 ● ● ● ● ● ●
162 16.165 PROTECTOR; DOOR
(A) 		8-97852-477-0 01 1 9312-9612 ● ● ● ● ● ●
162 16.165 PROTECTOR; DOOR
FENDER COVER<6FZ> (A) 		8-97852-477-0 01 1 9701-9802 ● ● ● ● ● ●
162 16.165 PROTECTOR; DOOR
FENDER COVER<6FZ> (A) 		8-97892-157-0 02 1 9803- ● ● ● ● ● ●
162 16.165 PROTECTOR; DOOR
PROTECTOR-BODY SIDE MOLDING<B84> (B) 		8-97856-390-1 02 1 9312- ● ● ● ●

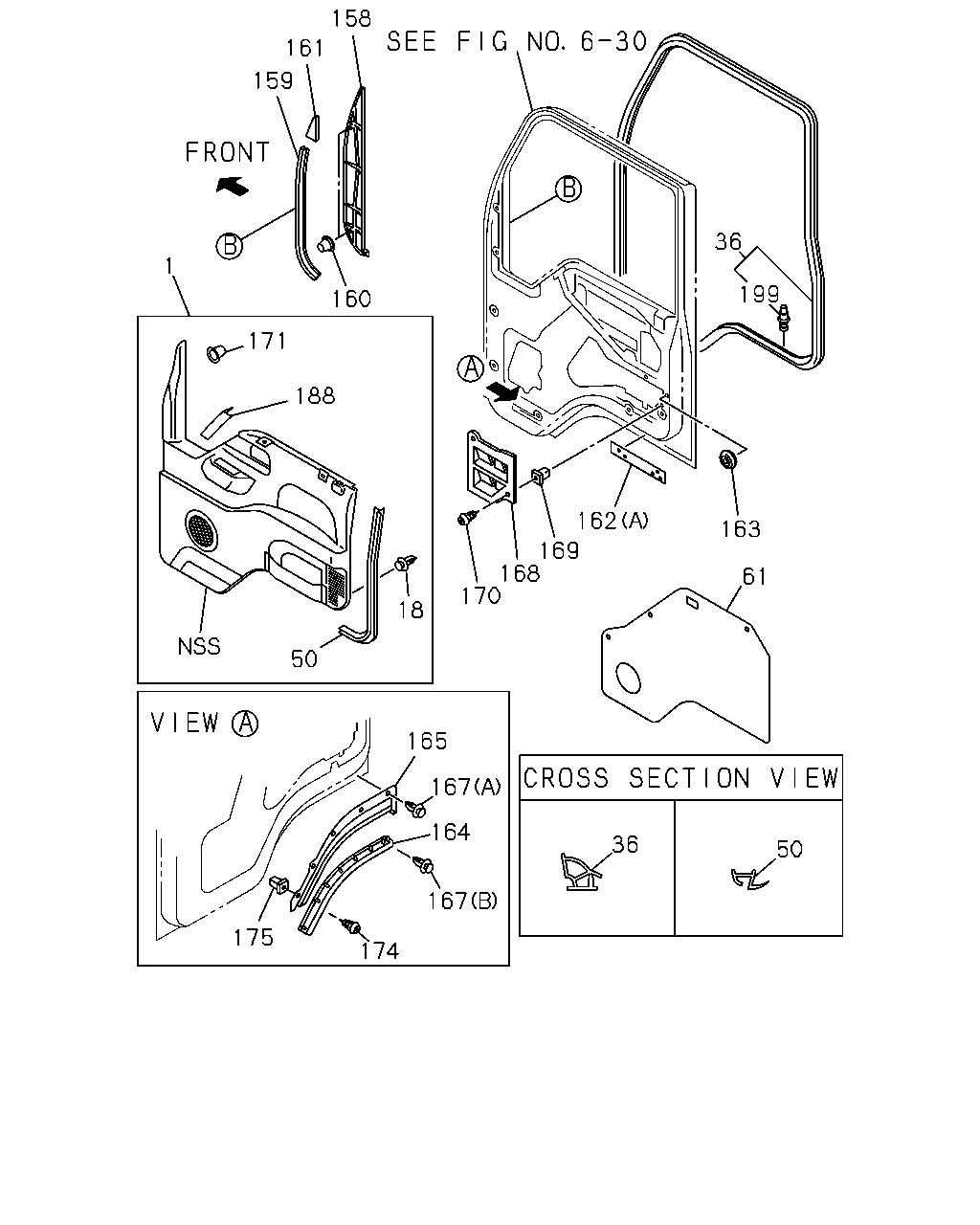

çizim 69735
158 161 159 36 1 199 160 171 188 162 163 169 168 170 61 18 50 165 167 164 36 50 167 175 174
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.165 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97852-411-5 01 1 9312-9711 ● ● ● ● ● ●
1 16.165 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97859-722-5 01 1 9712- ● ● ● ● ● ●
1 16.165 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97852-410-5 01 1 9312-9711 ● ● ● ● ● ●
1 16.165 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97859-721-5 01 1 9712- ● ● ● ● ● ●
1 16.165 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK BEIGE 		8-97852-635-3 01 1 9312-9711 ● ● ● ● ● ●
1 16.165 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97852-645-3 01 1 9712- ● ● ● ● ● ●
1 16.165 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK BEIGE 		8-97852-634-3 01 1 9312-9711 ● ● ● ● ● ●
1 16.165 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97852-644-3 01 1 9712- ● ● ● ● ● ●
18 16.165 CLIP; DOOR PAD
OD=7.9 BLACK 		8-94279-974-1 24 1 9312-9711 ● ● ● ● ● ●
18 16.165 CLIP; DOOR PAD
POWER WINDOW FRT DOOR<A32> OD=7.9 BLACK 		8-94279-974-1 24 1 9712- ● ● ● ● ● ●
18 16.165 CLIP; DOOR PAD
EXC. POWER WINDOW FRT DOOR<A32> OD=7.9 BLACK 		8-94279-974-1 12 1 9712- ● ● ● ● ● ●
36 16.225 SEAL; DOOR,MAIN,CAB SIDE 8-97852-145-9 01 1 9312-9808 ● ● ● ● ● ●
36 16.225 SEAL; DOOR,MAIN,CAB SIDE 8-97892-409-0 01 1 9809- ● ● ● ● ● ●
36 16.225 SEAL; DOOR,MAIN,CAB SIDE 8-97852-144-9 01 1 9312-9808 ● ● ● ● ● ●
36 16.225 SEAL; DOOR,MAIN,CAB SIDE 8-97892-408-0 01 1 9809- ● ● ● ● ● ●
50 16.166 FINISHER; DOOR PAD 8-97852-401-2 02 1 9312-9609 ● ● ● ● ● ●
50 16.166 FINISHER; DOOR PAD
DARK BEIGE 		8-97868-179-0 02 1 9610-9711 ● ● ● ● ● ●
50 16.166 FINISHER; DOOR PAD
DARK GRAY 		8-97868-180-0 02 1 9712- ● ● ● ● ● ●
61 16.165 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97852-328-3 02 1 9312-9312 ● ● ● ● ● ●
61 16.165 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97852-328-3 02 1 9401- ● ● ● ● ● ●
61 16.165 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> EXC. RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97852-329-2 02 1 9312-9312 ● ● ● ● ● ●
61 16.165 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> RADIO AM W/AMPLIFIER(RS2) 		8-97852-329-2 02 1 9401- ● ● ● ● ● ●
61 16.165 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> EXC. ANTENNA<U73> 		8-97852-329-2 02 1 9401- ● ● ● ● ● ●
61 16.165 SEAL; WATER,DOOR PAD
EXC. POWER WINDOW FRT DOOR<A32>, RADIOAM/FM STEREO 2 SPEAKERS(6GZ),RADIO A M/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97852-307-1 02 1 9312-9312 ● ● ● ● ● ●
61 16.165 SEAL; WATER,DOOR PAD
RADIO AM W/AMPLIFIER(RS2) EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-307-1 02 1 9401- ● ● ● ● ● ●
61 16.165 SEAL; WATER,DOOR PAD
EXC. POWER WINDOW FRT DOOR<A32>, ANTENNA<U73> 		8-97852-307-1 02 1 9401- ● ● ● ● ● ●
61 16.165 SEAL; WATER,DOOR PAD
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-308-1 02 1 9312-9312 ● ● ● ● ● ●
61 16.165 SEAL; WATER,DOOR PAD
ANTENNA<U73> EXC. POWER WINDOW FRT DOOR<A32>, RADIOAM W/AMPLIFIER(RS2) 		8-97852-308-1 02 1 9401- ● ● ● ● ● ●
158 16.165 GARNISH; DOOR 8-97852-129-2 01 1 9312- ● ● ● ● ● ●
158 16.165 GARNISH; DOOR 8-97852-128-2 01 1 9312- ● ● ● ● ● ●
159 16.165 FINISHER; GARNISH 8-97852-257-3 02 1 9312- ● ● ● ● ● ●
160 16.165 CLIP; GARNISH 8-97852-058-0 04 1 9312- ● ● ● ● ● ●
161 16.165 FASTENER; GARNISH 8-97852-479-2 02 1 9312-9506 ● ● ● ● ● ●
161 16.165 FASTENER; GARNISH 8-97134-312-0 01 1 9507- ● ● ● ● ● ●
161 16.165 FASTENER; GARNISH 8-97134-313-0 01 1 9507- ● ● ● ● ● ●
162 16.165 PROTECTOR; DOOR
(A) 		8-97852-478-0 01 1 9312-9612 ● ● ● ● ● ●
162 16.165 PROTECTOR; DOOR
FENDER COVER<6FZ> (A) 		8-97852-478-0 01 1 9701-9802 ● ● ● ● ● ●
162 16.165 PROTECTOR; DOOR
(A) 		8-97852-477-0 01 1 9312-9612 ● ● ● ● ● ●
162 16.165 PROTECTOR; DOOR
FENDER COVER<6FZ> (A) 		8-97852-477-0 01 1 9701-9802 ● ● ● ● ● ●
162 16.165 PROTECTOR; DOOR
FENDER COVER<6FZ> (A) 		8-97892-157-0 02 1 9803- ● ● ● ● ● ●
162 16.165 PROTECTOR; DOOR
PROTECTOR-BODY SIDE MOLDING<B84> (B) 		8-97856-390-1 02 1 9312- ● ● ● ●
163 16.165 GROMMET; LOCATION HOLE,DOOR 8-94279-738-0 02 1 9312- ● ● ● ● ● ●
164 16.165 SEAL; SUB,SILL SIDE 8-97852-320-4 01 1 9312- ● ● ● ● ● ●
164 16.165 SEAL; SUB,SILL SIDE 8-97852-319-4 01 1 9312- ● ● ● ● ● ●
165 16.165 LINER; DOOR LWR
FENDER COVER<6FZ> 		8-97852-314-6 01 1 9312- ● ● ● ● ● ●
165 16.165 LINER; DOOR LWR
FENDER COVER<6FZ> 		8-97852-313-6 01 1 9312- ● ● ● ● ● ●
165 16.165 LINER; DOOR LWR
EXC. FENDER COVER<6FZ> 		8-97852-374-5 01 1 9312- ● ● ● ● ● ●
165 16.165 LINER; DOOR LWR
EXC. FENDER COVER<6FZ> 		8-97852-373-5 01 1 9312- ● ● ● ● ● ●
167 16.165 CLIP; LINER
08.155 (A) D6X16 PUSH RIVET 		1-09983-105-0 10 1 9312-9410 ● ● ● ● ● ●
167 16.165 CLIP; LINER
08.155 (A) D6X16 PUSH RIVET 		1-09983-105-0 08 1 9411- ● ● ● ● ● ●
167 16.165 CLIP; LINER
(B) D6X20 PUSH RIVET 		8-97859-673-0 02 1 9411- ● ● ● ● ● ●
168 16.175 VALVE; DOOR OUTLET 8-97852-306-1 01 1 9312-9503 ● ● ● ● ● ●
168 16.175 VALVE; DOOR OUTLET 8-97855-413-0 01 1 9504- ● ● ● ● ● ●
168 16.175 VALVE; DOOR OUTLET 8-97852-305-1 01 1 9312-9503 ● ● ● ● ● ●
168 16.175 VALVE; DOOR OUTLET 8-97855-412-0 01 1 9504- ● ● ● ● ● ●
169 16.175 GROMMET; SCREW,VALVE
16.345 D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 04 1 9312-9705 ● ● ● ● ● ●
169 16.175 GROMMET; SCREW,VALVE
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9706- ● ● ● ● ● ●
170 16.175 SCREW; VALVE
09.663 M5X12 TAPPING W/PL WASHER 		0-74110-512-0 04 1 9312- ● ● ● ● ● ●
171 16.165 RETAINER; DOOR PAD
01.303 		5-09709-049-0 02 1 9312-9711 ● ● ● ● ● ●
171 16.165 RETAINER; DOOR PAD
POWER WINDOW FRT DOOR<A32> 01.303 		5-09709-049-0 02 1 9712- ● ● ● ● ● ●
171 16.165 RETAINER; DOOR PAD
EXC. POWER WINDOW FRT DOOR<A32> 01.303 		5-09709-049-0 01 1 9712- ● ● ● ● ● ●
174 16.175 SCREW; LINER
01.303 M5X12 W/PL WASHER 		8-94385-565-0 04 1 9312- ● ● ● ● ● ●
175 16.175 GROMMET; SCREW,LINER
16.345 D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 04 1 9312-9705 ● ● ● ● ● ●
175 16.175 GROMMET; SCREW,LINER
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9706- ● ● ● ● ● ●
188 16.165 CASE; DOOR
DARK BEIGE 		8-97852-436-3 01 1 9312-9711 ● ● ● ● ● ●
188 16.165 CASE; DOOR
DARK GRAY 		8-97852-668-3 01 1 9712- ● ● ● ● ● ●
188 16.165 CASE; DOOR
DARK BEIGE 		8-97852-435-3 01 1 9312-9711 ● ● ● ● ● ●
188 16.165 CASE; DOOR
DARK GRAY 		8-97852-667-3 01 1 9712- ● ● ● ● ● ●
199 16.165 CLIP; SEAL
YELLOW 		1-09987-254-1 23 1 9609- ● ● ● ● ● ●
199 16.165 CLIP; SEAL
NATURAL 		1-09987-253-1 23 1 9609- ● ● ● ● ● ●
