◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#47760) — 39 parça

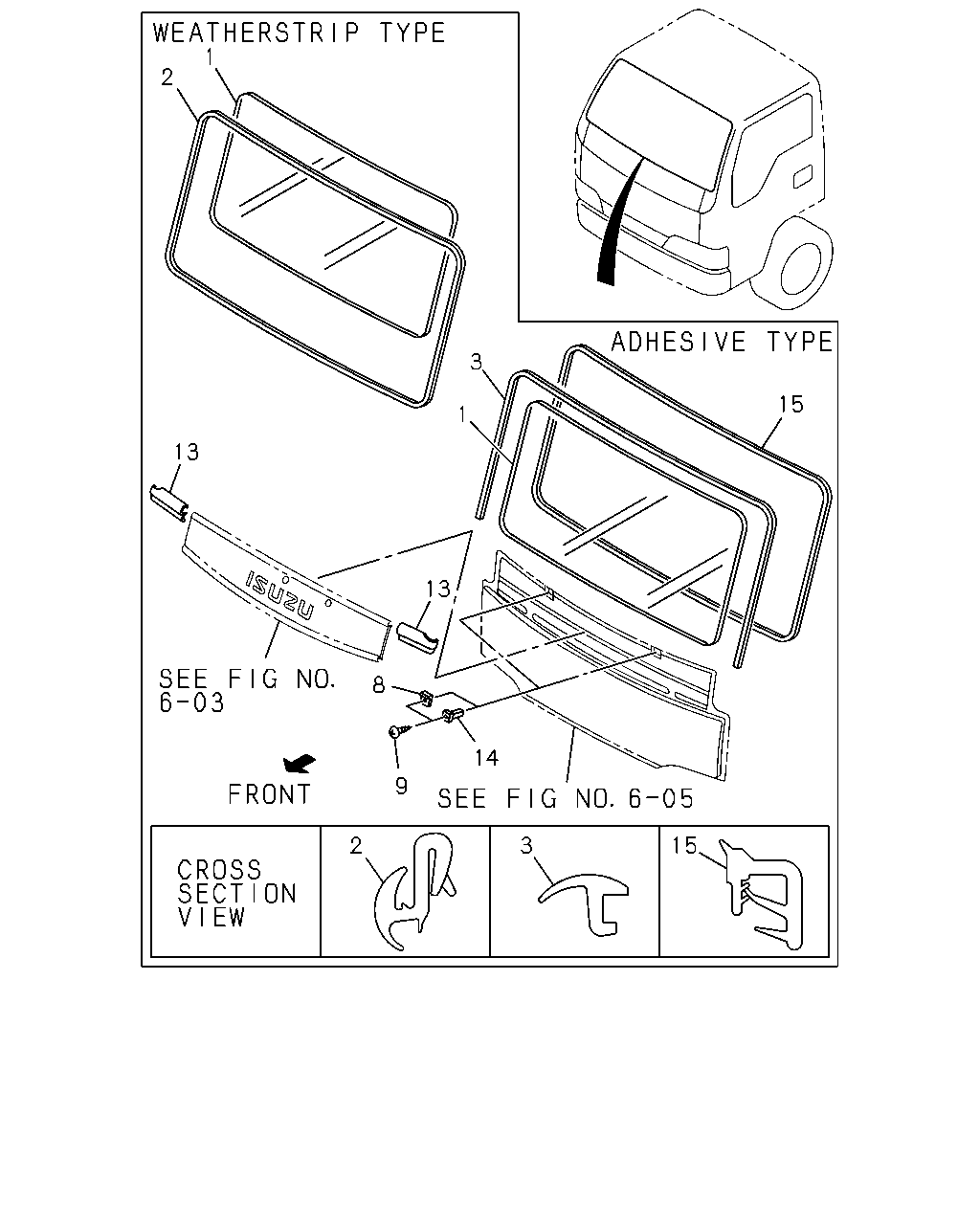

çizim 17192
1 2 3 15 1 13 13 8 14 9 2 3 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.005 GLASS; WINDSHIELD
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97046-082-2 01 1 9312-9407 ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) 		8-97046-082-2 01 1 9408-9501 ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) 		8-97123-461-0 01 1 9502-9504 ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD 8-97123-461-0 01 1 9505-9511 ● ●
1 16.005 GLASS; WINDSHIELD
THAILAND EQUIPMENT(PM9) 		8-97114-298-0 01 1 9408- ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S),UNITED KINGDOM EQUIPMENT(6AA) 		8-97114-295-0 01 1 9505-9511 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S),UNITED KINGDOM EQUIPMENT(6AA) 		8-97114-295-0 01 1 9512-9802 ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S),UNITED KINGDOM EQUIPMENT(6AA) 		8-97869-123-0 01 1 9803- ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
AUSTRALIA EQUIPMENT(RR3) 		8-97092-368-1 01 1 9312-9501 ● ● ●
1 16.005 GLASS; WINDSHIELD
AUSTRALIA EQUIPMENT(RR3) 		8-97123-462-0 01 1 9502-9504 ● ● ●
1 16.005 GLASS; WINDSHIELD
AUSTRALIA EQUIPMENT(RR3) 		8-97114-294-0 01 1 9505-9506 ● ● ●
1 16.005 GLASS; WINDSHIELD
AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) 		8-97114-294-0 01 1 9507-9802 ● ● ●
1 16.005 GLASS; WINDSHIELD
AUSTRALIA EQUIPMENT(RR3),UNITED KINGDOM EQUIPMENT(6AA) 		8-97869-124-0 01 1 9803- ● ● ●
1 16.005 GLASS; WINDSHIELD
INDONESIA EQUIPMENT(S4S) 		8-97117-890-0 01 1 9408- ●
2 16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97856-351-3 01 1 9312- ● ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD 8-97853-387-3 01 1 9312-9312 ● ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD 8-97857-907-0 01 1 9401-9401 ● ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97857-907-1 01 1 9402-9802 ● ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97890-214-1 01 1 9803- ● ● ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. DEALER INSTALLED OPTION<6JJ>, WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-0 02 1 9312-9401 ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-0 02 1 9402-9404 ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-0 02 1 9405-9406 ● ● ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-0 02 1 9407- ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97859-215-0 02 1 9407- ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. DEALER INSTALLED OPTION<6JJ>, WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97857-143-0 02 1 9312-9401 ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97857-143-0 02 1 9402-9404 ● ●
9 16.041 SCREW; STOPPER
16.067 M5X14 		8-94279-325-0 02 1 9312-9401 ● ● ● ● ● ●
9 16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14 		8-94279-325-0 02 1 9402- ● ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR 8-97853-787-4 01 1 9312-9401 ● ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-787-4 01 1 9402- ● ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR 8-97853-786-3 01 1 9312-9401 ● ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-786-3 01 1 9402- ● ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9312-9401 ● ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9402-9406 ● ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9407- ● ●
14 16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK 		8-94279-714-0 04 1 9712- ● ● ● ● ● ●
15 16.041 FINISHER; WINDSHIELD 8-97853-804-4 01 1 9312-9401 ● ● ● ● ● ●
15 16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK BEIGE 		8-97853-804-4 01 1 9402-9711 ● ● ● ● ● ●
15 16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY 		8-97859-856-4 01 1 9712- ● ● ● ● ● ●
