0-83 — ANEROID COMPENSATOR; INJECTION GOVERNOR (#4776) — 55 parça

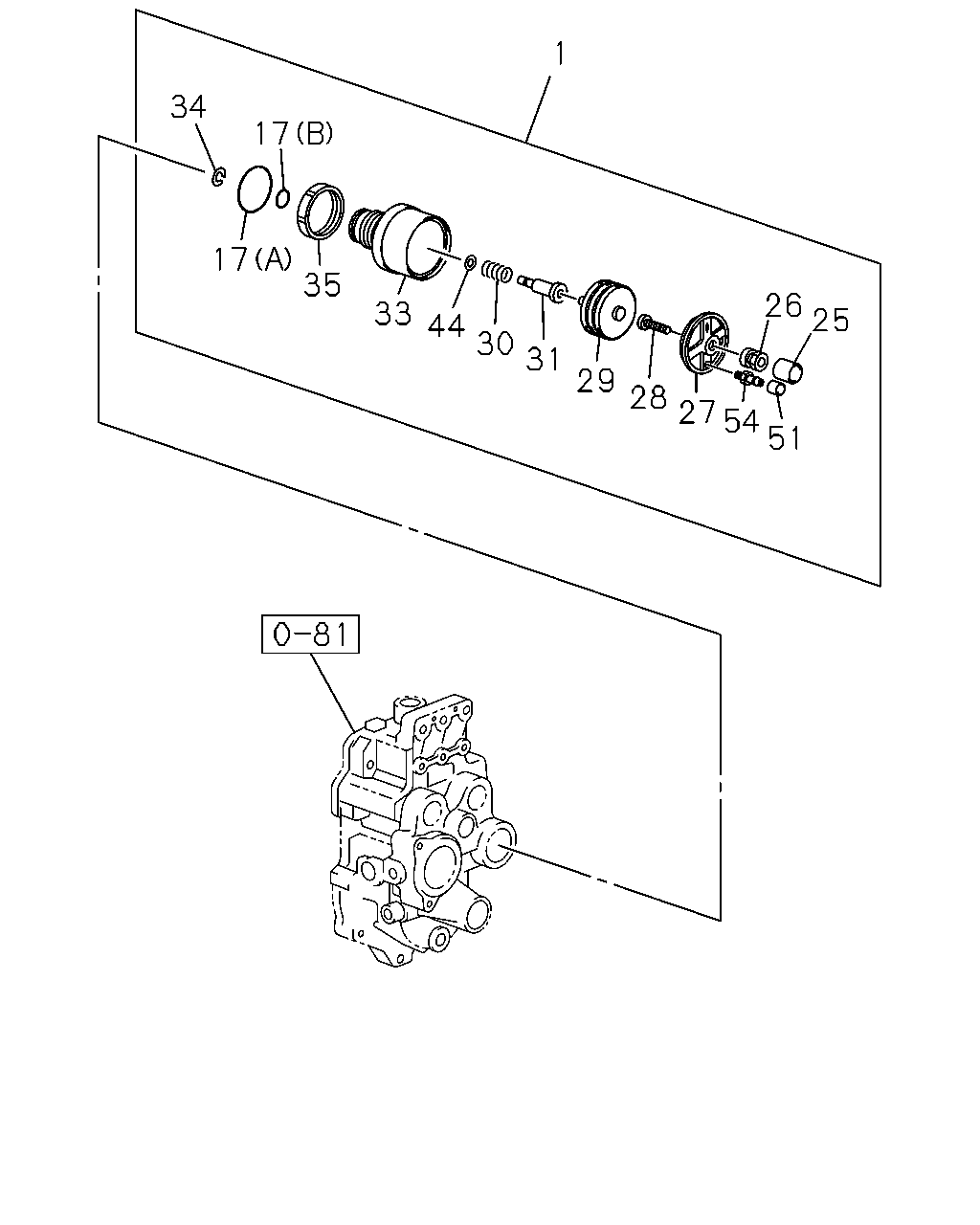

1 34 17 17 35 26 25 33 44 30 31 29 28 27 54 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPENSATOR ASM; ANEROID,INJ PUMP ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	1-15728-024-0	01	1	-
1	COMPENSATOR ASM; ANEROID,INJ PUMP ASM PART: B = 1-15603-122-2	1-15728-114-0	01	1	-
17	GASKET; HSG,ANEROID COMPENSATOR (A) ASM PART: B = 1-15603-122-2	8-97037-290-0	01	1	-
17	GASKET; HSG,ANEROID COMPENSATOR (B) ASM PART: B = 1-15603-122-2	8-97037-291-0	01	1	-
25	NUT; CAP,SET BOLT,ANEROID COMPENSATOR CAP NUT ASM PART: A = 1-15603-061-2, B = 1-15603-122-2, C = 1-15603-203-1	1-15729-093-0	01	1	-
26	NUT; SET BOLT,ANEROID COMPENSATOR ASM PART: A = 1-15603-061-2, B = 1-15603-122-2, C = 1-15603-203-1	9-81325-081-0	01	1	-
27	COVER; HSG,ANEROID COMPENSATOR ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	1-15721-103-0	01	1	-
27	COVER; HSG,ANEROID COMPENSATOR ASM PART: B = 1-15603-122-2	1-15721-337-0	01	1	-
28	BOLT; BELLOWS SET,ANEROID COMPENSATOR ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	1-15729-342-0	01	1	-
28	BOLT; BELLOWS SET,ANEROID COMPENSATOR ASM PART: B = 1-15603-122-2	1-15779-487-0	01	1	-
29	BELLOWS; ANEROID COMPENSATOR ASM PART: A = 1-15603-061-2, B = 1-15603-122-2, C = 1-15603-203-1	1-15729-622-0	01	1	-
30	SPRING; PUSH ROD,ANEROID COMPENSATOR ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	1-15723-130-0	01	1	-
30	SPRING; PUSH ROD,ANEROID COMPENSATOR ASM PART: B = 1-15603-122-2	1-15723-411-0	01	1	-
31	ROD; PUSH,BELLOWS,ANEROID COMPENSATOR ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	1-15729-578-0	01	1	-
31	ROD; PUSH,BELLOWS,ANEROID COMPENSATOR ASM PART: B = 1-15603-122-2	1-15779-798-0	01	1	-
33	HOUSING; ANEROID COMPENSATOR ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	1-15721-089-0	01	1	-
33	HOUSING; ANEROID COMPENSATOR ASM PART: B = 1-15603-122-2	1-15721-338-0	01	1	-
34	RING; SNAP,PUSH ROD,ANEROID COMPENSATO ASM PART: B = 1-15603-122-2	1-15779-196-0	01	1	-
34	RING; SNAP,PUSH ROD,ANEROID COMPENSATO ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	5-15729-271-0	01	1	-
35	NUT; HSG LOCK,ANEROID COMPENSATOR ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	1-15729-359-0	01	1	-
35	NUT; HSG LOCK,ANEROID COMPENSATOR ASM PART: B = 1-15603-122-2	8-97037-294-0	01	1	-
44	SHIM; SPRING,ANEROID COMPENSATOR ASM PART: B = 1-15603-122-2	8-97037-292-0	01	1	-
51	CAP; HOSE JOINT,ANEROID COMPENSATOR ASM PART: B = 1-15603-122-2	8-94424-221-0	01	1	-
54	JOINT; HOSE,ANEROID COMPENSATOR ASM PART: B = 1-15603-122-2	1-15729-360-0	01	1	-

2 25 22 26 27 28 1 29 30 31 1 32 33 74 21 34 36 37 35 73 72 39 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPENSATOR ASM; ANEROID,INJ PUMP ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	1-15728-024-0	01	1	-
1	COMPENSATOR ASM; ANEROID,INJ PUMP ASM PART: B = 1-15603-122-2	1-15728-114-0	01	1	-
2	CAP; HOSE JOINT,ANEROID COMPENSATOR ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	8-94424-221-0	01	1	-
21	PIN; LEVER,ANEROID COMPENSATOR ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	1-15729-581-0	01	1	-
22	JOINT; HOSE,ANEROID COMPENSATOR ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	1-15729-360-0	01	1	-
25	NUT; CAP,SET BOLT,ANEROID COMPENSATOR CAP NUT ASM PART: A = 1-15603-061-2, B = 1-15603-122-2, C = 1-15603-203-1	1-15729-093-0	01	1	-
26	NUT; SET BOLT,ANEROID COMPENSATOR ASM PART: A = 1-15603-061-2, B = 1-15603-122-2, C = 1-15603-203-1	9-81325-081-0	01	1	-
27	COVER; HSG,ANEROID COMPENSATOR ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	1-15721-103-0	01	1	-
27	COVER; HSG,ANEROID COMPENSATOR ASM PART: B = 1-15603-122-2	1-15721-337-0	01	1	-
28	BOLT; BELLOWS SET,ANEROID COMPENSATOR ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	1-15729-342-0	01	1	-
28	BOLT; BELLOWS SET,ANEROID COMPENSATOR ASM PART: B = 1-15603-122-2	1-15779-487-0	01	1	-
29	BELLOWS; ANEROID COMPENSATOR ASM PART: A = 1-15603-061-2, B = 1-15603-122-2, C = 1-15603-203-1	1-15729-622-0	01	1	-
30	SPRING; PUSH ROD,ANEROID COMPENSATOR ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	1-15723-130-0	01	1	-
30	SPRING; PUSH ROD,ANEROID COMPENSATOR ASM PART: B = 1-15603-122-2	1-15723-411-0	01	1	-
31	ROD; PUSH,BELLOWS,ANEROID COMPENSATOR ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	1-15729-578-0	01	1	-
31	ROD; PUSH,BELLOWS,ANEROID COMPENSATOR ASM PART: B = 1-15603-122-2	1-15779-798-0	01	1	-
32	SHIM; BELLOWS,ANEROID COMPENSATOR ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	9-81393-301-0	01	1	-
33	HOUSING; ANEROID COMPENSATOR ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	1-15721-089-0	01	1	-
33	HOUSING; ANEROID COMPENSATOR ASM PART: B = 1-15603-122-2	1-15721-338-0	01	1	-
34	RING; SNAP,PUSH ROD,ANEROID COMPENSATO ASM PART: B = 1-15603-122-2	1-15779-196-0	01	1	-
34	RING; SNAP,PUSH ROD,ANEROID COMPENSATO ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	5-15729-271-0	01	1	-
35	NUT; HSG LOCK,ANEROID COMPENSATOR ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	1-15729-359-0	01	1	-
35	NUT; HSG LOCK,ANEROID COMPENSATOR ASM PART: B = 1-15603-122-2	8-97037-294-0	01	1	-
36	COVER; DUST,HSG,ANEROID COMPENSATOR ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	5-15721-045-0	01	1	-
37	BOLT; BRKT FIX,ANEROID COMPENSATOR M8X16 W/LK WASHER ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	9-01900-816-0	01	1	-
39	BRACKET; HSG,ANEROID COMPENSATOR ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	1-15725-457-0	01	1	-
40	LEVER; ANEROID COMPENSATOR STAMP 43 ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	1-15725-458-0	01	1	-
40	LEVER; ANEROID COMPENSATOR STAMP 44 ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	1-15725-459-0	01	1	-
72	CLEVIS; PUSH ROD,ANEROID COMPENSATOR ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	1-15729-579-0	01	1	-
73	NUT; CLEVIS LOCK,ANEROID COMPENSATOR ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	1-15729-395-0	01	1	-
74	RING; SNAP,LEVER PIN,ANEROID COMPENSAT ID=4 ASM PART: A = 1-15603-061-2, C = 1-15603-203-1	9-09185-404-0	01	1	-
