◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#47757) — 67 parça

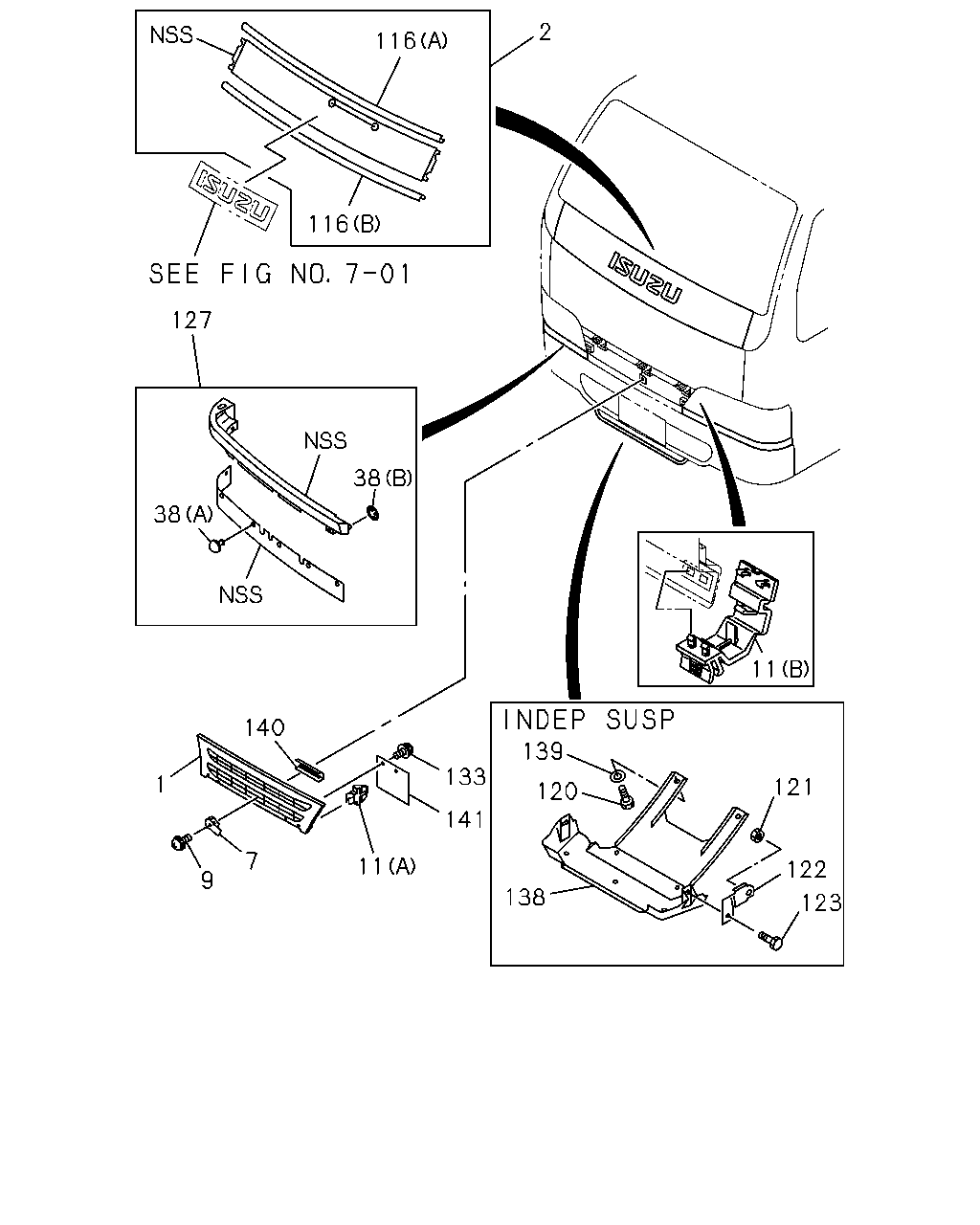

çizim 68139
2 116 116 127 38 38 11 140 139 133 1 121 120 141 7 11 122 9 138 123
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.266 GRILLE; RAD
PLEASE PAINT TO MATCH BODY COLOR 		8-97076-580-2 01 1 9312-9608 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ADRIATIC BLUE(730) EXC. THAILAND EQUIPMENT(PM9) PLEASE PAINT TO MATCH BODY COLOR 		8-97076-580-2 01 1 9609-9711 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ADRIATIC BLUE(730) EXC. THAILAND EQUIPMENT(PM9) PLEASE PAINT TO MATCH BODY COLOR 		8-97867-242-0 01 1 9712- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. THAILAND EQUIPMENT(PM9) PLEASE PAINT TO MATCH BODY COLOR 		8-97076-580-2 01 1 9609-9711 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. THAILAND EQUIPMENT(PM9) PLEASE PAINT TO MATCH BODY COLOR 		8-97867-242-0 01 1 9712- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. THAILAND EQUIPMENT(PM9) WHITE PLEASE PAINT TO MATCH BODY COLOR 		8-97076-580-3 01 1 9609-9711 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. THAILAND EQUIPMENT(PM9) WHITE PLEASE PAINT TO MATCH BODY COLOR 		8-97867-242-0 01 1 9712- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. THAILAND EQUIPMENT(PM9) BLUE PLEASE PAINT TO MATCH BODY COLOR 		8-97076-580-3 01 1 9609-9711 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. THAILAND EQUIPMENT(PM9) BLUE PLEASE PAINT TO MATCH BODY COLOR 		8-97867-242-0 01 1 9712- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ADRIATIC BLUE(730) THAILAND EQUIPMENT(PM9) PLEASE PAINT TO MATCH BODY COLOR 		8-97076-580-2 01 1 9609-9711 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ADRIATIC BLUE(730) THAILAND EQUIPMENT(PM9) PLEASE PAINT TO MATCH BODY COLOR 		8-97867-242-0 01 1 9712- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) THAILAND EQUIPMENT(PM9) PLEASE PAINT TO MATCH BODY COLOR 		8-97076-580-2 01 1 9609-9711 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) THAILAND EQUIPMENT(PM9) PLEASE PAINT TO MATCH BODY COLOR 		8-97867-242-0 01 1 9712- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CARDINAL RED(736) THAILAND EQUIPMENT(PM9) PLEASE PAINT TO MATCH BODY COLOR 		8-97076-580-2 01 1 9609-9711 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CARDINAL RED(736) THAILAND EQUIPMENT(PM9) PLEASE PAINT TO MATCH BODY COLOR 		8-97867-242-0 01 1 9712- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) THAILAND EQUIPMENT(PM9) PLEASE PAINT TO MATCH BODY COLOR 		8-97076-580-2 01 1 9609-9711 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) THAILAND EQUIPMENT(PM9) PLEASE PAINT TO MATCH BODY COLOR 		8-97867-242-0 01 1 9712- ● ● ●
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> W/DECAL 		8-97856-818-6 01 1 9312-9711 ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-327-1 01 1 9712- ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> W/DECAL 		8-97853-301-8 01 1 9312-9711 ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97859-463-1 01 1 9712- ● ● ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
08.155 		8-97805-829-0 01 1 9312- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.155 M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 9312- ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 9312- ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) 		8-97075-929-2 02 1 9511-9711 ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) YELLOW 		8-97119-164-0 02 1 9712- ● ● ● ● ● ●
38 01.269 CLIP; GRILLE
(A) D=6.5 		8-97855-279-0 09 1 9511- ● ● ● ● ● ●
38 01.269 CLIP; GRILLE
(B) 		1-09987-180-0 01 1 9511- ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-097-4 01 1 9312- ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97853-095-2 01 1 9312- ● ● ● ● ● ●
120 01.266 BOLT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 03.704 M6X20 W/LK WASHER 		0-50040-620-0 01 1 9312-9510 ● ●
120 01.266 BOLT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 03.704 M6X20 W/LK WASHER 		0-50040-620-0 01 1 9511-9702 ●
120 01.266 BOLT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9703- ●
120 01.266 BOLT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9312-9510 ● ●
120 01.266 BOLT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9511-9702 ●
120 01.266 BOLT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 9703- ●
121 01.266 NUT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 01.062 M6 FLANGE 		0-91150-206-0 01 1 9312-9510 ● ●
121 01.266 NUT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 01.062 M6 FLANGE 		0-91150-206-0 01 1 9511- ●
122 01.266 BRACKET; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-738-4 01 1 9312-9510 ● ●
122 01.266 BRACKET; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-738-4 01 1 9511- ●
123 01.266 BOLT; BRKT AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9312-9510 ● ●
123 01.266 BOLT; BRKT AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9511- ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97150-952-5 01 1 9312- ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97150-942-3 01 1 9312-9510 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97867-325-3 01 1 9511- ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) WHITE 		8-97150-960-5 01 1 9312- ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) WHITE 		8-97150-950-3 01 1 9312-9510 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) WHITE 		8-97867-331-3 01 1 9511- ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) RED 		8-97150-959-5 01 1 9312- ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) RED 		8-97150-949-3 01 1 9312-9510 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) RED 		8-97867-383-3 01 1 9511- ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97150-961-5 01 1 9312- ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97150-951-3 01 1 9312-9510 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97867-332-3 01 1 9511- ● ● ● ● ● ●
133 01.269 SCREW; COVER
01.303 M5X12 W/PL WASHER 		8-94385-565-0 02 1 9312-9711 ● ● ● ● ● ●
133 01.269 SCREW; COVER
01.303 M5X12 W/PL WASHER 		8-94385-565-0 04 1 9712- ● ● ● ● ● ●
138 01.266 GUIDE; AIR
FRT INDEPENDENT SUSPENSION(6PP) 		8-97037-229-0 01 1 9312-9510 ● ●
138 01.266 GUIDE; AIR
FRT INDEPENDENT SUSPENSION(6PP) 		8-97037-229-0 01 1 9511- ●
139 01.269 WASHER; PL,AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 9312-9510 ● ●
139 01.269 WASHER; PL,AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 9511- ●
139 01.269 WASHER; PL,AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 02.334 ID=6.4 OD=22 		9-09164-806-0 02 1 9312-9510 ● ●
139 01.269 WASHER; PL,AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 02.334 ID=6.4 OD=22 		9-09164-806-0 02 1 9511- ●
140 01.266 SEAL; RAD GRILLE 8-97061-039-3 01 1 9312-9608 ● ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE 8-97061-039-3 02 1 9609-9711 ● ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE 8-97061-039-3 01 1 9712- ● ● ● ● ● ●
141 01.266 COVER; RAD GRILLE 8-97070-821-1 01 1 9312-9711 ● ● ● ● ● ●
141 01.266 COVER; RAD GRILLE 8-97119-166-0 01 1 9712- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
