◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#47756) — 193 parça

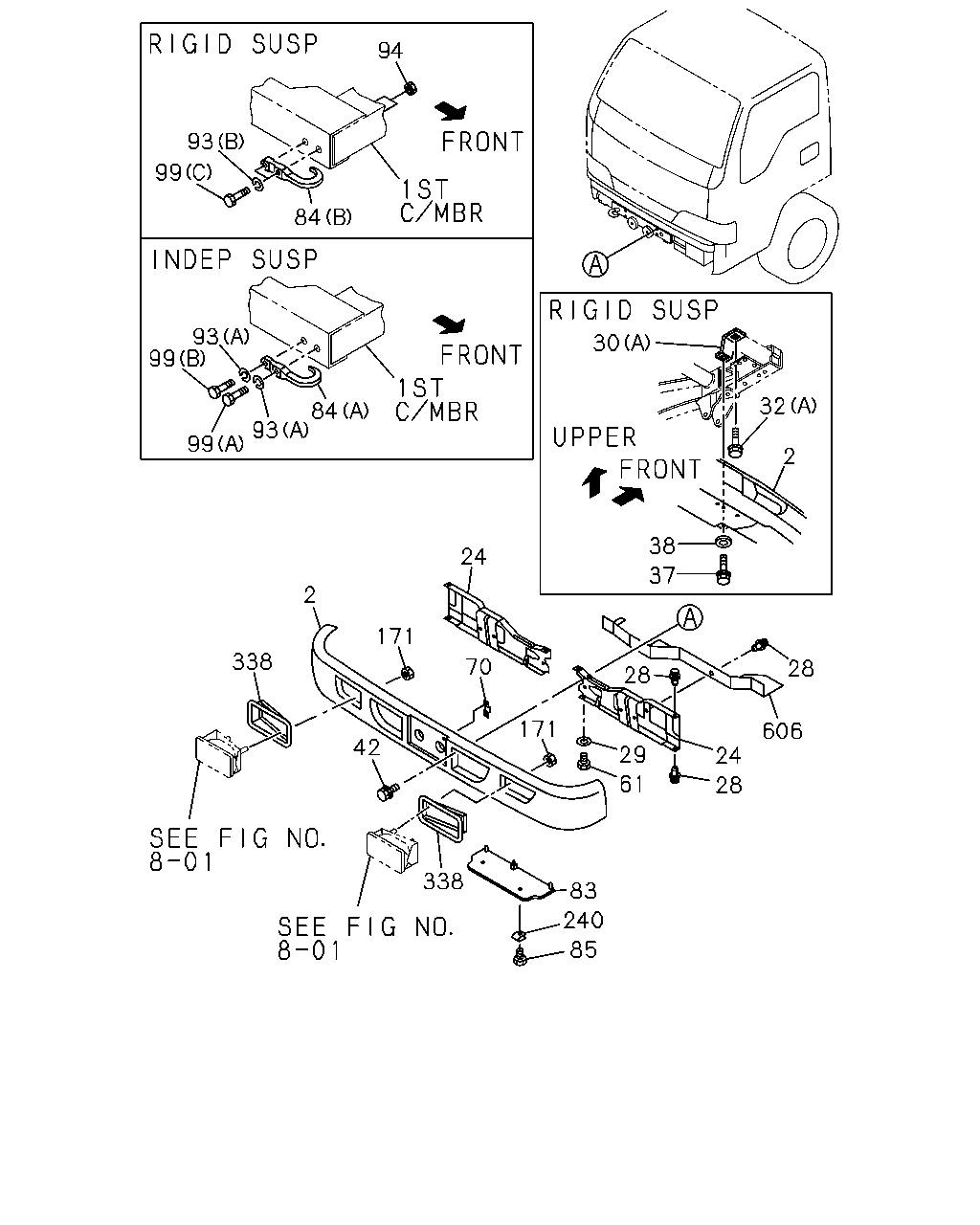

çizim 66118
94 93 99 84 93 99 30 32 84 93 99 2 38 24 37 2 171 338 70 28 28 171 606 42 29 24 61 28 338 83 240 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-850-2 01 1 9312-9704 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>, INDONESIA EQUIPMENT(S4S) BLUE 		8-97097-850-2 01 1 9705-9711 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> EXC. INDONESIA EQUIPMENT(S4S),FOG LAMP<T96>,UNITED KINGDOM EQUIPMENT(6AA), FRT INDEPENDENT SUSPENSION(6PP) PLEASE PAINT TO MATCH BODY COLOR 		8-97196-167-0 01 1 9712- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9312-9704 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) EXC. FRT BUMPER DARK GRAY<EQ9>, INDONESIA EQUIPMENT(S4S),FOG LAMP<T96> PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9705-9711 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97097-853-2 01 1 9312-9704 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>, INDONESIA EQUIPMENT(S4S) WHITE 		8-97097-853-2 01 1 9705-9711 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) COLOR KEYED BUMPER<S4H> EXC. INDONESIA EQUIPMENT(S4S),FOG LAMP<T96>,UNITED KINGDOM EQUIPMENT(6AA), FRT INDEPENDENT SUSPENSION(6PP) 		8-97196-168-0 01 1 9712- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> WHITE 		8-97097-841-4 01 1 9312-9704 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>, INDONESIA EQUIPMENT(S4S),FOG LAMP<T96> WHITE 		8-97097-841-4 01 1 9705-9711 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) COLOR KEYED BUMPER<S4H> EXC. INDONESIA EQUIPMENT(S4S),FOG LAMP<T96>,UNITED KINGDOM EQUIPMENT(6AA), FRT INDEPENDENT SUSPENSION(6PP) WHITE 		8-97196-160-0 01 1 9712- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> 		8-97097-852-2 01 1 9312-9511 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> 		8-97097-852-2 01 1 9312-9511 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> DARK GRAY 		8-97097-840-3 01 1 9312-9406 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY 		8-97097-840-3 01 1 9312-9406 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> DARK GRAY 		8-97097-840-4 01 1 9407-9510 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY 		8-97097-840-4 01 1 9407-9510 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) EXC. FRT BUMPER DARK GRAY<EQ9>, THAILAND EQUIPMENT(PM9),FOG LAMP<T96> DARK GRAY 		8-97097-840-4 01 1 9511-9511 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> EXC. THAILAND EQUIPMENT(PM9),FOG LAMP<T96> DARK GRAY 		8-97097-840-4 01 1 9511-9511 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-851-2 01 1 9312-9704 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>, INDONESIA EQUIPMENT(S4S) BLUE 		8-97097-851-2 01 1 9705-9711 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9312-9704 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>, INDONESIA EQUIPMENT(S4S),FOG LAMP<T96> PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9705-9711 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) THAILAND EQUIPMENT(PM9) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRT INDEPENDENT SUSPENSION(6PP) DARK GRAY 		8-97866-823-2 01 1 9511-9511 ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> THAILAND EQUIPMENT(PM9) FOG LAMP<T96> EXC. FRT INDEPENDENT SUSPENSION(6PP) DARK GRAY 		8-97866-823-2 01 1 9511-9511 ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97866-823-2 01 1 9511-9704 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97866-823-2 01 1 9511-9704 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>, INDONESIA EQUIPMENT(S4S) DARK GRAY 		8-97866-823-2 01 1 9705-9711 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) DARK GRAY 		8-97866-823-2 01 1 9705-9711 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) DARK GRAY 		8-97196-159-0 01 1 9712- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) THAILAND EQUIPMENT(PM9) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRT INDEPENDENT SUSPENSION(6PP) DARK GRAY 		8-97866-824-4 01 1 9511-9511 ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> THAILAND EQUIPMENT(PM9) EXC. FOG LAMP<T96>,FRT INDEPENDENT SUSPENSION(6PP) DARK GRAY 		8-97866-824-4 01 1 9511-9511 ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> DARK GRAY 		8-97866-824-4 01 1 9511-9704 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY 		8-97866-824-4 01 1 9511-9704 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) EXC. FRT BUMPER DARK GRAY<EQ9>, INDONESIA EQUIPMENT(S4S),FOG LAMP<T96> DARK GRAY 		8-97866-824-4 01 1 9705-9711 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> EXC. INDONESIA EQUIPMENT(S4S),FOG LAMP<T96> DARK GRAY 		8-97866-824-4 01 1 9705-9711 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR MARINE BLUE(890) EXC. COLOR KEYED BUMPER<S4H>, INDONESIA EQUIPMENT(S4S),FOG LAMP<T96> DARK GRAY 		8-97196-169-0 01 1 9712- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) EXC. INDONESIA EQUIPMENT(S4S),FOG LAMP<T96> DARK GRAY 		8-97196-169-0 01 1 9712- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
INDONESIA EQUIPMENT(S4S) EXC. FOG LAMP<T96> 		8-97867-482-0 01 1 9705- ●
24 07.869 BAR; FRT BUMPER
UNITED KINGDOM EQUIPMENT(6AA) FOG LAMP<T96> 		8-97194-717-1 01 1 9712- ●
24 07.869 BAR; FRT BUMPER
UNITED KINGDOM EQUIPMENT(6AA) EXC. FOG LAMP<T96> 		8-97192-520-1 01 1 9712- ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97070-818-2 01 1 9312-9704 ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) 		8-97070-818-2 01 1 9705-9711 ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S),UNITED KINGDOM EQUIPMENT(6AA) 		8-97070-818-3 01 1 9712- ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97070-817-2 01 1 9312-9704 ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) 		8-97070-817-2 01 1 9705- ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. FOG LAMP<T96> 		8-97035-752-4 01 1 9312-9704 ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. INDONESIA EQUIPMENT(S4S),FOG LAMP<T96> 		8-97035-752-4 01 1 9705-9711 ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. INDONESIA EQUIPMENT(S4S),FOG LAMP<T96>,UNITED KINGDOM EQUIPMENT(6AA) 		8-97035-752-5 01 1 9712- ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. FOG LAMP<T96> 		8-97035-751-4 01 1 9312-9704 ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. INDONESIA EQUIPMENT(S4S),FOG LAMP<T96> 		8-97035-751-4 01 1 9705- ● ● ● ● ● ●
28 07.833 FASTENER; BACK BAR
FOG LAMP<T96> 12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 12 1 9312-9704 ● ● ● ● ● ●
28 07.833 FASTENER; BACK BAR
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) 12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 12 1 9705- ● ● ● ● ● ●
28 07.833 FASTENER; BACK BAR
EXC. FOG LAMP<T96> 12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 08 1 9312-9704 ● ● ● ● ● ●
28 07.833 FASTENER; BACK BAR
EXC. INDONESIA EQUIPMENT(S4S),FOG LAMP<T96> 12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 08 1 9705- ● ● ● ● ● ●
29 07.833 WASHER; FRT BUMPER
ID=8.5 		8-94167-476-0 06 1 9312-9704 ● ● ● ● ● ●
29 07.833 WASHER; FRT BUMPER
EXC. INDONESIA EQUIPMENT(S4S) ID=8.5 		8-94167-476-0 06 1 9705- ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.263 (A) 		8-97093-639-3 02 1 9312- ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
INDONESIA EQUIPMENT(S4S) EXC. FOG LAMP<T96> (B) 		8-97867-474-0 01 1 9705- ●
30 07.869 BRACKET; FRT BUMPER
INDONESIA EQUIPMENT(S4S) EXC. FOG LAMP<T96> (B) 		8-97867-473-0 01 1 9705- ●
32 07.874 BOLT; BRKT,BUMPER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.510 (A) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9312-9409 ● ● ● ● ● ●
32 07.874 BOLT; BRKT,BUMPER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9410- ● ● ● ● ● ●
32 07.874 BOLT; BRKT,BUMPER
INDONESIA EQUIPMENT(S4S) EXC. FOG LAMP<T96> (B) M8X20 BLACK-HEAD 		8-94251-707-0 06 1 9705- ●
37 01.263 BOLT; BRKT TO BUMPER LWR
EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9312-9411 ● ● ● ● ● ●
37 01.263 BOLT; BRKT TO BUMPER LWR
EXC. FRT INDEPENDENT SUSPENSION(6PP) 16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 9412- ● ● ● ● ● ●
38 01.263 WASHER; PL,BUMPER LWR
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.334 ID=8.4 OD=26 		9-09164-808-0 02 1 9312-9411 ● ● ● ● ● ●
42 07.874 BOLT; BUMPER
M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 9312- ● ● ● ● ● ●
61 07.832 BOLT; BACK BAR
04.785 M8X18 W/LK WASHER 		0-50040-818-0 06 1 9312-9704 ● ● ● ● ● ●
61 07.832 BOLT; BACK BAR
EXC. INDONESIA EQUIPMENT(S4S) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 06 1 9705- ● ● ● ● ● ●
70 07.800 BRACKET; LICENSE PLATE,FRT
EXC. FOG LAMP<T96> 		8-94151-164-1 02 1 9312-9510 ● ● ● ● ● ●
70 07.800 BRACKET; LICENSE PLATE,FRT 8-94151-164-1 02 1 9511-9704 ● ● ● ● ● ●
70 07.800 BRACKET; LICENSE PLATE,FRT
EXC. INDONESIA EQUIPMENT(S4S) 		8-94151-164-1 02 1 9705- ● ● ● ● ● ●
83 07.833 GUIDE; AIR,FRT BUMPER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97076-832-1 01 1 9312-9704 ● ● ● ● ● ●
83 07.833 GUIDE; AIR,FRT BUMPER
EXC. INDONESIA EQUIPMENT(S4S),FRT INDEPENDENT SUSPENSION(6PP) 		8-97076-832-2 01 1 9705- ● ● ● ● ● ●
84 07.068 HOOK
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94249-270-2 01 1 9312- ● ● ● ● ● ●
84 07.068 HOOK
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94336-438-1 01 1 9312-9510 ● ●
84 07.068 HOOK
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94336-438-1 01 1 9511-9711 ●
84 07.068 HOOK
UNITED KINGDOM EQUIPMENT(6AA) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97189-110-0 01 1 9712- ●
85 07.874 BOLT; AIR GUIDE,FRT BUMPER
EXC. FRT INDEPENDENT SUSPENSION(6PP) M6X22 W/PL WASHER 		8-97012-072-0 03 1 9312-9704 ● ● ● ● ● ●
85 07.874 BOLT; AIR GUIDE,FRT BUMPER
EXC. INDONESIA EQUIPMENT(S4S),FRT INDEPENDENT SUSPENSION(6PP) M6X22 W/PL WASHER 		8-97012-072-0 03 1 9705- ● ● ● ● ● ●
93 07.068 WASHER; LK,HOOK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.422 (B) ID=14.2 		9-09150-814-0 02 1 9312- ● ● ● ● ● ●
93 07.068 WASHER; LK,HOOK
FRT INDEPENDENT SUSPENSION(6PP) 00.002 (A) ID=12.2 		9-09150-812-0 02 1 9312-9510 ● ●
93 07.068 WASHER; LK,HOOK
FRT INDEPENDENT SUSPENSION(6PP) 00.002 (A) ID=12.2 		9-09150-812-0 02 1 9511- ●
94 07.068 NUT; HOOK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.529 M14 		9-99110-514-0 02 1 9312- ● ● ● ● ● ●
99 07.039 BOLT; HOOK
EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) M14X50 		0-10806-450-0 02 1 9312- ● ● ● ● ● ●
99 07.039 BOLT; HOOK
FRT INDEPENDENT SUSPENSION(6PP) 04.103 (A) M12X45 		0-10806-245-0 01 1 9312-9510 ● ●
99 07.039 BOLT; HOOK
FRT INDEPENDENT SUSPENSION(6PP) 04.103 (A) M12X45 		0-10806-245-0 01 1 9511- ●
99 07.039 BOLT; HOOK
FRT INDEPENDENT SUSPENSION(6PP) 02.042 (B) M12X35 		0-20801-235-0 01 1 9312-9510 ● ●
99 07.039 BOLT; HOOK
FRT INDEPENDENT SUSPENSION(6PP) 02.042 (B) M12X35 		0-20801-235-0 01 1 9511- ●
171 07.869 NUT; BACK BAR
FOG LAMP<T96> 04.012 M8 FLANGE 		1-09464-018-1 04 1 9312-9704 ● ● ● ● ● ●
171 07.869 NUT; BACK BAR
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) 04.012 M8 FLANGE 		1-09464-018-1 04 1 9705- ● ● ● ● ● ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
EXC. FRT INDEPENDENT SUSPENSION(6PP) M6 		8-94412-740-1 03 1 9312-9704 ● ● ● ● ● ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
EXC. INDONESIA EQUIPMENT(S4S),FRT INDEPENDENT SUSPENSION(6PP) M6 		8-94412-740-1 03 1 9705- ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ADRIATIC BLUE(730) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-862-0 01 1 9312-9704 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ADRIATIC BLUE(730) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>, INDONESIA EQUIPMENT(S4S) BLUE 		8-97097-862-0 01 1 9705-9711 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ADRIATIC BLUE(730) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-858-0 01 1 9312-9704 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ADRIATIC BLUE(730) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>, INDONESIA EQUIPMENT(S4S) BLUE 		8-97097-858-0 01 1 9705-9711 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97097-865-0 01 1 9312-9704 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>, INDONESIA EQUIPMENT(S4S) WHITE 		8-97097-865-0 01 1 9705-9711 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97097-861-0 01 1 9312-9704 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>, INDONESIA EQUIPMENT(S4S) WHITE 		8-97097-861-0 01 1 9705-9711 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR CARDINAL RED(736) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> 		8-97097-864-0 01 1 9312-9511 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> 		8-97097-864-0 01 1 9312-9511 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR CARDINAL RED(736) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> 		8-97097-860-0 01 1 9312-9511 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> 		8-97097-860-0 01 1 9312-9511 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-863-0 01 1 9312-9704 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>, INDONESIA EQUIPMENT(S4S) BLUE 		8-97097-863-0 01 1 9705-9711 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-859-0 01 1 9312-9704 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>, INDONESIA EQUIPMENT(S4S) BLUE 		8-97097-859-0 01 1 9705-9711 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR CARDINAL RED(736) THAILAND EQUIPMENT(PM9) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRT INDEPENDENT SUSPENSION(6PP) DARK GRAY 		8-97866-836-0 01 1 9511-9511 ● ● ●
338 07.832 BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9> THAILAND EQUIPMENT(PM9) FOG LAMP<T96> EXC. FRT INDEPENDENT SUSPENSION(6PP) DARK GRAY 		8-97866-836-0 01 1 9511-9511 ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR CARDINAL RED(736) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97866-836-0 01 1 9511-9704 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97866-836-0 01 1 9511-9704 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR CARDINAL RED(736) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>, INDONESIA EQUIPMENT(S4S) DARK GRAY 		8-97866-836-0 01 1 9705-9711 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) DARK GRAY 		8-97866-836-0 01 1 9705-9711 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) DARK GRAY 		8-97866-836-0 01 1 9712- ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR CARDINAL RED(736) THAILAND EQUIPMENT(PM9) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRT INDEPENDENT SUSPENSION(6PP) DARK GRAY 		8-97866-835-0 01 1 9511-9511 ● ● ●
338 07.832 BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9> THAILAND EQUIPMENT(PM9) FOG LAMP<T96> EXC. FRT INDEPENDENT SUSPENSION(6PP) DARK GRAY 		8-97866-835-0 01 1 9511-9511 ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR CARDINAL RED(736) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97866-835-0 01 1 9511-9704 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97866-835-0 01 1 9511-9704 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR CARDINAL RED(736) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>, INDONESIA EQUIPMENT(S4S) DARK GRAY 		8-97866-835-0 01 1 9705-9711 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) DARK GRAY 		8-97866-835-0 01 1 9705-9711 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) DARK GRAY 		8-97866-835-0 01 1 9712- ● ● ● ● ● ●
606 07.832 SEAL; BACK BAR
FOG LAMP<T96> 		8-97076-577-1 02 1 9312-9510 ● ● ● ● ● ●
606 07.832 SEAL; BACK BAR
EXC. FOG LAMP<T96> 		8-97076-577-1 01 1 9312-9609 ● ● ● ● ● ●
606 07.832 SEAL; BACK BAR
EXC. FOG LAMP<T96> 		8-97867-844-0 01 1 9610-9704 ● ● ● ● ● ●
606 07.832 SEAL; BACK BAR
EXC. INDONESIA EQUIPMENT(S4S),FOG LAMP<T96> 		8-97867-844-0 01 1 9705- ● ● ● ● ● ●
606 07.832 SEAL; BACK BAR
FOG LAMP<T96> 		8-97076-577-1 02 1 9511-9609 ● ● ● ● ● ●
606 07.832 SEAL; BACK BAR
FOG LAMP<T96> 		8-97867-844-0 02 1 9610-9704 ● ● ● ● ● ●
606 07.832 SEAL; BACK BAR
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) 		8-97867-844-0 02 1 9705- ● ● ● ● ● ●

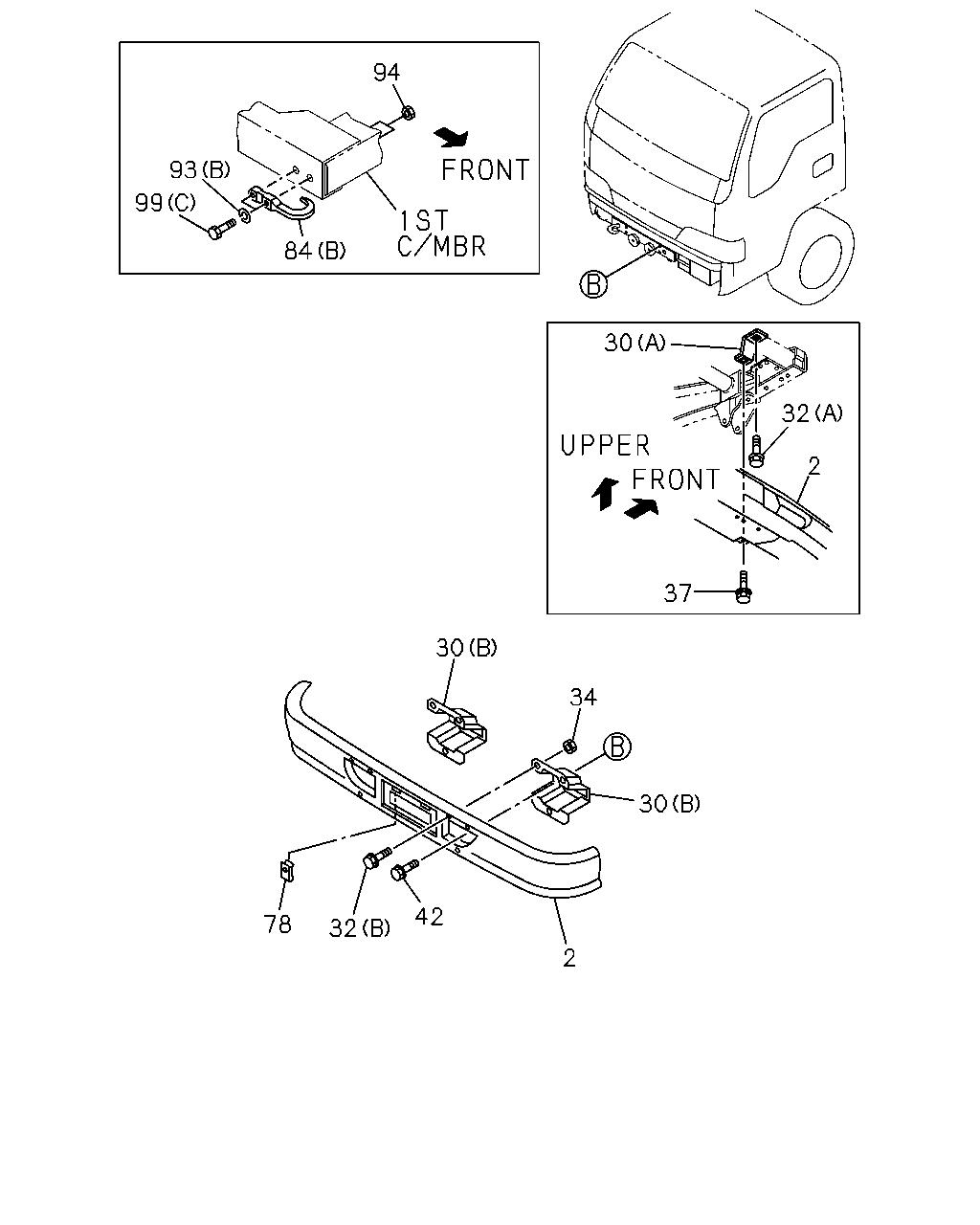

çizim 67157
94 93 99 84 30 32 2 37 30 34 30 42 78 32 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-850-2 01 1 9312-9704 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>, INDONESIA EQUIPMENT(S4S) BLUE 		8-97097-850-2 01 1 9705-9711 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> EXC. INDONESIA EQUIPMENT(S4S),FOG LAMP<T96>,UNITED KINGDOM EQUIPMENT(6AA), FRT INDEPENDENT SUSPENSION(6PP) PLEASE PAINT TO MATCH BODY COLOR 		8-97196-167-0 01 1 9712- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9312-9704 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) EXC. FRT BUMPER DARK GRAY<EQ9>, INDONESIA EQUIPMENT(S4S),FOG LAMP<T96> PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9705-9711 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97097-853-2 01 1 9312-9704 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>, INDONESIA EQUIPMENT(S4S) WHITE 		8-97097-853-2 01 1 9705-9711 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) COLOR KEYED BUMPER<S4H> EXC. INDONESIA EQUIPMENT(S4S),FOG LAMP<T96>,UNITED KINGDOM EQUIPMENT(6AA), FRT INDEPENDENT SUSPENSION(6PP) 		8-97196-168-0 01 1 9712- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> WHITE 		8-97097-841-4 01 1 9312-9704 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>, INDONESIA EQUIPMENT(S4S),FOG LAMP<T96> WHITE 		8-97097-841-4 01 1 9705-9711 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) COLOR KEYED BUMPER<S4H> EXC. INDONESIA EQUIPMENT(S4S),FOG LAMP<T96>,UNITED KINGDOM EQUIPMENT(6AA), FRT INDEPENDENT SUSPENSION(6PP) WHITE 		8-97196-160-0 01 1 9712- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> 		8-97097-852-2 01 1 9312-9511 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> 		8-97097-852-2 01 1 9312-9511 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> DARK GRAY 		8-97097-840-3 01 1 9312-9406 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY 		8-97097-840-3 01 1 9312-9406 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> DARK GRAY 		8-97097-840-4 01 1 9407-9510 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY 		8-97097-840-4 01 1 9407-9510 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) EXC. FRT BUMPER DARK GRAY<EQ9>, THAILAND EQUIPMENT(PM9),FOG LAMP<T96> DARK GRAY 		8-97097-840-4 01 1 9511-9511 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> EXC. THAILAND EQUIPMENT(PM9),FOG LAMP<T96> DARK GRAY 		8-97097-840-4 01 1 9511-9511 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-851-2 01 1 9312-9704 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>, INDONESIA EQUIPMENT(S4S) BLUE 		8-97097-851-2 01 1 9705-9711 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9312-9704 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>, INDONESIA EQUIPMENT(S4S),FOG LAMP<T96> PLEASE PAINT TO MATCH BODY COLOR 		8-97076-575-0 01 1 9705-9711 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) THAILAND EQUIPMENT(PM9) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRT INDEPENDENT SUSPENSION(6PP) DARK GRAY 		8-97866-823-2 01 1 9511-9511 ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> THAILAND EQUIPMENT(PM9) FOG LAMP<T96> EXC. FRT INDEPENDENT SUSPENSION(6PP) DARK GRAY 		8-97866-823-2 01 1 9511-9511 ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97866-823-2 01 1 9511-9704 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> DARK GRAY 		8-97866-823-2 01 1 9511-9704 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>, INDONESIA EQUIPMENT(S4S) DARK GRAY 		8-97866-823-2 01 1 9705-9711 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) DARK GRAY 		8-97866-823-2 01 1 9705-9711 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> EXC. INDONESIA EQUIPMENT(S4S) DARK GRAY 		8-97196-159-0 01 1 9712- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) THAILAND EQUIPMENT(PM9) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRT INDEPENDENT SUSPENSION(6PP) DARK GRAY 		8-97866-824-4 01 1 9511-9511 ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> THAILAND EQUIPMENT(PM9) EXC. FOG LAMP<T96>,FRT INDEPENDENT SUSPENSION(6PP) DARK GRAY 		8-97866-824-4 01 1 9511-9511 ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96> DARK GRAY 		8-97866-824-4 01 1 9511-9704 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY 		8-97866-824-4 01 1 9511-9704 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) EXC. FRT BUMPER DARK GRAY<EQ9>, INDONESIA EQUIPMENT(S4S),FOG LAMP<T96> DARK GRAY 		8-97866-824-4 01 1 9705-9711 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> EXC. INDONESIA EQUIPMENT(S4S),FOG LAMP<T96> DARK GRAY 		8-97866-824-4 01 1 9705-9711 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR MARINE BLUE(890) EXC. COLOR KEYED BUMPER<S4H>, INDONESIA EQUIPMENT(S4S),FOG LAMP<T96> DARK GRAY 		8-97196-169-0 01 1 9712- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) EXC. INDONESIA EQUIPMENT(S4S),FOG LAMP<T96> DARK GRAY 		8-97196-169-0 01 1 9712- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
INDONESIA EQUIPMENT(S4S) EXC. FOG LAMP<T96> 		8-97867-482-0 01 1 9705- ●
30 07.869 BRACKET; FRT BUMPER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.263 (A) 		8-97093-639-3 02 1 9312- ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
INDONESIA EQUIPMENT(S4S) EXC. FOG LAMP<T96> (B) 		8-97867-474-0 01 1 9705- ●
30 07.869 BRACKET; FRT BUMPER
INDONESIA EQUIPMENT(S4S) EXC. FOG LAMP<T96> (B) 		8-97867-473-0 01 1 9705- ●
32 07.874 BOLT; BRKT,BUMPER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.510 (A) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9312-9409 ● ● ● ● ● ●
32 07.874 BOLT; BRKT,BUMPER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9410- ● ● ● ● ● ●
32 07.874 BOLT; BRKT,BUMPER
INDONESIA EQUIPMENT(S4S) EXC. FOG LAMP<T96> (B) M8X20 BLACK-HEAD 		8-94251-707-0 06 1 9705- ●
34 07.874 NUT; BRKT,BUMPER
INDONESIA EQUIPMENT(S4S) EXC. FOG LAMP<T96> 03.023 M8 FLANGE 		8-94328-243-0 06 1 9705- ●
37 01.263 BOLT; BRKT TO BUMPER LWR
EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9312-9411 ● ● ● ● ● ●
37 01.263 BOLT; BRKT TO BUMPER LWR
EXC. FRT INDEPENDENT SUSPENSION(6PP) 16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 9412- ● ● ● ● ● ●
42 07.874 BOLT; BUMPER
M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 9312- ● ● ● ● ● ●
78 07.874 NUT; SPIRE
INDONESIA EQUIPMENT(S4S) EXC. FOG LAMP<T96> 16.742 M6 SPIRE NUT 		8-94291-960-0 02 1 9705- ●
84 07.068 HOOK
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94249-270-2 01 1 9312- ● ● ● ● ● ●
84 07.068 HOOK
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94336-438-1 01 1 9312-9510 ● ●
84 07.068 HOOK
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94336-438-1 01 1 9511-9711 ●
84 07.068 HOOK
UNITED KINGDOM EQUIPMENT(6AA) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97189-110-0 01 1 9712- ●
93 07.068 WASHER; LK,HOOK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.422 (B) ID=14.2 		9-09150-814-0 02 1 9312- ● ● ● ● ● ●
93 07.068 WASHER; LK,HOOK
FRT INDEPENDENT SUSPENSION(6PP) 00.002 (A) ID=12.2 		9-09150-812-0 02 1 9312-9510 ● ●
93 07.068 WASHER; LK,HOOK
FRT INDEPENDENT SUSPENSION(6PP) 00.002 (A) ID=12.2 		9-09150-812-0 02 1 9511- ●
94 07.068 NUT; HOOK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.529 M14 		9-99110-514-0 02 1 9312- ● ● ● ● ● ●
99 07.039 BOLT; HOOK
EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) M14X50 		0-10806-450-0 02 1 9312- ● ● ● ● ● ●
99 07.039 BOLT; HOOK
FRT INDEPENDENT SUSPENSION(6PP) 04.103 (A) M12X45 		0-10806-245-0 01 1 9312-9510 ● ●
99 07.039 BOLT; HOOK
FRT INDEPENDENT SUSPENSION(6PP) 04.103 (A) M12X45 		0-10806-245-0 01 1 9511- ●
99 07.039 BOLT; HOOK
FRT INDEPENDENT SUSPENSION(6PP) 02.042 (B) M12X35 		0-20801-235-0 01 1 9312-9510 ● ●
99 07.039 BOLT; HOOK
FRT INDEPENDENT SUSPENSION(6PP) 02.042 (B) M12X35 		0-20801-235-0 01 1 9511- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
