◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#47751) — 756 parça

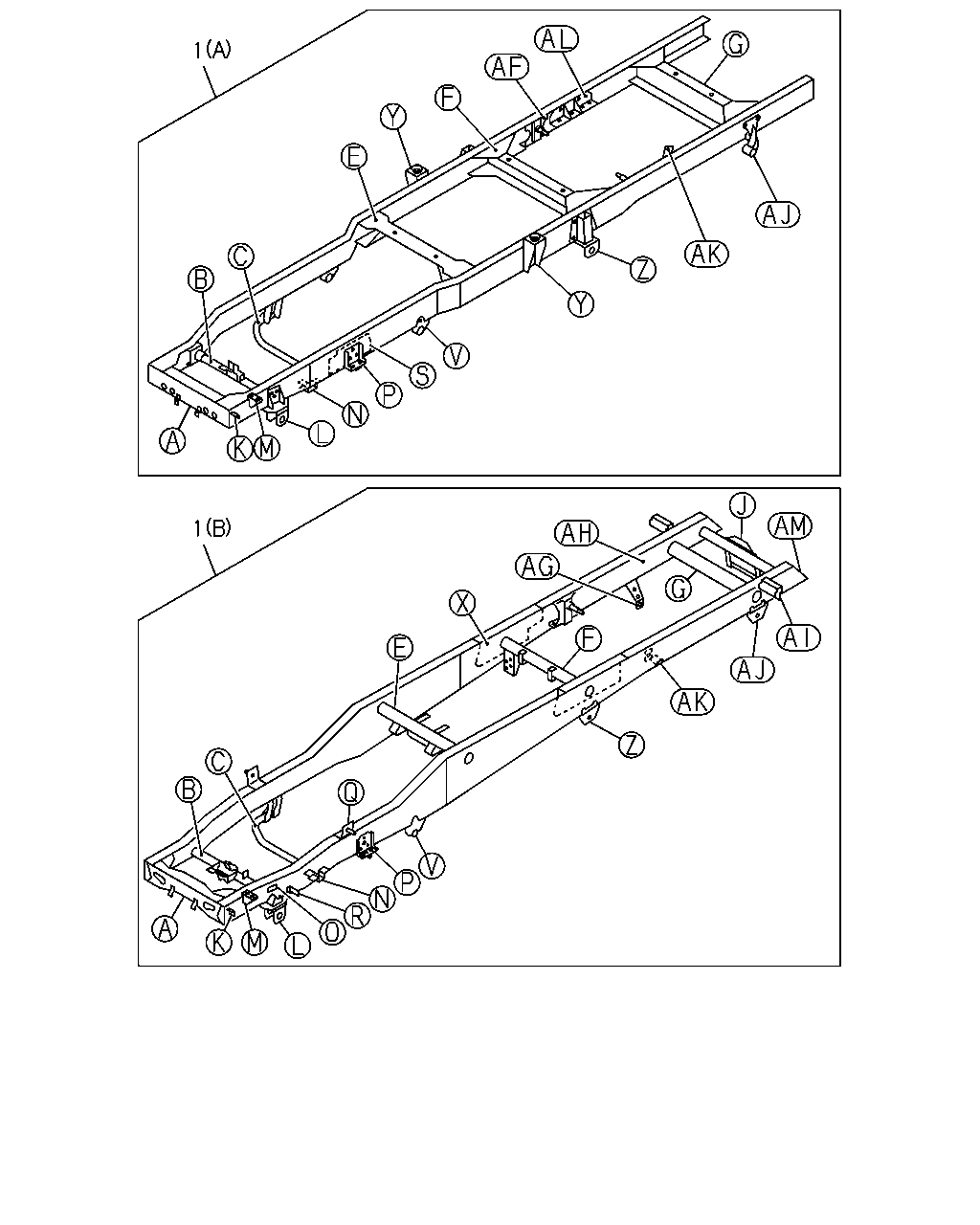

çizim 16893
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97075-139-3 01 1 9312-9711 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97091-362-1 01 1 9312-9804 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97202-984-0 01 1 9805- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (A) 		8-97089-874-0 01 1 9312-9510 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97089-874-0 01 1 9511-9804 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97202-983-0 01 1 9805- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> (A) 		8-97089-871-0 01 1 9312-9711 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97075-136-4 01 1 9507-9603 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EXC. EURO2 SPECIFICATION<7AF> (F) 		8-97075-136-4 01 1 9604-9711 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> (F) 		8-97146-723-0 01 1 9604-9804 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> (F) 		8-97203-706-1 01 1 9805- ●
1 07.003 FRAME ASM
RR BODY NON FLAT BED(RS5) (A) 		8-97091-373-0 01 1 9312- ●
1 07.003 FRAME ASM
EXC. RR BODY NON FLAT BED(RS5) (A) 		8-97091-372-0 01 1 9312- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B) 		8-97106-723-5 01 1 9312-9803 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B) 		8-97202-152-0 01 1 9804- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) EXC. REFRIGERATOR CHASSIS(V4R) (C) 		8-97091-365-1 01 1 9312-9510 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) EXC. REFRIGERATOR CHASSIS(V4R) (C) 		8-97091-365-1 01 1 9511-9606 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) EXC. REFRIGERATOR CHASSIS(V4R) (C) 		8-97091-365-3 01 1 9607-9711 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97091-365-3 01 1 9712-9804 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97202-985-0 01 1 9805- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> REFRIGERATOR CHASSIS(V4R) REAR WIDE TREAD(V4T) (C) 		8-97091-366-2 01 1 9312-9711 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97174-397-0 01 1 9712- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) EXC. MANUAL TILT CAB<RWZ>, REFRIGERATOR CHASSIS(V4R) (C) 		8-97091-364-3 01 1 9312-9711 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) EXC. REFRIGERATOR CHASSIS(V4R) (C) 		8-97148-068-1 01 1 9607-9711 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97148-068-1 01 1 9712-9801 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97148-068-1 01 1 9802-9804 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (C) 		8-97148-068-1 01 1 9802-9804 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97202-989-0 01 1 9805- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97202-386-0 01 1 9802-9805 ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97103-628-1 01 1 9312-9804 ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (C) 		8-97202-988-0 01 1 9805- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. MANUAL TILT CAB<RWZ> (C) 		8-97091-363-1 01 1 9312-9711 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) REAR WIDE TREAD(V4T) EURO2 SPECIFICATION<7AF> EXC. MANUAL TILT CAB<RWZ> (C) 		8-97161-408-0 01 1 9607- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> (D) 		8-97091-369-1 01 1 9312-9804 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) EXC. MANUAL TILT CAB<RWZ> (D) 		8-97091-370-1 01 1 9312-9804 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) (D) 		8-97091-370-1 01 1 9805- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> (D) 		8-97091-371-1 01 1 9312-9804 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> (D) 		8-97113-763-1 01 1 9312-9804 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) (D) 		8-97113-763-1 01 1 9805- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (D) 		8-97091-368-0 01 1 9312-9804 ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> (D) 		8-97091-367-0 01 1 9312-9606 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> (D) 		8-97091-367-0 01 1 9607-9804 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97091-367-0 01 1 9805- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) (D) 		8-97091-375-1 01 1 9312- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) (D) 		8-97091-374-0 01 1 9312-9606 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97091-374-0 01 1 9607-9711 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) (D) 		8-97091-374-0 01 1 9712- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (G) 		8-97034-344-2 01 1 9312-9510 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRONT STABILIZER SHAFT<F59> MANUAL TILT CAB<RWZ> (E) 		8-97131-990-0 01 1 9511-9711 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97103-627-0 01 1 9312-9510 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> (E) 		8-97103-627-1 01 1 9511-9711 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> (E) 		8-97174-398-0 01 1 9712- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (E) 		8-97069-955-1 01 1 9312-9510 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRONT STABILIZER SHAFT<F59> (E) 		8-97069-955-1 01 1 9511-9711 ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRONT STABILIZER SHAFT<F59> (E) 		8-97069-955-1 01 1 9712-9804 ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRONT STABILIZER SHAFT<F59> (E) 		8-97202-982-0 01 1 9805- ●

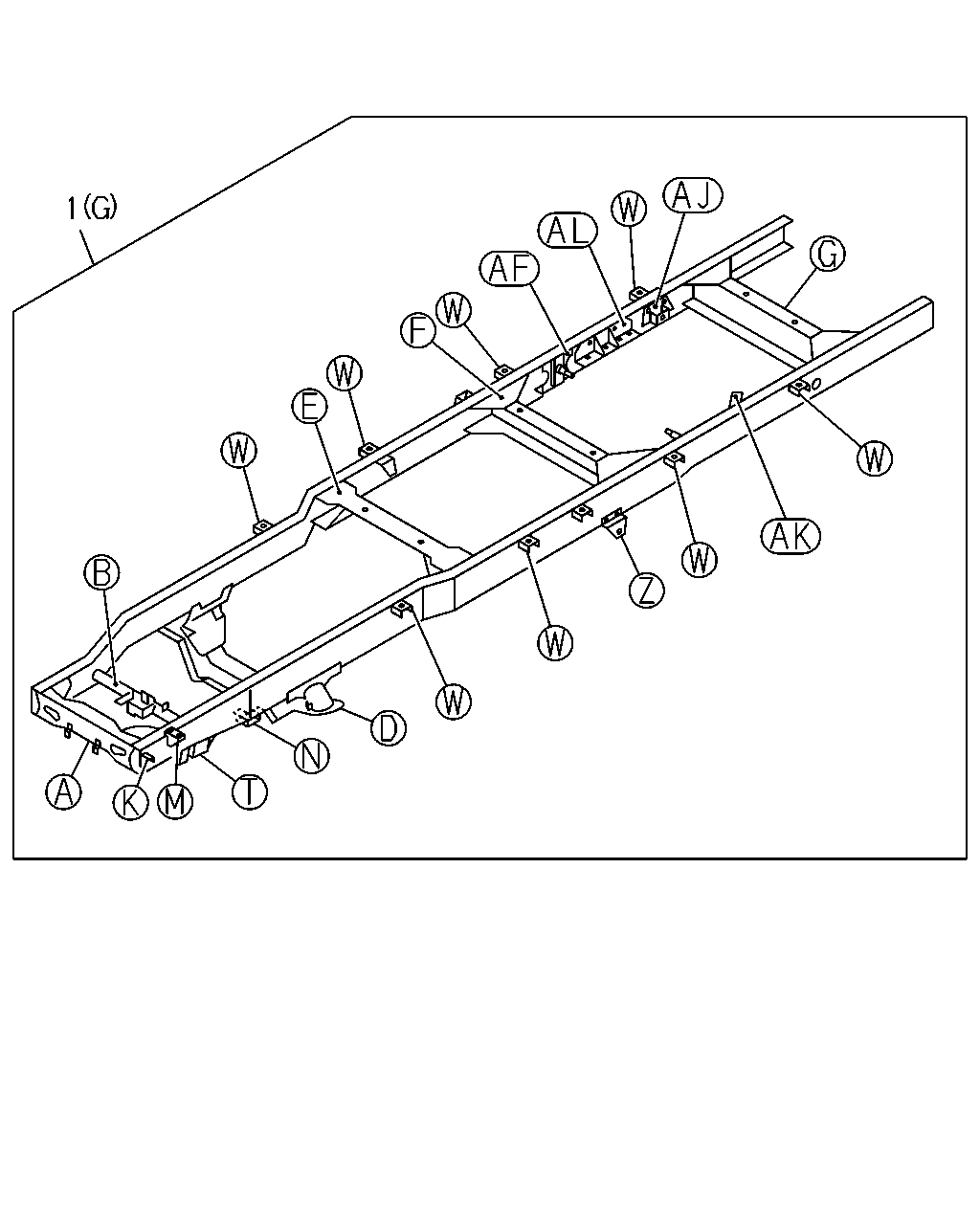

çizim 18036
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97075-139-3 01 1 9312-9711 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97091-362-1 01 1 9312-9804 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97202-984-0 01 1 9805- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (A) 		8-97089-874-0 01 1 9312-9510 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97089-874-0 01 1 9511-9804 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97202-983-0 01 1 9805- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> (A) 		8-97089-871-0 01 1 9312-9711 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97075-136-4 01 1 9507-9603 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EXC. EURO2 SPECIFICATION<7AF> (F) 		8-97075-136-4 01 1 9604-9711 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> (F) 		8-97146-723-0 01 1 9604-9804 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> (F) 		8-97203-706-1 01 1 9805- ●
1 07.003 FRAME ASM
RR BODY NON FLAT BED(RS5) (A) 		8-97091-373-0 01 1 9312- ●
1 07.003 FRAME ASM
EXC. RR BODY NON FLAT BED(RS5) (A) 		8-97091-372-0 01 1 9312- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B) 		8-97106-723-5 01 1 9312-9803 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B) 		8-97202-152-0 01 1 9804- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) EXC. REFRIGERATOR CHASSIS(V4R) (C) 		8-97091-365-1 01 1 9312-9510 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) EXC. REFRIGERATOR CHASSIS(V4R) (C) 		8-97091-365-1 01 1 9511-9606 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) EXC. REFRIGERATOR CHASSIS(V4R) (C) 		8-97091-365-3 01 1 9607-9711 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97091-365-3 01 1 9712-9804 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97202-985-0 01 1 9805- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> REFRIGERATOR CHASSIS(V4R) REAR WIDE TREAD(V4T) (C) 		8-97091-366-2 01 1 9312-9711 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97174-397-0 01 1 9712- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) EXC. MANUAL TILT CAB<RWZ>, REFRIGERATOR CHASSIS(V4R) (C) 		8-97091-364-3 01 1 9312-9711 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) EXC. REFRIGERATOR CHASSIS(V4R) (C) 		8-97148-068-1 01 1 9607-9711 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97148-068-1 01 1 9712-9801 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97148-068-1 01 1 9802-9804 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (C) 		8-97148-068-1 01 1 9802-9804 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97202-989-0 01 1 9805- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97202-386-0 01 1 9802-9805 ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97103-628-1 01 1 9312-9804 ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (C) 		8-97202-988-0 01 1 9805- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. MANUAL TILT CAB<RWZ> (C) 		8-97091-363-1 01 1 9312-9711 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) REAR WIDE TREAD(V4T) EURO2 SPECIFICATION<7AF> EXC. MANUAL TILT CAB<RWZ> (C) 		8-97161-408-0 01 1 9607- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> (D) 		8-97091-369-1 01 1 9312-9804 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) EXC. MANUAL TILT CAB<RWZ> (D) 		8-97091-370-1 01 1 9312-9804 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) (D) 		8-97091-370-1 01 1 9805- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> (D) 		8-97091-371-1 01 1 9312-9804 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> (D) 		8-97113-763-1 01 1 9312-9804 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) (D) 		8-97113-763-1 01 1 9805- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (D) 		8-97091-368-0 01 1 9312-9804 ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> (D) 		8-97091-367-0 01 1 9312-9606 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> (D) 		8-97091-367-0 01 1 9607-9804 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97091-367-0 01 1 9805- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) (D) 		8-97091-375-1 01 1 9312- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) (D) 		8-97091-374-0 01 1 9312-9606 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97091-374-0 01 1 9607-9711 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) (D) 		8-97091-374-0 01 1 9712- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (G) 		8-97034-344-2 01 1 9312-9510 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRONT STABILIZER SHAFT<F59> MANUAL TILT CAB<RWZ> (E) 		8-97131-990-0 01 1 9511-9711 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97103-627-0 01 1 9312-9510 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> (E) 		8-97103-627-1 01 1 9511-9711 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> (E) 		8-97174-398-0 01 1 9712- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (E) 		8-97069-955-1 01 1 9312-9510 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRONT STABILIZER SHAFT<F59> (E) 		8-97069-955-1 01 1 9511-9711 ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRONT STABILIZER SHAFT<F59> (E) 		8-97069-955-1 01 1 9712-9804 ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRONT STABILIZER SHAFT<F59> (E) 		8-97202-982-0 01 1 9805- ●
çizim 66238
105 105 215 215 105 105 226 142 142 226 142 142 217 234 368
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
105 07.112 BRACKET; RR SPR,RR
(B) 		8-94126-621-1 01 1 9312- ● ●
105 07.112 BRACKET; RR SPR,RR
(B) 		8-94126-620-1 01 1 9312- ● ●
105 07.112 BRACKET; RR SPR,RR
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (D) 		8-97034-224-1 02 1 9312- ●
105 07.112 BRACKET; RR SPR,RR
EXC. DUMP CHASSIS(V4D) (A) 		8-94459-512-1 01 1 9312- ● ● ●
105 07.112 BRACKET; RR SPR,RR
EXC. DUMP CHASSIS(V4D) (A) 		8-94459-511-1 01 1 9312- ● ● ●
105 07.112 BRACKET; RR SPR,RR
(C) 		8-94109-312-0 02 1 9312- ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JB1 ENG(RLF) (A) 		8-97047-775-1 01 1 9312-9506 ● ● ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JB1 ENG(RLF) (A) 		8-97047-775-1 01 1 9507-9510 ● ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97047-775-1 01 1 9507-9510 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (A) 		8-97047-775-1 01 1 9507-9510 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97047-775-1 01 1 9511-9711 ● ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> (A) 		8-97047-775-1 01 1 9511-9711 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97047-775-1 01 1 9712- ● ● ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4BE1 ENG(RLH) (B) 		8-97034-337-0 01 1 9312-9711 ● ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4BE1 ENG(RLH),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97034-337-0 01 1 9712- ● ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (C) 		8-97033-242-0 01 1 9312-9803 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (C) 		8-97200-748-0 01 1 9804- ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (D) 		8-97048-272-0 02 1 9312-9607 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
EXC. DUMP CHASSIS(V4D) (E) 		8-97035-308-0 01 1 9312- ● ● ●
215 07.524 BUSHING; BRKT,RR SPRING
EXC. DUMP CHASSIS(V4D) OD=40 L=43.7 		8-94118-588-1 04 1 9312-9607 ● ● ●
215 07.524 BUSHING; BRKT,RR SPRING
EXC. DUMP CHASSIS(V4D) OD=40 L=43.7 		8-94118-588-1 04 1 9607-9712 ● ● ●
215 07.524 BUSHING; BRKT,RR SPRING
EXC. DUMP CHASSIS(V4D) 		8-97184-699-1 04 1 9801- ● ● ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
EXC. DUMP CHASSIS(V4D) 		8-94258-963-0 02 1 9703-9711 ● ● ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
4HF1 ENG(RLS) 		8-94258-963-0 02 1 9703-9711 ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D) 		8-94258-963-0 02 1 9712-9804 ● ● ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
4HF1 ENG(RLS) 		8-94258-963-0 02 1 9712-9804 ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
EXC. DUMP CHASSIS(V4D) 		8-94258-963-0 02 1 9805- ● ● ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
4HF1 ENG(RLS) 		8-94258-963-0 02 1 9805- ●
226 07.112 STIFFENER; HELPER RUBBER
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94169-791-1 01 1 9312-9506 ●
226 07.112 STIFFENER; HELPER RUBBER
4JG2 ENG(RJC),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94169-791-1 01 1 9507-9711 ●
226 07.112 STIFFENER; HELPER RUBBER
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> (A) 		8-94169-791-2 01 1 9712- ●
226 07.112 STIFFENER; HELPER RUBBER
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94111-942-1 01 1 9312-9506 ●
226 07.112 STIFFENER; HELPER RUBBER
4JG2 ENG(RJC),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94111-942-1 01 1 9507-9711 ●
226 07.112 STIFFENER; HELPER RUBBER
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> (A) 		8-94111-942-2 01 1 9712- ●
226 07.112 STIFFENER; HELPER RUBBER
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97040-625-1 01 1 9312-9510 ●
226 07.112 STIFFENER; HELPER RUBBER
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97040-624-1 01 1 9312-9510 ●
234 07.006 COVER; END,S/MBR
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 		8-97033-249-0 02 1 9312- ●
368 07.039 SEAT; TORSION BAR
4JG2 ENG(RJC),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-363-3 01 1 9511-9711 ●
368 07.039 SEAT; TORSION BAR
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 		8-97047-363-3 01 1 9712- ●
368 07.039 SEAT; TORSION BAR
4JG2 ENG(RJC),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-362-1 01 1 9511-9711 ●
368 07.039 SEAT; TORSION BAR
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 		8-97047-362-1 01 1 9712- ●

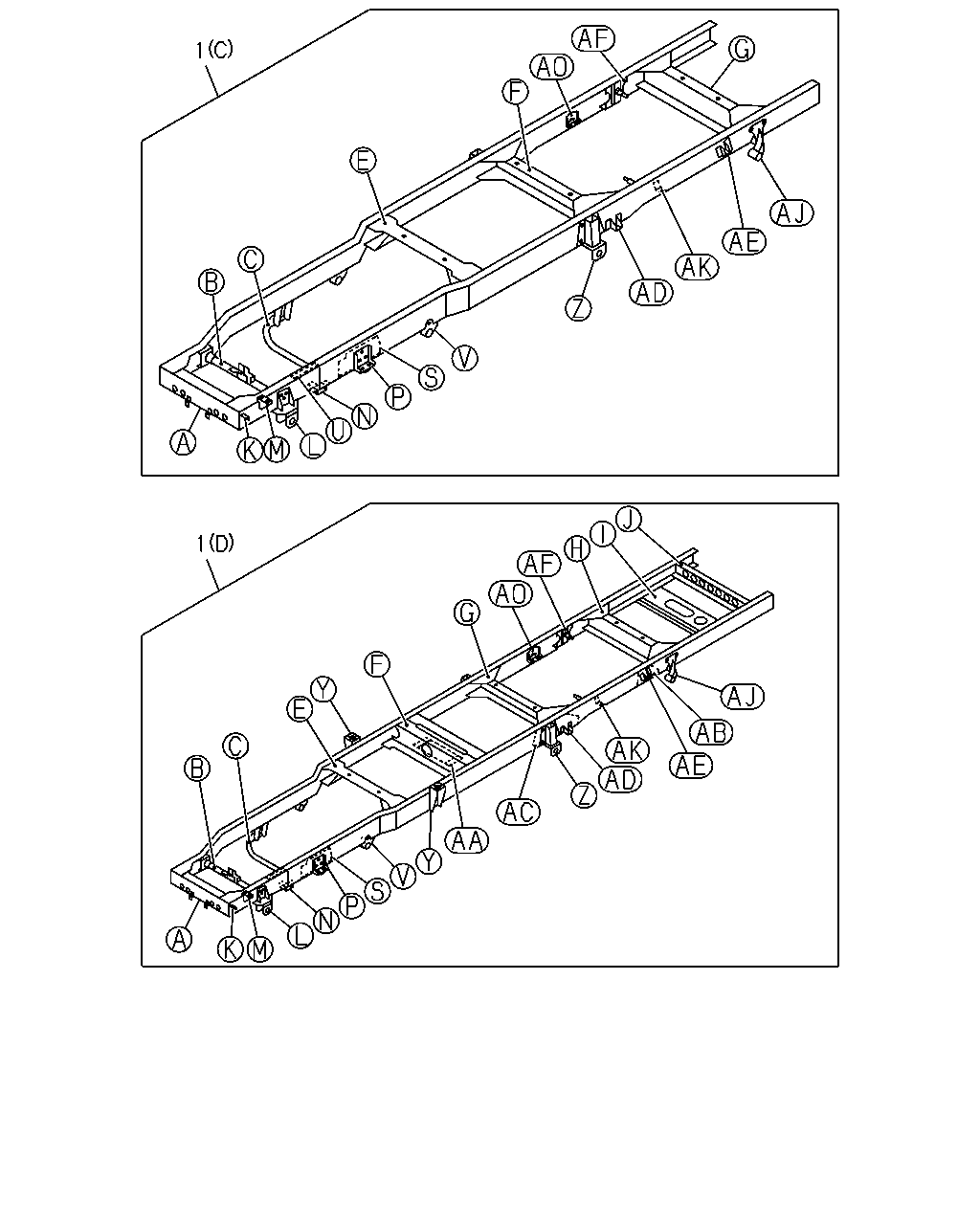

çizim 68228
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97075-139-3 01 1 9312-9711 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97091-362-1 01 1 9312-9804 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97202-984-0 01 1 9805- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (A) 		8-97089-874-0 01 1 9312-9510 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97089-874-0 01 1 9511-9804 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97202-983-0 01 1 9805- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> (A) 		8-97089-871-0 01 1 9312-9711 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97075-136-4 01 1 9507-9603 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EXC. EURO2 SPECIFICATION<7AF> (F) 		8-97075-136-4 01 1 9604-9711 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> (F) 		8-97146-723-0 01 1 9604-9804 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> (F) 		8-97203-706-1 01 1 9805- ●
1 07.003 FRAME ASM
RR BODY NON FLAT BED(RS5) (A) 		8-97091-373-0 01 1 9312- ●
1 07.003 FRAME ASM
EXC. RR BODY NON FLAT BED(RS5) (A) 		8-97091-372-0 01 1 9312- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B) 		8-97106-723-5 01 1 9312-9803 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B) 		8-97202-152-0 01 1 9804- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) EXC. REFRIGERATOR CHASSIS(V4R) (C) 		8-97091-365-1 01 1 9312-9510 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) EXC. REFRIGERATOR CHASSIS(V4R) (C) 		8-97091-365-1 01 1 9511-9606 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) EXC. REFRIGERATOR CHASSIS(V4R) (C) 		8-97091-365-3 01 1 9607-9711 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97091-365-3 01 1 9712-9804 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97202-985-0 01 1 9805- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> REFRIGERATOR CHASSIS(V4R) REAR WIDE TREAD(V4T) (C) 		8-97091-366-2 01 1 9312-9711 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97174-397-0 01 1 9712- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) EXC. MANUAL TILT CAB<RWZ>, REFRIGERATOR CHASSIS(V4R) (C) 		8-97091-364-3 01 1 9312-9711 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) EXC. REFRIGERATOR CHASSIS(V4R) (C) 		8-97148-068-1 01 1 9607-9711 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97148-068-1 01 1 9712-9801 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97148-068-1 01 1 9802-9804 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (C) 		8-97148-068-1 01 1 9802-9804 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97202-989-0 01 1 9805- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97202-386-0 01 1 9802-9805 ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97103-628-1 01 1 9312-9804 ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (C) 		8-97202-988-0 01 1 9805- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. MANUAL TILT CAB<RWZ> (C) 		8-97091-363-1 01 1 9312-9711 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) REAR WIDE TREAD(V4T) EURO2 SPECIFICATION<7AF> EXC. MANUAL TILT CAB<RWZ> (C) 		8-97161-408-0 01 1 9607- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> (D) 		8-97091-369-1 01 1 9312-9804 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) EXC. MANUAL TILT CAB<RWZ> (D) 		8-97091-370-1 01 1 9312-9804 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) (D) 		8-97091-370-1 01 1 9805- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> (D) 		8-97091-371-1 01 1 9312-9804 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> (D) 		8-97113-763-1 01 1 9312-9804 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) (D) 		8-97113-763-1 01 1 9805- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (D) 		8-97091-368-0 01 1 9312-9804 ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> (D) 		8-97091-367-0 01 1 9312-9606 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> (D) 		8-97091-367-0 01 1 9607-9804 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97091-367-0 01 1 9805- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) (D) 		8-97091-375-1 01 1 9312- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) (D) 		8-97091-374-0 01 1 9312-9606 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97091-374-0 01 1 9607-9711 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) (D) 		8-97091-374-0 01 1 9712- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (G) 		8-97034-344-2 01 1 9312-9510 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRONT STABILIZER SHAFT<F59> MANUAL TILT CAB<RWZ> (E) 		8-97131-990-0 01 1 9511-9711 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97103-627-0 01 1 9312-9510 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> (E) 		8-97103-627-1 01 1 9511-9711 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> (E) 		8-97174-398-0 01 1 9712- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (E) 		8-97069-955-1 01 1 9312-9510 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRONT STABILIZER SHAFT<F59> (E) 		8-97069-955-1 01 1 9511-9711 ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRONT STABILIZER SHAFT<F59> (E) 		8-97069-955-1 01 1 9712-9804 ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRONT STABILIZER SHAFT<F59> (E) 		8-97202-982-0 01 1 9805- ●

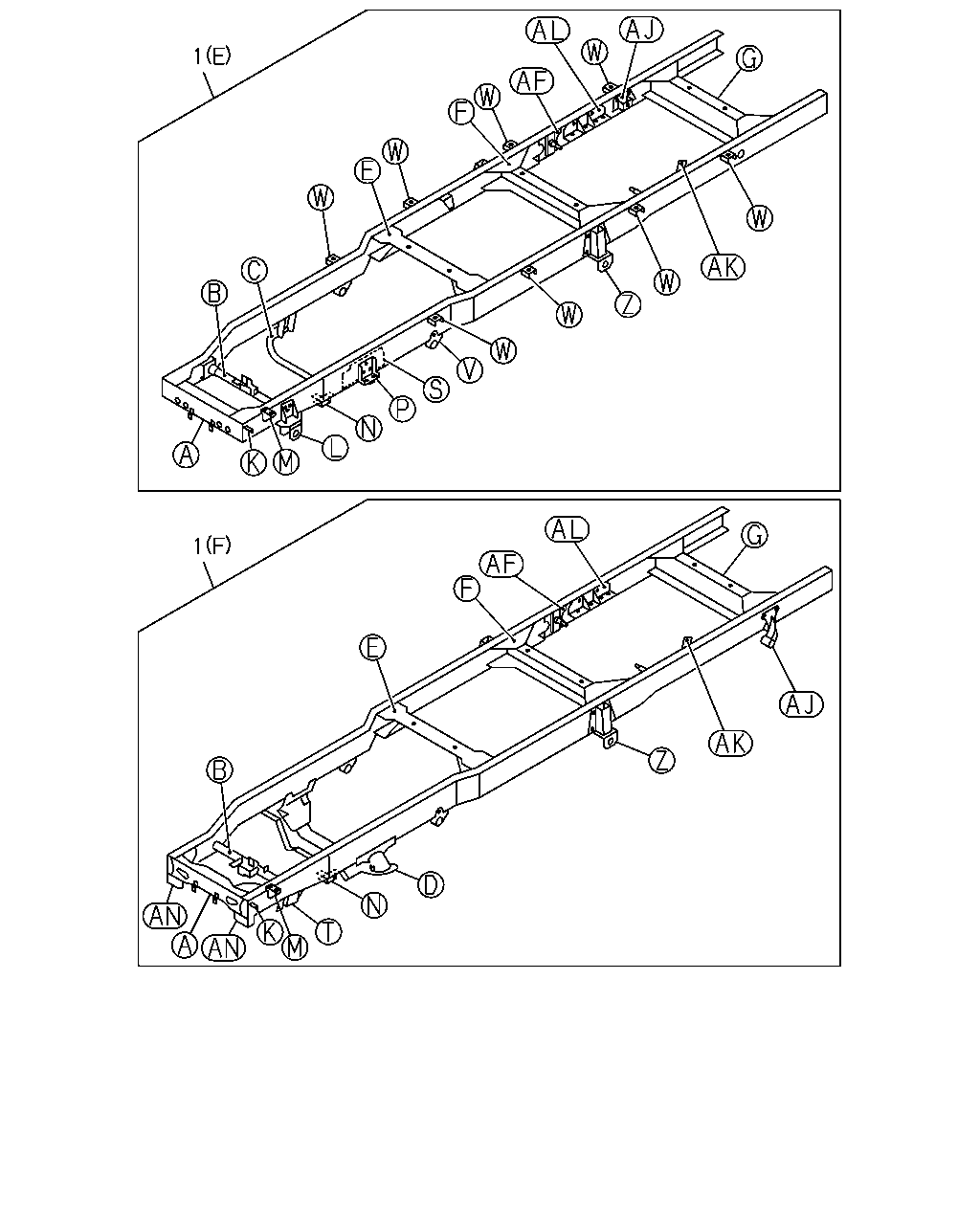

çizim 68767
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97075-139-3 01 1 9312-9711 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97091-362-1 01 1 9312-9804 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97202-984-0 01 1 9805- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (A) 		8-97089-874-0 01 1 9312-9510 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97089-874-0 01 1 9511-9804 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97202-983-0 01 1 9805- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> (A) 		8-97089-871-0 01 1 9312-9711 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97075-136-4 01 1 9507-9603 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EXC. EURO2 SPECIFICATION<7AF> (F) 		8-97075-136-4 01 1 9604-9711 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> (F) 		8-97146-723-0 01 1 9604-9804 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> (F) 		8-97203-706-1 01 1 9805- ●
1 07.003 FRAME ASM
RR BODY NON FLAT BED(RS5) (A) 		8-97091-373-0 01 1 9312- ●
1 07.003 FRAME ASM
EXC. RR BODY NON FLAT BED(RS5) (A) 		8-97091-372-0 01 1 9312- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B) 		8-97106-723-5 01 1 9312-9803 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B) 		8-97202-152-0 01 1 9804- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) EXC. REFRIGERATOR CHASSIS(V4R) (C) 		8-97091-365-1 01 1 9312-9510 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) EXC. REFRIGERATOR CHASSIS(V4R) (C) 		8-97091-365-1 01 1 9511-9606 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) EXC. REFRIGERATOR CHASSIS(V4R) (C) 		8-97091-365-3 01 1 9607-9711 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97091-365-3 01 1 9712-9804 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97202-985-0 01 1 9805- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> REFRIGERATOR CHASSIS(V4R) REAR WIDE TREAD(V4T) (C) 		8-97091-366-2 01 1 9312-9711 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97174-397-0 01 1 9712- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) EXC. MANUAL TILT CAB<RWZ>, REFRIGERATOR CHASSIS(V4R) (C) 		8-97091-364-3 01 1 9312-9711 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) EXC. REFRIGERATOR CHASSIS(V4R) (C) 		8-97148-068-1 01 1 9607-9711 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97148-068-1 01 1 9712-9801 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97148-068-1 01 1 9802-9804 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (C) 		8-97148-068-1 01 1 9802-9804 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97202-989-0 01 1 9805- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97202-386-0 01 1 9802-9805 ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (C) 		8-97103-628-1 01 1 9312-9804 ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (C) 		8-97202-988-0 01 1 9805- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. MANUAL TILT CAB<RWZ> (C) 		8-97091-363-1 01 1 9312-9711 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) REAR WIDE TREAD(V4T) EURO2 SPECIFICATION<7AF> EXC. MANUAL TILT CAB<RWZ> (C) 		8-97161-408-0 01 1 9607- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> (D) 		8-97091-369-1 01 1 9312-9804 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) EXC. MANUAL TILT CAB<RWZ> (D) 		8-97091-370-1 01 1 9312-9804 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) (D) 		8-97091-370-1 01 1 9805- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> (D) 		8-97091-371-1 01 1 9312-9804 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> (D) 		8-97113-763-1 01 1 9312-9804 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) (D) 		8-97113-763-1 01 1 9805- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (D) 		8-97091-368-0 01 1 9312-9804 ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> (D) 		8-97091-367-0 01 1 9312-9606 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> (D) 		8-97091-367-0 01 1 9607-9804 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97091-367-0 01 1 9805- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) (D) 		8-97091-375-1 01 1 9312- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) (D) 		8-97091-374-0 01 1 9312-9606 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97091-374-0 01 1 9607-9711 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC) (D) 		8-97091-374-0 01 1 9712- ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (G) 		8-97034-344-2 01 1 9312-9510 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRONT STABILIZER SHAFT<F59> MANUAL TILT CAB<RWZ> (E) 		8-97131-990-0 01 1 9511-9711 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97103-627-0 01 1 9312-9510 ●
1 07.003 FRAME ASM
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> (E) 		8-97103-627-1 01 1 9511-9711 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> (E) 		8-97174-398-0 01 1 9712- ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (E) 		8-97069-955-1 01 1 9312-9510 ●
1 07.003 FRAME ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRONT STABILIZER SHAFT<F59> (E) 		8-97069-955-1 01 1 9511-9711 ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRONT STABILIZER SHAFT<F59> (E) 		8-97069-955-1 01 1 9712-9804 ●
1 07.003 FRAME ASM
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRONT STABILIZER SHAFT<F59> (E) 		8-97202-982-0 01 1 9805- ●
çizim 68837
2 17 17 17 17 2 20 20 20 20 5 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 07.010 MEMBER; CROSS,1ST
EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97034-332-2 01 1 9312- ● ● ● ● ● ●
2 07.010 MEMBER; CROSS,1ST
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97036-000-2 01 1 9312-9406 ● ●
2 07.010 MEMBER; CROSS,1ST
DUMP CHASSIS(V4D) (B) 		8-97036-000-2 01 1 9312-9406 ●
2 07.010 MEMBER; CROSS,1ST
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97036-000-2 01 1 9407-9505 ● ●
2 07.010 MEMBER; CROSS,1ST
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97113-623-1 01 1 9506-9506 ● ●
2 07.010 MEMBER; CROSS,1ST
4JG2 ENG(RJC),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97113-623-1 01 1 9507-9510 ● ●
2 07.010 MEMBER; CROSS,1ST
4JG2 ENG(RJC),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97113-623-2 01 1 9511-9711 ●
2 07.010 MEMBER; CROSS,1ST
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> (B) 		8-97113-623-2 01 1 9712- ●
2 07.010 MEMBER; CROSS,1ST
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B) 		8-97033-224-3 01 1 9312- ●
5 07.010 MEMBER; CROSS,SUSPENSION
FRT INDEPENDENT SUSPENSION(6PP) 		8-97036-220-2 01 1 9312-9406 ● ●
5 07.010 MEMBER; CROSS,SUSPENSION
DUMP CHASSIS(V4D) 		8-97036-220-2 01 1 9312-9406 ●
5 07.010 MEMBER; CROSS,SUSPENSION
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97036-220-2 01 1 9407-9506 ● ●
5 07.010 MEMBER; CROSS,SUSPENSION
4JG2 ENG(RJC),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97036-220-2 01 1 9507-9510 ● ●
5 07.010 MEMBER; CROSS,SUSPENSION
4JG2 ENG(RJC),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97036-220-2 01 1 9511-9711 ●
5 07.010 MEMBER; CROSS,SUSPENSION
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 		8-97036-220-2 01 1 9712- ●
17 07.039 GUSSET; 1ST C/MBR
EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97088-205-1 02 1 9312- ● ● ● ● ● ●
17 07.039 GUSSET; 1ST C/MBR
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97039-568-1 01 1 9312-9506 ● ●
17 07.039 GUSSET; 1ST C/MBR
DUMP CHASSIS(V4D) (B) 		8-97039-568-1 01 1 9312-9506 ●
17 07.039 GUSSET; 1ST C/MBR
4JG2 ENG(RJC),4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97039-568-1 01 1 9507-9510 ● ●
17 07.039 GUSSET; 1ST C/MBR
4BE1 ENG(RLH) DUMP CHASSIS(V4D) (B) 		8-97039-568-1 01 1 9507-9510 ●
17 07.039 GUSSET; 1ST C/MBR
4JG2 ENG(RJC),4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97039-568-1 01 1 9511- ●
17 07.039 GUSSET; 1ST C/MBR
4BE1 ENG(RLH) DUMP CHASSIS(V4D) (B) 		8-97039-568-1 01 1 9511- ●
17 07.039 GUSSET; 1ST C/MBR
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-998-1 01 1 9312-9506 ● ●
17 07.039 GUSSET; 1ST C/MBR
DUMP CHASSIS(V4D) (B) 		8-97035-998-1 01 1 9312-9506 ●
17 07.039 GUSSET; 1ST C/MBR
4JG2 ENG(RJC),4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-998-1 01 1 9507-9510 ● ●
17 07.039 GUSSET; 1ST C/MBR
4BE1 ENG(RLH) DUMP CHASSIS(V4D) (B) 		8-97035-998-1 01 1 9507-9510 ●
17 07.039 GUSSET; 1ST C/MBR
4JG2 ENG(RJC),4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-998-2 01 1 9511- ●
17 07.039 GUSSET; 1ST C/MBR
4BE1 ENG(RLH) DUMP CHASSIS(V4D) (B) 		8-97035-998-2 01 1 9511- ●
20 07.012 MEMBER; CROSS,2ND
EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97042-980-1 01 1 9312-9510 ● ● ● ● ● ●
20 07.012 MEMBER; CROSS,2ND
4JB1 ENG(RLF),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97042-980-1 01 1 9511-9603 ● ● ● ●
20 07.012 MEMBER; CROSS,2ND
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. MANUAL TILT CAB<RWZ>,DUMP CHASSIS(V4D) (A) 		8-97042-980-1 01 1 9511-9603 ● ● ● ●
20 07.012 MEMBER; CROSS,2ND
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> (A) 		8-97042-980-1 01 1 9604-9610 ●
20 07.012 MEMBER; CROSS,2ND
4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> (A) 		8-97145-718-0 01 1 9604-9606 ● ● ● ●
20 07.012 MEMBER; CROSS,2ND
4JG2 ENG(RJC),4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97145-718-0 01 1 9604-9606 ● ●
20 07.012 MEMBER; CROSS,2ND
4JB1 ENG(RLF),4BE1 ENG(RLH) REAR WIDE TREAD(V4T) EXC. MANUAL TILT CAB<RWZ>, REFRIGERATOR CHASSIS(V4R) (A) 		8-97145-718-0 01 1 9604-9606 ●
20 07.012 MEMBER; CROSS,2ND
4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) (A) 		8-97145-718-0 01 1 9604-9606 ●
20 07.012 MEMBER; CROSS,2ND
4BE1 ENG(RLH) (A) 		8-97145-718-0 01 1 9604-9606 ● ●
20 07.012 MEMBER; CROSS,2ND
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97145-718-0 01 1 9607-9711 ● ● ● ● ● ●
20 07.012 MEMBER; CROSS,2ND
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) (A) 		8-97145-718-0 01 1 9607-9711 ●
20 07.012 MEMBER; CROSS,2ND
4BE1 ENG(RLH) (A) 		8-97145-718-0 01 1 9607-9711 ● ●
20 07.012 MEMBER; CROSS,2ND
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97145-718-0 01 1 9712-9804 ● ● ● ● ●
20 07.012 MEMBER; CROSS,2ND
4JG2 ENG(RJC) REAR WIDE TREAD(V4T) EURO2 SPECIFICATION<7AF> EXC. MANUAL TILT CAB<RWZ> (A) 		8-97145-718-0 01 1 9712-9804 ●
20 07.012 MEMBER; CROSS,2ND
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (A) 		8-97145-718-0 01 1 9712-9804 ●
20 07.012 MEMBER; CROSS,2ND
4BE1 ENG(RLH) (A) 		8-97145-718-0 01 1 9712-9804 ● ●
20 07.012 MEMBER; CROSS,2ND
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97145-718-0 01 1 9805- ●
20 07.012 MEMBER; CROSS,2ND
(A) 		8-97145-718-0 01 1 9805- ●
20 07.012 MEMBER; CROSS,2ND
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97145-718-0 01 1 9805- ●
20 07.012 MEMBER; CROSS,2ND
4JG2 ENG(RJC) REAR WIDE TREAD(V4T) EURO2 SPECIFICATION<7AF> EXC. MANUAL TILT CAB<RWZ> (A) 		8-97145-718-0 01 1 9805- ●
20 07.012 MEMBER; CROSS,2ND
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) (A) 		8-97145-718-0 01 1 9805- ●
20 07.012 MEMBER; CROSS,2ND
4JG2 ENG(RJC),4BE1 ENG(RLH) (A) 		8-97145-718-0 01 1 9805- ●
20 07.012 MEMBER; CROSS,2ND
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRONT STABILIZER SHAFT<F59> (A) 		8-97145-718-0 01 1 9805- ●
20 07.012 MEMBER; CROSS,2ND
4BE1 ENG(RLH),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> EXC. REFRIGERATOR CHASSIS(V4R),FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97078-581-1 01 1 9604-9711 ● ● ●
20 07.012 MEMBER; CROSS,2ND
4BE1 ENG(RLH),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97078-581-1 01 1 9712- ● ●
20 07.012 MEMBER; CROSS,2ND
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97034-499-0 01 1 9312-9406 ● ●
20 07.012 MEMBER; CROSS,2ND
DUMP CHASSIS(V4D) (B) 		8-97034-499-0 01 1 9312-9406 ●
20 07.012 MEMBER; CROSS,2ND
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97034-499-0 01 1 9407-9506 ● ●
20 07.012 MEMBER; CROSS,2ND
4JG2 ENG(RJC),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97034-499-0 01 1 9507-9510 ● ●
20 07.012 MEMBER; CROSS,2ND
4JG2 ENG(RJC),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97034-499-0 01 1 9511-9603 ●
20 07.012 MEMBER; CROSS,2ND
4JG2 ENG(RJC),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97145-716-0 01 1 9604-9711 ●
20 07.012 MEMBER; CROSS,2ND
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> (B) 		8-97145-716-1 01 1 9712- ●
20 07.012 MEMBER; CROSS,2ND
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (C) 		8-97033-225-0 01 1 9312-9603 ●
20 07.012 MEMBER; CROSS,2ND
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (C) 		8-97145-717-1 01 1 9604- ●
20 07.012 MEMBER; CROSS,2ND
4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> (D) 		8-97043-237-0 01 1 9503-9610 ●
20 07.012 MEMBER; CROSS,2ND
4HF1 ENG(RLS) (D) 		8-97043-237-0 01 1 9611-9711 ●
20 07.012 MEMBER; CROSS,2ND
4HF1 ENG(RLS) (D) 		8-97043-237-0 01 1 9712- ● ● ●
42 07.011 MEMBER; CROSS,ENG MTG
4JB1 ENG(RLF) 		8-94246-127-7 01 1 9312-9510 ● ● ● ● ● ●
42 07.011 MEMBER; CROSS,ENG MTG
4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> 		8-94246-127-7 01 1 9511-9606 ● ● ● ●
42 07.011 MEMBER; CROSS,ENG MTG
4JG2 ENG(RJC),4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94246-127-7 01 1 9511-9606 ● ● ●
42 07.011 MEMBER; CROSS,ENG MTG
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) 		8-94246-127-7 01 1 9511-9606 ●
42 07.011 MEMBER; CROSS,ENG MTG
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94246-127-7 01 1 9607- ● ● ● ● ● ●
42 07.011 MEMBER; CROSS,ENG MTG
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94367-613-2 01 1 9312-9510 ● ● ● ● ●
42 07.011 MEMBER; CROSS,ENG MTG
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94367-613-3 01 1 9511-9608 ● ●
42 07.011 MEMBER; CROSS,ENG MTG
4BE1 ENG(RLH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) 		8-94367-613-3 01 1 9511-9608 ●
42 07.011 MEMBER; CROSS,ENG MTG
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 		8-94367-613-3 01 1 9511-9608 ●
42 07.011 MEMBER; CROSS,ENG MTG
4BE1 ENG(RLH),4HF1 ENG(RLS) 		8-94367-613-3 01 1 9511-9608 ● ●
42 07.011 MEMBER; CROSS,ENG MTG
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97165-923-1 01 1 9609-9711 ● ●
42 07.011 MEMBER; CROSS,ENG MTG
4BE1 ENG(RLH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) 		8-97165-923-1 01 1 9609-9711 ●
42 07.011 MEMBER; CROSS,ENG MTG
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 		8-97165-923-1 01 1 9609-9711 ●
42 07.011 MEMBER; CROSS,ENG MTG
4BE1 ENG(RLH),4HF1 ENG(RLS) 		8-97165-923-1 01 1 9609-9711 ● ●
42 07.011 MEMBER; CROSS,ENG MTG
4BE1 ENG(RLH),4HF1 ENG(RLS) 		8-97165-923-1 01 1 9712- ● ● ● ● ●
çizim 69084
39 328 302 156 156 156 156 43 365 43 101 101 101 101
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 07.112 BRACKET; FRT SPR,RR
EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 		8-94258-091-0 02 1 9312-9510 ● ● ● ● ● ●
39 07.112 BRACKET; FRT SPR,RR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94258-091-0 02 1 9511-9607 ● ●
39 07.112 BRACKET; FRT SPR,RR
4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> 		8-94258-091-0 02 1 9511-9607 ●
39 07.112 BRACKET; FRT SPR,RR
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) 		8-94258-091-0 02 1 9511-9607 ● ● ●
39 07.112 BRACKET; FRT SPR,RR
4JB1 ENG(RLF),4BE1 ENG(RLH) REAR WIDE TREAD(V4T) 		8-94258-091-0 02 1 9511-9607 ●
39 07.112 BRACKET; FRT SPR,RR
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 		8-94258-091-0 02 1 9511-9607 ●
39 07.112 BRACKET; FRT SPR,RR
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94258-091-0 02 1 9607- ● ● ● ● ● ●
43 09.003 BRACKET; CAB MTG,RR
(A) 		8-97042-541-0 01 1 9312- ●
43 09.003 BRACKET; CAB MTG,RR
(A) 		8-97042-540-0 01 1 9312- ●
43 09.003 BRACKET; CAB MTG,RR
(B) 		8-94126-889-0 01 1 9312- ●
43 09.003 BRACKET; CAB MTG,RR
(B) 		8-94111-921-0 01 1 9312- ●
101 07.112 BRACKET; RR SPR,FRT
(B) 		8-94258-093-1 02 1 9312- ● ●
101 07.112 BRACKET; RR SPR,FRT
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (D) 		8-97034-223-1 02 1 9312- ●
101 07.112 BRACKET; RR SPR,FRT
EXC. DUMP CHASSIS(V4D) (A) 		8-97034-156-1 02 1 9312- ● ● ●
101 07.112 BRACKET; RR SPR,FRT
(C) 		8-94376-080-0 02 1 9312- ●
156 07.330 BRACKET; RR BODY MTG
RR BODY NON FLAT BED(RS5) (A) 		8-94101-398-1 06 1 9312- ●
156 07.330 BRACKET; RR BODY MTG
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (A) 		8-94101-398-1 06 1 9312- ●
156 07.330 BRACKET; RR BODY MTG
(A) REAR 		8-94101-398-1 04 1 9312-9510 ●
156 07.330 BRACKET; RR BODY MTG
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) REAR 		8-94101-398-1 04 1 9511-9711 ●
156 07.330 BRACKET; RR BODY MTG
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> (A) REAR 		8-94101-398-1 04 1 9712- ●
156 07.330 BRACKET; RR BODY MTG
(A) CENTER 		8-94258-112-0 01 1 9312-9510 ●
156 07.330 BRACKET; RR BODY MTG
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) CENTER 		8-94258-112-0 01 1 9511-9711 ●
156 07.330 BRACKET; RR BODY MTG
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> (A) CENTER 		8-94258-112-0 01 1 9712- ●
156 07.330 BRACKET; RR BODY MTG
(B) CENTER 		8-94258-111-0 01 1 9312-9510 ●
156 07.330 BRACKET; RR BODY MTG
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> (B) CENTER 		8-94258-111-0 01 1 9511-9711 ●
156 07.330 BRACKET; RR BODY MTG
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> (B) CENTER 		8-94258-111-0 01 1 9712- ●
156 07.330 BRACKET; RR BODY MTG
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (C) FRONT 		8-97091-294-0 01 1 9312-9510 ●
156 07.330 BRACKET; RR BODY MTG
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (C) FRONT 		8-97015-358-1 01 1 9312-9510 ●
156 07.330 BRACKET; RR BODY MTG
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) FRONT 		8-97091-293-0 01 1 9312-9711 ●
156 07.330 BRACKET; RR BODY MTG
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> (D) FRONT 		8-97091-293-0 01 1 9712- ●
156 07.330 BRACKET; RR BODY MTG
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) FRONT 		8-94122-891-2 01 1 9312-9711 ●
156 07.330 BRACKET; RR BODY MTG
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> (D) FRONT 		8-94122-891-2 01 1 9712- ●
302 07.006 REINFORCEMENT; S/MBR
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> REFRIGERATOR CHASSIS(V4R) REAR WIDE TREAD(V4T) 		8-97091-729-0 01 1 9312-9711 ●
328 07.039 BRACKET; RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-944-2 01 1 9312-9406 ● ●
328 07.039 BRACKET; RELAY LEVER
DUMP CHASSIS(V4D) 		8-97047-944-2 01 1 9312-9406 ●
328 07.039 BRACKET; RELAY LEVER
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-944-2 01 1 9407-9506 ● ●
328 07.039 BRACKET; RELAY LEVER
4JG2 ENG(RJC),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-944-2 01 1 9507-9510 ● ●
328 07.039 BRACKET; RELAY LEVER
4JG2 ENG(RJC),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-944-2 01 1 9511-9711 ●
328 07.039 BRACKET; RELAY LEVER
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 		8-97047-944-2 01 1 9712- ●
328 07.039 BRACKET; RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-650-2 01 1 9312-9406 ● ●
328 07.039 BRACKET; RELAY LEVER
DUMP CHASSIS(V4D) 		8-97039-650-2 01 1 9312-9406 ●
328 07.039 BRACKET; RELAY LEVER
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-650-2 01 1 9407-9506 ● ●
328 07.039 BRACKET; RELAY LEVER
4JG2 ENG(RJC),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-650-2 01 1 9507-9510 ● ●
328 07.039 BRACKET; RELAY LEVER
4JG2 ENG(RJC),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97039-650-3 01 1 9511-9711 ●
328 07.039 BRACKET; RELAY LEVER
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 		8-97039-650-3 01 1 9712- ●
365 07.039 REINFORCEMENT; TRUNNION
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 		8-97033-252-2 01 1 9312- ●
365 07.039 REINFORCEMENT; TRUNNION
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 		8-97033-251-2 01 1 9312- ●
çizim 69127
24 358 24 239 63 63 256 51 366 142 136 136
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
24 07.105 BRACKET; FRT SPR,FRT
(A) 		8-97065-789-0 01 1 9312-9510 ● ● ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. MANUAL TILT CAB<RWZ> (A) 		8-97065-789-0 01 1 9312-9510 ●
24 07.105 BRACKET; FRT SPR,FRT
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) (A) 		8-97065-789-0 01 1 9312-9510 ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. MANUAL TILT CAB<RWZ> (A) 		8-97065-789-0 01 1 9312-9510 ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> (A) 		8-97065-789-0 01 1 9511-9606 ●
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97065-789-0 01 1 9511-9606 ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. MANUAL TILT CAB<RWZ> (A) 		8-97065-789-0 01 1 9511-9606 ● ● ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> (A) 		8-97065-789-0 01 1 9511-9606 ●
24 07.105 BRACKET; FRT SPR,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97065-789-0 01 1 9607-9607 ● ● ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> (A) 		8-97065-789-0 01 1 9607-9607 ●
24 07.105 BRACKET; FRT SPR,FRT
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D) (A) 		8-97065-789-0 01 1 9607-9607 ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. MANUAL TILT CAB<RWZ> (A) 		8-97065-789-0 01 1 9607-9607 ●
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97065-789-0 01 1 9607-9711 ● ● ●
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. MANUAL TILT CAB<RWZ> (A) 		8-97065-789-0 01 1 9607-9711 ● ●
24 07.105 BRACKET; FRT SPR,FRT
4BE1 ENG(RLH),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) (A) 		8-97065-789-0 01 1 9607-9711 ●
24 07.105 BRACKET; FRT SPR,FRT
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97065-789-1 01 1 9712- ●
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. MANUAL TILT CAB<RWZ> (A) 		8-97065-789-1 01 1 9712- ● ● ●
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D) (A) 		8-97065-789-1 01 1 9712- ●
24 07.105 BRACKET; FRT SPR,FRT
(A) 		8-94366-818-0 01 1 9312-9510 ● ● ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. MANUAL TILT CAB<RWZ> (A) 		8-94366-818-0 01 1 9312-9510 ●
24 07.105 BRACKET; FRT SPR,FRT
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) (A) 		8-94366-818-0 01 1 9312-9510 ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. MANUAL TILT CAB<RWZ> (A) 		8-94366-818-0 01 1 9312-9510 ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> (A) 		8-94366-818-0 01 1 9511-9606 ●
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94366-818-0 01 1 9511-9606 ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. MANUAL TILT CAB<RWZ> (A) 		8-94366-818-0 01 1 9511-9606 ● ● ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> (A) 		8-94366-818-0 01 1 9511-9606 ●
24 07.105 BRACKET; FRT SPR,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94366-818-0 01 1 9607-9607 ● ● ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> (A) 		8-94366-818-0 01 1 9607-9607 ●
24 07.105 BRACKET; FRT SPR,FRT
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D) (A) 		8-94366-818-0 01 1 9607-9607 ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. MANUAL TILT CAB<RWZ> (A) 		8-94366-818-0 01 1 9607-9607 ●
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94366-818-0 01 1 9607-9711 ● ● ●
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. MANUAL TILT CAB<RWZ> (A) 		8-94366-818-0 01 1 9607-9711 ● ●
24 07.105 BRACKET; FRT SPR,FRT
4BE1 ENG(RLH),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D) (A) 		8-94366-818-0 01 1 9607-9711 ●
24 07.105 BRACKET; FRT SPR,FRT
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94366-818-1 01 1 9712- ●
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. MANUAL TILT CAB<RWZ> (A) 		8-94366-818-1 01 1 9712- ● ● ●
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D) (A) 		8-94366-818-1 01 1 9712- ●
24 07.105 BRACKET; FRT SPR,FRT
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B) 		8-97033-232-1 01 1 9312- ●
24 07.105 BRACKET; FRT SPR,FRT
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B) 		8-97033-231-1 01 1 9312- ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (A) 		8-97065-788-0 01 1 9312-9510 ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> (A) 		8-97065-788-0 01 1 9312-9510 ●
24 07.105 BRACKET; FRT SPR,FRT
4HF1 ENG(RLS) (A) 		8-97065-788-0 01 1 9312-9510 ●
24 07.105 BRACKET; FRT SPR,FRT
(A) 		8-97065-788-0 01 1 9312-9510 ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (A) 		8-97065-788-0 01 1 9511-9711 ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> (A) 		8-97065-788-0 01 1 9511-9711 ●
24 07.105 BRACKET; FRT SPR,FRT
4HF1 ENG(RLS) (A) 		8-97065-788-0 01 1 9511-9711 ●
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> (A) 		8-97065-788-0 01 1 9511-9711 ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (A) 		8-97065-788-0 01 1 9712-9804 ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> (A) 		8-97065-788-0 01 1 9712-9804 ● ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97065-788-1 01 1 9805- ●
24 07.105 BRACKET; FRT SPR,FRT
4HF1 ENG(RLS) (A) 		8-97065-788-1 01 1 9805- ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRONT STABILIZER SHAFT<F59> (A) 		8-97065-788-1 01 1 9805- ●
24 07.105 BRACKET; FRT SPR,FRT
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> (A) 		8-97065-788-1 01 1 9805- ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (A) 		8-94366-816-0 01 1 9312-9510 ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> (A) 		8-94366-816-0 01 1 9312-9510 ●
24 07.105 BRACKET; FRT SPR,FRT
4HF1 ENG(RLS) (A) 		8-94366-816-0 01 1 9312-9510 ●
24 07.105 BRACKET; FRT SPR,FRT
(A) 		8-94366-816-0 01 1 9312-9510 ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (A) 		8-94366-816-0 01 1 9511-9711 ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> (A) 		8-94366-816-0 01 1 9511-9711 ●
24 07.105 BRACKET; FRT SPR,FRT
4HF1 ENG(RLS) (A) 		8-94366-816-0 01 1 9511-9711 ●
24 07.105 BRACKET; FRT SPR,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> (A) 		8-94366-816-0 01 1 9511-9711 ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (A) 		8-94366-816-0 01 1 9712-9804 ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> (A) 		8-94366-816-0 01 1 9712-9804 ● ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-94366-816-1 01 1 9805- ●
24 07.105 BRACKET; FRT SPR,FRT
4HF1 ENG(RLS) (A) 		8-94366-816-1 01 1 9805- ●
24 07.105 BRACKET; FRT SPR,FRT
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRONT STABILIZER SHAFT<F59> (A) 		8-94366-816-1 01 1 9805- ●
24 07.105 BRACKET; FRT SPR,FRT
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> (A) 		8-94366-816-1 01 1 9805- ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 00.029 		8-94258-086-1 02 1 9312-9510 ● ● ● ● ● ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.029 		8-94258-086-1 02 1 9511-9607 ● ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> 00.029 		8-94258-086-1 02 1 9511-9607 ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) 00.029 		8-94258-086-1 02 1 9511-9607 ● ● ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
4JB1 ENG(RLF),4BE1 ENG(RLH) REAR WIDE TREAD(V4T) 00.029 		8-94258-086-1 02 1 9511-9607 ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 00.029 		8-94258-086-1 02 1 9511-9607 ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.029 		8-94258-086-1 02 1 9607- ● ● ● ● ● ●
63 01.270 BRACKET; RAD MTG
EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94257-950-1 01 1 9312- ● ● ● ● ● ●
63 01.270 BRACKET; RAD MTG
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97072-648-0 01 1 9312-9506 ● ●
63 01.270 BRACKET; RAD MTG
DUMP CHASSIS(V4D) (B) 		8-97072-648-0 01 1 9312-9506 ●
63 01.270 BRACKET; RAD MTG
4JG2 ENG(RJC),4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97072-648-0 01 1 9507-9510 ● ●
63 01.270 BRACKET; RAD MTG
4BE1 ENG(RLH) DUMP CHASSIS(V4D) (B) 		8-97072-648-0 01 1 9507-9510 ●
63 01.270 BRACKET; RAD MTG
4JG2 ENG(RJC),4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97072-648-0 01 1 9511- ●
63 01.270 BRACKET; RAD MTG
4BE1 ENG(RLH) DUMP CHASSIS(V4D) (B) 		8-97072-648-0 01 1 9511- ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JB1 ENG(RLF) (B) 		8-97083-311-1 01 1 9312-9606 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JB1 ENG(RLF),4BE1 ENG(RLH) (B) 		8-97083-311-1 01 1 9312-9606 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. MANUAL TILT CAB<RWZ> (B) 		8-97083-311-1 01 1 9607-9804 ● ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) (B) 		8-97083-311-1 01 1 9805- ● ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JB1 ENG(RLF) (A) 		8-94370-228-1 01 1 9312-9606 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JB1 ENG(RLF),4BE1 ENG(RLH) (A) 		8-94370-228-1 01 1 9312-9606 ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. MANUAL TILT CAB<RWZ> (A) 		8-94370-228-1 01 1 9607-9804 ● ●
136 07.006 REINFORCEMENT; ENG SUPPORT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) (A) 		8-94370-228-1 01 1 9805- ● ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JB1 ENG(RLF) (A) 		8-97047-775-1 01 1 9312-9506 ● ● ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JB1 ENG(RLF) (A) 		8-97047-775-1 01 1 9507-9510 ● ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97047-775-1 01 1 9507-9510 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (A) 		8-97047-775-1 01 1 9507-9510 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97047-775-1 01 1 9511-9711 ● ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> (A) 		8-97047-775-1 01 1 9511-9711 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97047-775-1 01 1 9712- ● ● ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4BE1 ENG(RLH) (B) 		8-97034-337-0 01 1 9312-9711 ● ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4BE1 ENG(RLH),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97034-337-0 01 1 9712- ● ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (C) 		8-97033-242-0 01 1 9312-9803 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (C) 		8-97200-748-0 01 1 9804- ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (D) 		8-97048-272-0 02 1 9312-9607 ●
142 04.845 BRACKET; FLEX HOSE,BRAKE
EXC. DUMP CHASSIS(V4D) (E) 		8-97035-308-0 01 1 9312- ● ● ●
239 09.003 BRACKET; COIL SPR
MANUAL TILT CAB<RWZ> 		8-97033-190-0 01 1 9312-9506 ● ● ● ●
239 09.003 BRACKET; COIL SPR
4JB1 ENG(RLF),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> 		8-97033-190-0 01 1 9507-9510 ● ●
239 09.003 BRACKET; COIL SPR
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97033-190-0 01 1 9507-9510 ●
239 09.003 BRACKET; COIL SPR
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 		8-97033-190-0 01 1 9507-9510 ●
239 09.003 BRACKET; COIL SPR
4JB1 ENG(RLF),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) 		8-97033-190-0 01 1 9507-9510 ●
239 09.003 BRACKET; COIL SPR
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> 		8-97033-190-0 01 1 9507-9510 ●
239 09.003 BRACKET; COIL SPR
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97033-190-0 01 1 9511-9711 ● ● ●
239 09.003 BRACKET; COIL SPR
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97033-190-0 01 1 9511-9711 ●
239 09.003 BRACKET; COIL SPR
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) 		8-97033-190-0 01 1 9511-9711 ●
239 09.003 BRACKET; COIL SPR
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 		8-97033-190-0 01 1 9511-9711 ●
239 09.003 BRACKET; COIL SPR
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 		8-97033-190-0 01 1 9712-9803 ●
239 09.003 BRACKET; COIL SPR
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97033-190-0 01 1 9712-9803 ●
239 09.003 BRACKET; COIL SPR
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 		8-97033-190-0 01 1 9712-9803 ●
239 09.003 BRACKET; COIL SPR
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) 		8-97033-190-0 01 1 9712-9803 ●
239 09.003 BRACKET; COIL SPR
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W . 5.5-6.0TON(RPU) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) 		8-97033-190-0 01 1 9712-9803 ●
239 09.003 BRACKET; COIL SPR
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> 		8-97033-190-0 01 1 9712-9803 ●
239 09.003 BRACKET; COIL SPR
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRONT STABILIZER SHAFT<F59> 		8-97033-190-0 01 1 9712-9803 ●
239 09.003 BRACKET; COIL SPR
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> 		8-97033-190-0 01 1 9712-9803 ●
239 09.003 BRACKET; COIL SPR
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 		8-97033-190-0 01 1 9804-9804 ●
239 09.003 BRACKET; COIL SPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97033-190-0 01 1 9804-9804 ●
239 09.003 BRACKET; COIL SPR
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 		8-97033-190-0 01 1 9804-9804 ●
239 09.003 BRACKET; COIL SPR
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) 		8-97033-190-0 01 1 9804-9804 ●
239 09.003 BRACKET; COIL SPR
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W . 5.5-6.0TON(RPU) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) 		8-97033-190-0 01 1 9804-9804 ●
239 09.003 BRACKET; COIL SPR
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> 		8-97033-190-0 01 1 9804-9804 ●
239 09.003 BRACKET; COIL SPR
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRONT STABILIZER SHAFT<F59> 		8-97033-190-0 01 1 9804-9804 ●
239 09.003 BRACKET; COIL SPR
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 		8-97033-190-0 01 1 9804-9804 ●
239 09.003 BRACKET; COIL SPR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97033-190-0 01 1 9804-9804 ●
239 09.003 BRACKET; COIL SPR
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) 		8-97033-190-0 01 1 9804-9804 ●
239 09.003 BRACKET; COIL SPR
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W . 5.5-6.0TON(RPU) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) 		8-97033-190-0 01 1 9804-9804 ●
239 09.003 BRACKET; COIL SPR
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> 		8-97033-190-0 01 1 9804-9804 ●
239 09.003 BRACKET; COIL SPR
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRONT STABILIZER SHAFT<F59> 		8-97033-190-0 01 1 9804-9804 ●
239 09.003 BRACKET; COIL SPR
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) 		8-97033-190-0 01 1 9805-9805 ●
239 09.003 BRACKET; COIL SPR
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) 		8-97033-190-0 01 1 9806- ●
256 07.395 BRACKET; S/ABS
4JG2 ENG(RJC),4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 		8-97036-160-0 02 1 9511-9711 ●
256 07.395 BRACKET; S/ABS
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 		8-97036-160-0 02 1 9712- ●
256 07.395 BRACKET; S/ABS
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 		8-97041-076-0 02 1 9312- ●
358 07.039 BRACKET; CAB EARTH 8-97065-790-3 01 1 9312-9607 ● ● ● ● ● ●
358 07.039 BRACKET; CAB EARTH 8-97065-790-3 01 1 9607- ● ● ● ● ● ●
366 07.039 SPACER; BRKT
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 		8-97034-222-0 02 1 9312- ●
çizim 69185
376 376 376 376 376 376 376 376 376 376 376 376 376 16 176 221 60 106 176 286 363 16 60 4 118 118 288 364 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 07.039 NUT; 1ST C/MBR TO S/MBR
01.540 (A) M8 FLANGE 		0-91150-208-0 AR 1 9312- ● ● ● ● ● ●
4 07.039 NUT; 1ST C/MBR TO S/MBR
07.243 (B) M12 FLANGE 		0-91150-212-0 AR 1 9312- ● ● ● ● ● ●
16 07.039 BOLT; 1ST C/MBR TO S/MBR
01.531 (A) M8X25 FLANGE 		0-28080-825-0 AR 1 9312- ● ● ● ● ● ●
16 07.039 BOLT; 1ST C/MBR TO S/MBR
00.669 (B) M12X30 FLANGE 		0-28081-230-0 AR 1 9312-9406 ● ● ● ● ● ●
16 07.039 BOLT; 1ST C/MBR TO S/MBR
07.874 (B) M12X30 W/LK&PL WASHER 		0-50141-230-0 AR 1 9407- ● ● ● ● ● ●
60 05.601 BOLT; MBR
(A) M10X28 		0-20801-028-0 AR 1 9312- ● ● ● ● ● ●
60 05.601 BOLT; MBR
07.874 (B) M12X30 W/LK&PL WASHER 		0-50141-230-0 AR 1 9312- ● ● ● ● ● ●
106 07.529 BOLT; BRKT
00.685 M10X30 FLANGE 		0-28081-030-0 AR 1 9312- ● ● ● ● ● ●
118 07.529 NUT; STOPPER
07.633 (A) M8 FLANGE 		0-91150-108-0 AR 1 9312- ● ● ● ● ● ●
118 07.529 NUT; STOPPER
08.917 (B) M10 FLANGE 		0-91150-210-0 AR 1 9312- ● ● ● ● ● ●
176 04.085 BOLT; C/MBR,ENG MTG
03.417 (A) M10X25 FLANGE 		0-28081-025-0 AR 1 9312- ● ● ● ● ● ●
176 04.085 BOLT; C/MBR,ENG MTG
00.685 (B) M10X30 FLANGE 		0-28081-030-0 AR 1 9312- ● ● ● ● ● ●
221 01.270 BOLT; RAD MTG BRKT,FRAME
03.417 M10X25 FLANGE 		0-28081-025-0 AR 1 9312- ● ● ● ● ● ●
286 07.632 BOLT; SPARE TIRE BRKT
AUSTRALIA EQUIPMENT(RR3) REAR WIDE TREAD(V4T) 03.023 M10X30 FLANGE 		0-28691-030-0 08 1 9802-9802 ●
286 07.632 BOLT; SPARE TIRE BRKT
AUSTRALIA EQUIPMENT(RR3) REAR WIDE TREAD(V4T) 03.023 M10X30 FLANGE 		0-28691-030-0 06 1 9802- ●
288 07.632 NUT; SPARE TIRE BRKT
AUSTRALIA EQUIPMENT(RR3) REAR WIDE TREAD(V4T) 08.917 M10 FLANGE 		0-91150-210-0 06 1 9802- ●
363 07.039 BOLT; GUSSET
03.613 M10X30 W/LK&PL WASHER 		0-50141-030-0 AR 1 9312- ● ● ● ● ● ●
364 07.039 NUT; GUSSET
08.917 M10 FLANGE 		0-91150-210-0 AR 1 9312- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(A) D8X20 TAPER END 		9-06750-820-0 AR 1 9312- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
07.011 (B) D8X22 TAPER END 		9-06750-822-0 AR 1 9312- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
07.395 (C) D8X28 TAPER END 		9-06750-828-0 AR 1 9312- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(D) D10X24 TAPER END 		9-06751-024-0 AR 1 9312- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(E) D10X26 TAPER END 		9-06751-026-0 AR 1 9312- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(F) D10X28 TAPER END 		9-06751-028-0 AR 1 9312- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(G) D10X30 TAPER END 		9-06751-030-0 AR 1 9312- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(H) D10X32 TAPER END 		9-06751-032-0 AR 1 9312- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(I) D10X36 TAPER END 		9-06751-036-0 AR 1 9312- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
(J) D11X26 TAPER END 		9-06751-126-0 AR 1 9312- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
07.105 (K) D12X30 TAPER END 		9-06751-230-0 AR 1 9312- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
07.535 (L) D12X34 TAPER END 		9-06751-234-0 AR 1 9312- ● ● ● ● ● ●
376 07.039 RIVET; FRAME
07.112 (M) D12X38 TAPER END 		9-06751-238-0 AR 1 9312- ● ● ● ● ● ●
çizim 69186
188 173 173 103 103 147 147 140 140 140 150 235 367
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
103 07.420 STOPPER; SUB SPR
EXC. DUMP CHASSIS(V4D) (A) 		8-97040-628-0 02 1 9312- ● ● ●
103 07.420 STOPPER; SUB SPR
EXC. DUMP CHASSIS(V4D) (B) 		8-97040-629-0 02 1 9312- ● ● ●
140 07.112 BRACKET; S/ABS,RR
(A) 		8-94258-104-1 01 1 9312- ● ● ●
140 07.112 BRACKET; S/ABS,RR
(A) 		8-94258-103-1 01 1 9312- ● ● ●
140 07.112 BRACKET; S/ABS,RR
EXC. DUMP CHASSIS(V4D) (B) 		8-97012-285-0 01 1 9312- ● ● ●
140 07.112 BRACKET; S/ABS,RR
EXC. DUMP CHASSIS(V4D) 07.395 (C) 		8-94101-303-0 01 1 9312- ● ● ●
147 07.535 RUBBER; SUB SPRING
EXC. DUMP CHASSIS(V4D) 		8-94119-958-1 04 1 9312- ● ● ●
150 03.616 BRACKET; EXH PIPE
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 		8-94388-181-0 01 1 9312- ●
173 07.112 STIFFENER; RR SPRING
4BE1 ENG(RLH),4HF1 ENG(RLS) (A) 		8-94372-324-1 02 1 9312-9606 ● ●
173 07.112 STIFFENER; RR SPRING
(A) 		8-94372-324-1 02 1 9607-9607 ●
173 07.112 STIFFENER; RR SPRING
4BE1 ENG(RLH),4HF1 ENG(RLS) (A) 		8-94372-324-1 02 1 9607-9607 ● ●
173 07.112 STIFFENER; RR SPRING
G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) (A) 		8-94372-324-1 02 1 9607-9711 ●
173 07.112 STIFFENER; RR SPRING
4BE1 ENG(RLH),4HF1 ENG(RLS) (A) 		8-94372-324-1 02 1 9607-9711 ● ●
173 07.112 STIFFENER; RR SPRING
4JG2 ENG(RJC),4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (A) 		8-94372-324-1 02 1 9712-9804 ●
173 07.112 STIFFENER; RR SPRING
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (A) 		8-94372-324-1 02 1 9712-9804 ●
173 07.112 STIFFENER; RR SPRING
4BE1 ENG(RLH),4HF1 ENG(RLS) (A) 		8-94372-324-1 02 1 9712-9804 ● ●
173 07.112 STIFFENER; RR SPRING
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-94372-324-1 02 1 9805- ●
173 07.112 STIFFENER; RR SPRING
4JG2 ENG(RJC) REAR WIDE TREAD(V4T) EURO2 SPECIFICATION<7AF> EXC. MANUAL TILT CAB<RWZ> (A) 		8-94372-324-1 02 1 9805- ●
173 07.112 STIFFENER; RR SPRING
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (A) 		8-94372-324-1 02 1 9805- ●
173 07.112 STIFFENER; RR SPRING
4BE1 ENG(RLH),4HF1 ENG(RLS) (A) 		8-94372-324-1 02 1 9805- ●
173 07.112 STIFFENER; RR SPRING
4BE1 ENG(RLH) (A) 		8-94372-324-1 02 1 9805- ●
173 07.112 STIFFENER; RR SPRING
4BE1 ENG(RLH),4HF1 ENG(RLS) (B) 		8-94408-191-0 01 1 9312-9606 ● ●
173 07.112 STIFFENER; RR SPRING
(B) 		8-94408-191-0 01 1 9607-9607 ●
173 07.112 STIFFENER; RR SPRING
4BE1 ENG(RLH),4HF1 ENG(RLS) (B) 		8-94408-191-0 01 1 9607-9607 ● ●
173 07.112 STIFFENER; RR SPRING
G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) (B) 		8-94408-191-0 01 1 9607-9711 ●
173 07.112 STIFFENER; RR SPRING
4BE1 ENG(RLH),4HF1 ENG(RLS) (B) 		8-94408-191-0 01 1 9607-9711 ● ●
173 07.112 STIFFENER; RR SPRING
4JG2 ENG(RJC),4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (B) 		8-94408-191-0 01 1 9712-9804 ●
173 07.112 STIFFENER; RR SPRING
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (B) 		8-94408-191-0 01 1 9712-9804 ●
173 07.112 STIFFENER; RR SPRING
4BE1 ENG(RLH),4HF1 ENG(RLS) (B) 		8-94408-191-0 01 1 9712-9804 ● ●
173 07.112 STIFFENER; RR SPRING
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (B) 		8-94408-191-0 01 1 9805- ●
173 07.112 STIFFENER; RR SPRING
4JG2 ENG(RJC) REAR WIDE TREAD(V4T) EURO2 SPECIFICATION<7AF> EXC. MANUAL TILT CAB<RWZ> (B) 		8-94408-191-0 01 1 9805- ●
173 07.112 STIFFENER; RR SPRING
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (B) 		8-94408-191-0 01 1 9805- ●
173 07.112 STIFFENER; RR SPRING
4BE1 ENG(RLH),4HF1 ENG(RLS) (B) 		8-94408-191-0 01 1 9805- ●
173 07.112 STIFFENER; RR SPRING
4BE1 ENG(RLH) (B) 		8-94408-191-0 01 1 9805- ●
173 07.112 STIFFENER; RR SPRING
4BE1 ENG(RLH),4HF1 ENG(RLS) (B) 		8-94403-508-1 01 1 9312-9606 ● ●
173 07.112 STIFFENER; RR SPRING
(B) 		8-94403-508-1 01 1 9607-9607 ●
173 07.112 STIFFENER; RR SPRING
4BE1 ENG(RLH),4HF1 ENG(RLS) (B) 		8-94403-508-1 01 1 9607-9607 ● ●
173 07.112 STIFFENER; RR SPRING
G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) (B) 		8-94403-508-1 01 1 9607-9711 ●
173 07.112 STIFFENER; RR SPRING
4BE1 ENG(RLH),4HF1 ENG(RLS) (B) 		8-94403-508-1 01 1 9607-9711 ● ●
173 07.112 STIFFENER; RR SPRING
4JG2 ENG(RJC),4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (B) 		8-94403-508-1 01 1 9712-9804 ●
173 07.112 STIFFENER; RR SPRING
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (B) 		8-94403-508-1 01 1 9712-9804 ●
173 07.112 STIFFENER; RR SPRING
4BE1 ENG(RLH),4HF1 ENG(RLS) (B) 		8-94403-508-1 01 1 9712-9804 ● ●
173 07.112 STIFFENER; RR SPRING
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (B) 		8-94403-508-1 01 1 9805- ●
173 07.112 STIFFENER; RR SPRING
4JG2 ENG(RJC) REAR WIDE TREAD(V4T) EURO2 SPECIFICATION<7AF> EXC. MANUAL TILT CAB<RWZ> (B) 		8-94403-508-1 01 1 9805- ●
173 07.112 STIFFENER; RR SPRING
4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) (B) 		8-94403-508-1 01 1 9805- ●
173 07.112 STIFFENER; RR SPRING
4BE1 ENG(RLH),4HF1 ENG(RLS) (B) 		8-94403-508-1 01 1 9805- ●
173 07.112 STIFFENER; RR SPRING
4BE1 ENG(RLH) (B) 		8-94403-508-1 01 1 9805- ●
188 07.039 BRACKET; SUPPORT,CTR BRG 8-97078-869-0 01 1 9312- ●
188 07.039 BRACKET; SUPPORT,CTR BRG 8-97035-996-0 01 1 9312- ●
235 07.039 BRACKET; COMB LAMP
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 		8-94115-653-4 02 1 9312- ●
367 07.039 CLOSING; RR
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 		8-97033-223-0 01 1 9312-9510 ●
367 07.039 CLOSING; RR
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 		8-97033-222-1 01 1 9312-9510 ●
çizim 69195
34 34 34 34 74 74 74 344 74 344 74 74 344 74 74 212 344
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97039-667-1 01 1 9507-9711 ●
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> (A) 		8-97039-667-1 01 1 9712- ●
34 07.012 MEMBER; CROSS,3RD
4JB1 ENG(RLF) (A) 		8-97039-670-1 01 1 9312-9510 ● ● ●
34 07.012 MEMBER; CROSS,3RD
4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> (A) 		8-97039-670-1 01 1 9511-9711 ● ●
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC),4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97039-670-1 01 1 9511-9711 ● ●
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC),4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97039-670-1 01 1 9712-9804 ●
34 07.012 MEMBER; CROSS,3RD
(A) 		8-97039-670-1 01 1 9712-9804 ●
34 07.012 MEMBER; CROSS,3RD
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRONT STABILIZER SHAFT<F59> (A) 		8-97039-670-1 01 1 9712-9804 ●
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97039-670-1 01 1 9805- ●
34 07.012 MEMBER; CROSS,3RD
(A) 		8-97039-670-1 01 1 9805- ●
34 07.012 MEMBER; CROSS,3RD
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> EXC. FRONT STABILIZER SHAFT<F59> (A) 		8-97039-670-1 01 1 9805- ●
34 07.012 MEMBER; CROSS,3RD
FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97039-668-1 01 1 9312-9406 ● ●
34 07.012 MEMBER; CROSS,3RD
DUMP CHASSIS(V4D) (C) 		8-97039-668-1 01 1 9312-9406 ●
34 07.012 MEMBER; CROSS,3RD
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97039-668-1 01 1 9407-9510 ● ●
34 07.012 MEMBER; CROSS,3RD
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97039-668-1 01 1 9511-9711 ●
34 07.012 MEMBER; CROSS,3RD
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97072-553-0 01 1 9312-9711 ● ●
34 07.012 MEMBER; CROSS,3RD
4BE1 ENG(RLH),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97072-553-0 01 1 9712- ● ●
34 07.012 MEMBER; CROSS,3RD
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (D) 		8-97033-226-5 01 1 9312- ●
34 07.012 MEMBER; CROSS,3RD
4JB1 ENG(RLF) (A) 		8-97047-769-2 01 1 9312-9408 ● ● ●
34 07.012 MEMBER; CROSS,3RD
4JB1 ENG(RLF) (A) 		8-97115-578-0 01 1 9409-9606 ● ● ●
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97115-578-0 01 1 9607-9804 ● ● ●
34 07.012 MEMBER; CROSS,3RD
4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (A) 		8-97115-578-0 01 1 9805- ●
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC) REAR WIDE TREAD(V4T) EURO2 SPECIFICATION<7AF> EXC. MANUAL TILT CAB<RWZ> (A) 		8-97115-578-0 01 1 9805- ●
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97115-578-0 01 1 9805- ●
34 07.012 MEMBER; CROSS,3RD
4JG2 ENG(RJC) (A) 		8-97115-578-0 01 1 9805- ●
34 07.012 MEMBER; CROSS,3RD
4BE1 ENG(RLH) (B) 		8-97047-768-1 01 1 9312-9510 ● ●
34 07.012 MEMBER; CROSS,3RD
4BE1 ENG(RLH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-97047-768-0 01 1 9511-9711 ●
34 07.012 MEMBER; CROSS,3RD
4BE1 ENG(RLH) (B) 		8-97047-768-0 01 1 9511-9711 ●
34 07.012 MEMBER; CROSS,3RD
4BE1 ENG(RLH),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) (B) 		8-97047-768-1 01 1 9712- ● ●
34 07.012 MEMBER; CROSS,3RD
4BE1 ENG(RLH),4HF1 ENG(RLS) (B) 		8-97039-671-1 01 1 9312- ●
74 07.039 GUSSET; 4TH C/MBR
(A) 		8-94258-075-3 02 1 9312- ● ●
74 07.039 GUSSET; 4TH C/MBR
EXC. DUMP CHASSIS(V4D) (B) 		8-97062-499-0 02 1 9312- ● ●
74 07.039 GUSSET; 4TH C/MBR
EXC. DUMP CHASSIS(V4D) (B) 		8-97062-500-0 02 1 9312- ● ●
74 07.039 GUSSET; 4TH C/MBR
(D) RH-UPPER, LH-LOWER 		8-97101-837-0 02 1 9312- ●
74 07.039 GUSSET; 4TH C/MBR
(D) RH-LOWER, LH-UPPER 		8-97101-838-0 02 1 9312- ●
74 07.039 GUSSET; 4TH C/MBR
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> (C) RH UPPER,LH LOWER 		8-97083-107-1 02 1 9312-9403 ●
74 07.039 GUSSET; 4TH C/MBR
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> (C) RH LOWER,LH UPPER 		8-97083-108-1 02 1 9312-9403 ●
74 07.039 GUSSET; 4TH C/MBR
(E) 		8-97101-840-0 01 1 9312- ●
74 07.039 GUSSET; 4TH C/MBR
(E) 		8-97101-839-0 01 1 9312- ●
212 03.704 BRACKET; EXH SILENCER
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 		8-97034-037-1 01 1 9312- ●
344 07.012 MEMBER; CROSS,4TH
(A) 		8-97040-622-2 01 1 9312-9403 ● ●
344 07.012 MEMBER; CROSS,4TH
4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> (A) 		8-97040-622-2 01 1 9404-9407 ●
344 07.012 MEMBER; CROSS,4TH
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> (A) 		8-97040-622-2 01 1 9404-9407 ●
344 07.012 MEMBER; CROSS,4TH
(A) 		8-97040-622-2 01 1 9404-9407 ●
344 07.012 MEMBER; CROSS,4TH
4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> (A) 		8-97040-622-2 01 1 9408-9711 ● ●
344 07.012 MEMBER; CROSS,4TH
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97040-622-2 01 1 9408-9711 ●
344 07.012 MEMBER; CROSS,4TH
4BE1 ENG(RLH),4HF1 ENG(RLS) (A) 		8-97040-622-2 01 1 9712- ●
344 07.012 MEMBER; CROSS,4TH
(A) 		8-97040-622-2 01 1 9712- ●
344 07.012 MEMBER; CROSS,4TH
EXC. DUMP CHASSIS(V4D) (B) 		8-97076-794-2 01 1 9312-9510 ●
344 07.012 MEMBER; CROSS,4TH
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-97076-794-2 01 1 9511-9601 ●
344 07.012 MEMBER; CROSS,4TH
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (C) 		8-97086-151-1 01 1 9312- ●
344 07.012 MEMBER; CROSS,4TH
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (B) 		8-97062-497-3 01 1 9404-9601 ●
344 07.012 MEMBER; CROSS,4TH
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-97062-497-3 01 1 9602-9607 ●
344 07.012 MEMBER; CROSS,4TH
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. MANUAL TILT CAB<RWZ> (B) 		8-97062-497-3 01 1 9607-9711 ● ●
344 07.012 MEMBER; CROSS,4TH
EXC. DUMP CHASSIS(V4D) (B) 		8-97062-497-3 01 1 9712- ●
344 07.012 MEMBER; CROSS,4TH
(D) 		8-97078-707-2 01 1 9312-9402 ●
344 07.012 MEMBER; CROSS,4TH
4JB1 ENG(RLF),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> (D) 		8-97078-707-2 01 1 9403-9403 ●
344 07.012 MEMBER; CROSS,4TH
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> (D) 		8-97078-707-2 01 1 9403-9403 ●
344 07.012 MEMBER; CROSS,4TH
(D) 		8-97078-707-3 01 1 9404- ●
344 07.012 MEMBER; CROSS,4TH
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> (E) 		8-97074-011-4 01 1 9312-9403 ●
344 07.012 MEMBER; CROSS,4TH
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (A) 		8-97081-061-2 01 1 9404-9407 ●
344 07.012 MEMBER; CROSS,4TH
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97081-061-2 01 1 9408-9506 ●
344 07.012 MEMBER; CROSS,4TH
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (A) 		8-97081-061-2 01 1 9408-9506 ●
344 07.012 MEMBER; CROSS,4TH
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (A) 		8-97081-061-2 01 1 9507-9510 ●
344 07.012 MEMBER; CROSS,4TH
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97081-061-2 01 1 9507-9510 ●
344 07.012 MEMBER; CROSS,4TH
4JG2 ENG(RJC),4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (A) 		8-97081-061-2 01 1 9511-9804 ●
344 07.012 MEMBER; CROSS,4TH
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 		8-97081-061-2 01 1 9805- ●
344 07.012 MEMBER; CROSS,4TH
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97081-061-2 01 1 9805- ●
344 07.012 MEMBER; CROSS,4TH
(E) 		8-97101-836-0 01 1 9312- ●
344 07.012 MEMBER; CROSS,4TH
(F) 		8-97062-502-2 01 1 9312-9407 ●
344 07.012 MEMBER; CROSS,4TH
EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97062-502-2 01 1 9408-9510 ●
344 07.012 MEMBER; CROSS,4TH
(F) 		8-97062-502-2 01 1 9511-9601 ●
344 07.012 MEMBER; CROSS,4TH
(F) 		8-97076-793-2 01 1 9602- ●
344 07.012 MEMBER; CROSS,4TH
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97076-793-2 01 1 9408-9510 ●
çizim 69196
74 74 74 74 344 344 75 75 75 75 345 345 75 75 345 345 198 198 137 139 130 130
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
74 07.039 GUSSET; 4TH C/MBR
(A) 		8-94258-075-3 02 1 9312- ● ●
74 07.039 GUSSET; 4TH C/MBR
EXC. DUMP CHASSIS(V4D) (B) 		8-97062-499-0 02 1 9312- ● ●
74 07.039 GUSSET; 4TH C/MBR
EXC. DUMP CHASSIS(V4D) (B) 		8-97062-500-0 02 1 9312- ● ●
74 07.039 GUSSET; 4TH C/MBR
(D) RH-UPPER, LH-LOWER 		8-97101-837-0 02 1 9312- ●
74 07.039 GUSSET; 4TH C/MBR
(D) RH-LOWER, LH-UPPER 		8-97101-838-0 02 1 9312- ●
74 07.039 GUSSET; 4TH C/MBR
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> (C) RH UPPER,LH LOWER 		8-97083-107-1 02 1 9312-9403 ●
74 07.039 GUSSET; 4TH C/MBR
4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> (C) RH LOWER,LH UPPER 		8-97083-108-1 02 1 9312-9403 ●
74 07.039 GUSSET; 4TH C/MBR
(E) 		8-97101-840-0 01 1 9312- ●
74 07.039 GUSSET; 4TH C/MBR
(E) 		8-97101-839-0 01 1 9312- ●
75 07.039 GUSSET; 5TH C/MBR
(B) 		8-94258-081-1 02 1 9312- ● ● ●
75 07.039 GUSSET; 5TH C/MBR
EXC. DUMP CHASSIS(V4D) (A) 		8-97062-499-0 02 1 9312- ● ● ●
75 07.039 GUSSET; 5TH C/MBR
EXC. DUMP CHASSIS(V4D) (A) 		8-97062-500-0 02 1 9312- ● ● ●
130 07.014 MEMBER; CROSS,END
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (A) 		8-94388-995-3 01 1 9312- ●
130 07.014 MEMBER; CROSS,END
(B) 		8-94257-620-2 01 1 9312- ● ●
137 07.629 BRACKET; SPARE TIRE 8-97076-885-0 01 1 9312-9801 ● ●
137 07.629 BRACKET; SPARE TIRE
AUSTRALIA EQUIPMENT(RR3) REAR WIDE TREAD(V4T) 		8-97076-885-0 01 1 9802-9804 ●
137 07.629 BRACKET; SPARE TIRE
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> 		8-97076-885-0 01 1 9802-9804 ●
137 07.629 BRACKET; SPARE TIRE
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> 		8-97076-885-0 01 1 9802-9804 ●
137 07.629 BRACKET; SPARE TIRE
4BE1 ENG(RLH),4HF1 ENG(RLS) 		8-97076-885-0 01 1 9802-9804 ●
137 07.629 BRACKET; SPARE TIRE
4JG2 ENG(RJC),4BE1 ENG(RLH) 		8-97076-885-0 01 1 9802-9804 ●
137 07.629 BRACKET; SPARE TIRE
AUSTRALIA EQUIPMENT(RR3) REAR WIDE TREAD(V4T) 		8-97076-885-0 01 1 9805- ●
137 07.629 BRACKET; SPARE TIRE 8-97076-885-0 01 1 9805- ●
137 07.629 BRACKET; SPARE TIRE
4JG2 ENG(RJC),4BE1 ENG(RLH) 		8-97076-885-0 01 1 9805- ●
139 07.012 MEMBER; CROSS,6TH 8-97062-498-1 01 1 9312- ● ●
198 07.039 GUSSET; 6TH C/MBR 8-97062-499-0 02 1 9312- ● ●
198 07.039 GUSSET; 6TH C/MBR 8-97062-500-0 02 1 9312- ● ●
344 07.012 MEMBER; CROSS,4TH
(A) 		8-97040-622-2 01 1 9312-9403 ● ●
344 07.012 MEMBER; CROSS,4TH
4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> (A) 		8-97040-622-2 01 1 9404-9407 ●
344 07.012 MEMBER; CROSS,4TH
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> (A) 		8-97040-622-2 01 1 9404-9407 ●
344 07.012 MEMBER; CROSS,4TH
(A) 		8-97040-622-2 01 1 9404-9407 ●
344 07.012 MEMBER; CROSS,4TH
4JB1 ENG(RLF) EXC. MANUAL TILT CAB<RWZ> (A) 		8-97040-622-2 01 1 9408-9711 ● ●
344 07.012 MEMBER; CROSS,4TH
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97040-622-2 01 1 9408-9711 ●
344 07.012 MEMBER; CROSS,4TH
4BE1 ENG(RLH),4HF1 ENG(RLS) (A) 		8-97040-622-2 01 1 9712- ●
344 07.012 MEMBER; CROSS,4TH
(A) 		8-97040-622-2 01 1 9712- ●
344 07.012 MEMBER; CROSS,4TH
EXC. DUMP CHASSIS(V4D) (B) 		8-97076-794-2 01 1 9312-9510 ●
344 07.012 MEMBER; CROSS,4TH
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-97076-794-2 01 1 9511-9601 ●
344 07.012 MEMBER; CROSS,4TH
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (C) 		8-97086-151-1 01 1 9312- ●
344 07.012 MEMBER; CROSS,4TH
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (B) 		8-97062-497-3 01 1 9404-9601 ●
344 07.012 MEMBER; CROSS,4TH
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-97062-497-3 01 1 9602-9607 ●
344 07.012 MEMBER; CROSS,4TH
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. MANUAL TILT CAB<RWZ> (B) 		8-97062-497-3 01 1 9607-9711 ● ●
344 07.012 MEMBER; CROSS,4TH
EXC. DUMP CHASSIS(V4D) (B) 		8-97062-497-3 01 1 9712- ●
344 07.012 MEMBER; CROSS,4TH
(D) 		8-97078-707-2 01 1 9312-9402 ●
344 07.012 MEMBER; CROSS,4TH
4JB1 ENG(RLF),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> (D) 		8-97078-707-2 01 1 9403-9403 ●
344 07.012 MEMBER; CROSS,4TH
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. MANUAL TILT CAB<RWZ> (D) 		8-97078-707-2 01 1 9403-9403 ●
344 07.012 MEMBER; CROSS,4TH
(D) 		8-97078-707-3 01 1 9404- ●
344 07.012 MEMBER; CROSS,4TH
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> (E) 		8-97074-011-4 01 1 9312-9403 ●
344 07.012 MEMBER; CROSS,4TH
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (A) 		8-97081-061-2 01 1 9404-9407 ●
344 07.012 MEMBER; CROSS,4TH
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97081-061-2 01 1 9408-9506 ●
344 07.012 MEMBER; CROSS,4TH
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (A) 		8-97081-061-2 01 1 9408-9506 ●
344 07.012 MEMBER; CROSS,4TH
4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (A) 		8-97081-061-2 01 1 9507-9510 ●
344 07.012 MEMBER; CROSS,4TH
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97081-061-2 01 1 9507-9510 ●
344 07.012 MEMBER; CROSS,4TH
4JG2 ENG(RJC),4JB1 ENG(RLF) MANUAL TILT CAB<RWZ> (A) 		8-97081-061-2 01 1 9511-9804 ●
344 07.012 MEMBER; CROSS,4TH
4JG2 ENG(RJC) MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EURO2 SPECIFICATION<7AF> 		8-97081-061-2 01 1 9805- ●
344 07.012 MEMBER; CROSS,4TH
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97081-061-2 01 1 9805- ●
344 07.012 MEMBER; CROSS,4TH
(E) 		8-97101-836-0 01 1 9312- ●
344 07.012 MEMBER; CROSS,4TH
(F) 		8-97062-502-2 01 1 9312-9407 ●
344 07.012 MEMBER; CROSS,4TH
EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97062-502-2 01 1 9408-9510 ●
344 07.012 MEMBER; CROSS,4TH
(F) 		8-97062-502-2 01 1 9511-9601 ●
344 07.012 MEMBER; CROSS,4TH
(F) 		8-97076-793-2 01 1 9602- ●
344 07.012 MEMBER; CROSS,4TH
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97076-793-2 01 1 9408-9510 ●
345 07.012 MEMBER; CROSS,5TH
(A) 		8-97045-542-2 01 1 9312- ● ● ●
345 07.012 MEMBER; CROSS,5TH
EXC. DUMP CHASSIS(V4D) (B) 		8-97062-498-0 01 1 9312-9510 ●
345 07.012 MEMBER; CROSS,5TH
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) 		8-97062-498-1 01 1 9511-9607 ●
345 07.012 MEMBER; CROSS,5TH
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. MANUAL TILT CAB<RWZ> (B) 		8-97062-498-1 01 1 9607-9711 ● ●
345 07.012 MEMBER; CROSS,5TH
EXC. DUMP CHASSIS(V4D) (B) 		8-97062-498-1 01 1 9712- ●
345 07.012 MEMBER; CROSS,5TH
4BE1 ENG(RLH) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (C) 		8-97033-229-1 01 1 9312- ●
345 07.012 MEMBER; CROSS,5TH
(D) 		8-97062-497-3 01 1 9312- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
