◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶

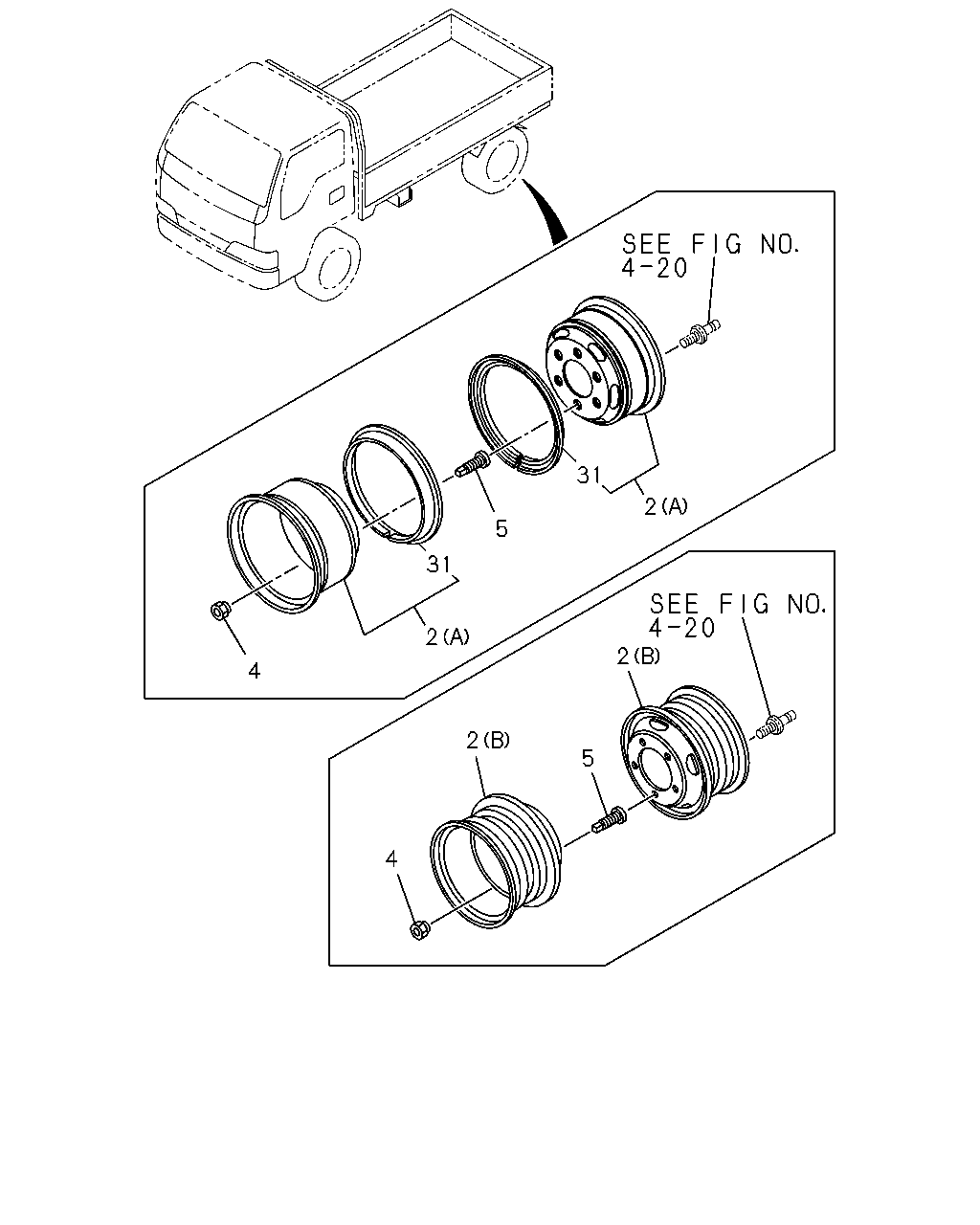

4-80 — ROAD WHEEL (#47750) — 368 parça
çizim 16891
3 31 2 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 05.803 WHEEL; DISC
(ATB) (B) 5.5JX16 OFFSET=85 6-HOLE 		8-97162-604-0 05 1 9608- ●
2 05.803 WHEEL; DISC
(09V),(22H),(23H),(45C) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9508-9510 ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9508-9510 ●
2 05.803 WHEEL; DISC
(37H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9508-9510 ●
2 05.803 WHEEL; DISC
(09V),(22H),(23H),(45C) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9511- ●
2 05.803 WHEEL; DISC
(09V) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9511- ●
2 05.803 WHEEL; DISC
(37H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9511- ●
2 05.803 WHEEL; DISC
(23H),(45C) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 05 1 9312-9507 ●
2 05.803 WHEEL; DISC
(23H),(45C) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 9508- ●
2 05.803 WHEEL; DISC
(9YT),(9YU) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 05 1 9312-9506 ●
2 05.803 WHEEL; DISC
(9YT),(9YU),(9YW) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 05 1 9507- ●
2 05.803 WHEEL; DISC
(9YW) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 05 1 9511-9511 ●
2 05.803 WHEEL; DISC
(ARX) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 05 1 9512-9603 ●
2 05.803 WHEEL; DISC
(ARX),(ASY) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 05 1 9604-9612 ●
2 05.803 WHEEL; DISC
(ARX) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 05 1 9701- ●
2 05.803 WHEEL; DISC
(90C) (A) 5.0FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 05 1 9312-9603 ●
2 05.803 WHEEL; DISC
(ASD),(90C) (A) 5.0FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 05 1 9604-9711 ●
2 05.803 WHEEL; DISC
(ASD) (A) 5.0FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 05 1 9712- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85 (AYX) 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 05 1 9808- ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 03 1 9312-9507 ● ●
2 05.803 WHEEL; DISC
(09V),(22H),(46C),(92H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508-9510 ● ●
2 05.803 WHEEL; DISC
(09V),(22H),(25H),(26H),(29H),(31H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508-9510 ● ●
2 05.803 WHEEL; DISC
(37H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508-9510 ●
2 05.803 WHEEL; DISC
(09V),(22H),(31H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9511- ● ●
2 05.803 WHEEL; DISC
(09V),(22H),(25H),(26H),(29H),(46C), (92H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9511- ● ●
2 05.803 WHEEL; DISC
(37H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9511- ●
2 05.803 WHEEL; DISC
(10V) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9312-9507 ● ●
2 05.803 WHEEL; DISC
(10V),(25H),(26H) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(10V),(29H) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(10V),(26H) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(10V),(25H),(29H),(31H),(46C),(92H) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(10V),(25H),(26H),(29H),(31H),(46C), (92H) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 03 1 9312-9507 ● ●
2 05.803 WHEEL; DISC
(10V),(25H),(26H),(29H),(31H),(46C), (92H) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 9508- ● ●
2 05.803 WHEEL; DISC
(09V),(22H),(25H),(26H),(29H),(31H), (37H),(46C),(92H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9312-9507 ● ● ●
2 05.803 WHEEL; DISC
(37H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9312-9507 ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) (A) 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 07 1 9312-9402 ● ● ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (98H) (A) 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 07 1 9403-9502 ● ● ●
2 05.803 WHEEL; DISC
(AQE),(06H),(07H),(08V),(50C),(94H), (95H),(98H) (A) 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 07 1 9503-9507 ● ● ●
2 05.803 WHEEL; DISC
(AQE),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 07 1 9508-9603 ● ● ●
2 05.803 WHEEL; DISC
(AQE),(ASE),(06H),(07H),(08V),(50C), (94H),(95H),(96H),(98H) (A) 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 07 1 9604- ● ● ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 07 1 9312- ● ● ●
2 05.803 WHEEL; DISC
(9HE) (B) 5.5X16 OFFSET=116.5 BLACK 5-HOLE 		8-97070-539-1 07 1 9712- ● ● ●
2 05.803 WHEEL; DISC
(12H) (A) 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 07 1 9403-9502 ●
2 05.803 WHEEL; DISC
(37H) (B) 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-1 05 1 9312-9507 ●
2 05.803 WHEEL; DISC
(37H) (B) 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-1 05 1 9508-9711 ●
2 05.803 WHEEL; DISC
(37H) (B) 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 05 1 9712- ●
2 05.803 WHEEL; DISC
(9YV) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 03 1 9312-9510 ●
2 05.803 WHEEL; DISC
(91C) (B) 5.0JX14 OFFSET=104 BLACK 6-HOLE 		8-94135-594-1 05 1 9312- ●
2 05.803 WHEEL; DISC
(91C) (A) 5.0FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 03 1 9312- ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 LH THREAD 		5-42334-002-0 06 1 9312- ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 RH THREAD 		5-42333-008-0 06 1 9312- ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-94365-148-0 05 1 9312- ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-94365-147-0 05 1 9312- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(23H),(45C) 15X5.50F STAMP, BLACK 		8-94135-599-0 05 1 9312- ●
31 05.839 RING; SIDE,DISC WHEEL
(9YT),(9YU),(90C) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9312-9506 ●
31 05.839 RING; SIDE,DISC WHEEL
(9YT),(9YU),(9YW),(90C) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9507-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(9YW),(90C) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9511-9511 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(90C) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9512-9603 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(ASD),(ASY),(90C) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9604-9612 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(ASD),(90C) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9701-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(ASD) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9712- ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H) 15X5.50F STAMP, BLACK 		8-94135-599-0 03 1 9312-9507 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(46C),(92H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9510 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(25H),(26H),(29H),(31H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9510 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(31H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9511- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(25H),(26H),(29H),(46C), (92H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9511- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9511- ●
31 05.839 RING; SIDE,DISC WHEEL
(10V) 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 9312- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(10V),(25H),(26H),(29H),(31H),(46C), (92H) 15X6.00GS STAMP, BLACK 		8-94135-600-0 03 1 9312- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(25H),(26H),(29H),(31H), (37H),(46C),(92H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9312-9507 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(23H),(45C) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9508-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9508-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9508-9510 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9508-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(23H),(45C) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9511- ●
31 05.839 RING; SIDE,DISC WHEEL
(09V) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9511- ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9511- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9511- ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 07 1 9312-9402 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 07 1 9403-9502 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AQE),(06H),(07H),(08V),(50C),(94H), (95H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 07 1 9503-9510 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AQE),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 07 1 9511-9603 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AQE),(ASE),(06H),(07H),(08V),(50C), (94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 07 1 9604- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 07 1 9312-9507 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 9508- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(12H) 16X6.00GS STAMP, BLACK 		8-94135-602-0 07 1 9403-9502 ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9312-9507 ●
31 05.839 RING; SIDE,DISC WHEEL
(9YV),(91C) 16X5.50F STAMP, BLACK 		8-94135-601-0 03 1 9312-9406 ●
31 05.839 RING; SIDE,DISC WHEEL
(9YV),(91C) 16X5.50F STAMP, BLACK 		8-94135-601-0 03 1 9407-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(91C) 16X5.50F STAMP, BLACK 		8-94135-601-0 03 1 9511- ●
çizim 16892
31 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 05.803 WHEEL; DISC
(ATB) (B) 5.5JX16 OFFSET=85 6-HOLE 		8-97162-604-0 05 1 9608- ●
2 05.803 WHEEL; DISC
(09V),(22H),(23H),(45C) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9508-9510 ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9508-9510 ●
2 05.803 WHEEL; DISC
(37H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9508-9510 ●
2 05.803 WHEEL; DISC
(09V),(22H),(23H),(45C) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9511- ●
2 05.803 WHEEL; DISC
(09V) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9511- ●
2 05.803 WHEEL; DISC
(37H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9511- ●
2 05.803 WHEEL; DISC
(23H),(45C) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 05 1 9312-9507 ●
2 05.803 WHEEL; DISC
(23H),(45C) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 9508- ●
2 05.803 WHEEL; DISC
(9YT),(9YU) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 05 1 9312-9506 ●
2 05.803 WHEEL; DISC
(9YT),(9YU),(9YW) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 05 1 9507- ●
2 05.803 WHEEL; DISC
(9YW) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 05 1 9511-9511 ●
2 05.803 WHEEL; DISC
(ARX) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 05 1 9512-9603 ●
2 05.803 WHEEL; DISC
(ARX),(ASY) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 05 1 9604-9612 ●
2 05.803 WHEEL; DISC
(ARX) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 05 1 9701- ●
2 05.803 WHEEL; DISC
(90C) (A) 5.0FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 05 1 9312-9603 ●
2 05.803 WHEEL; DISC
(ASD),(90C) (A) 5.0FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 05 1 9604-9711 ●
2 05.803 WHEEL; DISC
(ASD) (A) 5.0FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 05 1 9712- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85 (AYX) 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 05 1 9808- ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 03 1 9312-9507 ● ●
2 05.803 WHEEL; DISC
(09V),(22H),(46C),(92H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508-9510 ● ●
2 05.803 WHEEL; DISC
(09V),(22H),(25H),(26H),(29H),(31H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508-9510 ● ●
2 05.803 WHEEL; DISC
(37H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508-9510 ●
2 05.803 WHEEL; DISC
(09V),(22H),(31H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9511- ● ●
2 05.803 WHEEL; DISC
(09V),(22H),(25H),(26H),(29H),(46C), (92H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9511- ● ●
2 05.803 WHEEL; DISC
(37H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9511- ●
2 05.803 WHEEL; DISC
(10V) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9312-9507 ● ●
2 05.803 WHEEL; DISC
(10V),(25H),(26H) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(10V),(29H) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(10V),(26H) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(10V),(25H),(29H),(31H),(46C),(92H) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(10V),(25H),(26H),(29H),(31H),(46C), (92H) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 03 1 9312-9507 ● ●
2 05.803 WHEEL; DISC
(10V),(25H),(26H),(29H),(31H),(46C), (92H) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 9508- ● ●
2 05.803 WHEEL; DISC
(09V),(22H),(25H),(26H),(29H),(31H), (37H),(46C),(92H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9312-9507 ● ● ●
2 05.803 WHEEL; DISC
(37H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9312-9507 ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) (A) 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 07 1 9312-9402 ● ● ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (98H) (A) 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 07 1 9403-9502 ● ● ●
2 05.803 WHEEL; DISC
(AQE),(06H),(07H),(08V),(50C),(94H), (95H),(98H) (A) 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 07 1 9503-9507 ● ● ●
2 05.803 WHEEL; DISC
(AQE),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 07 1 9508-9603 ● ● ●
2 05.803 WHEEL; DISC
(AQE),(ASE),(06H),(07H),(08V),(50C), (94H),(95H),(96H),(98H) (A) 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 07 1 9604- ● ● ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 07 1 9312- ● ● ●
2 05.803 WHEEL; DISC
(9HE) (B) 5.5X16 OFFSET=116.5 BLACK 5-HOLE 		8-97070-539-1 07 1 9712- ● ● ●
2 05.803 WHEEL; DISC
(12H) (A) 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 07 1 9403-9502 ●
2 05.803 WHEEL; DISC
(37H) (B) 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-1 05 1 9312-9507 ●
2 05.803 WHEEL; DISC
(37H) (B) 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-1 05 1 9508-9711 ●
2 05.803 WHEEL; DISC
(37H) (B) 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 05 1 9712- ●
2 05.803 WHEEL; DISC
(9YV) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 03 1 9312-9510 ●
2 05.803 WHEEL; DISC
(91C) (B) 5.0JX14 OFFSET=104 BLACK 6-HOLE 		8-94135-594-1 05 1 9312- ●
2 05.803 WHEEL; DISC
(91C) (A) 5.0FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 03 1 9312- ●
31 05.839 RING; SIDE,DISC WHEEL
(23H),(45C) 15X5.50F STAMP, BLACK 		8-94135-599-0 05 1 9312- ●
31 05.839 RING; SIDE,DISC WHEEL
(9YT),(9YU),(90C) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9312-9506 ●
31 05.839 RING; SIDE,DISC WHEEL
(9YT),(9YU),(9YW),(90C) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9507-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(9YW),(90C) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9511-9511 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(90C) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9512-9603 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(ASD),(ASY),(90C) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9604-9612 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(ASD),(90C) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9701-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(ASD) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9712- ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H) 15X5.50F STAMP, BLACK 		8-94135-599-0 03 1 9312-9507 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(46C),(92H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9510 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(25H),(26H),(29H),(31H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9510 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(31H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9511- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(25H),(26H),(29H),(46C), (92H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9511- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9511- ●
31 05.839 RING; SIDE,DISC WHEEL
(10V) 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 9312- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(10V),(25H),(26H),(29H),(31H),(46C), (92H) 15X6.00GS STAMP, BLACK 		8-94135-600-0 03 1 9312- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(25H),(26H),(29H),(31H), (37H),(46C),(92H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9312-9507 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(23H),(45C) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9508-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9508-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9508-9510 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9508-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(23H),(45C) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9511- ●
31 05.839 RING; SIDE,DISC WHEEL
(09V) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9511- ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9511- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9511- ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 07 1 9312-9402 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 07 1 9403-9502 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AQE),(06H),(07H),(08V),(50C),(94H), (95H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 07 1 9503-9510 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AQE),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 07 1 9511-9603 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AQE),(ASE),(06H),(07H),(08V),(50C), (94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 07 1 9604- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 07 1 9312-9507 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 9508- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(12H) 16X6.00GS STAMP, BLACK 		8-94135-602-0 07 1 9403-9502 ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9312-9507 ●
31 05.839 RING; SIDE,DISC WHEEL
(9YV),(91C) 16X5.50F STAMP, BLACK 		8-94135-601-0 03 1 9312-9406 ●
31 05.839 RING; SIDE,DISC WHEEL
(9YV),(91C) 16X5.50F STAMP, BLACK 		8-94135-601-0 03 1 9407-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(91C) 16X5.50F STAMP, BLACK 		8-94135-601-0 03 1 9511- ●
çizim 68842
31 2 5 31 2 2 4 2 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 05.803 WHEEL; DISC
(ATB) (B) 5.5JX16 OFFSET=85 6-HOLE 		8-97162-604-0 05 1 9608- ●
2 05.803 WHEEL; DISC
(09V),(22H),(23H),(45C) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9508-9510 ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9508-9510 ●
2 05.803 WHEEL; DISC
(37H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9508-9510 ●
2 05.803 WHEEL; DISC
(09V),(22H),(23H),(45C) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9511- ●
2 05.803 WHEEL; DISC
(09V) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9511- ●
2 05.803 WHEEL; DISC
(37H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9511- ●
2 05.803 WHEEL; DISC
(23H),(45C) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 05 1 9312-9507 ●
2 05.803 WHEEL; DISC
(23H),(45C) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 9508- ●
2 05.803 WHEEL; DISC
(9YT),(9YU) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 05 1 9312-9506 ●
2 05.803 WHEEL; DISC
(9YT),(9YU),(9YW) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 05 1 9507- ●
2 05.803 WHEEL; DISC
(9YW) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 05 1 9511-9511 ●
2 05.803 WHEEL; DISC
(ARX) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 05 1 9512-9603 ●
2 05.803 WHEEL; DISC
(ARX),(ASY) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 05 1 9604-9612 ●
2 05.803 WHEEL; DISC
(ARX) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 05 1 9701- ●
2 05.803 WHEEL; DISC
(90C) (A) 5.0FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 05 1 9312-9603 ●
2 05.803 WHEEL; DISC
(ASD),(90C) (A) 5.0FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 05 1 9604-9711 ●
2 05.803 WHEEL; DISC
(ASD) (A) 5.0FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 05 1 9712- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85 (AYX) 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 05 1 9808- ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 03 1 9312-9507 ● ●
2 05.803 WHEEL; DISC
(09V),(22H),(46C),(92H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508-9510 ● ●
2 05.803 WHEEL; DISC
(09V),(22H),(25H),(26H),(29H),(31H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508-9510 ● ●
2 05.803 WHEEL; DISC
(37H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508-9510 ●
2 05.803 WHEEL; DISC
(09V),(22H),(31H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9511- ● ●
2 05.803 WHEEL; DISC
(09V),(22H),(25H),(26H),(29H),(46C), (92H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9511- ● ●
2 05.803 WHEEL; DISC
(37H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9511- ●
2 05.803 WHEEL; DISC
(10V) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9312-9507 ● ●
2 05.803 WHEEL; DISC
(10V),(25H),(26H) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(10V),(29H) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(10V),(26H) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(10V),(25H),(29H),(31H),(46C),(92H) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(10V),(25H),(26H),(29H),(31H),(46C), (92H) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 03 1 9312-9507 ● ●
2 05.803 WHEEL; DISC
(10V),(25H),(26H),(29H),(31H),(46C), (92H) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 9508- ● ●
2 05.803 WHEEL; DISC
(09V),(22H),(25H),(26H),(29H),(31H), (37H),(46C),(92H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9312-9507 ● ● ●
2 05.803 WHEEL; DISC
(37H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9312-9507 ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) (A) 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 07 1 9312-9402 ● ● ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (98H) (A) 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 07 1 9403-9502 ● ● ●
2 05.803 WHEEL; DISC
(AQE),(06H),(07H),(08V),(50C),(94H), (95H),(98H) (A) 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 07 1 9503-9507 ● ● ●
2 05.803 WHEEL; DISC
(AQE),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 07 1 9508-9603 ● ● ●
2 05.803 WHEEL; DISC
(AQE),(ASE),(06H),(07H),(08V),(50C), (94H),(95H),(96H),(98H) (A) 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 07 1 9604- ● ● ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 07 1 9312- ● ● ●
2 05.803 WHEEL; DISC
(9HE) (B) 5.5X16 OFFSET=116.5 BLACK 5-HOLE 		8-97070-539-1 07 1 9712- ● ● ●
2 05.803 WHEEL; DISC
(12H) (A) 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 07 1 9403-9502 ●
2 05.803 WHEEL; DISC
(37H) (B) 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-1 05 1 9312-9507 ●
2 05.803 WHEEL; DISC
(37H) (B) 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-1 05 1 9508-9711 ●
2 05.803 WHEEL; DISC
(37H) (B) 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 05 1 9712- ●
2 05.803 WHEEL; DISC
(9YV) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 03 1 9312-9510 ●
2 05.803 WHEEL; DISC
(91C) (B) 5.0JX14 OFFSET=104 BLACK 6-HOLE 		8-94135-594-1 05 1 9312- ●
2 05.803 WHEEL; DISC
(91C) (A) 5.0FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 03 1 9312- ●
4 05.813 NUT; WHEEL,RR AXLE
M14 LH THREAD 		5-42334-002-0 06 1 9312- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M14 RH THREAD 		5-42333-008-0 06 1 9312- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-94365-146-0 05 1 9312- ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-94365-145-0 05 1 9312- ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M25 LH THREAD 		9-42334-009-0 06 1 9312- ●
4 05.813 NUT; WHEEL,RR AXLE
M25 RH THREAD 		9-42333-015-0 06 1 9312- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD 		8-94365-144-1 05 1 9312- ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD 		8-94365-143-1 05 1 9312- ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 LH THREAD 		5-42336-001-1 06 1 9312- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 RH THREAD 		5-42335-001-1 06 1 9312- ●
31 05.839 RING; SIDE,DISC WHEEL
(23H),(45C) 15X5.50F STAMP, BLACK 		8-94135-599-0 05 1 9312- ●
31 05.839 RING; SIDE,DISC WHEEL
(9YT),(9YU),(90C) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9312-9506 ●
31 05.839 RING; SIDE,DISC WHEEL
(9YT),(9YU),(9YW),(90C) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9507-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(9YW),(90C) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9511-9511 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(90C) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9512-9603 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(ASD),(ASY),(90C) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9604-9612 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(ASD),(90C) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9701-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(ASD) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9712- ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H) 15X5.50F STAMP, BLACK 		8-94135-599-0 03 1 9312-9507 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(46C),(92H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9510 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(25H),(26H),(29H),(31H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9510 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(31H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9511- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(25H),(26H),(29H),(46C), (92H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9511- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9511- ●
31 05.839 RING; SIDE,DISC WHEEL
(10V) 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 9312- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(10V),(25H),(26H),(29H),(31H),(46C), (92H) 15X6.00GS STAMP, BLACK 		8-94135-600-0 03 1 9312- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(25H),(26H),(29H),(31H), (37H),(46C),(92H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9312-9507 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(23H),(45C) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9508-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9508-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9508-9510 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9508-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(23H),(45C) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9511- ●
31 05.839 RING; SIDE,DISC WHEEL
(09V) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9511- ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9511- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9511- ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 07 1 9312-9402 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 07 1 9403-9502 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AQE),(06H),(07H),(08V),(50C),(94H), (95H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 07 1 9503-9510 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AQE),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 07 1 9511-9603 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AQE),(ASE),(06H),(07H),(08V),(50C), (94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 07 1 9604- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 07 1 9312-9507 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 9508- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(12H) 16X6.00GS STAMP, BLACK 		8-94135-602-0 07 1 9403-9502 ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9312-9507 ●
31 05.839 RING; SIDE,DISC WHEEL
(9YV),(91C) 16X5.50F STAMP, BLACK 		8-94135-601-0 03 1 9312-9406 ●
31 05.839 RING; SIDE,DISC WHEEL
(9YV),(91C) 16X5.50F STAMP, BLACK 		8-94135-601-0 03 1 9407-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(91C) 16X5.50F STAMP, BLACK 		8-94135-601-0 03 1 9511- ●
çizim 68849
4 31 2 2 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 05.803 WHEEL; DISC
(ATB) (B) 5.5JX16 OFFSET=85 6-HOLE 		8-97162-604-0 05 1 9608- ●
2 05.803 WHEEL; DISC
(09V),(22H),(23H),(45C) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9508-9510 ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9508-9510 ●
2 05.803 WHEEL; DISC
(37H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9508-9510 ●
2 05.803 WHEEL; DISC
(09V),(22H),(23H),(45C) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9511- ●
2 05.803 WHEEL; DISC
(09V) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9511- ●
2 05.803 WHEEL; DISC
(37H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9511- ●
2 05.803 WHEEL; DISC
(23H),(45C) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 05 1 9312-9507 ●
2 05.803 WHEEL; DISC
(23H),(45C) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 9508- ●
2 05.803 WHEEL; DISC
(9YT),(9YU) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 05 1 9312-9506 ●
2 05.803 WHEEL; DISC
(9YT),(9YU),(9YW) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 05 1 9507- ●
2 05.803 WHEEL; DISC
(9YW) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 05 1 9511-9511 ●
2 05.803 WHEEL; DISC
(ARX) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 05 1 9512-9603 ●
2 05.803 WHEEL; DISC
(ARX),(ASY) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 05 1 9604-9612 ●
2 05.803 WHEEL; DISC
(ARX) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 05 1 9701- ●
2 05.803 WHEEL; DISC
(90C) (A) 5.0FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 05 1 9312-9603 ●
2 05.803 WHEEL; DISC
(ASD),(90C) (A) 5.0FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 05 1 9604-9711 ●
2 05.803 WHEEL; DISC
(ASD) (A) 5.0FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 05 1 9712- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85 (AYX) 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 05 1 9808- ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 03 1 9312-9507 ● ●
2 05.803 WHEEL; DISC
(09V),(22H),(46C),(92H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508-9510 ● ●
2 05.803 WHEEL; DISC
(09V),(22H),(25H),(26H),(29H),(31H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508-9510 ● ●
2 05.803 WHEEL; DISC
(37H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508-9510 ●
2 05.803 WHEEL; DISC
(09V),(22H),(31H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9511- ● ●
2 05.803 WHEEL; DISC
(09V),(22H),(25H),(26H),(29H),(46C), (92H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9511- ● ●
2 05.803 WHEEL; DISC
(37H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9511- ●
2 05.803 WHEEL; DISC
(10V) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9312-9507 ● ●
2 05.803 WHEEL; DISC
(10V),(25H),(26H) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(10V),(29H) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(10V),(26H) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(10V),(25H),(29H),(31H),(46C),(92H) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(10V),(25H),(26H),(29H),(31H),(46C), (92H) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 03 1 9312-9507 ● ●
2 05.803 WHEEL; DISC
(10V),(25H),(26H),(29H),(31H),(46C), (92H) (A) 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 9508- ● ●
2 05.803 WHEEL; DISC
(09V),(22H),(25H),(26H),(29H),(31H), (37H),(46C),(92H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9312-9507 ● ● ●
2 05.803 WHEEL; DISC
(37H) (A) 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9312-9507 ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) (A) 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 07 1 9312-9402 ● ● ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (98H) (A) 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 07 1 9403-9502 ● ● ●
2 05.803 WHEEL; DISC
(AQE),(06H),(07H),(08V),(50C),(94H), (95H),(98H) (A) 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 07 1 9503-9507 ● ● ●
2 05.803 WHEEL; DISC
(AQE),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 07 1 9508-9603 ● ● ●
2 05.803 WHEEL; DISC
(AQE),(ASE),(06H),(07H),(08V),(50C), (94H),(95H),(96H),(98H) (A) 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 07 1 9604- ● ● ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 07 1 9312- ● ● ●
2 05.803 WHEEL; DISC
(9HE) (B) 5.5X16 OFFSET=116.5 BLACK 5-HOLE 		8-97070-539-1 07 1 9712- ● ● ●
2 05.803 WHEEL; DISC
(12H) (A) 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 07 1 9403-9502 ●
2 05.803 WHEEL; DISC
(37H) (B) 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-1 05 1 9312-9507 ●
2 05.803 WHEEL; DISC
(37H) (B) 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-1 05 1 9508-9711 ●
2 05.803 WHEEL; DISC
(37H) (B) 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 05 1 9712- ●
2 05.803 WHEEL; DISC
(9YV) (A) 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 03 1 9312-9510 ●
2 05.803 WHEEL; DISC
(91C) (B) 5.0JX14 OFFSET=104 BLACK 6-HOLE 		8-94135-594-1 05 1 9312- ●
2 05.803 WHEEL; DISC
(91C) (A) 5.0FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 03 1 9312- ●
4 05.813 NUT; WHEEL,RR AXLE
M14 LH THREAD 		5-42334-002-0 06 1 9312- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M14 RH THREAD 		5-42333-008-0 06 1 9312- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-94365-146-0 05 1 9312- ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-94365-145-0 05 1 9312- ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M25 LH THREAD 		9-42334-009-0 06 1 9312- ●
4 05.813 NUT; WHEEL,RR AXLE
M25 RH THREAD 		9-42333-015-0 06 1 9312- ●
31 05.839 RING; SIDE,DISC WHEEL
(23H),(45C) 15X5.50F STAMP, BLACK 		8-94135-599-0 05 1 9312- ●
31 05.839 RING; SIDE,DISC WHEEL
(9YT),(9YU),(90C) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9312-9506 ●
31 05.839 RING; SIDE,DISC WHEEL
(9YT),(9YU),(9YW),(90C) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9507-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(9YW),(90C) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9511-9511 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(90C) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9512-9603 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(ASD),(ASY),(90C) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9604-9612 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(ASD),(90C) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9701-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(ASD) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9712- ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H) 15X5.50F STAMP, BLACK 		8-94135-599-0 03 1 9312-9507 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(46C),(92H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9510 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(25H),(26H),(29H),(31H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9510 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(31H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9511- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(25H),(26H),(29H),(46C), (92H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9511- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9511- ●
31 05.839 RING; SIDE,DISC WHEEL
(10V) 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 9312- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(10V),(25H),(26H),(29H),(31H),(46C), (92H) 15X6.00GS STAMP, BLACK 		8-94135-600-0 03 1 9312- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(25H),(26H),(29H),(31H), (37H),(46C),(92H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9312-9507 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(23H),(45C) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9508-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9508-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9508-9510 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9508-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(23H),(45C) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9511- ●
31 05.839 RING; SIDE,DISC WHEEL
(09V) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9511- ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9511- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9511- ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 07 1 9312-9402 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 07 1 9403-9502 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AQE),(06H),(07H),(08V),(50C),(94H), (95H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 07 1 9503-9510 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AQE),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 07 1 9511-9603 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AQE),(ASE),(06H),(07H),(08V),(50C), (94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 07 1 9604- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 07 1 9312-9507 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 9508- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(12H) 16X6.00GS STAMP, BLACK 		8-94135-602-0 07 1 9403-9502 ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9312-9507 ●
31 05.839 RING; SIDE,DISC WHEEL
(9YV),(91C) 16X5.50F STAMP, BLACK 		8-94135-601-0 03 1 9312-9406 ●
31 05.839 RING; SIDE,DISC WHEEL
(9YV),(91C) 16X5.50F STAMP, BLACK 		8-94135-601-0 03 1 9407-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(91C) 16X5.50F STAMP, BLACK 		8-94135-601-0 03 1 9511- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
