4-65D — REAR LEAF SPRING (#47749) — 33 parça

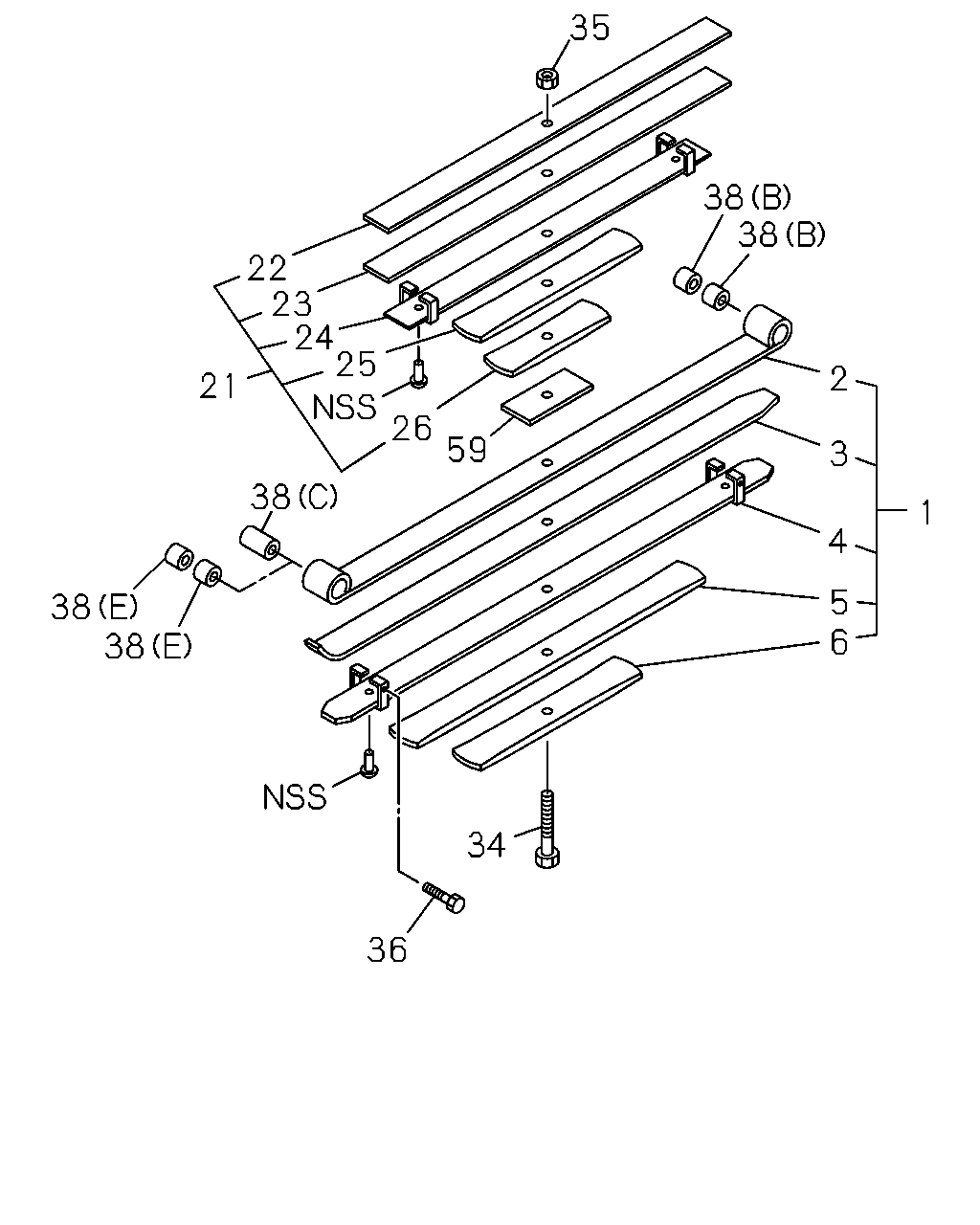

çizim 66638
35 38 38 22 23 24 25 26 2 21 59 3 38 1 4 5 6 38 38 34 36
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-97070-508-1, 97070508 		8-97108-329-0 01 1 -
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: B = 8-97070-509-1, 97070509 		8-97108-417-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-97070-508-1, 97070508 		8-97108-319-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 8-97070-509-1, 97070509 		8-97108-407-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-97070-508-1, 97070508 		8-97108-320-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 8-97070-509-1, 97070509 		8-97108-408-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-97070-508-1, 97070508 		8-97108-321-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 8-97070-509-1, 97070509 		8-97108-409-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-97070-508-1, 97070508 		8-97108-322-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: B = 8-97070-509-1, 97070509 		8-97108-410-0 01 1 -
6 07.505 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-97070-508-1, 97070508 		8-97108-323-0 01 1 -
6 07.505 SPRING; LEAF,NO 5,RR MAIN
ASM PART: B = 8-97070-509-1, 97070509 		8-97108-411-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-97070-508-1, 97070508 		8-97108-330-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: B = 8-97070-509-1, 97070509 		8-97108-418-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-97070-508-1, 97070508 		8-97108-324-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: B = 8-97070-509-1, 97070509 		8-97108-412-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-97070-508-1, 97070508 		8-97108-325-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: B = 8-97070-509-1, 97070509 		8-97108-413-0 01 1 -
24 07.505 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 8-97070-508-1, 97070508 		8-97108-326-0 01 1 -
24 07.505 SPRING; LEAF,NO 3,RR SUB
ASM PART: B = 8-97070-509-1, 97070509 		8-97108-414-0 01 1 -
25 07.505 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 8-97070-508-1, 97070508 		8-97108-327-0 01 1 -
25 07.505 SPRING; LEAF,NO 4,RR SUB
ASM PART: B = 8-97070-509-1, 97070509 		8-97108-415-0 01 1 -
26 07.505 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 8-97070-508-1, 97070508 		8-97108-328-0 01 1 -
26 07.505 SPRING; LEAF,NO 5,RR SUB
ASM PART: B = 8-97070-509-1, 97070509 		8-97108-416-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=125 ASM PART: A = 8-97070-508-1, 97070508, B = 8-97070-509-1, 97070509 		8-94165-311-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-97070-508-1, 97070508, B = 8-97070-509-1, 97070509 		9-99110-512-0 01 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X90.5 ASM PART: B = 8-97070-509-1, 97070509 		8-94407-133-0 02 1 -9506
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X90.5 ASM PART: A = 8-97070-508-1, 97070508 		8-94407-133-0 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (B) ASM PART: A = 8-97070-508-1, 97070508, B = 8-97070-509-1, 97070509 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(E) ASM PART: B = 8-97070-509-1, 97070509 		8-97034-381-0 02 1 -9506
38 07.505 BUSHING; LEAF SPR,RR
(C), OD=42 L=81 ASM PART: B = 8-97070-509-1, 97070509 		8-97074-826-0 01 1 9507-
38 07.505 BUSHING; LEAF SPR,RR
(C), OD=42 L=81 ASM PART: A = 8-97070-508-1, 97070508 		8-97074-826-0 01 1 -
59 07.513 SEAT; RR SPRING,SUB
07.518, T=6 ASM PART: A = 8-97070-508-1, 97070508, B = 8-97070-509-1, 97070509 		8-94367-965-1 01 1 -
