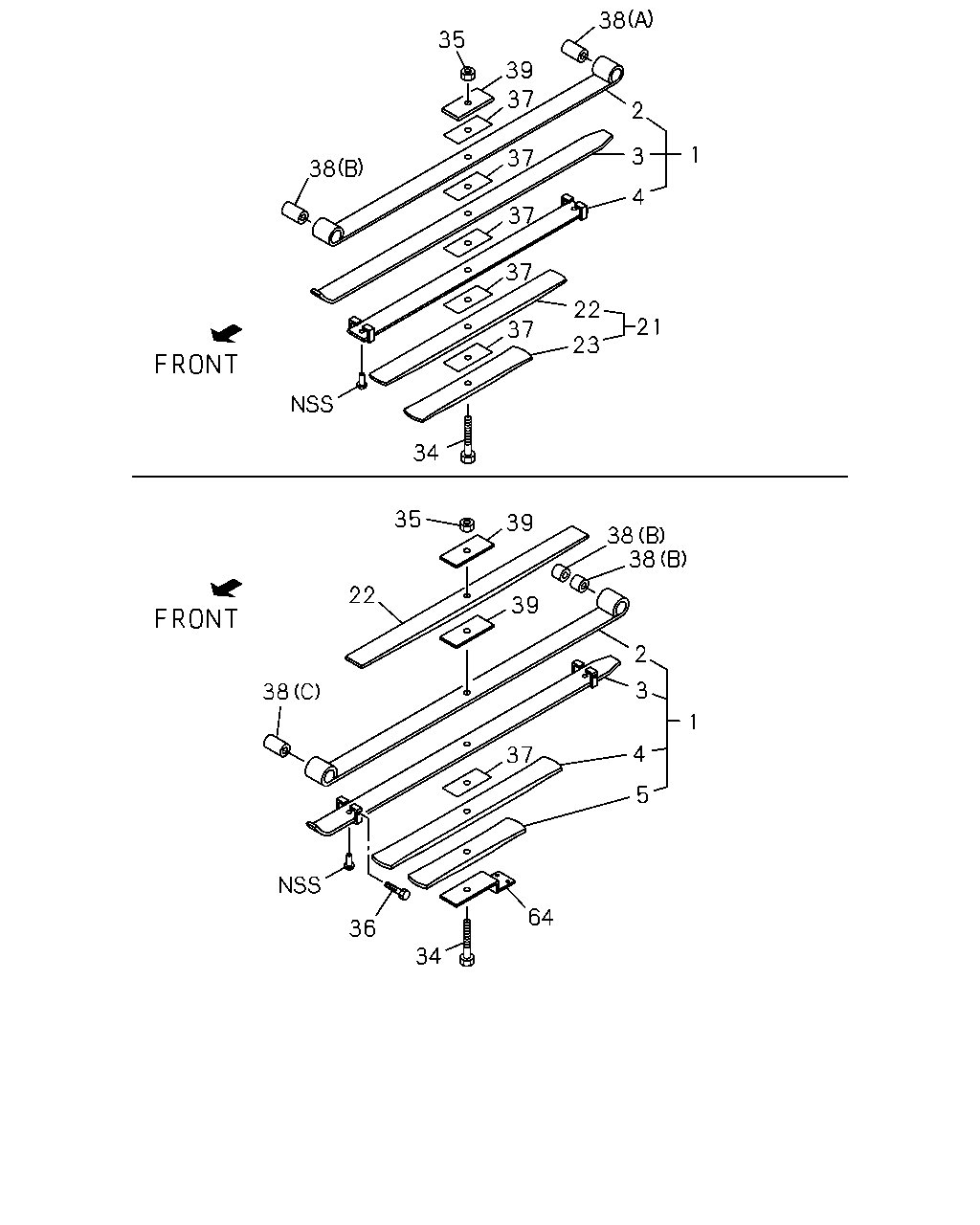

4-65C — REAR LEAF SPRING (#47748) — 41 parça

38 35 39 37 2 1 37 38 4 37 37 22 21 37 23 34 35 39 38 38 22 39 2 3 38 1 4 37 5 64 36 34 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: D = 8-97033-560-0, 97033560	8-97084-757-0	01	1	-
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-97033-500-1, 97033500	8-97085-567-0	01	1	-
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: B = 8-97033-504-2, 97033504	8-97085-582-1	01	1	-
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: C = 8-97033-505-1, 97033505	8-97085-589-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: D = 8-97033-560-0, 97033560	8-97084-758-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97033-500-1, 97033500	8-97085-568-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97033-504-2, 97033504	8-97085-583-1	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-97033-505-1, 97033505	8-97085-590-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-97033-560-0, 97033560	8-97084-759-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97033-500-1, 97033500	8-97085-569-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97033-504-2, 97033504	8-97085-584-1	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97033-505-1, 97033505	8-97085-591-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-97033-560-0, 97033560	8-97084-760-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97033-500-1, 97033500	8-97085-570-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97033-504-2, 97033504	8-97085-585-1	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97033-505-1, 97033505	8-97085-592-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: D = 8-97033-560-0, 97033560	8-97084-761-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: A = 8-97033-500-1, 97033500	8-97085-571-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: B = 8-97033-504-2, 97033504	8-97085-586-1	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: C = 8-97033-505-1, 97033505	8-97085-593-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: D = 8-97033-560-0, 97033560	8-97084-763-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97033-500-1, 97033500	8-97085-572-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97033-504-2, 97033504	8-97085-587-1	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97033-505-1, 97033505	8-97085-594-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-97033-500-1, 97033500	8-97085-573-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-97033-504-2, 97033504	8-97085-588-1	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: C = 8-97033-505-1, 97033505	8-97085-595-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=95 ASM PART: A = 8-97033-500-1, 97033500, B = 8-97033-504-2, 97033504	8-94165-305-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=100 ASM PART: C = 8-97033-505-1, 97033505	8-94165-306-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=105 ASM PART: D = 8-97033-560-0, 97033560	8-94165-307-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-97033-500-1, 97033500, B = 8-97033-504-2, 97033504, C = 8-97033-505-1, 97033505, D = 8-97033-560-0, 97033560	9-99110-512-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: D = 8-97033-560-0, 97033560	8-94407-133-0	02	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-97033-500-1, 97033500, B = 8-97033-504-2, 97033504, C = 8-97033-505-1, 97033505	8-94448-734-0	05	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: D = 8-97033-560-0, 97033560	8-97084-102-0	02	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (B) ASM PART: D = 8-97033-560-0, 97033560	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.105, (B) ASM PART: A = 8-97033-500-1, 97033500, B = 8-97033-504-2, 97033504, C = 8-97033-505-1, 97033505	8-94130-354-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), OD=42 L=85.2 ASM PART: A = 8-97033-500-1, 97033500, B = 8-97033-504-2, 97033504, C = 8-97033-505-1, 97033505	8-97034-380-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (C), OD=42 L=81 ASM PART: D = 8-97033-560-0, 97033560	8-97074-826-0	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN T=12 ASM PART: A = 8-97033-500-1, 97033500, B = 8-97033-504-2, 97033504, C = 8-97033-505-1, 97033505	8-94407-146-1	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN T=8 ASM PART: D = 8-97033-560-0, 97033560	8-97084-668-0	02	1	-
64	07.513 SUPPORT; RR SPR ASM PART: D = 8-97033-560-0, 97033560	8-94342-863-0	01	1	-
