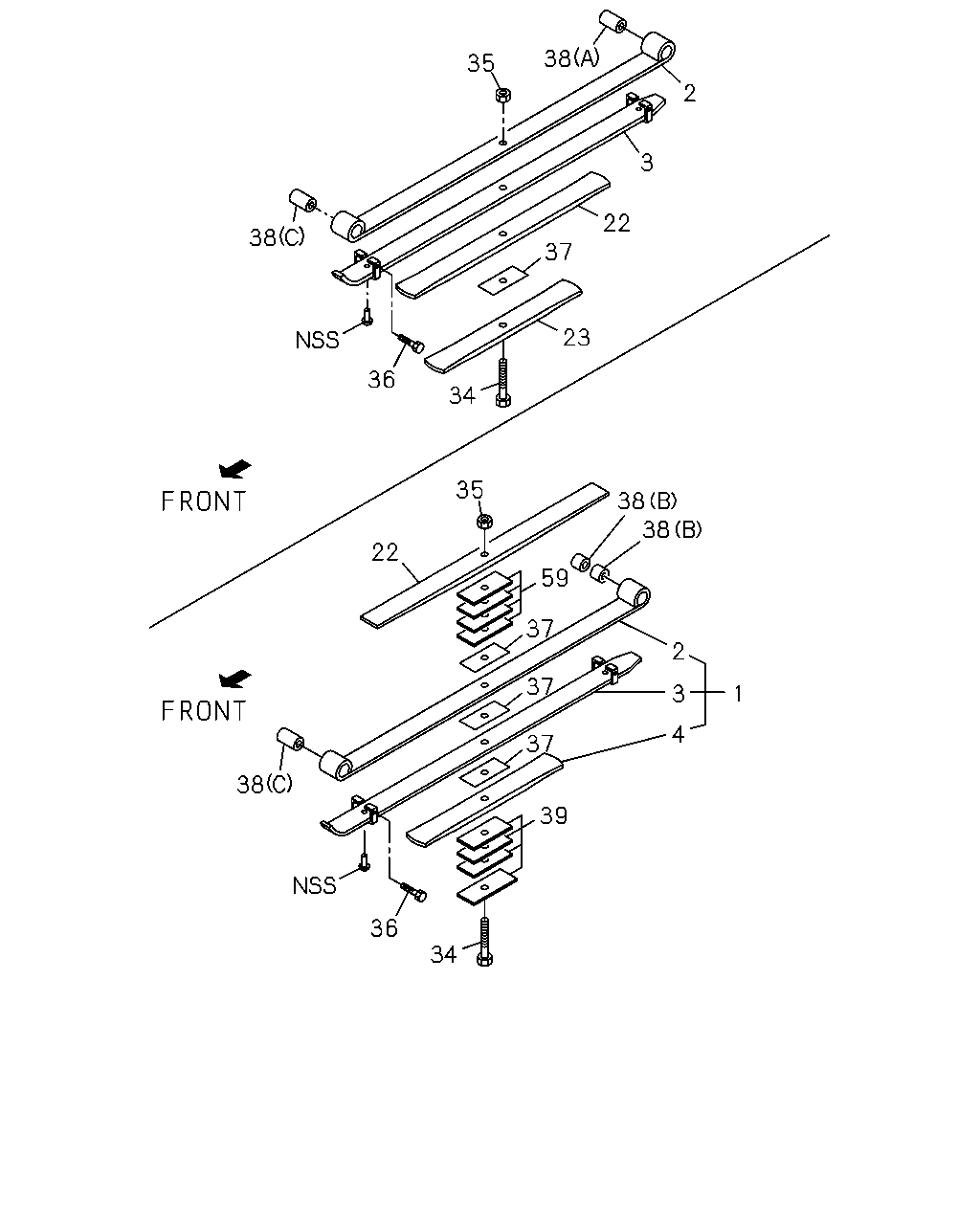

4-65B — REAR LEAF SPRING (#47747) — 24 parça

38 35 2 3 22 38 37 23 36 34 35 38 38 22 59 37 2 37 3 1 4 37 38 39 36 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: B = 8-97033-492-2, 97033492	8-97083-767-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97033-490-4, 97033490	8-97083-759-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97033-492-2, 97033492	8-97083-768-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97033-490-4, 97033490	8-97083-760-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97033-492-2, 97033492	8-97083-769-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97033-492-2, 97033492	8-97083-770-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97033-490-4, 97033490	8-97083-761-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97033-492-2, 97033492	8-97083-772-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-97033-490-4, 97033490	8-97083-762-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=85 ASM PART: A = 8-97033-490-4, 97033490	8-94165-303-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=105 ASM PART: B = 8-97033-492-2, 97033492	8-94165-307-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 08.917, M12 LOCK NUT ASM PART: B = 8-97033-492-2, 97033492	9-09131-512-0	01	1	9504-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-97033-490-4, 97033490	9-99110-512-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: B = 8-97033-492-2, 97033492	9-99110-512-0	01	1	-9503
36	07.506 BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: B = 8-97033-492-2, 97033492	8-94407-133-0	02	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR M8X93.5 ASM PART: A = 8-97033-490-4, 97033490	8-94407-134-0	02	1	-9506
36	07.506 BOLT; CLIP,LEAF SPR,RR M8X91 ASM PART: A = 8-97033-490-4, 97033490	8-97129-688-0	02	1	9507-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: B = 8-97033-492-2, 97033492	8-97084-102-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-97033-490-4, 97033490	8-97084-102-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (B) ASM PART: B = 8-97033-492-2, 97033492	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), OD=42 L=85.2 ASM PART: A = 8-97033-490-4, 97033490	8-97034-380-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (C), OD=42 L=81 ASM PART: A = 8-97033-490-4, 97033490, B = 8-97033-492-2, 97033492	8-97074-826-0	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN T=8 ASM PART: B = 8-97033-492-2, 97033492	8-97084-668-0	04	1	-9503
59	07.513 SEAT; RR SPRING,SUB 07.518, T=8 ASM PART: B = 8-97033-492-2, 97033492	8-97084-668-0	04	1	9504-
