4-60 — REAR SUSPENSION (#47744) — 124 parça
çizim 16684
4 1 157 465 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) 5-LEAF 		8-97033-504-2 02 1 9403-9506 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) 5-LEAF 		8-97033-504-2 02 1 9507- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) 5-LEAF 		8-97033-500-1 02 1 9507- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-97033-505-0 02 1 9312-9402 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. AUSTRALIA EQUIPMENT(RR3) 5-LEAF 		8-97033-505-1 02 1 9403-9506 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-97033-505-1 02 1 9403-9506 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) EXC. AUSTRALIA EQUIPMENT(RR3) 5-LEAF 		8-97033-505-1 02 1 9507- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-97033-505-1 02 1 9507- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP CHASSIS(V4D) 4-LEAF 		8-97033-490-4 02 1 9312- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) 5-LEAF 		8-97033-560-0 02 1 9312-9402 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) 4-LEAF 		8-97033-492-2 02 1 9403- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) 10-LEAF 		8-97070-508-1 02 1 9312- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 10-LEAF 		8-97070-509-1 02 1 9312- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF 		8-97033-488-1 02 1 9312- ●
4 07.516 U-BOLT; RR SPR
L=235 		8-94127-920-1 04 1 9312-9312 ● ●
4 07.516 U-BOLT; RR SPR
L=235 		8-94127-920-1 04 1 9312- ● ●
4 07.516 U-BOLT; RR SPR
EXC. REAR WIDE TREAD(V4T) L=235 		8-94127-920-1 04 1 9312- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) REAR WIDE TREAD(V4T) L=245 		8-94127-921-1 04 1 9312-9312 ●
4 07.516 U-BOLT; RR SPR
EXC. REAR WIDE TREAD(V4T) L=245 		8-94127-921-1 04 1 9312-9312 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) REAR WIDE TREAD(V4T) L=245 		8-94127-921-1 04 1 9312- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) L=265 		8-94127-923-1 04 1 9312-9312 ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) L=265 		8-94127-923-1 04 1 9312- ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.5-7.0TON(RPW) L=285 		8-94132-172-1 04 1 9312-9711 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.5-7.0TON(RPW) L=285 		8-97141-874-0 04 1 9712- ●
4 07.516 U-BOLT; RR SPR
L=215 		8-94127-918-1 04 1 9312- ●
5 07.529 NUT; U-BOLT,RR SPR
07.516 M16 		8-94107-767-0 08 1 9312- ● ● ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-94137-482-1 08 1 9312- ● ● ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
EXC. DUMP CHASSIS(V4D) L=130 T=4.5 		8-94119-069-2 02 1 9312-9404 ● ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT), G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) L=130 T=4.5 		8-94119-069-2 02 1 9405-9510 ● ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) L=130 T=4.5 		8-94119-069-2 02 1 9511- ● ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
DUMP CHASSIS(V4D) L=168 T=8 		8-94118-111-3 02 1 9312- ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 6.5-7.0TON(RPW) L=140 T=4.5 		8-94118-509-1 02 1 9405- ●
157 07.518 CLAMP; UPR,RR SPR
L=130 T=8 		8-94128-484-3 02 1 9312- ●
465 07.518 SHIM; ADJ
RR BODY FLAT BED<RS6> 		8-97072-589-0 AR 1 9712- ● ●
465 07.518 SHIM; ADJ
RR BODY NON FLAT BED(RS5) 		8-97072-589-0 AR 1 9712- ●

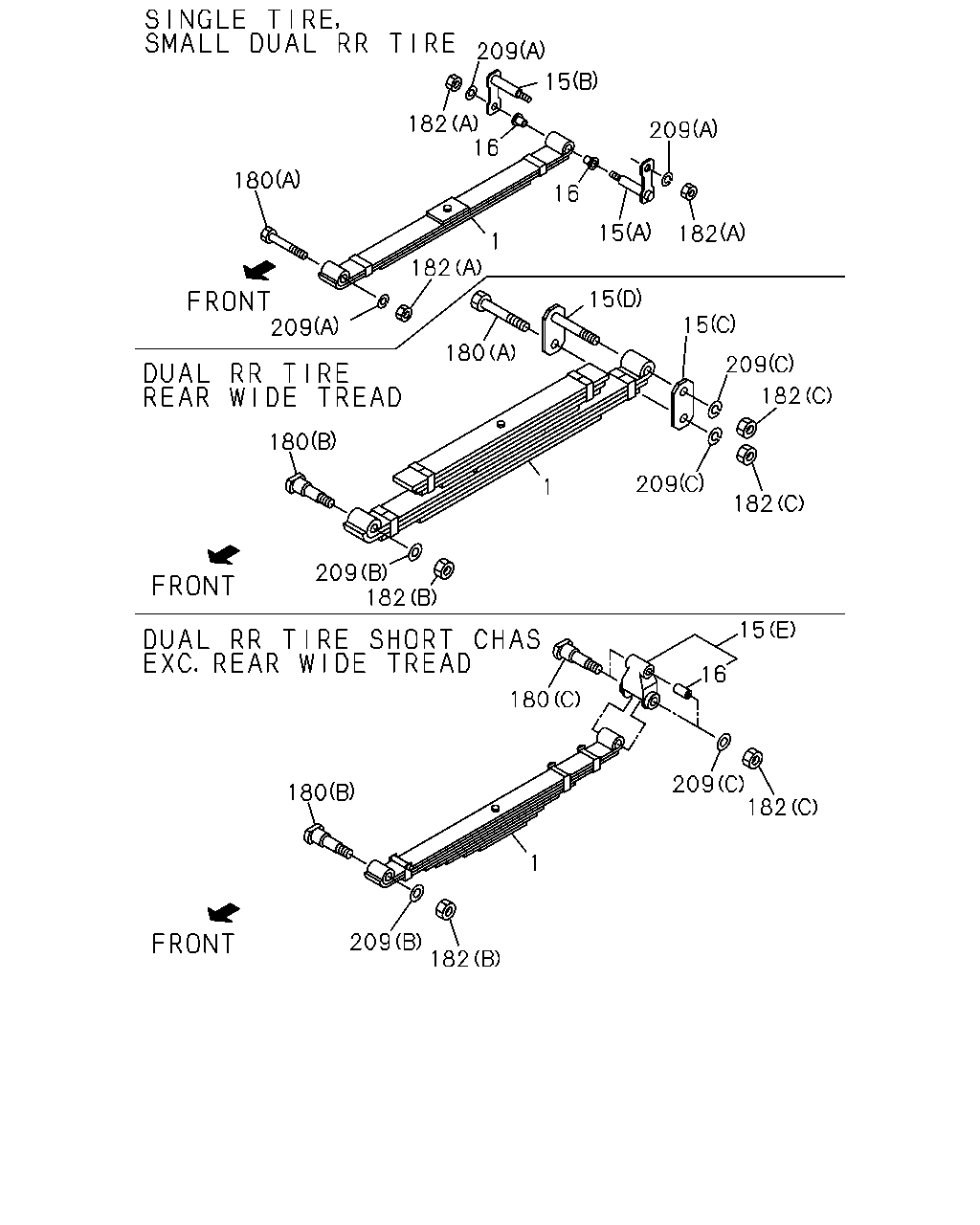

çizim 67122
209 15 182 16 209 180 16 15 182 1 182 15 15 209 180 209 182 180 209 1 182 209 182 15 16 180 209 182 180 1 209 182
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) 5-LEAF 		8-97033-504-2 02 1 9403-9506 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) 5-LEAF 		8-97033-504-2 02 1 9507- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) 5-LEAF 		8-97033-500-1 02 1 9507- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-97033-505-0 02 1 9312-9402 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. AUSTRALIA EQUIPMENT(RR3) 5-LEAF 		8-97033-505-1 02 1 9403-9506 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-97033-505-1 02 1 9403-9506 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) EXC. AUSTRALIA EQUIPMENT(RR3) 5-LEAF 		8-97033-505-1 02 1 9507- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-97033-505-1 02 1 9507- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP CHASSIS(V4D) 4-LEAF 		8-97033-490-4 02 1 9312- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) 5-LEAF 		8-97033-560-0 02 1 9312-9402 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) 4-LEAF 		8-97033-492-2 02 1 9403- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) 10-LEAF 		8-97070-508-1 02 1 9312- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 10-LEAF 		8-97070-509-1 02 1 9312- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF 		8-97033-488-1 02 1 9312- ●
15 07.523 SHACKLE; RR SPR
(A) OUTSIDE 		8-94113-322-3 02 1 9312- ● ● ●
15 07.523 SHACKLE; RR SPR
(B) INSIDE 		8-97033-966-1 02 1 9312- ● ● ●
15 07.523 SHACKLE; RR SPR
REAR WIDE TREAD(V4T) (C) 		8-94118-511-3 02 1 9312- ●
15 07.523 SHACKLE; RR SPR
(C) 		8-94118-511-3 02 1 9312- ● ●
15 07.523 SHACKLE; RR SPR
REAR WIDE TREAD(V4T) (D) W/PIN 		8-94118-512-4 02 1 9312- ●
15 07.523 SHACKLE; RR SPR
(D) W/PIN 		8-94118-512-4 02 1 9312- ● ●
15 07.523 SHACKLE; RR SPR
EXC. REAR WIDE TREAD(V4T) (E) 		8-97034-298-1 02 1 9312- ●
16 07.524 BUSHING; SHACKLE,RR SPR 8-94113-323-2 04 1 9312- ● ● ●
16 07.524 BUSHING; SHACKLE,RR SPR
EXC. REAR WIDE TREAD(V4T) 07.105 OD=42 L=81 		8-94130-354-0 02 1 9312- ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 9312- ● ● ● ● ●
180 07.529 PIN; RR SPR
REAR WIDE TREAD(V4T) KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 9312- ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 9312- ● ● ● ● ●
180 07.529 PIN; RR SPR
REAR WIDE TREAD(V4T) EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 9312- ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> EXC. REAR WIDE TREAD(V4T) (C) L=138 		8-97035-877-0 04 1 9312- ●
180 07.529 PIN; RR SPR
EXC. REAR WIDE TREAD(V4T),KD PREPARATORY PACK<6HF> (C) M16X128 FLANGE 		8-97076-849-2 04 1 9312- ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-97033-967-0 02 1 9312- ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 9312- ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 08.915 (A) M16 		9-99110-516-0 06 1 9312-9510 ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 08.915 (A) M16 		9-99110-516-0 06 1 9511- ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.516 (A) M16 		8-94107-767-0 06 1 9312-9705 ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97147-389-0 06 1 9706- ● ● ●
182 07.529 NUT; PIN,RR SPR
06.216 (B) M18 		9-99110-518-0 02 1 9312- ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 08.915 (C) M16 		9-99110-516-0 04 1 9312-9510 ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 08.915 (C) M16 		9-99110-516-0 04 1 9511- ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.516 (C) M16 		8-94107-767-0 04 1 9312-9705 ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (C) M16 FLANGE 		8-97147-389-0 04 1 9706- ● ● ●
209 07.529 WASHER; PL
07.172 (A) ID=16.5 		8-97070-925-1 06 1 9312-9510 ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 (A) ID=16.5 		8-97070-925-1 06 1 9511- ● ● ●
209 07.529 WASHER; PL
07.172 (C) ID=16.5 		8-97070-925-1 04 1 9312-9510 ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 (C) ID=16.5 		8-97070-925-1 04 1 9511- ● ● ●
209 07.529 WASHER; PL
(B) ID=19 		8-97073-435-1 02 1 9312- ● ● ●
çizim 67155
4 157 1 6 5 4 157 1 155 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) 5-LEAF 		8-97033-504-2 02 1 9403-9506 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) 5-LEAF 		8-97033-504-2 02 1 9507- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) 5-LEAF 		8-97033-500-1 02 1 9507- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-97033-505-0 02 1 9312-9402 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. AUSTRALIA EQUIPMENT(RR3) 5-LEAF 		8-97033-505-1 02 1 9403-9506 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-97033-505-1 02 1 9403-9506 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) EXC. AUSTRALIA EQUIPMENT(RR3) 5-LEAF 		8-97033-505-1 02 1 9507- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-97033-505-1 02 1 9507- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP CHASSIS(V4D) 4-LEAF 		8-97033-490-4 02 1 9312- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) 5-LEAF 		8-97033-560-0 02 1 9312-9402 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) 4-LEAF 		8-97033-492-2 02 1 9403- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) 10-LEAF 		8-97070-508-1 02 1 9312- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 10-LEAF 		8-97070-509-1 02 1 9312- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF 		8-97033-488-1 02 1 9312- ●
4 07.516 U-BOLT; RR SPR
L=235 		8-94127-920-1 04 1 9312-9312 ● ●
4 07.516 U-BOLT; RR SPR
L=235 		8-94127-920-1 04 1 9312- ● ●
4 07.516 U-BOLT; RR SPR
EXC. REAR WIDE TREAD(V4T) L=235 		8-94127-920-1 04 1 9312- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) REAR WIDE TREAD(V4T) L=245 		8-94127-921-1 04 1 9312-9312 ●
4 07.516 U-BOLT; RR SPR
EXC. REAR WIDE TREAD(V4T) L=245 		8-94127-921-1 04 1 9312-9312 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) REAR WIDE TREAD(V4T) L=245 		8-94127-921-1 04 1 9312- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) L=265 		8-94127-923-1 04 1 9312-9312 ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) L=265 		8-94127-923-1 04 1 9312- ● ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.5-7.0TON(RPW) L=285 		8-94132-172-1 04 1 9312-9711 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.5-7.0TON(RPW) L=285 		8-97141-874-0 04 1 9712- ●
4 07.516 U-BOLT; RR SPR
L=215 		8-94127-918-1 04 1 9312- ●
5 07.529 NUT; U-BOLT,RR SPR
07.516 M16 		8-94107-767-0 08 1 9312- ● ● ● ● ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-94137-482-1 08 1 9312- ● ● ● ● ● ●
155 07.380 BRACKET; S/ABS
DUMP CHASSIS(V4D) 		8-94128-363-3 01 1 9312- ●
155 07.380 BRACKET; S/ABS
DUMP CHASSIS(V4D) 		8-94128-362-3 01 1 9312- ●
155 07.380 BRACKET; S/ABS 8-94128-361-4 01 1 9312- ●
155 07.380 BRACKET; S/ABS 8-94128-360-4 01 1 9312- ●
157 07.518 CLAMP; UPR,RR SPR
EXC. DUMP CHASSIS(V4D) L=130 T=4.5 		8-94119-069-2 02 1 9312-9404 ● ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT), G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) L=130 T=4.5 		8-94119-069-2 02 1 9405-9510 ● ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) L=130 T=4.5 		8-94119-069-2 02 1 9511- ● ● ● ● ●
157 07.518 CLAMP; UPR,RR SPR
DUMP CHASSIS(V4D) L=168 T=8 		8-94118-111-3 02 1 9312- ●
157 07.518 CLAMP; UPR,RR SPR
G.V.W. 6.5-7.0TON(RPW) L=140 T=4.5 		8-94118-509-1 02 1 9405- ●
157 07.518 CLAMP; UPR,RR SPR
L=130 T=8 		8-94128-484-3 02 1 9312- ●
çizim 69212
227 225 264 225
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
225 07.535 RUBBER; CUSHION,RR SPR
(A) 		8-94142-044-3 02 1 9312- ● ●
225 07.535 RUBBER; CUSHION,RR SPR
DUMP CHASSIS(V4D) (B) 		8-97035-815-0 02 1 9312- ●
225 07.535 RUBBER; CUSHION,RR SPR
EXC. DUMP CHASSIS(V4D) (A) 		8-94118-510-4 02 1 9312- ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
(A) 		8-94258-734-1 02 1 9312- ●
227 07.535 NUT; CUSHION RUBBER
EXC. DUMP CHASSIS(V4D) 05.586 M12 FLANGE 		0-91150-112-0 02 1 9312- ● ● ● ● ● ●
264 07.529 BOLT; CUSHION RUBBER TO BRKT
DUMP CHASSIS(V4D) 01.652 M10X25 W/LK WASHER 		0-50041-025-0 04 1 9312-9703 ●
264 07.529 BOLT; CUSHION RUBBER TO BRKT
DUMP CHASSIS(V4D) 03.405 M10X25 FLANGE 		0-28681-025-0 04 1 9704- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
